Electrolux E30MO65GSS - 1.5 cu. Ft. Microwave Oven User manual

30" BUILT-IN CONVECTION MICROWAVE
Oven Cavity
Watts
Oven Interior
Interior Light
Turntable Diameter
PANEL FEATURES
Electronic Clock & Timer
Convenience Options –
Help Directory
Reheat
Add A Minute
Popcorn
Defrost
Automatic Sensor Options
Automatic Convection Options –
Auto Broil
Auto Roast
Auto Bake
Manual Convection Options –
Preheat
Convection Bake
Broil
Slow Cook
Low Mix Bake
High Mix Roast
Probe Temperature Options
POWER RATINGS
Microwave – (Watts@120 Volts)
Convection – (Watts@120 Volts)
Amps@120 Volts
Frequency (Mhz)
Voltage Rating
Connected Load (kW Rating) @120 Volts‡
ACCESSORIES
High and Low Racks
SPECIFICATIONS
Oven Cavity Dimensions–
Height
Width
Depth
Overall Exterior Dimensions –
Height
Width
Depth
Approved for Under-Counter Installation
Approved for Electric Single Oven Combination Installation*
Power Cord Location
Shipping Weight (Approx.)
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
* Approved to be used in combination with any Electrolux ICON®Electric Single
Wall Oven and/or Warmer Drawer. (Not approved to be used above any gas wall oven.)
30" Trim Kit (E30MO65TMK) is supplied and includes Stainless Steel Faceplate,
Exhaust Duct Assembly and Bottom Duct Assembly – shipped in separate box.
NOTE: Always consult local and/or national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
1.5 Cu. Ft.
900
Stainless Steel
Yes
15-3/8"
Yes
Yes
Yes
Yes
Yes
Yes
8
4
4
4
Yes
Yes
Yes
Yes
Yes
Yes
10
900
1450
13
2450
120V /60Hz/15A
1.55
Included
9-5/8"
16-1/8"
16-1/8"
21-23/32"
30"
20-29/32"
Yes
Yes
Right Bottom Rear
68 Lbs.
electroluxicon.com
Automatic Cooking Options
Pre-programmed settings that make it easy to
cook with both convection heat and microwave
automatically.
Auto Sensor Cooking
Moisture and humidity are detected, which
adjusts the cooking time and power level for
various foods and quantities.
Convection Cooking
Hot air is circulated throughout the oven cavity
to brown and crisp foods evenly. Oven can
be programmed for ten convection cooking
temperatures for up to 99 minutes, 99 seconds.
Cooking Flexibility
Cooking is easier and faster in an appliance
that combines both microwave technology and
high-speed convection. From warming coffee
to roasting, baking or broiling you’ll capture
conventional flavors in less time.
Designed for the well-lived home.
Built-In Convection Microwave
E30MO65GSS designer series
Microwave shown with Stainless Steel Faceplate

Built-In Convection Microwave
E30MO65GSS designer series
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxicon.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxicon.ca
E30MO65GSS 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Built-In Convection Microwave Specifications
•
Product Weight – 60 Lbs.
•
Voltage Rating – 120V/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.55kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts = 13 Amps
•
Always consult local and/or national electric codes.
•
Allow 19" minimum clearance for 90° door swing.
•
Built-In installation requires use of 30" Trim Kit (E30MO65TMK) which
is supplied and includes Stainless Steel Faceplate, Exhaust Duct
Assembly and Bottom Duct Assembly – shipped in separate box.
•
Minimum 20-1/8" deep oven cutout dimension is critical for proper
installation for oven and faceplate to fit flush against cabinet front.
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Base must be level and front of cabinet square for proper operation.
•
Grounded outlet should NOT be located in shaded area, as indicated.
•
Can NOT be installed above any gas wall oven.
•
Built-In Convection Microwave can be built in alone or is approved to
be used in combination with any Electrolux ICON®Electric Single
Wall Oven and/or Warmer Drawer. (Refer to model-specific Combination
Installation Specifications pages on web.)
•
When used in combination with another Electrolux ICON®built-in
product, a minimum clearance of 3-1/8" required from bottom of Built-In
Microwave cutout to top edge of companion product’s faceplate, leaving
a 2" visible gap between both product faceplates.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
30"min.
20 1/8"
min.
197/8"
min.
203/8"
max.
Full plywood
base required
to support
100 lbs.
2"
min.
261/2"min.
27"max.
2"
(visible
gap)*
30"
Allow at least
19" clearance for door
depth when open
2123/32"
245/8"
2029/32"
Power
cord
location
(right
bottom
rear)
Exhaust Duct
Assembly
Faceplate
195/8 "
Bottom Duct Assembly
7/8"
Bottom Duct Assembly
120V/60Hz
grounded outlet
Outlet should
NOT be located
within shaded
area
26 1/2"20 1/8" min.
19 7/8"
5" 111/2"
*Note: When used in combination with
another Electrolux ICON® built-in product, a
minimum clearance of 31/8" required from
bottom of Built-In Microwave cutout to top
edge of companion product’s faceplate,
leaving a 2"visible gap between both
product faceplates

30" Combination Installation –
Built-In Microwave/Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxicon.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxicon.ca
MO_EW INST 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 24"deep cutout dimension is critical for proper combination
installation, to ensure that each built-in product’s faceplate will fit
flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31"suggested.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 23-1/4" clearance needed for Wall Oven door depth
when open.
30" Built-In Convection Microwave Specifications
•
Product Weight – 60 Lbs.
•
Voltage Rating –120V/ 60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts =1.55kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Consult local building code in the event that cutout opening may
be required to be enclosed with sides, ceiling and rear partition.
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Minimum 3-1/8"clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2"visible gap
between both product faceplates.
30" Electric Single Wall Ovens Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 200 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
* Minimum 3
1
/ 8 "
clearance required
from bottom of
Built-In Microwave
cutout to top edge of
Wall Oven’s faceplate,
leaving a 2"visible
gap between both
product faceplates
** Critical dimension –
MUST be applied
30" Electric Single
Wall Oven Cutout
For models:
E30EW75GPS
E30EW75GSS
30" Built-In
Microwave Cutout
For model:
E30MO65GSS
24"min. 30"min.
3" max.
26
1
/ 2 "min.
27"max.
28
1
/ 2 "min.
28
7
/ 8 "max.
Full plywood base
required to support
100 lbs.
28
1
/ 2 "min.
29"max.
4"x 4" opening
to route armoured
cable
120V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
19
7
/ 8 "min.
20
3
/ 8 "max.
24"min.**
(critical
dimension)
2" min.
31"
suggested
distance
4
1
/ 2 "
min.
required
Bottom cutout
edge must be
finish cut
Full base required
to support 200 lbs.
Electrical junction
box location
2"
(visible
gap)*
5"
11
1
/ 2 "

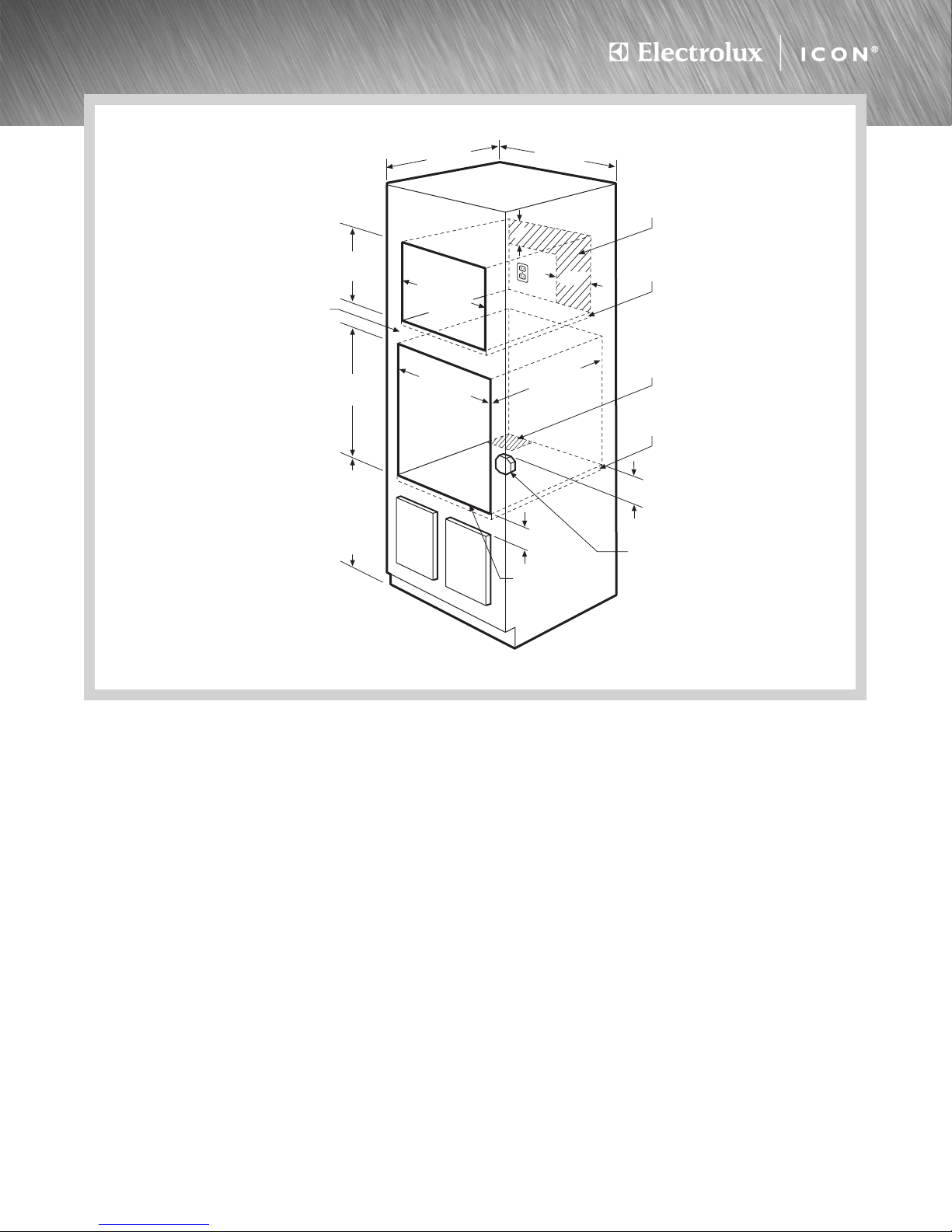

30" Combination Installation –
Built-In Microwave /Single Wall Oven/Warmer Drawer
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxicon.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxicon.ca
MO_EW_WD INST 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 24"deep cutout dimension is critical for proper combination
installation, to ensure that each built-in product’s faceplate will fit
flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer
cutout to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 23-1/4" clearance needed for Wall Oven door depth
when open.
30" Built-In Convection Microwave Specifications
•
Product Weight – 60 Lbs.
•
Voltage Rating –120V/ 60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts =1.55kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Consult local building code in the event that cutout opening may
be required to be enclosed with sides, ceiling and rear partition.
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Minimum 3-1/8"clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2"visible gap
between both product faceplates.
30" Electric Single Wall Ovens Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
To support Wall Oven, two 3"-wide x 3/4" thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawers Specifications
•
Product Weights – (E30WD75GPS/E30WD75GSS) 49 Lbs. /
(E30WD75GTT) 41 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
24"min.
3"max.
††
30"min.
97/8"min.
10 1/4"max.
13/4"min.†
261/2"min.
27"max.
Full plywood base
required to support
100 lbs.
Full plywood base
required to support
100 lbs.
281/2"min.
287/8"max.
281/2"min.
283/4"max.
Two 3" wide
by 3/4" thick
planks must be
installed, capable
of supporting
200 lbs.
30" Warmer
Drawer Cutout
For models:
E30WD75GPS
E30WD75GSS
E30WD75GTT
4"x 4" opening to route
armoured cable
281/2"min.
283/4"max.
5"
111/2"
120V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
41/2"min.
required
197/8"min.
203/8"max.
24"min.**
(critical
dimension)
Electrical junction
box location
Bottom of
oven cutout
115/8"min.**
(critical
dimension)
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
* Minimum 31/8"
clearance required
from bottom of
Built-In Microwave
cutout to top edge of
Wall Oven’s faceplate,
leaving a 2"visible
gap between both
product faceplates
** Critical dimension –
MUST be applied
† Maximum height
depends on critical
dimension (115/8")
†† Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
2"
(visible
gap)*
30" Electric Single
Wall Oven Cutout
For models:
E30EW75GPS
E30EW75GSS
30" Built-In
Microwave Cutout
For model:
E30MO65GSS
