Electrolux B4401-5 User manual

B4401-5
User manual Built-In Electric Oven

2
Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per-
formance and control - indeed we are setting the highest standards of excel-
lence.
In addition to this you find environmental and energy saving aspects as an inte-
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect-
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

3Contents
Contents
Operating Instructions 5
Safety instructions 5
Description of the Appliance 7
General Overview 7
Control Panel 7
Oven Features 8
Oven accessories 9
Before Using for the first time 10
Initial Cleaning 10
Using the Oven 11
Switching the Oven On and Off 11
Oven Functions 12
Inserting the Oven Shelf, Baking Tray and Roasting Pan 13
Inserting/Removing the Grease Filter 14
Additional functions 15
Countdown 16
Meat probe 17
Uses, Tables and Tips 19
Baking 19
Baking table 21
Table for Bakes and Gratins 27
Frozen Ready Meals Table 27
Roasting 28
Roasting table 28
Meat probe Table 30
Grill Sizes 31
Grilling table 31
Defrosting 32
Defrosting table 32
Drying 33
Making Preserves 34

Contents4
Cleaning and Care 35
Outside of the appliance 35
Oven interior 35
Accessories 35
Fat Filter 35
Shelf Support Rails 36
Oven Lighting 37
Oven Ceiling 38
Oven door 39
Oven door glass 41
What to do if … 44
Disposal 45
Installation Instructions 46
Safety information for the installer 46
Guarantee/Customer Service 49
Service 51

5Operating Instructions
Operating Instructions
1Safety instructions
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only be carried out by qualified service engi-
neers. Considerable danger may result from improper repairs. If repairs be-
come necessary, please contact our Customer Services or your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
Safety whilst Using
•People (including children) who, because of their physical, sensory or mental
capabilities or their inexperience or ignorance are not able to use the device
safely, should not use this device without supervision or instruction by a re-
sponsible person.
•This appliance is intended to be used for cooking, roasting and baking food in
the home.
•Take care when connecting electric appliances to sockets nearby. Do not allow
connecting leads to come into contact with or to catch beneath the hot oven
door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcohol-air
mixture that is easily ignited. In this case, open the door carefully. Do not have
embers, sparks or naked flames in the vicinity when opening the door.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe-
cially in products containing starch, can constitute a health risk due to acryla-
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.

Safety instructions6
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots,
etc. on the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not
be able to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause dam-
age to or discoloration of the enamel.
•Rough handling, especially around the edges of the front panel, can cause the
glass to break.
•Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
•Do not store any moist foods inside the oven. This could damage the oven
enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven.
Moisture may condense in the oven interior or on the glass doors and may get
into the units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not af-
fect the appliance’s suitability for normal and correct use. They therefore do not
constitute a defect in the sense of the warranty law.

7Description of the Appliance
Description of the Appliance
General Overview
Control Panel
Full glass door
Control panel
Door
handle
Oven Functions Temperature selector
Selection buttons
Oven Power Indicator Temperature Pilot Light
Temperature /
Time Display

Description of the Appliance8

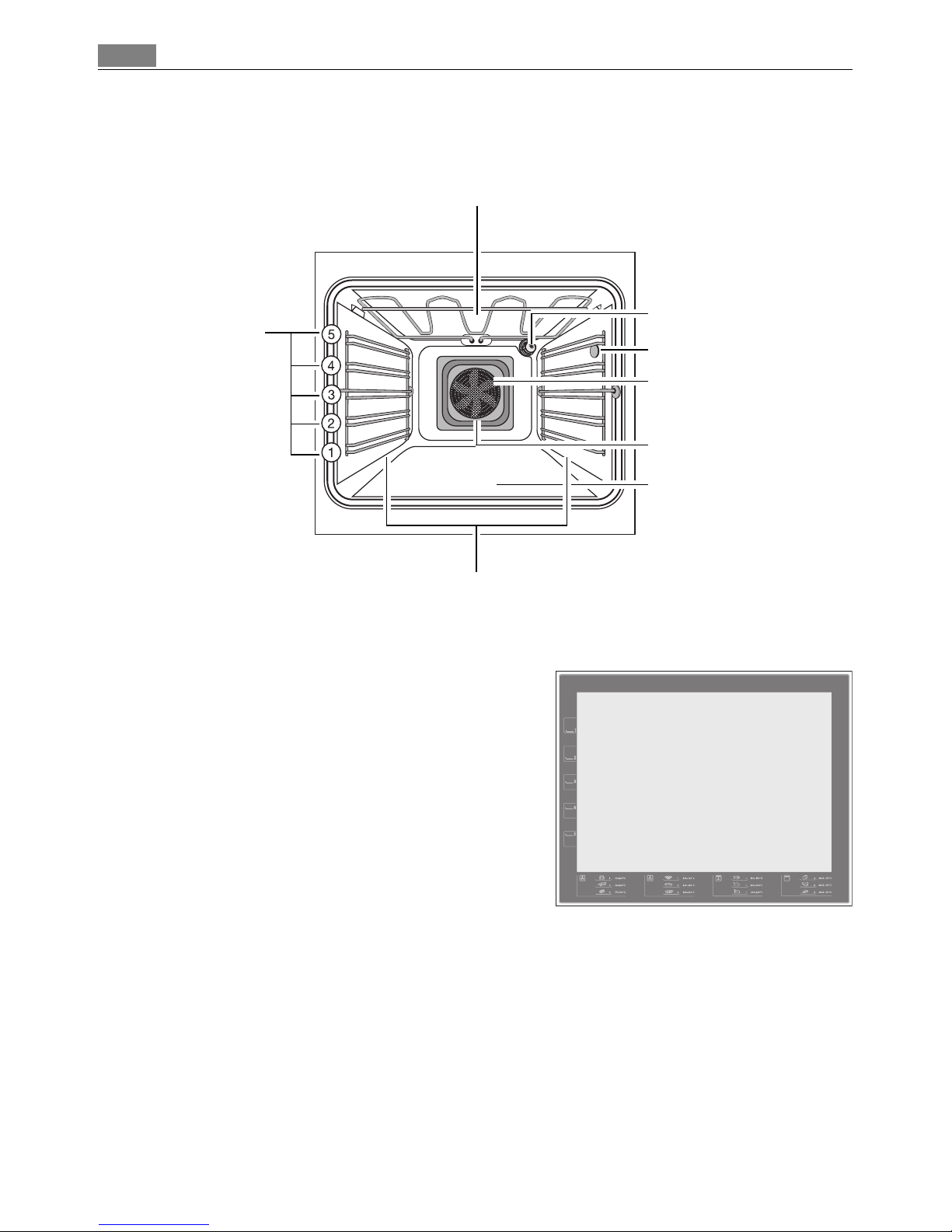

Oven Features
Inside of door
On the inside of the oven door you will find
the numbers of the different oven shelves.
You will also find some brief information
about the oven's functions, recommended
shelves and temperatures for cooking the
most popular dishes.
Top heat and heating elements
Oven lighting
Meat probe socket
Fat Filter
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

9Description of the Appliance

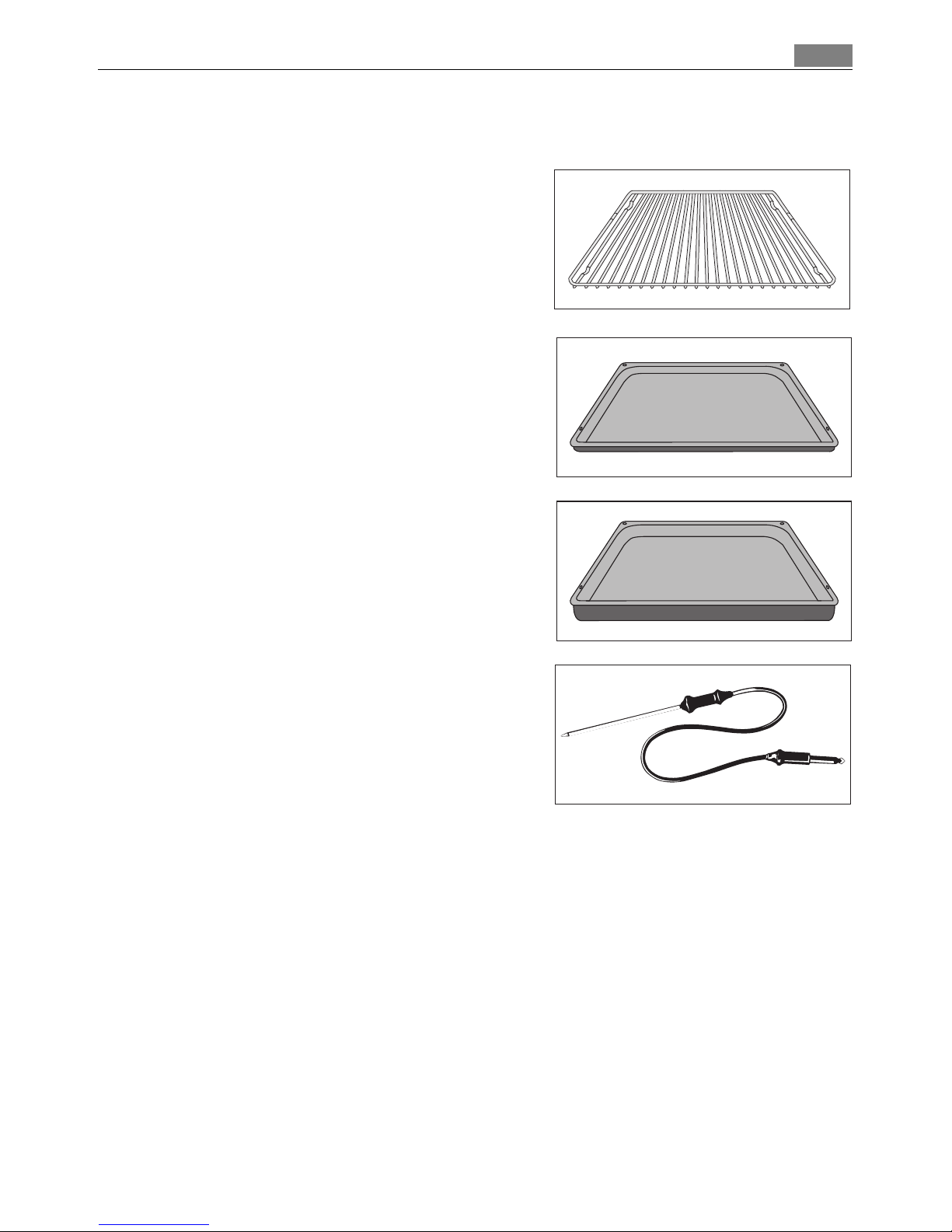

Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled
foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for col-
lecting fat.
Meat probe
For determining exactly how far joints of
meat are cooked.

Before Using for the first time10
Before Using for the first time
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
1Caution: Do not use any caustic, abrasive cleaners! The surface could be dam-
aged.
3To clean metal fronts use commercially available cleaning agents.
1. Turn the oven function switch to oven lighting .
2. Remove all accessories and the shelf support rails and wash them with warm
water and washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid, and dry.
4. Wipe the front of the appliance with a damp cloth.

11Using the Oven
Using the Oven
3The oven is equipped with retractable buttons for “Oven functions” and “Tem-
perature selection”. To use, press the relevant button. The button then sticks out.
Switching the Oven On and Off
1. Turn the oven functions dial to the desired function.
2. Turn the temperature selector to the desired temperature.
The power indicator is lit as long as the oven is in operation.
The temperature pilot light is lit as long as the oven is heating up.
3. To turn the oven off, turn the oven functions dial and the temperature selector
to the Off position.
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool.
When the oven is switched off, the fan continues to run to cool the appliance
down, then switches itself off automatically.

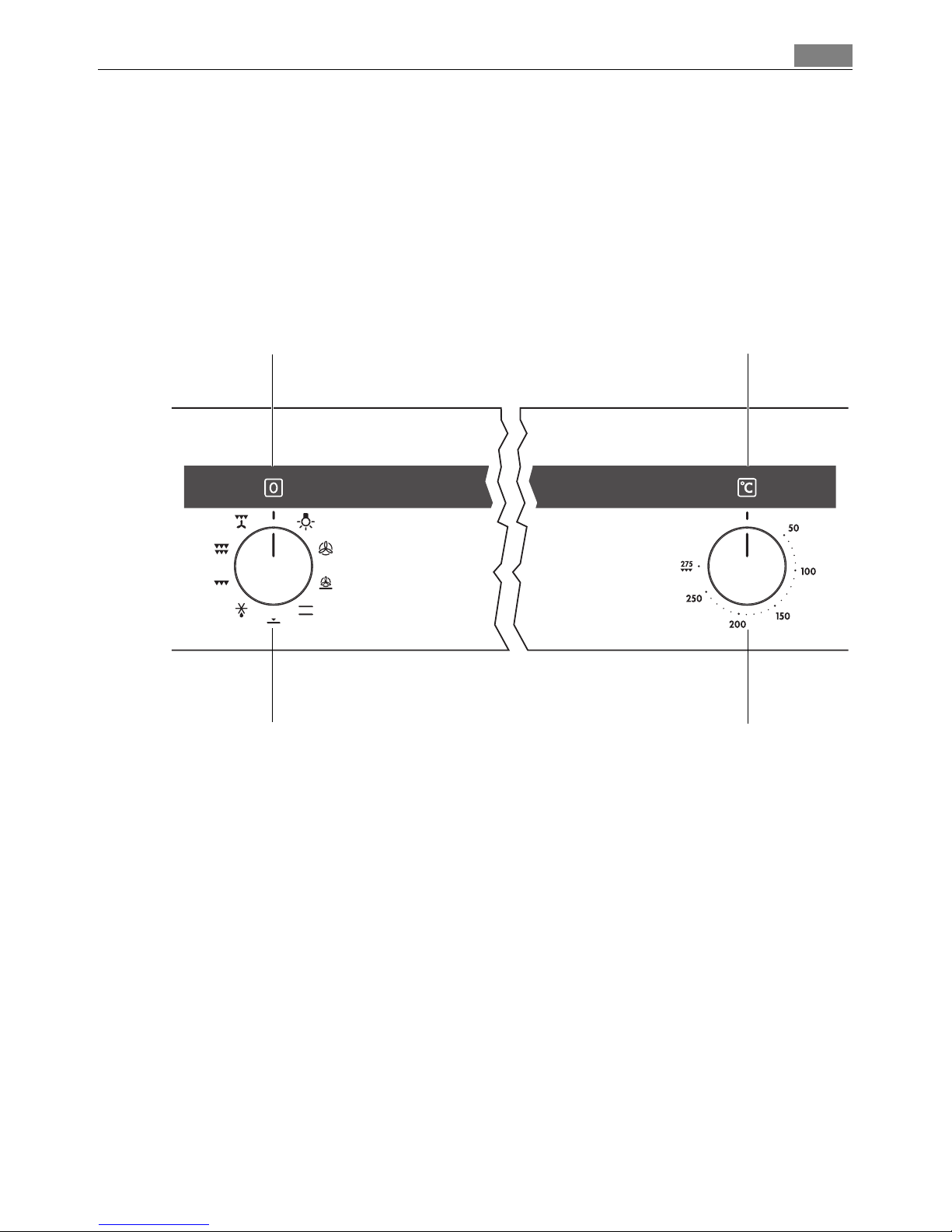

Temperature Pilot Light
Oven Functions Temperature selector
Oven Power Indicator

Using the Oven12
Oven Functions
The oven has the following functions:
Oven function Application
Light Using this function you can light up the oven interior, e.g. for
cleaning.
Convection with
ring heating
element
For baking on up to three oven levels at the same time.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Pizza setting For baking on one oven level dishes that require more inten-
sive browning and a crispy base.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Conventional For baking and roasting on one oven level.
Bottom heat For baking cakes with crispy or crusty bases.
Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or
other frozen foods.
Grill For grilling flat foodstuffs placed in the middle of the grill
and for toasting.
Dual grill For grilling flat foodstuffs in large quantities and for toast-
ing.
Rotitherm For roasting larger joints of meat or poultry on one level.
The function is also suitable for gratinating and browning.

13Using the Oven
Inserting the Oven Shelf, Baking Tray and Roasting Pan
3Shelf runner safety and anti-tip device
As a shelf runner safety device, all insertable components have a small curved
indentation at the bottom on the right and left-hand edge.
Always insert insertable components so that this indentation is at the back of
the oven interior. This indentation is also important for preventing the insertable
components from tipping.
Inserting the baking tray or roasting
pan
Push the baking tray or roasting pan be-
tween the guide bars of the selected oven
level.
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Push the oven shelf between the guide bars
of the selected oven level.
3The high rim around the oven shelf is an
additional device to prevent cookware from
slipping.
Inserting the oven shelf and roasting
pan together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the guide
bars of the selected oven level.

Using the Oven14
Inserting/Removing the Grease Filter
Only use the grease filter when roasting
to protect the rear heating elements from
fat splashes.
Inserting the grease filter
Hold the grease filter by the grip
and insert the two mounts down-
wards into the opening on the rear
wall of the oven (fan opening).
Taking out the grease filter
Hold the grease filter by the grip
and unhook it.

15Using the Oven
Additional functions
Either Countdown or Meat probe
can be set.
3General Hints
•After a function has been selected, the display flashes for about 5 seconds.
While it flashes, the desired time can be set using the or buttons.
•When the desired time has been set, the display flashes for another 5 seconds.
The set time begins to run.
•Press any of the buttons to stop the signal.
•The desired oven function and temperature can be selected before or after
setting the clock functions.
•When cooking is finished, turn the oven and temperature selectors back to ze-
ro.
Countdown
To set a countdown.
Meat probe
To set a core temperature.
Time or temperature display
Selector buttons

Using the Oven16
Countdown
3This function has no effect on the operation of the oven.
1. Press any button.
“0:00” flashes in the display.
2. Within 5 seconds, set the desired count-
down using the or buttons
(max. 99 minutes).
After 5 seconds the display shows the time
remaining.
When the time has elapsed, “0.00” is dis-
played and an audible signal sounds for
2minutes.
3. The signal can be stopped by pressing any
button.

17Using the Oven
Meat probe
After a set core temperature is reached, an audible signal sounds.
3The oven is not switched off!
There are two temperatures to consider:
–The oven temperature: see Roasting Table
–Core temperature: see Meat probe Table
1Important: Only the meat probe supplied may be used. If replacing, only use
genuine spare parts.
1. Push the tip of the meat probe right into
the meat so that the tip is in the centre of
the meat.
2. Insert the meat probe plug into the socket
on the side wall of the oven as far as it will
go
3. Select desired oven function and tempera-
ture.
The suggested temperature appears in the
display.
3The core temperature is displayed once it
reaches 30°C and thereafter.
4. Using the or button, set the desired
core temperature.

Using the Oven18
After approx. 5 seconds, the current core
temperature is shown in the display.
As soon as the actual core temperature has
reached the set temperature, an audible
signal sounds.
Press any button to switch off the signal.
1Warning: The meat probe is hot! There is a
risk of being burned when removing the
plug and the tip of the meat probe.
3The oven is not switched off!
5. Remove the meat probe’s plug from the
socket and take the meat with the meat
probe still inserted out of the oven.
6. Switch off oven functions and tempera-
ture.
Checking or changing the meat core
temperature:
–If you press the or buttons once,
the set core temperature is displayed.
–By pressing or several times, it is
possible to change the selected temperature subsequently.

19Uses, Tables and Tips
Uses, Tables and Tips
Baking
Oven function: Convection with ring heating element or
Conventional
Baking tins
•For Conventional dark metal and non-stick tins are suitable.
•For Convection with ring heating element bright metal tins are also suita-
ble.
Oven levels
•Baking with Conventional is possible on one oven level.
•With Convection with ring heating element you can bake on up to 3 baking
trays at the same time:
1 baking tray:
e.g. oven level 3
1 cake tin:
e.g. oven level 1
2 baking trays:
z. g., oven levels 1 and 3
3 baking trays:
oven levels 1, 3 and 5

Uses, Tables and Tips20
General Instructions
•Insert the tray with the bevel at the front.
•With Conventional or Convection with ring heating element you can
also bake with two tins next to one another on the oven shelf at the same
time. This does not significantly increase baking time.
3When frozen foods are used the trays inserted may distort during cooking. This
is due to the large difference in temperature between the freezing temperature
and the temperature in the oven. Once the trays have cooled the distortion will
disappear again.
How to use the Baking Tables
The tables give the required temperature settings, baking times and oven shelf
levels for a selection of typical dishes.
•Temperatures and baking times are for guidance only, as these will depend on
the consistency of pastry, dough or mixture, the amount and the type of bak-
ing tin.
•We recommend using the lower temperature the first time and then if neces-
sary, for example, if a deeper browning is required, or baking time is too long,
selecting a higher temperature.
•If you cannot find the settings for a particular recipe, look for the one that is
most similar.
•If baking cakes on baking trays or in tins on more than one level, baking time
may be extended by 10-15 minutes.
•Moist recipes (for example, pizzas, fruit flans, etc.) are baked on one level.
•Cakes and pastries at different heights may brown at an uneven rate at first. If
this occurs, please do not change the temperature setting. Different rates
of browning even out as baking progresses.
•Your new oven may bake or roast differently to your previous appliance. So
adapt your normal settings (temperature, cooking times) and oven shelf levels
to the recommendations in the following tables.
2With longer baking times, the oven can be switched off about 10 minutes before
the end of baking time, to make use of the residual heat.
Unless otherwise stated, the values given in the tables assume that cooking is
started with the oven cold.
