Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per-
formance and control - indeed we are setting the highest standards of excel-
lence.
In addition to this you find environmental and energy saving aspects as an inte-
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect-
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

3Contents
Contents
Operating Instructions 5
Safety instructions 5
Description of the Appliance 7
General Overview 7
Control Panel 7
Oven Features 8
Oven Accessories 9
Grill set 9
Before using for the first time 10
Setting the Time 10
Initial cleaning 11
Operating the Oven 12
The Electronic Oven Control 12
Heat indicator 15
Speedcook 16
Oven Functions 17
Inserting the Oven Shelf and the Roasting Pan 18
Grill set 19
Non-stick accessories 19
Meat probe 20
Additional functions 23
Heat+Hold 30
Other functions 32
Switching off the display 32
Child safety device 33
Button lock 33
Oven automatic cut-out 34

Contents4
Usage, Tables and Tips 35
Baking 35
Baking Tables 37
Table: Desserts 41
Table for Bakes and Gratins 42
Frozen Ready Meals Table 42
Roasting 43
Table: Meat, roasting, casseroles 44
Table: Roasting, casseroles, au gratin 45
Meat Probe Table 46
Low temperature cooking 47
Table Low temperature cooking 47
Grill sizes 48
Grilling table 48
Defrosting 49
Defrosting table 49
Drying 50
Making Preserves 51
Cleaning and care 52
Outside of the appliance 52
Oven interior 52
Accessories 53
Non-stick accessories 53
Pyrolytic cleaning 54
Cleaning Reminder 55
Shelf Support Rails 56
Oven Lighting 57
Oven door 58
Oven door glass 60
What to do if … 64
Electrical Connection 66
Disposal 67
Installation Instructions 68
Safety information for the installer 68
Guarantee/Customer Service 72
Service and Spare Parts 75

5Operating Instructions
Operating Instructions
1Safety instructions
Electrical safety
•This appliance must be connected by a qualified electrician only.
•In the event of a fault or damage to the appliance: take the fuses out or
switch off.
•Repairs to the appliance must only be carried out by qualified service en-
gineers. Considerable danger may result from improper repairs. If repairs be-
come necessary, please contact your local Service Force Centre.
Child Safety
•Never leave children unsupervised when the appliance is in use.
Safety whilst Using
•People (including children) who, because of their physical, sensory or mental
capabilities or their inexperience or ignorance are not able to use the device
safely, should not use this device without supervision or instruction by a re-
sponsible person.
•This appliance is intended to be used for cooking, roasting and baking food in
the home.
•Take care when connecting electric appliances to sockets nearby. Do not allow
connecting leads to come into contact with or to catch beneath the hot oven
door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcohol-air
mixture that is easily ignited. In this case, open the door carefully. Do not have
embers, sparks or naked flames in the vicinity when opening the door.

Safety instructions6
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots,
etc. on the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not
be able to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause dam-
age to the enamel and discolouration.
•Rough handling, especially around the edges of the front panel, can cause the
glass to break.
•Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
•Do not store any moist foods inside the oven. This could damage the oven
enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven.
Moisture may condense in the oven interior or on the glass doors and may get
into the units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not af-
fect the appliance’s suitability for normal and correct use. They therefore do not
constitute a defect in the sense of the warranty law.

7Description of the Appliance
Description of the Appliance
General Overview
Control Panel
Full glass
door
Control panel
Door
handle
Oven display
Function buttons
Oven

Description of the Appliance8
Oven Features
Inside of door
On the inside of the oven door you will find
the numbers of the different oven shelves.
You will also find some brief information
about the oven's functions, recommended
shelves and temperatures for cooking the
most popular dishes.
Top heat and heating elements
Oven lighting
Meat probe socket
Oven lighting
Fan heating element
Fan
Bottom heat
Shelf positions
Oven shelf runners, removable

9Description of the Appliance
Oven Accessories
Oven shelf for non-stick
For cookware, cake tins, roasts and grilled
foods.
Grill set
Grill
Insert for the roasting pan for roasting and
grilling.
Roasting Pan
For baking and roasting or as a pan for col-
lecting fat.
Meat probe
For determining exactly how far joints of
meat are cooked

Before using for the first time10
Before using for the first time
Setting the Time
3The oven only operates when the time has been set.
When the appliance is connected to the
electrical supply or when there has been a
power cut, Time flashes automatically..
Using the or button, set the current
time.
After approx. 5 seconds, the clock stops
flashing and the clock displays the time of
day set.
The appliance is now ready to use.

11Before using for the first time
Initial cleaning
Clean the oven before using it for the first time.
1Important: Do not use caustic or abrasive cleaning agents! These can damage
the oven surfaces.
3For the metal surfaces, use commercially available cleaning agents.
1. Open the oven door.
The oven light is illuminated.
2. Remove all oven accessories, and clean them with warm water and a scouring
agent.
3. Wash the oven in the same way, and wipe dry.
4. Wipe the front of the appliance with a damp cloth.

Operating the Oven12
Operating the Oven
The Electronic Oven Control
3General instructions
•Always switch the appliance on first by pressing the On/Off button.
•When the selected function is lit, the oven begins to heat up or the time set
begins to count down.
•The Operating time display shows how long the oven has been operating. This
display can only be seen if none of the clock functions Countdown , Cook
time or End time are set.
•The oven light is switched on as soon as an oven function is selected.
•When the selected temperature is reached, an audible signal sounds.
•Switch off the oven using the On/Off button.
Selector buttons
Temperature/Time
Oven function selection
Clock functions/Operating timeOven Functions
Clock functions
Meat probe
Heat indicator
On/Off
Speedcook

13Operating the Oven

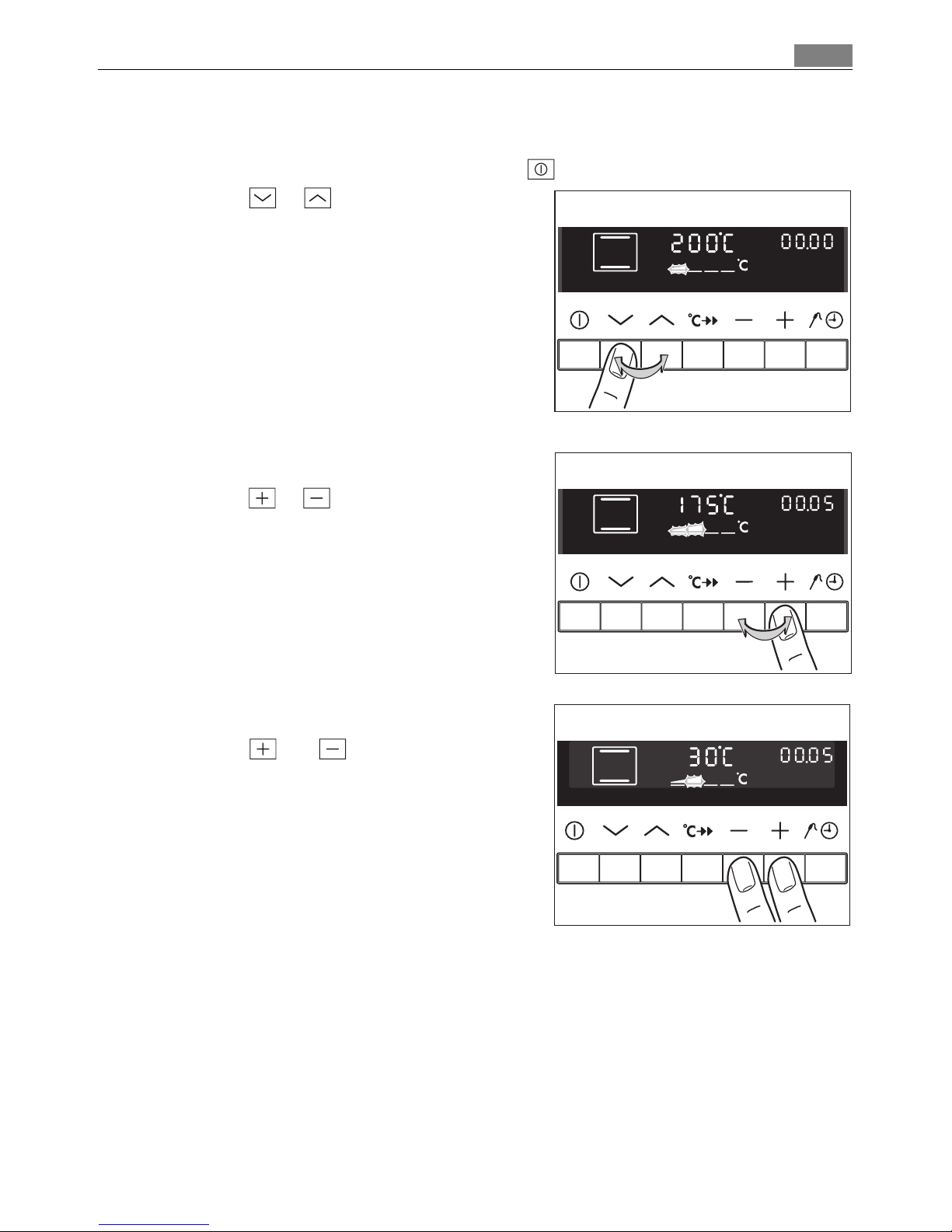

Selecting an oven function
1. Switch on the appliance using the On/Off button.
2. Press the or button repeatedly until
the desired oven function appears.
•A suggested temperature appears in the
temperature display.
•If the suggested temperature is not
changed within approx. 5 seconds, the
oven starts to heat up.
3The oven function can be changed while
the oven is working.
Changing the oven temperature
Press the or button to raise or lower
the temperature.
The setting changes in steps of 5°C.
Checking the temperature
Press the and buttons at the same
time. The current oven temperature ap-
pears in the temperature display.
3The temperature check does not work with
oven functions with suggested tempera-
tures that cannot be adjusted, such as e. g.,
Low temperature cooking.

Operating the Oven14
Switching off the oven function
To switch off the oven, press the or
button repeatedly until no oven function is
displayed.
Switching the oven off
Switch off the appliance using the On/
Off button.
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool.
When the oven is switched off, the fan continues to run to cool the appliance
down, then switches itself off automatically.

15Operating the Oven

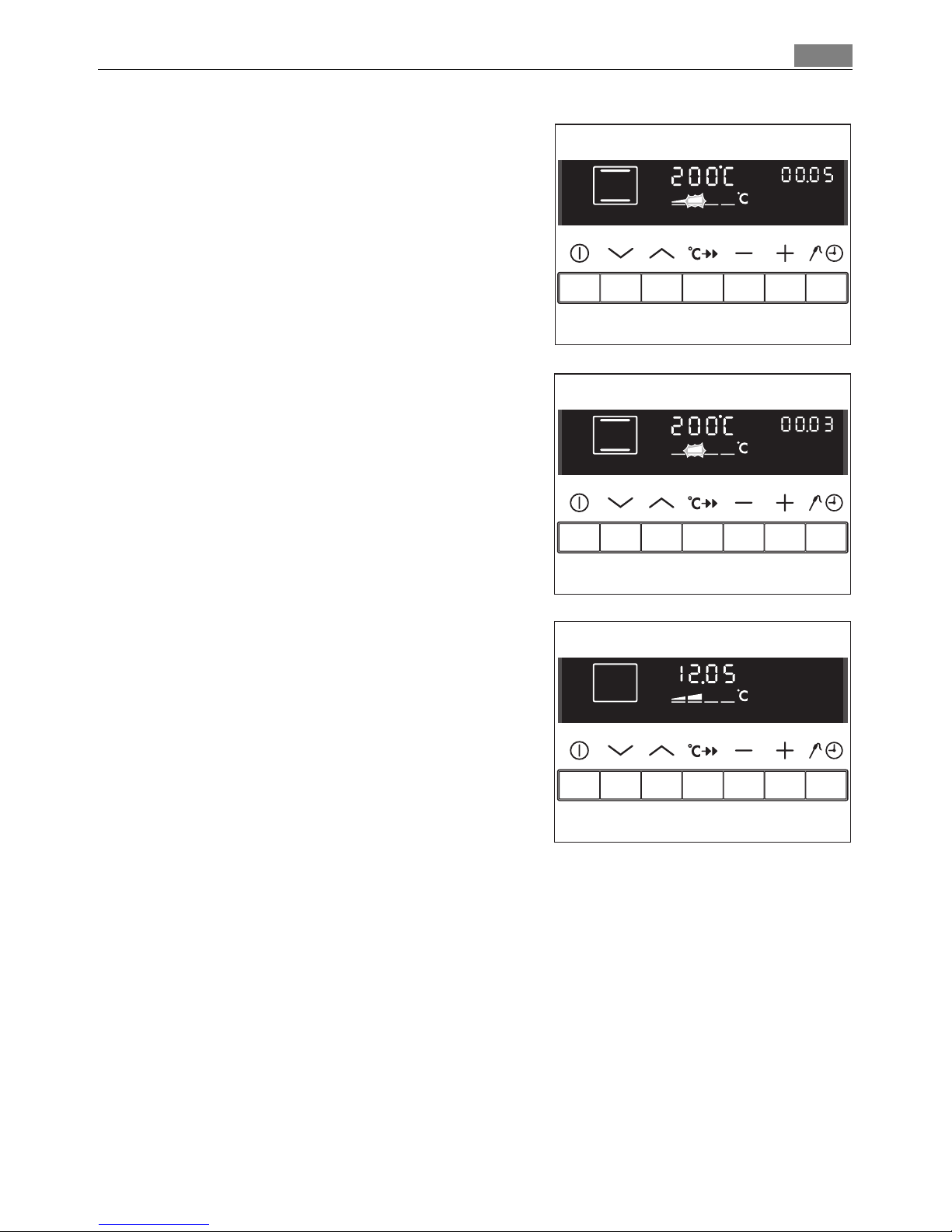

3Heat indicator
Indicates warming up
When the oven function has been
switched on the bars that slowly light up
one after the other indicate how far the
oven has heated up.
Speedcook indicator
When the Speedcook function has been
switched on, the bars that flash one after
the other indicate that fast heating is
working.
Residual heat indicator
When the oven function has been
switched off, the bars that are still lit indi-
cate the remaining residual heat in the ov-
en.

Operating the Oven16
Speedcook
After an oven function is selected, with the use of the additional function
Speedcook the empty oven can be pre-heated in a relatively short time.
1Important: Do not put the food to be cooked into the oven, until Speedcook is
completed and the oven is operating using the desired function.
1. Set the desired oven function (e. g. Conventional ). If necessary, change the
suggested temperature.
2. Press the Speedcook button.
The bars flashing one after another show that Speedcook is operating.
When the temperature set is reached, the bars of the heat indicator light up. An
audible signal sounds.
The oven now continues heating according to the pre-set oven function and
temperature. You can now place the food in the oven.
3The Speedcook function can be switched on with the oven functions Convection
with ring heating element , Pizza setting , Conventional and
Rotitherm .

17Operating the Oven
Oven Functions
The oven has the following functions:
Oven function Use
Convection with
ring heating
element
For baking on up to three oven shelves at the same time.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Pizza setting For baking on one oven level dishes that require more inten-
sive browning and a crispy base.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Low temperature
cooking
For preparing especially tender, succulent roasts.
Conventional For baking and roasting on one oven level.
Rotitherm For roasting larger joints of meat or poultry on one oven shelf.
The function is also suitable for browning and gratinbaking.
Dual gril For grilling flat food items in large quantities and for toast-
ing.
Grill For grilling flat food items arranged in the middle of the grill
and for toasting.
Keep warm To keep dishes warm.
Defrost For defrosting e. g. gateaux and flans, butter, bread, fruit or
other frozen foods.
Bottom heat For baking cakes with crispy or crusty bases.
Pyroluxe For automatic pyrolytic cleaning of the oven. It burns off resi-
dues in the oven, which can then be removed with a cloth
when the oven has cooled down. The oven is heated to approx.
500 °C.

Operating the Oven18
Inserting the Oven Shelf and the Roasting Pan
3Shelf runner safety and anti-tip device
As a shelf runner safety device all insertable components have a small curved in-
dentation at the bottom on the right and left-hand edge.
Always insert insertable components so that this indentation is at the back of
the oven interior. This indentation is also important for preventing the insertable
components from tipping.
Inserting the roasting pan:
Push the roasting pan between the guide
bars of the selected oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Push the oven shelf between the guide bars
of the selected oven level.
3The high rim around the oven shelf is an
additional device to prevent cookware from
slipping.
Inserting the oven shelf and the roast-
ing pan together:
Lay the oven shelf on the roasting pan.
Push the roasting pan between the guide
bars of the selected oven level.

19Operating the Oven
Grill set
The grill set consists of grill and roasting pan. The grill can used on both sides.
1Warning: There is a risk of burning when removing the rosting pan from the
hot oven!
Inserting the grill tray underneath:
The grill tray rests in the roasting pan.
Push the roasting pan between the guide
bars of the selected oven level.
3For roasting larger joints of meat or poultry
on one oven shelf.
Inserting the grill tray on top:
The grill tray rests on the roasting pan.
Push the roasting pan between the guide
bars of the selected oven level.
3For grilling flat food items in large quanti-
ties and for toasting.
Non-stick accessories
To ensure that this accessory remains stable and permanently easy to clean, you
should follow these instructions:
•Do not put accessories into the oven without any food.
•Do not place accessories on hot cooking surfaces, as the non-stick properties
can be damaged by overheating.

Operating the Oven20
Meat probe
For switching off the oven when the temperature at the centre of a roast reach-
es a set temperature.
There are two temperatures to consider:
–The oven temperature: see Roasting Table
–The core temperature: see Meat probe Table
1Important!: Only the meat probe supplied may be used. If replacing, please use
only genuine spare parts.
1. Switch on the appliance using the On/Off button.
2. Push the tip of the meat probe right into
the meat so that the tip is in the centre of
the meat.
3. Insert the meat probe plug into the socket
on the side wall of the oven as far as it will
go.
4. Using the or button set the desired
core temperature.
The display changes to the current core
temperature.
If the current core temperature has already
been displayed, before the desired core
temperature is set, then press the
Selection button repeatedly, until the
function Meat probe flashes and then
carry out the setting.
3The core temperature is displayed from
30°C.
