Contents2
Contents
Operating Instructions 3
Safety instructions 3
Description of the Appliance 4
General Overview 4
Control Panel 5
Oven Features 5
Oven accessories 6
Before Using for the first time 7
Setting the Time 7
Initial cleaning 8
Using the Oven 8
The Electronic Oven Control 8
Rapid heat up 11
Oven Functions 12
Inserting the oven accessories 12
Synchronised oven shelf runners 13
Inserting/Removing the Fat Filter 14
Meatprobe 15
Additional functions 17
Other functions 24
Mechanical Door Lock 25
Uses, Tables and Tips 26
Baking 26
Roasting 32
Low temperature cooking 34
Grill sizes 35
Defrosting 36
Drying 37
Making preserves 37
Cleaning and Care 38
Outside of the appliance 39
Oven interior 39
Accessories 39
Fat Filter 39
Oven shelf runner 39
Cleaning the oven shelf runner 40
Oven lighting 40
Oven Ceiling 42
Oven door 43
Oven door glass 44
What to do if … 47
Disposal 48
Installation Instructions 49
Safety information for the installer 49
Guarantee/Customer Service 52
Service 54
Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this instruc-
tion manual carefully. It will enable you to navigate all processes perfectly and most ef-
ficiently.
To refer to this manual any time you need to, we recommend you to keep it in a safe
place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on how to
avoid damaging the appliance.
3General information and tips
2Environmental information

3Operating Instructions
Operating Instructions
1Safety instructions
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or switch off.
•Repairs to the appliance must only be carried out by qualified service engineers.
Considerable danger may result from improper repairs. If repairs become necessary,
please contact our Customer Services or your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
Safety whilst using
•People (including children) who, because of their physical, sensory or mental capabili-
ties or their inexperience or ignorance are not able to use the device safely, should not
use this device without supervision or instruction by a responsible person.
•This appliance is intended to be used for cooking, roasting and baking food in the
home.
•Take care when connecting electric appliances to sockets nearby. Do not allow con-
necting leads to come into contact with or to catch beneath the hot oven door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcohol-air mixture
that is easily ignited. In this case, open the door carefully. Do not have embers, sparks
or naked flames in the vicinity when opening the door.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in
products containing starch, can constitute a health risk due to acrylamides. Therefore we
recommend cooking at the lowest possible temperatures and not browning foods too
much.
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on
the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not be able
to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause damage to or
discolouration of the enamel.
•Rough handling, especially around the edges of the front panel, can cause the glass to
break.
•Do not store any flammable materials inside the oven. These could ignite when the
oven is switched on.

Description of the Appliance4
•Do not store any moist foods inside the oven. This could damage the oven enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven. Mois-
ture may condense in the oven interior or on the glass doors and may get into the
units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not affect the
appliance’s suitability for normal and correct use. They therefore do not constitute a de-
fect in the sense of the warranty law.
Description of the Appliance
General Overview
Full glass door
Control panel
Door
handle

5Description of the Appliance
Control Panel
Oven Features
Oven display
Function buttons
Oven
Top heat and heating elements
Oven lighting
Meat probe socket
Fat Filter
Oven lighting
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

Description of the Appliance6
Inside of door
On the inside of the oven door you will find the
numbers of the different oven shelves.
You will also find some brief information about
the oven's functions, recommended shelves and
temperatures for cooking the most popular
dishes.

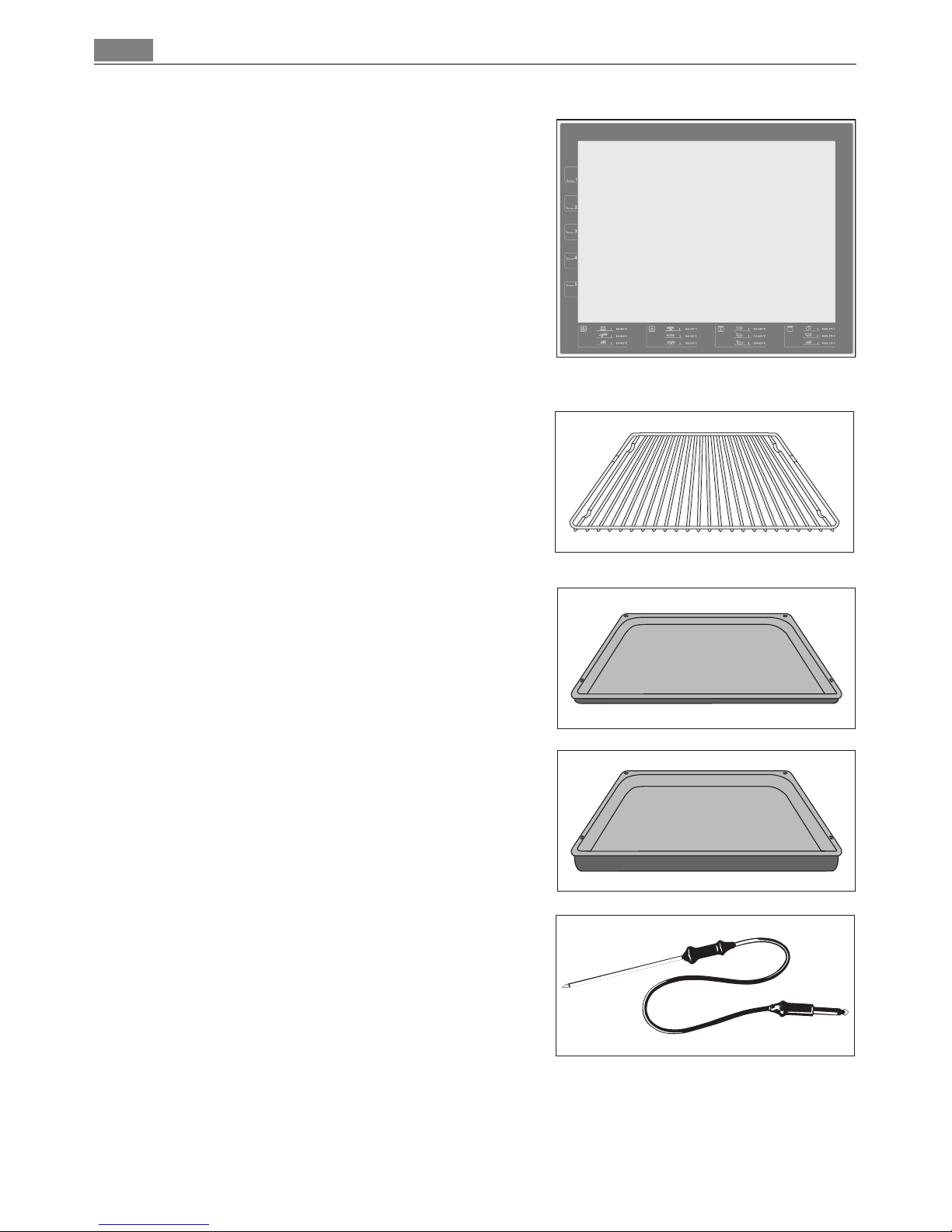

Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for collect-
ing fat.
Meat probe
For determining exactly how far joints of meat
are cooked.

7Before Using for the first time
Synchronised oven shelf runners
Retaining clips with connecting clamp.
Before Using for the first time
Setting the Time
3The oven only operates when the time has been set.
When the appliance is connected to the electri-
cal supply or when there has been a power cut,
Time of day flashes automatically.
Using the or button, set the current
time.
After approx. 5 seconds, the clock stops flashing
and the clock displays the time of day set.
The appliance is now ready to use.

Using the Oven8
Initial cleaning
Clean the oven before using it for the first time.
1Important: Do not use caustic or abrasive cleaning agents! These can damage the oven
surfaces.
3For the metal surfaces, use commercially available cleaning agents.
1. Open the oven door.
The oven light is illuminated.
2. Remove all oven accessories, and clean them with warm water and washing up liquid.
3. Wash the oven in the same way, and wipe dry.
4. Wipe the front of the appliance with a damp cloth.
Using the Oven

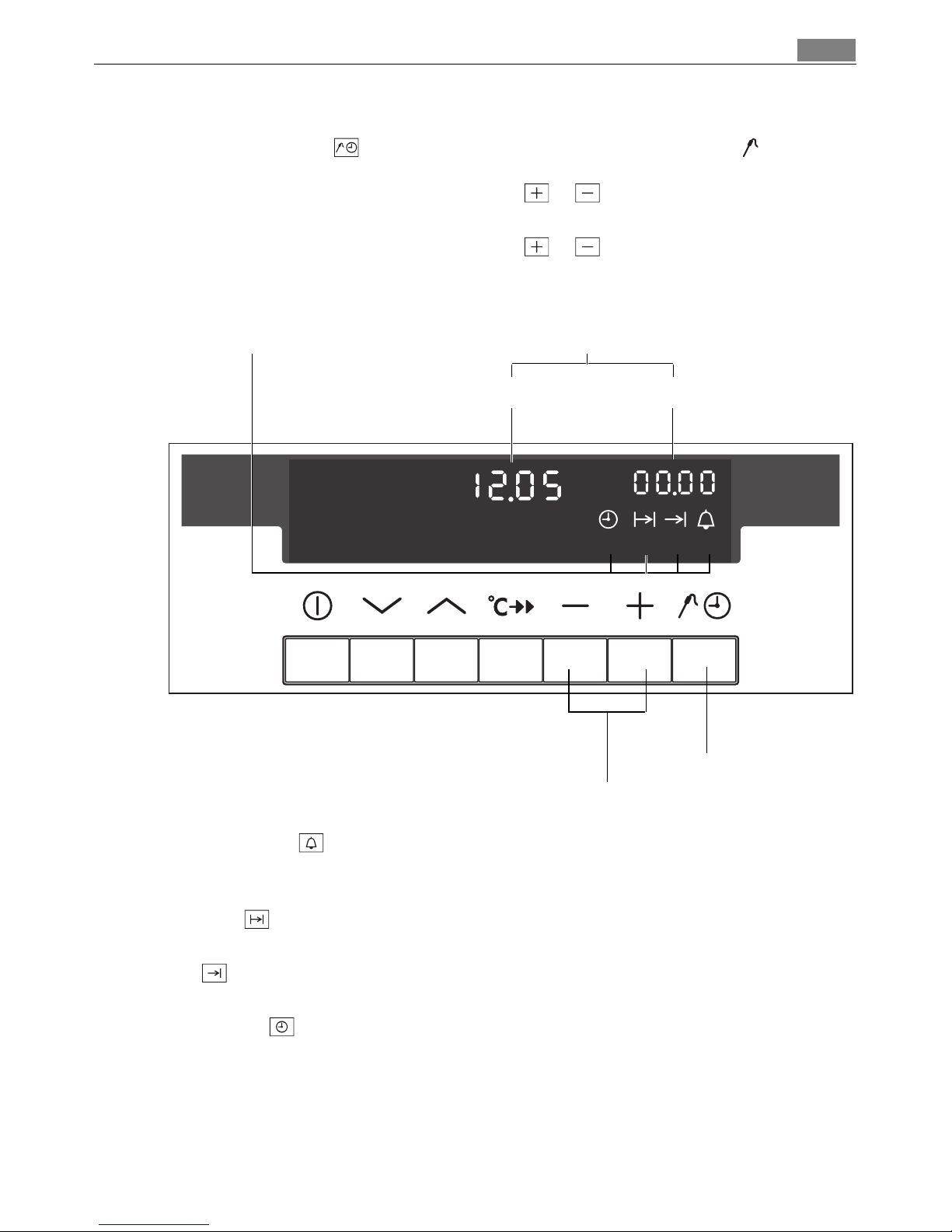

The Electronic Oven Control
3General instructions
•Always switch the appliance on first by pressing the On/Off button.
•When the selected function is lit, the oven begins to heat up or the time set begins to
count down.
Selection buttons
Temperature/Clock
Oven function selection
Clock functions/Operating timeOven Functions
Clock Functions
Meat Probe
Heat indicator
On/Off
Speedcook

9Using the Oven
•The Operating time display shows how long the oven has been operating. This display
can only be seen if none of the clock functions Minute Minder , Duration or
End are set.
•The oven light is switched on as soon as an oven function is selected.
•When the selected temperature is reached, an audible signal sounds.
•Switch off the oven using the On/Off button.
Selecting an oven function

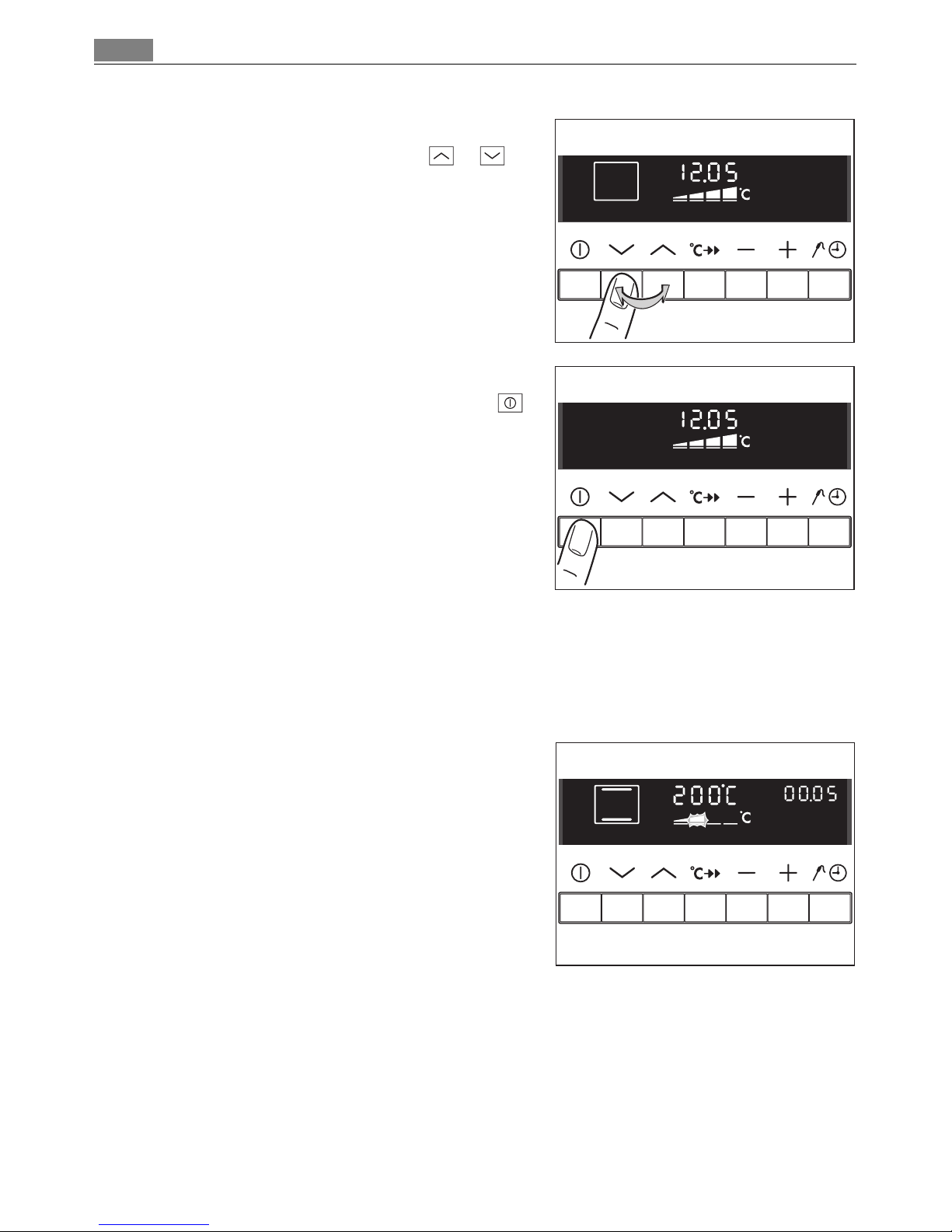

1. Switch on the appliance using the On/Off button.
2. Press the or button repeatedly until the
desired oven function appears.
•A suggested temperature appears in the tem-
perature display.
•If the suggested temperature is not changed
within approx. 5 seconds, the oven starts to
heat up.
3The oven function can be changed while the
oven is working.
Changing the oven temperature
Press the or button to raise or lower the
temperature.
The setting changes in steps of 5°C.
Checking the temperature
Press the and buttons at the same time.
The current oven temperature appears in the
temperature display.
3The temperature check does not work with
oven functions with suggested temperatures
that cannot be adjusted, such as e. g., Low tem-
perature cooking.

Using the Oven10
Switching off the oven function
To switch off the oven, press the or
button repeatedly until no oven function is dis-
played.
Switching the oven off
Switch off the appliance using the On/Off
button.
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool. When
the oven is switched off, the fan continues to run to cool the appliance down, then
switches itself off automatically.
3Heat indicator
Indicates warming up
When the oven function has been switched on
the bars that slowly light up one after the other
indicate how far the oven has heated up.

11Using the Oven
Speedcook indicator
When the Rapid heat up function has been
switched on, the bars that flash one after the
other indicate that fast heating is working.
Residual heat indicator
When the oven function has been switched
off, the bars that are still lit indicate the re-
maining residual heat in the oven.
Rapid heat up
After an oven function is selected, with the use of the additional function Rapid heat up
the empty oven can be pre-heated in a relatively short time.
1Important: Do not put the food to be cooked into the oven, until Rapid heat up is
completed and the oven is operating using the desired function.
1. Set the desired oven function (e. g. Conventional ). If necessary, change the suggest-
ed temperature.
2. Press the Rapid heat up button.
The bars flashing one after another show that Rapid heat up is operating.
When the temperature set is reached, the bars of the heat indicator light up. An audible
signal sounds.
The oven now continues heating according to the pre-set oven function and tempera-
ture. You can now place the food in the oven.
3The Rapid heat up function can be switched on with the oven functions True fan ,
Fan baking , Conventional and Rotitherm .

Using the Oven12
Oven Functions
The oven has the following functions:
Inserting the oven accessories
Inserting the baking tray or roasting pan
Insert baking tray or or roasting pan on the tel-
escopic runners of the selected oven level so
that the two holes engage on the front retain-
ing pins on the telescopic runners.
Oven function Application
True fan To bake on three oven levels maximum at the same time.
Decrease the oven temperatures 20-40 °C compared with Con-
ventional.
Fan baking For baking on one level dishes that require more intensive
browning and a crispy base.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Low temperature
cooking
For preparing especially tender succulent roasts.
Conventional For baking and roasting on one oven level.
Rotitherm For roasting larger joints of meat or poultry on one level.
The function is also suitable for gratinating and browning
Dual grill For grilling flat food items in large quantities and for toasting.
Single grill For grilling flat food items placed in the middle of the grill and
for toasting.
Keep warm To keep dishes warm.
Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or
other frozen foods.
Base heat For baking cakes with crispy or crusty bases.

13Using the Oven

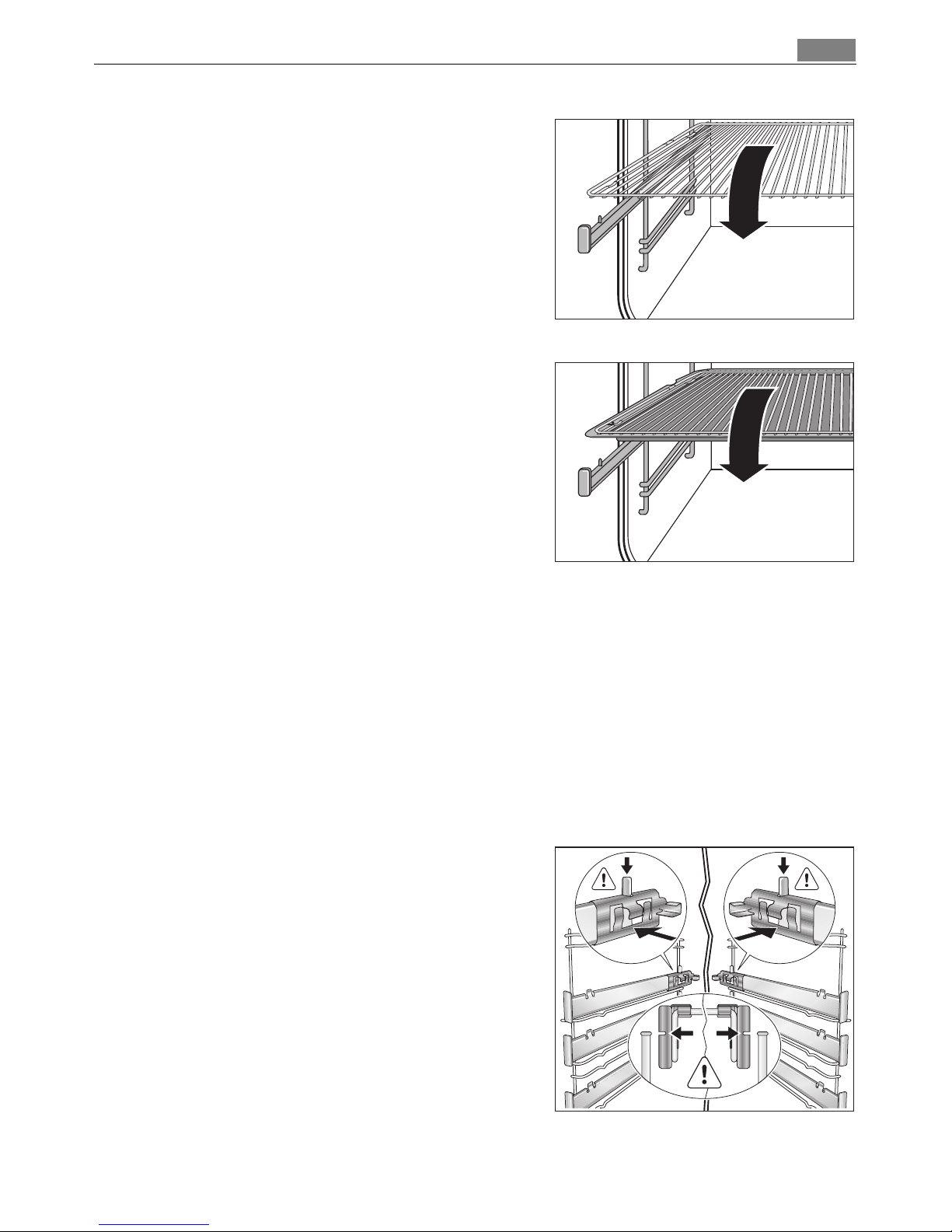

Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Insert the oven shelf on the telescopic runners
of the selected oven level.
3The high rim around the oven shelf is an addi-
tional device to prevent cookware from slip-
ping.
Inserting the oven shelf and roasting pan
together:
Lay the oven shelf on the roasting pan.
Insert the oven shelf and the roasting pan on
the telescopic runners of the selected oven lev-
el so that the two holes of the roasting pan en-
gage on the front retaining pins on the
telescopic runners.
3To make it easier to insert the insertable component when runners are extended to dif-
ferent extents, lay the insertable component onto the runners at the back, push it in as
far as the stop and then lower it onto the retaining pins at the front.
Synchronised oven shelf runners
3To make it easier to pull out the oven shelf runners, the individual telescopic bars can be
connected using a clamp.
Fitting the synchronised oven shelf runners
1When fitting the retaining clips, ensure that the
support brackets for the connecting clamp
point towards the rear!
To fit the left-hand and right-hand retaining
clips, affix to the appropriate telescopic bars to
ensure that the upper groove fits securely into
the rear retaining pins.
Push in retaining clips firmly until they engage.

Using the Oven14

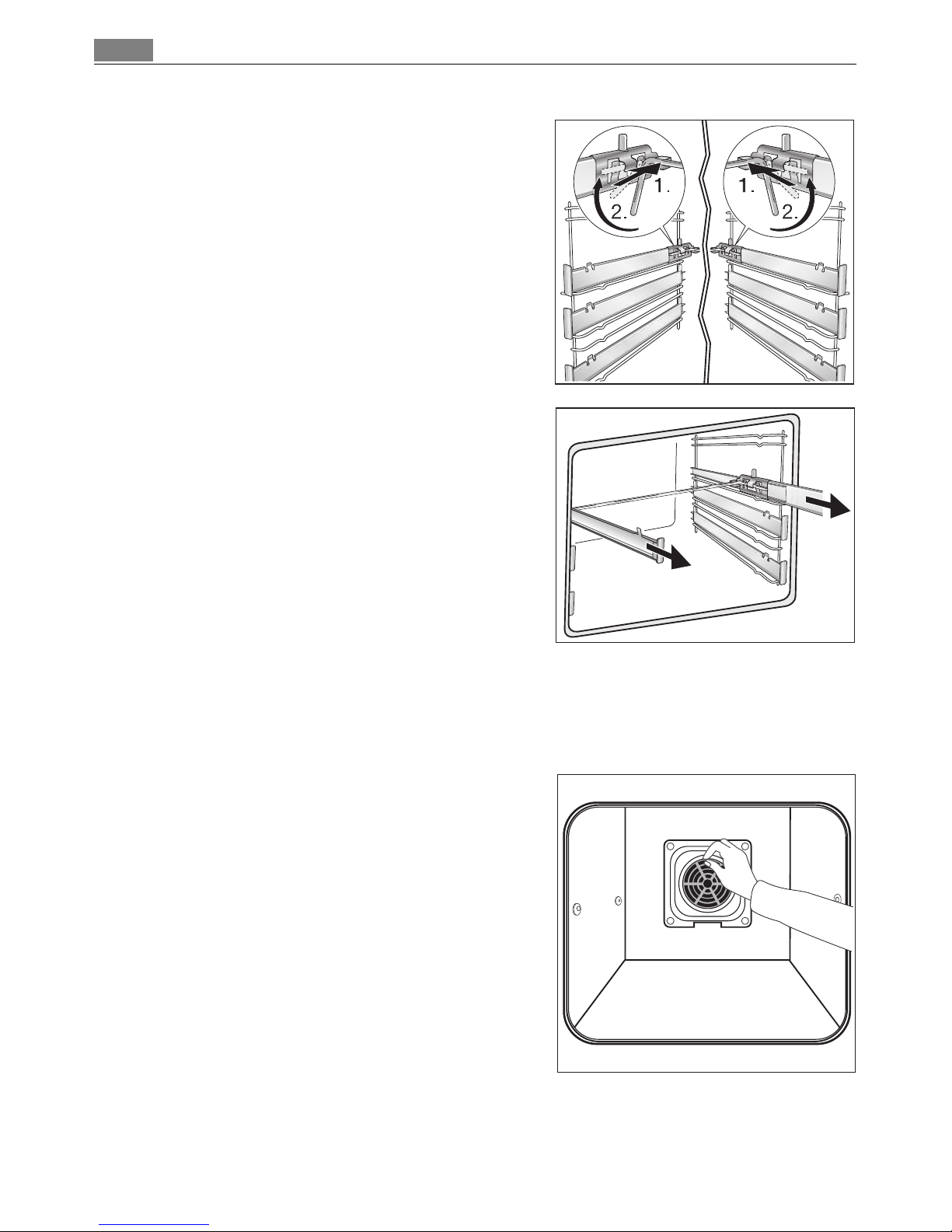

Insert the connecting clamp into the rear sup-
port brackets of the retaining clips on the left-
and right-hand telescopic bars (1.).
Press the connecting clamp into the locks of
the two retaining clips by turning upwards si-
multaneously(2.).
The telescopic bars can now be pulled out si-
multaneously.
Removing the synchronised oven shelf runners
To remove, follow the above steps in reverse.
Inserting/Removing the Fat Filter
Only use the fat filter when roasting to pro-
tect the rear heating elements from fat splash-
es.
Inserting the fat filter
Hold the fat filter by the grip and insert
the two mounts downwards into the
opening on the rear wall of the oven
(fan opening).
Taking out the fat filter
Hold the fat filter by the grip and un-
hook it.

15Using the Oven
Meatprobe
For switching off the oven when the temperature at the centre of a roast reaches a set
temperature.
There are two temperatures to consider:
–The oven temperature: see Roasting Table
–The core temperature: see Meatprobe Table
1Important!: Only the meat probe supplied may be used. If replacing, please use only
genuine spare parts.
1. Switch on the appliance using the On/Off button.

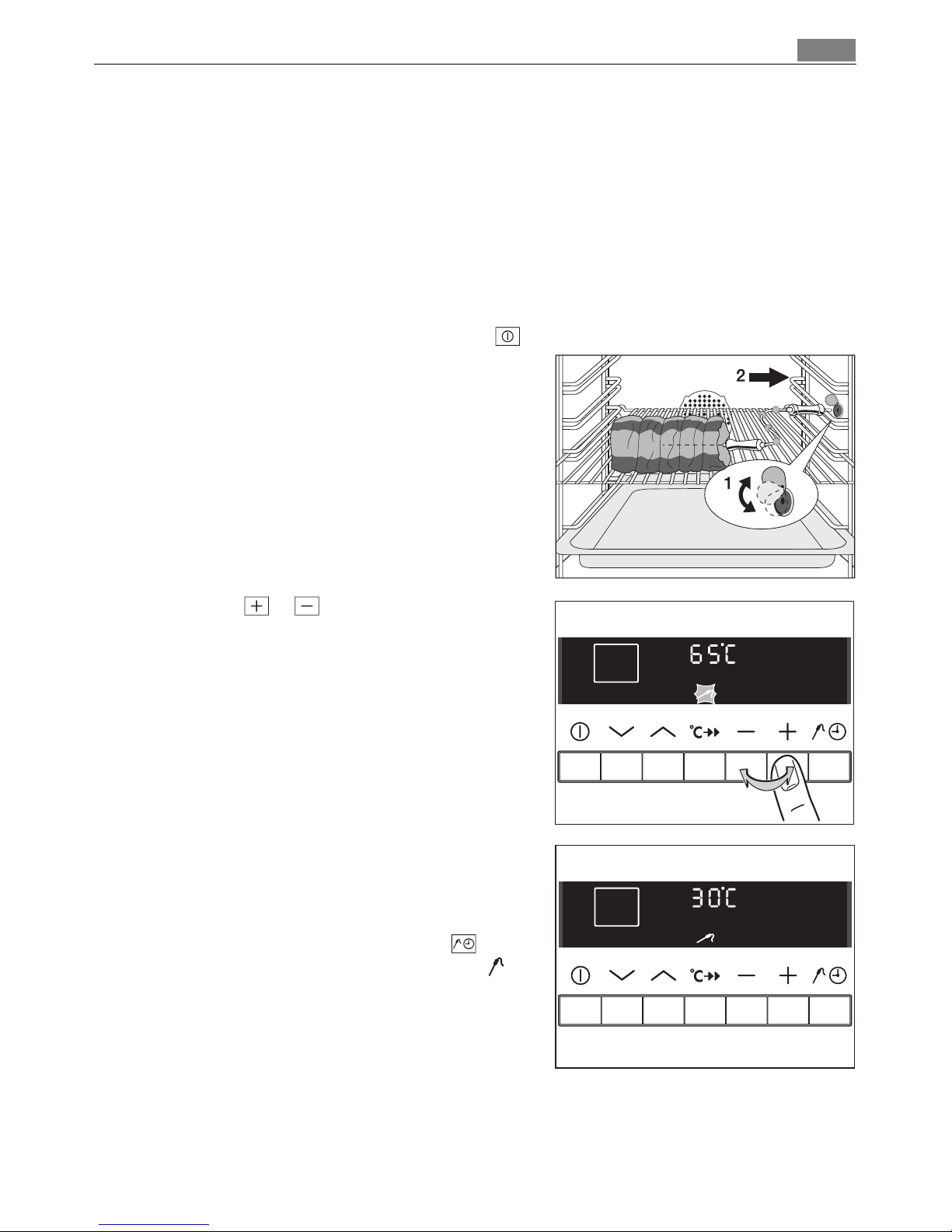

2. Push the tip of the meat probe right into the
meat so that the tip is in the centre of the
meat.

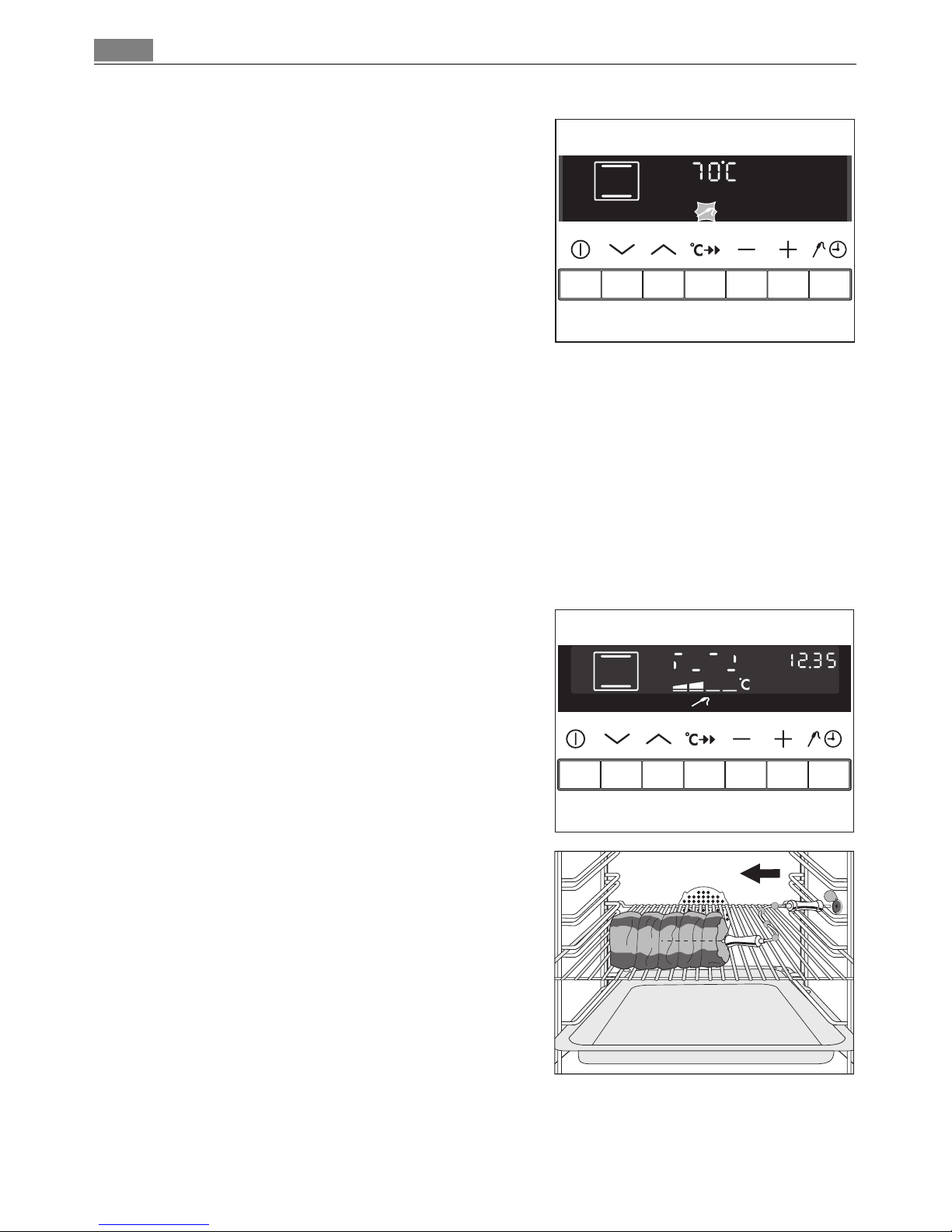

3. Insert the meat probe plug into the socket on
the side wall of the oven as far as it will go.
4. Using the or button set the desired core
temperature.
The display changes to the current core tem-
perature.
If the current core temperature has already
been displayed, before the desired core temper-
ature is set, then press the Selection button
repeatedly, until the function Meatprobe
flashes and then carry out the setting.
3The core temperature is displayed from 30°C.
5. Select oven function and oven temperature.

Using the Oven16
As soon as the core temperature set is reached,
a signal sounds and the oven switches itself off
automatically.
6. Press any key to switch off the signal.
3A provisional end time will be calculated depending on the quantity of food and the se-
lected oven temperature (at least 120°C) and operating mode. This procedure can
amount to approx. 30 minutes and is updated in the display during the cooking process.
For the system to work it is essential that the meat probe is in the meat and in the sock-
et at the start of the cooking process and that it is not removed during the cooking
process.
The time display and core temperature displays a “flashing rectangle” during the calcula-
tion phase.
Calculation of End Time.
1Warning: The meat probe is hot! There is a risk
of being burned when removing the plug and
the tip of the meat probe.
7. Remove the meat probe’s plug from the socket
and take the meat out of the oven.
8. Switch off the appliance.

17Using the Oven
Checking or changing the core temperature
–Press the Selection button repeatedly until the function Meatprobe flashes and
the core temperature set appears in the display.
–If necessary, change the temperature using or .
Checking or changing the oven temperature
–If necessary, change the temperature using or .
Additional functions
Minute Minder
To set a countdown. A signal sounds after the time has elapsed.
This function does not affect the functioning of the oven.
Duration
To set how long the oven is to be in use.
End
To set the switch-off time for an oven function.
Time of day
To set, change or check the time
(See also section “Before Using for the First Time”).
Heat+Hold
The Heat+Hold function keeps your prepared dish warm for 30 minutes, after the baking
or roasting process is completed.
Selection buttons
Clock Cook time/End time/Operating time
Clock Functions
Meat Probe
Clock Functions Time display

Using the Oven18
3How to use the clock functions
•After a clock function has been selected, the corresponding function light flashes for
about 5 seconds. During this period, the desired times can be set or modified using
the or button.
•When the desired time has been set, the corresponding function light continues to
flash for approx. 5 seconds, then remains illuminated. The set time begins to run.
•With Countdown the oven must also be switched on in order to set the clock function.
•By pressing and at the same time, the time set can be reset.
3Checking the time set or remaining
Press the Selection button repeatedly, until the appropriate clock function flashes
and the time set or remaining is displayed.
2Using residual heat with the Duration and End clock functions
When the Duration and End clock functions are used, the oven switches the
heating elements off, when 90% of the time set or calculated has elapsed. The residual
heat present is used to continue the cooking process until the time set has elapsed
(3 to 20 mins.).

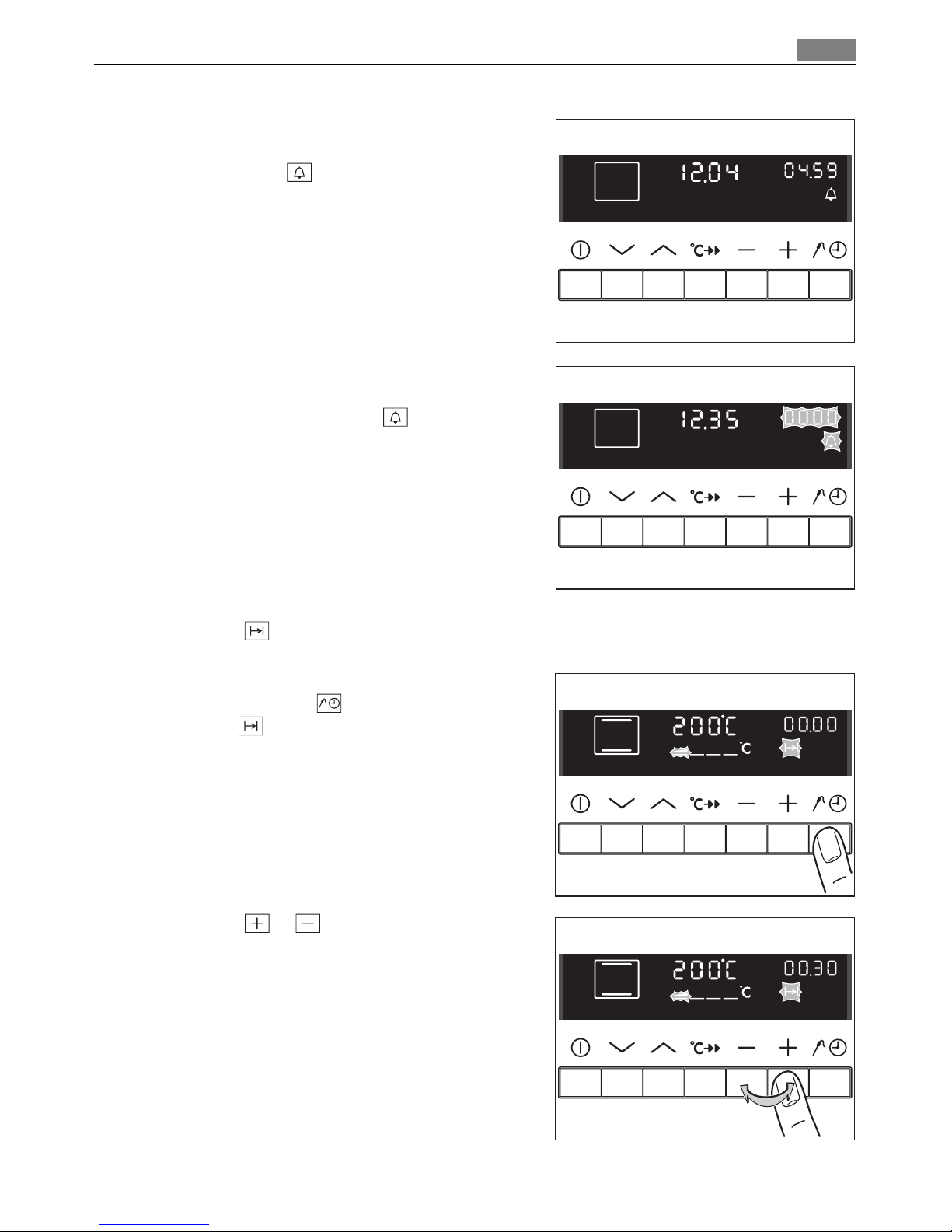

Minute Minder
1. Press the Selection button repeatedly until
Minute Minder flashes.
2. Using the or button, set the desired
countdown.

19Using the Oven
After about 5 seconds, the display shows the
time remaining.
Minute Minder lights up
When 90% of the time set has elapsed, a signal
sounds.
When the time has elapsed, a signal sounds for
1 minute.
“00.00” and Minute Minder flash.
To stop the flashing and the audible signal:
Press any button.
Duration
1. Select oven function and temperature.
2. Press the Selection button repeatedly until
Duration flashes.
3. Using the or button, set the desired
cooking time.

Using the Oven20
Duration lights up
When the time has elapsed, “00.00” and
Duration flash.
A signal sounds for 2 minutes.
The oven switches itself off.
To stop the flashing and the audible signal:
Press any button.

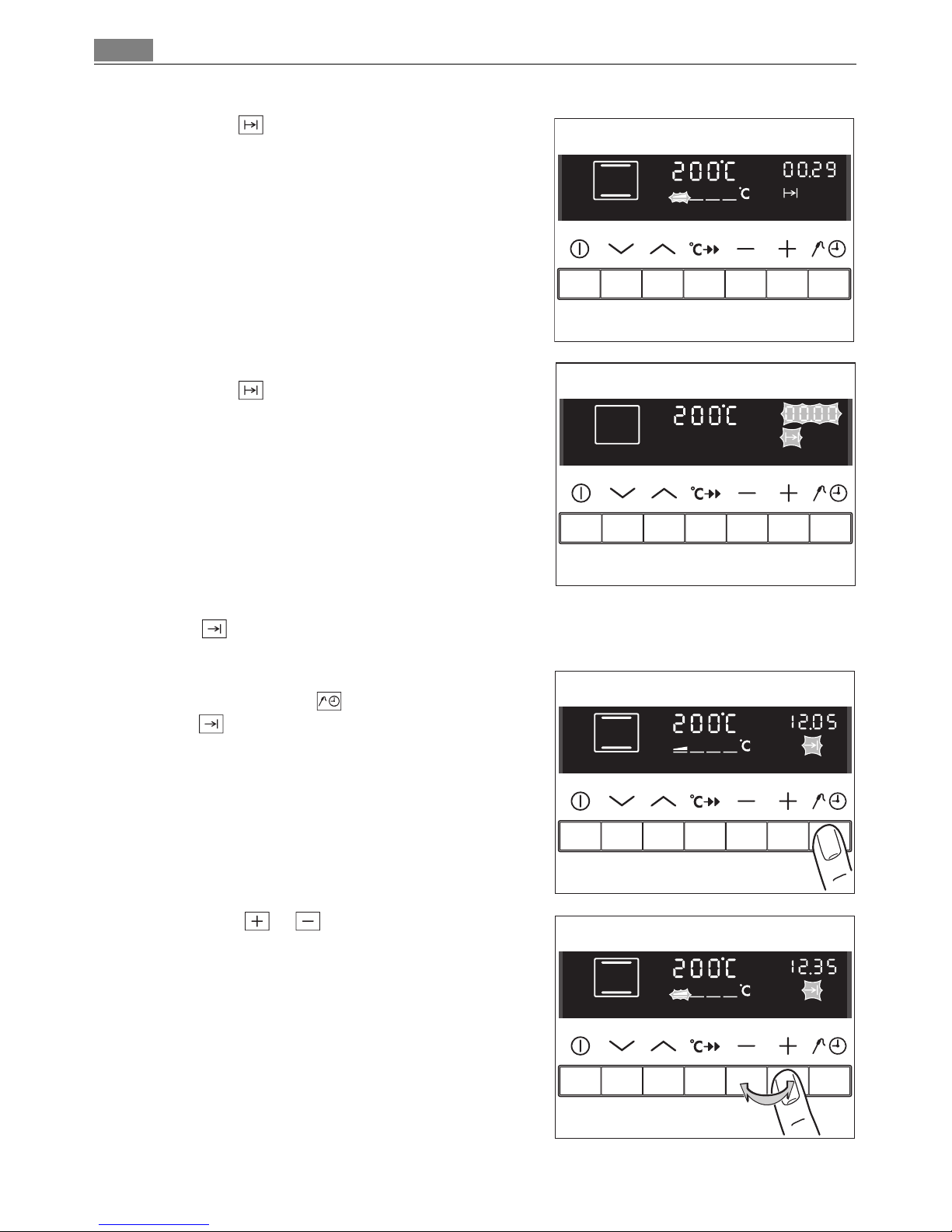

End
1. Select oven function and temperature.
2. Press the Selection button repeatedly until
End flashes.
3. Using the or button, set the desired
switch-off time.
