Electrolux B9878-5 User manual

B9878-5
User manual Oven

Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Operating instructions 3
Safety information 3
Electrical safety 3
Safety during use 3
How to avoid damage to the appliance
3
Description of appliance 4
General view 4
Control panel 5
Display 5
Oven layout 6
The electronic oven controls 7
Menus and operation 7
Auto Cooking 8
Heating Functions 9
Specials 9
Basic Settings 10
Cleaning Menu 10
Additional Functions 10
Operation 11
Prior to first use 11
Switching on and off 11
Auto cooking 11
Conventional baking and roasting 12

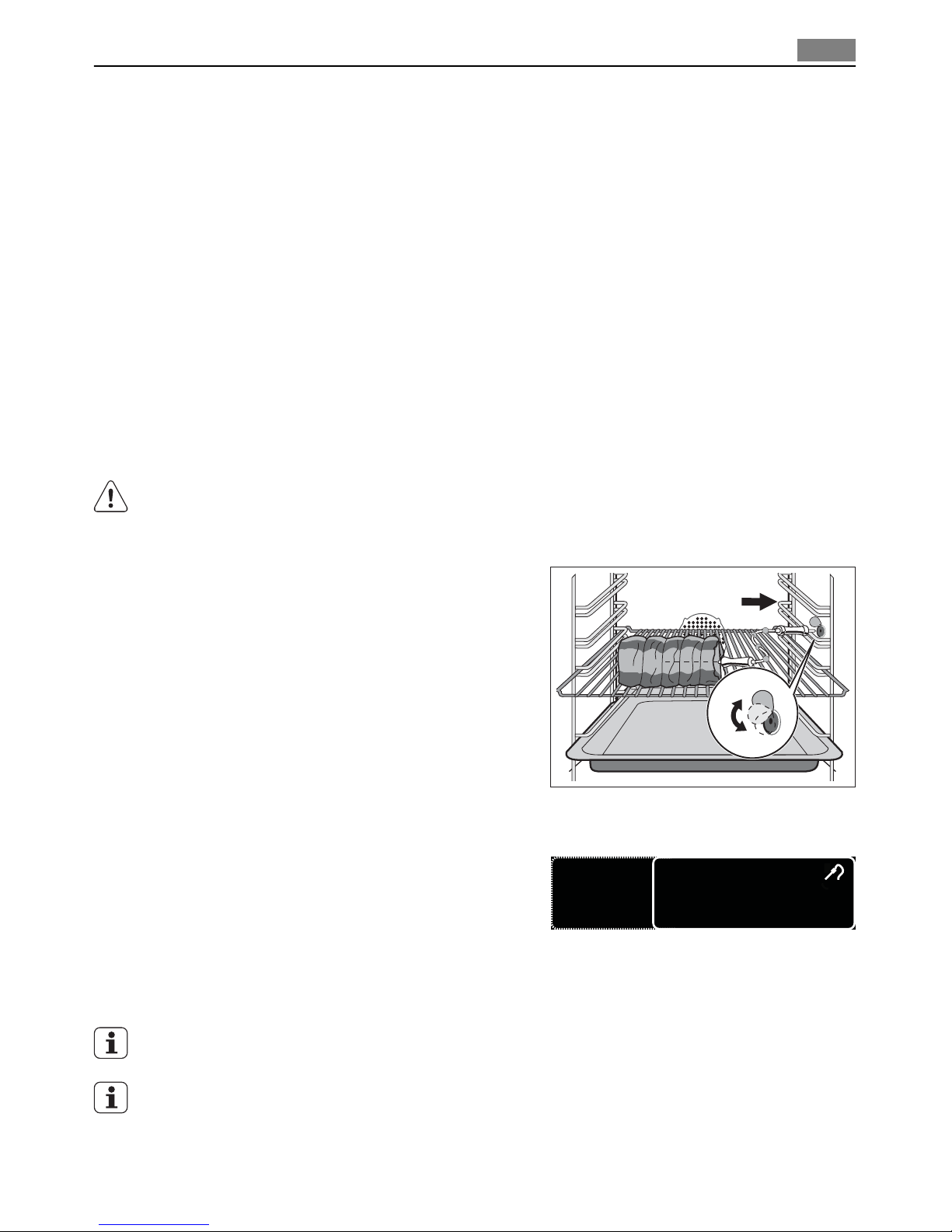

Meatprobe 13

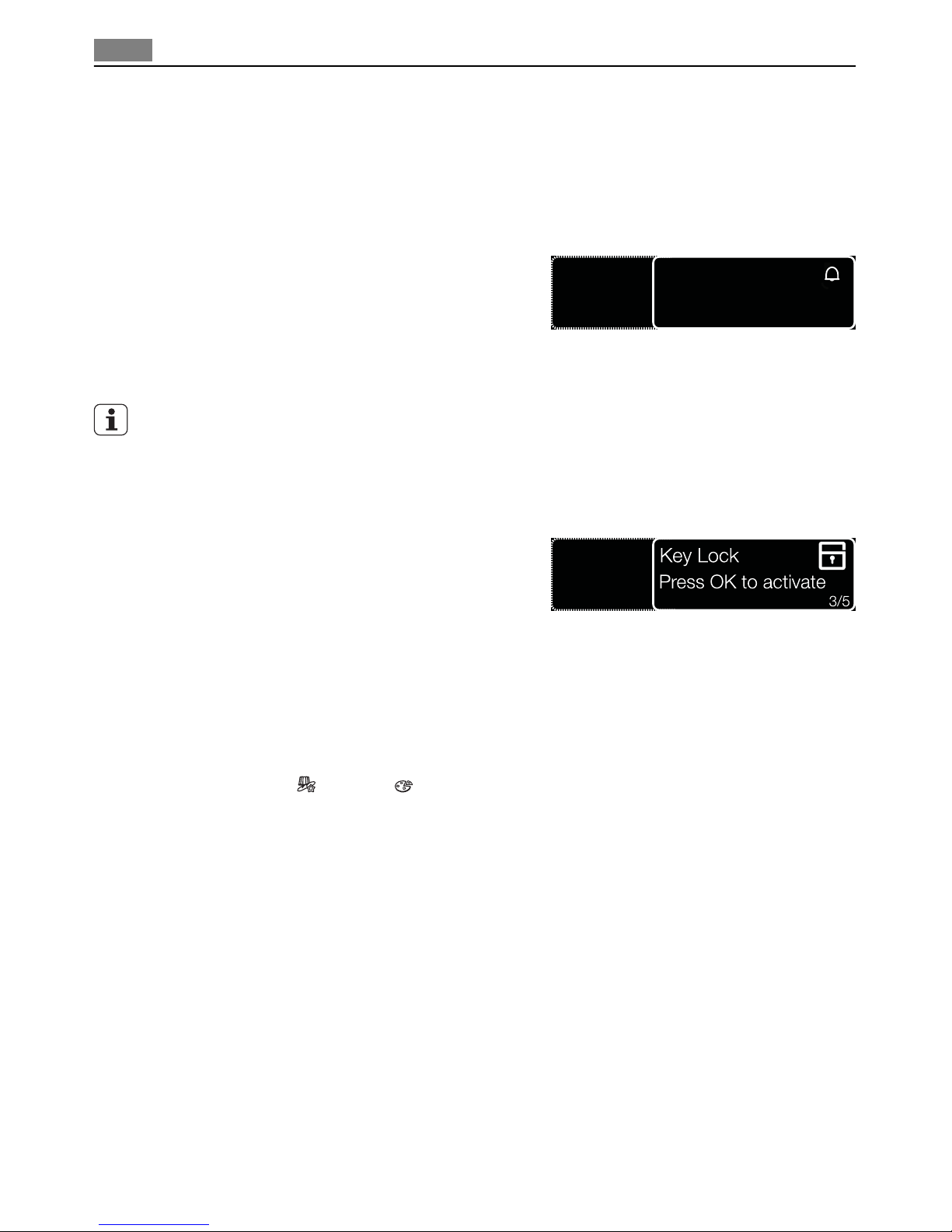

Setting the countdown timer 14
Key Lock 14
Switch-on lock 14
Automatic switch-off of the oven 14
Smell Filter 15
Inserting the grill rack, baking tray, and
roasting pan 15
Inserting/Removing the Grease Filter 16
option 17
Tips, charts and information 18
Auto Cooking 18
Manual baking and roasting 24
Cleaning and servicing 33
Grease filter 33
Pyrolytic cleaning 34
Cleaning Assistant 34
Cleaning Reminder 34
Shelf supports 34
Oven light 35
Oven door 36
Oven door glass 38
What to do if ... 41
Disposal 42
Subject to change without notice
2Contents

Operating instructions
Safety information
Electrical safety
•This appliance must only be connected by a qualified installation engineer.
• In the event of a fault or damage to the appliance: Take the fuses out or switch off.
•Repairs to the appliance must only be carried out by qualified service engineers.
Considerable danger may result from improper repairs. If repairs become necessary,
please contact our Customer Care Department or your dealer.
Children's safety
• Never leave small children unattended while the appliance is in operation.
• To protect against unauthorised use the appliance is equipped with a switch-on lock.
Safety during use
• This appliance should be used only for normal domestic cooking, roasting and baking of
food.
• Be careful if connecting electrical appliances to sockets near to this appliance. Electrical
leads must not be caught under the hot oven door.
•Warning: Risk of burns! The interior surfaces of the oven become very hot during use.
• If you use ingredients containing alcohol in the oven, a slightly flammable mixture of
alcohol and air may ensue. In this case, be careful when opening the door. Do not handle
any sources of heat, sparks or naked flames when doing so.
• People (including children), who, because of their physical, sensory or mental capabilities
or their inexperience or ignorance, are not able to use the appliance safely, should not
use this appliance without supervision by or instruction from a responsible person.
Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in
products containing starch, can constitute a health risk due to acrylamides. Therefore we
recommend cooking at the lowest possible temperatures and not browning foods too much.
How to avoid damage to the appliance
• Do not line the oven with aluminium foil and do not place a baking tray or saucepan
etc. on the floor, as otherwise the oven enamel will be damaged by the heat build-up.
• Fruit juices dripping from the baking tray will leave stains, which you will not be able to
remove. For very moist cakes, use a deep tray.
• Do not put any strain on the oven door when open.
• Never pour water directly into the oven when it is hot. This could cause damage to and
discoloration of the enamel.
• Rough handling, especially around the edges of the front panel, can cause the glass to
break.
• Do not store any flammable materials inside the oven. These could ignite when the oven
is switched on.
• Do not store any moist foods inside the oven. This could cause damage to the enamel.
Safety information 3

• Do not leave dishes uncovered in the oven after switching off the cooling fan. Moisture
may form inside the oven or on the glass door and also get onto the units.
Information on the oven enamel
Changes to the colour of the oven's enamel surface as a result of use do not affect the
appliance's suitability for normal and correct use. They therefore do not constitute a defect
in terms of warranty law.
Description of appliance
General view
1
2
1Control panel
4Description of appliance

2Oven door
Control panel
Overview
2 1
5
3 4
1AN/AUS-Button: to switch on, press and hold for longer
2Display
3Turning knob with OK button to select a menu option
4Additional functions key
5Sensor button to select a cooking category
Display
The information shown in the display varies according to the oven's operating status.
If the oven has been switched off, the time of day is shown. If the oven is still hot, a bar
appears in the display and shows the residual heat remaining in the oven.
When the oven is switched on, the display shows the menu and information about the
oven's operating status.
Symbols
Minute Minder
Time of Day
Duration
End Time
Running Time
Oven Temperature
Calculation
Rapid Heat Up
Temperature Display
Description of appliance 5

Oven layout
1Top heat and grill elements
2Oven light
3Meat probe connector
4Grease filter
5Oven light
6Ring heating element, fan
7Bottom oven element
8Side rails, removable
9Oven levels
10 Rotary spit drive mechanism
11 Smell Filter
Oven accessories
Baking tray
For cakes and biscuits.
Drip pan
For baking and roasting or for use as atray to catch
fat.
Shelf
For cookware, cake tins, roasts and grilling food.
Meat probe
5
4
3
2
1
1
2
3
4
5
6
7
8
9
10
11
6Description of appliance

For determining exactly how well done pieces of
meat are during cooking.
Rotary spit with support
For roasting larger joints of meat and poultry.
The electronic oven controls
Menus and operation
You use the menu to operate the oven. The Main Menu contains:
Main Menu
Auto Cooking
Heating Functions
Cleaning Menu
Basic Settings
Specials
Selecting the menu options
• Turn the knob clockwise to get to the next function.
• Turn the knob anti-clockwise to get to the previous menu option.
Opening the main menu
Press the On/Off button to get to the main menu. The Auto Cooking function is selected
by default.
Opening the menu Auto Cooking
Press the On/Off button to get to the main menu. The Auto Cooking function is selected
by default.
1. Press the sensor key for the category you want.
2. Use the knob to select the menu or subcategory you want.
3. Follow the instructions in the display.
The electronic oven controls 7

Selecting a menu option in the menu
1. Select the menu option you want by turning the knob.
2. When the menu option you want is shown in the display, press the OK button to call
it up.
"back" at the end of each menu takes you back to the previous menu
Auto Cooking
General
The menu "Auto Cooking" Is divided into five subcategories. Use these categories to select
the optimum setting for a variety of dishes. Press the relevant sensor key. The categories
are divided into various subcategories and dishes, which are then programmed with the
appropriate settings.
Refer to the supplier quick guide for an overview of all the categories and dishes from the
Auto Cooking menu. For help on how the dishes have been classified into the various
categories, see the supplied Cooking and Baking Overview.
Symbol Category
Baking
Roasting
Convenience
Oven dishes
Pan pizza
Principle
With Auto Cooking , the oven calculates the cooked time needed.
Unlike conventional cooking, you do not need to set a type of heat or cooking time. Instead,
you simply select the desired food type from the category menu.
" You can use Auto Cooking on one oven level only.
Only use the fat filter when roasting! Otherwise the oven cannot calculate an optimal
cooking time.
To attain optimum results, you should use the recommended cookware and/or accessories.
You can find further information in the section Tips, Charts and Advice.
8The electronic oven controls

Heating Functions
To manually set Heating Functions and cooking temperature.
Heating Functions
Fan Cooking For baking on up to three levels simultaneously.
Set the oven temperatures 20 – 40° lower than
Conventional Cooking
Conventional Cooking For baking and roasting on one level
Pizza Setting For baking on one oven level dishes that require
more intensive browning and a crispy base. Set
the oven temperatures 20 – 40° lower than Con-
ventional Cooking
Turbo Grill For roasting larger joints of meat or poultry on
one level. Also suitable for gratinating and
browning.
Turbo Grill + Spit Roast Especially for poultry, temperature setting
190-210°C
Economy Grill For grilling flat foods which are placed in the
middle of the rack and for toasting.
Economy Grill + Spit Roast For grilling a chicken or small rolled roasts
Dual Grill For grilling flat foods in large quantities and for
toasting.
Dual Grill + Spit Roast For grilling two chickens or one rolled roast
Bottom Heat For baking cakes with crispy or crusty bases.
Slow Cook For preparing particularly tender, succulent
roasts
Specials
For selecting additional heating functions
Special functions
Defrost
Drying
Keep Warm
Preserving
Plate Warming
The electronic oven controls 9

Basic Settings
To change different oven Basic Settings.
Basic Settings
Set Time of Day To set current time on the clock
Time Indication When on, the time of day is displayed when the
oven is switched off
When off, the display switches itself off com-
pletely
Display Contrast Adjusts the display
Display Brightness Adjusts the display
Set Language
Buzzer Volume
Key Tones Switches key tones on or off
Alarm/Error Tones Switches alarm tones on or off
Smell Filter Smell Filter Activating or deactivating
Calibration Adapts oven to the kitchen environment, e. g.
after moving house
Service Indicates the version of the software, the con-
figuration and the period of operation
Factory Settings Resets all basic settings to the original factory
settings
Cleaning Menu
Pyrolytic cleaning and other functions.
Cleaning menu
Pyrolytic To clean the oven using pyrolytic cleaning
Cleaning Assistant Reminds you of various points that should be
noted prior to pyrolytic cleaning. Can be switch-
ed on or off.
Cleaning Reminder Recognises when pyrolytic cleaning is required
and alerts the user to this fact. Can be switched
on or off.
Additional Functions
You can use the Additional Functions key to set the available Additional Functions.
Additional functions menu
Minute Minder
Key Lock
Duration / End Time
Meatprobe
10 The electronic oven controls

Operation
Prior to first use
Before using the oven, first of all the language, then the contrast of the display, the bright-
ness and the current time of day must be set.
When you switch on the oven for the first time, LANGUAGE appears on the display after a
few seconds.
1. Use the Selector to select the desired setting
2. Then press the OK key to confirm your setting.
Make the additional required settings in the same way.
Adapts oven to the kitchen environment.
For best results with Auto Cooking , the oven must be adapted to the kitchen environment.
This process is called Calibration and takes around 4 hours.
If you only want to use the oven for conventional cooking it does not need to be calibrated.
Please remember the following about Calibration
•The Calibration must be used in room temperatures below 35°C.
•Installing the oven for the Calibration in its final location.
• Connecting the oven for the Calibration to the power supply.
• Before Calibration, you must remove the grease filter.
• If you are changing location, power supply or one of the listed points, you must recali-
brate the oven so the Auto Cooking delivers best results.
You can find the calibration under Basic Settings, Calibration.
After calibration the appliance is ready for use as soon as it has cooled down.
Initial cleaning
The oven should be thoroughly cleaned prior to first use. Wash all parts and the interior
with detergent solution
Do not use sharp, abrasive cleaning solutions. These could damage the surface.
Switching on and off
– Press the ON/OFF button.
If the oven has been switched off, the time of day is shown. If the oven is still hot, a bar
appears in the display and shows the residual heat remaining in the oven.
Auto cooking
1. Switch the oven on.
2. Select the main category you want by using the sensor buttons.
– The available dishes or sub-categories are shown.
3. Select the category you want or the dish directly.
4. Follow the instructions in the display.
Operation 11

Example: Calzone - frozen
1. Switch the oven on.
2. Select the sensor field for Pizza.
– Four different types of pizza are
shown.
3. Select Frozen Pizza by turning the knob.
4.
Then press the OK button to call up the
sub-category.
– You can choose from three different
types of frozen pizza.
5. Select Calzone by turning the knob.
6. Then press the OK button to call up this
dish.
7. Follow the instructions in the display.
When the calculated time for the dish has elapsed, you can prolong the cooking process
for up to 5 minutes if it needs more time.
Conventional baking and roasting
1. Switch the oven on.
2. With the knob and the OK button, select Heating Functions.
– The oven functions are shown.
3. Select the function you want.
– A suggested temperature is shown
in the display.
4. Turn the knob to change the temper-
ature, if required.
5. Then press the OK button to confirm the oven temperature.
6. Press the additional functions button.
– The cooking time is shown in the
display.
7. Turn the knob to set the cooking time.
8. Then press the OK button to confirm
the cooking time.
– The end time indicator flashes.
9. Turn the knob to set the end time.
10. Then press the OK button to confirm the end time.
– The oven begins to heat or automatically turns itself on and off at the time you set.
When the set time has elapsed you can prolong the oven function with the set temperature
for up to 5 minutes if it needs more time.
Changing the temperature during the cooking process
1. To change the temperature later on, turn the knob to the right.
2. The frame within the display only marks the right-hand section in which the current
temperature is shown. Confirm by pressing OK.
12 Operation

3. The triangle next to the current temperature flashes. You can set the new temperature
you want only by turning the knob.
4. Confirm the new temperature by pressing OK.
The set oven function continues at the new temperature.
Changing the oven function during the cooking process.
1. To change the oven function later on, turn the knob to the left.
2. The frame within the display only marks the left-hand section in which the current
oven function is shown. Confirm by pressing OK.
3. Set the new oven function by turning the knob.
4. Confirm the new oven function by pressing OK.
The new oven function starts at the corresponding suggested temperature. You can change
this temperature.
Meatprobe
When using the meat probe, the oven automatically switches itself off once it has reached
the core temperature.
Caution: Only the meat probe supplied may be used! If replacing, please use only original
spare parts
1. Switch the oven on.
2. Insert the meat probe into the meat. The
tip of the meat probe must be placed in
the middle of the piece of meat.
3. Insert the meat probe plug into the socket on the side wall of the oven as far as it will
go.
– A suggestion for the core tempera-
ture appears in the display.
4. Set the core temperature you want by turning the knob.
5. Then press the OK button to confirm the temperature.
6. Set the oven function and the oven temperature you want.
The core temperature is displayed from 30°C
Within a few minutes, a provisional end time is calculated, at which the core temperature
set will be reached. This time is constantly recalculated and updated in the display. For the
system to work it is essential that the meat probe is in the meat and in the socket at the
start of the cooking process and that it is not removed during the cooking process.
1
2
60 C
Meatprobe
1/2
0
Operation 13

Changing the core temperature during the cooking process
– Repeatedly press the additional function button until the set core temperature appears
in the display.
– If necessary, change the temperature using the knob.
Setting the countdown timer
You can set an alarm by using the function Minute Minder.
1. Press the additional functions button re-
peatedly until Countdown Timer appears
in the display.
2. Turn the knob to set the time you want
the alarm to sound.
3. Then press the OK button and the time will count down.
Press the OK button to switch off the alarm.
Key Lock
You can turn Key Lock on and off using the additional functions button. The activated key
lock prevents inadvertent changing of settings.
1. Press the additional functions button re-
peatedly until KEY LOCK appears in the
display.
2. Follow the instructions in the display.
Switch-on lock
The appliance can be locked using the "switch-on lock" function. This can prevent e. g.
children switching on the appliance.
No function may be selected. Close the door if necessary.
Switching the switch-on lock on/off
• " Backen" Press and Pizza together until you hear a signal.
Appliance locked appears briefly in the display.
Automatic switch-off of the oven
If the oven not switched off after a certain time, or if the temperature is not modified, it
switches off automatically.
The oven automatically switches itself off when the operating temperature is:
• 30 - 120° C after 12.5 hours
• 120 - 200° C after 8.5 hours
• 200 - 250° C after 5.5 hours
• 250 - max °C after 3.0 hours
Using the appliance after automatic switch-off
Press the OK button on the knob
00:00:00
Minute Minder
1/1
14 Operation

Smell Filter
The Smell Filter is activated in the "Basic Settings" menu. If the Smell Filter is switched on,
it will start automatically during baking and roasting. When the relevant process is com-
plete, the Smell Filter automatically switches itself off again.
The filter is deactivated when the appliance is set to the factory settings.
If the Smell Filter is switched on, the oven uses more energy.
Even if the Smell Filter is switched off, it will switch on after every 100 hours of operation
during baking or roasting in order to clean itself.
The Smell Filter operates during pyrolytic cleaning of the oven, even if it is switched off at
the time of cleaning.
1. Select "Basic Settings" from the Main menu.
2. Then press the OK key to call up this menu.
3. Use the Selector to select "Smell Filter".
4. Then press the OK key to make the changes.
5. Use the Selector to activate (ON) or deactivate (OFF) the filter.
6. Press the OK key to confirm the setting.
The setting is changed.
Inserting the grill rack, baking tray, and roasting pan
To increase shelf runner safety, all sliding components have a small curved indentation
at the bottom on the right and left-hand edge.
Always insert sliding components so that this " indentation is at the back of the oven interior.
This indentation is also important for preventing the sliding components from tipping.
Inserting the baking tray or roasting pan:
Slide the baking tray or drip pan between the guide bars of the selected oven level.
Inserting the oven shelf:
Insert the oven shelf with the feet pointing downwards.
Slide the shelf between the guide bars of the selected oven level.
Operation 15

The high rim around the oven shelf is an additional
device to prevent cookware from slipping off.
Inserting the grill shelf and roasting pan together:
Place the oven shelf on the roasting pan. Slide the roasting pan between the guide bars
of the selected oven level.
Inserting/Removing the Grease Filter
Only insert the fat filter when roasting in order
to protect the rear element from spitting fat.
Inserting the grease filter
Hold the fat filter by the handle and insert the two retainers into the rear oven wall from
top to bottom (fan opening).
16 Operation

Remove the grease filter
Hold the grease filter by the tab, unhook it and lift out.
option
Attaching the food to be grilled
1. Place a fork on the rotary spit.
2. Slide the item to be grilled and the second
fork onto the spit.
Place the item to be grilled in the middle.
3. Screw on the fork.
Inserting the rotary spit
1. Insert the drip pan into the lowest oven level.
2. Insert the rotary spit covering into the 5th
level from the bottom at the front right.
3. Attach the handle and press the retainer
down.
The clip must be kept pressed down to keep the
handle secure on the rotary spit.
4. Press the end of the spit into the drive socket
on the left-hand side of the rear wall.
5. Place the groove in front of the handle on the
notch provided on the rotary spit support.
6. Remove the handle.
7. Set the heating function and desired tem-
perature in accordance with the instruc-
tions provided in the rotary spit table.
Make sure that the rotary spit turns.
Removing the rotary spit
To remove the rotary spit, make sure the handle is attached again. The rotary spit is very
hot when the cooking process has ended!
1
3
5
Operation 17

When taking it out, there is the risk of burns!
Turn off the appliance.
Tips, charts and information
You can use this appliance to cook manually, conventionally, or with the automatic func-
tion.
Choosing the right oven level is important for both methods. To help, the numbers of the
oven levels are marked on the inside of the oven door.
The charts for conventional baking and roasting are for your reference only. As the new
appliance may have a different baking and roasting pattern to other appliances, you may
need to adjust your usual settings (temperatures, cooking times) with the help of the rec-
ommendations.
Auto Cooking
To attain optimum results, you should use the recommended cookware or accessories.
Baking, Home Baking
Sponge Cake
Type Ovenware Accessories Notes
-Spring form Shelf Batter with no or very
little fat content
Flat sponges, Swiss roll conventional
Yeast Plait
Type Ovenware Accessories Notes
- - Tray 1 piece
Cake Tray
Type Ovenware Accessories Notes
- - Tray Tray completely filled,
no roasting tray
Cake Tin
Type Ovenware Accessories Notes
-cake tin Shelf Various types of cake
which are baked in
tins.
Shortcrust bases conventional
18 Tips, charts and information

Yeast Plait
Type Ovenware Accessories Notes
- - Tray Tray completely filled,
no roasting tray
Tarte
Type Ovenware Accessories Notes
Tart tin
Spring form
Shelf Cakes with minimal
topping, e.g. jam
Pie/Quiche
Type Ovenware Accessories Notes
-Quiche tin
Spring form
Tart tin
Shelf
Strudel
Type Ovenware Accessories Notes
- - Tray 1 piece,
Strudel: Dough with
moist filling.
Stollen: Dough with
dried fruit
Fruit Cake
Type Ovenware Accessories Notes
-Square tin
Spring form
Shelf with dried fruit
Pastry
Type Ovenware Accessories Notes
Sweet -Tray multiple pieces
Salty -Tray multiple pieces
Bake cookies and biscuits the traditional way!
Bread
Type Ovenware Accessories Notes
Tin Bread tin Shelf 1 tin
Tray -Tray 1 tin
Flat Bread -Tray 1 or 2 pieces
(e.g. baguettes)
Tips, charts and information 19

Rolls
Type Ovenware Accessories Notes
Savoury -Tray multiple small pieces
Sweet -Tray multiple small pieces,
e.g. sweet yeast rolls
Cake Special
Type Ovenware Accessories Notes
Victoria Sponge Cake - - English speciality
Roasting
Always insert the fat filter when roasting in order to minimise soiling of the oven!
Beef/Lamb/Game
Type Ovenware Accessories Notes
Top Side Beef Roasting tin -Select the desired de-
gree of cooking (Rare,
Medium or Well-done)
Scandinavian Beef Roasting tin -Select the desired de-
gree of cooking (Rare,
Medium or Well-done)
Roast Beef Roasting tin -Set the weight
Lamb Joint, medium Roasting tin - -
Roast Lamb Roasting tin -Set the weight
Loin of game Roasting tin - -
Roast Game Roasting tin -Set the weight
Poultry/Fish
Type Ovenware Accessories Notes
Boned Poultry Roasting tin - -
Chicken, whole Roasting tin -Set the weight
Turkey, whole Roasting tin -Set the weight
Duck, whole Roasting tin -Set the weight
Goose, whole Roasting tin -Set the weight
Whole Fish Roasting tin - -
Pork/Veal
Type Ovenware Accessories Notes
Loin of pork Roasting tin - -
Roast Pork Roasting tin -Set the weight
20 Tips, charts and information
