Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per-
formance and control - indeed we are setting the highest standards of excel-
lence.
In addition to this you find environmental and energy saving aspects as an inte-
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect-
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

3Contents
Contents
Operating Instructions 5
Safety instructions 5
Description of the Appliance 7
General Overview 7
The electronic oven controls 8
Indicators 8
Buttons 9
Oven Features 10
Oven accessories 11
Before Using for the first time 12
Setting the language 12
Activating the smell filter YES/NO 13
Setting the clock 14
Initial cleaning 15
Using the Oven 16
Menu operation in overview 16
The Oven Functions menu 17
The Options menu 18
Use of the oven functions 19
Switching the Oven On and Off 21
Inserting the Combination Shelf, Baking Tray and Roasting Pan 23
Synchronised oven shelf runners 24
Inserting/Removing the Fat Filter 25
Meat Probe 26
Setting meat probe core temperature 27
Automatic programmes 29
Meat programmes with weight input 29
Meat programmes with meat probe 30
Options 31
RECIPE MENU in overview 31
MEMORY MENU 35
SETTINGS MENU 37
Clock Functions 42
Additional functions 48
CHILD LOCK for the oven 48
BUTTON LOCK 48
Oven Automatic cut-out 49

Contents4
Mechanical Door Lock 50
Cleaning and Care 51
Outside of the appliance 51
Oven interior 51
Accessories 51
Fat Filter 51
Oven Shelf Runner 52
Cleaning the Oven Shelf Runner 52
Oven Lighting 53
Oven Ceiling 54
Oven door 55
Oven door glass 57
What to do if … 60
Disposal 61
Installation Instructions 62
Safety information for the installer 62
Guarantee/Customer Service 67
Index 70
Service 71

5Operating Instructions
Operating Instructions
1Safety instructions
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only be carried out by qualified service engi-
neers. Considerable danger may result from improper repairs. If repairs be-
come necessary, please contact our Customer Services or your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
•The appliance is fitted with a child safety device.
Safety whilst Using
•People (including children) who, because of their physical, sensory or mental
capabilities or their inexperience or ignorance are not able to use the device
safely, should not use this device without supervision or instruction by a re-
sponsible person.
•This appliance is intended to be used for cooking, roasting and baking food in
the home.
•Take care when connecting electric appliances to sockets nearby. Do not allow
connecting leads to come into contact with or to catch beneath the hot oven
door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcohol-air
mixture that is easily ignited. In this case, open the door carefully. Do not have
embers, sparks or naked flames in the vicinity when opening the door.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe-
cially in products containing starch, can constitute a health risk due to acryla-
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.

Safety instructions6
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots,
etc. on the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not
be able to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause dam-
age to or discoloration of the enamel.
•Rough handling, especially around the edges of the front panel, can cause the
glass to break.
•Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
•Do not store any moist foods inside the oven. This could damage the oven
enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven.
Moisture may condense in the oven interior or on the glass doors and may get
into the units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not af-
fect the appliance’s suitability for normal and correct use. They therefore do not
constitute a defect in the sense of the warranty law.

7Description of the Appliance
Description of the Appliance

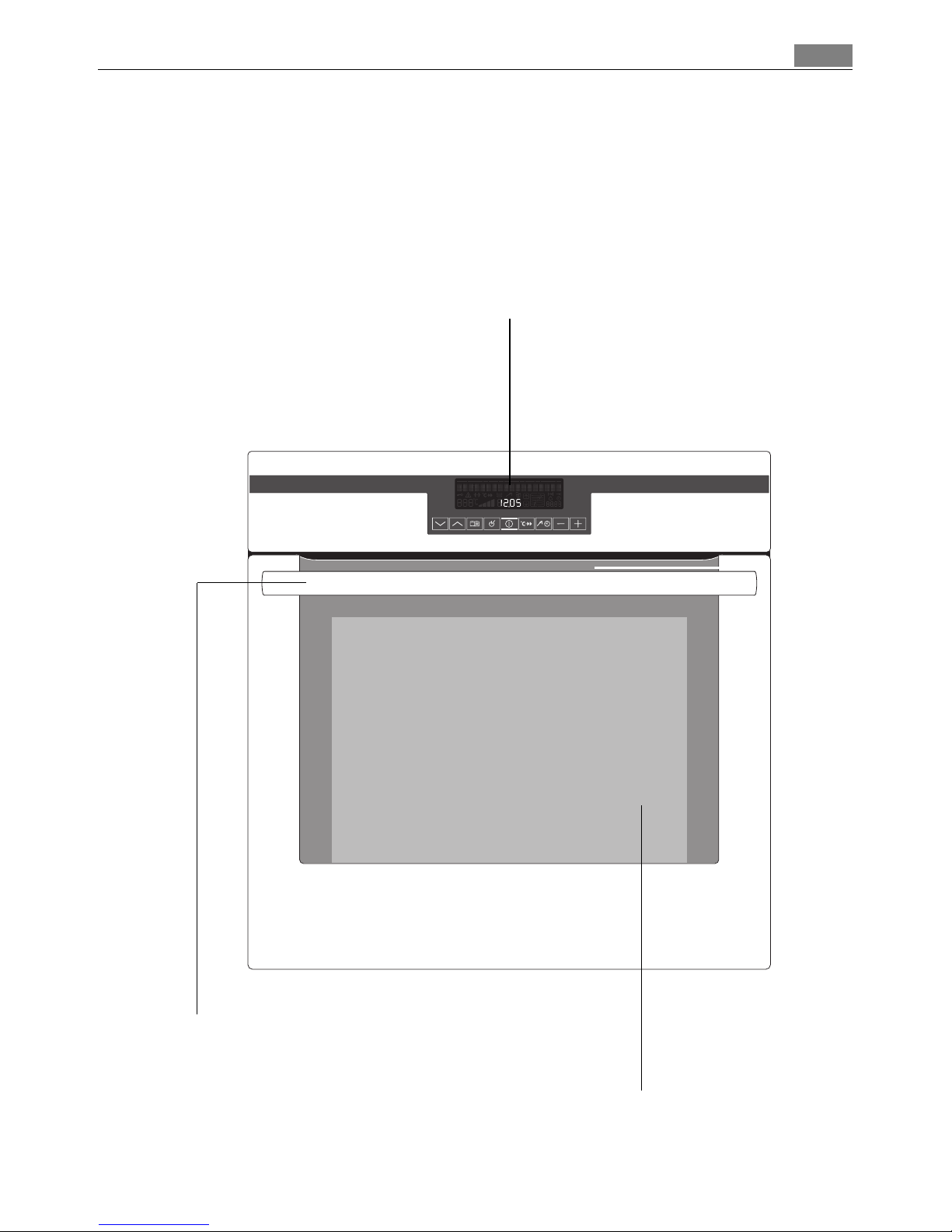

General Overview
Full glass door
Oven displays
and buttons
Door
handle

Description of the Appliance8
The electronic oven controls
Indicators

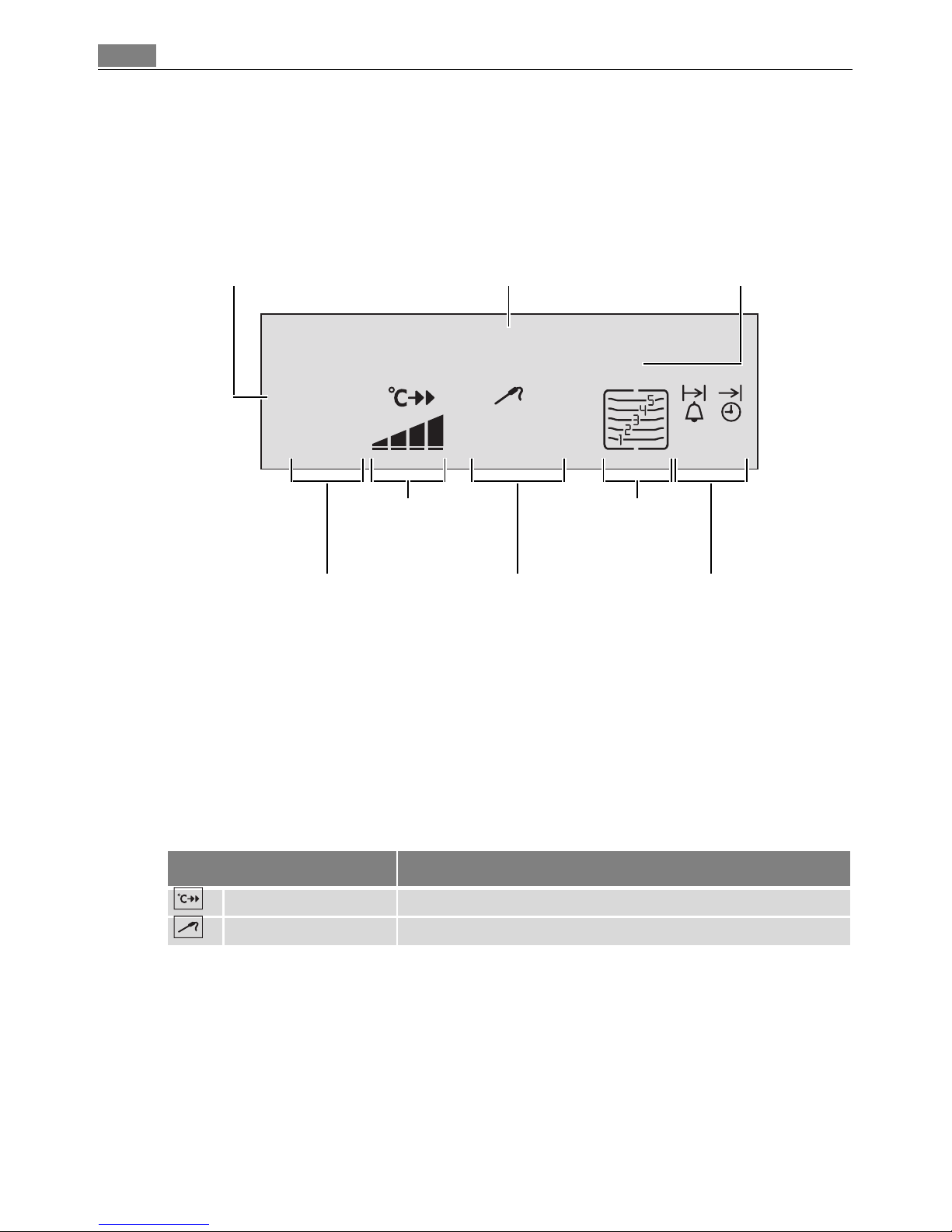

Menu status bar
In the menu status bar the current position within a menu is shown by a flash-
ing bar.
When the menu status bar can no longer be seen in the display, the oven begins
to heat or the time set begins to count down.
If only every second bar in the menu status bar is lit, the smell filter is operating.
Symbol status bar
Symbol Function
RAPID HEAT UP RAPID HEAT UP is in operation.
MEATPROBE MEATPROBE is plugged in.
TRUE FAN
150ûc 12.05 00.06
___________________
Symbol status bar Menu status bar Text line
Temperature Time
Meat core temperature
Clock functions
Period of operation
Heat indicator Shelf positions

9Description of the Appliance
Buttons
Button Function
w To select oven functions.
To move up and down in the menu.
m
¸To open the Options menu.
To close the Options menu (press and hold button).
¹To confirm, change to the submenu.
ºTo switch appliance on or off.
»Switch RAPID HEAT UP on or off.
¼To select between oven functions, clock functions and MEATPROBE.
-To set values (e.g. temperature, time, weight or degree of cooking).
+
wm¸¹º»¼-+

Description of the Appliance10
Oven Features
Inside of door
On the inside of the oven door you will find
the numbers of the different oven shelves.
Top heat and heating elements
Oven lighting
Meat probe socket
Fat Filter
Oven lighting
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

11Description of the Appliance

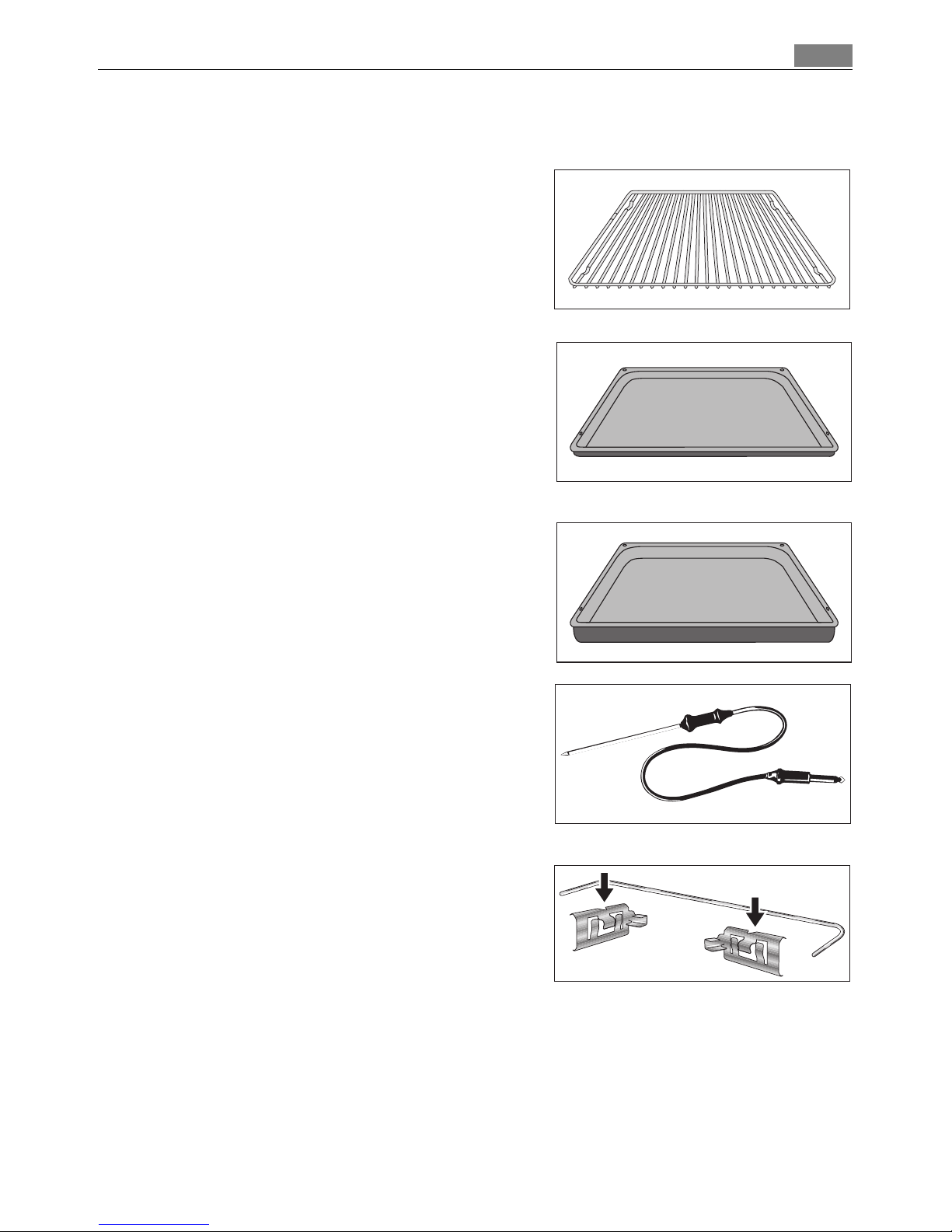

Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled
foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for col-
lecting fat.
Meat probe
For determining exactly how far joints of
meat are cooked.
Synchronised oven shelf runners
Retaining clips with connecting clamp.

Before Using for the first time12
Before Using for the first time
Setting the language
1. When the appliance has been con-
nected to the electrical supply,
LANGUAGE MENU is shown in the
display.
2. Using the arrow buttons or
select the desired language.
3. Confirm selected language with the
OK button.
From now on the texts in the dis-
play appear in the language set.
LANGUAGE MENU
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.0ü0 ý88.8ú8
wm¸¹º»¼-+
ENGLISH
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.0ü0 ý88.8ú8
wPmP¸¹º»¼-+
SMELL FILTER MENU
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.0ü0 ý88.8ú8
wm¸¹Pº»¼-+

13Before Using for the first time
Activating the smell filter YES/NO
1. SMELL FILTER MENU lights up
2. Using the arrow buttons or select the desired setting.
3. Press the OK button.
In the display SAVED appears for a few seconds.
3The catalytic effect of the filter limits odours to a great extent.
If the smell filter is activated, it automatically switches itself on when a baking
or roasting process is started.
It switches itself off as soon as the baking or roasting cycle is finished.

Before Using for the first time14
Setting the clock
3The time only has to be set if the appliance is disconnected from the power sup-
ply for a long time.
1. TIME OF DAY lights up
In the clock display you see 12.00.
2. Use the or button to set
the current time.
3. Confirm using the SELECTION
button.
The appliance is now ready to use.
3If you would like to change one of
these base settings at a later date, please refer to the chapter SETTINGS MENU.
TIME OF DAY
ý ý ý ýþ ýþ ý ý ý
ýý ý ò
888ûcþ þüþ1ü2.2ü5 ý88.8ú8
wm¸¹º»¼-P+P
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.2ü5 ý88.8ú8
wm¸¹º»¼P-+

15Before Using for the first time
Initial cleaning
Clean the oven before using it for the first time.
1Important: Do not use caustic or abrasive cleaning agents! These can damage
the oven surfaces.
3For the metal surfaces, use commercially available cleaning agents.
1. Open the oven door.
The oven light is lit.
2. Remove all oven accessories, and clean them with warm water and a scouring
agent.
3. Wash the oven in the same way, and wipe dry.
4. Wipe the front of the appliance with a damp cloth.

Using the Oven16
Using the Oven
Menu operation in overview
3The display only offers setting options that are possible with the current func-
tion after each operational step.
TRUE FAN
FAN BAKING
SLOW COOK ONE
CONVENTIONAL
ROTITHERM
DUAL GRILL
SINGLE GRILL
KEEP WARM
DEFROST
BOTTOM HEAT
POULTRY
PORK
BEEF
VEAL
GAME
RECIPE MENU
MEMORY MENU
SETTINGS MENU
SMELL FILTER MENU
HEAT+HOLD MENU
EXTRA TIME MENU
RAPID HEAT UP MENU
RESIDUAL HEAT MENU
DISPLAY MENU
SOUND MENU
LANGUAGE MENU
Oven functions
menu
¸
w
m
w
m
w
m
¹
Options
menu
FACTORY SETTINGS

17Using the Oven
The Oven Functions menu
•When you switch the appliance on, you find yourself in the Oven Functions
menu.
•Select the desired oven function using the arrow buttons or . In the
menu status bar, the currrent position within the menu is shown.
Setting an example oven function
1. Switch on the appliance using
the ON/OFF button.
2. Using the arrow buttons or
select the oven function.
A suggested temperature appears in
the temperature display.
The oven starts to heat up.
3. With the or button, the
temperature can be raised or low-
ered.
3When the temperature set is
reached, an audible signal sounds.
–—OVEN FUNCTIONS
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
280ûcþ þüþ1ü2.2ü5 ý88.8ú9
wm¸¹ºP»¼-+
____________________
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
200ûcþÝÜÜÜþ1ü2.2ü5 ý00.0ü0
wPm¸¹º»¼-+
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
180ûcþÝÜÜÜþ1ü2.2ü6 ý00.0ü1
wm¸¹º»¼-P+P

Using the Oven18
The Options menu
•Using the OPTION button, open the Options menu.
•Select the desired option using the arrow buttons or . In the menu
status bar, the current position within the menu is shown.
•Use the OK button to change to the menu of the selected option.
The sub-menus
•Select the desired setting using the arrow buttons or or change to
other sub-menus using the OK button.
3At the end of every menu there is the menu option BACK.
You use this to go back to the higher menu.
You can cancel a setting procedure by pressing and holding down the
OPTION button.
You will then find yourself back in the Oven functions menu.

19Using the Oven
Use of the oven functions
The oven has the following functions:
Oven function Application
TRUE FAN For baking on up to three oven levels at the same time.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
FAN BAKING For baking on one oven level dishes that require more inten-
sive browning and a crispy base.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
SLOW COOK For preparing especially tender, succulent roasts.
CONVENTIONAL For baking and roasting on one oven level.
ROTITHERM For roasting larger joints of meat or poultry on one level.
The function is also suitable for gratinating and browning.
DUAL GRILL For grilling flat foodstuffs in large quantities and for toast-
ing.
SINGLE GRILL For grilling flat foodstuffs placed in the middle of the grill
and for toasting.
KEEP WARM To keep dishes warm.
DEFROST For defrosting e. g. flans and gateaux, butter, bread, fruit or
other frozen foods.
BOTTOM HEAT For baking cakes with crispy or crusty bases.

Using the Oven20
Meat programmes
or
Usage, Tables, Tips and Recipes
You will find practical information on the various oven functions, programmes
and automatic recipes in the accompanying booklet.
Meat programmes
with weight input Application Weight range
POULTRY Chicken, duck, goose 0.9 to 4.7 kg
PORK Roast pork, shoulder of pork 1.0 to 3.0 kg
BEEF Roast beef, pot roast 1.0 to 3.0 kg
VEAL Roast veal 1.0 to 3.0 kg
GAME Vension, rabbit 1.0 to 3.0 kg
Meat programmes with
meat probe plugged in Degree of cooking Notes
TOP SIDE BEEF TOP SIDE BEEF RARE
-TOP SIDE BEEF MED.
TOP SIDE BEEF WELL
BEEF SCAN BEEF SCAN RARE Roast beef Scandinavi-
an style (no browning)
BEEF SCAN MED.
BEEF SCAN WELL
PORK JOINT - -
VEAL - -
LAMB JOINT - -
GAME - -
BONED POULTRY - -
