Electrolux EOT1513X User manual

Classified as Internal
EOT1513X
EN Electric Oven User manual 2

Classified as Internal
Thank you for purchasing an Electrolux appliance.
chosen a product that brings with it decades
of professional experience and innovation. Ingenious
and stylish, it has been designed with you in mind.
So, whenever you use it, you can be safe in the
knowledge that get great results every time.
Welcome to Electrolux.
BEFORE USING YOUR APPLIANCE
Check for any damage or marks. If you find the appliance
damaged or marked, you must report it within 7 days to
claim for damages under the warranty.
This does not affect your statutory rights.
Before you use the appliance, we recommend that you
read through the whole user manual which provides the
description of the product and its functions. It is important
that the product is installed correctly and that you read the
safety instructions carefully to avoid misuse and hazards.
For future reference, please store this booklet in a
safe place.
CONDITIONS OF USE
This appliance is intended to be used in household and
similar applications such as:
Staff kitchen areas in shops, offices,
and other working environments.
Farmhouses.
By clients in hotels, motels, and other
residential type environments.
Bed and breakfast type environments.
BEFORE YOU CALL
Please ensure you read the instruction manual fully before
you call for service, or a full-service fee could be applicable.
RECORD MODEL AND SERIAL
NUMBER HERE:
Model:
Serial No:
EN 2
CONTENTS
1. General warnings .................................................3
2. Safety instructions ................................................4
3. Product description ..............................................6
4. Accessories .......................................................... 6
5. How to use ...........................................................7
6. Using the accessories .......................................... 8
7. Cooking guides .................................................... 9
8. Cleaning and maintenance ................................ 10
9. Specification ....................................................... 10
10. Customer care center.........................................11
SYMBOLS
WARNING!
This symbol indicates information concerning your
personal safety.
CAUTION!
This symbol indicates information on how to avoid
damaging the appliance.
IMPORTANT!
This symbol indicates tips and information about use
of the appliance.
IMPORTANT INFORMATION THAT MAY IMPACT
Adherence to the directions for use in this manual is extremely
important for health and safety. Failure to strictly adhere to
the requirements in this manual may result in personal injury,
property damage and affect your ability to make a claim under
the Electrolux warranty provided with your
product. Products must be used, installed and operated in
accordance with this manual. You may not be able to claim on
the Electrolux warranty in the event that your
product fault is due to failure to adhere this manual.

Classified as Internal
``
1. GENERAL WARNINGS
Important safety instructions, read carefully and keep for
future reference. Pass the user manual on to possible new
owners of the appliance.
NOTE! You must read these warnings carefully
before installing or using the appliance. If you need
assistance, contact your Customer Care Department.
The manufacturer will not accept liability, should these
instructions or any other safety instructions incorporated
in this book be ignored.
Children and vulnerable people safety.
WARNING!
Risk of suffocation, injury or permanent disability.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory,
or mental capabilities, or lack of experience and
knowledge,
unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
Keep all packaging away from children.
WARNING: Accessible parts may become hot during
use. Young children should be kept away.
CAUTION!
Important safety instructions, read carefully and keep
for future reference.
General safety
EN 3
CAUTION!
In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through
an external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by the utility.
The use of accessories not recommended by the
appliance manufacturer may cause hazard or injury.
If smoke is emitted, switch off or unplug the appliance
and keep the door closed to stifle any flames.
The appliance should be cleaned regularly, and any
food deposits removed.
Failure to maintain the appliance in a clean condition
could lead to deterioration of the surface that could
adversely affect the life span the appliance and
possibly result in a hazardous situation.
The temperature of accessible surfaces may be high
when the appliance is operating.
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass. Contact the Service Centre if require.
If the supply cord is damaged, it must be replaced by
the manufacturer or an authorized service agent or
similarly qualified persons to avoid a hazard.
The interior of the appliance becomes hot when in
operation. Do not touch the heating elements that are
in the appliance.
Always use oven gloves to remove or put in accessories
or ovenware.
Before maintenance, disconnect the power supply.
If the door or door seals are damaged, the appliance
must not be operated until it has been repaired by a
competent person.
The appliance is not intended to be operated by means
of an external timer or separate remote-control system.
Only use utensils and recommended accessories
that are suitable to use in electric ovens.
Do not heat liquids and other foods in sealed containers
of any material. They are liable to explode.

Classified as Internal
EN 4
2. SAFETY INSTRUCTIONS
2.1 Installation
CAUTION!
If the oven is positioned too close to the wall, the
wall will be burned or stained. Be sure the curtain is
not in contact with the oven body.
Do not put anything between the bottom of the
body and the counter surface on which it is set;
such object could be burnt.
When operating the oven, keep at least 10cm of
space on all sides of the oven to allow adequate air
circulation. It's recommended to have at least 30cm
space between the top of oven and bottom of
cabinet.
The temperature of the door or the outer surface
may be higher when the appliance is operating.
Temperature of accessible surfaces may be high
when the appliance is operating
The metal parts and glass window of the door
become extremely hot during use; be careful not to
touch them when opening and closing the door.
2.2 Electrical connection
When cooking oil-splashing dishes such as roast
chicken, it is recommended to put 2 sheets of
aluminum foils on a tray to diminish oil splashing.
The rear surface of appliances should be place
against the wall with gap for ventilation.
Do not cover any parts of the oven with metal foil.
This may cause overheating of the oven.
Do not put anything on the oven while using it. The
heat could cause deformation, crack, etc.
Do not store any flammable material on the oven
during operation, it can cause fire.
Do not rest cooking utensils or baking dishes on the
glass door, it could cause unit to fall.
CAUTION!
Risk of fire and electrical shock.
AC power must be taken from a properly wired outlet.
Insert the plug completely into the socket. If it is not
probably connected, it will become abnormally hot.
Do not use an electric light outlet. Never connect
multiple plugs to the same outlet.
When unplugging the cord, always take hold of the
plug itself. Never pull on the cord ; doing so could
break the wires inside the cord.
When using the oven, do not place the unit close to
the gas burner or other source of high temperature or
direct the electric fan at the oven as it could prevent
the oven to get the correct temperature control.
Do not the power cord nor handle the unit with wet
hands. Always unplug the cord after use. Any
When using the oven, do not place the unit close to
the gas burner or other source of high temperature or
direct the electric fan at the oven as it could prevent
the oven to get the correct temperature control.
Do not the power cord nor handle the unit with wet
hands. Always unplug the cord after use. Any
When using the oven, do not place the unit close to
the gas burner or other source of high temperature or
block the electric fan at the oven as it could prevent
the oven to get the correct temperature control.
Do not handle the power cord or the appliance with
wet hands. Always unplug the cord after use. Any
malfunctioned unit with plug inserted into the outlet
could cause fire hazard

Classified as Internal
EN 5
2.3 Use 2.4 Care and cleaning
WARNING!
Risk of injury, burns or electric shock or explosion.
Do not use it outdoors.
Do not use the appliance for other than intended use.
Use this appliance in a household environment.
Do not change the specification of this appliance.
Make sure that the ventilation openings are not blocked.
Do not leave the appliance unattended during
operation.
Do not apply pressure on the open door.
Do not use the appliance as a work surface and do not
use the cavity for storage purposes.
Do not operate appliance without food.
Non-high temperature resistant metallic containers for
food and beverages are not allowed during cooking.
Do not place any of the following materials in the
appliances: cardboard, plastic, paper, or anything
similar.
WARNING!
Risk of injury, fire or damage to the appliance.
Before maintenance, switch off the appliance and
disconnect the main plug from the main socket.
Regularly clean the appliance to prevent the
deterioration of the surface material.
Do not allow food spills or cleaner residue to
accumulate on door sealing surfaces.
Residual fat or food in the appliance can cause
smoke/fire, particularly on the heating element.
Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents, or metal objects.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
Disconnect the appliance from the main supply.
Cut off the main cable and discard it.

Classi ed as Internal
3. PRODUCT DESCRIPTION EN 6
1 Housing 6 Function knob
2 Inner cavity
3 Heating element
4 Glass door
5
Temperature knob
7 Timer knob
8 Indicator light
9 Support foot
10 Door handle
4. ACCESSORIES
11 Grill rack
12 Tray picker
13 Non-stick coating bake tray
14 Crumb tray
1
2
4
5
6
7
8
9
3
11 12 13
10
14

Classified as Internal
EN 7
5. HOW TO USE
5.1 Before using the unit for the FIRST TIME
Heat the empty oven
Clean the accessories
Insert the tray and grill rack
Select the function knob , set the
temperature at 230°C and heat the empty oven
for about 10 minutes.

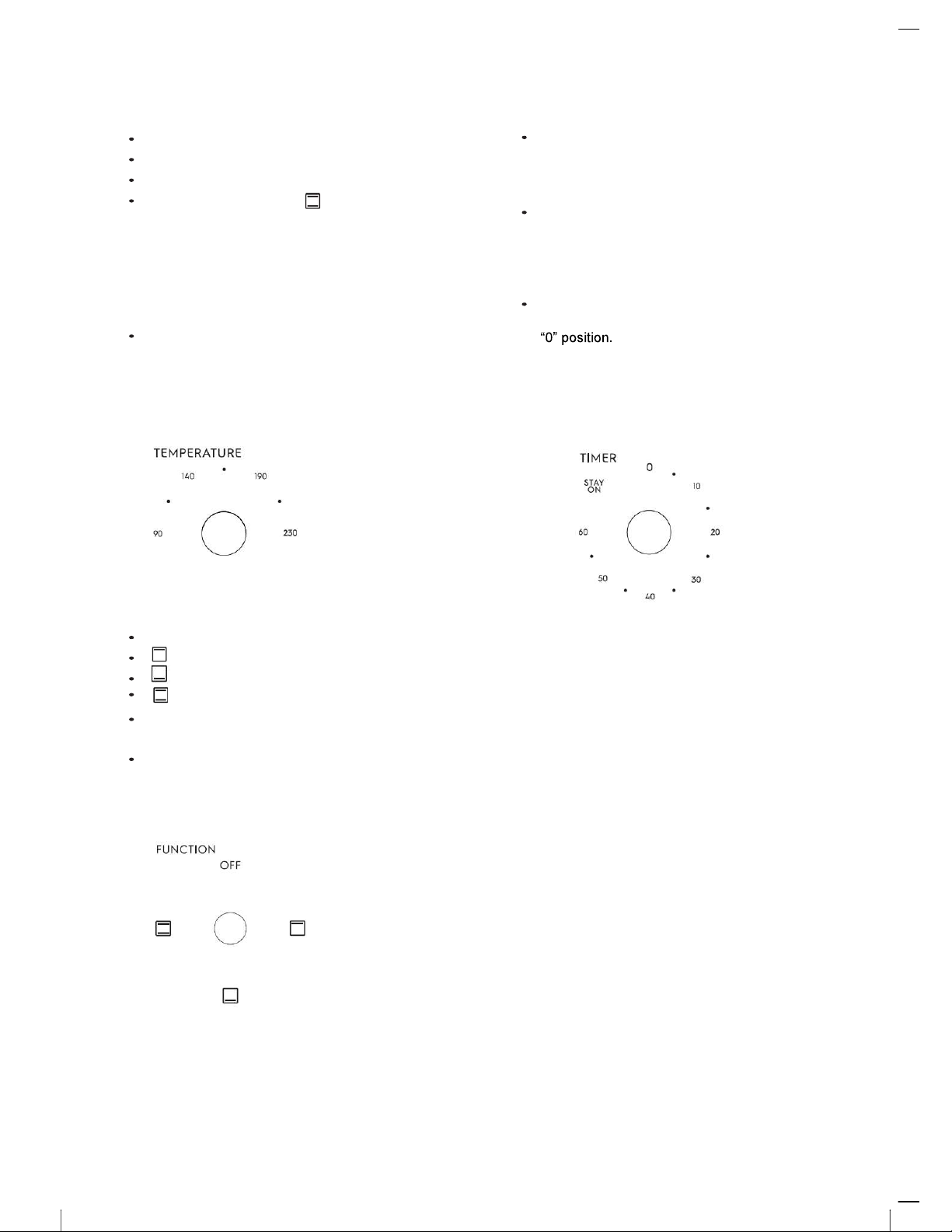

5.2 Select a TEMPERATURE
Select the proper temperature according to
the food or personal preference by turning
the knob clockwise.
Note: There may be some discrepancy between the set
temperature and the actual temperature.
5.3 Select a FUNCTION
OFF
Upper Heating
Lower Heating
Upper & Lower Heating
Select "FUNCTION " by turning the knob
clockwise for suitable heating function.
5.4 Select time
Set the arrow on the timer knob to the number
which indicates the cooking time (minutes)
according to the food you want to cook or
personal preference.
Note: If the inside of the oven is dirty, cooking may take slightly longer than
usual. The oven light will switch on only when you set the time.
Note: There may be some smoke and a burning smell at first. This
is not a malfunction.
Set the timer by turning it clockwise. The oven
will turn off automatically at the end of the
selected time and the bell will ring. If the required
time is less than 5 minutes, turn the knob over 20
minutes and then back to the require time.
The oven can be turned off manually during
cooking by turning the timer anti-clockwise to the
You can observe whether the heaters are
working or not by observing the front
indicator light. (missing full stop)

Classi ed as Internal
EN 8

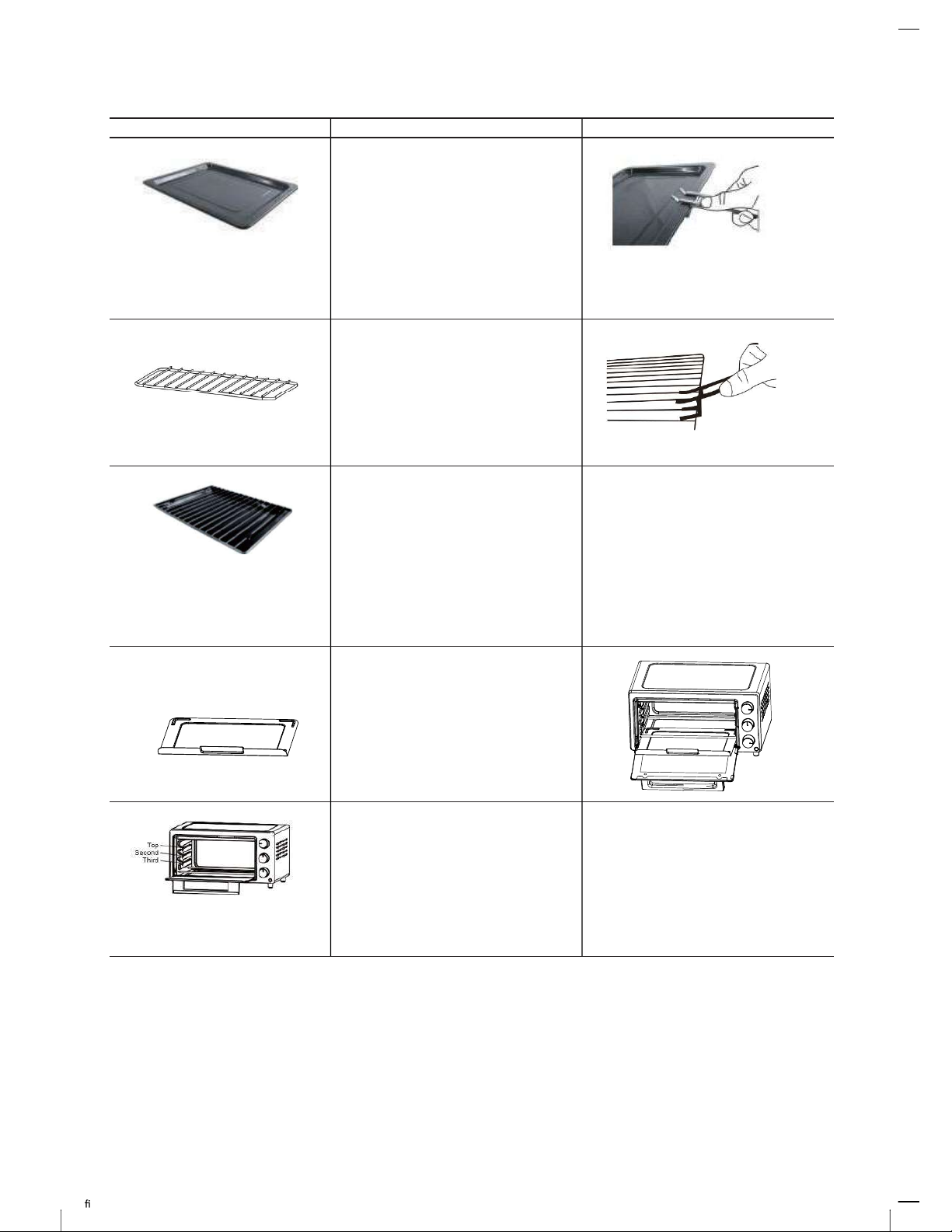

6. USING THE ACCESSORIES
Accessories Description How to use
Non-stick coating bake tray
When the tray or rack is hot,
please use tray picker to take
the tray out from the oven.
Grill rack
Use grill rack to bake potato, dry food
etc.
Non-stick coating bake tray
and grill rack
Use bake tray and grill rack together
for food which has water or oil
dripping.
Tray support
You can put the tray or grill rack at the
middle shelf position according to the
food you want to cook.
When making macaroni gratin and
you want to have the top part cooked
the most, use the top or the second
rack support. For roasting a chicken,
use the third rack support.
Use the crumb tray to hold bread
crumbs, dirties during cooking.
Crumb Tray
Use the tray to roast chicken,
hamburger, steak, gratin, sponge cake
or almost all other oven-cooked food.

Toast 200°C 5-6 Middle
6 pcs (10cm* 10cm* 1cm)
Classified as Internal
EN 9
7. COOKING RECIPES
EOT1513X
Menu Weights/ Amount Temperature
setting (°C)
Time
(min.)
Food tray
position Function selection
4 pcs 200°C 5-6 Middle
Sausage 10-12 pcs 200°C 10-12 Middle
Ham 6 pcs (1mm thickness) 170°C 15-17 Middle
Fish 200-400 g 230°C 38-40 Middle
Bread 2-4 pcs 150°C 18-20 Middle
Pancake 2pcs
6~8cm in diameter 200°C 9-11 Middle
Chicken Whole chicken
1-1.5KG 200°C 60-65
Cup cake 9pcs
7cm in diameter, 70% full 175°C 27-33 Middle
Steak 2 pcs
(1-2cm thickness 150g/pc) 230°C 15-17 Middle
Pizza 8 inches 200°C 11-13 Middle
Bottom + Top Heating
Bottom + Top Heating
Bottom + Top Heating
Bottom + Top Heating
Bottom + Top Heating
Bottom + Top Heating
Bottom + Top Heating
Bottom + Top Heating
Bottom + Top Heating
Bottom + Top Heating
Bottom + Top Heating
Hamburger
Middle

Classi ed as Internal
8. CLEANING AND MAINTENAINCE
WARNING!
Notes on cleaning:
After use, set all switches to "0"/"OFF" position. Always
unplug the unit and wait until the interior parts of the oven
have completely been cooled down before cleaning.
Use a damp cloth to clean the inside and outside
parts of the oven. Do not use abrasive or
corrosive cleaners.
Do not immerse the unit, power cord, and plug
into water or other liquids.
Wash all accessories in warm soapy water.
Allow all the parts to dry thoroughly before plugging the
oven toaster into the wall socket.
When food have accumulated at the bottom of the unit, it
can impair the performance. Remove the crumb tray
provided for easy cleaning.
9. SPECIFICATION
EN 10
Notes on storage:
Follow the above cleaning instruction for well maintenance
before storage.
Tidy up the power cord.
The unit and its accessories should be stored at dry and
cool place.
Notes:
Do soak the food tray with warm water as it will make
cleaning easier.
To remove any cooking spatters, wipe the interior of the
oven toaster with some mild detergent on a damp sponge,
cloth, or nylon-scouring pad.
Sugar and salt-based food tend to stick to all surfaces and
are very hard to clean. When cooking these types of food,
clean the food tray and grill rack immediately after each
use.
Specs/ Models EOT1513X
Power supply 220-240V ~50-60Hz
Power consumption 1380W
Capacity 15.0L
Temperature Settings 90°C - 230°C
Timer 60mins/ Stay on
Net weight (approx.) 4.9kg
Power cord length 0.8m
Unit Dimension
(W x D x H) mm 430X330X227mm
Carton Dimension
(W x D x H) mm
482X388X290mm

Classified as Internal
Classified as Internal
EN 11
Customer care center
Thailand
Consumer Care Tel : [phone]
Electrolux Thailand Co., Ltd.
Electrolux Building 14th Floor
1910 New Phetchaburi Road,
Bangkapi, Huai Khwang, Bangkok 10310
Office Tel : [phone]
Office Fax : [phone]
Email : [e-mail]
Malaysia
Consumer Care Center Tel: 1300-88-11-22
Electrolux Home Appliances Sdn. Bhd.
Corporate Office Address: Unit T2-7, 7th Floor, Tower 2, PJ33,
No. 3, Jalan Semangat, Seksyen 13, 46200 Petaling Jaya, Selangor.
Office Tel : [phone]
Office Fax : [phone]
Consumer Care Center Address: Lot C6, No. 28, Jalan 15/22,
Taman Perindustrian Tiong Nam, 40200 Shah Alam, Selangor
Consumer Care Center Fax : [phone]
Email : [e-mail]
Indonesia
Hotline service: 08041119999
PT. Electrolux Indonesia
Electrolux Building
Jl.Abdul Muis No.34, Petojo Selatan,
Gambir Jakarta Pusat 10160
Email:[e-mail]
SMS & WA : 0812.8088.8863
Philippines
Consumer Care Center Toll Free : 1-800-10-845-CARE(2273)
Consumer Care Hotline : (+63 2) 845-CARE(2273)
Electrolux Philippines, Inc.
Unit B 12F Cyber Sigma Bldg,Lawton Avenue, McKinley West,Taguig,
Philippines 1634
Trunkline: [phone]
Website : www.electrolux.com.ph
Email : [e-mail]
Vietnam
Consumer Care Center Toll Free: 1800-58-88-99
Tel: [phone]
Electrolux Vietnam Ltd.
Floor 9th, A&B Tower
76 Le Lai Street - Ben Thanh Ward - District 1
Ho Chi Minh City Vietnam
Office Tel: [phone]
Office Fax: [phone]
Email: [e-mail]
orea
Contact Center: 1566-1238
Electrolux Korea Ltd.
9th Floor, Pine Avenue B, 100 Eulji-ro,
Jung-gu, Seoul 04551, Korea
Electrolux Korea Home page:
www.electrolux.co.kr
Customer Care Home page:
www.electroluxconsumer.co.kr
Email: [e-mail]
Taiwan
Consumer Care Center Toll Free: 0800-888-259
Electrolux S.E.A Private Limited Taiwan Branch
9F, No. 68, Sec. 2, Xianmin Blvd, Banqiao Dist.,
New Taipei City 22065, Taiwan
Office Fax: [phone]
Email: [e-mail]
Conformed to the stipulation on permissible content limitation of
some hazardous & restricted chemical substances.
(RoHS compliant)
(According to the Circular No. 30/2011/TT-BCT, Vietnam, dated 10th August 2011)
RoHS
Compliant
Singapore
Consumer Care Center Tel: [phone]
Electrolux S.E.A. Pte Ltd.
351 Braddell Road, #01-04
Sngapore 579713.
Email : [e-mail]

Classified as Internal
Classified as Internal
