electrolux welcome 3

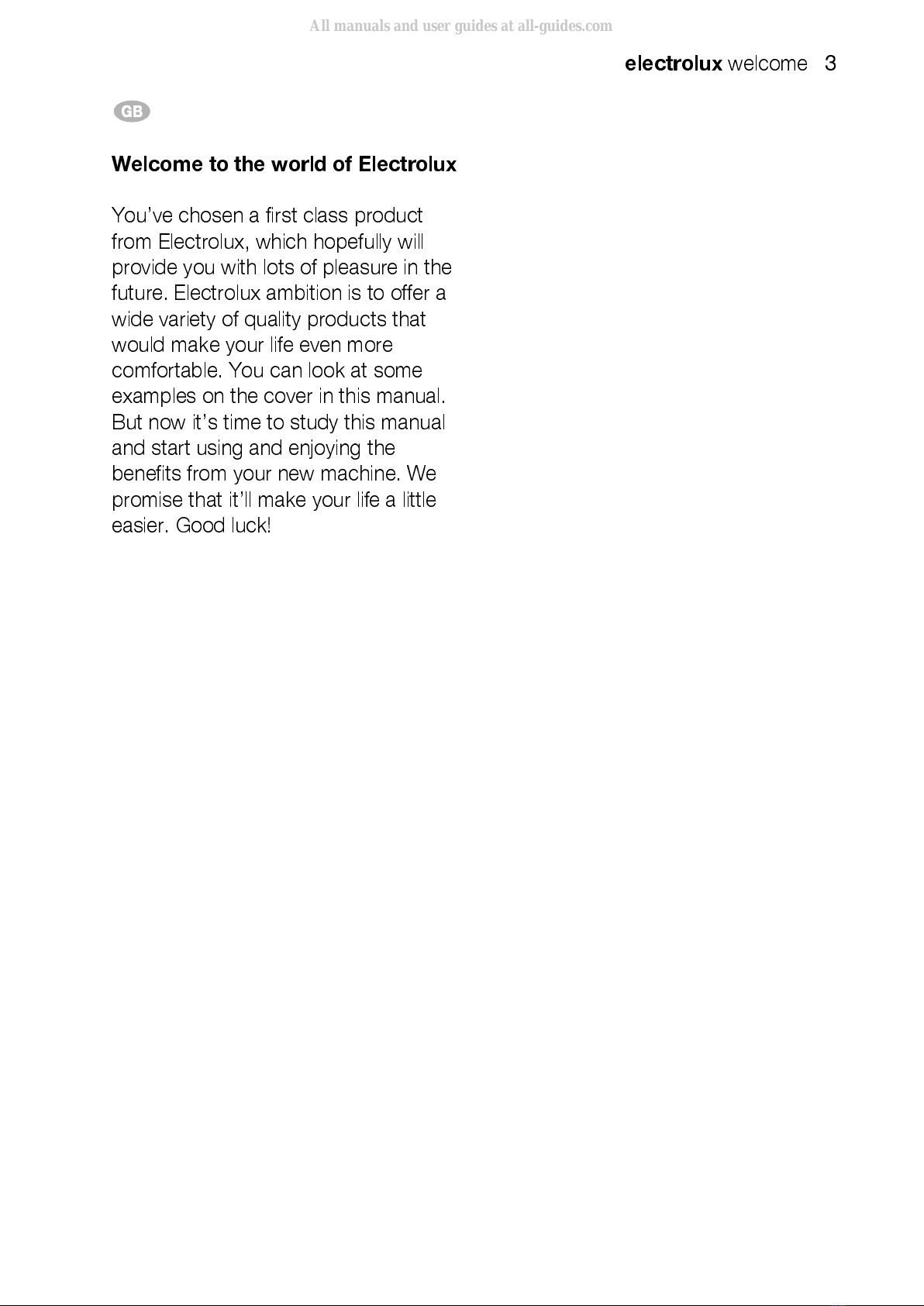

Welcome to the world of Electrolux
You’ve chosen a first class product
from Electrolux, which hopefully will
provide you with lots of pleasure in the
future. Electrolux ambition is to offer a
wide variety of quality products that
would make your life even more
comfortable. You can look at some
examples on the cover in this manual.
But now it’s time to study this manual
and start using and enjoying the
benefits from your new machine. We
promise that it’ll make your life a little
easier. Good luck!
All manuals and user guides at all-guides.com

4 electrolux contents
Contents
Important safety information 5
Product description 7
Before using the appliance 8
Operation 10
Programme charts 22
Hints and tips 28
What to do if… 32
Care and cleaning 34
Technical data 39
Installation 40
Environment 45
Guarantee / Customer care 46
European guarantee 48
The following symbols are used in
this user manual:
Important information concerning
your personal safety and
information on how to avoid
damaging the appliance.
General information and tips
Environmental information
All manuals and user guides at all-guides.com

electrolux important safety information 5
Important safety information
These warnings are provided in the
interests of your safety. Ensure that
you understand them all before
installing or using the appliance.
Your safety is of paramount
importance. If you are unsure about
any of the meanings of these warnings
please contact customer care.
Installation
The appliance must be installed
according to the instructions supplied.
The installation work must be
undertaken by a qualified electrician or
competent person.
The appliance should be serviced by
an authorised Service Engineer and
only genuine approved spare parts
should be used.
The appliance must be installed in an
adequately ventilated room.
It is imperative that the appliance is
left in the base to protect both the
appliance and the floor.
This appliance is heavy and care
must be taken when moving it.
Do not attempt to lift or move this
appliance by the handles.
All packaging, both inside and
outside the appliance must be
removed before the appliance is used.
It is dangerous to alter the
specifications or modify the appliance
in any way.
Child safety
Do not allow children to play with any
part of the packaging.
Do not allow children to sit or climb
on the drop down doors.
This appliance is not intended for use
by children and other persons whose
physical, sensory or mental capabilities
or lack of experience and knowledge
prevents them from using the
appliance safely without supervision or
instruction by a responsible person to
ensure that they can use the appliance
safely.
Children should be supervised to
ensure that they do not play with the
appliance.
CAUTION: Accessible parts may be
hot. Young children should be kept
away.
During use
This appliance is not intended to be
operated by means of an external timer
or separate remote control system.
This appliance has been designed for
domestic use to cook edible foodstuffs
only and must not be used for any
other purposes.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
All manuals and user guides at all-guides.com

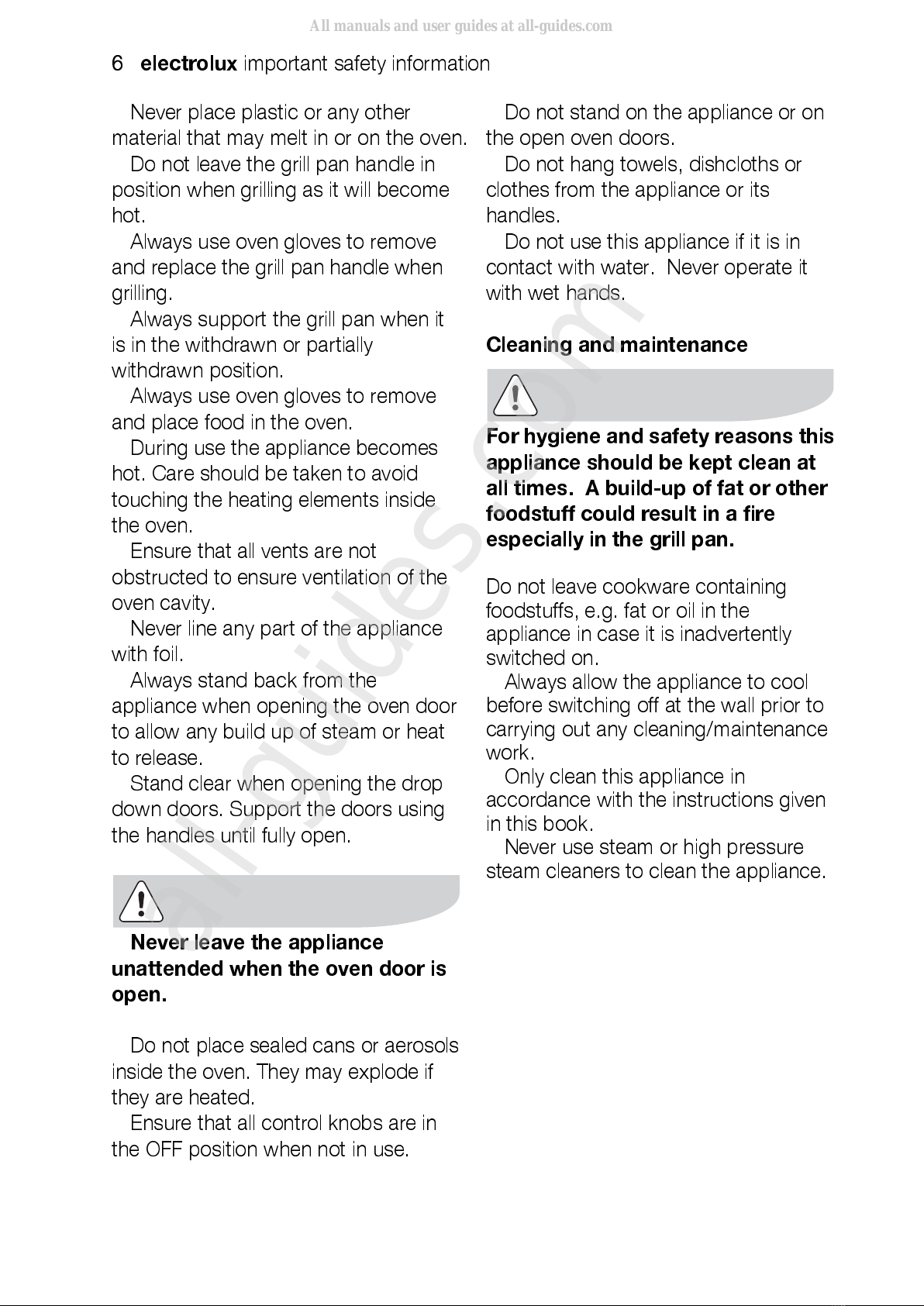

6 electrolux important safety information
Never place plastic or any other
material that may melt in or on the oven.
Do not leave the grill pan handle in
position when grilling as it will become
hot.
Always use oven gloves to remove
and replace the grill pan handle when
grilling.
Always support the grill pan when it
is in the withdrawn or partially
withdrawn position.
Always use oven gloves to remove
and place food in the oven.
During use the appliance becomes
hot. Care should be taken to avoid
touching the heating elements inside
the oven.
Ensure that all vents are not
obstructed to ensure ventilation of the
oven cavity.
Never line any part of the appliance
with foil.
Always stand back from the
appliance when opening the oven door
to allow any build up of steam or heat
to release.
Stand clear when opening the drop
down doors. Support the doors using
the handles until fully open.
Never leave the appliance
unattended when the oven door is
open.
Do not place sealed cans or aerosols
inside the oven. They may explode if
they are heated.
Ensure that all control knobs are in
the OFF position when not in use.
Do not stand on the appliance or on
the open oven doors.
Do not hang towels, dishcloths or
clothes from the appliance or its
handles.
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
Cleaning and maintenance
For hygiene and safety reasons this
appliance should be kept clean at
all times. A build-up of fat or other
foodstuff could result in a fire
especially in the grill pan.
Do not leave cookware containing
foodstuffs, e.g. fat or oil in the
appliance in case it is inadvertently
switched on.
Always allow the appliance to cool
before switching off at the wall prior to
carrying out any cleaning/maintenance
work.
Only clean this appliance in
accordance with the instructions given
in this book.
Never use steam or high pressure
steam cleaners to clean the appliance.
All manuals and user guides at all-guides.com
all-guides.com

electrolux product description 7
Product description
Control Panel
Top Oven/Grill
Main Oven
Electronic timer
Top oven fan neon indicator
Top oven fan selector button
Top Oven/ Grill Temperature Indicator Neon
Top Oven/ Grill Function Selector
Main Oven Temperature Indicator Neon
Main Oven Temperature Control
Main Oven Function Selector
All manuals and user guides at all-guides.com

8 electrolux before using the appliance
Before using the appliance
Rating plate
This is situated on the front frame of
the appliance and can be seen upon
opening the door. Alternatively the
rating plate may also be found on the
back or top of some models (where
applicable).
The appliance must be protected by
a suitably rated fuse or circuit breaker.
The rating of the appliance is given
on the rating plate.
Do not remove the rating plate from
the appliance as this may invalidate the
guarantee.
Preparing to use your appliance
Wipe over the base of the oven(s) with
a soft cloth using hot soapy water.
Wash the furniture before use.
We suggest that you run the oven(s)
and grill for 10 – 15 minutes at
maximum temperature, to burn off any
residue from their surfaces. Accessible
parts may become hotter than in
normal use. Children should be kept
away. During this period an odour may
be emitted, it is therefore advisable to
open a window for ventilation.
The cooling fan for the controls
The cooling fan comes on immediately
when the grill is switched on and after a
short time when the oven is in use. It
may run on after the controls are
switched off until the appliance has
cooled.
During the initial period the cooling
fan may turn on and off, this is quite
normal.
Always allow the cooling fan to
cool the appliance down before
switching off at the wall prior to
carrying out any cleaning or
maintenance work.
Control panel indicator neon(s)
The indicator neon will operate when
the grill (where applicable) or oven(s) is
switched on. The indicator neon will
glow. It may turn on and off during use
to show that the setting is being
maintained. If the neon does not
operate as the instructions indicate the
controls have been incorrectly set.
Return all controls to zero and reset
following the instructions for the
required setting.
Condensation and steam
When food is heated it produces steam
similar to a boiling kettle. The vents
allow some of this steam to escape.
However, always stand back from the
appliance when opening the door(s) to
allow any build up of steam or heat to
release.
If the steam comes into contact with
a cool surface on the outside of the
appliance, e.g. a trim, it will condense
and produce water droplets. This is
quite normal and is not caused by a
fault on the appliance.
To prevent discolouration, regularly
wipe away condensation and foodstuff
from surfaces.
All manuals and user guides at all-guides.com

electrolux before using the appliance 9
For your safety wall coverings at the
rear of the appliance should be
securely fixed to the wall.
Cookware
Baking trays, dishes etc., should not be
placed directly against the grid
covering the fan at the back of the
oven.
Do not use baking trays larger than
30cm x 35cm (12” x 14”) as they will
restrict the circulation of heat and may
affect performance.
Grill and oven furniture
The following items of grill and oven
furniture have been supplied with the
appliance. If you require replacements
of any of the items listed below please
contact your local service force centre.
1 grill pan
1 grill pan handle
1 grill pan grid
1 straight shelf
(For grilling and top oven cooking)
2 straight shelves
(For main oven cooking)
All manuals and user guides at all-guides.com

10 electrolux operation

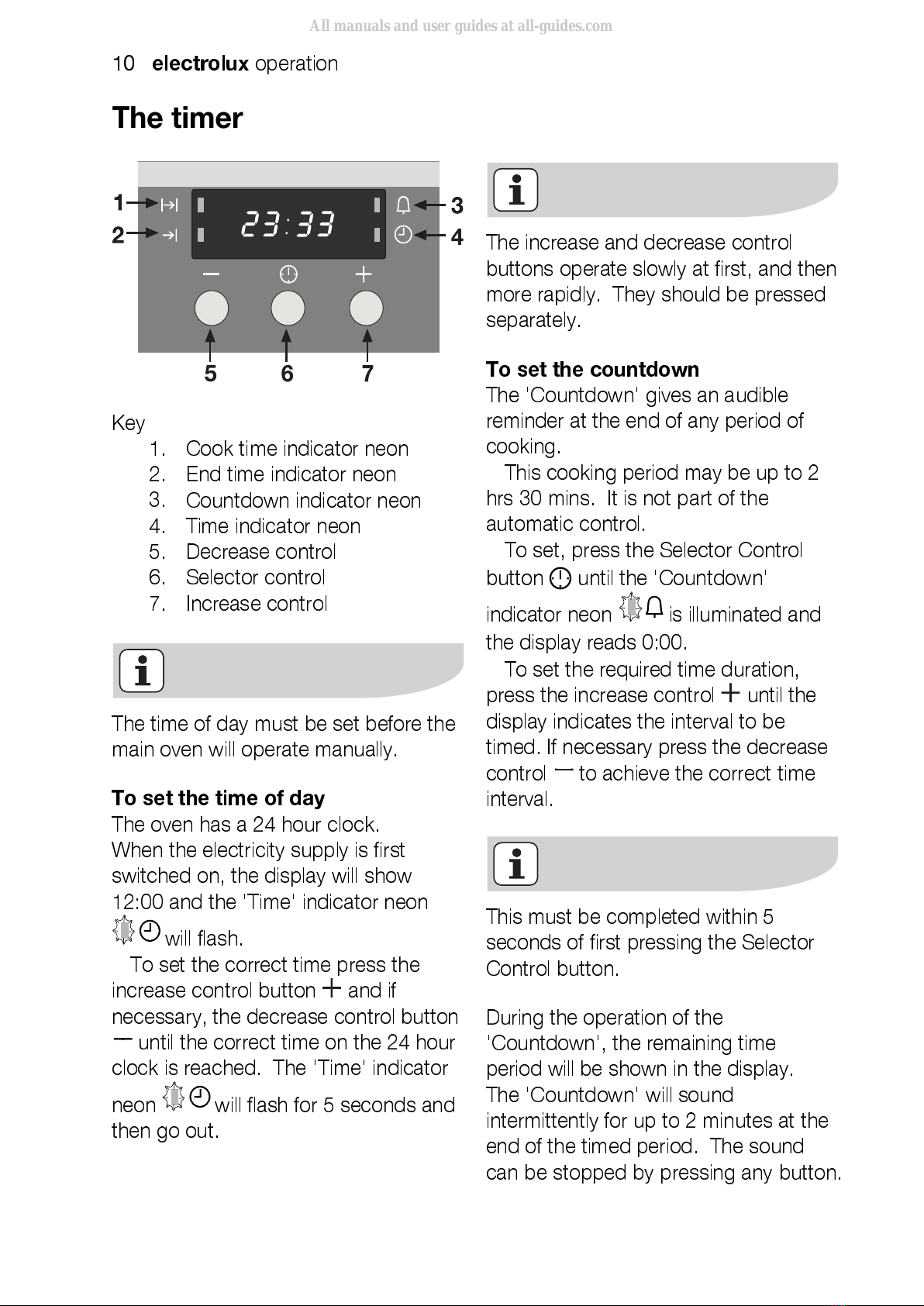

The timer
:
Key 1.
Cook time indicator neon
2.
End time indicator neon
3.
Countdown indicator neon
4.
Time indicator neon
5.
Decrease control
6.
Selector control
7.
Increase control
The time of day must be set before the
main oven will operate manually.
To set the time of day
The oven has a 24 hour clock.
When the electricity supply is first
switched on, the display will show
12:00 and the 'Time' indicator neon
will flash.
To set the correct time press the
increase control button and if
necessary, the decrease control button
until the correct time on the 24 hour
clock is reached. The 'Time' indicator
neon will flash for 5 seconds and
then go out.
The increase and decrease control
buttons operate slowly at first, and then
more rapidly. They should be pressed
separately.
To set the countdown
The 'Countdown' gives an audible
reminder at the end of any period of
cooking.
This cooking period may be up to 2
hrs 30 mins. It is not part of the
automatic control.
To set, press the Selector Control
button until the 'Countdown'
indicator neon is illuminated and
the display reads 0:00
.
To set the required time duration,
press the increase control until the
display indicates the interval to be
timed. If necessary press the decrease
control to achieve the correct time
interval.
This must be completed within 5
seconds of first pressing the Selector
Control button.
During the operation of the
'Countdown', the remaining time
period will be shown in the display.
The 'Countdown' will sound
intermittently for up to 2 minutes at the
end of the timed period. The sound
can be stopped by pressing any button.
All manuals and user guides at all-guides.com
