Electrolux EKG5046 User manual

Model EKG5046/EKG5047

2
Important safety information
These warnings are provided in the
interests of your safety. Ensure that
you understand them all before
installing or using the appliance. Your
safety is of paramount importance. If
you are unsure about any of the
information in this book contact the
Customer Care Department.
Installation
The appliance must be installed
according to the instructions supplied.
The installation work must be
undertaken by a competent person as
stated in the Gas Safety (Installation &
Use) Regulations current editions and
the IEE Wiring Regulations.
The appliance should be serviced by
an authorised Service Engineer and
only genuine approved spare parts
should be used.
It is important that the appliance is
suitable for your gas supply. Your
installer should check the rating plate.
Make sure that a stability bracket is
fitted.
The appliance must be installed in an
adequately ventilated room.
If the appliance is to be placed on a
base, measures must be taken to
prevent the appliance from slipping
from the base.
This appliance is heavy and care
must be taken when moving it.
Do not attempt to lift or move this
appliance by the handles.
All packaging, both inside and outside
the appliance must be removed
before the appliance is used.
It is dangerous to alter the
specifications or modify the appliance
in any way.
After installation please dispose of the
packaging with due regard for safety
and the environment. Your local
authority can arrange this.
Child safety
Do not allow children to play with any
part of the packaging.
Do not allow children to sit or climb
on the drop down doors.
This appliance is not intended for use
by children and other persons whose
physical, sensory or mental
capabilities or lack of experience and
knowledge prevents them from using
the appliance safely without
supervision or instruction by a
responsible person to ensure that
they can use the appliance safely.
Children should be supervised to
ensure that they do not play with the
appliance.
CAUTION: Accessible parts may
be hot when the grill is in use.
Young children should be kept
away.
During use
This appliance is not intended to be
operated by means of an external
timer or separate remote control
system.
This appliance has been designed for
domestic use to cook edible foodstuffs
only and must not be used for any
other purposes.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
When you are lighting any burner
check that it is lit before you leave the
appliance. When turning off a burner,
do not leave the appliance until the
flame has gone out.
(NG models only) Do not leave the
grill pan handle in position when
grilling as it will become hot.

3
(NG models only) Always use oven
gloves to remove and replace the grill
pan handle when grilling.
Always support the grill pan when it is
in the withdrawn or partially withdrawn
position.
Always use oven gloves to remove
and place food in the oven.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
During use the appliance becomes
hot. Care should be taken to avoid
touching the heating elements inside
the oven.
Ensure that all vents are not
obstructed to ensure ventilation of the
oven cavity.
Never line any part of the appliance
with foil.
Always stand back from the
appliance when opening the oven
door to allow any build up of steam or
heat to release.
Never leave the appliance
unattended when the oven doors
are open.
Do not place sealed cans or aerosols
inside the oven. They may explode if
they are heated.
Ensure that all control knobs are in
the OFF position when not in use.
Do not stand on the appliance or on
the open oven doors.
Do not hang towels, dishcloths or
clothes from the appliance or its
handles.
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
Cleaning and maintenance
For hygiene and safety reasons
this appliance should be kept clean
at all times.
A build-up of fats or other
foodstuffs could result in a fire
especially in the grill pan.
Do not leave cookware containing
foodstuffs, e.g. fat or oil in the
appliance in case it is inadvertently
switched on.
Do not disconnect the appliance from
the gas supply if the supply pipe does
not have a bayonet connection as
described in the installation section. If
this is the case contact the person
who installed the appliance.
Always allow the appliance to cool
before switching off at the wall prior to
carrying out any cleaning/
maintenance work.
Only clean this appliance in
accordance with the instructions given
in this book.
Never use steam or high pressure
steam cleaners to clean the
appliance.
At the end of the appliance’s
life
The symbol on the product or on
its packaging indicates that this
product may not be treated as
household waste. Instead it shall be
handed over to the applicable
collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is disposed
of correctly, you will help prevent
potential negative consequences for
the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local city office, your
household waste disposal service or
the shop where you purchased the
product.

4
Contents
For the user
Important safety information 2
Description of the appliance 5
Getting to know your
appliance 6
Before using the appliance 7
Rating plate 7
Preparing to use your appliance 7
Condensation and steam 7
Cookware 7
Grill and oven furniture 7
The hob 9
Using the hob 9
To light the hob burners 9
To turn off any burner 10
Things to note 10
Hints & tips 10
The grill 12
Using the grill 12
Things to note 12
The grill pan and handle 13
Hints & tips 14
Grilling chart 15
The second oven 16
Using the second oven 16
Things to note 17
To fit the second oven shelf 17
Hints & tips 17
The main oven 19
Heat zones 19
Preheating 19
To fit the main oven shelves 19
Using the main oven 19
Hints & tips 19
Cooking chart 21
Roasting chart 22
Slowcook 23
Using slowcook 23
Food preparation 23
General points 24
Care and cleaning 25
Cleaning materials 25
Cleaning the outside of the
appliance 25
Cleaning the control knobs and
handles 25
Cleaning the hob 26
When replacing hotplate burner
parts 26
Cleaning the shelves and grill/oven
furniture 27
Cleaning the grill 27
Cleaning inside the oven(s) 27
Hints and tips 27
Cleaning the door(s) 28
Something not working 31
Service and spare parts 33
Guarantee conditions 34
For the installer
Technical details 35
Important safety requirements 37
Provision for ventilation 37
Moving your appliance 37
For your safety 38
Location of appliance 38
Levelling the appliance 39
Connecting to gas supply 39
Fitting the stability bracket 40
The battery 41
Testing 41
General note 43
To help you the following symbols will
be found in the text.
Hints and Tips
Safety Instructions
Please read the instruction book
carefully before use and retain for
future reference.

5

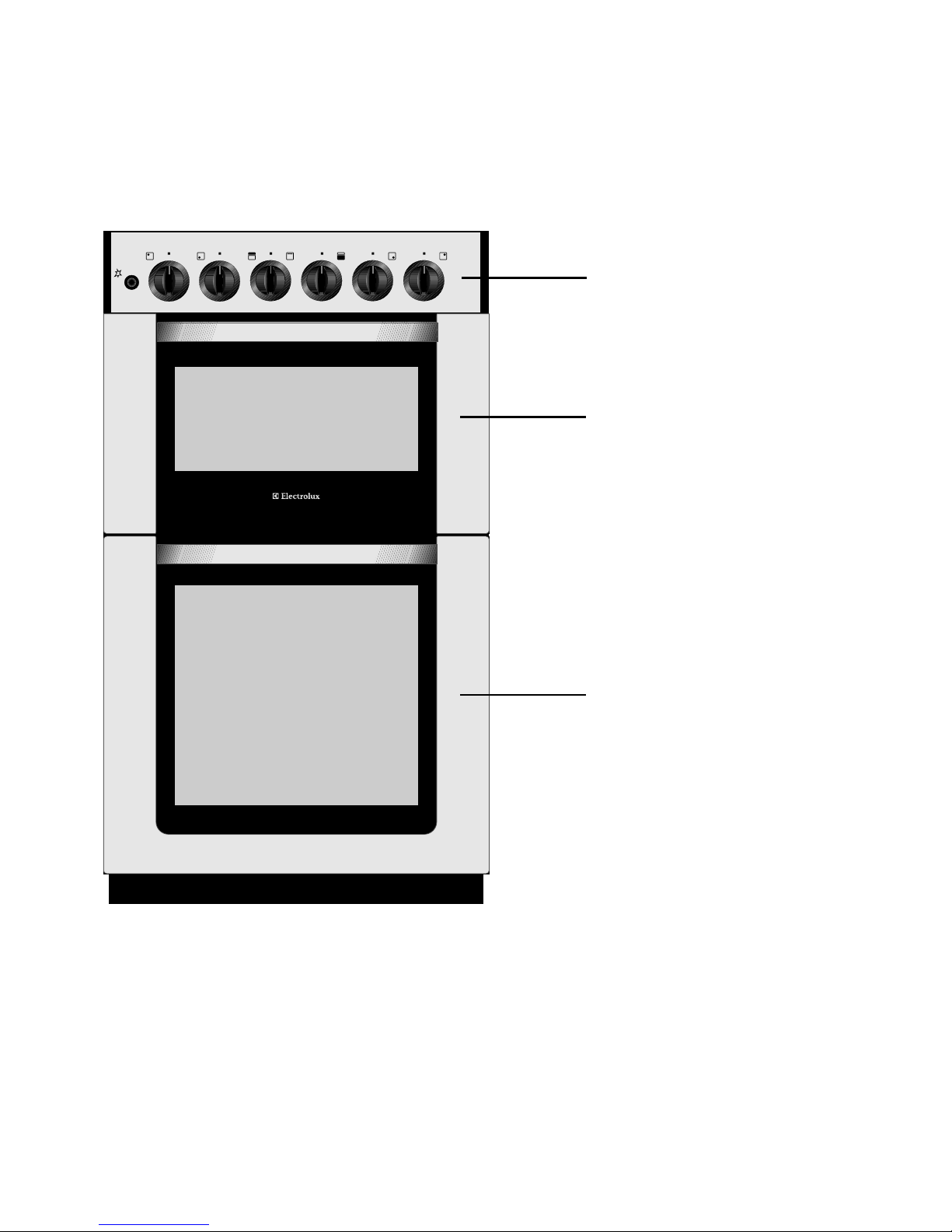

Description of the appliance
Gas slip-in double oven
Main oven
Control panel
Grill/Second oven

6
Getting to know your appliance
The control panel
Features
A - Hotplate controls
B - Grill/Second oven control
C - Main oven temperature control
D - Hotplate controls
E - Ignition switch
7
8
6
5
4
3
2
1
5
4
3
2
1
6
9
7
8
ABC D
E

7
Before using the appliance
Rating plate
This is situated on the lower front
frame of the appliance and can be
seen upon opening the door.
Alternatively the rating plate may
also be found on the back or top of
some models (where applicable).
The appliance must be protected by
a suitably rated fuse or circuit
breaker. The rating of the appliance
is given on the rating plate.
Do not remove the rating plate
from the appliance as this may
invalidate the guarantee.
Preparing to use your
appliance
Wipe over the base of the oven(s)
with a soft cloth and hot soapy water
and wash the furniture before use.
We suggest that you run the oven(s)
and grill for 10 – 15 minutes at
maximum temperature, to burn off
any residue from their surfaces.
Accessible parts may become hotter
than in normal use. Children should
be kept away. During this period an
odour may be emitted, it is therefore
advisable to open a window for
ventilation.
Condensation and steam
When food is heated it produces
steam similar to a boiling kettle. The
vents allow some of this steam to
escape. However, always stand
back from the appliance when
opening the door(s) to allow any
build up of steam or heat to release.
If the steam comes into contact with
a cool surface on the outside of the
appliance, e.g. a trim, it will
condense and produce water
droplets.
This is quite normal and is not caused
by a fault on the appliance.
To prevent discolouration, regularly
wipe away condensation and also
soilage from surfaces.
For your safety wall coverings at the
rear of the appliance should be
securely fixed to the wall.
Cookware
Main oven - Do not use baking trays
larger than 30cm x 30cm (12” x 12”)
as they will restrict the circulation of
heat and may affect performance.

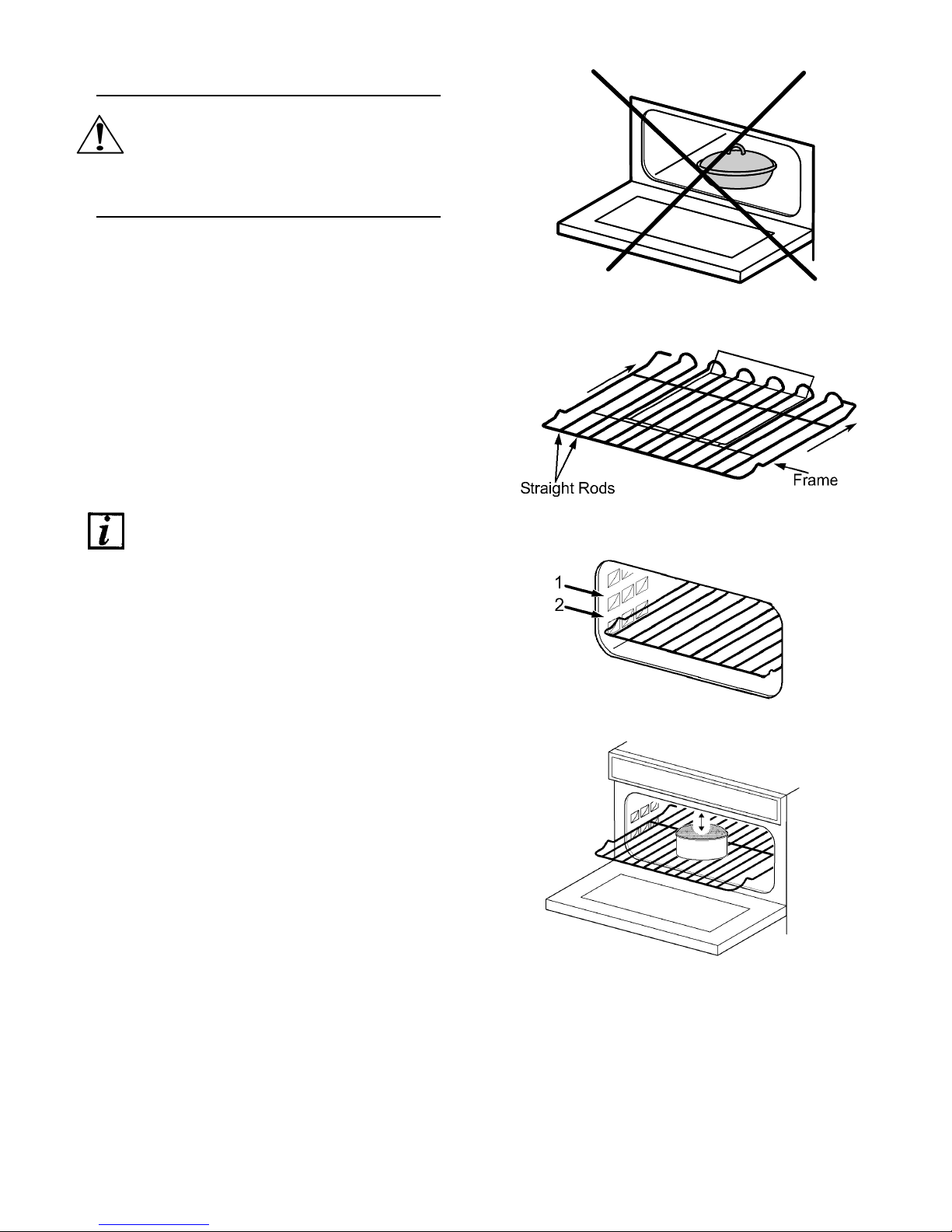

Grill and oven furniture
The following items of grill and oven
furniture have been supplied with the
appliance. If you require replacements
of any of the items listed below please
contact your local Service Force
Centre, quoting the relevant part
number.
(LPG models only)
1 grill pan
(311409401)
1 grill pan handle
(311468100)
Note:
If you require an additional handle for
your grill pan, this can be ordered
from your local Service Force Centre
by quoting part number 311479800\6.

8
1 grill pan grid
(311757500)
(NG models only)
1 grill pan
1 grill pan handle
1 grill pan grid
All models
1 straight shelf
(for grilling)
2 straight shelves
(for main oven
cooking)

9
The hob
Using the hob
The gas hob has different burner
sizes to suit different types of
cooking:
To ensure maximum burner
efficiency only use pots and pans
with flat bases appropriate to the
burner size used.
Larger burner (Rapid) - use a large
pan for food such as chips.
Medium burners (Normal) - use for
everyday cooking.
Small burner (Simmer) - use for
simmering foods such as soups and
stews.
The largest pan which you should
use on any burner is 230mm (9").
The base of the smallest pan should
not measure less than 100mm (4").
Ensure the pan supports
are correctly fitted before
using the hob.

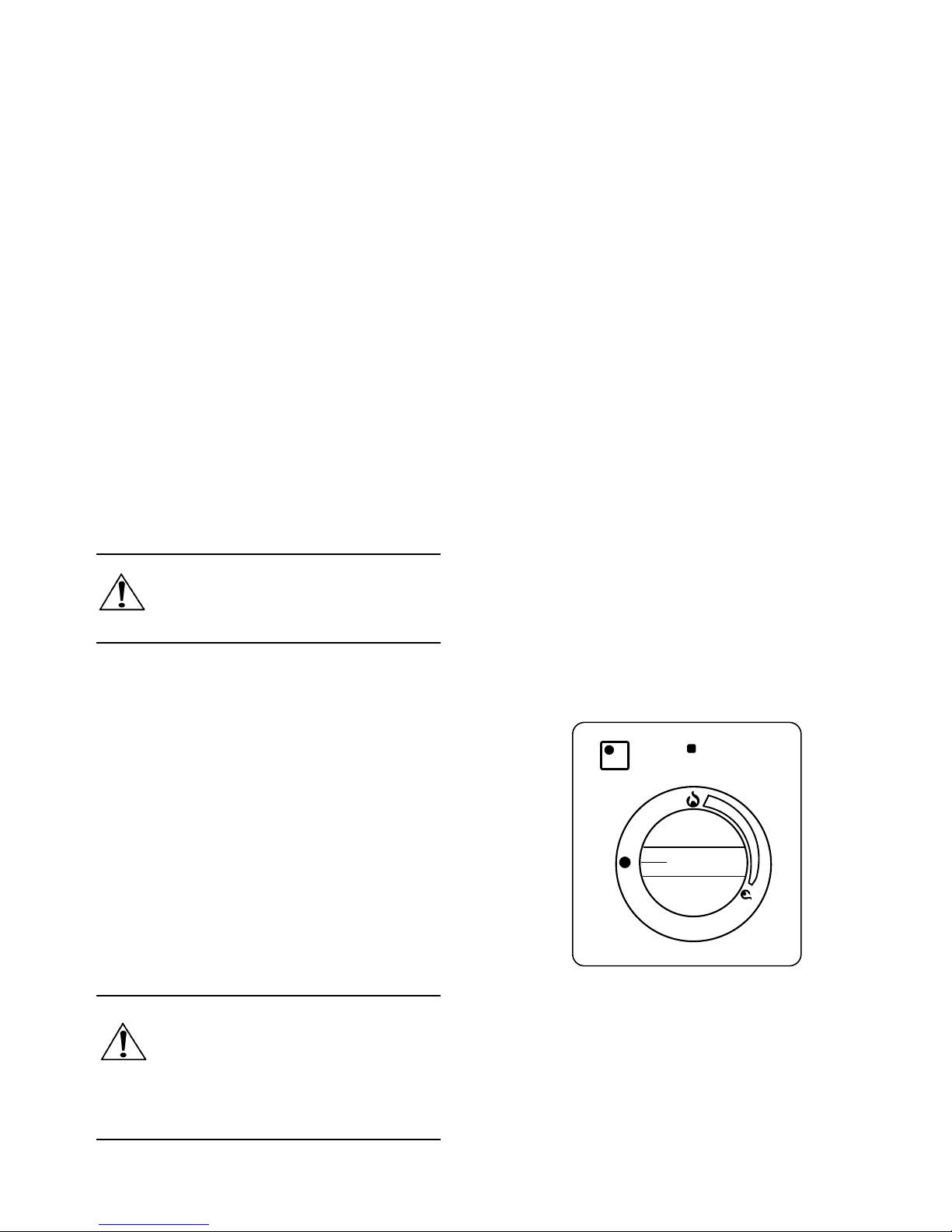

To light the hob burners
The hob ignition works by means of
a battery.
• Lift up the lid. You cannot use
the hob when the lid is down.
• Push in and turn the control
knob to the left to the highest
setting. This is shown by a large
flame symbol. Press the ignition
button immediately.
• When the burner has lit release
the control and ignition button,
adjust the setting as required.
Warning: If the ignition
button is not pressed
immediately a build up of
gas may cause the flame to
spread.

10
If you close the lid of the
appliance while any of the
hotplate burners are lit,
the gas will go out. This is
because it would be
dangerous if the burners
stayed on when the lid
was closed.
Always use the control
knob to turn off a burner.
Do not use the lid as a cut-
off device. This will only
cut off the gas when the
lid is closed. The gas will
flow again when the lid is
opened.
To turn off any burner
1. Turn the control knob to the off
position. This is shown by a
large dot.
When lighting any burner,
ensure that it is lit before
you leave the appliance.
When turning off a burner,
ensure the flame has gone
out before leaving the
appliance.
In the event of the burner
flames being accidentally
extinguished, turn off the
burner control and do not
attempt to re-ignite the
burner for at least 1 min.
Things to note
If you are having any difficulty
lighting a hob burner turn all the hob
controls off and make sure the
burner parts have been replaced
correctly.
Hints and tips
• Do not overfill pans or they will
boil over.
• Do not use pans with very
heavy handles which cause the
pan to tip.
• The hob surface should be
allowed to cool before closing
the lid.
Do not use the lid as a
work surface or chopping
board. This could damage
the glass and reduce its
strength.
Place pans on the centre of
the burners.
Position pans so the
handles cannot be
accidentally knocked or
overhang the appliance.
Lift pans on and off the pan
supports.
Do not slide them across
the hob.

11
• Any spillage should be removed
from the lid before opening.
• Do not leave accidental spillage
on the hob or removable parts.
The spillage should be wiped up
and the parts washed and
carefully dried as soon as the
hob, pan supports and burner
parts are cool enough to touch.
• A flat based Wok will stand
stable on the pan supports. If
you use a round Wok with a
collar support, the collar must be
the open wirework type
otherwise the performance of
the burner will be affected.
Take care to avoid burns
and scalds when reaching
across the hotplate.
Take extra care when deep
fat frying, do not cover the
pan with a lid. Do not
leave a pan unattended. If
the pan catches fire, leave
it where it is and turn off
all controls. Place a damp
cloth or a fitting lid over
the pan to smother the
flames. Never put water
on the fire. Leave to cool
for 30 minutes.

12
The grill
CAUTION – Accessible
parts may be hot when the
grill is in use. Young
children should be kept
away.
When you first operate the grill you
may hear some sounds as the
burner heats up, this is quite normal
and is not a fault on the appliance.

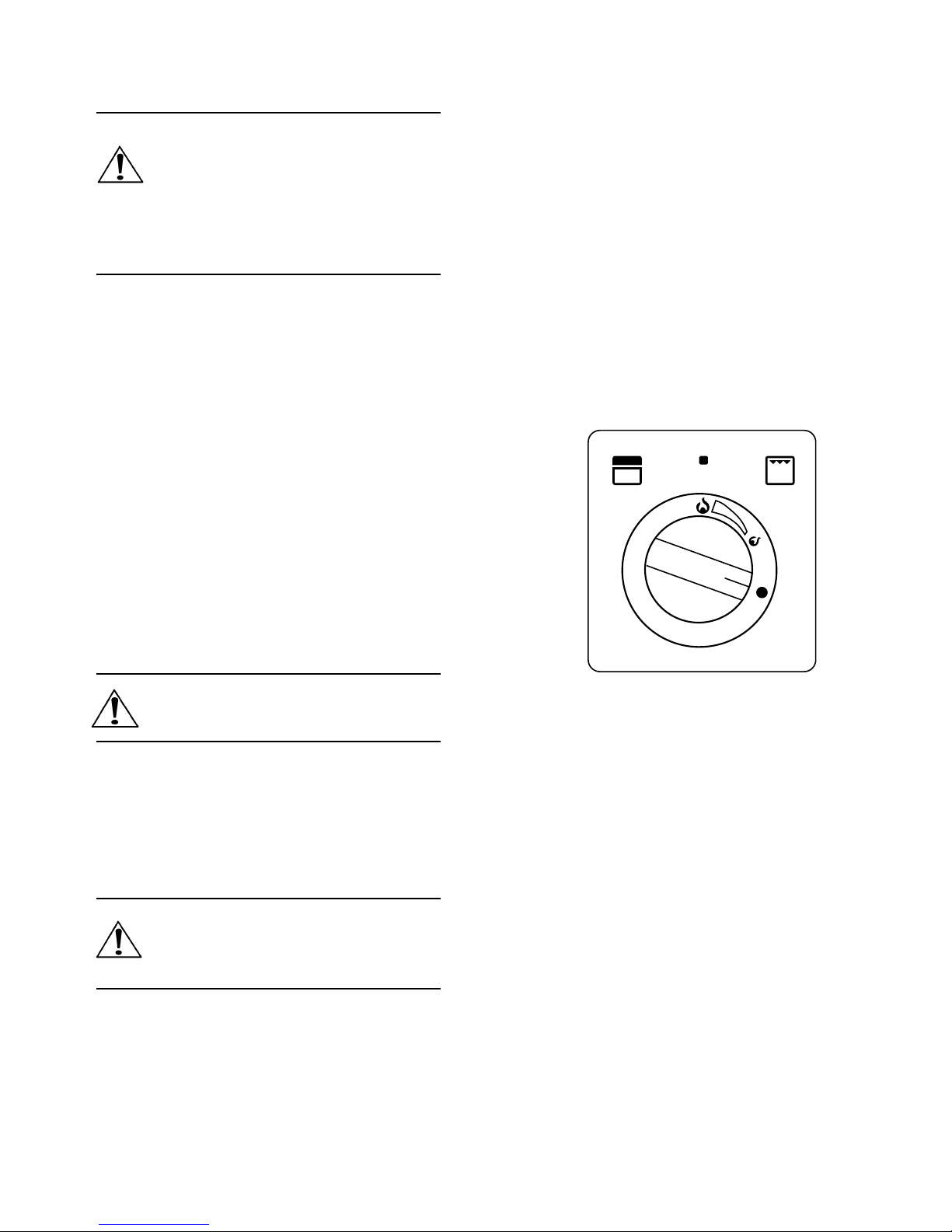

Using the grill
• Fully open the door. Push in the
control knob and turn to the large
flame symbol (highest setting)
and press the ignition button
immediately.
• When the burner has lit release
the control and ignition button,
adjust the setting as required.
The grill door must be left
open when grilling.
Things to note
• Some smoke from fat splashes
may be evident as the grill
cleans itself.
Never cover the grill pan or
grid with foil as this can
lead to grill fires.
7
8
6
5
4
3
2
1

13
The grill pan and handle
(LPG models only)
The grill pan is supplied with a
removable handle.
To attach the handle, place the
wirework under the cut out in the
pan so that the metal plate hooks
over the top of the grill pan.
Slide the handle to the left and over
the central bump on the grill pan.
Ensure the handle is
correctly located. It is not
necessary to remove the grill
pan handle during grilling.
Place the grill pan on the shelf so
that the pan is positioned centrally
beneath the grill.
To remove the handle, slide the
handle to the right and lift the handle
away from the cut out on the grill
pan.
The grill pan and handle
(NG models only)
The grill pan has a removable
handle.
To insert the handle, press the
button on the handle with the thumb
and pivot slightly upwards inserting
the lip into the widest part of the
bracket. Move the handle towards
the left, lower into position and
release the button.
Ensure the handle is
properly located.

14
To remove the handle, press the
button on the handle with the thumb
and pivot the handle slightly
upwards and towards the right to
remove from the bracket.
Protect your hands when
removing the grill pan
handle.
Always remove the grill pan
handle during grilling.
To check the progress of the food
being grilled, the grill pan should be
withdrawn on the shelf to attend to
food during cooking.
Hints and tips
• Most foods should be placed on
the grid in the grill pan to allow
maximum circulation of air to lift
the food out of the fats and
juices.
• Adjust the grid and grill pan
runner position to allow for
different thicknesses of food.
• Food should be thoroughly dried
before grilling to minimise
splashing. Brush lean meats and
fish lightly with a little oil or
melted butter to keep them moist
during cooking.
• Accompaniments such as
tomatoes and mushrooms may
be placed underneath the grid
when grilling meats.
• When toasting bread use the
shelf in position 2 with the grid in
the high position.
• Preheat the grill on a full setting
for a few minutes before sealing
steaks or toasting. Adjust the
heat setting and the shelf as
necessary during cooking.
• The food should be turned over
during cooking as required.

15
Grilling chart
The times quoted above are given as a guide and should be adjusted to suit
personal taste.
Food Position Grill time
(mins in total)
Bacon Rashers Adjust 5 - 6
Beefburgers grill 10 - 15
Chicken Joints 30 - 40
setting
Chops – Lamb 15 - 20
Pork and 20 - 30
Fish – Whole
Trout/Mackerel grill 15 - 25
Fillets – Plaice/Cod pan 10 - 15
Kebabs grid 20 - 30
Kidneys – Lamb/Pig to 8 - 12
Liver – Lamb/Pig suit 10 - 20
Sausages different 20 - 30
Steaks – Rare thicknesses 6 - 12
Medium 12 - 16
Well
Done of 14 - 20
Toasted Sandwiches food 3 - 4

16
The second oven
The second oven is the smaller of
the two ovens. It is designed for
cooking smaller quantities of food.
Place single dishes on the centre of
the shelf. You should turn all food
round during cooking
The second oven is also ideal for
use as warming compartment to
warm dishes and keep food hot. Use
the second oven when you want to
warm plates. Use the lowest setting
on the second oven temperature
control.
Preheating
When you need to preheat the oven,
we recommend you do so for 20
minutes.
For recipes needing high
temperatures, e.g. bread, pastries,
scones, soufflés etc., best results
are achieved if the oven is
preheated first. For best results
when cooking frozen or cooked
chilled ready meals always preheat
the oven first.
Using the second oven
• Open the oven door.
• Push in the control knob and
turn it to gas mark 1 and press
the ignition button immediately.
When the burner has lit release
the button. There will only be
small flames at first.
• Turn the control knob to the
required gas mark.
• Wait until the burner is showing
large flames.
• Close the oven door.
• To turn the oven off, push in the
control knob and turn to the off
position.
7
8
6
5
4
3
2
1

17
Things to note
Do not place dishes, tins and
trays directly on the oven
base as it becomes very hot
and damage will occur.
To fit the second oven shelf
Only use the shelf with the solid
metal plate at the rear of the shelf in
the second oven. The shelf should
be fitted with the straight rods
uppermost on the frame and the
forms towards the back of the oven.
If not fitted correctly the anti-tilt and
safety stop mechanism will be
affected.
Hints and tips
• Arrange the shelves in the
required positions before
switching the oven on. Shelf
positions are counted from the
top downwards.
• Ensure that food is placed
centrally on the shelf and there
is sufficient room around the
baking tray/dish to allow for
maximum circulation.
• Do not push dishes too far back
as food will burn if it overhangs
the burner flame
• Stand dishes on a suitably sized
baking tray on the shelf to
prevent spillage onto the oven
base and to help reduce
cleaning.

18
• The material and finish of the
baking tray and dishes used
affect base browning.
Enamelware, dark, heavy or
non-stick utensils increase base
browning. Shiny aluminium or
polished steel trays reflect the
heat away and give less base
browning.
• Do not place baking trays
directly on the oven base as it
interferes with the oven air
circulation and can lead to base
burning; use the lower shelf
position.
• For economy leave the door
open for the shortest possible
time, particularly when placing
food into a pre-heated oven.
Do not place cookware and
cooking pots with rough
bases e.g. cast iron on the
oven door as damage to the
glass may occur.

19
The main oven
Heat zones
There are zones of heat within the
oven. The temperature in the middle
is the gas mark you have chosen. The
top of the oven is slightly hotter and
the lower shelf slightly cooler. The
base of the oven is quite a lot cooler.
You can make use of these heat
zones when you are cooking foods
requiring different temperatures all at
the same time.
If you are cooking more than one tray
of similar items, for example cakes or
biscuits, swap the trays during
cooking or you can remove the top
tray when the food is cooked and
move the lower tray to the higher shelf
to finish cooking.
Preheating
When you need to preheat the oven,
we recommend you do so for 20
minutes.
For recipes needing high
temperatures, e.g. bread, pastries,
scones, soufflés etc., best results are
achieved if the oven is preheated first.
For best results when cooking frozen
or cooked chilled ready meals always
preheat the oven first.
To fit the main oven shelves
The shelves should be fitted with the
straight rods uppermost on the frame
and the forms towards the back of the
oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be
affected.
Using the main oven
• Open the oven door.
• Push in the control knob and
turn it to gas mark 9. Press the
ignition button immediately.
• When the burner has lit release
the button. There will only be
small flames at first.
• Turn the control knob to the
required gas mark.
• Wait until the oven burner is
showing large flames.
• Close the oven door.
• To turn the oven off, push in the
control knob and turn to the off
position. This is shown by a
large dot.
Hints and tips
• Arrange the shelves in the
required positions before
switching the oven on. Shelf
positions are numbered from the
top downwards.
• Ensure that food is placed
centrally on the shelf and there is
sufficient room around the baking
tray/dish to allow for maximum
circulation.
5
4
3
2
1
6
9
7
8

20
• Do not push dishes too far back
as food will burn if it overhangs
the burner flame.
• Stand dishes on a suitably sized
baking tray on the shelf to
prevent spillage onto the oven
base and to help reduce
cleaning.
• The material and finish of the
baking tray and dishes used
affect base browning.
Enamelware, dark, heavy or non-
stick utensils increase base
browning. Shiny aluminium or
polished steel trays reflect the
heat away and give less base
browning.
• When cooking more than one
dish in the oven, place dishes
centrally on different shelves
rather than cluster several dishes
on one shelf, this will allow the
heat to circulate freely for the
best cooking results.
• If you are cooking more than one
tray of similar items, for example
cakes or biscuits, swap the trays
during cooking or you can
remove the top tray when the
food is cooked and move the
lower tray to the higher shelf to
finish cooking.
• Do not place baking trays directly
on the oven base as it interferes
with the oven air circulation and
can lead to base burning; use the
lower shelf position.
Do not place cookware and
cooking pots with rough bases
e.g. cast iron on the oven door
as damage to the glass may
occur.
