Welcome to the world of Electrolux
Thank you for choosing a first class product from Electrolux, which hopefully will provide
you with lots of pleasure in the future.
The Electrolux ambition is to offer a wide variety of quality products that make your life
more comfortable.
You find some examples on the cover in this manual.
Please take a few minutes to study this manual so that you can take advantage of the
benefits of your new machine.
We promise that it will provide a superior User Experience delivering Ease-of-Mind.
Good luck!

4
Warnings and Important Safety Information - Built-in Oven .............................................. 5
Description of the appliance ............................................................................................... 7
Control panel .................................................................................................................... 8
When the appliance is first installed ............................................................................. 11
Before using the oven for the first time ........................................................................... 12
Programming the Oven .................................................................................................. 15
Safety and Energy Saving Functions .............................................................................. 18
Practical Tips .................................................................................................................. 23
Baking and Roasting Tables ........................................................................................... 26
Cleaning and Maintenance ............................................................................................. 28
If something is wrong ...................................................................................................... 33
Technical Data ................................................................................................................ 34
Instructions for the Installer ............................................................................................. 35
Building In ....................................................................................................................... 36
Customer Service............................................................................................................ 37
Declaration of guarantee terms ...................................................................................... 38
European Warranty ......................................................................................................... 40
Safety instructions
Step by step instructions
Hints and Tips
Guide to using the user instructions
)
Contents
This appliance conforms with the following ECC Directives:
- 2006/95 (Low Voltage Directive);
- 89/336 (EMC Directive);
- 93/68 (General Directive);
and subsequent modifications.

5
Important Safety Information
Always keep these user instructions with the appliance. Should the appliance be passed
on to third persons or sold, or if you leave this appliance behind when you move house,
it is very important that the new user has access to these user instructions and the
accompanying information.
These warnings are provided for the safety of the users and those living with them. So
read them carefully before connecting and/or using the appliance.
Installation
•The installation must be performed by a
qualified person in accordance with the
rules and regulations in force. The indi-
vidual operations for installing the appli-
ance are described under the instructions
for the installer.
•Have the appliance installed and con-
nected by a qualified person with spe-
cialist knowledge, who will carry it out
in accordance with the directives.
•If any modifications to the power supply
are required because of the installation,
these should also be carried out by a
qualified electrician.
Operation
•This oven is designed for cooking food-
stuffs; never use it for other purposes.
•When opening the oven door during or
at the end of cooking be careful of the
stream of hot air, which comes out of
the oven.
•Be very careful when using the cooker.
The extreme heat of the heating elements
makes the shelves and other parts very
hot.
•If you should for whatever reason use alu-
minium foil to cook food in the oven, never
allow it to come into direct contact with
the floor of the oven.
•When cleaning the oven, proceed with
care: never spray anything onto the
grease filter (if fitted), the heating elements
and the thermostat sensor.
•If is dangerous to make modifications
of any kind to this appliance or to its
specifications.
•During the baking, roasting and grilling
process, the oven window and the other
parts of the appliance get hot, so chil-
dren should be kept away from the ap-
pliance. Take care, if connecting electri-
cal appliances to sockets near the oven,
that cables do not come into contact with
hot rings or get caught in the oven door.
•Always use oven gloves to take hot ov-
enproof dishes or pots out of the oven.
•Regular cleaning prevents the surface
material from deteriorating.
•Before cleaning the oven, either turn the
power off or pull the mains plug out.
•Make sure that the oven is in the “OFF”
position, when the oven is no longer be-
ing used.
•This oven was made as a single appli-
ance or as a combination appliance with
electrical hotplate, depending on the
model, for single-phase connection to
230 V.
•The appliance must not be cleaned with
a superheated steam cleaner or a steam
jet cleaner.
•Do not use abrasive cleaners or sharp metal
scrapers. These can scratch the glass in
the oven door, which may result in the shat-
tering of the glass.

6
Child Safety
•This appliance is intended for use by
adults. It is dangerous to allow children to
use it or play with it.
•Children should be kept away while the
oven is working. Also, after you have
switched the oven off, it remains hot for a
long time.
•Children and people, who are not able to
use the appliance safely because of their
physical, sensory or mental capabilities or
who do not have sufficient experience and
knowledge, should not use this appliance
without being supervised or instructed by
a responsible person.
Customer Service
•Have checks and/or repairs carried out by
the manufacturer’s service department or
by a service department authorised by the
manufacturer and use only original spare
parts.
•Do not attempt to repair the appliance your-
self in the event of malfunctions or dam-
age. Repairs carried out by untrained per-
sons may cause damage or injury.
The symbol on the product or its
packaging indicates that this product is not to
be treated as normal household waste. Instead
it must be handed over to a collection point for
the recycling of electrical and electronic
equipment. The correct disposal of this product
will help to protect the environment and human
health. Environment and health are endangered
by incorrect disposal. For more detailed
information about recycling of this product,
please contact your local town hall, your
household waste disposal service or the shop
where you purchased the product.

7

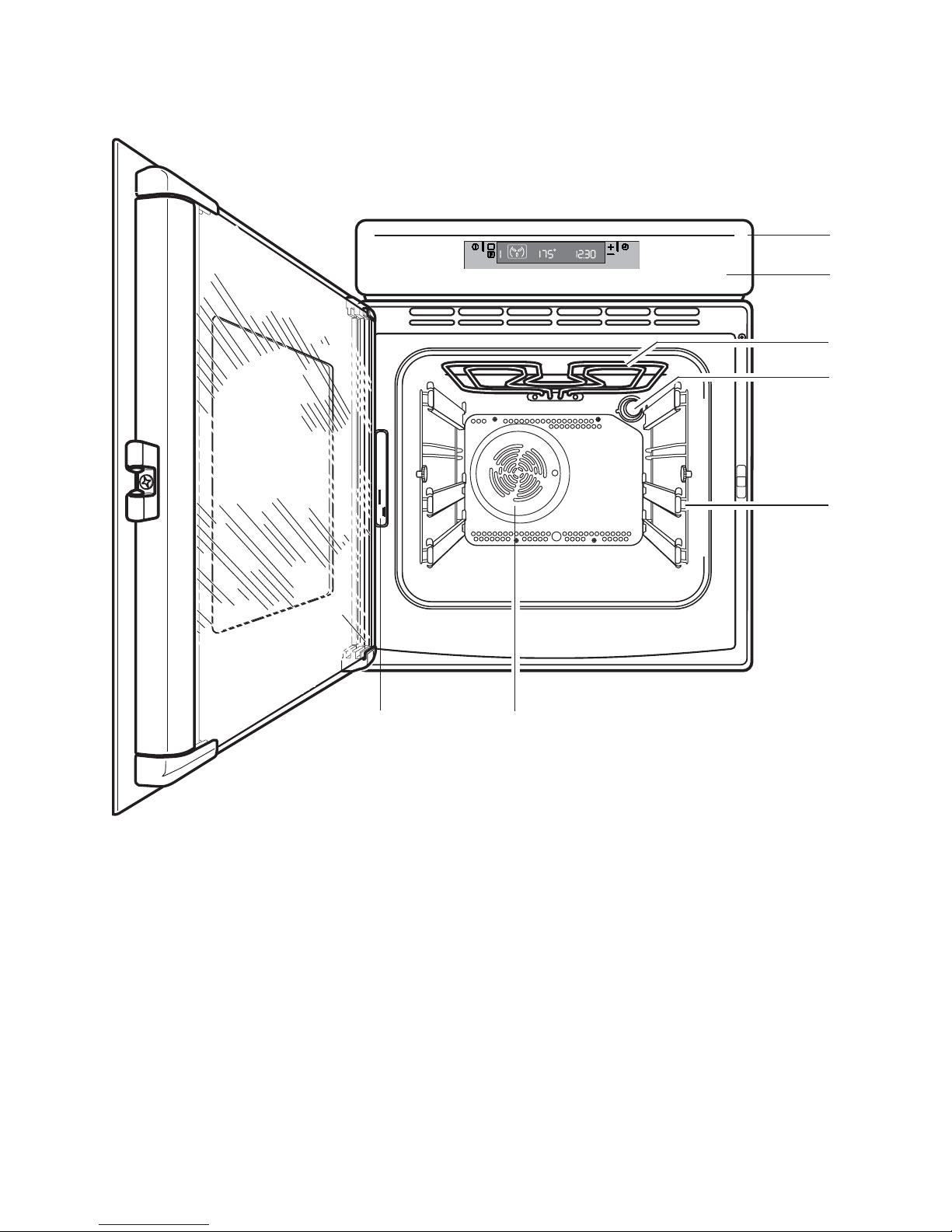

Description of the appliance
1. Light bar
2. Control panel
3. Grill
4. Oven light
5. Telescopic pull-out rails
6. Hot air fan
7. Rating plate
2
7
3
4
1
5
6

8
Control panel
Cooking functions display
Temperature display
Time display
1 2 5 6
34
How the electronic Touch Controls on the oven work
The Touch Control buttons
All the oven functions are controlled electronically. You can select any combination of cooking
function, cooking temperature and automatic timing using the touch controls.
Make sure you touch just one control button at a time. If you touch the cooking function control
for a longer time, the next cooking function will be selected.
The electronic Touch Controls on the oven
1. - “On/Off” TOUCH CONTROL
2. - Touch Control for cooking functions
3. - Touch Control for the Fast Heat Up function
4. - Touch Control to Decrease (Time or Temperature)
5. - Touch Control to Increase (Time or Temperature)
6. - Touch Control for the time, Minute Minder, End of cooking time, Cooking duration
time, Time of day

9
The light bar
The light bar is located right above the display
and can be activated/deactivated by touching
the “On/Off” control .
The light bar automatically switches off when
the programmed cooking times (Cooking
Duration time and End of Cooking time) are
reached.
If the oven light switches off automatically, the
light bar also goes out.
In the event of a power failure, the
programmer will keep all the settings
(time of day, programme setting or
programme in operation) for about 3
minutes. If power is not restored within
3 minutes, all the settings will be
cancelled. When the power supply is
restored again, the numbers in the
display flash. If this happens, the time
of day and timer must be re-set.
Special functions
The following functions can be activated by
touching two controls at the same time:
- Child Safety Function: Touch the controls
and “ ”.
- Beep on control: Touch the controls and
“”.
- Demo mode: Please see the paragraph
“Demo Mode” on page 20.
For further details, see chapter “Safety and
Energy Saving Functions”.

10

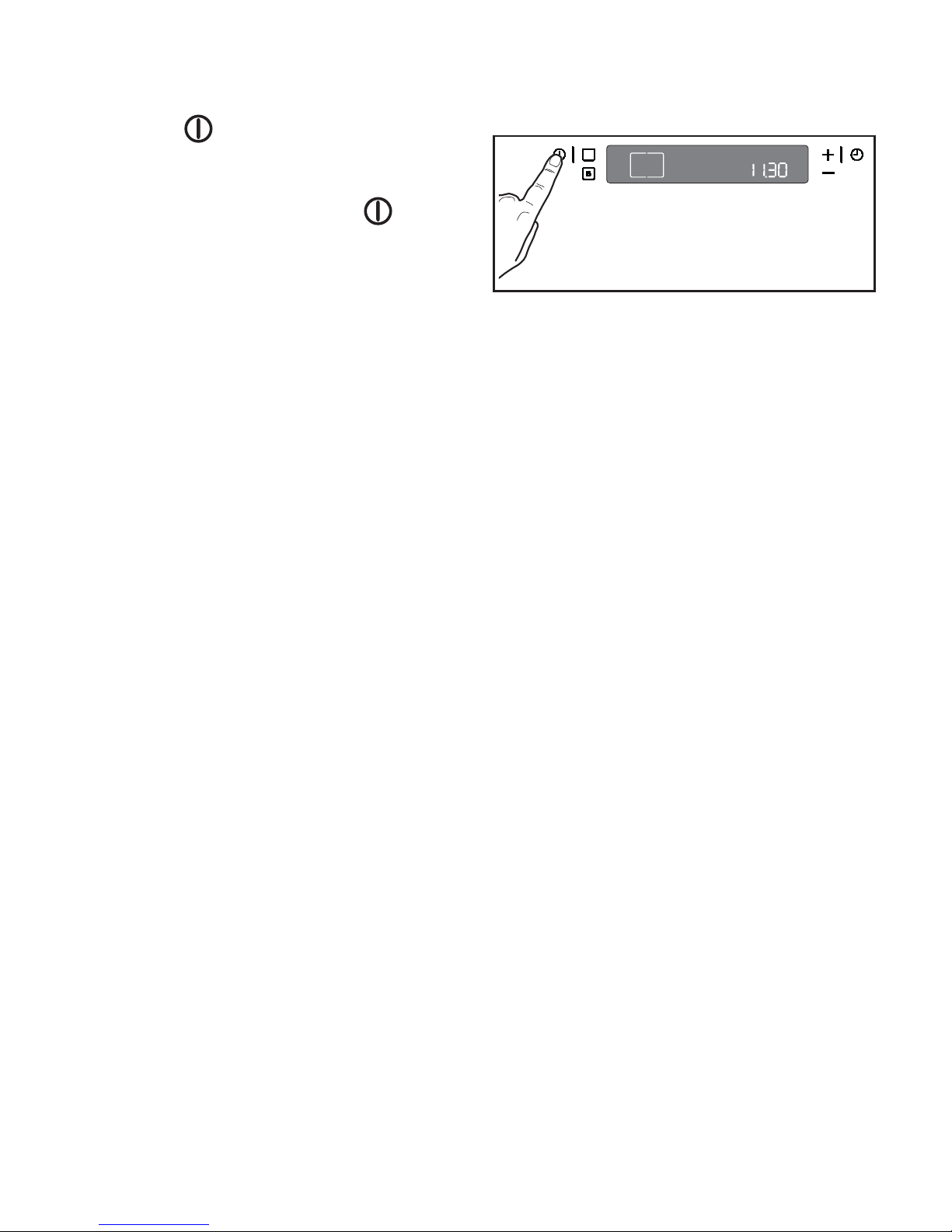

”On/Off“ Touch Control
The oven must be switched on before setting
cooking functions or other programmes. If you
touch the control, the oven symbol
appears in the display and the oven light
switches itself on (Fig. 1).
To switch off the oven, touch the control.
All cooking functions or programmes will stop,
the oven light will switch off and the time display
will show only the time of day.
Fig. 1

11
Fig. 2
When the oven is first installed
When the oven is first connected to the
electrical supply, the display will automatically
show 12:00 and the
symbol will flash.
Set the correct time of day before using the
oven for the first time.

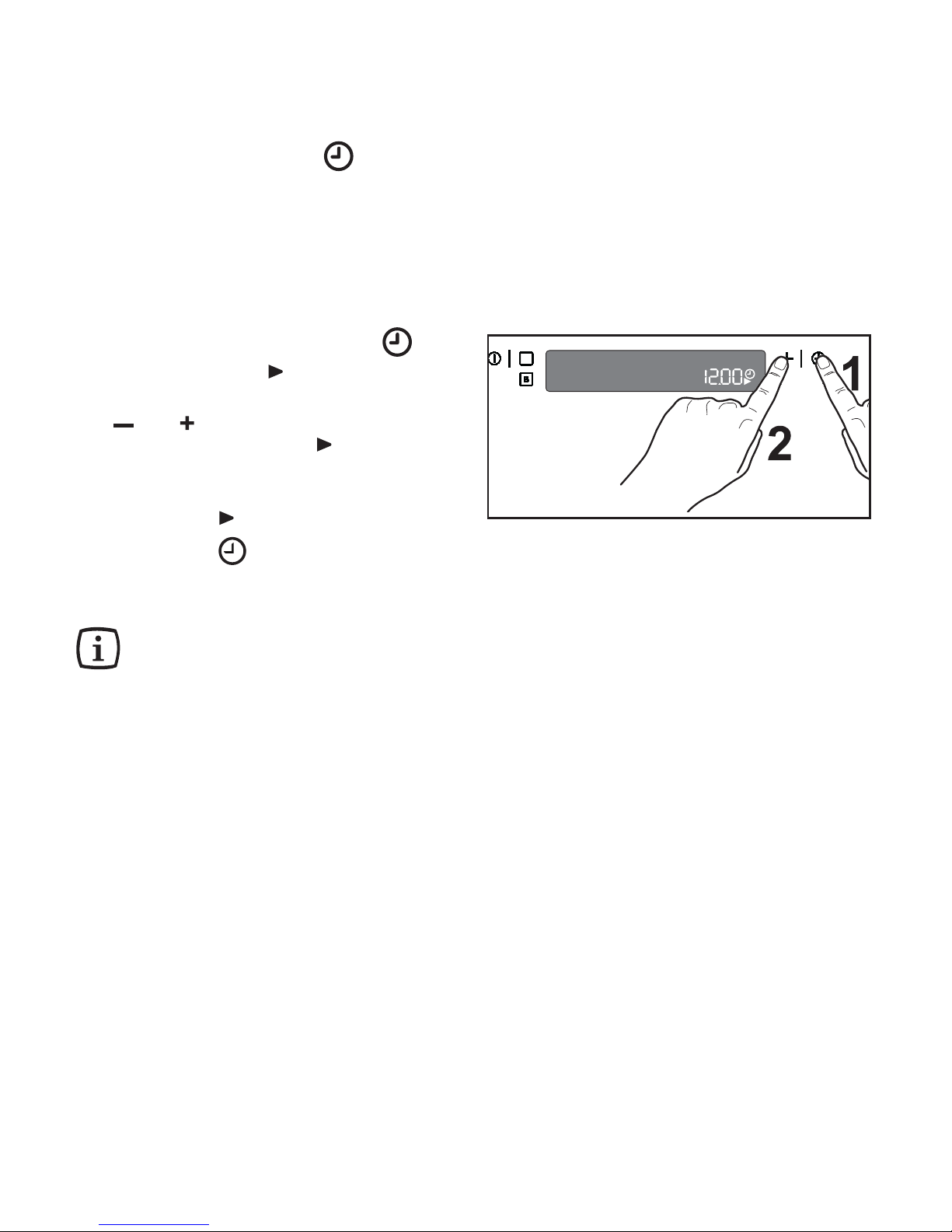

How to set the correct time of
day for the first time:
1. Touch the time function control and,
while the symbol is flashing, set the
correct time of day by touching the controls
“ ” or “” (Fig. 2) .
The time arrow symbol will disappear
about 5 seconds after the correct time is
displayed.
2. If the symbol stops flashing, touch the
time control twice.
Then, proceed as described in point 1.
It is possible to set the time of day
only when the oven is switched off.

12
Before using the oven for the first time
Fig. 3
Fig. 4
To open the oven door, always hold
the handle in the centre (Fig. 4).
Remove all packaging, both inside
and outside the oven, before using the
oven.
The oven will work only if the time
of day has been set.
Before using for the first time, the oven should
be heated up without food.
During this time, an unpleasant odour may be
emitted. This is absolutely normal. It is caused
by manufacturing residues.
1. Set the time of day with the electronic pro-
grammer (see paragraph “How to set the
correct time of day for the first time”).
2. Switch the oven on using the control.
3. Touch the control twice and select the
function “Conventional cooking” (fig.
3).
4. Use the Touch Control “ ” to set the tem-
perature to 250 °C.
5. Now allow the oven to run empty for ap-
proximately 45 minutes.
6. Open a window for ventilation during this
time.
This procedure should be repeated with the
“Full Grill” function and the “Fan Cook-
ing” function for approximately 5-10 min-
utes.
Then let the oven cool down. Then
dampen a soft cloth with warm water
and a little mild washing-up liquid and
use this to clean the oven cavity.
Before using for the first time, carefully
wash the oven accessories as well.

13
How to select a Cooking
Function
1. Switch the oven on by touching the
control.
2. Touch the control to select the required
oven function. Each time you touch the
control, a cooking function symbol will
appear in the display and the corresponding
cooking function number will appear to the
left of the currently selected cooking function
symbol (Fig. 5).
3. If the pre-set temperature is not suitable,
use the
“ ” control or “ ” control to set
the temperature. The temperature is
adjusted in 5 degree steps.
- As the oven heats up, the thermometer
symbol rises slowly, indicating the current
oven temperature.
When the required temperature is reached,
an acoustic alarm will sound for a short
time and the thermometer symbol will
light up permanently.
Fig. 5
How to set the temperature and
cooking time
It is possible to set the temperature and
cooking time while the oven is working.
1. Touch the control and then the “ ” or
“” control to increase or decrease the pre-
set temperature. The “°” symbol will flash
while you are doing this (Fig. 6).
2. Touch the time function control and
then the “ ” or “ ” control to increase or
decrease the pre-set cooking time. The
symbol (next to the time display) will flash
while you are doing this. Fig. 6

14
1
2
5
Cooking Functions
The following list explains all the available
cooking functions in sequence.
3
4
Fan Cooking - This setting allows
you to roast or roast and bake
simultaneously using any shelf,
without flavour transference. Pre-
set temperature: 175°C. Highest
temperature: 250°C.
Conventional Cooking - The heat
comes from both the top and bottom
heating elements, ensuring an even
temperature inside the oven. Pre-
set temperature: 200°C. Highest
temperature: 250°C.
Grill - Can be used for grilling smaller
quantities. Pre-set temperature:
250°C. Temperature range: 200 °C
- 250°C.
Thermal Grilling - This is an alter-
native method of cooking food items,
which are normally cooked with the
normal grill. The grill element and the
oven fan operate together, circulating
hot air around the food. Pre-set tem-
perature: 180°C.
Highest temperature: 200°C.
Pizza Function - The bottom
heating element provides direct heat
to the base of pizzas, quiches or
pies, while the fan ensures air is
circulated to cook the topping or
filling.
Pre-set temperature: 175°C. Highest
temperature: 250°C.
Full Grill - The entire grill element
is switched on. Recommended
for large quantities. Pre-set tem-
perature: 250 °C. Temperature
range: 200°C - 250°C.
Bottom Heating Element - The
heat comes only from the heating
element in the bottom of the oven
only. This setting is very good for
finishing off dishes. Pre-set
temperature: 250°C.
Top Heating Element - The heat
comes only from the heating
element in the top of the oven. This
setting is very good for finishing off
dishes. Pre-set temperature:
250°C.
Defrosting - The oven fan
operates without heat and
circulates the air, at room
temperature, inside the oven. This
function is particularly suitable for
defrosting delicate food which
could be damaged by heat, e.g.
cream-filled gateaux, ice cream
cakes, pastries, bread and other
yeast products.
6
7
8
9

15
Programming the Oven

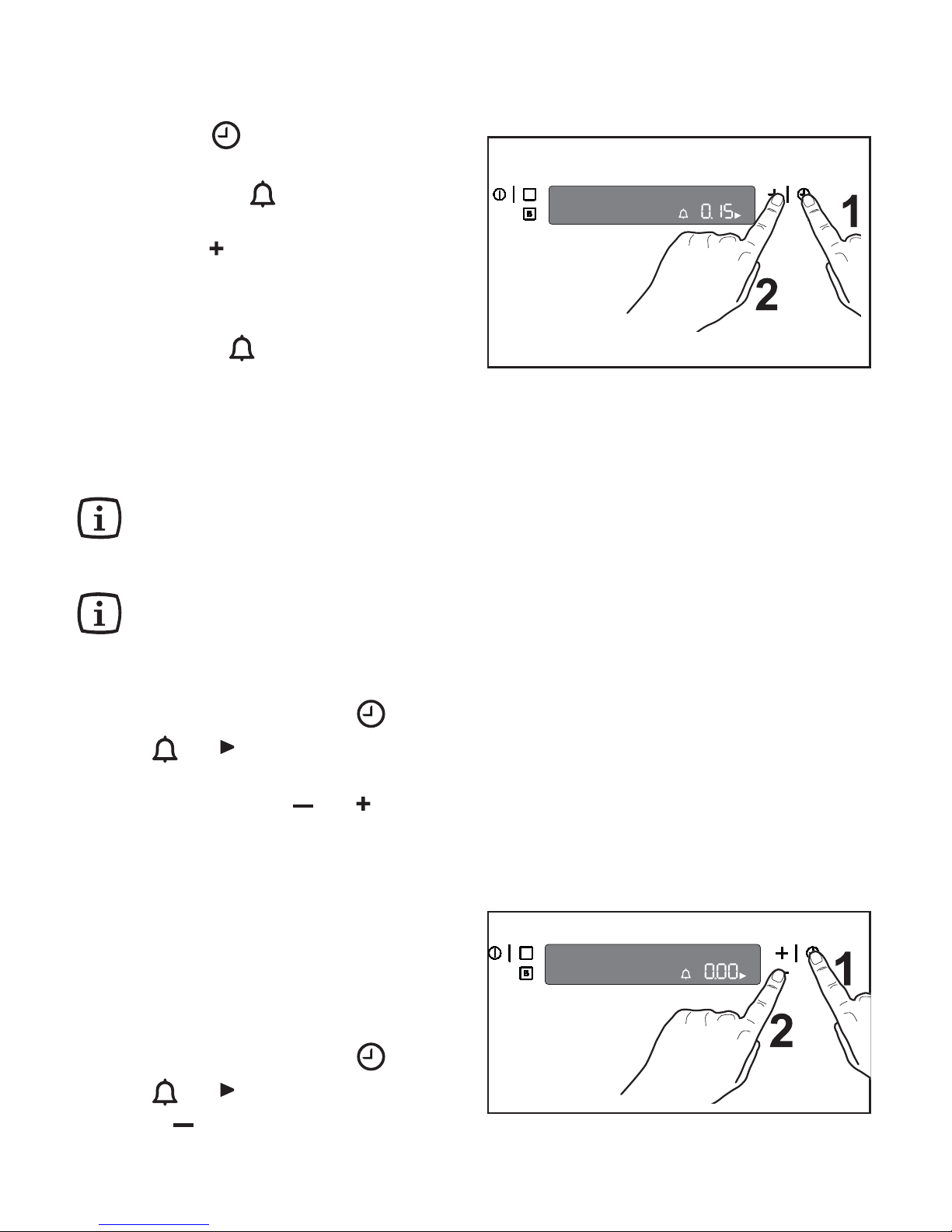

How to set the minute minder
1. Touch the time function control to
select the Minute Minder function. The
relevant symbol will flash and “0.00”
appears in the control panel (Fig. 7).
2. Touch the “ ” control and set the desired
time. Maximum time is 23 hours 59 minutes.
After the setting is carried out, the Minute
Minder starts to run after a few seconds.
The symbol will flash during the
programmed time.
3. When the programmed time has elapsed,
an acoustic alarm will be heard.
4. To switch off the acoustic alarm, touch any
control.
The acoustic alarm will switch off
automatically after approximately
one minute and the current time will
be displayed on the control panel.
The oven will NOT switch off if in use.
The Minute Minder function can
also be used when the oven is off.
How to change the Minute Minder setting:
Touch the time function control until the
symbols and flash.
It is now possible to change the setting of the
minute minder using the “ ” or “ ” control.
Fig. 7
How to cancel the Minute Minder:
Touch the time function control until the
symbols and flash.
Touch the “ ” control until “0.00” appears in
the display to re-set the time (Fig. 8). Fig. 8

16
How to programme the Oven to
switch off
1. Switch the oven on, place food in the
oven, select the desired cooking function
and adjust the cooking temperature, if
necessary.
2. Touch the time function control and
select the Cooking Duration function. The
Cooking Duration symbol will flash
and “0.00” will appear in the display (Fig.
9).
3. While the symbol is flashing, set the
desired time using the “ ” control.
Maximum time is 23 hours 59 minutes.
The programmer will wait a few seconds
and then start running.
4. When the programmed time has elapsed,
the oven will be switched off
automatically. An acoustic alarm will be
heard and “0.00” will appear on the
control panel.
5. To switch off the acoustic alarm, touch
the control.
If you touch any other control, the alarm
will stop and the control panel will display
the symbols indicated in Fig. 10. Then,
you need to reset the programmer display
by pressing the control.
The acoustic alarm will switch off
automatically after approximately two
minutes. Then touch the control
to reset the programme.
How to cancel a programmed Cooking
Duration Time:
— Touch the time function control until the
symbol flashes.
— Touch the control “ ” to decrease the time
until the display shows “0.00” (Fig. 11).
Fig. 9
Fig. 10
Fig. 11

17
How to programme the Oven to
switch on and off
1. Set the Cooking Duration as described in
the relevant section.
2. Touch the time function control until the
function for the end of the cooking time is
selected and the corresponding symbol
is flashing. The control panel will display the
end of cooking time (that is, the actual time
+ cooking duration time) (Fig. 12).
3. Touch the “ ” control to select the desired
end of the cooking time.
Remember that the cooking
duration time as such will not
change.
4. After the setting is carried out, the
programmer will wait a few seconds and
then start running.
5. The oven will switch on and off automatically.
When it switches itself off, an acoustic alarm
will sound.
6. To switch off the acoustic alarm, touch the
control.
If you touch any other control, the alarm
will stop and the control panel will display
the symbols indicated in Fig. 10. Then, you
need to reset the programmer display by
pressing the control.
The acoustic alarm will switch off
automatically after approximately
two minutes. Touch the control
to reset the programme.
If you want to cancel the programme,
simply cancel the Cooking Duration that
has been set (see the relevant section).
Fig. 12

18
Child Safety Function
To av oid children switching on the oven
accidentally, it is possible to lock the oven
controls.
1. Switch the oven off by touching the
control.
2. Touch the controls and “ ” at the same
time for about 3 seconds. An acoustic
signal will be emitted and the indication
“SAFE” will appear in the display (Fig. 14).
3. The oven is now locked. Neither individual
functions nor temperatures can be
selected.
How to unlock the oven:
Touch the controls and “ ” at the same
time for about 3 seconds. An acoustic signal
will be emitted and the indication ‘SAFE’ will go
out. The oven can now be operated again.
Safety Cut-Off Function
The oven is supplied with an automatic cut-off
function. If a cooking time has not been set and
no change of setting has been made, the oven
will switch off automatically according to the
following table (Fig. 13).
Temperature setting: Automatic switch off:
250 °C after 3 hours
200 to 245 °C after 5.5 hours
120 to 195 °C after 8.5 hours
below 120 °C after 12 hours
Fig. 13
Fig. 14
Safety and Energy Saving Functions

19
Fast Heat Up Function (Booster)
After a cooking function has been selected
and the temperature has been set, the oven
cavity will gradually heat up until the desired
temperature is reached. This will take from 10
to 15 minutes, depending on selected function
and temperature.
If it is necessary to reach the required
temperature in a shorter time, the fast heat up
function can be used.
1. Switch the oven on by touching the
control.
2. Set the desired cooking function and
temperature as explained in the previous
pages.
3. Determine the exact temperature by
touching the controls “ ” or “ ”. The
temperature will appear in the display.
4. Touch the control. The temperature
display will show “FHU” (Fig. 15).
5. Touch the control. The symbol “°” will
flash for approximately 10 seconds. Now it
is possible to select the desired temperature
by touching the controls “ ” or “ ”.
6. When the desired temperature is reached,
an acoustic alarm will sound for a short
time and the temperature display will revert
to the set temperature.
This function can be used with any cooking
function or temperature.
Fig. 15

20
Residual Heat Function
When a Cooking Duration time is set, the oven
will automatically switch off a few minutes before
the end of the programmed cooking duration to
finish your dishes in the oven without further
energy consumption. All current settings will be
displayed until the Cooking Duration time is
over.
This function will not operate when the Cooking
Duration time is less than 15 minutes.
Demo Mode
This mode is intended to be used in shops
to demonstrate the oven functionality without
any power consumption except the interior
light, the display and the fan. This function
can only be switched on when the appliance
is first connected.
If there is a power failure, when the power
supply is restored again, the Demo function
can only be switched on if in the display 12:00
and the symbol are flashing
automatically.
1.
Touch the control for approximately 2
seconds.
An acoustic alarm will sound for
a short time.
2.
Touch the and “ ”controls at the same
time. A short acoustic alarm will be heard
and the time
12:00 will appear in the display
(Fig. 16) .
When the oven is switched on
the symbol appears in the display. This
means that the Demo function is activated.
All oven functions can be selected.
The oven is not really working and the heating
elements do not switch on.
Switch off the oven and follow the procedure
described above to switch off the demo mode
again.
The Demo function remains saved in the
programme in the event of a power
failure.
Fig. 16
