Electrolux EOB20001 User manual

user manual
Built-In Electric Oven
EOB20001

We were thinking of you
when we made this product

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov-
er in this manual. Please take a few min-
utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

4electrolux contents
Contents
Safety instructions 5
Description of the Appliance 7
Before Using for the first time 9
Using the Oven 10
Uses, Tables and Tips 18
Cleaning and Care 27
What to do if … 37
Installation Instructions 38
Disposal 42
Guarantee/Customer Service 43
Service 46
T
he following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

safety instructions electrolux 5
Safety instructions
Electrical safety
•This appliance must be only con-
nected by a registered electrician.
•In the event of a fault or damage to
the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only
be carried out by qualified service
engineers. Considerable danger
may result from improper repairs. If
repairs become necessary, please
contact our Customer Services or
your dealer.
Child Safety
•Never leave children unsupervised
when the appliance is in use.
Safety whilst using
•People (including children) who, be-
cause of their physical, sensory or
mental capabilities or their inexperi-
ence or ignorance are not able to use
the device safely, should not use this
device without supervision or in-
struction by a responsible person.
•This appliance is intended to be
used for cooking, roasting and bak-
ing food in the home.
•Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.
•Warning: Risk of burns! The interi-
or of the oven becomes hot during
use.
•Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked
flames in the vicinity when opening
the door.
Information on acrylamides
According to the latest scientific
knowledge, intensive browning of
food, especially in products con-
taining starch, can constitute a
health risk due to acrylamides.
Therefore we recommend cooking
at the lowest possible temperatures
and not browning foods too much.

6electrolux safety instructions
How to avoid damage to the
appliance
•Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.
•Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.
•Do not put any strain on the oven
door when open.
•Never pour water directly into the
oven when it is hot. This could cause
damage to or discolouration of the
enamel.
•Rough handling, especially around
the edges of the front panel, can
cause the glass to break.
•Do not store any flammable materi-
als inside the oven. These could ig-
nite when the oven is switched on.
•Do not store any moist foods inside
the oven. This could damage the
oven enamel.
•After switching off the cooling fan, do
not keep uncovered dishes in the ov-
en. Moisture may condense in the
oven interior or on the glass doors
and may get into the units.
Note on enamel coating
Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor-
mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

description of the appliance electrolux 7
Description of the Appliance
General Overview
Control Panel
Full glass door
Control panel
Door
handle
Oven Power Indicator Temperature Pilot Light
Temperature selector
Oven Functions

8electrolux description of the appliance
Oven Features
Oven accessories
Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for
collecting fat.
Top heat and heating elements
Oven lighting
Bottom Heat
Shelf positions
Oven shelf runners,
removable

before using for the first time electrolux 9
Before Using for the first time
Initial Cleaning
Before using the oven for the first time
you should clean it thoroughly.
Caution: Do not use any caustic,
abrasive cleaners! The surface
could be damaged.
To clean metal fronts use commer-
cially available cleaning agents.
1. Turn the oven function switch to
oven lighting .
2. Remove all accessories and the shelf
support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm
water and washing-up liquid, and
dry.
4. Wipe the front of the appliance with
a damp cloth.

10 electrolux using the oven
Using the Oven
Switching the Oven On and Off
1. Turn the oven functions dial to the
desired function.
2. Turn the temperature selector to the
desired temperature.
The power indicator is lit as long as the
oven is in operation.
The temperature pilot light is lit as long
as the oven is heating up.
3. To turn the oven off, turn the oven
functions dial and the temperature
selector to the Off position.
Cooling fan
The fan switches on automatically
in order to keep the appliance’s sur-
faces cool. When the oven is
switched off, the fan continues to
run to cool the appliance down, then
switches itself off automatically.
Temperature Pilot Light
Temperature selector
Oven Power Indicator
Oven Functions

using the oven electrolux 11
Oven Functions
The oven has the following functions:
Oven function Application
Light Using this function you can light up the oven interior, e.g. for
cleaning.
Conventional For baking and roasting on one oven level .
Top heat For browning bread, cakes and pastries and for bakes.
Bottom heat For baking cakes with crispy or crusty bases .
Grill For grilling flat food items placed in the middle of the grill
and for toasting .
Dual grill For grilling flat food items in large quantities and for toast-
ing
.

12 electrolux using the oven
Inserting the Oven Shelf, Baking
Tray and Roasting Pan

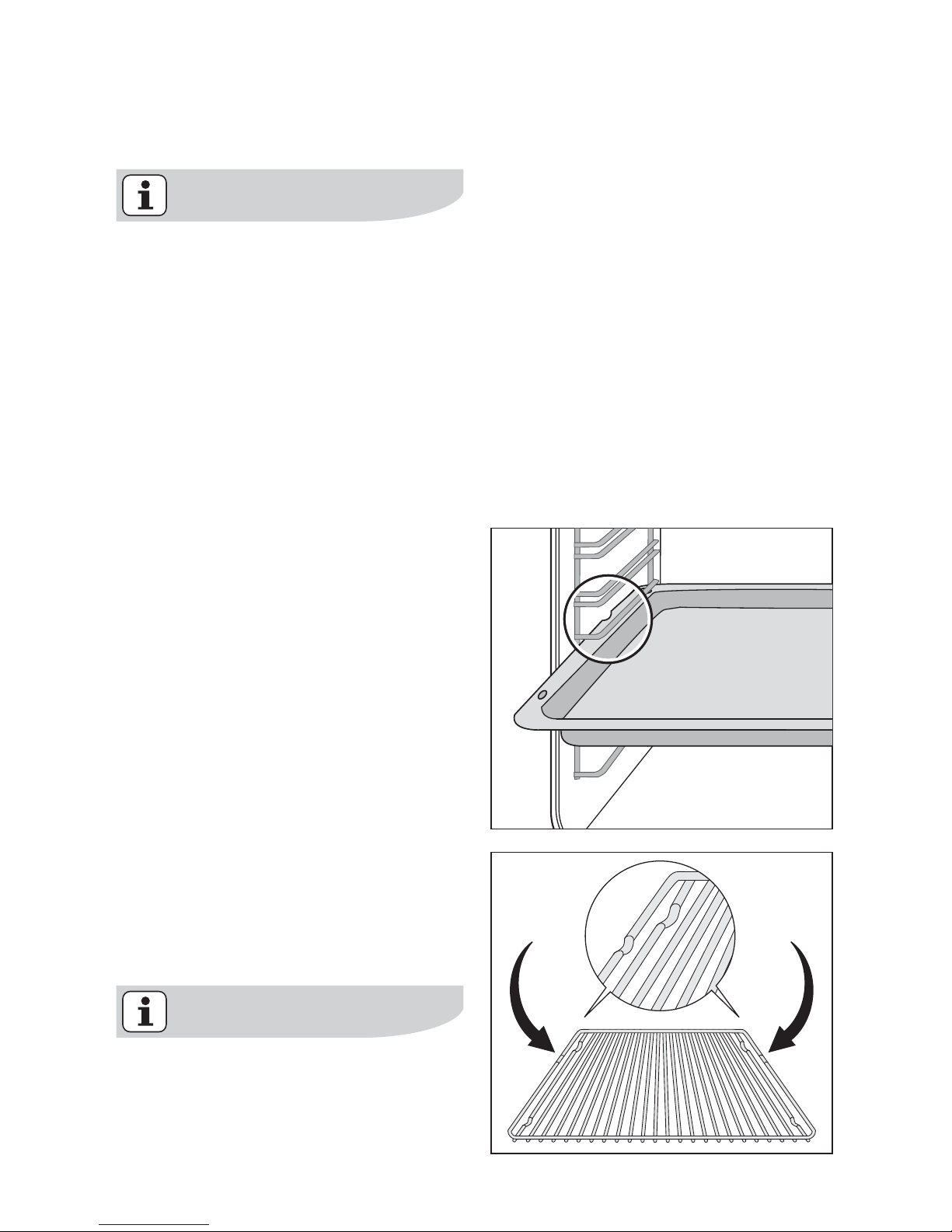

Shelf runner safety and anti-tip
device
As a shelf runner safety device, all
insertable components have a small
curved indentation at the bottom on
the right and left-hand edge.
Always insert insertable compo-
nents so that this indentation is at
the back of the oven interior. This in-
dentation is also important for pre-
venting the insertable components
from tipping.
Inserting the baking tray or roasting
pan
Push the baking tray or roasting pan be-
tween the guide bars of the selected
oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet
point downwards.
Push the oven shelf between the guide
bars of the selected oven level.
The high rim around the oven shelf
is an additional device to prevent
cookware from slipping.

using the oven electrolux 13
Inserting the oven shelf and roast-
ing pan together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.

14 electrolux using the oven

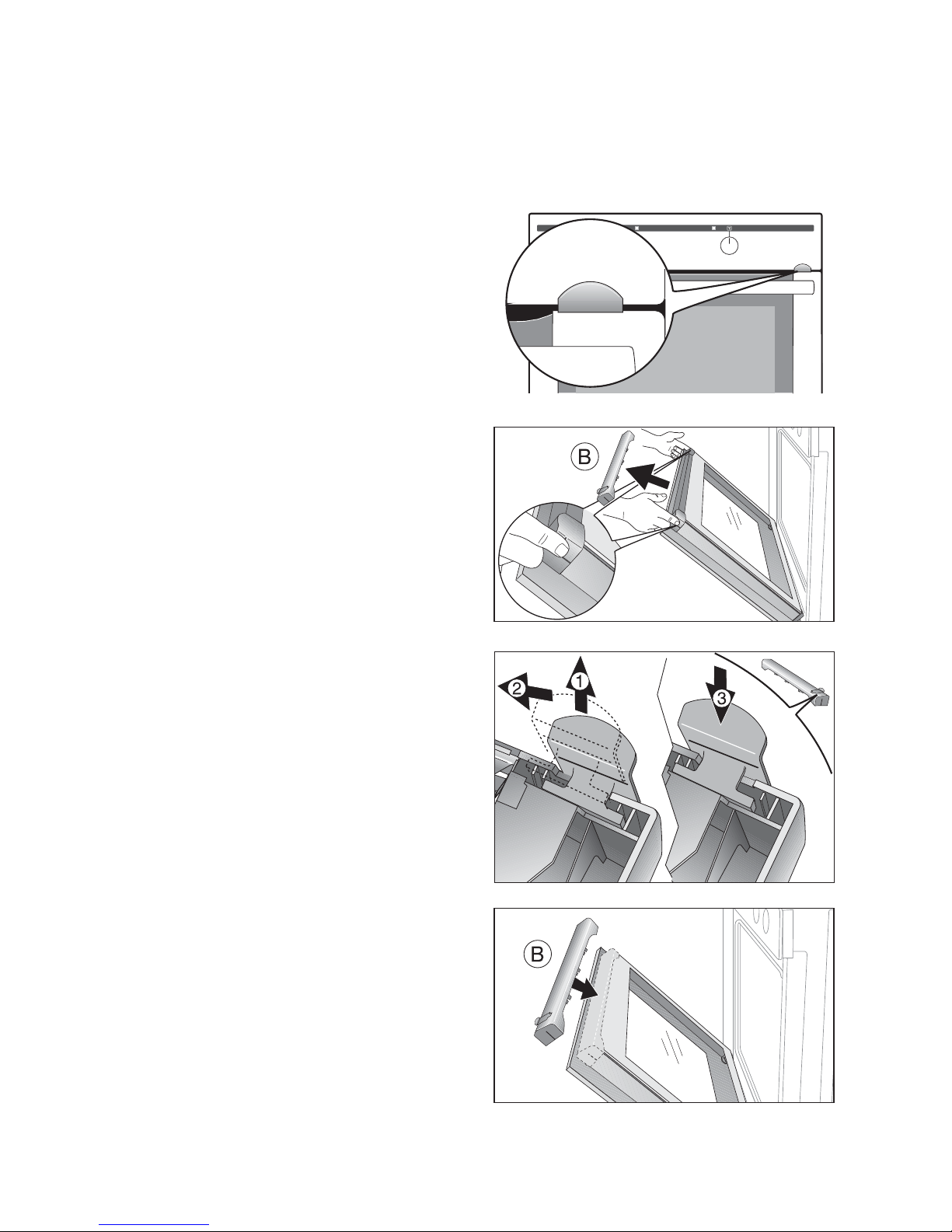

Mechanical door lock
When the appliance is delivered the
door lock is deactivated.
Activating door lock
1. Take hold of the door trim(B) on the
upper edge of the door at both sides
and press inwards to release the clip
seal. Then remove the door trim by
pulling it upwards.
2. Activate lever:
Remove lever (1) and
move 4mm to the left (2)
and insert (3).
3. Take hold of the door trim (B) at each
side, position it on the inside edge of
the door and plug the door trim (B)
into the upper edge of the door

using the oven electrolux 15

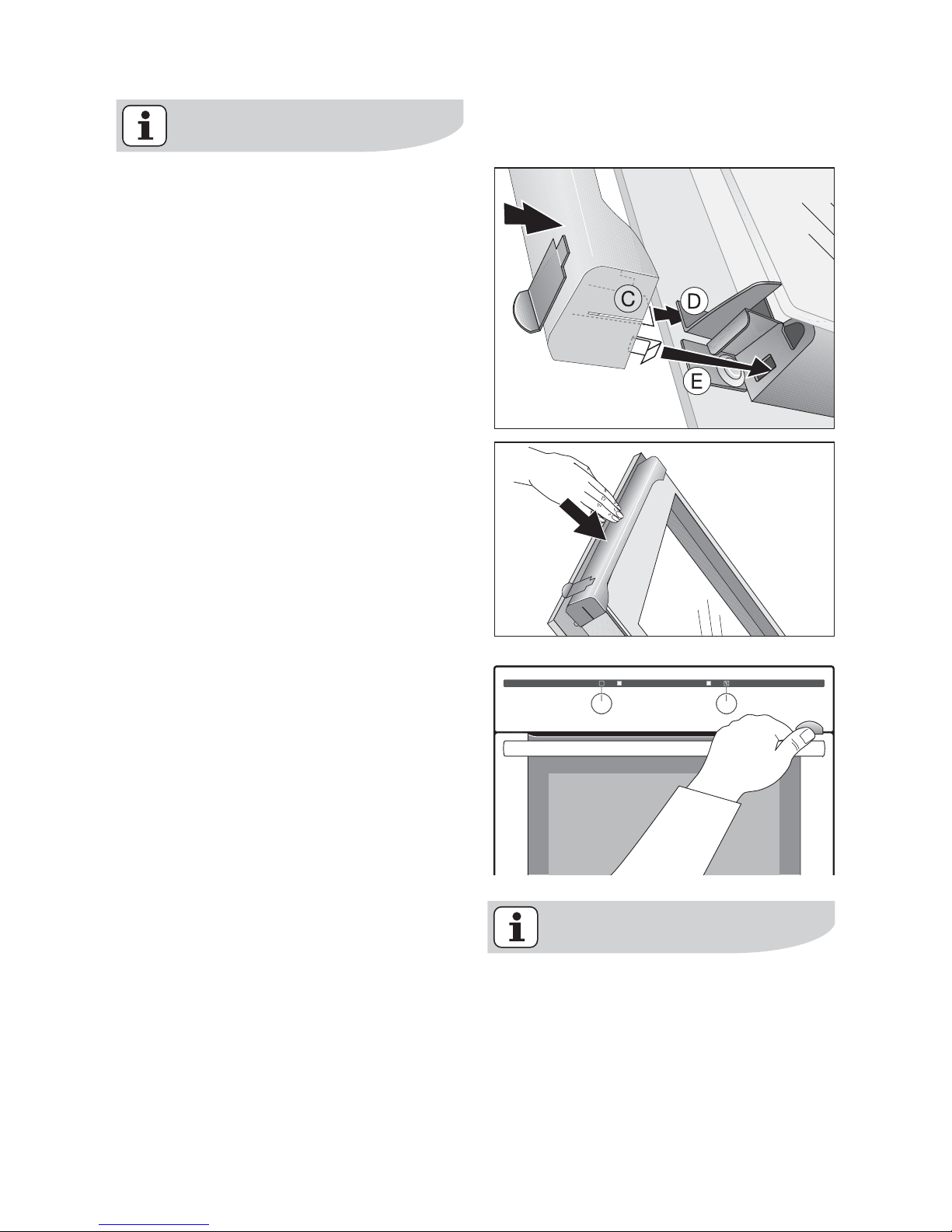

On the open side of the door trim (B)
there is a guide bar (C). This must be
pushed between the outer door
panel and the guide corner (D).
The clip seal (E) must be snapped in.
To open the oven door.
1. Keep lever pressed.
2. Open the door.
To close the oven
Close door without pressing the le-
ver.
Deactivating door lock
To deactivate the door lock, the lever is
moved to the right again. Proceed as
described above.
Switching off the appliance does
not remove the mechanical door
lock.

16 electrolux using the oven
Removing door lock
1. Take hold of the door trim(B) on the
upper edge of the door at both sides
and press inwards to release the clip
seal. Then remove the door trim by
pulling it upwards.
2. Demount lever:
Remove lever (1).
3. Remove trim from the under side of
the door trim (B)(2) and push in (3).

using the oven electrolux 17
4. Take hold of the door trim(B) at each
side, position it on the inside edge of
the door and push the door trim (B)
onto the upper edge of the door
On the open side of the door trim(B)
there is a guide bar(C). This must be
pushed between the outer door
panel and the guide corner(D).
The clip seal(E) must be snapped in.
5. Close the oven door.

18 electrolux uses, tables and tips
Uses, Tables and Tips
Baking
Oven function: Conventional
Baking tins
For Conventional dark metal and
non-stick tins are suitable.
Oven levels
Baking with Conventional is only pos-
sible on one level.
1 baking tray:
e.g. oven level 3
1 cake tin:
e.g. oven level 1

uses, tables and tips electrolux 19
General Instructions
•Insert the tray with the bevel at the
front.
•With Conventional you can also
bake with two tins next to one anoth-
er on the oven shelf at the same
time. This does not significantly in-
crease the baking time.
When frozen foods are used the
trays inserted may distort during
cooking. This is due to the large dif-
ference in temperature between the
freezing temperature and the tem-
perature in the oven. Once the trays
have cooled the distortion will dis-
appear again.
How to use the Baking Tables
The tables give the required tempera-
ture settings, baking times and oven
shelf levels for a selection of typical dish-
es.
•Temperatures and baking times are
for guidance only, as these will de-
pend on the consistency of the pas-
try, mixture or dough and the number
and the type of baking tin.
•We recommend using the lower
temperature the first time and then if
necessary, for example, if a deeper
browning is required, or baking time
is too long, selecting a higher tem-
perature.
•If you cannot find the settings for a
particular recipe, look for the one
that is most similar.
•Your new oven may bake or roast dif-
ferently to your previous appliance.
So adapt your normal settings (tem-
perature, cooking times) and oven
shelf levels to the recommendations
in the following tables.
With longer baking times, the oven
can be switched off about
10 minutes before the end of baking
time, to make use of the residual
heat.
Unless otherwise stated, the values giv-
en in the tables assume that cooking is
started with the oven cold.

20 electrolux uses, tables and tips
Baking table
Type of baking Oven
level
Temperature
ºC Time
Baking in tins
Ring cake or brioche 1160-180 0:50-1:10
Madeira cake, fruit cakes 1150-170 1:10-1:30
Sponge flan 1160-180 0:25-0:40
Flan base - short pastry 3190-210
1)
0:10-0:25
Flan base - sponge mixture 3170-190 0:20-0:25
Apple tart (covered) 1170-190 0:50-1:00
Apple pie
(2tins Ø20cm, placed diagonally to one
another)
1180-200 0:20-0:30
Savoury flan (e. g., quiche lorraine) 1180-200 0:30-1:10
Cheesecake 1160-180 1:00-1:30
Cakes/pastries/breads on baking trays
Plaited bread/bread crown 3170-190 0:30-0:40
Christmas stollen 3160-180
1)
0:40-1:00
Bread (rye bread) first of all
.......................................then 1250
1)
160-180
0:20
0:30-1:00
Cream puffs, eclairs 3190-210 0:25-0:40
Swiss roll 3180-200
1)
0:10-0:20
Dry streusel cake 3160-180 0:20-0:40
Buttered almond cake, sugar cakes, Bien-
enstich (custard-filled cake, coated with
sugar and almonds)
3190-210
1)
0:15-0:30
Fruit flans (made with yeast dough/sponge
mixture)
2)
3170-190 0:25-0:50
Fruit flans made with short pastry
2)
3170-190 0:40-1:20
Yeast cakes with delicate
fillings (e. g., cream cheese, cream, etc.)
(cooked on baking sheet)
3160-180 0:40-1:20
Pizza (with a lot of topping)
2)
1190-210
1)
0:30-1:00
Pizza (thin crust) 1230-250
1)
0:10-0:25
Unleavened bread 1230-250
1)
0:08-0:15
Tarts (Swiss-style) 1210-230
1)
0:35-0:50
