We were thinking of you
when we made this product

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov-
er in this manual. Please take a few min-
utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

4electrolux contents
Contents
Safety instructions 5
Description of the Appliance 7
Before using for the first time 10
Operating the Oven 11
Usage, Tables and Tips 16
Cleaning and care 28
What to do if … 38
Electrical Connection 39
Installation Instructions 40
Disposal 44
Guarantee/Customer Service 45
Service and Spare Parts 49
T
he following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

safety instructions electrolux 5
Safety instructions
Electrical safety
•This appliance must be connected
by a qualified electrician only.
•In the event of a fault or damage to
the appliance: take the fuses out or
switch off.
•Repairs to the appliance must only
be carried out by qualified serv-
ice engineers. Considerable dan-
ger may result from improper repairs.
If repairs become necessary, please
contact your local Service Force
Centre.
Child Safety
•Never leave children unsupervised
when the appliance is in use.
Safety whilst Using
•People (including children) who, be-
cause of their physical, sensory or
mental capabilities or their inexperi-
ence or ignorance are not able to use
the device safely, should not use this
device without supervision or in-
struction by a responsible person.
•This appliance is intended to be
used for cooking, roasting and bak-
ing food in the home.
•Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.
•Warning: Risk of burns! The interi-
or of the oven becomes hot during
use.
•Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked
flames in the vicinity when opening
the door.

6electrolux safety instructions
How to avoid damage to the
appliance
•Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.
•Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.
•Do not put any strain on the oven
door when open.
•Never pour water directly into the
oven when it is hot. This could cause
damage to the enamel and discol-
ouration.
•Rough handling, especially around
the edges of the front panel, can
cause the glass to break.
•Do not store any flammable materi-
als inside the oven. These could ig-
nite when the oven is switched on.
•Do not store any moist foods inside
the oven. This could damage the
oven enamel.
•After switching off the cooling fan, do
not keep uncovered dishes in the ov-
en. Moisture may condense in the
oven interior or on the glass doors
and may get into the units.
Note on enamel coating
Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor-
mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

description of the appliance electrolux 7
Description of the Appliance

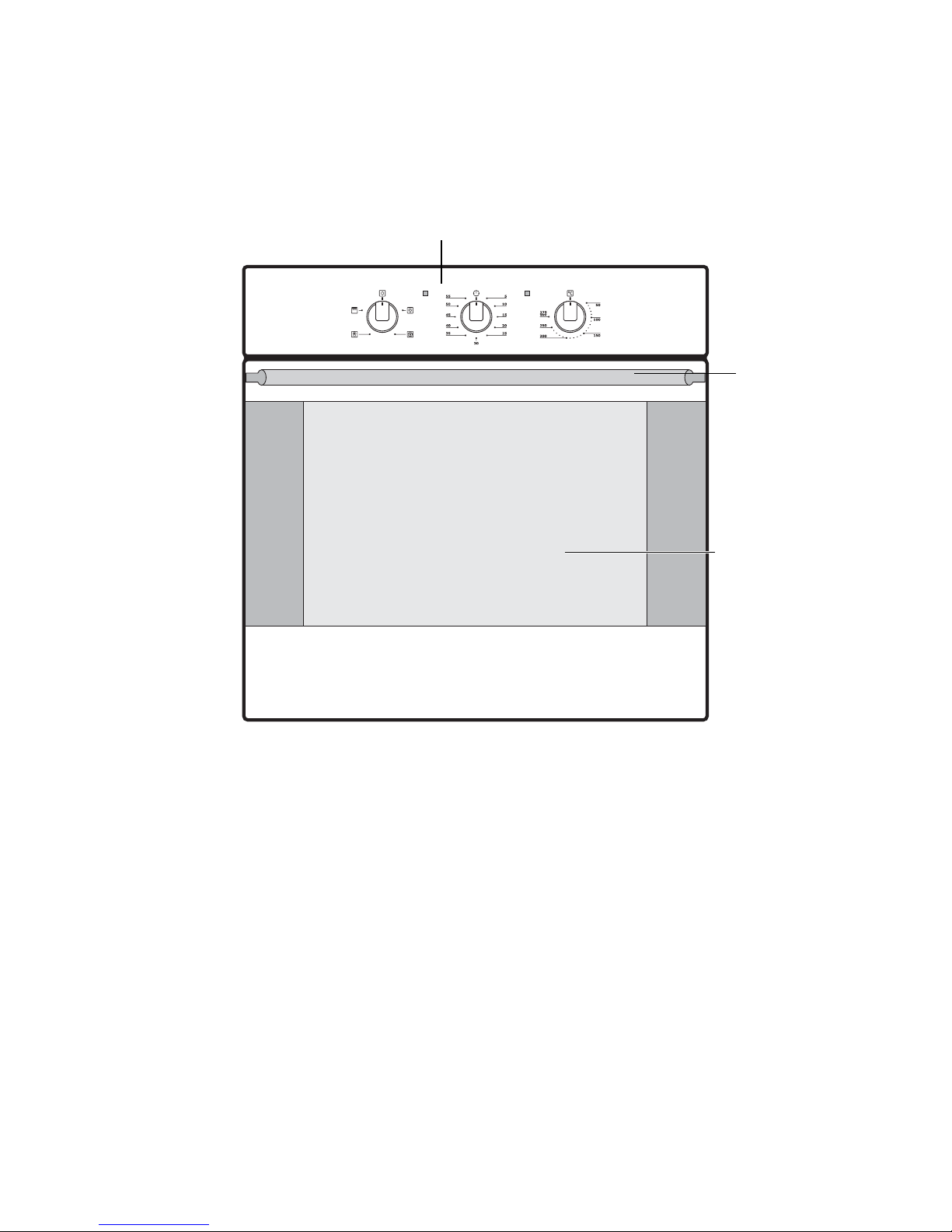

General Overview
Full glass
door
Control panel
Door
handle

8electrolux description of the appliance

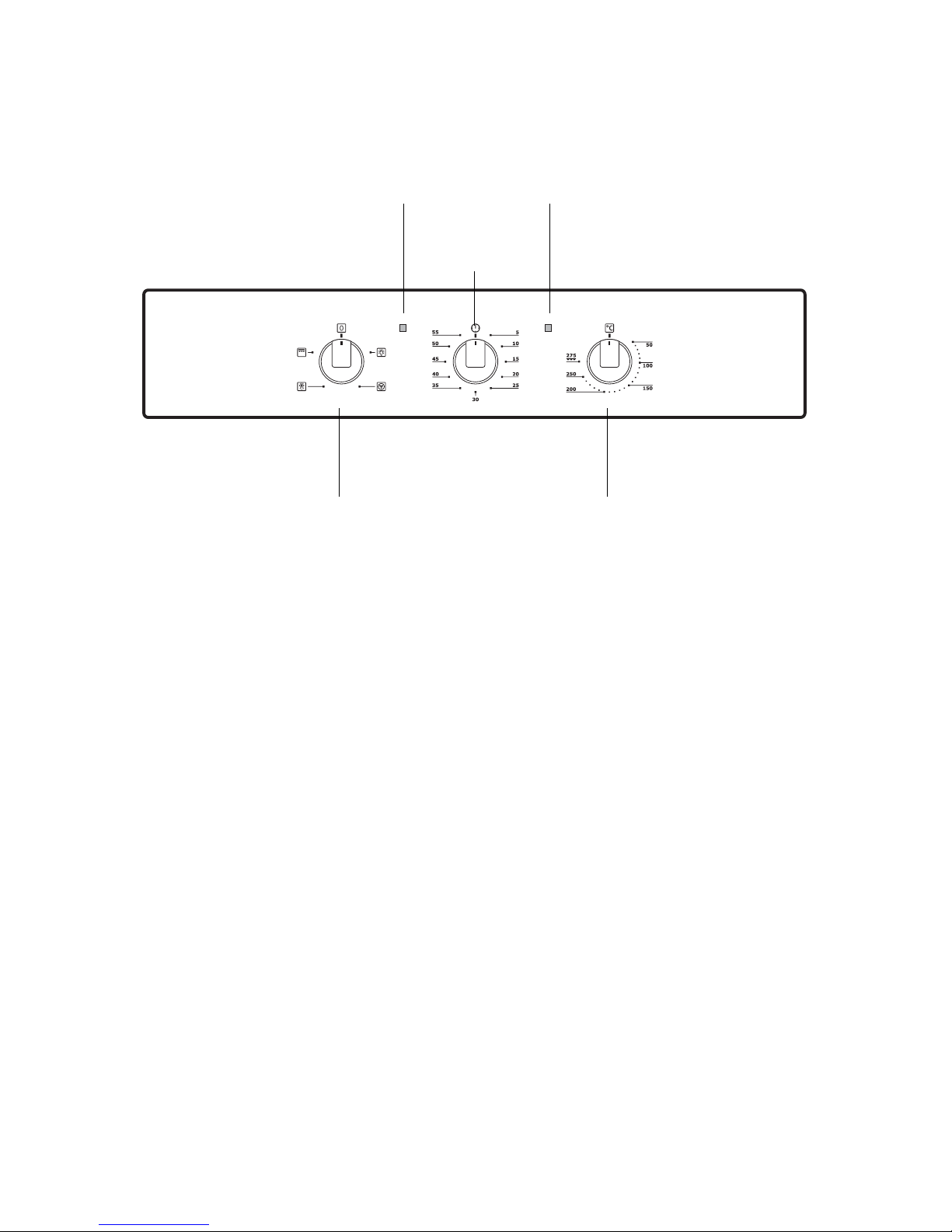

Control Panel
Oven Functions Temperature selector
Oven Power Indicator Temperature Pilot Light
Minute timer

description of the appliance electrolux 9

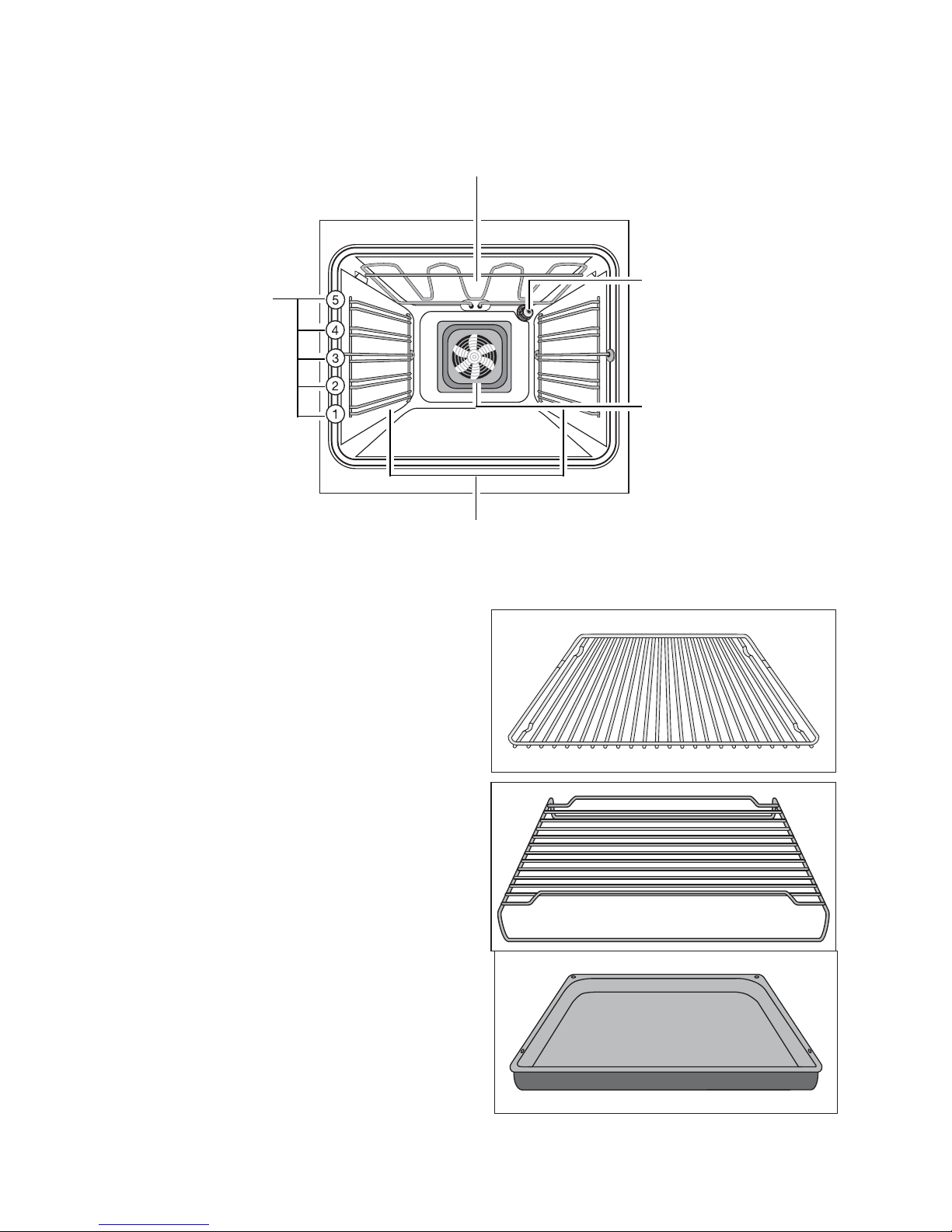

Oven Features
Oven Accessories
Shelf
For dishes, cake tins, items for roasting
and grilling.
Grill set
Grill
Insert for the roasting pan for roasting
and grilling.
Roasting Pan
For baking and roasting or as a pan for
collecting fat.
Top heat and heating elements
Oven lighting
Fan heating element
Fan
Shelf positions
Oven shelf runners, removable

10 electrolux before using for the first time
Before using for the first time
Initial Cleaning
Before using the oven for the first time
you should clean it thoroughly.
Caution: Do not use any caustic,
abrasive cleaners! The surface
could be damaged.
To clean any metal front panels use
commercially available cleaning
agents.
1. Turn the oven function switch to
oven lighting .
2. Remove all accessories and the shelf
support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm
water and washing-up liquid and dry.
4. Wipe the front of the appliance with
a damp cloth.

operating the oven electrolux 11
Operating the Oven
Switching the Oven On and Off
1. Turn the oven functions control knob
to the desired function.
2. Turn the temperature control knob to
the desired temperature.
The power indicator is lit while the oven
is on.
The temperature power indicator is lit
while the oven is heating up.
3. To turn the oven off, turn the oven
functions and temperature control
knob back to the Off position.
Cooling fan
The fan switches on automatically
in order to keep the appliance’s sur-
faces cool. When the oven is
switched off, the fan continues to
run to cool the appliance down, then
switches itself off automatically.
Temperature Pilot Light
Temperature selector
Oven Power Indicator
Oven Functions

12 electrolux operating the oven
Oven Functions
The oven has the following functions:

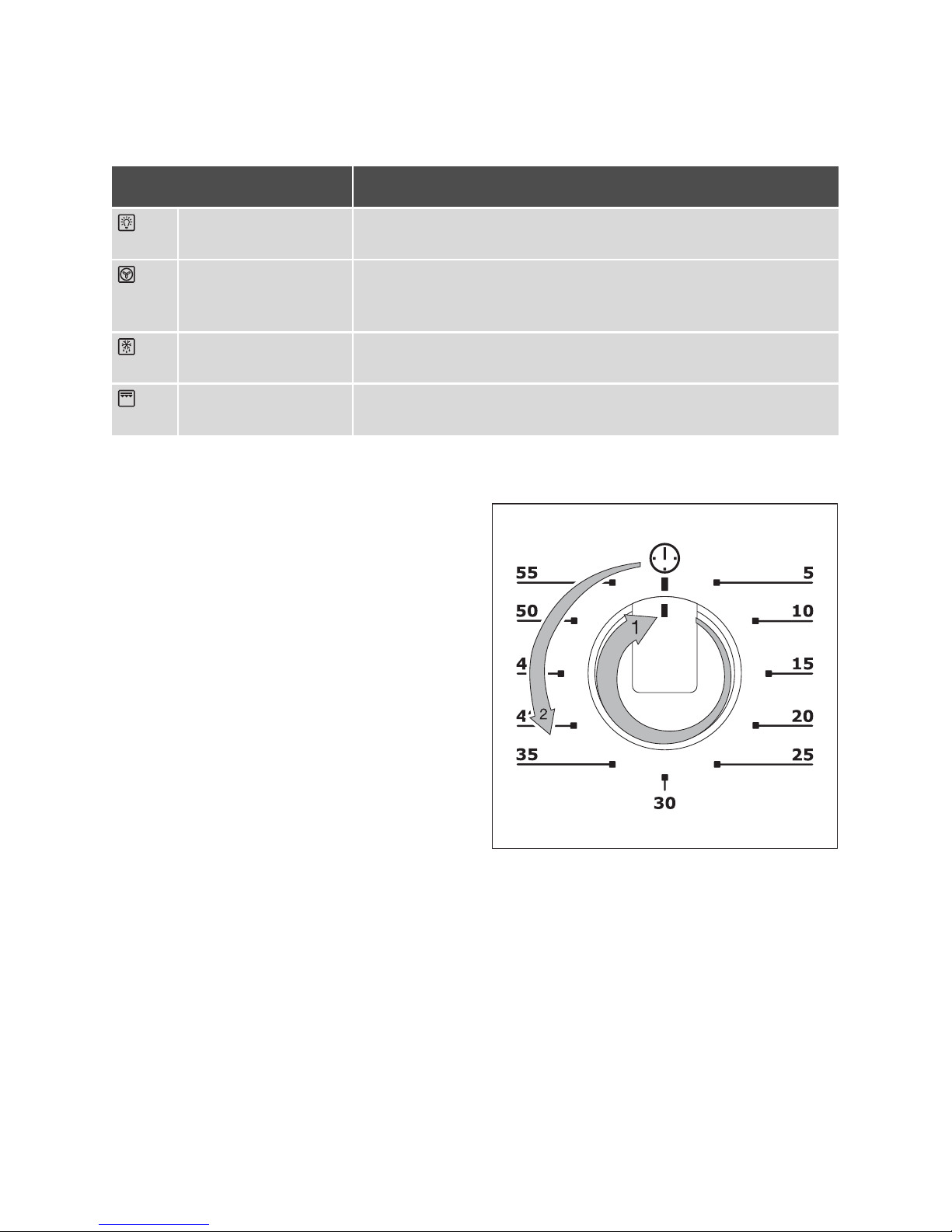

Minute Minder
This function has no effect on the oven
operation.
Turn the control knob to 60 minutes,
then turn it back to the desired length of
time. (60 minutes maximum).
A signal is sounded when the set time
has elapsed.
To change your setting, just turn the
knob to the desired duration.
To stop the timer before the set time has
elapsed, simply turn the
knob back to OFF.
Oven function Use
Light With this function you can light up the oven interior, e.g. for
cleaning.
Convection with
ring heating
element
For baking on up to three oven shelves at the same time.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Defrost For defrosting e. g. gateaux and flans, butter, bread, fruit or
other frozen foods .
Dual grill For grilling flat food items in large quantities and for toast-
ing
.

operating the oven electrolux 13
Inserting the Oven Shelf and the
Roasting Pan
Shelf runner safety and anti-tip de-
vice

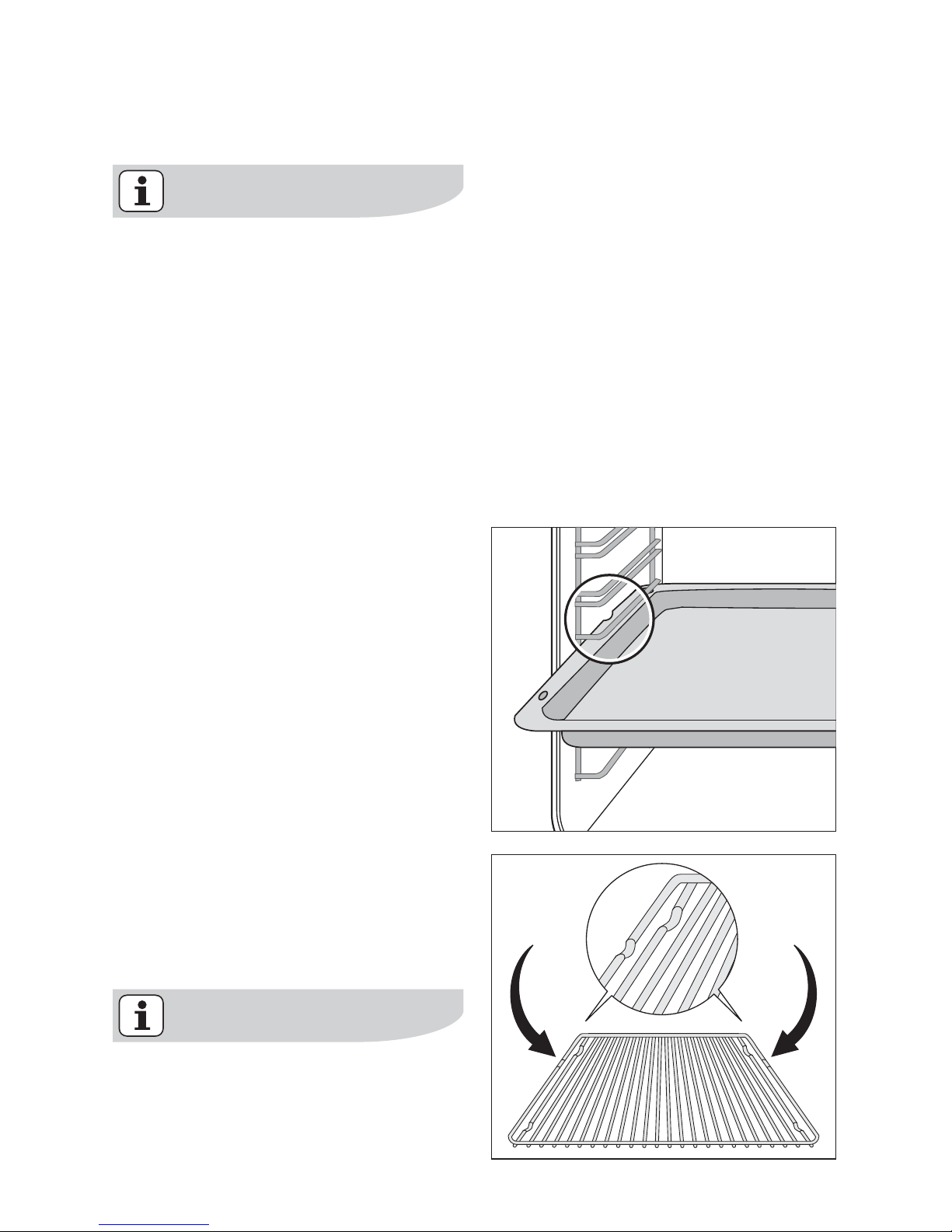

As a shelf runner safety device all
insertable components have a small
curved indentation at the bottom on
the right and left-hand edge.
Always insert insertable compo-
nents so that this indentation is at
the back of the oven interior. This in-
dentation is also important for pre-
venting the insertable components
from tipping.
Inserting the roasting pan:
Push the roasting pan between the
guide bars of the selected oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet
point downwards.
Push the oven shelf between the guide
bars of the selected oven level.
The high rim around the oven shelf is an
additional device to prevent cookware
from slipping.

14 electrolux operating the oven
Inserting the oven shelf and the
roasting pan together:
Lay the oven shelf on the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.

operating the oven electrolux 15
Grill set
The grill set consists of grill and roasting
pan. The grill can used on both sides.
Warning: There is a risk of burning
when removing the roasting pan
from the hot oven!

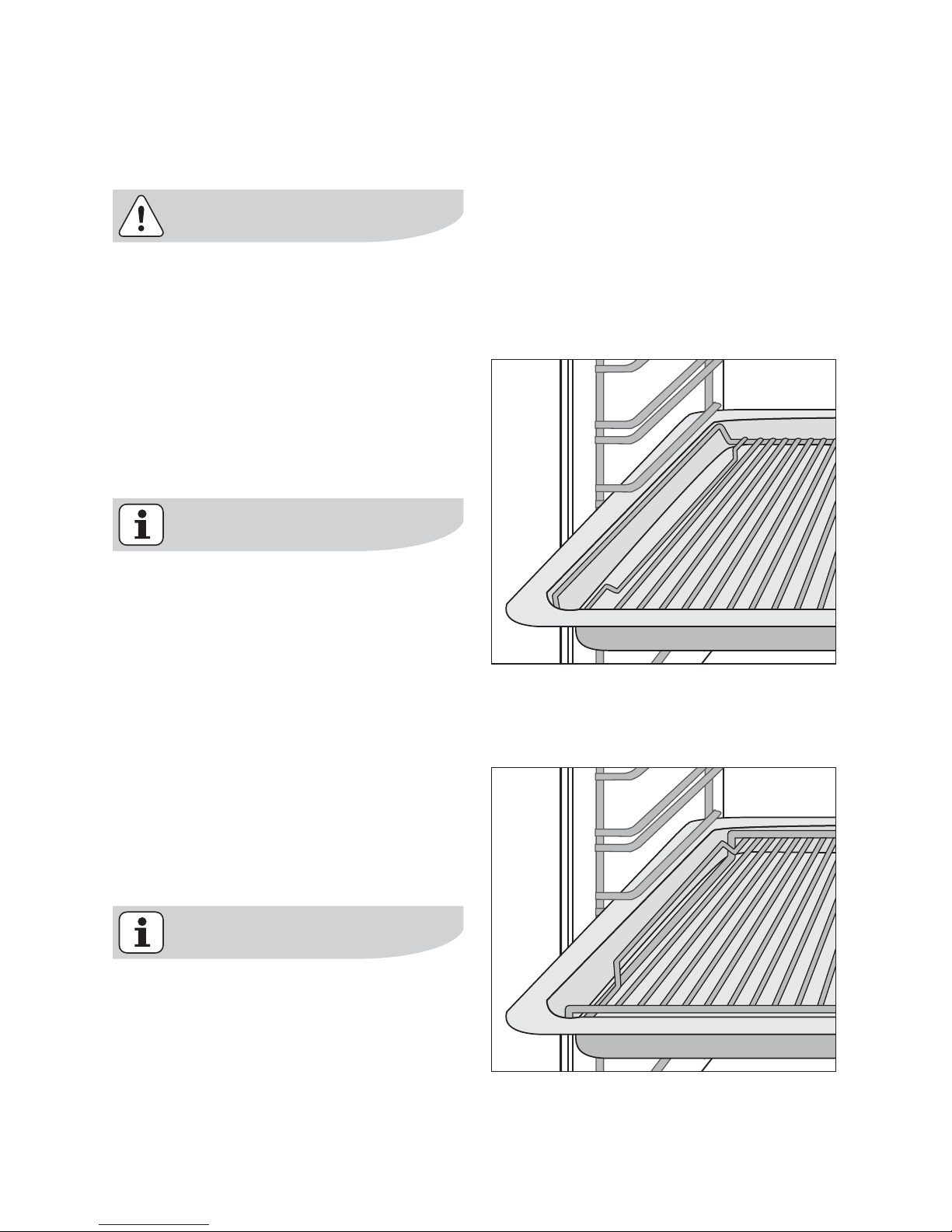

Inserting the grill tray underneath:
The grill tray rests in the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.
For roasting larger joints of meat or
poultry on one oven shelf.
Inserting the grill tray on top:
The grill tray rests on the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.
For grilling flat food items in large
quantities and for toasting.

16 electrolux usage, tables and tips
Usage, Tables and Tips
Baking
Oven function: Convection with ring
heating element
Baking tins
•For Convection with ring heating
element bright metal tins are suit-
able.
Oven levels
•With Convection with ring heating
element you can bake on up to 3
baking trays at the same time:
1 baking tray:
for example, oven level 3
1 baking tin:
for example, oven level 1
2 baking trays:
for example, oven level 1 and 3
3 baking trays:
oven level 1, 3 and 5

usage, tables and tips electrolux 17
General instructions
With Convection with ring heating
element you can also bake two cakes
at the same time in tins placed next to
each other on the shelf. This does not
significantly increase baking time.
When frozen foods are used the
trays inserted may distort during
cooking. This is due to the large dif-
ference in temperature between the
freezing temperature and the tem-
perature in the oven. Once the trays
have cooled the distortion will dis-
appear again.
How to use the Baking Tables
The tables give the required tempera-
ture settings, baking times and oven
shelf levels for a selection of typical dish-
es.
•Temperatures and baking times are
for guidance only, as these will de-
pend on the consistency of pastry,
mixture or dough, the number and
the type of baking tin.
•We recommend setting the lower
temperature when baking for the first
time, and if required, e.g. if a darker
browning is desired or if the baking
time is too long, select a higher tem-
perature.
•If you cannot find the settings for a
particular recipe, look for the one
that is most similar.
•If baking cakes on baking trays or
tins on more than one level, baking
time can be extended by 10-15 min-
utes.
•Moist recipes (for example, pizzas,
fruit flans, etc.) are baked on one lev-
el.
•Cakes and pastries at different
heights may brown at an uneven rate
at first. If this occurs, please do not
change the temperature setting.
Different rates of browning even out
as baking progresses.
•Your new oven may bake or roast dif-
ferently to your previous appliance.
So adapt your normal settings (tem-
perature, cooking times) and oven
shelf levels to the recommendations
in the following tables.
With longer baking times, you can
switch the oven off about 10 min-
utes before the end of the baking
time, in order to utilise the residual
heat.
Unless otherwise stated, the values
given in the tables assume that
cooking is started with the oven
cold.

18 electrolux usage, tables and tips
Baking Tables
Cakes,
Biscuits, Bread, Pies
Convection with ring
heating element Time
Shelf-
position
Tempera-
ture
ºC
Hr. : Min.
Using cake tins
Cakes in Pound Cake tins 1160-170 1:00-1:10
Sandcakes/Cakes in loaf tins 1150-160 1:15-1:30
Madeira cake 1150-160 1:00-1:10
Dundee cake 1130-140 2:30-3:00
Large Christmas cake (10“) 1130 4:30-5:00
Victoria Sandwich 1 / 4 160 0:25-0:35
Pastry cases 1 / 4 170-190 0:10-0:25
Bakewell tart 3160-170 0:45-0:55
Swiss roll 3150-170
1)
0:10-0:20
Flans & quiches 3170-180 0:30-0:50
Using baking sheets
Short bread 1 / 4 140-150 0:40-0:50
Biscuits 1 / 4 150-170 0:15-0:25
Macaroons 1 / 4 140-150 0:25-0:35
Apple strudel 3170-180
1)
0:30-0:50
Choux pastry buns 1 / 4 160-170
1)
0:20-0:35
Buns / cup cakes 1 / 4 150-160
1)
0:25-0:35
Scones 1 / 4 190-200
1)
0:10-0:15
Meringues 375 3:30-4:30
Sausage rolls 1 / 4 170-180
1)
0:20-0:35
Pizza 1180-200 0:30-0:50
Bread
Wholemeal bread 1180-200
1)
0:40-0:45
White bread 1180-200
1)
0:40-0:45
1) Pre-heat oven

usage, tables and tips electrolux 19
Baking on more than one oven level
Type of baking
Convection
with ring
heating
element
Convection
with ring
heating
element Time
Hours:
Mins.
Shelf positions from
bottom Tempe -
rature in
°C
2 levels 3 levels
Cakes/pastries/biscuits on baking trays
Cream puffs/Eclairs 1/4 --- 160-180
1)
0:35-0:60
Dry streusel cake 1/3 --- 140-160 0:30-0:60
Biscuits
Short pastry biscuits 1/3 1/3/5 150-160 0:15-0:35
Viennese whirls 1/3 1/3/5 140 0:20-0:60
Biscuits made with sponge mix-
ture 1/3 --- 160-170 0:25-0:40
Pastries made with egg white,
meringues 1/3 --- 80-100 2:10-2:50
Macaroons 1/3 --- 100-120 0:40-1:20
Biscuits made with yeast dough 1/3 --- 160-170 0:30-0:60
Puff pastries 1/3 --- 170-180
1)
0:30-0:50
Rolls 1/4 --- 160 0:30-0:45
Small cakes (20per tray) 1/4 --- 140
1)
0:25-0:40
1) Pre-heat the oven!

20 electrolux usage, tables and tips
Tips on Baking
Baking results Possible cause Remedy
The cake is not browned
enough at the bottom
Wrong shelf level Place cake on a lower shelf
The cake sinks (be-
comes soggy, lumpy,
streaky)
Oven temperature too high Use a slightly lower temperature
setting
Baking time too short Increase baking time
Baking times cannot be re-
duced by setting higher
temperatures
Too much liquid in the dough/mix-
ture
Use less liquid
Pay attention to mixing times,
especially if using mixing ma-
chines
Cake is too dry Oven temperature too low Increase oven temperature
Baking time too long Shorten baking time
Cake browns unevenly Oven temperature too high and
baking time too short
Set a lower temperature and in-
crease baking time
Dough/mixture is unevenly distrib-
uted
Spread the dough/mixture even-
ly on the baking tray
Cake is not cooked with-
in the baking time set
Temperature too low Use a slightly higher temperature
setting
