Electrolux EOB53000X User manual

user manual
Built-In Electric Oven
EOB53000

We were thinking of you
when we made this product

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov-
er in this manual. Please take a few min-
utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

4electrolux contents
Contents
Safety instructions 5
Description of the Appliance 7
Before using for the first time 9
Operating the Oven 11
Usage, Tables and Tips 22
Cleaning and care 34
What to do if … 44
Electrical Connection 45
Installation Instructions 46
Disposal 50
Guarantee/Customer Service 51
Service and Spare Parts 54
T
he following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

safety instructions electrolux 5
Safety instructions
Electrical safety
•This appliance must be connected
by a qualified electrician only.
•In the event of a fault or damage to
the appliance: take the fuses out or
switch off.
•Repairs to the appliance must only
be carried out by qualified serv-
ice engineers. Considerable dan-
ger may result from improper repairs.
If repairs become necessary, please
contact your local Service Force
Centre.
Child Safety
•Never leave children unsupervised
when the appliance is in use.
Safety whilst Using
•People (including children) who, be-
cause of their physical, sensory or
mental capabilities or their inexperi-
ence or ignorance are not able to use
the device safely, should not use this
device without supervision or in-
struction by a responsible person.
•This appliance is intended to be
used for cooking, roasting and bak-
ing food in the home.
•Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.
•Warning: Risk of burns! The interi-
or of the oven becomes hot during
use.
•Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked
flames in the vicinity when opening
the door.

6electrolux safety instructions
How to avoid damage to the
appliance
•Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.
•Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.
•Do not put any strain on the oven
door when open.
•Never pour water directly into the
oven when it is hot. This could cause
damage to the enamel and discol-
ouration.
•Rough handling, especially around
the edges of the front panel, can
cause the glass to break.
•Do not store any flammable materi-
als inside the oven. These could ig-
nite when the oven is switched on.
•Do not store any moist foods inside
the oven. This could damage the
oven enamel.
•After switching off the cooling fan, do
not keep uncovered dishes in the ov-
en. Moisture may condense in the
oven interior or on the glass doors
and may get into the units.
Note on enamel coating
Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor-
mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

description of the appliance electrolux 7

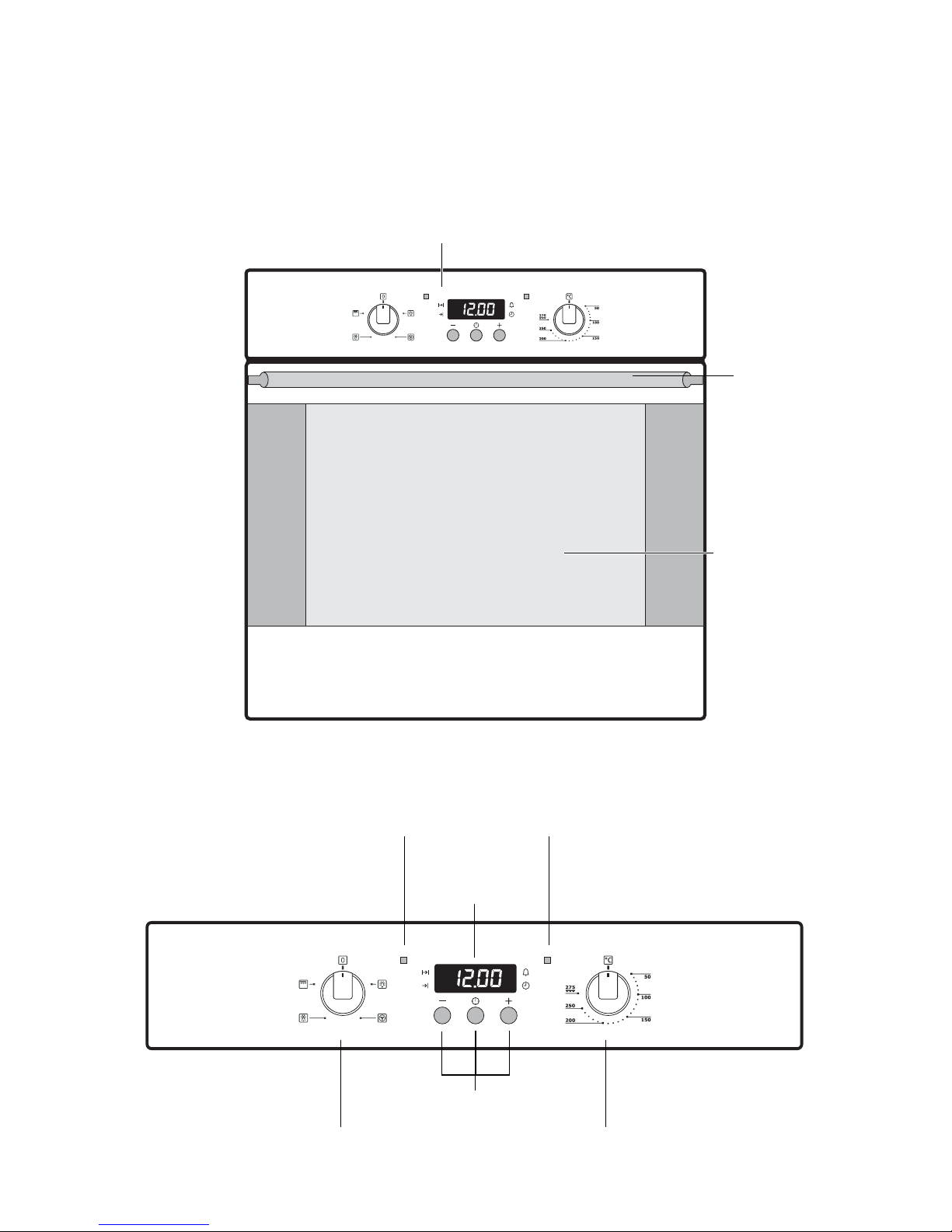

Description of the Appliance
General Overview
Control Panel
Full glass
door
Control panel
Door
handle
Oven Functions Temperature selector
Clock function buttons
Oven Power Indicator Temperature Pilot Light
Time display

8electrolux description of the appliance

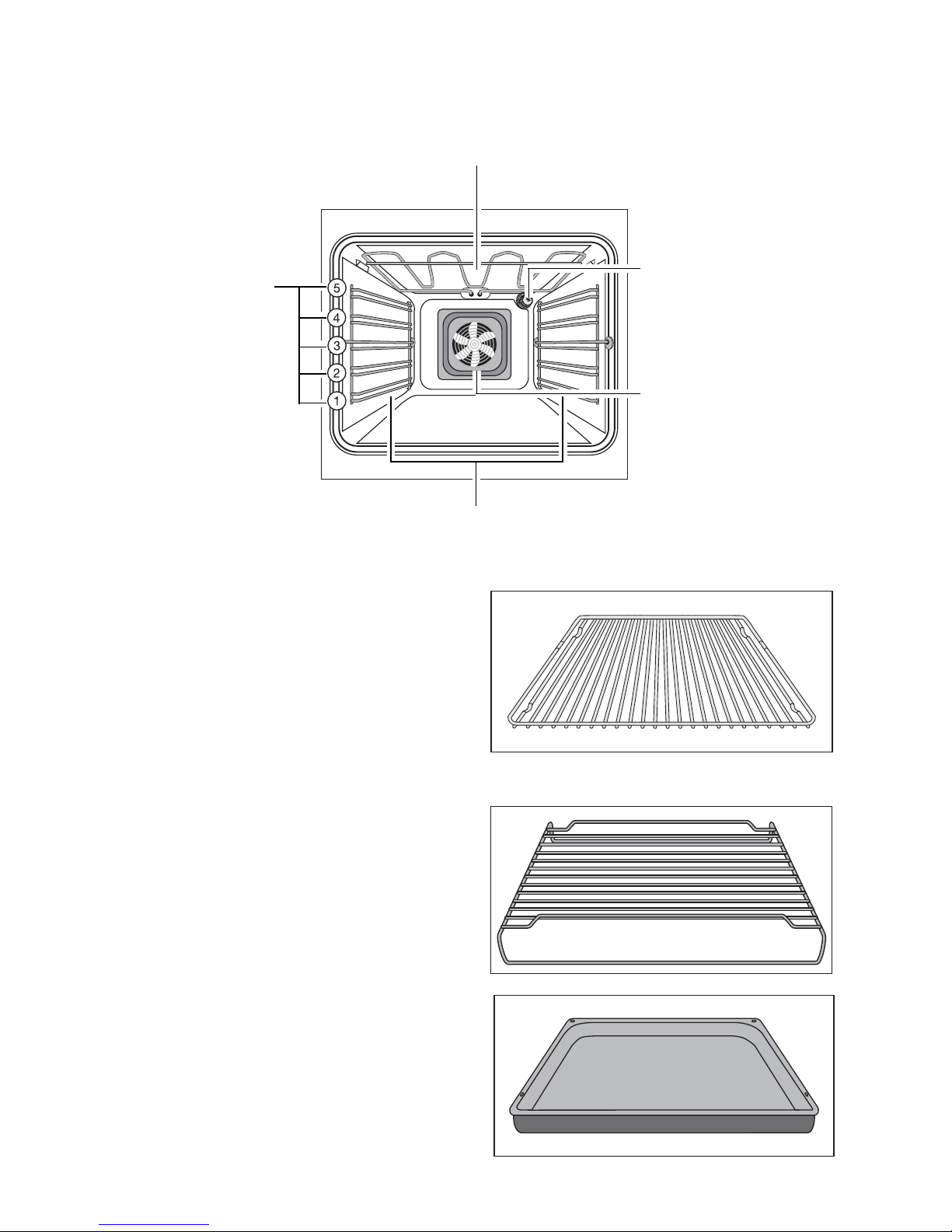

Oven Features
Oven Accessories
Shelf
For dishes, cake tins, items for roasting
and grilling.
Grill set
Grill
Insert for the roasting pan for roasting
and grilling.
Roasting Pan
For baking and roasting or as a pan for
collecting fat.
Top heat and heating elements
Oven lighting
Fan heating element
Fan
Shelf positions
Oven shelf runners, removable

before using for the first time electrolux 9
Before using for the first time

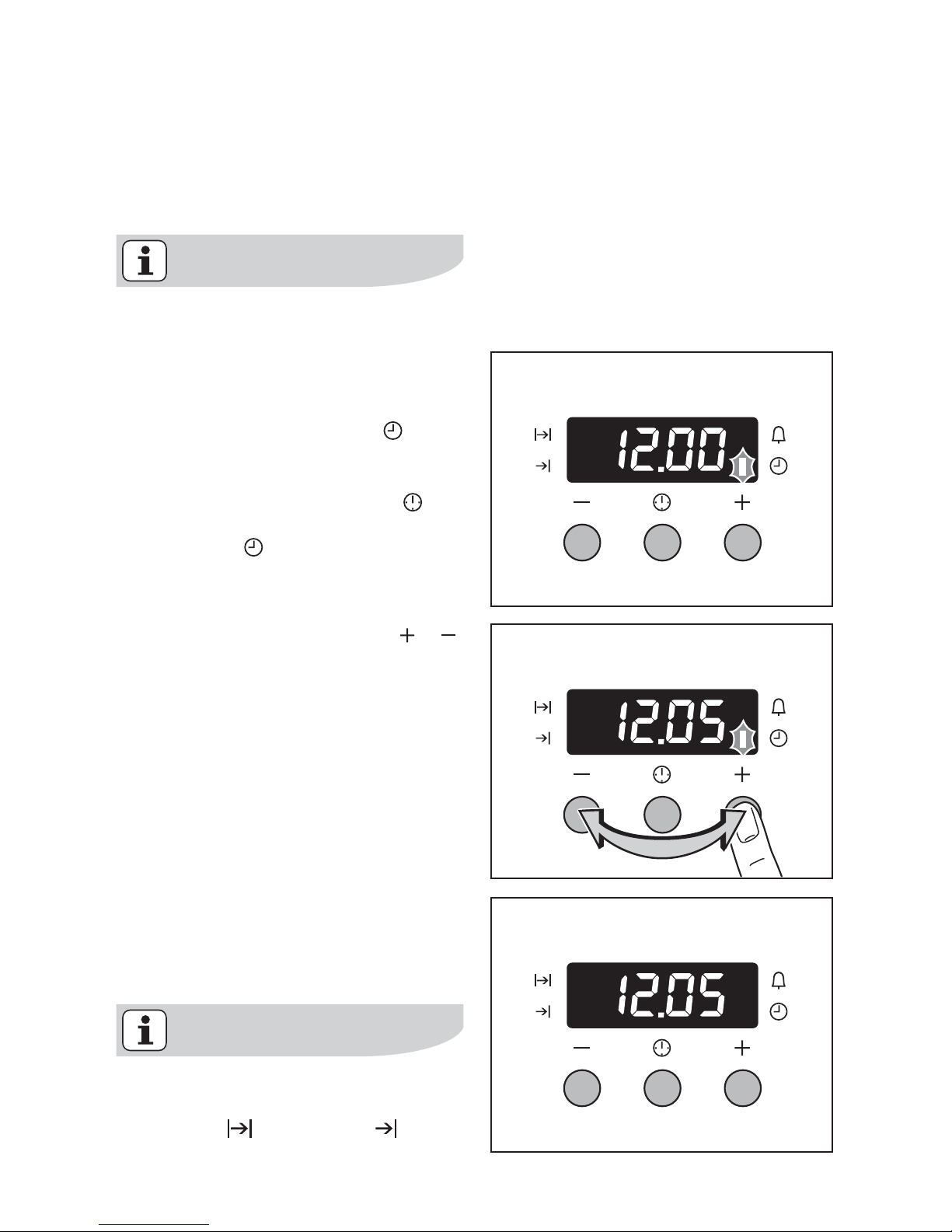

Setting and changing the
current time
The oven only operates when the
time has been set.
When the appliance has been con-
nected to the electrical supply or
when there has been a power cut,
the function indicator Time flash-
es automatically.
1. To change the time that has already
been set, press the Selection but-
ton repeatedly, until the function indi-
cator Time flashes.
2. Set the current time using the or
button.
After approx. 5 seconds, the flashing
stops and the clock displays the time of
day set.
The appliance is now ready to use.
The time can only be changed if nei-
ther of the automatic functions
(Cook time or End time ) have
been set.

10 electrolux before using for the first time
Initial Cleaning
Before using the oven for the first time
you should clean it thoroughly.
Caution: Do not use any caustic,
abrasive cleaners! The surface
could be damaged.
To clean any metal front panels use
commercially available cleaning
agents.
1. Turn the oven function switch to
oven lighting .
2. Remove all accessories and the shelf
support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm
water and washing-up liquid and dry.
4. Wipe the front of the appliance with
a damp cloth.

operating the oven electrolux 11
Operating the Oven
Switching the Oven On and Off
1. Turn the oven functions control knob
to the desired function.
2. Turn the temperature control knob to
the desired temperature.
The power indicator is lit while the oven
is on.
The temperature power indicator is lit
while the oven is heating up.
3. To turn the oven off, turn the oven
functions and temperature control
knob back to the Off position.
Cooling fan
The fan switches on automatically
in order to keep the appliance’s sur-
faces cool. When the oven is
switched off, the fan continues to
run to cool the appliance down, then
switches itself off automatically.
Temperature Pilot Light
Temperature selector
Oven Power Indicator
Oven Functions

12 electrolux operating the oven
Oven Functions
The oven has the following functions:
Oven function Use
Light With this function you can light up the oven interior, e.g. for
cleaning.
Convection with
ring heating
element
For baking on up to three oven shelves at the same time.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Defrost For defrosting e. g. gateaux and flans, butter, bread, fruit or
other
frozen foods .
Dual grill For grilling flat food items in large quantities and for toast-
ing
.

operating the oven electrolux 13
Inserting the Oven Shelf and the
Roasting Pan

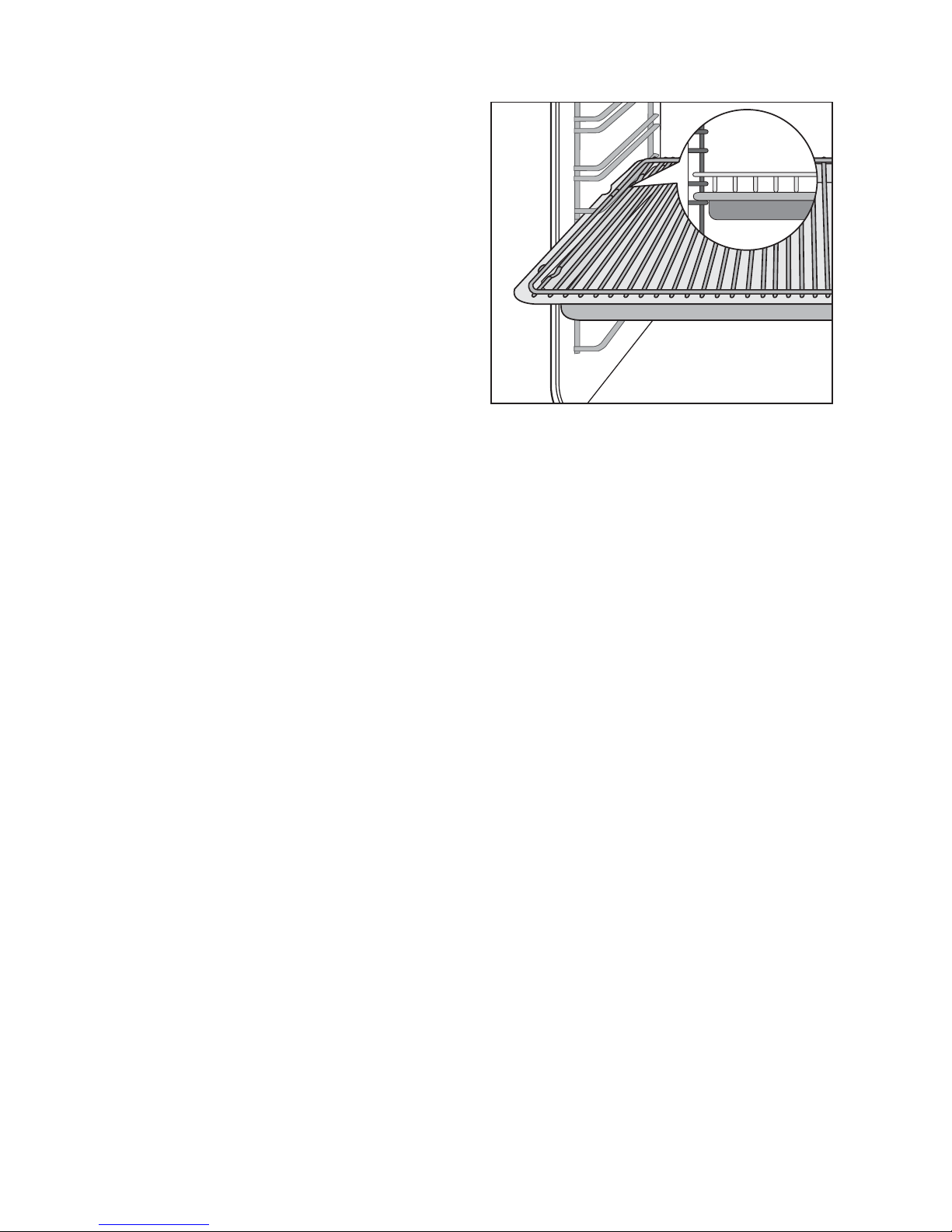

Shelf runner safety and anti-tip de-
vice
As a shelf runner safety device all
insertable components have a small
curved indentation at the bottom on
the right and left-hand edge.
Always insert insertable compo-
nents so that this indentation is at
the back of the oven interior. This in-
dentation is also important for pre-
venting the insertable components
from tipping.
Inserting the roasting pan:
Push the roasting pan between the
guide bars of the selected oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet
point downwards.
Push the oven shelf between the guide
bars of the selected oven level.
The high rim around the oven shelf is an
additional device to prevent cookware
from slipping.

14 electrolux operating the oven
Inserting the oven shelf and the
roasting pan together:
Lay the oven shelf on the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.

operating the oven electrolux 15
Grill set
The grill set consists of grill and roasting
pan. The grill can used on both sides.
Warning: There is a risk of burning
when removing the roasting pan
from the hot oven!
Inserting the grill tray underneath:
The grill tray rests in the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.
For roasting larger joints of meat or
poultry on one oven shelf.
Inserting the grill tray on top:
The grill tray rests on the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.
For grilling flat food items in large
quantities and for toasting.

16 electrolux operating the oven
Clock Functions
Countdown
To set a countdown. A signal sounds af-
ter the time has elapsed.
This function does not affect the opera-
tion of the oven.
Cook time
To set how long the oven is to be in use.
End time
To set when the oven is to switch off
again.
Time
To set, change or check the time
(See also section “Before Using for the
First Time”).
Selector Button Button
Button
Time display Function IndicatorsFunction Indicators

operating the oven electrolux 17
How to use the clock functions
•When a function has been selected,
the corresponding function indicator
flashes for approx. 5 seconds. Dur-
ing this time the desired times can be
set using the or button.
•When the desired time has been set,
the function indicator flashes for ap-
prox. another 5 seconds. After that
the function indicator is then lit. The
set time begins to run.
•Press any of the buttons to stop the
acoustic signal.
•The desired oven function and tem-
perature can be selected before or
after the clock functions Cook
time and End time are set.
•When the cooking time has ended,
turn the oven function and tempera-
ture dial back to the OFF position.
Switching Off the Time Display
By switching off the time display you can
save energy.
Switching off the time display
Hold down any two buttons until the dis-
play becomes dark.
Switching on the time display
Hold down any button until the time re-
appears in the display.
The display can only be switched off
if none of the clock functions Cook
time End time or
Countdown are in use.

18 electrolux operating the oven

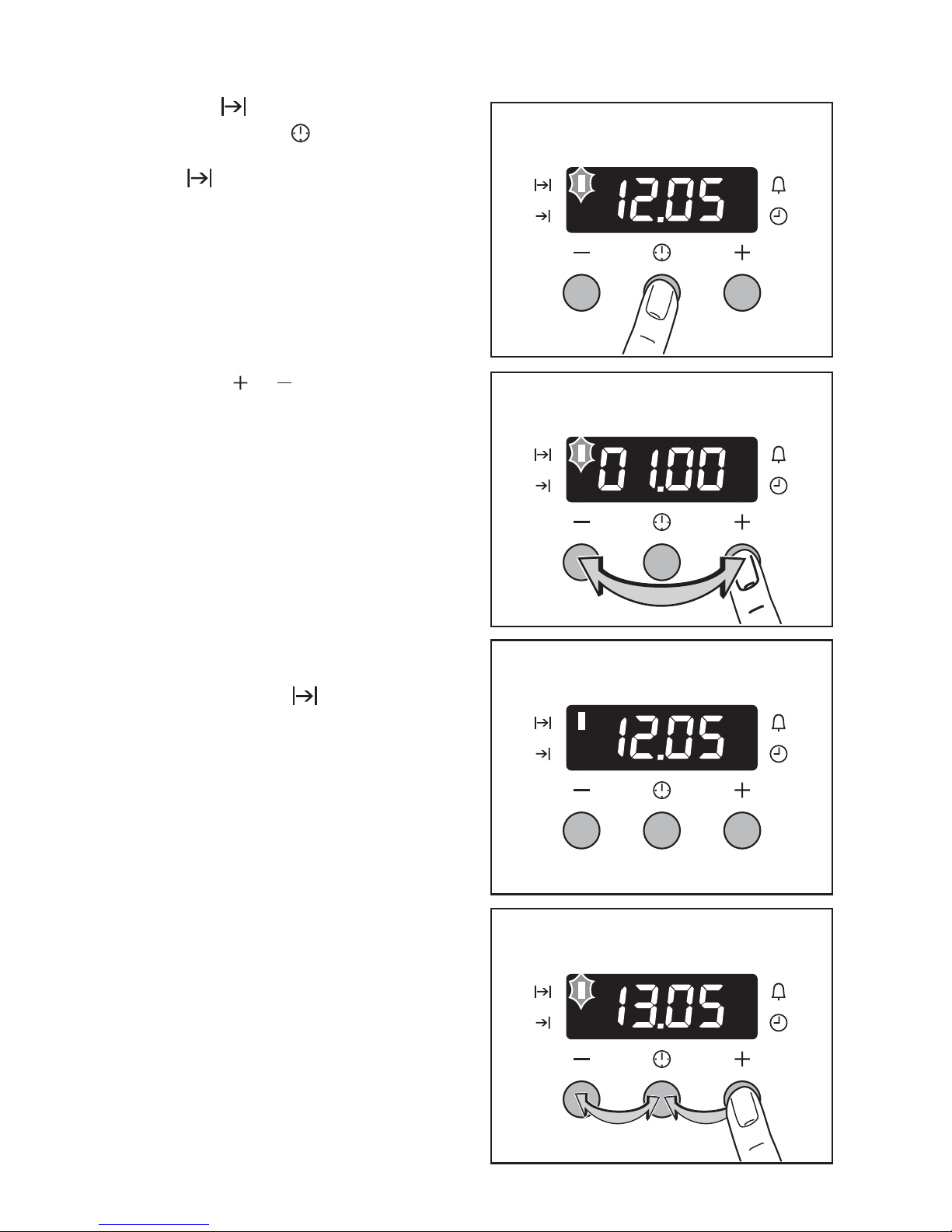

Countdown
1. Press Selection button repeated-
ly, until the function indicator
Countdown flashes.
2. Using the or button, set the re-
quired Countdown (max. 2 hours
30 minutes).
After approx. 5 seconds, the display
shows the remaining time.
The function indicator Countdown will
light up.
When the time has elapsed, the function
indicator flashes and an acoustic signal
sounds for 2 minutes.
Press any button to switch off the signal.

operating the oven electrolux 19
Cook time
1. Press Selection button repeated-
ly, until the function indicator Cook
time flashes.
2. Using the or button, set the re-
quired cooking time.
After approx. 5 seconds, the display re-
turns to the current time. The function
indicator Cook time will light up.
When the time has elapsed, the function
indicator will flash, an acoustic signal will
sound for 2 minutes and the oven will
switch itself off.
3. Press any button to switch off the
signal and the programme.

20 electrolux operating the oven
End time
1. Press Selection button repeated-
ly, until the function indicator End
time flashes.
2. Using the or button, set the re-
quired switch-off time.
After approx. 5 seconds, the display re-
turns to the current time.
The function indicator End time will
light up.
When the time has lapsed, the function
indicator will flash, an acoustic signal will
sound for 2 minutes and the oven will
switch itself off.
3. Press any button to switch off the
signal and the programme.
