Electrolux EOB98000U User manual

user manual
Built In Fan/
Steam Cooking Oven
EOB98000

We were thinking of you
when we made this product

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov-
er in this manual. Please take a few min-
utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind.
Good luck!

4electrolux contents
Contents
Safety instructions 5
Description of the Appliance 7
Before Using for the first time 13
Using the Oven 16
Cleaning and Care 55
What to do if …70
Installation Instructions 71
Disposal 76
Index 77
Service 79
T
he following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

operating instructions electrolux 5
Operating Instructions
Safety instructions
Electrical safety
•This appliance must be only con-
nected by a registered electrician.
•In the event of a fault or damage to
the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only
be carried out by qualified service
engineers. Considerable danger
may result from improper repairs. If
repairs become necessary, please
contact our Customer Services or
your dealer.
Child Safety
•Never leave children unsupervised
when the appliance is in use.
•The appliance is fitted with a child
safety device.
Safety during Operation
•People (including children) who, be-
cause of their physical, sensory or
mental capabilities or their inexperi-
ence or ignorance are not able to use
the device safely, should not use this
device without supervision or in-
struction by a responsible person.
•This appliance is intended to be
used for cooking, roasting and bak-
ing food in the home.
•Be careful if connecting electrical ap-
pliances to sockets near this
appliance. Electrical leads should
not be allowed to come near the
hotplates or to become caught un-
der the hot oven door.
•Warning: Danger of burns! When
in use, the oven interior surfaces be-
come very hot.
•Warning: When cooking with the
Vigorous Steam function, do not
under any circumstances open
the oven door. The escaping steam
can cause moisture damage to furni-
ture and cabinets. Avoid any direct
contact with escaping steam.
•If you use alcohol in your cooking, a
slightly flammable alcohol/air mixture
may ensue. In this case, be careful
when opening the door. Do not han-
dle any sources of heat, sparks or
naked flames when doing so.
Information on acrylamides
According to the latest scientific
knowledge, intensive browning of
food, especially in products con-
taining starch, can constitute a
health risk due to acrylamides.
Therefore we recommend cooking
at the lowest possible temperatures
and not browning foods too much.

6electrolux safety instructions
How to avoid damage to the
appliance
•Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.
•Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.
•Do not put any strain on the oven
door when open.
•Never pour water directly into the
oven when it is hot. This could cause
damage to or discoloration of the
enamel.
•Rough handling, especially around
the edges of the front panel, can
cause the glass to break.
•Do not store any flammable materi-
als inside the oven. These could ig-
nite when the oven is switched on.
•Do not store any moist foods inside
the oven. This could damage the
oven enamel.
Note on enamel coating
Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor-
mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

description of the appliance electrolux 7
Description of the Appliance
General Overview
The oven switches off after 2 min-
utes, if no function is selected and is
changed at the oven nothing, the
light remains however on.
In order to switch off the light bar,
oven switch on with and switch
off again.
Oven door
Oven displays
and Touch Control sensor fields
Door
handle
Water drawer Light bar

8electrolux description of the appliance
The electronic oven controls

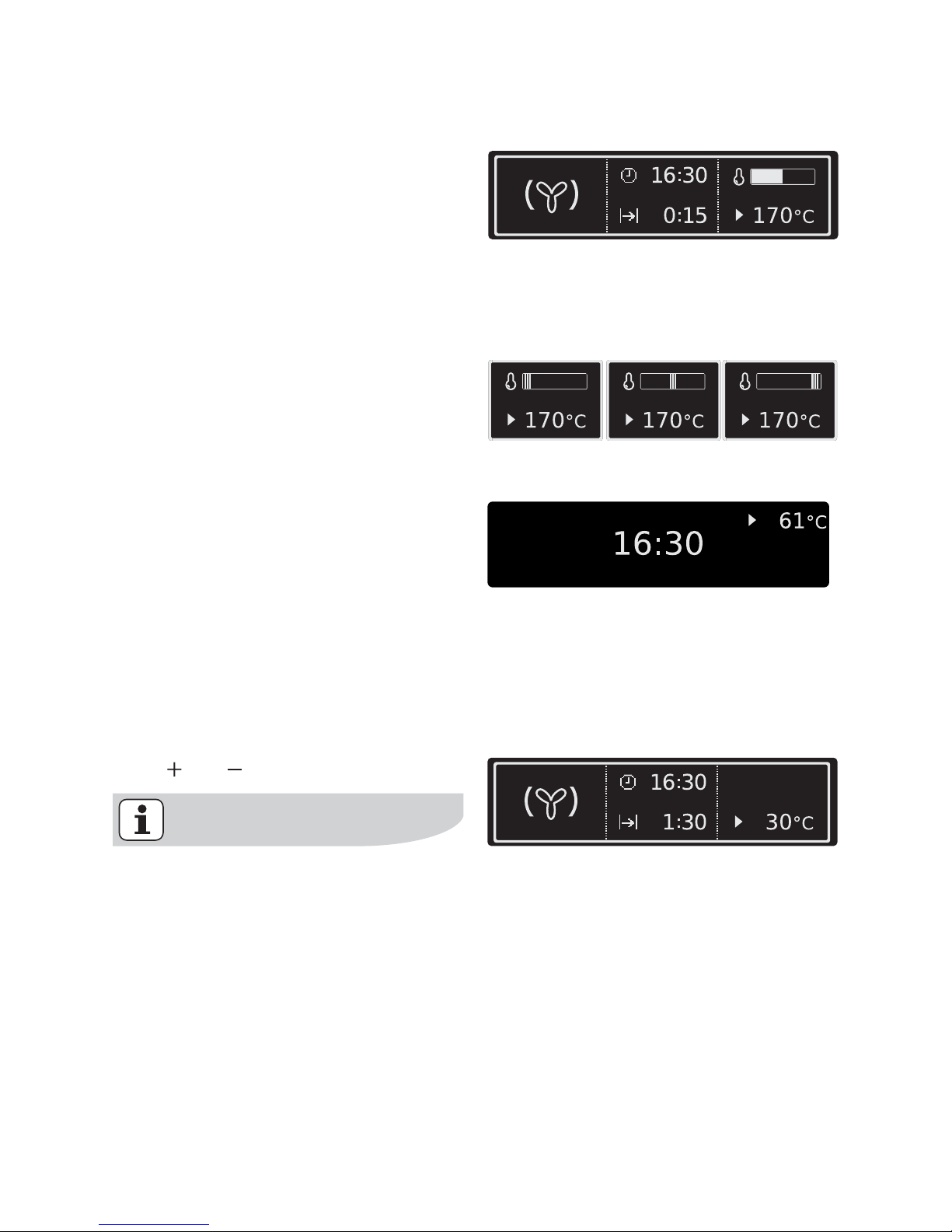

Indicators
Symbols
Certain symbols are displayed in the dis-
played according to the function set.
Menu option symbol
(with oven shelf level)
Clock
Time functions
Heat indicator
Temperature
Weight
Symbol
Display
(Exam-
ples)
Function
Countdown timer 4:30 The countdown timer is active.
Time 10:00 Indicates the current time set.
Duration 1:00 Indicates the period of time required for the cooking
process.
End Time 14:05 Indicates the time at which the cooking process is
completed.
End time is calculated when Meatprobe inserted.
Delay start 0:45 Indicates the time from which the cooking process
will run.
Temperature Indicates how far the oven has heated up.
Rapid heat up is active (shortened heating up time).
Weight 1.5 kg Options:
– Automatic weight is active.
– Weight can be changed.
Meatprobe 75°C Options:
–Meatprobe is plugged in
–Meatprobe Automatic is active.
– Core temperature can be changed.
Heat+Hold 80°C Heat+Hold is activated.

description of the appliance electrolux 9
Touch Control sensor fields
The appliance is operated using Touch
Control sensor fields. You control the
functions by touching the sensor fields.
When you are using the controls
make sure that you only touch one
sensor field. If your finger is applied
too flat, a neighbouring sensor field
could be touched as well.
On/Off Set values
Main menu
Scroll
Select
options
Confirm
Sensor
field Function Comment
, To move down and up in the
menu.
When a function is active:
• Press once: Change to the higher menu
(function remains active), after 5 seconds
move again into the active menu option
• Press twice: Up and down in the higher
menu (function switches off)
To display main menu. Functions set switch off
(except for countdown timer).
To confi r m.
To switch appliance on or off.
To select time functions, addi-
tional functions and Meat-
probe .

10 electrolux description of the appliance
, To set values (e.g. temperature,
time, weight, degree of cook-
ing).
• To activate value:
– Press once: Present symbol flashes
– Press twice: Value can be set
• To set v alu es:
– Press once: To set value in single steps
– Hold down key: To set value in fast steps
• When setting a cook time or time the dis-
play can be re-set to zero if and are
pressed at the same time.
Sensor
field Function Comment

description of the appliance electrolux 11

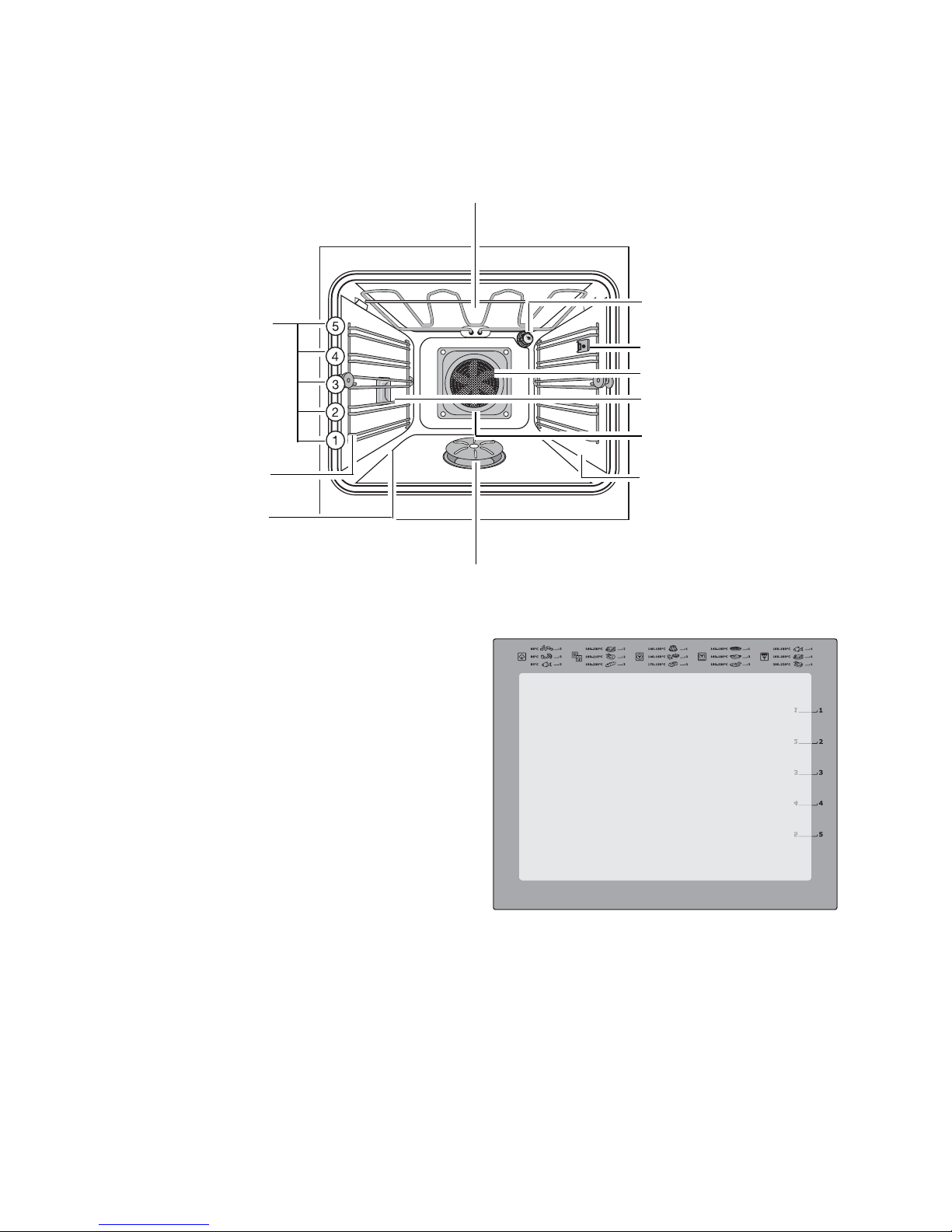

Oven Features
Inside of door
On the inside of the oven door you will
find the numbers of the different oven
shelves.
You will also find some brief information
about the oven's functions, recom-
mended shelves and temperatures for
cooking the most popular dishes.
Top heat and heating elements
Oven lighting
Oven shelf runners,
removable
Shelf positions
Oven lighting
Rear wall heating
element/Fat filter
Steam generator/
Steam rosette
Fan
Meat probe socket
Oven shelf
runners,
Bottom Heat

12 electrolux description of the appliance

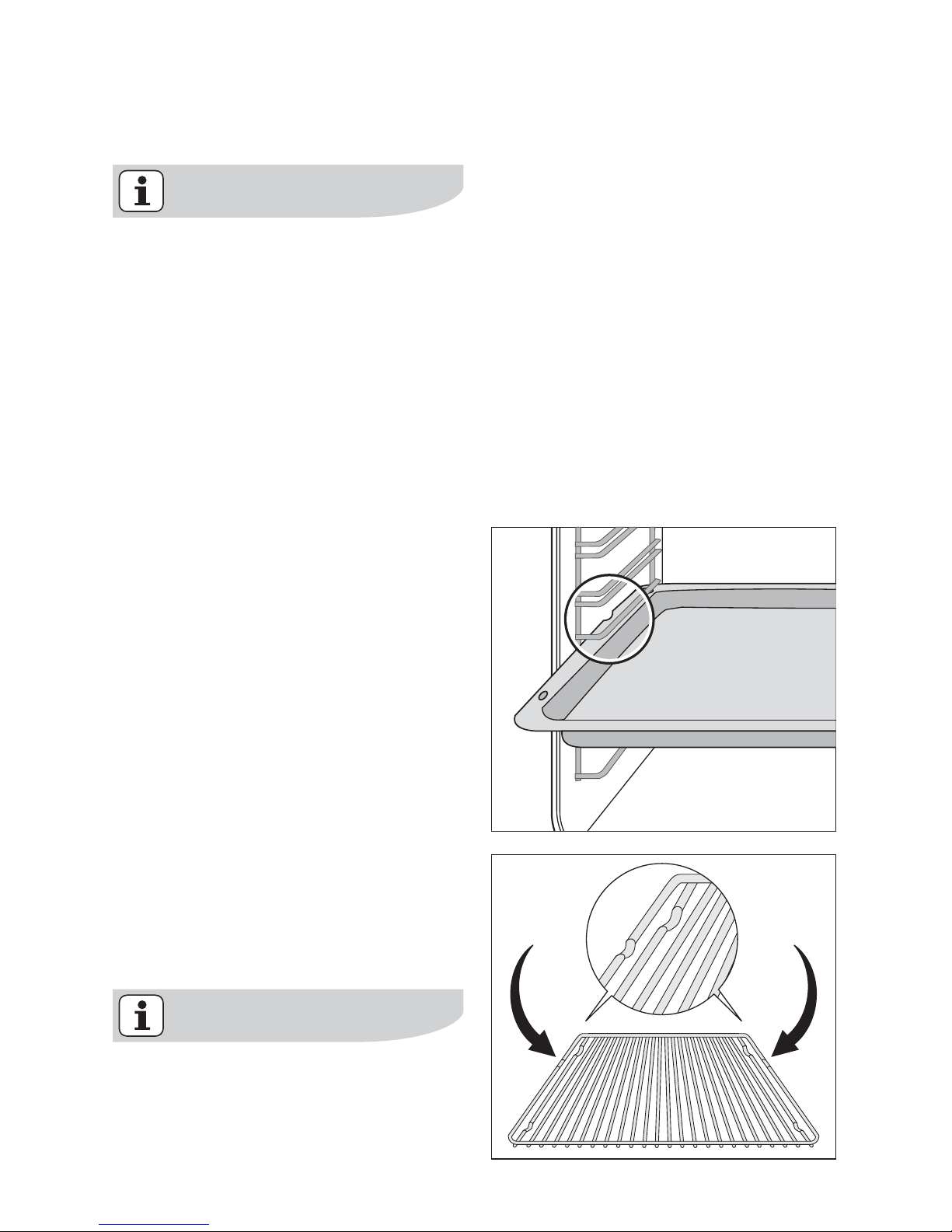

Oven accessories
Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Baking tray
For cakes and biscuits
(not suitable for Full Steam cooking).
Roasting Pan
For baking and roasting or as a pan for
collecting fat (not suitable for Full Steam
cooking).
Meat probe
For determining exactly how far joints of
meat are cooked.
QuickSponge 180
Extremely absorbent sponge for ab-
sorbing any residual water from the
steam generator.

before using for the first time electrolux 13
Before Using for the first time
If you would like to change one of
these base settings at a later date,
please refer to the chapter Basic
Settings.

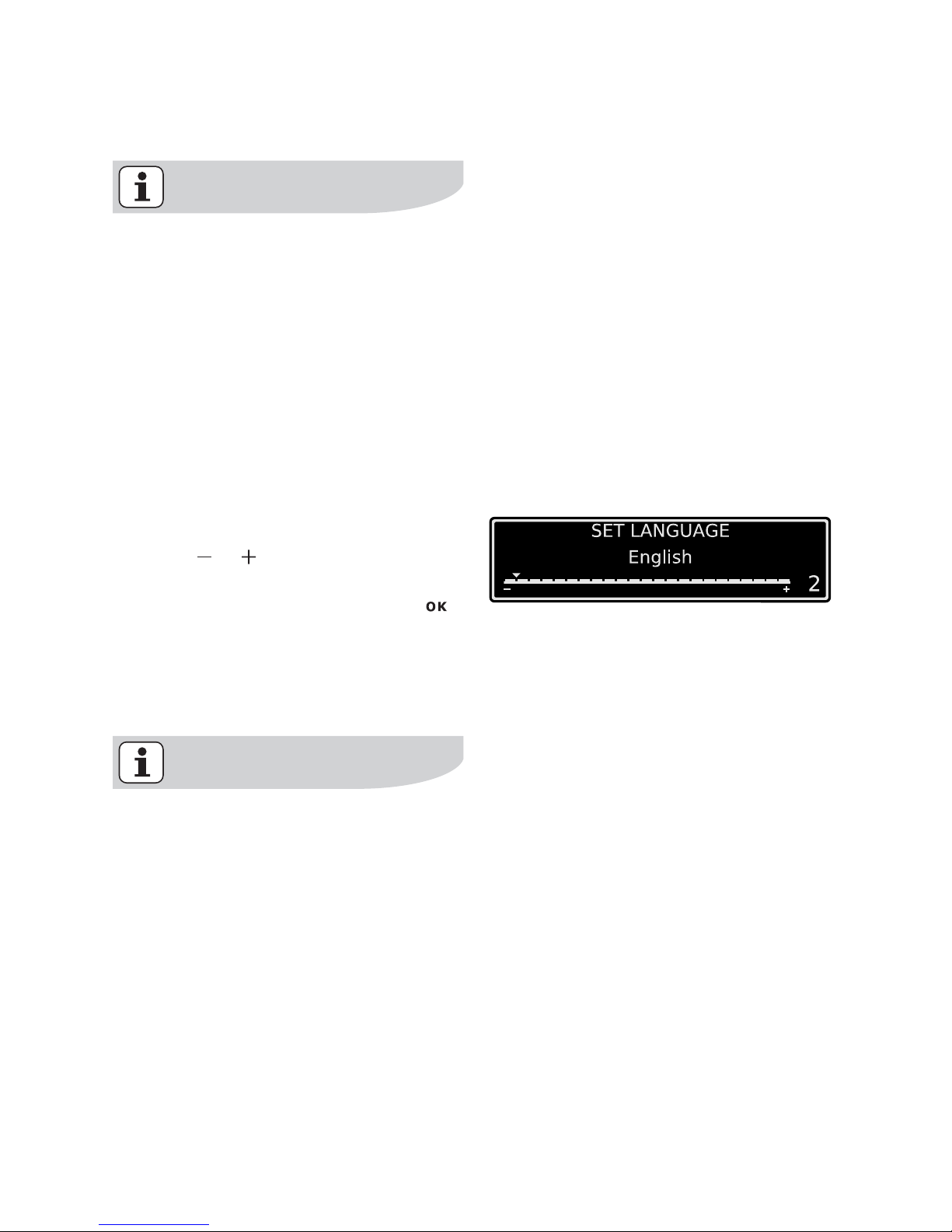

Setting the language
1. When the appliance has been con-
nected to the electrical supply, the
following is shown in the display.
–the company logo
–the version of the software and the
period of operation
–the message ”Set language”
2. Using or , select the desired lan-
guage.
3. Confirm selected language with .
From now on the texts in the display
appear in the language set.
Setting contrast and brightness
After you have set the language, the
messages “Set contrast” and “Set
brightness” are displayed.
The contrast and the brightness are
set according to the language set
(see section “Setting language”)

14 electrolux before using for the first time
Setting the clock
After you have set the contrast and the
brightness, the message ”Set Time of
Day” is displayed.
4. Using or set the hour of the cur-
rent time.
5. Confirm with .
6. Using or set the minutes of the
current time.
7. Confirm with .
The appliance is now ready to use.
The time only has to be set if the ap-
pliance is disconnected from the
power supply for a long time.

before using for the first time electrolux 15
Initial cleaning
Clean the oven before using it for the
first time.
Important: Do not use caustic or
abrasive cleaning agents! These
can damage the oven surfaces.
For the metal surfaces, use com-
mercially available cleaning agents.
1. Open the oven door.
The oven light is lit.
2. Remove all oven accessories, and
clean them with warm water and a
scouring agent.
3. Wash the oven in the same way, and
wipe dry.
4. Wipe the front of the appliance with
a damp cloth.

16 electrolux using the oven
Using the Oven
The menus in overview
Main menu Sub-menu
Assisted Cooking Pork/Veal
Beef/Game/Lamb
Poultry
Fish
Cake
Desserts
Pizza/Pie/Bread
Casseroles/Gratins
Side Dishes
Combi Steaming
Convenience
Specials
Heating Functions Fan Cooking
Moist Fan Cooking
Conventional Cooking
Pizza Setting
Turbo Grill
Economy Grill
Dual Grill
Bottom Heat
Slow Cook
Quarter Steam + Heat
Half Steam + Heat
Full Steam
My Programmes 1- My Program
2- My Program
...
Edit Programme Name

using the oven electrolux 17

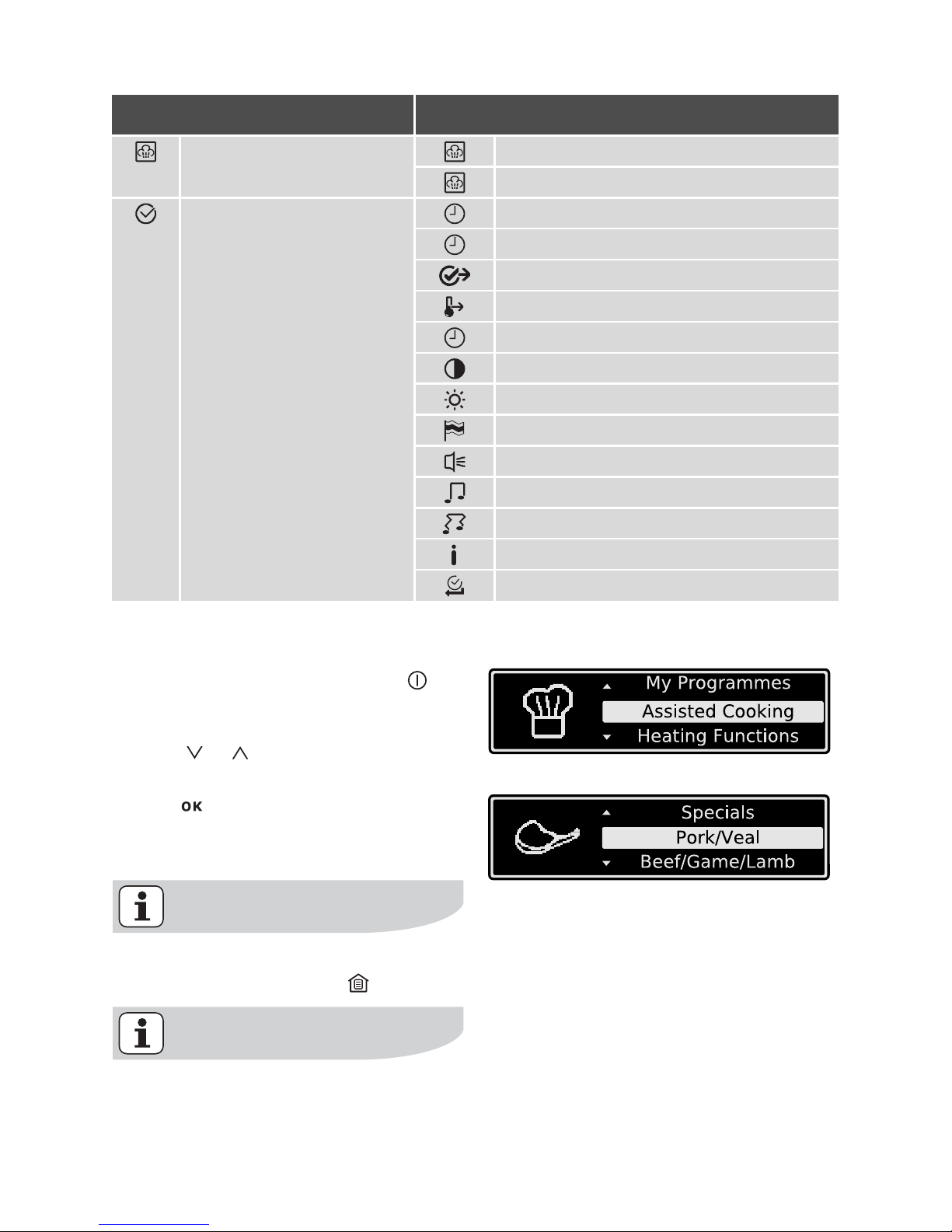

Operation of the menus
Example
1. Switch the appliance on with .
You will find yourself in the main
menu.
2. With or select the desired main
menu.
3. Use to move to the appropriated
sub-menus.
The sub-menu selected is displayed.
At every point you can get back to
the the main menu with .
At the end of most menus there is
the menu option Back.
You use this to go back to the higher
menu.
Cleaning Menu Steam Cleaning
Cleaning Assistant
Basic Settings Set Time of Day
Time Indication
Set+Go
Heat+Hold
Time Extension
Display Contrast
Display Brightness
Set language
Buzzer Volume
Key Tones
Alarm/Error Tones
Service
Factory Settings
Main menu Sub-menu

18 electrolux using the oven
You can cancel a procedure by
pressing .
Then you will find yourself back in
the main menu.
Cooling fan
The fan switches on automatically
in order to keep the appliance’s sur-
faces cool. When the oven is
switched off, the fan continues to
run to cool the appliance down, then
switches itself off automatically.

using the oven electrolux 19
Heat indicator
Heating up indicator
When an oven function has been
switched on the bar that keeps getting
longer indicates how far the oven has
heated up.
Fast heating indicator
With some oven functions the heating
up time is shortened by the automatic
function Fast heating.
Until the set temperature is reached, a
stiped bar goes from left to right in the
heat indicator.
Residual heat indicator
After switching off the oven, the resid-
ual heat is displayed to the degree.
Displaying temperature to the de-
gree
The temperature is displayed to the de-
gree instead of the bar of the heating up
indicator for 5 seconds during the heat-
ing up time.
Press and at the same time.
When the temperature set is
reached, an audible signal sounds.

20 electrolux using the oven
Inserting the Oven Shelf, Baking
Tray and Roasting Pan
Shelf runner safety and anti-tip de-
vice
As a shelf runner safety device, all
insertable components have a small
curved indentation at the bottom on
the right and left-hand edge.
Always insert insertable compo-
nents so that this indentation is at
the back of the oven interior. This in-
dentation is also important for pre-
venting the insertable components
from tipping.
Inserting the baking tray or roasting
pan
Push the baking tray or roasting pan be-
tween the guide bars of the selected
oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet
point downwards.
Push the oven shelf between the guide
bars of the selected oven level.
The high rim around the oven shelf
is an additional device to prevent
cookware from slipping.
