Electrolux U33024 EOB31010X User manual

user manual
Built-in Oven
EOB31010X

We were thinking of you
when we made this product

Welcome to the world of Electrolux
You’ve chosen a first class product from Electrolux,
which hopefully will provide you with lots of pleasure in
the future. Electrolux ambition is to offer a wide variety of
quality products that would make your life even more
comfortable. You can look at some examples on the
cover in this manual. But now it’s time to study this
manual and start using and enjoying the benefits from
your new machine. We promise that it’ll make your life a
little easier. Good luck!
The following symbols are used in this user manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips
Environmental information
356987402-00-112007
electrolux 3

Contents
Subject to change without notice
Important Safety Information 5
Description of the Oven 7
Controls 8
Before the First Use 10
Using the Oven 11
Cooking chart 16
Cleaning and Maintenance 19
Something not working 26
Technical data 27
Electrical Connection 28
Instructions for Building In 29
Guarantee/Customer Service 31
European Guarantee 33
www.electrolux.com 34
4 electrolux

Important Safety Information
These warnings are provided for the
safety of the users and those living
with them. So read them carefully
before installing and using the ap-
pliance. This will allow you to obtain
best performance, avoid improper
actions, use the appliance in com-
plete safety and also respect the en-
vironment. If you need assistance,
contact our Customer Care Depart-
ment on 08705 727 727
Installation
This oven must be installed by qualified
personnel to the relevant British Stand-
ards.
This oven is heavy. Take care when
moving it.
Remove all packaging, both inside and
outside the oven, before using the oven.
Do not attempt to modify the oven in any
way
During Use
This oven is intended for domestic cook-
ing only. It is not designed for commer-
cial or industrial purposes.
Always stand back from the oven when
opening the oven door during cooking or
at the end of it to allow any build up of
steam or heat to release.
Appliances become very hot with use,
and retain their heat for long periods af-
ter use. Care should be taken to avoid
touching heating elements inside the
oven.
Never line any part of the oven with
aluminium foil.
Do not allow heatproof cooking material,
e.g. roasting bags, to come into contact
with oven elements.
Never place plastic or any other material
which may melt in or on the oven.
Do not place sealed cans or aerosols in-
side the oven. They may explode if they
are heated.
Do not hang towels, dishcloths or
clothes from the oven or its handle.
Do not use this oven if it is in contact with
water and never operate it with wet
hands.
Take great care when heating fats and
oils as they will ignite if they become too
hot.
Always use oven gloves to remove and
replace food in the oven.
Before cleaning the oven, either turn the
power off or pull the mains plug out.
Ensure that all controls are in the OFF
position when not in use.
Do not leave cookware containing food-
stuffs, e.g. fat or oil in or on the oven in
case it is inadvertently switched ON.
When using other electrical appliances,
ensure the cable does not come into
contact with the hot surfaces of the
oven.
important safety information electrolux 5

People Safety
This oven is designed to be operated by
adults. Do not allow children to play near
or with the oven.
The oven gets hot when it is in use. Chil-
dren should be kept away until it has
cooled.
This appliance is not intended for use by
children or other persons whose physi-
cal, sensory or mental capabilities or
lack of experience and knowledge pre-
vents them from using the appliance
safely without supervision or instruction
by a responsible person to ensure that
they can use the appliance safely.
Maintenance and Cleaning
Only clean this oven in accordance with
the instructions.
Always allow the oven to cool down and
switch off the electrical supply before
carrying out any cleaning or mainte-
nance work.
The oven should be kept clean at all
times. A build-up of fats or other food-
stuffs could result in a fire, especially in
the grill pan.
Never use steam or high pressure steam
cleaners to clean the appliance.
Do not use abrasive cleaners or sharp
metal scrapers. These can scratch the
glass in the oven door, which may result
in the shattering of the glass.
Service
This oven should only be repaired or
serviced by an authorised Service Engi-
neer and only genuine approved spare
parts should be used.
Environmental information
After installation, please dispose of the
packaging with due regard to safety and
the environment.
When disposing of an old appliance,
make it unusable, by cutting off the ca-
ble. Remove any door catches, to pre-
vent small children being trapped inside.
Always keep these user instructions
with the appliance. Should the ap-
pliance be passed on to third per-
sons or sold, or if you leave this
appliance behind when you move
house, it is very important that the
new user has access to these user
instructions and the accompanying
information.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household waste.
Instead it should be taken to the appro-
priate collection point for the recycling of
electrical and electronic equipment. By
ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environ-
ment and human health, which could
otherwise be caused by inappropriate
waste handling of this product. For more
detailed information about recycling of
this product, please contact your local
council, your household waste disposal
service or the shop where you pur-
chased the product.
6 electrolux important safety information

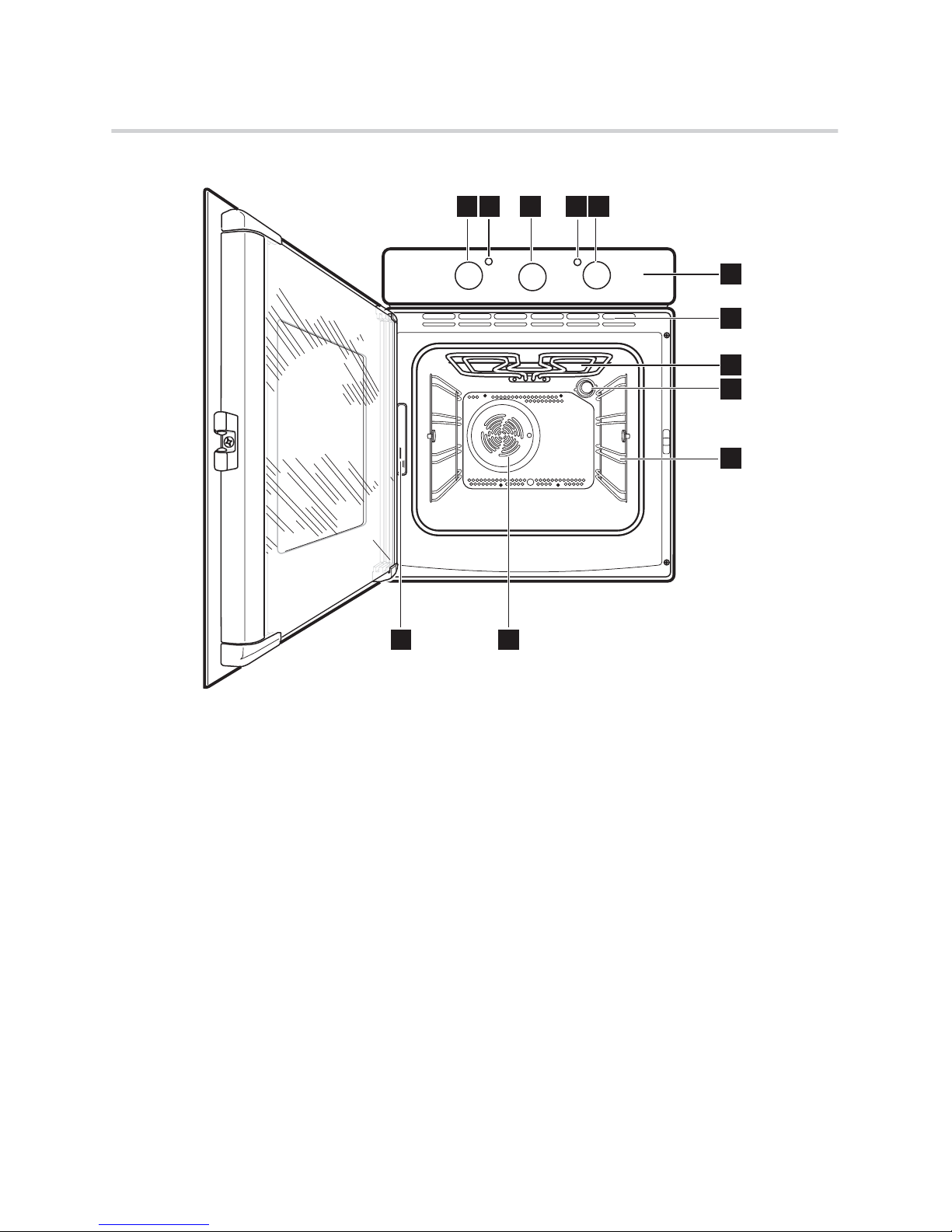

Description of the Oven
1
4 5 6 23
7
8
9
10
1112
1. Control Panel
2. Oven Function Control Knob
3. End of Cooking Programmer
4. Thermostat Control Knob
5. Thermostat Control Light
6. Mains On Light
7. Air Vents for Cooling Fan
8. Grill
9. Oven light
10. Shelf supports
11. Oven Fan
12. Rating plate
description of the oven electrolux 7

Oven accessories
Antitip shelf
1 2
3
1. Removable handle
2. Grill Pan Grid
3. Grill / Roasting pan
Controls
Oven Function Control Knob
The oven is off
Oven light - The oven light will be on
without any cooking function.
Defrost Setting - This setting is in-
tended to assist in thawing of frozen
food.
Fan cooking - This allows you to
roast or roast and bake simoultaneously
using any shelf, without flavour transfer-
ence.
Inner grill element only - It can be
used for grilling small quantities.
Mains on Light
The mains on light will come on when the
oven function control knob is set.
8 electrolux controls

Thermostat Control Knob
Turn the thermostat control knob clock-
wise to select temperatures between
50°C and 250°C.
Thermostat Control Light
The thermostat control indicator will
come on when the thermostat control
knob is turned. The indicator will remain
on until the correct temperature is
reached.
It will then cycle on and off to show the
temperature is being maintained.
End of cooking programmer
This device allows you to make the oven
switch off automatically once the preset
time is over. An acousitic signal will be
heard when the cooking is comple-
ted.The cooking duration can be set up
to 90 minutes maximum.
Place food in the oven and turn the oven
function control knob and the thermo-
stat control knob on the required set-
tings. Turn the timer knob to maximum
time position ("90"), then turn it back to
set the required cooking time. When the
cooking time is over, an acoustic alarm
will sound and the oven will switch off
automatically.
Turn the timer knob on to set the
oven on manual operation.
Safety Thermostat
To prevent dangerous overheating
(through incorrect use of the appliance
or defective components), the oven is
fitted with a safety thermostat, which in-
terrupts the power supply. The oven
switches back on again automatically,
when the temperature drops.
Should the safety thermostat trigger due
to incorrect use of the appliance, it is
enough to remedy the error after the
oven has cooled down; if on the other
hand, the thermostat triggers because
of a defective component, please con-
tact Customer Service.
The cooling fan
The cooling fan is designed to cool the
the oven and the control panel. The fan
switches on automatically after a few mi-
controls electrolux 9

nutes of cooking. Warm air is blown out
through the aperture near the oven door
handle. When the oven is switched off,
the fan may run on after the oven is
switched off to keep the controls cool.
This is quite normal.
The action of the cooling fan will de-
pend on how long the oven has been
used and at what temperature. It
may not switch in at all at lower
temperature settings nor run on
where the oven has only been used
for a short time.
Before the First Use
To open the oven door, always hold
the handle in the centre.
10 electrolux before the first use

Remove all packaging, both inside
and outside the oven, before using
the oven.
Before using for the first time, the oven
should be heated up without food.
During this time, an unpleasant odour
may be emitted. This is absolutely nor-
mal. It is caused by manufacturing resi-
dues.
Ensure the room is well ventilated.
1. Switch the oven function control
knob to fan cooking
2. Set the thermostat control knob to
250°C.
3. Open a window for ventilation.
4. Allow the oven to run empty for
approximately 45 minutes.
This procedure should be repeated with
the inner grill function for
approximately 5-10 minutes
Then let the oven cool down. Then
dampen a soft cloth with warm wa-
ter and a little mild washing-up liquid
and use this to clean the oven cavity.
Before using for the first time,
carefully wash the oven accessories
as well.
Using the Oven
The oven is supplied with an exclusive
system which produces a natural circu-
lation of air and the constant recycling of
steam.
This system makes it possible to cook in
a steamy environment and keep the
dishes soft inside and crusty outside.
Moreover, the cooking time and energy
consumption are reduced to a minimum.
During cooking steam may be produced
which can be released when opening
the oven door. This is absolutely normal.
However, always stand back from
the oven when opening the oven
door during cooking or at the end of
it to allow any build up of steam or
heat to release.
When food is heated, steam is cre-
ated, like in a kettle. When the steam
comes into contact with the glass in
the oven door, it condenses and cre-
ates water droplets.
To reduce condensation, always
preheat the empty oven for 10 mi-
nutes.
We recommend you wipe the water
droplets away after every cooking proc-
ess.
using the oven electrolux 11

Always cook with the oven door
closed. Stand clear when opening
the drop down oven door. Do not al-
low it to fall open - support the door
using the door handle, until it is fully
open.
Attention! - Do not place objects on
the oven base and do not cover any
part of the oven with aluminium foil
while cooking, as this could cause a
heat build-up which would affect the
baking results and damage the oven
enamel. Always place pans, heat-re-
sisting pans and aluminium trays on
the shelf which has been inserted in
the shelf runners.
1
2
3
4
The oven has four shelf levels.
The shelf positions are counted
from the bottom of the oven as
shown in the diagram.
It is important that these shelves are
correctly positioned as shown in the
diagram.
Do not place cookware directly on
the oven base.
12 electrolux using the oven

Fan Cooking
The air inside the oven is heated by the
element around the fan situated behind
the back panel. The fan circulates hot air
to maintain an even temperature inside
the oven.
The advantage of cooking with this
function is energy saving through:
•Faster Preheating
As the fan oven quickly reaches
temperature, it is not usually
necessary to preheat the oven al-
though you may find that you need to
allow an extra 5-7 minutes on cooking
times. For recipes which require
higher temperatures, best results are
achieved if the oven is preheated first,
e.g. bread, pastries, scones, souffles,
etc.
•Lower Temperatures
Fan oven cooking generally requires
lower temperatures than conventional
cooking. Follow the temperatures rec-
ommended in the cooking chart. Re-
member to reduce temperatures by
about 20-25°C for your own recipes
which use conventional cooking.
•Even Heating for Baking
The fan oven has uniform heating on
all shelf positions. This means that
batches of the same food can be
cooked in the oven at the same time.
However, the top shelf may brown
slightly quicker than the lower one.
This is quite usual. There is no mixing
of flavours between dishes.
– Shelf positions are not critical, but
make sure the shelves are evenly
spaced.
– When cooking more than one dish
in the fan oven, place dishes
centrally on the shelves rather than
several dishes on one shelf.
– When the oven is full, you may need
to allow slightly longer cooking time.
– When the oven is full of the same
food, e.g. equal trays of small cakes
or equal size victoria sandwich
cakes, then they will be cooked in
the same time and removed from
the oven together. When different
sizes of trays or types of food, e.g.
biscuits and cakes are cooked, they
will not necessarily be ready
together.
– The fan oven can be used to heat
foods through without thawing first,
e.g. fruit tarts, mince pies, sausage
rolls, and other small pastry items.
Use a temperature of 190-200°C
and allow 20-40 minutes (depend-
ing on the quantity of food in the
oven).
– The use of too high temperatures
can cause uneven browning.
Check with the recommendations
for oven temperatures given in the
cooking charts, but be prepared to
adjust the temperature, if
necessary. Remember to reduce
temperatures by about 20-25°C for
your own conventional recipes.
– When roasting do use the trivet in
the meat tin. Fat and meat juices will
drain into the meat tin below and
can be used to make gravy. The
trivet also prevents splashes of fat
from soiling the oven interior.
using the oven electrolux 13

– The meat tin should not be placed
on a heated hotplate as this may
cause the enamel to crack.
How to use the Fan Oven
1. Turn the oven function control knob
to symbol
2. Turn the thermostat control to the re-
quired temperature.
Things to note
• The oven light will come on when the
oven function control knob is set.
• The oven fan will operate continually
during cooking.
• The thermostat control light will re-
main on until the correct temperature
is reached. It will then cycle on and off
to show the temperature is being
maintained.
Grilling
– Most foods should be placed on the
grid in the grill pan to allow maximum
circulation of air and to lift the food out
of the fats and juices. Food such as
fish, liver and kidneys may be placed
directly on the grill pan, if preferred.
– Food should be thoroughly dried be-
fore grilling to minimise splashing.
Brush lean meats and fish lightly with
a little oil or melted butter to keep
them moist during cooking.
– Accompaniments such as tomatoes
and mushrooms may be placed un-
derneath the grid when grilling meats
– When toasting bread, we suggest that
the top runner position is used.
– The food should be turned over during
cooking, as required.
How to use the Inner Grill
Element
The inner grill provides quick direct heat
to the central area of the grill pan. By us-
ing the inner grill element for cooking
small quantities, it can help to save
energy.
1. Turn the oven control function knob
on symbol
2. Turn the thermostat control knob on
the required temperature.
3. Adjust the grid and grill pan runner
position to allow for different
thicknesses of food and follow the
instructions for grilling.
The grill element is controlled by the
thermostat. During cooking, the grill cy-
cles on and off to prevent overheating.
How to Use Defrosting
The oven fan operates without heat and
circulates the air, at room temperature,
inside the oven. This increases the
speed of defrosting. However, please
note that the temperature of the kitchen
will influence the speed of defrosting.
This function is particularly suitable for
delicate food which could be damaged
by heat, e.g. cream filled gateaux, iced
cakes, pastries, bread and other yeast
products.
1. Turn the oven function control knob
to symbol
2. Ensure the thermostat control knob
is in the OFF position.
14 electrolux using the oven

Hints and Tips
• Prepare foods in the same way as for
conventional grilling. Brush lean
meats and fish lightly with a little oil or
butter to keep them moist during
cooking.
• Cover food with a lid, aluminium foil or
plastic film to prevent drying out dur-
ing defrosting.
• ALWAYS COOK THOROUGHLY
IMMEDIATELY AFTER THAWING.
• Frozen food should be placed in a sin-
gle layer when ever possible and
turned over half way through the de-
frosting process.
• Only joints of meat and poultry up to
2 kg. (4 lb.) are suitable for defrosting
in this way.
On baking:
Cakes and pastries usually require a
medium temperature (150°C-200°C)
and therefore it is necessary to preheat
the oven for about 10 minutes.
Do not open the oven door before 3/4 of
the baking time has elapsed.
Shortcrust pastry is baked in a spring-
form tin or on a tray for up to 2/3 of the
baking time and then garnished before
being fully baked. This further baking
time depends on the type and amount
of topping or filling. Sponge mixtures
must separate with difficulty from the
spoon. The baking time would be
unnecessarily extended by too much liq-
uid.
If two baking trays with pastries or bis-
cuits are inserted into the oven at the
same time, a shelf level must be left free
between the trays.
If two baking trays with pastries or bis-
cuits are inserted into the oven at the
same time, the trays must be swapped
and turned around after about 2/3 of the
baking time.
On Roasting:
Do not roast joints smaller than 1 kg.
Smaller pieces could dry out when
roasting. Dark meat, which is to be well
done on the outside but remain medium
or rare inside, must be roasted at a
higher temperature (200°C-250°C).
White meat, poultry and fish, on the
other hand, require a lower temperature
(150°C-175°C). The ingredients for a
sauce or gravy should only be added to
the roasting pan right at the beginning if
the cooking time is short. Otherwise add
them in the last half hour.
You can use a spoon to test whether the
meat is cooked: if it cannot be de-
pressed, it is cooked through. Roast
beef and fillet, which is to remain pink
inside, must be roasted at a higher
temperature in a shorter time.
If cooking meat directly on the oven
shelf, insert the roasting pan in the shelf
level below to catch the juices. Leave the
joint to stand for at least 15 minutes, so
that the meat juices do not run out.
To reduce the build up of smoke in the
oven, it is recommended to pour a little
water in the roasting pan. To prevent
condensation forming, add water
several times.The plates can be kept
warm in the oven at minimum tempera-
ture until serving.
using the oven electrolux 15

Do not line the oven with aluminium
foil and do not place a roasting pan
or baking tray on the floor, as other-
wise the oven enamel will be dam-
aged by the heat build-up.
Cooking times
Cooking times can vary according to the
different composition, ingredients and
amounts of liquid in the individual dishes.
Note the settings of your first cooking or
roasting experiments to gain experience
for later preparation of the same dishes.
Based upon your own experiences you
will be able to alter the values given in the
tables.
Cooking chart
Fan Cooking
Cooking times in the table do not in-
clude pre-heating. We recommend
to pre-heat the oven for about 10 mi-
nutes before cooking.
Type of dish Fan Cooking Cooking
time in
minutes
Notes
temp
°C
CAKES
16 electrolux cooking chart

Type of dish Fan Cooking Cooking
time in
minutes
Notes
temp
°C
Whisked recipies
Shortbread dough
Butter-milk cheese cake
Apple cake (Apple pie)
Strudel
Jam- tart
Fruit cake
Sponge cake
Christmas cake
Plum cake
Small cake
Biscuits
Meringues
Buns
Pastry: Choux
Plate tarts
Rich fruit cake
Victoria sandwich
2 (1 and 3)*
2 (1 and 3)*
2
2
2
2
2
2 (1 and 3)*
2
2
2 (1 and 3)*
2 (1 and 3)*
2 (1 and 3)*
2 (1 and 3)*
2 (1 and 3)*
2
2
2
160
160
165
160
160
180
150
165
150
160
170
150
150
190
170
170
150
170
45-60
20-30
60-80
90-120
60-80
40-45
60-70
30-40
120-150
50-60
20-35
20-30
60-90
12-20
25-35
45-70
110-120
40-55
In cake mould
In cake mould
In cake mould
In cake mould
In baking tray
In cake mould
In cake mould
In cake mould
In cake mould
In bread tin
In baking tray
In baking tray
In baking tray
In baking tray
In baking tray
In cake mould
In cake mould
In cake mould
BREAD AND PIZZA
White bread
Rye bread
Bread rolls
Pizza
Scones
2
1
2 (1 and 3)*
2
2
185
180
175
200
190
60-70
30-45
25-40
20-30
10-20
In bread tin
In baking tray
In baking tray
In baking tray
In baking tray
FLANS
Pasta flan
Vegetable flan
Quiches
Lasagne
Cannelloni
Yorkshire pudding
2 (1 and 3)*
2 (1 and 3)*
2 (1 and 3)*
2
2
2
175
175
180
200
200
200
40-50
45-60
35-45
25-35
25-35
20-25
In mould
In mould
In mould
In mould
In mould
6 pudding
mould
MEAT
cooking chart electrolux 17

Type of dish Fan Cooking Cooking
time in
minutes
Notes
temp
°C
Beef
Pork
Veal
English roast beef
rare
medium
well done
Shoulder of pork
Shin of pork
Lamb
Chicken
Turkey
Duck
Goose
Rabbit
Hare
Pheasant
Meat loaf
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
175
175
175
200
200
200
170
160
175
200
160
175
160
175
175
175
170
50-70
100-130
90-120
50-60
60-70
70-80
120-150
100-120
110-130
70-85
210-240
120-150
150-200
60-80
150-200
90-120
150
On grid
On grid
On grid
On grid
On grid
On grid
With rind
2 pieces
Leg
Whole
Whole
Whole
Whole
Cut in pieces
Cut in pieces
Whole
in bread pan
FISH
Trout/Sea bream
Tuna fish/Salmon
2 (1 and 3)*
2 (1 and 3)*
175
175
40-55
35-60
3-4 fishes
4-6 fillets
If you wish to cook more than one dish
at the same time, we suggest that you
change the cooking levels of your dishes
during the last 5-10 minutes in order to
obtain a more uniform colour of your
dishes. (*) If you need to cook more than
one dish at the same time, we recom-
mend you to place them on the levels
quoted between brackets. Shelf posi-
tions are counted from bottom of the
oven.
Grilling
Cooking times in the tables do not
include pre-heating. We recom-
mend to pre-heat the oven for about
10 minutes before cooking.
TYPE OF DISH Quantity Grilling Cooking time in minutes
Pieces g. temp.°C 1st side 2nd side
Fillet steaks 4800 3250 12~15 12~14
18 electrolux cooking chart

TYPE OF DISH Quantity Grilling Cooking time in minutes
Pieces g. temp.°C 1st side 2nd side
Beef-steaks 4600 3250 10~12 6~8
Sausages 8 / 3 250 12~15 10~12
Pork chops 4600 3250 12~16 12~14
Chicken (cut in
two)
21000 3250 30~35 25~30
Kebabs 4 / 3 250 10~15 10~12
Chicken (breast) 4400 3250 12~15 12~14
Hamburger
1)
6600 2250 20-30
Fish (fillets) 4400 3250 12~14 10~12
Sandwiches 4~6 / 3 250 5~7 /
Toast 4~6 / 3 250 2~4 2~3
1) Preheat 5’00'’
Cleaning and Maintenance
Before cleaning always allow the
cooling fan to cool the oven down
before switching off at the electricity
supply.
This appliance cannot be cleaned
with steam or with a steam cleaning
machine.
The oven should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Important: Before carrying out any
cleaning operation, the appliance must
be disconnected from the power supply.
External cleaning
Regularly wipe over the control panel,
oven door and door seal using a soft
cloth well wrung out in warm water to
which a little mild washing-up liquid has
been added.
To prevent damaging or weakening the
door glass panels avoid the use of the
following:
• Household detergent and bleaches
• Impregnated pads unsuitable for non-
stick saucepans
cleaning and maintenance electrolux 19

• Brillo/Ajax pads or steel wool pads
• Chemical oven pads or aerosols
• Rust removers
• Bath/Sink stain removers
Clean the outer and inner door glass us-
ing warm soapy water. Should the inner
door glass become heavily soiled it is
recommended that a cleaning product
such as Hob Brite is used. Do not use
paint scrapers to remove soilage.
Cleaning materials
Before using any cleaning materials on
your oven, check that they are suitable
and that their use is recommended by
the manufacturer.
Cleaners that contain bleach should
NOT be used as they may dull the sur-
face finishes. Harsh abrasives should
also be avoided.
Oven Cavity
The enamelled base of the oven cavity is
best cleaned whilst the oven is still
warm. Wipe the oven over with a soft
cloth soaked in warm soapy water after
each use. From time to time it will be
necessary to do a more thorough clean-
ing, using a proprietary oven cleaner.
DO NOT attempt to clean catalytic
liners.
Care of Catalytic Liners
As cooking produces oil, fats, splashes
of food, etc., catalytic enamel destroys
them. To aid this process it is a good
idea to run the oven for an hour or two
per week, without food, to ensure con-
tinued good performance from the
Catalytic liners.
To clean the oven cavity, proceed as fol-
lows:
1. Remove the oven accessories, if
present (e.g. pans, grids, baking
tray, dripping pan, etc.). Do not leave
anything inside the oven.
2. Turn the oven function control knob
to the fan cooking function
3. Turn the thermostat control to 250°
C.
4. Allow the oven to run empty for
approximately 45 minutes.
5. Open a window for ventilation.
This procedure should be repeated with
the inner grill cooking function grill for
approximately 5 minutes.
If the oven cavity is cold, let the oven run
for 60 minutes.
Do not attempt to clean catalytic
enamel.
Hints and Tips
• Manual cleaning of the Catalytic liner
is not recommended. Damage will oc-
cur if soap impregnated steel wool
pads, aerosol cleaners and any other
abrasives are used.
• Slight discolouration and polishing of
the Catalytic surface may occur in
time. This does not affect the Catalytic
properties in any way.
• Follow the recommendations in
“Cooking to reduce soilage”.
20 electrolux cleaning and maintenance
