Electrolux EOC65340 User manual

user manual
Built-In Electric Oven
EOC65340

We were thinking of you
when we made this product

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov-
er in this manual. Please take a few min-
utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

4electrolux contents
Contents
Safety instructions 5
Description of the Appliance 7
Before Using for the first time 11
Using the Oven 13
Uses, Tables and Tips 32
Cleaning and Care 48
What to do if … 59
Installation Instructions 61
Disposal 66
Guarantee/Customer Service 67
Service 70
T
he following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

safety instructions electrolux 5
Safety instructions
Electrical safety
•This appliance must be only con-
nected by a registered electrician.
•In the event of a fault or damage to
the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only
be carried out by qualified service
engineers. Considerable danger
may result from improper repairs. If
repairs become necessary, please
contact our Customer Services or
your dealer.
Child Safety
•Never leave children unsupervised
when the appliance is in use.
Safety whilst Using
•People (including children) who, be-
cause of their physical, sensory or
mental capabilities or their inexperi-
ence or ignorance are not able to use
the device safely, should not use this
device without supervision or in-
struction by a responsible person.
•This appliance is intended to be
used for cooking, roasting and bak-
ing food in the home.
•Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.
•Warning: Risk of burns! The interi-
or of the oven becomes hot during
use.
•Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked
flames in the vicinity when opening
the door.
Information on acrylamides
According to the latest scientific
knowledge, intensive browning of
food, especially in products con-
taining starch, can constitute a
health risk due to acrylamides.
Therefore we recommend cooking
at the lowest possible temperatures
and not browning foods too much.

6electrolux safety instructions
How to avoid damage to the
appliance
•Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.
•Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.
•Do not put any strain on the oven
door when open.
•Never pour water directly into the
oven when it is hot. This could cause
damage to or discolouration of the
enamel.
•Rough handling, especially around
the edges of the front panel, can
cause the glass to break.
•Do not store any flammable materi-
als inside the oven. These could ig-
nite when the oven is switched on.
•Do not store any moist foods inside
the oven. This could damage the
oven enamel.
•After switching off the cooling fan, do
not keep uncovered dishes in the ov-
en. Moisture may condense in the
oven interior or on the glass doors
and may get into the units.
Note on enamel coating
Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor-
mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

description of the appliance electrolux 7
Description of the Appliance

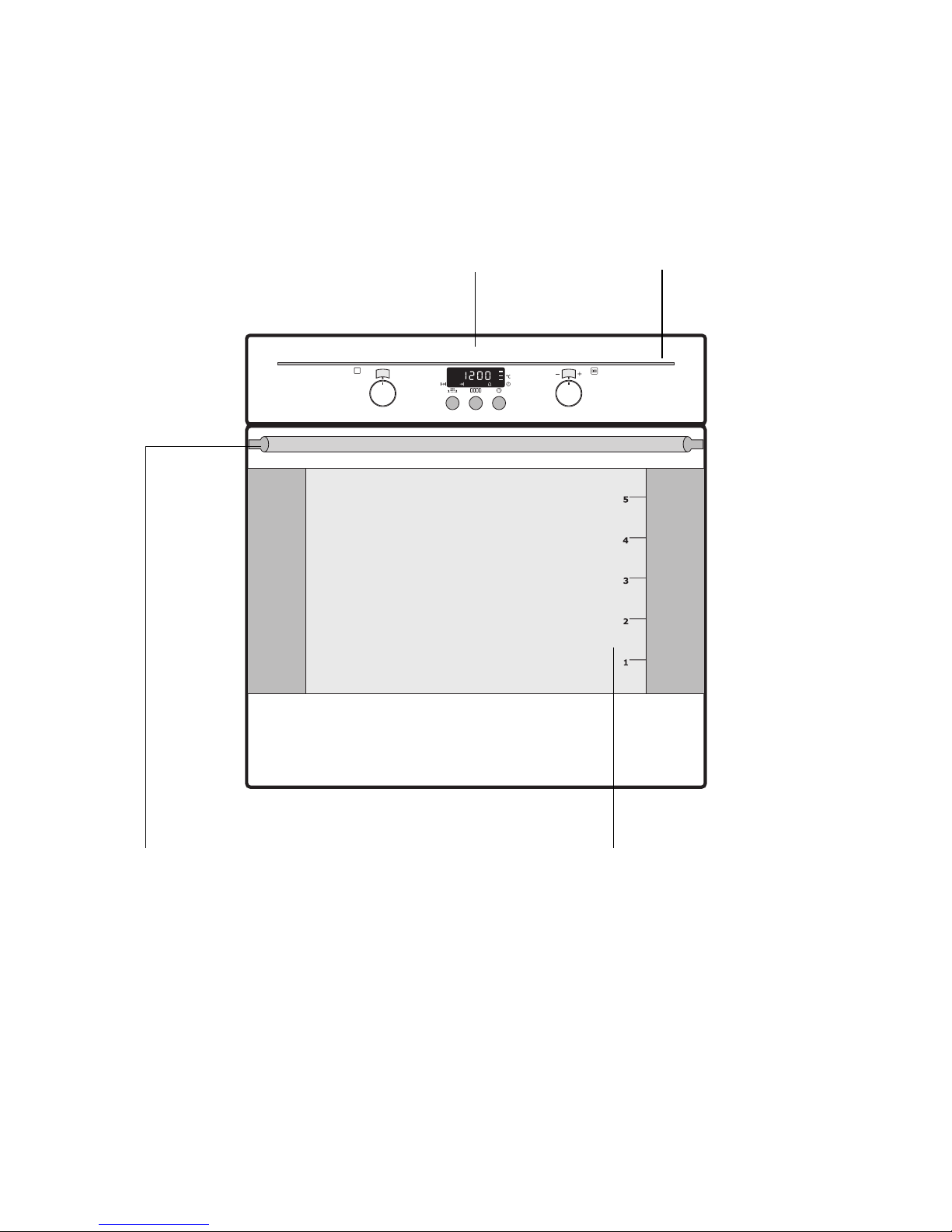

General Overview
Control panel
Door
handle
Light bar
Full glass door

8electrolux description of the appliance
Control Panel
Clock function buttons
Oven Functions Temperature / Time Selection
Temperature / Time Display
Oven Power Indicator Oven Power Indicator

description of the appliance electrolux 9
Oven Features
Inside of door
On the inside of the oven door you will
find the numbers of the different oven
shelves.
You will also find some brief information
about the oven's functions, recom-
mended shelves and temperatures for
cooking the most popular dishes.
Top heat and heating elements
Oven lighting
Fat Filter
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

10 electrolux description of the appliance
Oven accessories
Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for
collecting fat.

before using for the first time electrolux 11
Before Using for the first time
Setting and changing the time
The oven only operates when the
time has been set.
When the appliance has been connect-
ed to the electrical supply or when there
has been a power cut, the function indi-
cator Time flashes automatically.
1. To change a time that has already
been set, press the Selection but-
ton repeatedly until the function indi-
cator Time flashes.
2. Using the / control knob, set the
current time.
After approx. 5 seconds, the flashing
stops and the clock displays the time of
day set.
The appliance is now ready to use.
The time can only be modified, if the
child safety device is deactivated,
none of the Countdown , Cook
time or End time clock func-
tions and no oven function is set.

12 electrolux before using for the first time
Initial Cleaning
Before using the oven for the first time
you should clean it thoroughly.
Caution: Do not use any caustic or
abrasive cleaners. The surface
could be damaged.
To clean metal fronts use commer-
cially available cleaning agents.
1. Set the oven functions dial to
Light .
2. Remove all accessories and the shelf
support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm
water and washing-up liquid, and
dry.
4. Wipe the front of the appliance with
a damp cloth.

using the oven electrolux 13
Using the Oven
Switching the Oven On and Off
Oven Functions Temperature / Time Selection
Temperature / Time Display
Change display
Heat indicator
Oven Power Indicator
Selection buttonPyrolyse time
Oven Power Indicator

14 electrolux using the oven
Switching the oven on
Turn the oven functions selector to the
desired function. The power indicator
light lights up. The temperature display
shows the suggested temperature for
the oven function selected.
The oven starts to heat up.
When the temperature set is reached,
an audible signal sounds.
Changing the oven temperature
Turn the / knob to raise or lower the
temperature.
The setting changes in 5 °C steps.
Checking the temperature
Press Pyrolyse time and
Selection buttons at the same time.
The current oven temperature appears
in the temperature display.
Switching the oven off
To turn the oven off, turn the oven func-
tions selector to the OFF position.
The bargraph display is lit as long as the
appliance is switched on.

using the oven electrolux 15
Cooling fan
The fan switches on automatically
in order to keep the appliance’s sur-
faces cool. When the oven is
switched off, the fan continues to
run to cool the appliance down, then
switches itself off automatically.
Heat indicator
Warming up indicator
When the oven function has been
switched on the bars that slowly
light up one after the other indicate
how far the oven has heated up.
Residual heat indicator
When the oven has been switched
off, the bars that are still lit indicate
the remaining residual heat in the
oven.
With the oven functions Pizza setting ,
Conventional and Convection
grilling the heating up time is short-
ened by the automatic function
Speedcook.

16 electrolux using the oven
Oven Functions
The oven has the following functions:
Oven function Application
Light Using this function you can light up the oven interior, e.g. for
cleaning.
Convection with
ring heating
element
For roasting and baking on up to three levels at the same
time.
Set the oven temperatures
20-40 °C lower than when using upper/lower heat.
Conventional For baking and roasting on one oven level .
Pizza setting For baking on one oven level dishes that require more inten-
sive browning and a crispy base
.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Convection grill-
ing
For roasting larger joints of meat or poultry on one level.
The function is also suitable for
gratinating and browning .
Grill For grilling flat food items placed in the middle of the grill
and for toasting .
Dual grill For grilling flat food items in large quantities and for toast-
ing
.
Bottom heat For baking cakes with crispy or crusty bases .
Pyroluxe For automatic pyrolytic cleaning of the oven. It burns off resi-
dues in the oven, which can then be removed with a cloth when
the oven has cooled down. The oven is heated to approximately
500° C.

using the oven electrolux 17
Inserting the Combination Shelf,
Baking Tray and Roasting Pan
Inserting the baking tray or roasting
pan
Insert baking tray or or roasting pan on
the telescopic runners of the selected
oven level so that the two holes engage
on the front retaining pins on the tele-
scopic runners.
Inserting the oven shelf:
Insert the oven shelf so that the feet
point downwards.
Insert the oven shelf on the telescopic
runners of the selected oven level.
The high rim around the oven shelf is an
additional device to prevent cookware
from slipping.
Inserting the oven shelf and roast-
ing pan together:
Lay the oven shelf on the roasting pan.
Insert the oven shelf and the roasting
pan on the telescopic runners of the se-
lected oven level so that the two holes of
the roasting pan engage on the front re-
taining pins on the telescopic runners.
To make it easier to insert the insert-
able component when runners are
extended to different extents, lay
the insertable component onto the
runners at the back, push it in as far
as the stop and then lower it onto
the retaining pins at the front.

18 electrolux using the oven
Inserting/Removing the Fat Filter
Only use the fat filter when roasting
to protect the rear heating elements
from fat splashes.
Inserting the fat filter
Hold the fat filter by the grip and insert
the two mounts downwards into the
opening on the rear wall of the oven
(fan opening).
Taking out the fat filter
Hold the fat filter by the grip and un-
hook it.

using the oven electrolux 19
Clock Functions
Cook time
To set how long the oven is to be in use.
End time
To set when the oven is to switch off
again.
Countdown
To set a countdown. A signal sounds af-
ter the time has elapsed.
This function does not affect the func-
tioning of the oven.
Time
To set, change or check the time
(See also section “Before Using for the
First Time”).
Temperature / Time Display
Change display
Clock function indicators
Selector Button
Pyrolyse time

20 electrolux using the oven
How to use the clock functions
•After a clock function has been se-
lected, the corresponding function
indicator flashes for
about 5 seconds. During this period,
the desired times can be set or mod-
ified using the / dial.
•When the desired time has been set,
the function indicator continues to
flash for approx. 5 seconds. After
that the function indicator is then lit.
The set time begins to run in the
background.
•When the clock functions Cook
time and End time have been
completed, the oven functions
dial must be turned back to ”0“.
•Using the Change display but-
ton, you can switch between the
oven temperature and the time.
Checking the time set or remaining.
Press the Selection button re-
peatedly, until the appropriate clock
function flashes and the time set or
remaining is displayed.
