Electrolux EOA5220AOR User manual

EOA5220AOR
EOA5220AOV
EOA5220AOW
EN Oven User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 7
4. BEFORE FIRST USE......................................................................................... 7
5. DAILY USE......................................................................................................... 8
6. CLOCK FUNCTIONS......................................................................................... 9
7. USING THE ACCESSORIES........................................................................... 10
8. ADDITIONAL FUNCTIONS.............................................................................. 11
9. HINTS AND TIPS............................................................................................. 11
10. CARE AND CLEANING..................................................................................21
11. TROUBLESHOOTING....................................................................................24
12. INSTALLATION.............................................................................................. 25
13. ENERGY EFFICIENCY.................................................................................. 27
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
•Children of less than 3 years of age should be kept
away unless continuously supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
ENGLISH 3

•Always use oven gloves to remove or put in
accessories or ovenware.
•Before carrying out any maintenance, disconnect the
appliance from the power supply.
•Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the
side walls. Install the shelf supports in the opposite
sequence.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from
other appliances and units.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
www.electrolux.com4

be replaced, this must be carried out
by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door,
especially when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electric shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make
sure the door is never closed when
the appliance is in operation. Heat
and moisture can build up behind a
closed furniture panel and cause
subsequent damage to the appliance,
the housing unit or the floor. Do not
close the furniture panel until the
appliance has cooled down
completely after use.
ENGLISH 5

2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, follow the
safety instruction on it's packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Internal lighting
WARNING!
Risk of electric shock.
• The type of light bulb or halogen lamp
used for this appliance is for
household appliances only. Do not
use it for house lighting.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.6 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
www.electrolux.com6

3. PRODUCT DESCRIPTION

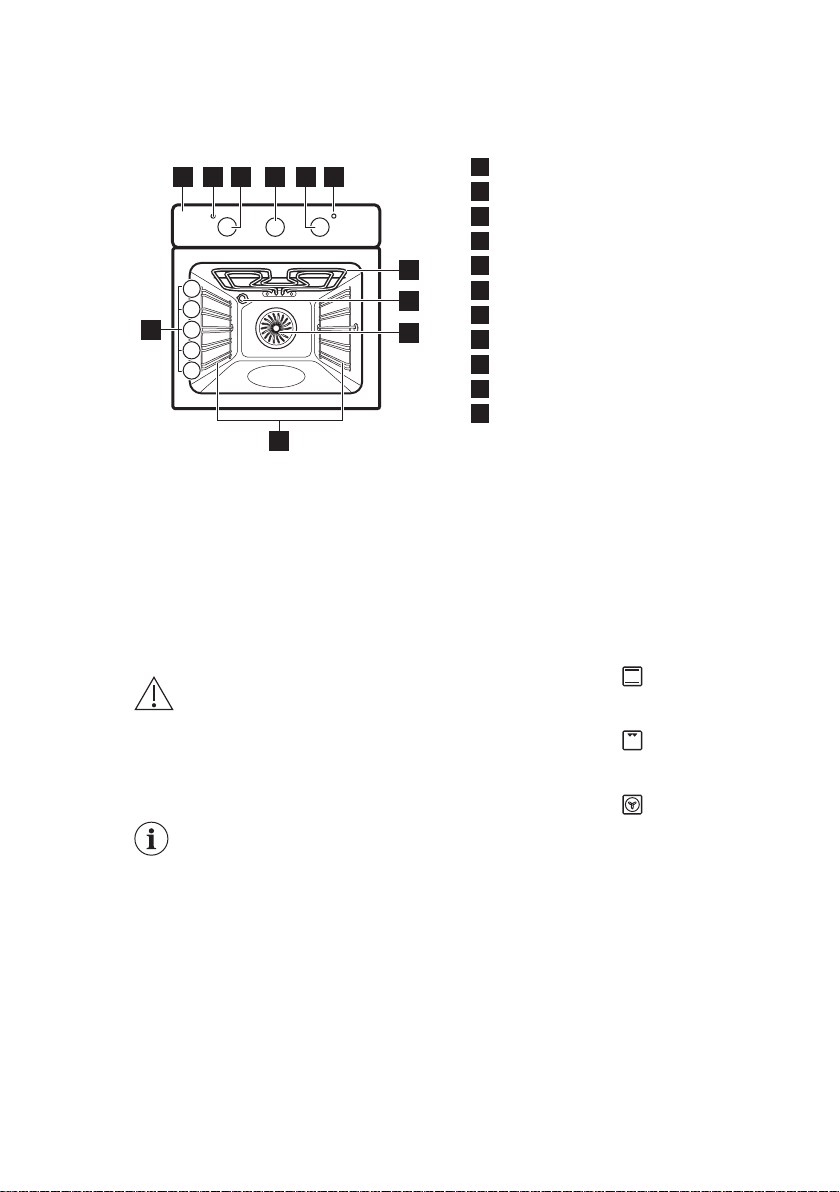

3.1 General overview
21 64 53
8
7
9
10
5
4
3
2
1
11
1Control panel
2Power lamp / symbol
3Knob for the heating functions
4Analog Timer
5Control knob (for the temperature)
6Temperature indicator / symbol
7Heating element
8Lamp
9Fan
10 Shelf support, removable
11 Shelf positions
3.2 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
•Telescopic runners
For shelves and trays.
4. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
4.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the oven.
Refer to "Care and cleaning"
chapter.
Clean the oven and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial
position.
4.2 Preheating
Preheat the empty oven before first use.
1. Set the function and the maximum
temperature.
2. Let the oven operate for 1 hour.
3. Set the function and set the
maximum temperature.
4. Let the oven operate for 15 minutes.
5. Set the function and set the
maximum temperature.
6. Let the oven operate for 15 minutes.
7. Turn off the oven and let it cool
down.
Accessories can become hotter than
usual. The oven can emit an odour and
smoke. Make sure that the airflow in the
room is sufficient.
ENGLISH 7

5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Setting a heating function
1. Turn the knob for the heating
functions to select a heating function.
2. Turn the control knob to select the
temperature.
The lamp turns on when the oven
operates.
3. To turn off the oven, turn the knobs
to the off position.
5.2 Heating functions
Oven func‐
tion
Application
Off position
The oven is off.
Light
To turn on the lamp
without a cooking func‐
tion.
True Fan
Cooking
To bake on up to three
shelf positions at the
same time and to dry
food.
Set the temperature 20
- 40 °C lower than for
Conventional Cooking.
Oven func‐
tion
Application
Moist Fan
Baking
This function is de‐
signed to save energy
during cooking. For the
cooking instructions re‐
fer to "Hints and tips"
chapter, Moist Fan Bak‐
ing. The oven door
should be closed during
cooking so that the
function is not interrup‐
ted and to ensure that
the oven operates with
the highest energy effi‐
ciency possible. When
you use this function,
the temperature in the
cavity may differ from
the set temperature.
The heating power may
be reduced. For general
energy saving recom‐
mendations refer to
"Energy Efficiency"
chapter, Energy Sav‐
ing.This function was
used to comply with the
energy efficiency class
according to EN
60350-1.
Bottom Heat
To bake cakes with
crispy bottom and to
preserve food.
Grilling
To grill flat food and to
toast bread.
Fast Grilling
To grill flat food in large
quantities and to toast
bread.
Turbo Grilling
To roast larger meat
joints or poultry with
bones on one shelf po‐
sition. To make gratins
and to brown.
www.electrolux.com8

Oven func‐
tion
Application
Pizza Setting
To bake pizza. To make
intensive browning and
a crispy bottom. Set the
temperature 230°C.
Oven func‐
tion
Application
Conventional
Cooking
(Top / Bottom
Heat)
To bake and roast food
on one shelf position.
6. CLOCK FUNCTIONS
6.1 Analog timer
The timer has these functions:
• Time of day
• Minute Minder + End of Cooking.
A B
C
A. Window
B. Dial
C. Settings knob
Setting the time of day
To set the time of day, push and turn the
settings knob counterclockwise (in the
direction indicated by the arrow), until the
clock hands are in the necessary
position. Do not turn the settings knob
clockwise.
After you set the time, let the settings
knob move to its initial position or
carefully pull back.
Normal setting
Turn the settings knob counterclockwise,
until shows in the window. In this
position you operate the appliance
manually. The Minute Minder + End of
Cooking function is off.
Minute Minder + End of
Cooking
Use it to set the automatic switch-off time
for an oven function. The maximum time
you can set is 180 minutes.
Use it only for food which
you do not have to mix or
monitor during the cooking
procedure.
1. Set an oven function and the
temperature.
ENGLISH 9

2. Turn the settings knob
counterclockwise, until the necessary
switch-off time (in minutes) shows in
the window of the dial.
The countdown starts. After the time
period is completed, an acoustic signal
sounds. The appliance deactivates.
The acoustic signal can be
deactivated. Turn the
settings knob
counterclockwise, until
shows in the window. In this
position, there is no acoustic
signal after the appliance
deactivates.
To cancel the Minute Minder + End of
Cooking function, turn the settings knob
counterclockwise until shows in the
window.
7. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
7.1 Inserting the accessories

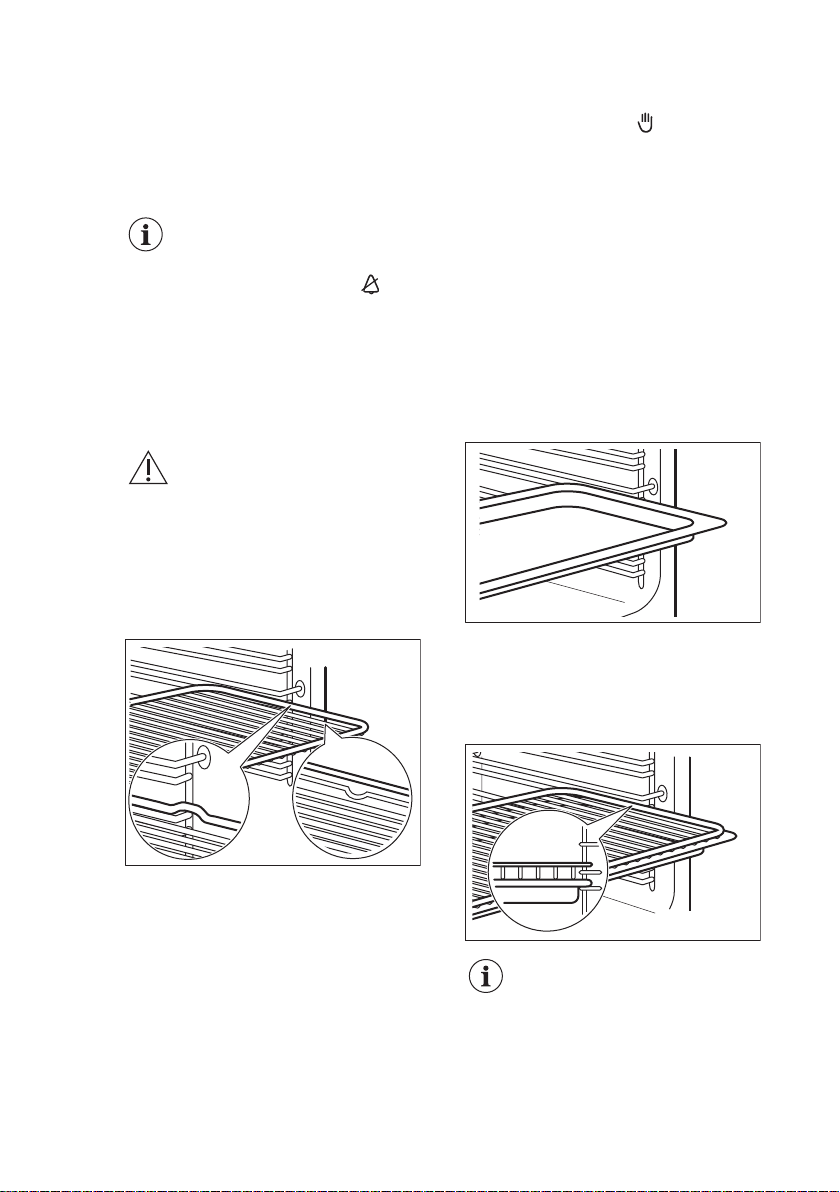

Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Baking tray/ Deep pan:
Push the baking tray / deep pan between
the guide bars of the shelf support.
Wire shelf and baking tray / deep pan
together:
Push the baking tray / deep pan between
the guide bars of the shelf support and
the wire shelf on the guide bars above.
Small indentation at the top
increase safety. The
indentations are also anti-tip
devices. The high rim
around the shelf prevents
cookware from slipping of
the shelf.
www.electrolux.com10

7.2 Telescopic Runners
Keep the installation
instructions for the
telescopic runners for future
use.
With telescopic runners you can put in
and remove the shelves more easily.
CAUTION!
Do not clean the telescopic
runners in the dishwasher.
Do not lubricate the
telescopic runners.

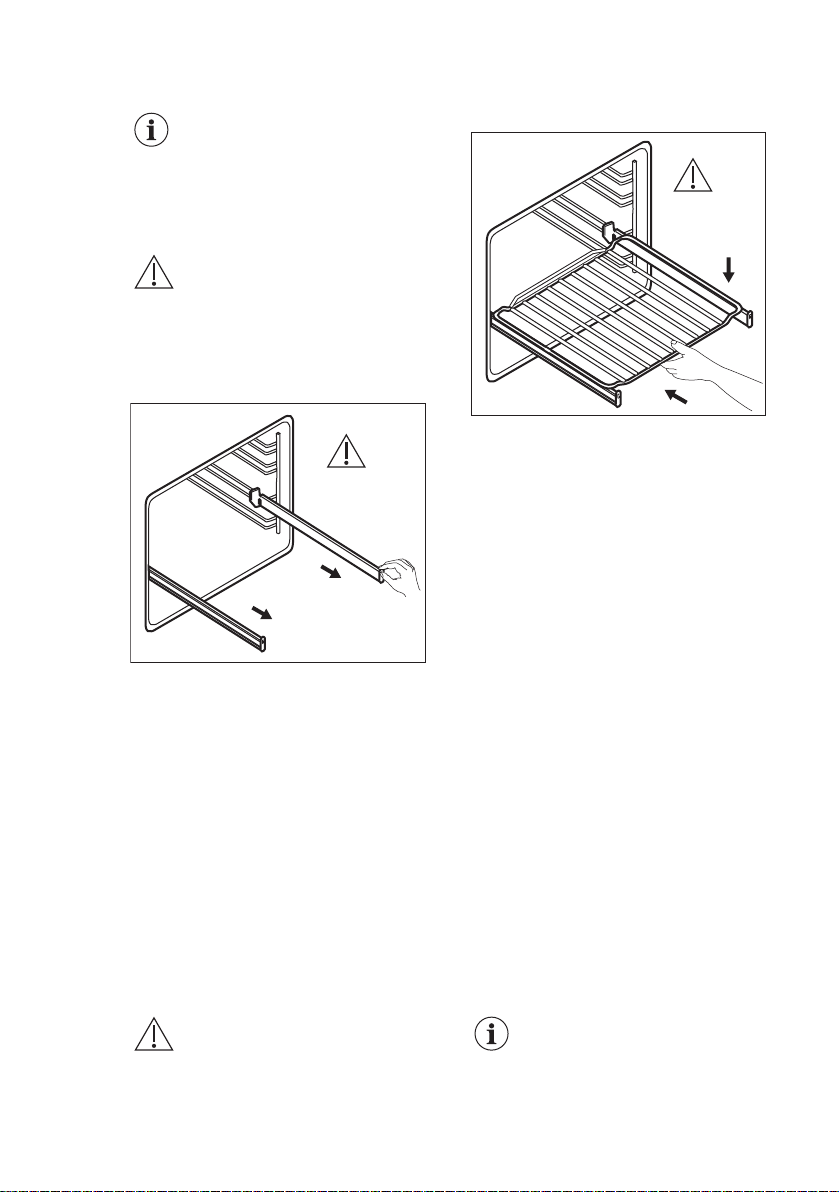

1. Pull out the right and left hand
telescopic runners.
°C
2. Put the wire shelf on the telescopic
runners and carefully push them into
the oven.
°C
Make sure you push back the telescopic
runners fully in the oven before you close
the oven door.
8. ADDITIONAL FUNCTIONS
8.1 Cooling fan
When the oven operates, the cooling fan
turns on automatically to keep the
surfaces of the oven cool. If you turn off
the oven, the cooling fan can continue to
operate until the oven cools down.
8.2 Safety thermostat
Incorrect operation of the oven or
defective components can cause
dangerous overheating. To prevent this,
the oven has a safety thermostat which
interrupts the power supply. The oven
turns on again automatically when the
temperature drops.
9. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They
depend on the recipes and
the quality and quantity of
the ingredients used.
ENGLISH 11

9.1 Cooking recommendations
The oven has five shelf positions.
Count the shelf positions from the bottom
of the oven floor.
Your oven may bake or roast differently
to the oven you had before. The below
tables provide you with the standard
settings for temperature, cooking time
and shelf position.
If you cannot find the settings for a
special recipe, look for the similar one.
The oven has a special system which
circulates the air and constantly recycles
the steam. With this system you can
cook in a steamy environment and keep
the food soft inside and crusty outside. It
decreases the cooking time and energy
consumption.
Baking cakes
Do not open the oven door before 3/4 of
the set cooking time is up.
If you use two baking trays at the same
time, keep one empty level between
them.
Cooking meat and fish
Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after
it dries up.
Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat
setting, cooking time, etc.) for your
cookware, recipes and quantities when
you use this appliance.
9.2 Baking and roasting
Cakes
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Whisked
recipes
170 2 160 3 (2 and
4)
45 - 60 In a cake
mould
Short‐
bread
dough
170 2 160 3 (2 and
4)
20 - 30 In a cake
mould
Buttermilk
cheese‐
cake
170 1 165 2 60 - 80 In a 26 cm
cake
mould
Apple
cake (Ap‐
ple pie)1)
170 2 160 2 (left and
right)
80 - 100 In two 20
cm cake
moulds on
a wire
shelf
Strudel 175 3 150 2 60 - 80 In a baking
tray
www.electrolux.com12

Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Jam-tart 170 2 165 2 (left and
right)
30 - 40 In a 26 cm
cake
mould
Sponge
cake
170 2 160 2 50 - 60 In a 26 cm
cake
mould
Christmas
cake /
Rich fruit
cake1)
160 2 150 2 90 - 120 In a 20 cm
cake
mould
Plum
cake1)
175 1 160 2 50 - 60 In a bread
tin
Small
cakes -
one level
170 3 140 - 150 3 20 - 30 In a baking
tray
Small
cakes -
two levels
- - 140 - 150 2 and 4 25 - 35 In a baking
tray
Small
cakes -
three lev‐
els
- - 140 - 150 1, 3 and 5 30 - 45 In a baking
tray
Biscuits /
pastry
stripes -
one level
140 3 140 - 150 3 30 - 35 In a baking
tray
Biscuits /
pastry
stripes -
two levels
- - 140 - 150 2 and 4 35 - 40 In a baking
tray
Biscuits /
pastry
stripes -
three lev‐
els
- - 140 - 150 1, 3 and 5 35 - 45 In a baking
tray
Meringues
- one level
120 3 120 3 80 - 100 In a baking
tray
Merin‐
gues- two
levels1)
- - 120 2 and 4 80 - 100 In a baking
tray
ENGLISH 13

Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Buns1) 190 3 190 3 12 - 20 In a baking
tray
Eclairs -
one level
190 3 170 3 25 - 35 In a baking
tray
Eclairs -
two levels
- - 170 2 and 4 35 - 45 In a baking
tray
Plate tarts 180 2 170 2 45 - 70 In a 20 cm
cake
mould
Rich fruit
cake
160 1 150 2 110 - 120 In a 24 cm
cake
mould
Victoria
sandwich
170 1 160 2 (left and
right)
50 - 60 In a 20 cm
cake
mould
1) Preheat the oven for 10 minutes.
Bread and pizza
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
White
bread1)
190 1 190 1 60 - 70 1 - 2
pieces,
500 gr per
piece
Rye bread 190 1 180 1 30 - 45 In a bread
tin
Bread
rolls 1)
190 2 180 2 (2 and
4)
25 - 40 6 - 8 rolls
in a bak‐
ing tray
Pizza1) 230 - 250 1 230 - 250 1 10 - 20 In a bak‐
ing tray or
a deep
pan
Scones1) 200 3 190 3 10 - 20 In a bak‐
ing tray
1) Preheat the oven for 10 minutes.
www.electrolux.com14

Flans
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Pasta flan 200 2 180 2 40 - 50 In a mould
Vegetable
flan
200 2 175 2 45 - 60 In a mould
Quiches1) 180 1 180 1 50 - 60 In a mould
Lasagne1) 180 - 190 2 180 - 190 2 25 - 40 In a mould
Cannello‐
ni1)
180 - 190 2 180 - 190 2 25 - 40 In a mould
1) Preheat the oven for 10 minutes.
Meat
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Beef 200 2 190 2 50 - 70 On a wire
shelf
Pork 180 2 180 2 90 - 120 On a wire
shelf
Veal 190 2 175 2 90 - 120 On a wire
shelf
English
roast beef,
rare
210 2 200 2 50 - 60 On a wire
shelf
English
roast beef,
medium
210 2 200 2 60 - 70 On a wire
shelf
English
roast beef,
well done
210 2 200 2 70 - 75 On a wire
shelf
Shoulder
of pork
180 2 170 2 120 - 150 With rind
Shin of
pork
180 2 160 2 100 - 120 2 pieces
Lamb 190 2 175 2 110 - 130 Leg
Chicken 220 2 200 2 70 - 85 Whole
Turkey 180 2 160 2 210 - 240 Whole
ENGLISH 15

Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Duck 175 2 220 2 120 - 150 Whole
Goose 175 2 160 1 150 - 200 Whole
Rabbit 190 2 175 2 60 - 80 Cut in
pieces
Hare 190 2 175 2 150 - 200 Cut in
pieces
Pheasant 190 2 175 2 90 - 120 Whole
Fish
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Trout /
Sea
bream
190 2 175 2 40 - 55 3 - 4 fish
Tuna fish /
Salmon
190 2 175 2 35 - 60 4 - 6 fillets
9.3 Grilling
Preheat the oven for 3 minutes.
Use the fourth shelf position.
Set the maximum temperature.
Food Quantity Time (min)
Pieces Quantity
(kg)
1st side 2nd side
Fillet steaks 4 0.8 12 - 15 12 - 14
Beef steaks 4 0.6 10 - 12 6 - 8
Sausages 8 - 12 - 15 10 - 12
Pork chops 4 0.6 12 - 16 12 - 14
Chicken (cut in 2) 2 1 30 - 35 25 - 30
Kebabs 4 - 10 - 15 10 - 12
Breast of chicken 4 0.4 12 - 15 12 - 14
Hamburger 6 0.6 20 - 30 -
Fish fillet 4 0.4 12 - 14 10 - 12
www.electrolux.com16

Food Quantity Time (min)
Pieces Quantity
(kg)
1st side 2nd side
Toasted sandwiches 4 - 6 - 5 - 7 -
Toast 4 - 6 - 2 - 4 2 - 3
9.4 Turbo Grilling
Use the first or the second shelf position.
Beef
Preheat the oven.
To calculate the roasting time multiple
the time given in the table below by the
centimetres of thickness of the fillet.
Food Tempera‐
ture (°C)
Time (min)
Roast beef
or fillet, rare
190 - 200 5 - 6
Roast beef
or fillet, me‐
dium
180 - 190 6 - 8
Roast beef
or fillet, well
done
170 - 180 8 - 10
Pork
Food Tempera‐
ture (°C)
Time (min)
Shoulder,
neck, ham
joint, 1 - 1.5
kg
160 - 180 90 - 120
Chop, spare
rib, 1 - 1.5
kg
170 - 180 60 - 90
Meat loaf,
0.75 - 1 kg
160 - 170 50 - 60
Pork knuck‐
le (pre-
cooked),
0.75 - 1 kg
150 - 170 90 - 120
Veal
Food Tempera‐
ture (°C)
Time (min)
Roast veal,
1 kg
160 - 180 90 - 120
Knuckle of
veal, 1.5 - 2
kg
160 - 180 120 - 150
Lamb
Food Tempera‐
ture (°C)
Time (min)
Leg of lamb,
roast lamb,
1 - 1.5 kg
150 - 170 100 - 120
Saddle of
lamb, 1 - 1.5
kg
160 - 180 40 - 60
Poultry
Food Tempera‐
ture (°C)
Time (min)
Poultry por‐
tions, 0.2 -
0.25 kg
each
200 - 220 30 - 50
Chicken,
half, 0.4 -
0.5 kg each
190 - 210 35 - 50
Chicken,
poulard, 1 -
1.5 kg
190 - 210 50 - 70
Duck, 1.5 -
2 kg
180 - 200 80 - 100
Goose, 3.5 -
5 kg
160 - 180 120 - 180
ENGLISH 17

Food Tempera‐
ture (°C)
Time (min)
Turkey, 2.5 -
3.5 kg
160 - 180 120 - 150
Turkey, 4 - 6
kg
140 - 160 150 - 240
Fish (steamed)
Food Tempera‐
ture (°C)
Time (min)
Whole fish,
1 - 1.5 kg
210 - 220 40 - 60
9.5 Moist Fan Baking
For best results follow
suggestions listed in the
table below.
Food Accessories Temperature
(°C)
Shelf po‐
sition
Time (min)
Sweet rolls, 12
pieces
baking tray or dripping
pan
175 3 40 - 50
Rolls, 9 pieces baking tray or dripping
pan
180 2 35 - 45
Pizza, frozen,
0.35 kg
wire shelf 180 2 45 - 55
Swiss roll baking tray or dripping
pan
170 2 30 - 40
Brownie baking tray or dripping
pan
170 2 45 - 50
Soufflè, 6
pieces
ceramic ramekins on
wire shelf
190 3 45 - 55
Sponge flan
base
flan base tin on wire
shelf
180 2 35 - 45
Victoria Sand‐
wich
baking dish on wire
shelf
170 2 35 - 50
Poached fish,
0.3 kg
baking tray or dripping
pan
180 2 35 - 45
Whole fish, 0.2
kg
baking tray or dripping
pan
180 3 25 - 35
Fish fillet, 0.3
kg
pizza pan on wire shelf 170 3 30 - 40
Pouched meat,
0.25 kg
baking tray or dripping
pan
180 3 35 - 45
www.electrolux.com18

Food Accessories Temperature
(°C)
Shelf po‐
sition
Time (min)
Shashlik, 0.5
kg
baking tray or dripping
pan
180 3 40 - 50
Cookies, 16
pieces
baking tray or dripping
pan
150 2 30 - 45
Macaroons, 20
pieces
baking tray or dripping
pan
180 2 45 - 55
Muffins, 12
pieces
baking tray or dripping
pan
170 2 30 - 40
Savory pastry,
16 pieces
baking tray or dripping
pan
170 2 35 - 45
Short crust bis‐
cuits, 20 pieces
baking tray or dripping
pan
150 2 40 - 50
Tartlets, 8
pieces
baking tray or dripping
pan
170 2 30 - 40
Poached vege‐
tables, 0.4 kg
baking tray or dripping
pan
180 2 35 - 45
Vegetarian
omelette
pizza pan on wire shelf 180 3 35 - 45
Vegetables,
mediterrean
0.7 kg
baking tray or dripping
pan
180 4 35 - 45
9.6 Drying - True Fan Cooking
Cover trays with grease proof paper or
baking parchment.
For a better result, stop the oven halfway
through the drying time, open the door
and let it cool down for one night to
complete the drying.
Vegetables
For one tray use the third shelf position.
For 2 trays use the first and fourth shelf position.
Food Temperature (°C) Time (h)
Beans 60 - 70 6 - 8
Peppers 60 - 70 5 - 6
Vegetables for sour 60 - 70 5 - 6
Mushrooms 50 - 60 6 - 8
Herbs 40 - 50 2 - 3
ENGLISH 19

Fruit
Food Temperature
(°C)
Time (h) Shelf position
1 position 2 positions
Plums 60 - 70 8 - 10 3 1 / 4
Apricots 60 - 70 8 - 10 3 1 / 4
Apple slices 60 - 70 6 - 8 3 1 / 4
Pears 60 - 70 6 - 9 3 1 / 4
9.7 Information for test
institutes
Tests according to IEC 60350-1.
Food Function Acces‐
sories
Shelf
posi‐
tion
Tem‐
pera‐
ture
(°C)
Time (min) Comments
Small
cake
Conven‐
tional Cook‐
ing
Baking
tray
3 170 20 - 30 Put 20 small
cakes per one
baking tray.
Small
cake
True Fan
Cooking /
Fan Cook‐
ing
Baking
tray
3 150 -
160
20 - 35 Put 20 small
cakes per one
baking tray.
Small
cake
True Fan
Cooking /
Fan Cook‐
ing
Baking
tray
2 and
4
150 -
160
20 - 35 Put 20 small
cakes per one
baking tray.
Apple pie Conven‐
tional Cook‐
ing
Wire
shelf
2 180 70 - 90 Use 2 tins (20
cm diameter), di‐
agonally shifted.
Apple pie True Fan
Cooking /
Fan Cook‐
ing
Wire
shelf
2 160 70 - 90 Use 2 tins (20
cm diameter), di‐
agonally shifted.
Fatless‐
ponge
cake
Conven‐
tional Cook‐
ing
Wire
shelf
2 170 40 - 50 Use a cake
mould (26 cm di‐
ameter).
Preheat the oven
for 10 minutes.
www.electrolux.com20
