Electrolux EURO OVEN User manual

Edition:
SERVICE MANUAL
© AEG Hausgeräte GmbH
Muggenhofer Straße 135
D-90429 Nürnberg
Germany
Fax [phone]
TSE - N
Publ.-Nr.:
599 50 72 16
685
12.99
EURO OVEN
EN
WOEC
Test program

- 2 -
TSE-N 12.99 A. B. 599 50 72 16 EN
Page
Contents 2
Safety instructions 3
1. General technical information 4
1.1 User technical data 4
Dimensions 4
1.2 Hot plate controls 5
Circuit diagram of energy regulator 1 5
Circuit diagram of energy regulator 2 5
1.3 Oven control 5
Circuit diagram of oven thermostat 5
Thermotronic (electronic oven control, WOEC) 5
1.4 WOEC test programmes and their application 6
Descriptions of programme 1 - 6 7 - 11
Fault-finding 12
2. Service instructions 13
Dismantling front glass oven door and door handle 13

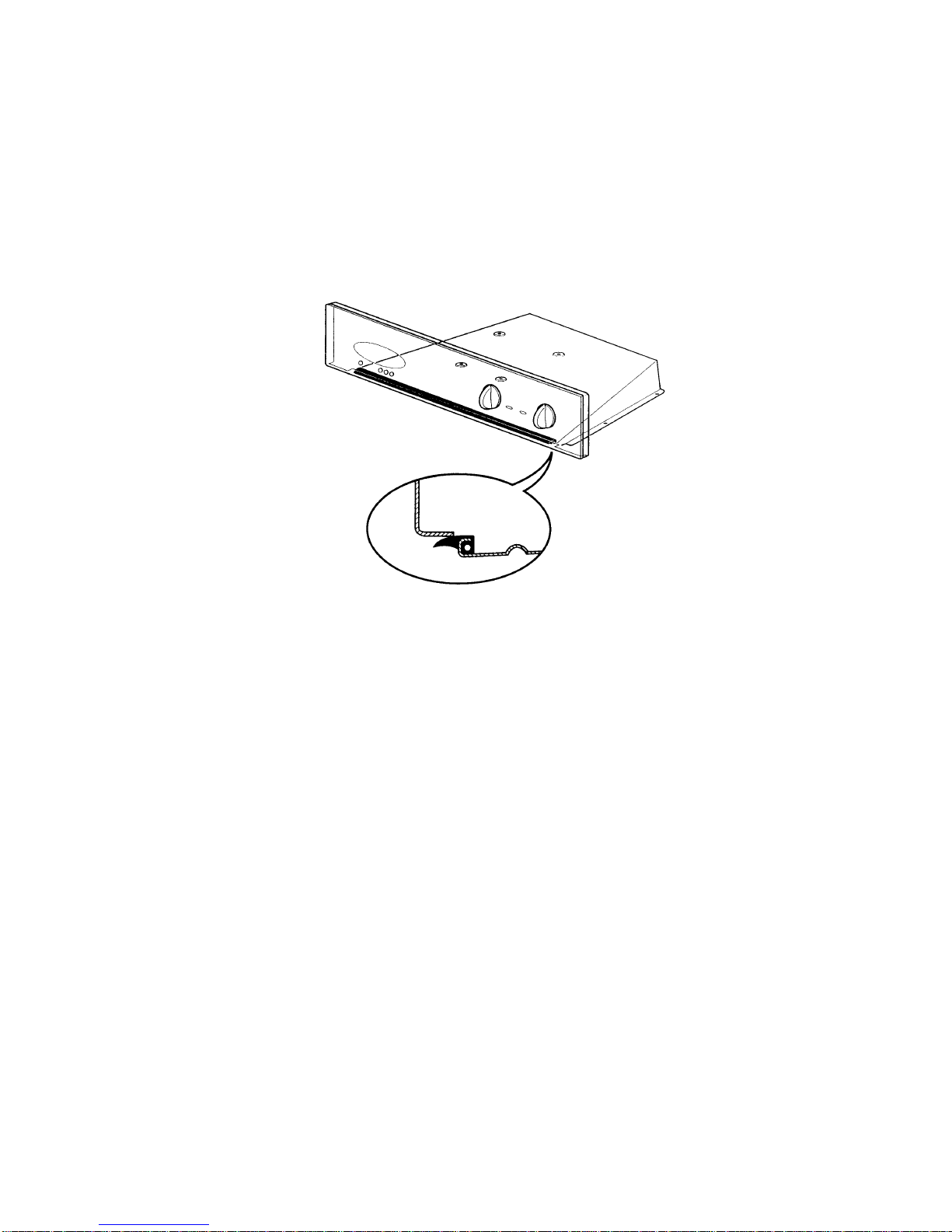

Rubber gasket between air duct and switch panel 14

- 3 -
TSE-N 12.99 A. B. 599 50 72 16 EN
Attention
mPlease observe the applicable safety requirements according to DIN/VDE 0701
(concerning repairs) and VDE 0700/ICE 355 respectively VDE 0860/IEC 65 (concerning
type of product)!
mComponents to IEC or VDE guidelines! Only use components with the same
specification for replacement!
mControls with MOS components use only components with the same specification.
mObserve MOS components handling instructions when servicing!
Recommendation for service repairs
mUse only original spare parts.
With components or assemblies accompanied with the Safety Symbol only origi-
nal-spare parts are strictly to be used.
mUse only original fuse value.
mPay attention to ratings and power data of components and protective devices.
mSafety compliance, parts of the product must not be visually damaged or unsuitable.
This is valid especially for insulators and insulating parts.
mMains leads and connecting leads should be checked for external damage before
connection. Check the insulation!
mThe functional safety of the tension relief and bending protection bushes are to be
checked.
mThermally loaded solder pads are to be suck off and re-soldered.
mEnsure that the ventilation slots are not obstructed.
Safety instructions

- 4 -
TSE-N 12.99 A. B. 599 50 72 16 EN
1. General technical information
1.1 User technical data
Capacity / Voltage
Oven heater (heating element)
Heating element bottom 1000 W / 230 V
Heating element top 1000 W / 230 V
Heating element grill 1900 W / 230 V
Heating element circulating air 2400 W / 230 V
Fan
Motor circulating air 35 W / 230 V
Querstromlüfter 16 W / 230 V
Lighting
Oven lamp rear 25 W / 230 V
Oven lamp lateral 25 W / 230 V
Dimensions
appliances dimensions
Height mm 579
Width mm 592
Depth mm 566
Built in dimensions
Built in hight mm 579
Built in width mm 540
Built in depth mm 546

- 5 -
TSE-N 12.99 A. B. 599 50 72 16 EN

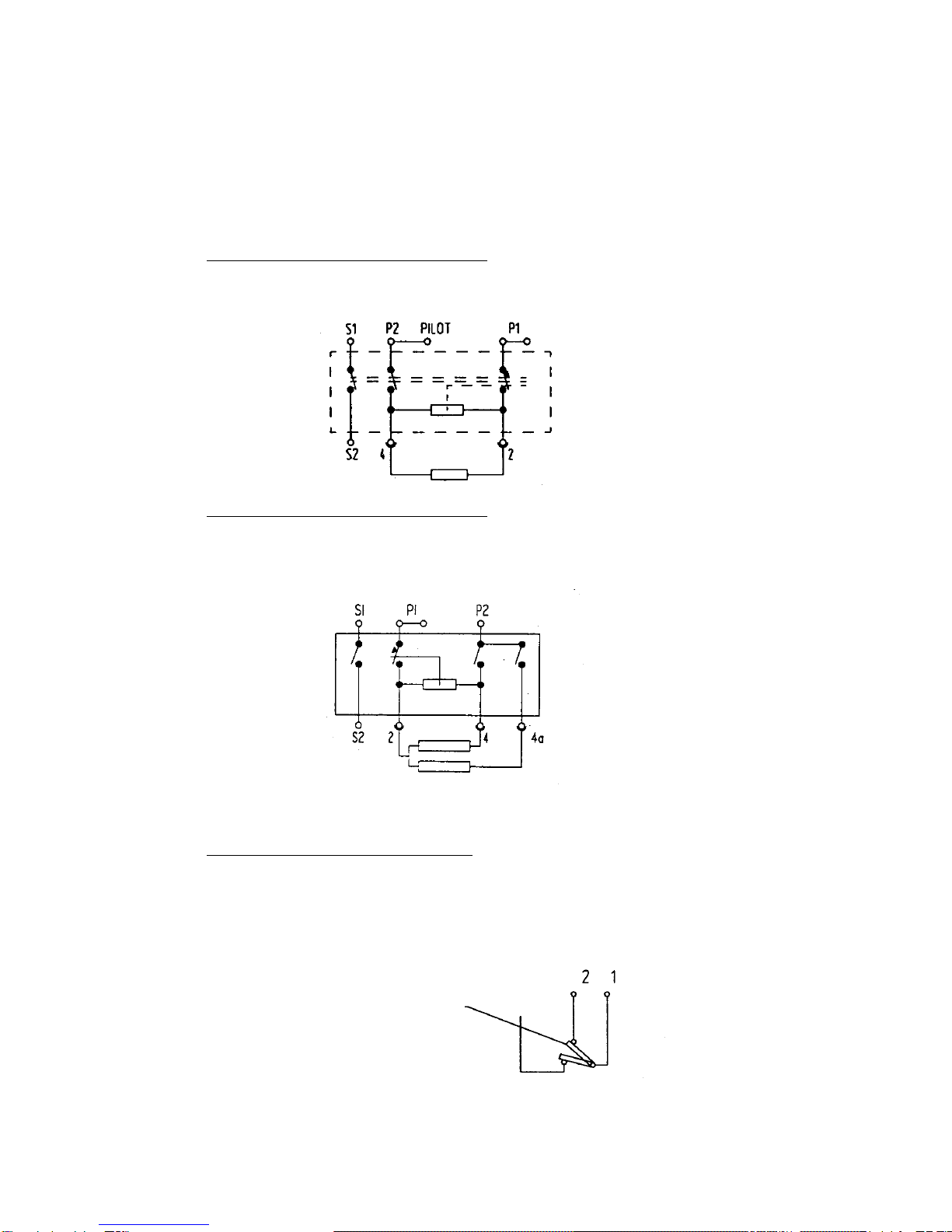

1.2 Hot plate controls
Circuit diagram of energy regulator 1
1.3 Oven control
Circuit diagram of oven thermostat
Some appliances are equipped with an electronic oven control (Thermotronic). See
Chapter 1.4 for further details.
Circuit diagram of energy regulator 2
Circuit diagram for “OFF” position
Circuit diagram for “OFF” position
Circuit diagram for “OFF” position
Can also be closed at left stop

- 6 -
TSE-N 12.99 A. B. 599 50 72 16 EN
1.4 WOEC test programmes and their application
The control is provided with various test programmes, some of which can be switched
on manually or run automatically in the background.
Safety cut-out
The appliance is equipped with a safety circuit which switches it off automatically if the
allocated time intervals are exceeded at various temperature settings without the
functions or temperature setting being changed. This time interval is smaller the higher
the selected temperature.
Examples: up to 250 °C 3 h
up to 230 °C 6 h
up to 120 °C 12 h
Self-test
The automatic test programme which runs permanently in the background carries out a
self-test at regular intervals to monitor for correct operation of the appliance. If any
deviation from the specified parameters is detected during this test, the service symbol
and a 3-digit service code are shown in the display.
In addition, the appliance is switched on via safety relay K60 and the cooling fan via
K61.
The cooling fan cannot be switched off on the appliance as long as the above-
mentioned self-test detects the fault. The only possibility of switching off the cooling fan
is to remove the fuse in the house electrical installation.
Service test
The manual test system for the control comprises 6 test programmes. Access to these
6 test programmes is only possible if the control is in a fault mode and displaying the
current fault or the time is flashing.
This is achieved directly after connecting a voltage. If the test programmes are to be
accessed during operation, the appliance must be disconnected from the mains for at
least 10 s.

- 7 -
TSE-N 12.99 A. B. 599 50 72 16 EN
Descriptions of programme 1 - 6
Basic setting
1 - Time flashes or current fault is displayed.
2 - Press quick timer button and button I simultaneously and keep pressed for 5 s.
3 - The programme number appears in the right of the display and can be set to
1-6 using the quick timer button.
If the programme number has been preselected and no entry made for 5 s, the
control switches to the preselected test programme.
4 - Once a test programme has been executed, this programme can be quit by
pressing the Off button.
5 - See 1 for switching on the test programme.
Programme 1
in red
048
Programme number
1 Block 048
2 Block 900
3 Block 210
1
white
The 9-digit code which appears in 3 successive blocks of 3 digits each is the version
number of the appliance. This code indicates the E number of the appliance.
Example: Version 048 900 210 Replace the first digit 0 with 9
948 900 210 Thermotronic JUNO JEH 5690 B

- 8 -
TSE-N 12.99 A. B. 599 50 72 16 EN
Programme 2
In this programme, the individual relays in the relay unit can be switched on and off by
pressing the quick timer button. The relevant relay can be selected by pressing the
Cooking time and End of cooking time buttons at the same time. Max. 10 or fewer
relays can be selected, depending on the assignment.
Attention! If the load is switched on, the switch-on time should be kept short as
neither the cooling fan nor the hot air ventilator are running and
excessively long switch-on times can cause damage.
Programme number
2
white
1
in red
Relay number
1 Cooling fan K 61 16 W 0.07 A
2 Ring heater element K 62 2400 W 10.43 A
3 Not equipped
4 Grill K 64 1900 W 8.26 A
5 Not equipped
6 Not equipped
7 Not equipped
8 Circulation fan motor K 68 35 W 0.15 A
9 Bottom heat K 69 1000 W 4.35 A
10 Top heat K 70 1000 W 4.35 A

- 9 -
TSE-N 12.99 A. B. 599 50 72 16 EN
Programme 3 - see basic setting 1 - 5
Programme number
3
white
33
Oven sensor
red
Food thermometer
white
30
2
white
Programme 3 shows the temperature of the oven sensor and the food thermometer (if
inserted).
Note! The two temperatures normally differ because different measuring points
are used.
Programme 4 - see basic setting 1 - 5
If the power supply is disconnected after detecting the fault, the information is deleted
and fault code 000 appears on executing test programme 4.
If a fault has been detected but the cause of the fault no longer exists (temporary fault)
because the temperature has dropped or the cooking thermometer has been
disconnected from the socket, the relevant fault code is stored in the memory and can
be read out via test programme 4 as long as the power supply is not disconnected.
Programme number
4
white
000
Fault code
red

- 10 -
TSE-N 12.99 A. B. 599 50 72 16 EN
Fault reports for programme 4
Functional description:
When this module is activated, it handles all the faults present and carries out an
EEPROM check. As soon as a fault occurs, a fault register has access to the main
processor control loop. This causes the control to switch from the current status to the
fault mode (except when in the test mode): If a new fault occurs which has a higher
priority than the preceding fault, only this higher fault code is displayed. The last fault
occurring with the highest priority is stored and can be displayed by Service Test Mode
4 at any time. The fault with the highest priority is the EEPROM control fault »F«.
Fault code Type of fault
000 No fault
001 Food thermometer open-circuit ∝ Ω
002 Fodd thermometer short-circuit Ω
003 Appers when an attempt is made to switch on
the appliance again in spite of fault code display
002 odr 003.
Fault in safety circuit.
004 Appers when the child safety system is to be
switched on but the circuit is faulty
005 Not used
006 The temperature measured by the oven sensor
exceeds the temperature set by the
programming unit
007 Other tests of the oven probe and display board
probe, excluding disconnection and short-circuit
(test fault)
008 Thermostat on the board has operated
009 Thermostat on the board is short-circuit
00 A Thermostat on the board is open-circuit
00 B Not used
00 C Not used
00 D Oven sensor is short-circuit
00 E Oven sensor is disconnected
00 F EEPROM fault (microprocessor)

- 11 -
TSE-N 12.99 A. B. 599 50 72 16 EN

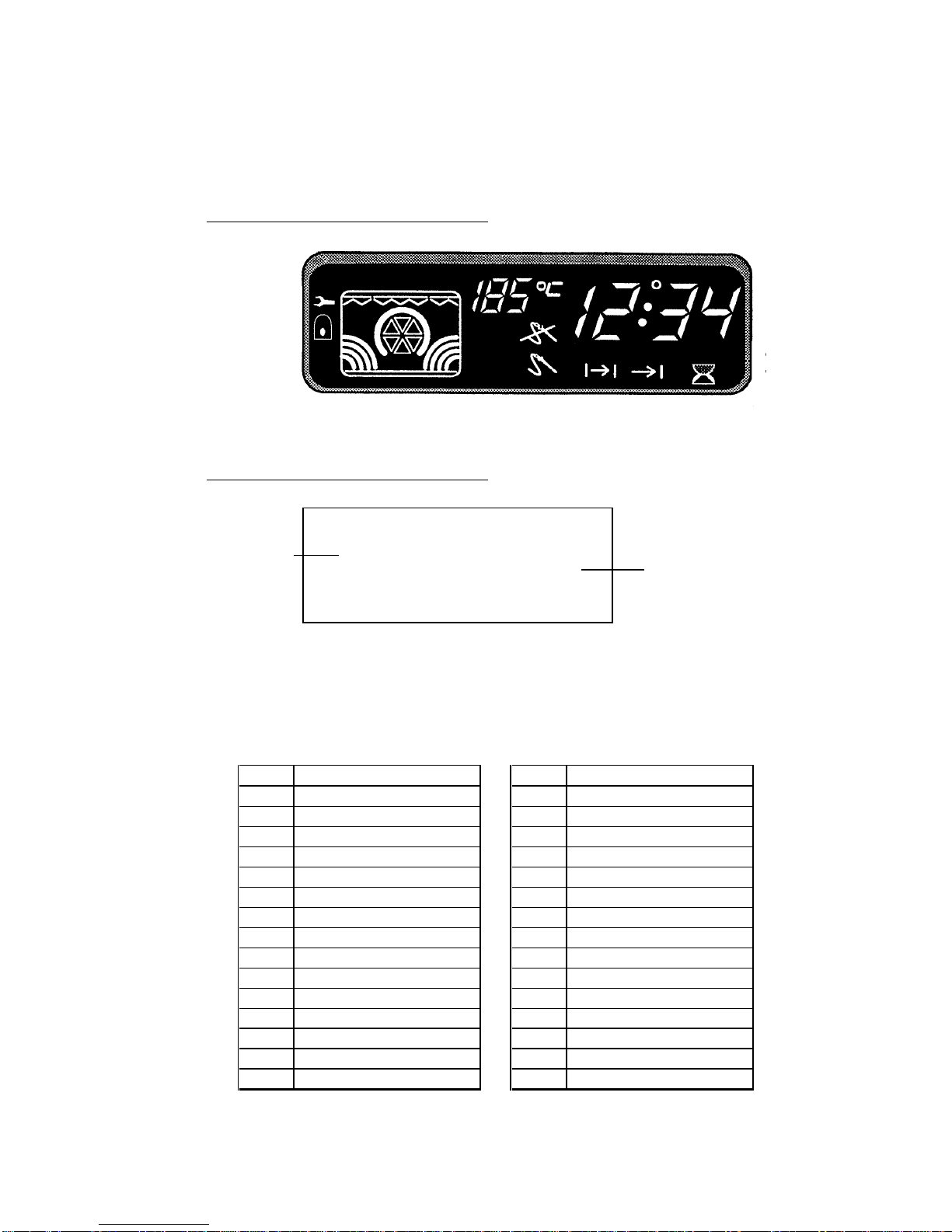

Programme 5 - see basic setting 1 - 5
Programme number
6
white
012
red
Temperature
code
This programme starts a display test in which all the symbols and the individual bars of
the 7-segment displays are tested.
Programme 6 - see basic setting 1 - 5
This programme displays the temperature measured by the thermostat on the control
unit in hexadecimal code (see tables).
HEX Control unit thermostat HEX Control unit thermostat
001 -30 034 52
002 -25 03C 55
003 -15 045 60
004 -10 04 E 65
006 -5 058 70
007 0 062 75
009 5 06C 80
00B 10 076 85
00E 15 080 90
012 20 08A 95
016 25 093 100
01A 30 09C 105
020 35 0A4 110
026 38 0AC 115
02C 45 0B3 120

- 12 -
TSE-N 12.99 A. B. 599 50 72 16 EN
Fault-finding
Fault-finding is simplified by fault code test programmes. Faults which do not constitute
a direct danger to the user are not detected by the control, e.g. disconnected heaters.
The test programmes still provide help in fault-finding, even if the faults are not
detected.
Fault-finding using fault codes
Note! Fault code 003 can also appear for an incorrect switching
sequence. To switch back to normal operation, first press the O
button and then the I button.
Fault code Description
000 No fault detected
001 Replace food thermometer
002 Check food thermometer cable connection
003 Replace food thermometer
004 Check food thermometer cable connection· Disconnect
mains and run test programme 4 for fault-finding· Replace
power board
• Disconnect mains and run test programme 4 for fault-
finding
• Replace power board
005 Code not used
006 • Switch on test programme 2 for testing the relays as the
overtemperature can be caused by the relay contacts of a
heater supply relay sticking· Possibly replace power board
• Possibly replace power board
007 • Replace oven sensor· Replace display board
008 • Switch on test programme 2 for testing the circulation fan
relay as the overtemperature can be caused by a fault in
the circulation fan Check for proper operation of the relay
concerned; replace the power board if the relay is faulty·
Check the wiring
• Check for proper operation of the relay concerned;
replace the power board if the relay is faulty
• Check the wiring
009 Replace control unit board and display
00A
00B Code not used
00C
00D • Check wiring of oven sensor
00E • Replace oven sensor
00F Replace control unit board and display

- 13 -
TSE-N 12.99 A. B. 599 50 72 16 EN
2. Service instructions
Dismantling front glass oven door and door handle
Remove the screws (1), one each on left and right, withdraw the door glass to the front
(2) and then downwards (3).
When dismantling the oven door handle of an appliance with a plastic door handle, note
that this is fixed with two special Torx screws (see diagram).

- 14 -
TSE-N 12.99 A. B. 599 50 72 16 EN
Important!
When refitting the switch panel after dismantling it, ensure that the rubber gasket
between the air duct and switch panel is properly mounted.
