Electrolux EOC65140X User manual

user manual
Built-In Electric Oven
EOC65140

We were thinking of you
when we made this product

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov-
er in this manual. Please take a few min-
utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

4electrolux contents
Contents
Safety instructions 5
Description of the Appliance 6
Before using for the first time 10
Operating the Oven 12
Usage, Tables and Tips 28
Cleaning and care 43
What to do if … 53
Electrical Connection 55
Installation Instructions 56
Disposal 61
Guarantee/Customer Service 62
Service and Spare Parts 65
T
he following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

Safety instructions electrolux 5
Safety instructions
Electrical safety
•This appliance must be connected by a
qualified electrician only.
•In the event of a fault or damage to the
appliance: take the fuses out or switch
off.
•Repairs to the appliance must only be
carried out by qualified service en-
gineers. Considerable danger may re-
sult from improper repairs. If repairs
become necessary, please contact
your local Service Force Centre.
Child Safety
•Never leave children unsupervised
when the appliance is in use.
Safety whilst Using
•People (including children) who, be-
cause of their physical, sensory or men-
tal capabilities or their inexperience or
ignorance are not able to use the device
safely, should not use this device with-
out supervision or instruction by a re-
sponsible person.
•This appliance is intended to be used
for cooking, roasting and baking food in
the home.
•Take care when connecting electric ap-
pliances to sockets nearby. Do not al-
low connecting leads to come into
contact with or to catch beneath the
hot oven door.
•Warning: Risk of burns! The interior
of the oven becomes hot during use.
•Using ingredients containing alcohol in
the oven may create an alcohol-air mix-
ture that is easily ignited. In this case,
open the door carefully. Do not have
embers, sparks or naked flames in the
vicinity when opening the door.
How to avoid damage to the appliance
•Do not line the oven with aluminium foil
and do not place baking trays, pots,
etc. on the oven floor, as the heat that
builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray
will leave stains, which you will not be
able to remove. For very moist cakes,
use a deep tray.
•Do not put any strain on the oven door
when open.
•Never pour water directly into the oven
when it is hot. This could cause dam-
age to the enamel and discolouration.
•Rough handling, especially around the
edges of the front panel, can cause the
glass to break.
•Do not store any flammable materials
inside the oven. These could ignite
when the oven is switched on.
•Do not store any moist foods inside the
oven. This could damage the oven
enamel.
•After switching off the cooling fan, do
not keep uncovered dishes in the oven.
Moisture may condense in the oven in-
terior or on the glass doors and may get
into the units.
Note on enamel coating
Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor-
mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

6electrolux description of the appliance
Description of the Appliance
General Overview
Control panel
Door
handle
Light bar
Full glass
door

description of the appliance electrolux 7

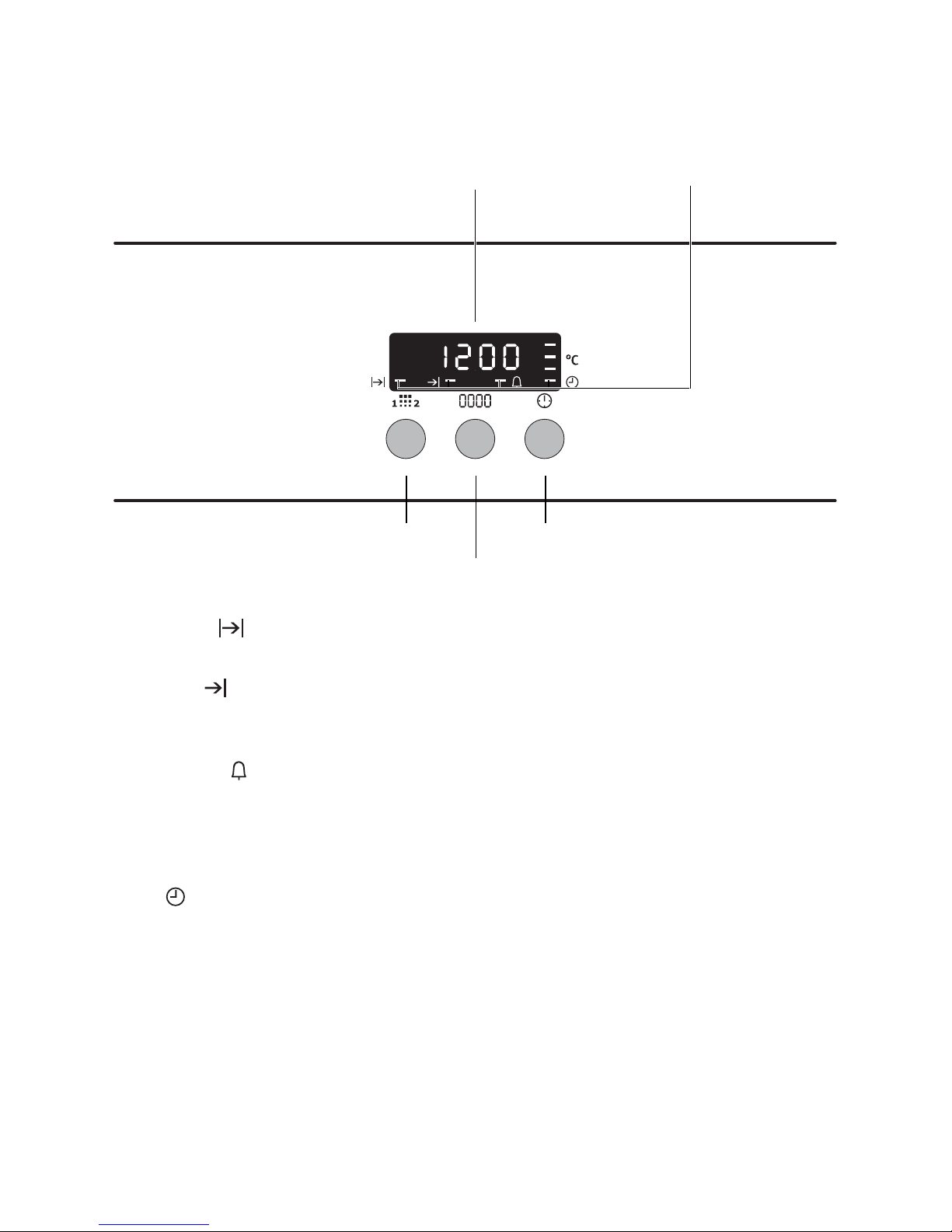

Control Panel
Clock function buttons
Oven Functions Temperature / Time Selection
Temperature / Time Display
Oven power indicator Oven power indicator

8electrolux description of the appliance

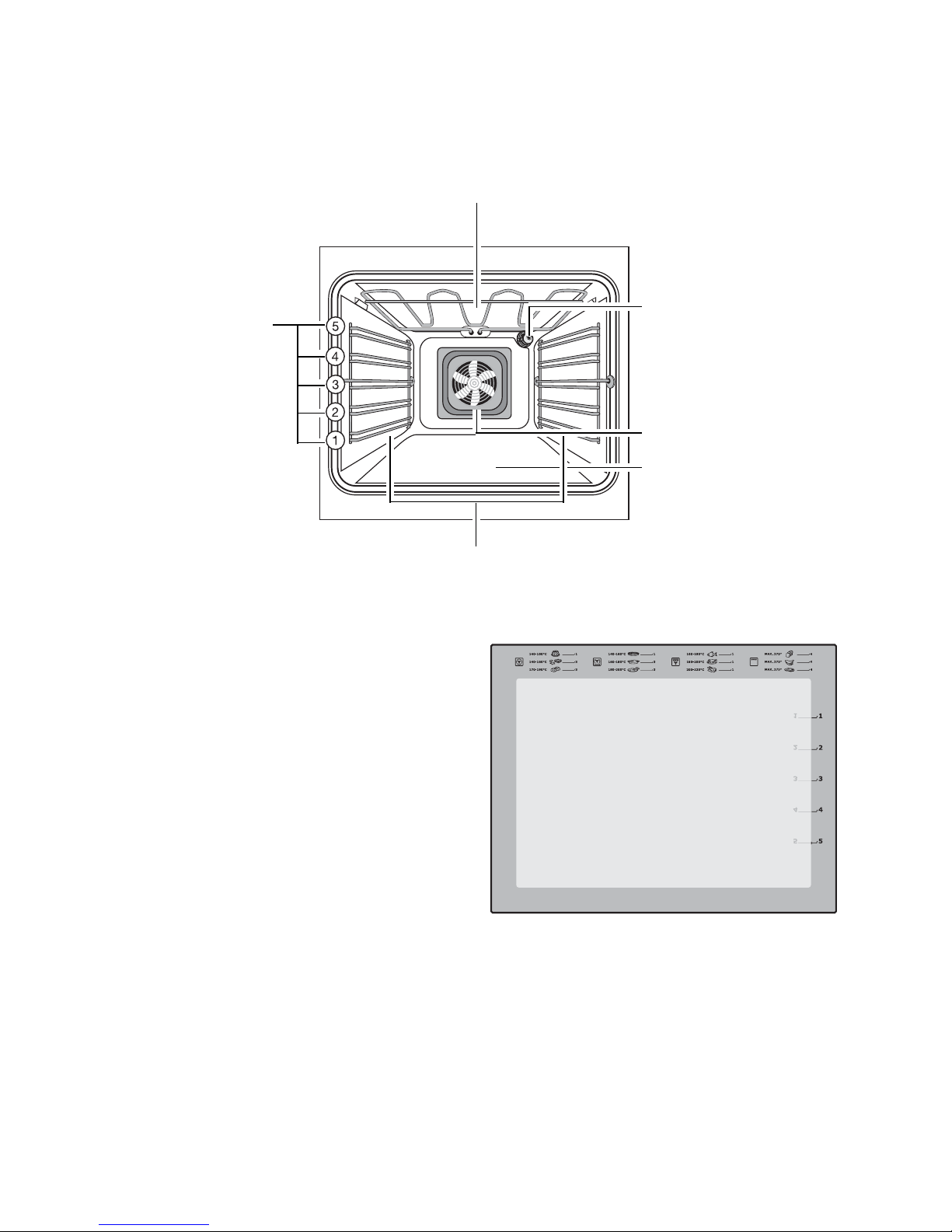

Oven Features
Inside of door
On the inside of the oven door you will
find the numbers of the different oven
shelves.
You will also find some brief information
about the oven's functions, recom-
mended shelves and temperatures for
cooking the most popular dishes.
Top heat and heating elements
Oven lighting
Fan heating element
Fan
Bottom heat
Shelf positions
Oven shelf runners, removable

description of the appliance electrolux 9
Oven Accessories
Shelf
For dishes, cake tins, items for roasting
and grilling.
Grill set
Grill
Insert for the roasting pan for roasting
and grilling.
Roasting Pan
For baking and roasting or as a pan for
collecting fat.

10 electrolux before using for the first time
Before using for the first time

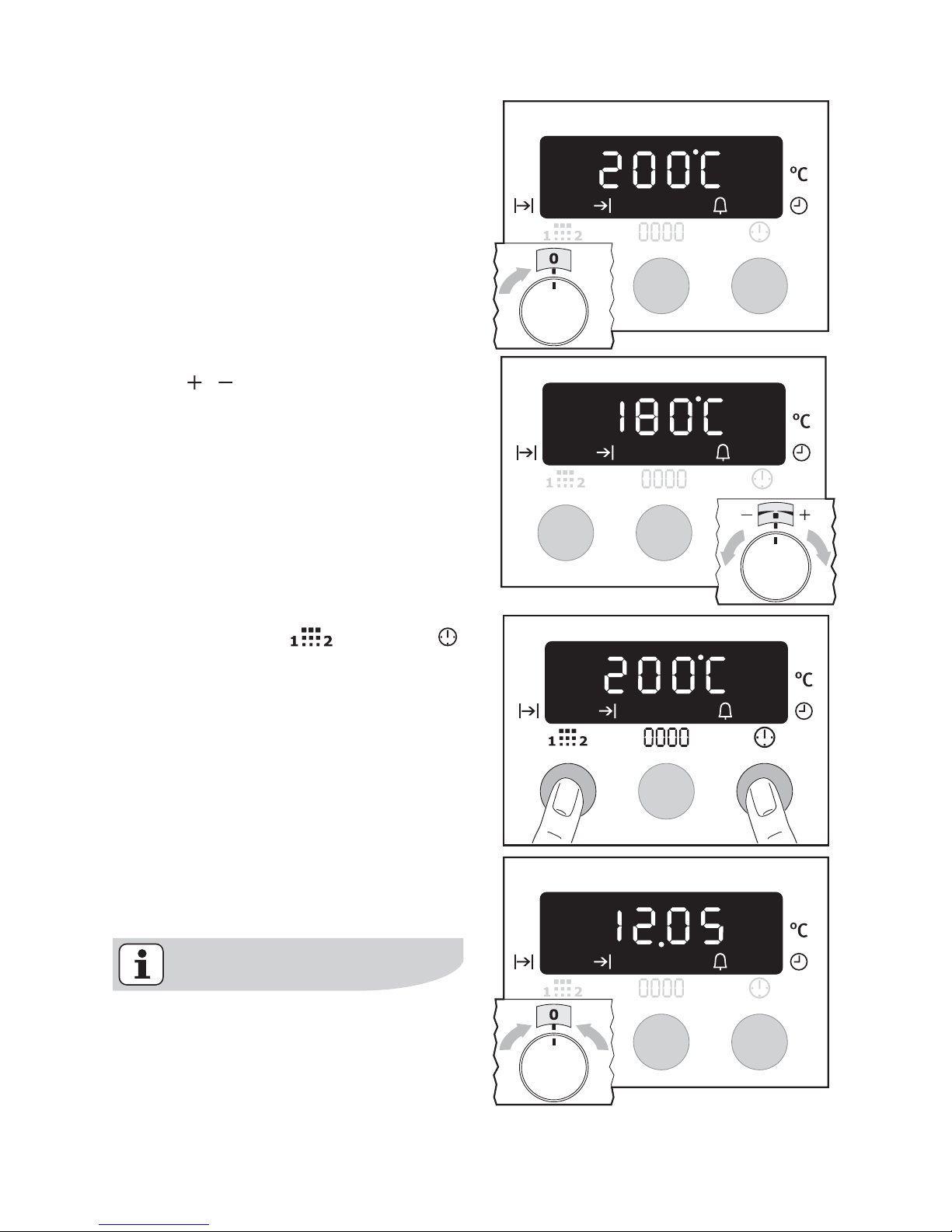

Setting and changing the cur-
rent time
The oven only operates when the
time has been set.
When the appliance has been connect-
ed to the electrical supply or when there
has been a power cut, the function indi-
cator Time flashes automatically.
1. To change a time that has already
been set, press the Select button
repeatedly until the function indicator
Time flashes.
2. Using the / control knob, set the
current time.
After approx. 5 seconds, the clock
stops flashing and the clock displays the
time of day set.
The appliance is now ready to use.
The time can only be modified, if the
child safety device is deactivated,
neither of the Countdown , Cook
time or End time clock func-
tions and no oven function is set.

before using for the first time electrolux 11
Initial Cleaning
Before using the oven for the first time
you should clean it thoroughly.
Caution: Do not use any caustic or
abrasive cleaners. The surface
could be damaged.
To clean metal fronts use commer-
cially available cleaning agents.
1. Set the oven functions dial to
Light .
2. Remove all accessories and the shelf
support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm
water and washing-up liquid, and
dry.
4. Wipe the front of the appliance with
a damp cloth.

12 electrolux operating the oven
Operating the Oven
Switching the Oven On and Off
Oven Functions Temperature/Time selection
Temperature / Time Display
Change display
Heat indicator
Oven Power Indicator
Select buttonPyrolyse time
Oven Power Indicator

operating the oven electrolux 13
Switching the oven on
Turn the oven functions selector to the
desired function. The power indicator
light lights up. The temperature display
shows the suggested temperature for
the oven function selected.
The oven starts to heat up.
When the temperature set is reached,
an audible signal sounds.
Changing the oven temperature
Turn the / knob to raise or lower the
temperature.
The setting changes in 5 °C steps.
Checking the temperature
Press Pyrolyse time and Select
buttons at the same time.
The current oven temperature appears
in the temperature display.
Switching the oven off
To turn the oven off, turn the oven func-
tions selector to the OFF position.
The bargraph display is lit as long as the
appliance is switched on.

14 electrolux operating the oven
Cooling fan
The fan switches on automatically
in order to keep the appliance’s sur-
faces cool. When the oven is
switched off, the fan continues to
run to cool the appliance down, then
switches itself off automatically.
Heat indicator
Indicates warming up
When the oven function has been
switched on the bars that slowly
light up one after the other indicate
how far the oven has heated up.
Residual heat indicator
When the oven has been switched
off, the bars that are still lit indicate
the remaining residual heat in the
oven.
With the oven functions Pizza setting ,
Conventional and Convection
grilling the heating up time is short-
ened by the automatic function
Speedcook.

operating the oven electrolux 15
Oven Functions
The oven has the following functions:
Oven function Use
Light With this function you can light up the oven interior, e.g. for
cleaning.
Convection with
ring heating
element
For roasting and baking on up to three levels at the same
time.
Set the oven temperatures
20-40 °C lower than when using upper/lower heat.
Conventional For baking and roasting on one oven level .
Pizza setting For baking on one oven level dishes that require more inten-
sive browning and a crispy base
.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Convection grill-
ing
For roasting larger joints of meat or poultry on one oven shelf.
The function is also suitable for
browning and gratinbaking .
Grill For grilling flat food items arranged in the middle of the grill
and for
toasting .
Dual grill For grilling flat food items in large quantities and for toast-
ing .
Bottom heat For baking cakes with crispy or crusty bases .
Pyroluxe For automatic pyrolytic cleaning of the oven. It burns off resi-
dues in the oven, which can then be removed with a cloth when
the oven has cooled down. The oven is heated to approx.
500 °C.

16 electrolux operating the oven

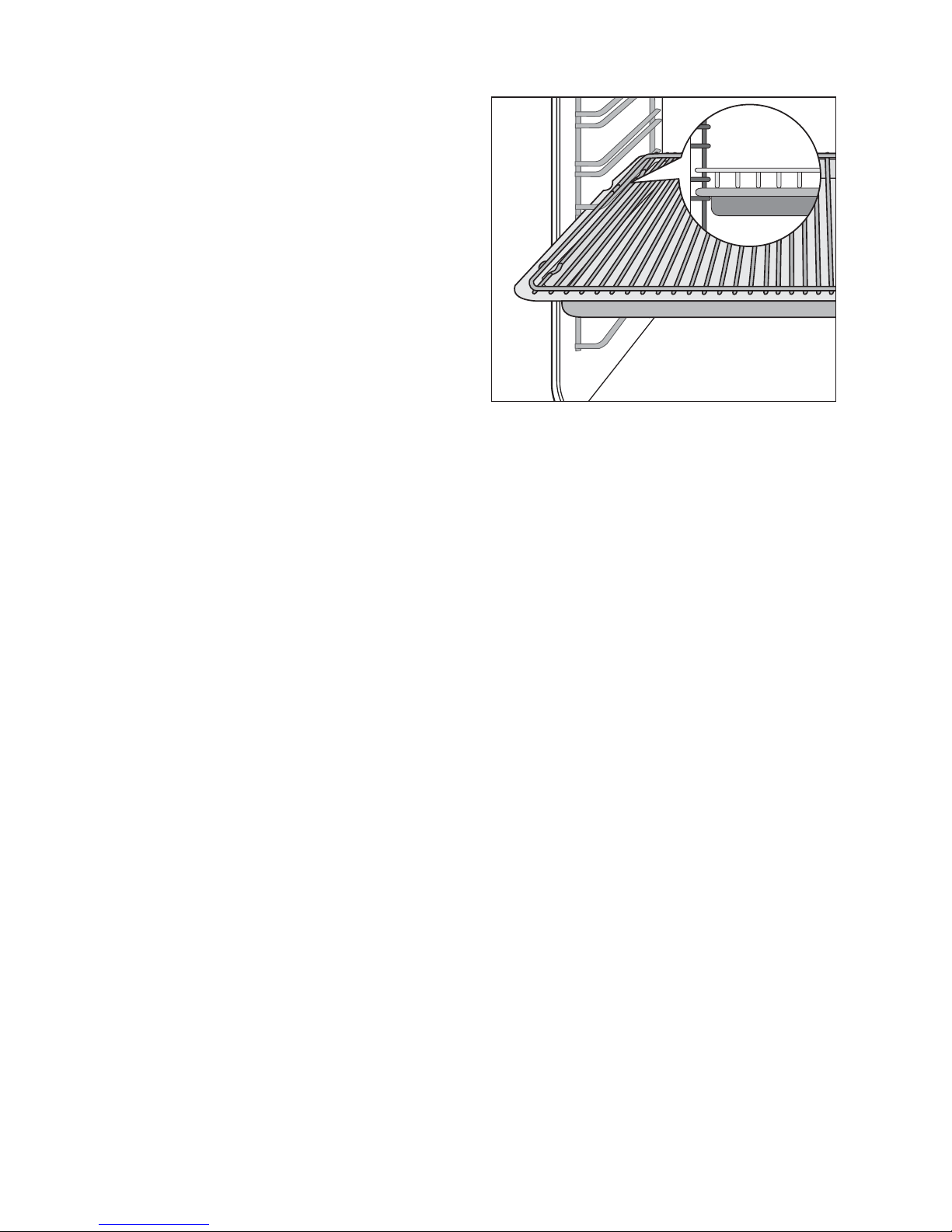

Inserting the Oven Shelf and the
Roasting Pan
Shelf runner safety and anti-tip de-
vice
As a shelf runner safety device all
insertable components have a small
curved indentation at the bottom on
the right and left-hand edge.
Always insert insertable compo-
nents so that this indentation is at
the back of the oven interior. This in-
dentation is also important for pre-
venting the insertable components
from tipping.
Inserting the roasting pan:
Push the roasting pan between the
guide bars of the selected oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet
point downwards.
Push the oven shelf between the guide
bars of the selected oven level.
The high rim around the oven shelf is an
additional device to prevent cookware
from slipping.

operating the oven electrolux 17
Inserting the oven shelf and the
roasting pan together:
Lay the oven shelf on the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.

18 electrolux operating the oven
Grill set
The grill set consists of grill and roasting
pan. The grill can used on both sides.
Warning: There is a risk of burning
when removing the roasting pan
from the hot oven!
Inserting the grill tray underneath:
The grill tray rests in the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.
For roasting larger joints of meat or
poultry on one oven shelf.
Inserting the grill tray on top:
The grill tray rests on the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.
For grilling flat food items in large
quantities and for toasting.

operating the oven electrolux 19
Clock Functions
Cook time
To set how long the oven is to be in use.
End time
To set when the oven is to switch off
again.
Countdown
To set a countdown. A signal sounds af-
ter the time has elapsed.
This function does not affect the opera-
tion of the oven.
Time
To set, change or check the time
(See also section “Before Using for the
First Time”).
Temperature / Time Display
Change display
Clock function lights
Selector ButtonPyrolyse time

20 electrolux operating the oven
How to use the clock functions
•After a clock function has been se-
lected, the corresponding function
indicator flashes for
about 5 seconds. During this period,
the desired times can be set or mod-
ified using the / dial.
•When the desired time has been set,
the function indicator continues to
flash for approx. 5 seconds. After
that the function indicator is then lit.
The set time begins to run in the
background.
•When the clock functions Cook
time and End time have been
completed, the oven functions
dial must be turned back to “0”.
•Using the Change display but-
ton, you can switch between the
oven temperature and the time.
Checking the time set or remaining
Press the Select button repeated-
ly, until the appropriate clock func-
tion flashes and the time set or
remaining is displayed.
