Electrolux EJF4311AOW User manual

EJF4311AOW
................................................ .............................................
EN FRIDGE FREEZER USER MANUAL

CONTENTS
1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5. WHAT TO DO IF… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7. NOISES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8. TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2www.electrolux.com

1. SAFETY INSTRUCTIONS
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and acci-
dents, it is important to ensure that all
people using the appliance are thoroughly
familiar with its operation and safety fea-
tures. Save these instructions and make
sure that they remain with the appliance if
it is moved or sold, so that everyone using
it through its life will be properly informed
on appliance use and safety.
For the safety of life and property keep
the precautions of these user's instruc-
tions as the manufacturer is not responsi-
ble for damages caused by omission.
1.1 Children and vulnerable
people safety
• This appliance is not intended for use
by persons (including children) with re-
duced physical, sensory or mental ca-
pabilities, or lack of experience and
knowledge, unless they have been giv-
en supervision or instruction concerning
use of the appliance by a person re-
sponsible for their safety.
Children should be supervised to en-
sure that they do not play with the ap-
pliance.
• Keep all packaging well away from chil-
dren. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the con-
nection cable (as close to the appliance
as you can) and remove the door to
prevent playing children to suffer elec-
tric shock or to close themselves into it.
• If this appliance featuring magnetic
door seals is to replace an older appli-
ance having a spring lock (latch) on the
door or lid, be sure to make that spring
lock unusable before you discard the
old appliance. This will prevent it from
becoming a death trap for a child.
1.2 General safety
WARNING!
Keep ventilation openings, in the appli-
ance enclosure or in the built-in structure,
clear of obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household and similar applications such
as:
– staff kitchen areas in shops, offices
and other working environments;
– farm houses and by clients in hotels,
motels and other residential type en-
vironments;
– bed and breakfast type environ-
ments;
– catering and similar non-retail appli-
cations.
• Do not use a mechanical device or any
artificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of re-
frigerating appliances, unless they are
approved for this purpose by the manu-
facturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is
contained within the refrigerant circuit of
the appliance, a natural gas with a high
level of environmental compatibility,
which is nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of
the components of the refrigerant cir-
cuit become damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of ig-
nition
– thoroughly ventilate the room in
which the appliance is situated
• It is dangerous to alter the specifica-
tions or modify this product in any way.
Any damage to the cord may cause a
short-circuit, fire and/or electric shock.
WARNING!
Any electrical component (power
cord, plug, compressor) must be
replaced by a certified service
agent or qualified service person-
nel to avoid hazard.
ENGLISH 3

1. Power cord must not be length-
ened.
2. Make sure that the power plug is
not squashed or damaged by the
back of the appliance. A squashed
or damaged power plug may over-
heat and cause a fire.
3. Make sure that you can come to
the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose,
do not insert the power plug. There
is a risk of electric shock or fire.
6. You must not operate the appli-
ance without the lamp cover (if
foreseen) of interior lighting.
• This appliance is heavy. Care should be
taken when moving it.
• Do not remove nor touch items from
the freezer compartment if your hands
are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appli-
ance to direct sunlight.
• Bulb lamps (if foreseen) used in this ap-
pliance are special purpose lamps se-
lected for household appliances use
only. They are not suitable for house-
hold room illumination.
1.3 Daily Use
• Do not put hot pot on the plastic parts
in the appliance.
• Do not store flammable gas and liquid
in the appliance, because they may ex-
plode.
• Do not place food products directly
against the air outlet on the rear wall. (If
the appliance is Frost Free)
• Frozen food must not be re-frozen once
it has been thawed out.
• Store pre-packed frozen food in ac-
cordance with the frozen food manu-
facturer's instructions.
• Appliance's manufacturers storage rec-
ommendations should be strictly ad-
hered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks
in the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.
• Ice lollies can cause frost burns if con-
sumed straight from the appliance.
1.4 Care and cleaning
• Before maintenance, switch off the ap-
pliance and disconnect the mains plug
from the mains socket.
• Do not clean the appliance with metal
objects.
• Do not use sharp objects to remove
frost from the appliance. Use a plastic
scraper.
• Regularly examine the drain in the re-
frigerator for defrosted water. If neces-
sary, clean the drain. If the drain is
blocked, water will collect in the bottom
of the appliance.
1.5 Installation
For electrical connection carefully
follow the instructions given in
specific paragraphs.
• Unpack the appliance and check if
there are damages on it. Do not con-
nect the appliance if it is damaged. Re-
port possible damages immediately to
the place you bought it. In that case re-
tain packing.
• It is advisable to wait at least four hours
before connecting the appliance to al-
low the oil to flow back in the compres-
sor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient
ventilation follow the instructions rele-
vant to installation.
• Wherever possible the back of the
product should be against a wall to
avoid touching or catching warm parts
(compressor, condenser) to prevent
possible burn.
• The appliance must not be located
close to radiators or cookers.
• Make sure that the mains plug is acces-
sible after the installation of the appli-
ance.
• Connect to potable water supply only (If
a water connection is foreseen).
4www.electrolux.com

1.6 Service
• Any electrical work required to do the
servicing of the appliance should be
carried out by a qualified electrician or
competent person.
• This product must be serviced by an
authorized Service Centre, and only
genuine spare parts must be used.
1.7 Environment Protection
This appliance does not contain
gasses which could damage the
ozone layer, in either its refrigerant
circuit or insulation materials. The
appliance shall not be discarded
together with the urban refuse and
rubbish. The insulation foam con-
tains flammable gases: the appli-
ance shall be disposed according
to the applicable regulations to
obtain from your local authorities.
Avoid damaging the cooling unit,
especially at the rear near the heat
exchanger. The materials used on
this appliance marked by the sym-
bol are recyclable.
2. DAILY USE
2.1 Before first use
Before using the appliance for the first
time, wash the interior and all internal ac-
cessories with lukewarm water and some
neutral soap so as to remove the typical
smell of a brand-new product, then dry
thoroughly.
Do not use detergents or abrasive
powders, as these will damage
the finish.
2.2 Switching on
Insert the plug into the wall socket.
Turn the Temperature regulator clockwise
to a medium setting.
2.3 Switching off
To turn off the appliance, turn the Tem-
perature regulator to the "O" position.
2.4 Temperature regulation
The temperature is automatically regula-
ted.
To operate the appliance, proceed as fol-
lows:
• turn the Temperature regulator toward
lower settings to obtain the minimum
coldness.
• turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.
A medium setting is generally the
most suitable.
However, the exact setting should be
chosen keeping in mind that the tempera-
ture inside the appliance depends on:
• room temperature
• how often the door is opened
• the quantity of food stored
• the location of the appliance.
If the ambient temperature is high
or the appliance is fully loaded,
and the appliance is set to the
lowest temperatures, it may run
continuously causing frost to form
on the rear wall. In this case the
dial must be set to a higher tem-
perature to allow automatic de-
frosting and therefore reduced en-
ergy consumption.
2.5 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh foods it is not necessary
to change the medium setting.
However, for a faster freezing operation,
turn the temperature regulator toward
higher settings to obtain the maximum
coldness.
ENGLISH 5

In this condition, the refrigerator
compartment temperature might
drop below 0°C. If this occurs re-
set the temperature regulator to a
warmer setting.
Place the fresh food to be frozen on the
shelf of the freezer compartment that is
the coldest place.
The maximum amount of food that can be
frozen in 24 hours is specified on the rat-
ing plate, a label located on the inside of
the appliance.
The freezing process lasts 24 hours: dur-
ing this period do not add other food to
be frozen.
2.6 Storage of frozen food
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours on the higher settings.
In the event of accidental defrost-
ing, for example due to a power
failure, if the power has been off
for longer than the value shown in
the technical characteristics chart
under "rising time", the defrosted
food must be consumed quickly
or cooked immediately and then
re-frozen (after cooling).
2.7 Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature, de-
pending on the time available for this op-
eration.
Small pieces may even be cooked still fro-
zen, directly from the freezer: in this case,
cooking will take longer.
2.8 Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-
cubes. Fill these trays with water, then put
them in the freezer compartment.
Do not use metallic instruments to
remove the trays from the freezer.
2.9 Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
6www.electrolux.com

2.10 Bottle rack
Place the bottles (with the opening facing
front) in the pre-positioned shelf.
If the shelf is positioned horizontally, place
only closed bottles.
This bottle holder shelf can be tilted in or-
der to store previously opened bottles. To
obtain this result, pull the shelf up so it
can rotate upwards and be placed on the
next higher level.
2.11 Positioning the door shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
To make these adjustments proceed as
follow: gradually pull the shelf in the direc-
tion of the arrows until it comes free, then
reposition as required.
2.12 FREESTORE function
1
2
The FREESTORE function let food cool
quickly and a more uniform temperature
in the compartment.
Press the switch (1) to switch on the
FREESTORE . The green light (2) comes
on.
This device allows for rapid cooling of
foods and a more uniform temperature in
the compartment.
Switch on the FREESTORE function when
the ambient temperature exceeds 25°C.
ENGLISH 7

2.13 Vegetable drawer with humidity control
The drawer is suitable for storing fruit and
vegetables.

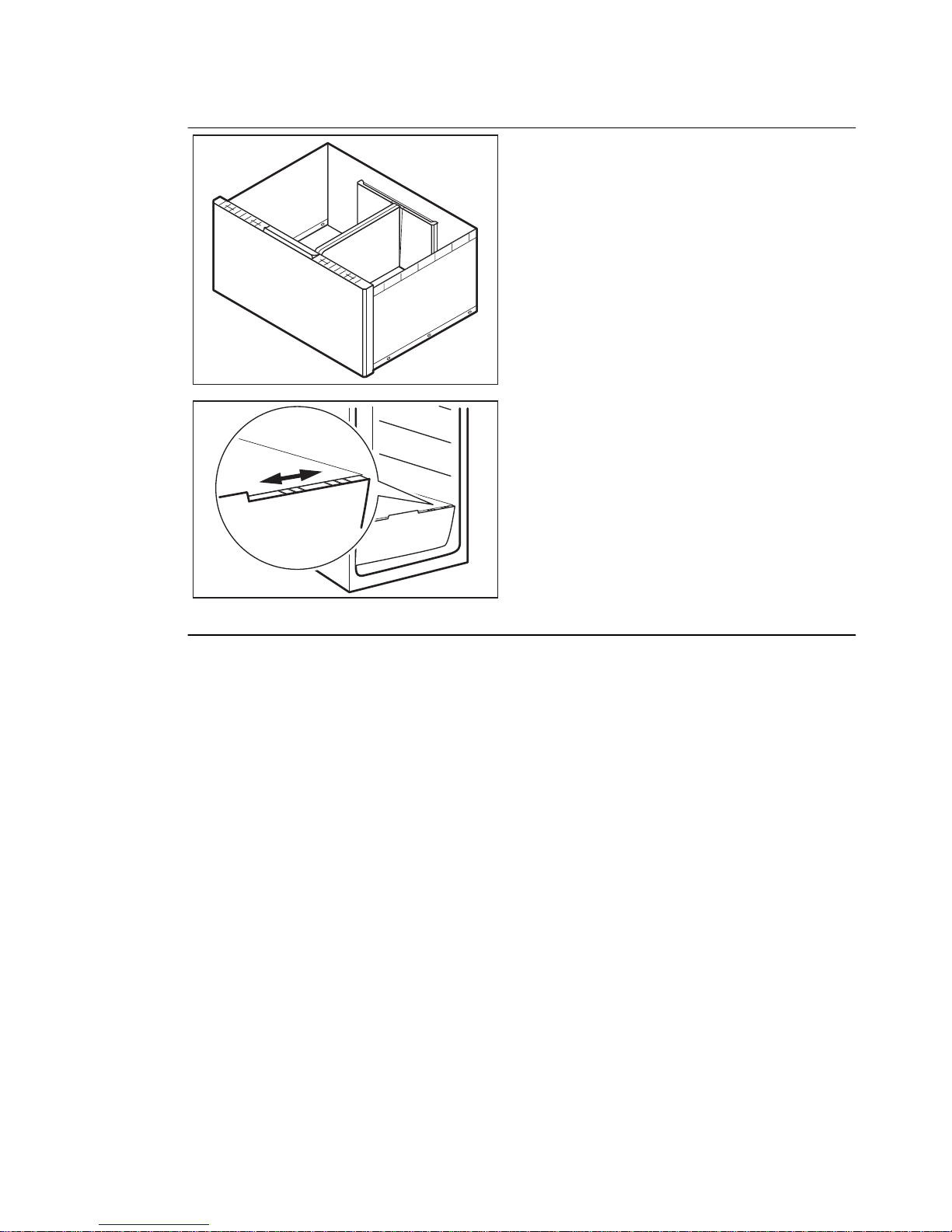

Place the separator inside the drawer in
different positions to allow for the subdivi-
sion best suited to personal needs.
The grille (if foreseen) on the bottom of the
drawer separates the fruit and vegetables
from any humidity that may form on the
bottom surface.
Remove all parts inside the drawer for
cleaning purposes.
To regulate the humidity in the vegetable
drawer the glass shelf incorporates a de-
vice with slits (adjustable by means of a
sliding lever).
When the ventilation slots are closed:
the natural moisture content of the food in
the fruit and vegetable compartments is
preserved for longer.
When the ventilation slots are opened:
more air circulation results in a lower air
moisture content in the fruit and vegetable
compartments.
3. HELPFUL HINTS AND TIPS
3.1 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run con-
tinuously, causing frost or ice on the
evaporator. If this happens, set the
Temperature Regulator toward warmer
settings to allow automatic defrosting
and so a saving in electricity consump-
tion.
3.2 Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly if
it has a strong flavour
• position food so that air can circulate
freely around it
3.3 Hints for refrigeration
Useful hints:
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the
vegetable drawer.
For safety, store in this way only one or
two days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be
thoroughly cleaned and placed in the spe-
cial drawer(s) provided.
Butter and cheese: these should be
placed in special airtight containers or
8www.electrolux.com

wrapped in aluminium foil or polythene
bags to exclude as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if
not packed, must not be kept in the re-
frigerator.
3.4 Hints for freezing
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which
can be frozen in 24 hrs. is shown on
the rating plate;
• the freezing process takes 24 hours.
No further food to be frozen should be
added during this period;
• only freeze top quality, fresh and thor-
oughly cleaned, foodstuffs;
• prepare food in small portions to enable
it to be rapidly and completely frozen
and to make it possible subsequently to
thaw only the quantity required;
• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the lat-
ter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life
of food;
• water ices, if consumed immediately af-
ter removal from the freezer compart-
ment, can possibly cause the skin to be
freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to enable
you to keep tab of the storage time.
3.5 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by
the retailer;
• be sure that frozen foodstuffs are trans-
ferred from the foodstore to the freezer
in the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary;
• once defrosted, food deteriorates rap-
idly and cannot be refrozen;
• do not exceed the storage period indi-
cated by the food manufacturer.
4. CARE AND CLEANING
CAUTION!
Unplug the appliance before car-
rying out any maintenance opera-
tion.
This appliance contains hydrocar-
bons in its cooling unit; mainte-
nance and recharging must there-
fore only be carried out by author-
ized technicians.
4.1 Periodic cleaning
The equipment has to be cleaned regular-
ly:
• clean the inside and accessories with
lukewarm water and some neutral
soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Do not pull, move or damage any
pipes and/or cables inside the
cabinet.
Never use detergents, abrasive
powders, highly perfumed clean-
ing products or wax polishes to
clean the interior as this will dam-
age the surface and leave a
strong odour.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve
ENGLISH 9

the performance of the appliance and
save electricity consumption.
Take care of not to damage the
cooling system.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/dam-
age the plastics used in this appliance.
For this reason it is recommended that
the outer casing of this appliance is only
cleaned with warm water with a little
washing-up liquid added.
After cleaning, reconnect the equipment
to the mains supply.
4.2 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
•disconnect the appliance from elec-
tricity supply
• remove all food
• defrost (if foreseen) and clean the appli-
ance and all accessories
• leave the door/doors ajar to prevent un-
pleasant smells.
If the cabinet will be kept on, ask some-
body to check it once in a while to pre-
vent the food inside from spoiling in case
of a power failure.
4.3 Defrosting the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator compart-
ment every time the motor compressor
stops, during normal use. The defrost wa-
ter drains out through a drain hole into a
special container at the back of the appli-
ance, over the motor compressor, where
it evaporates.

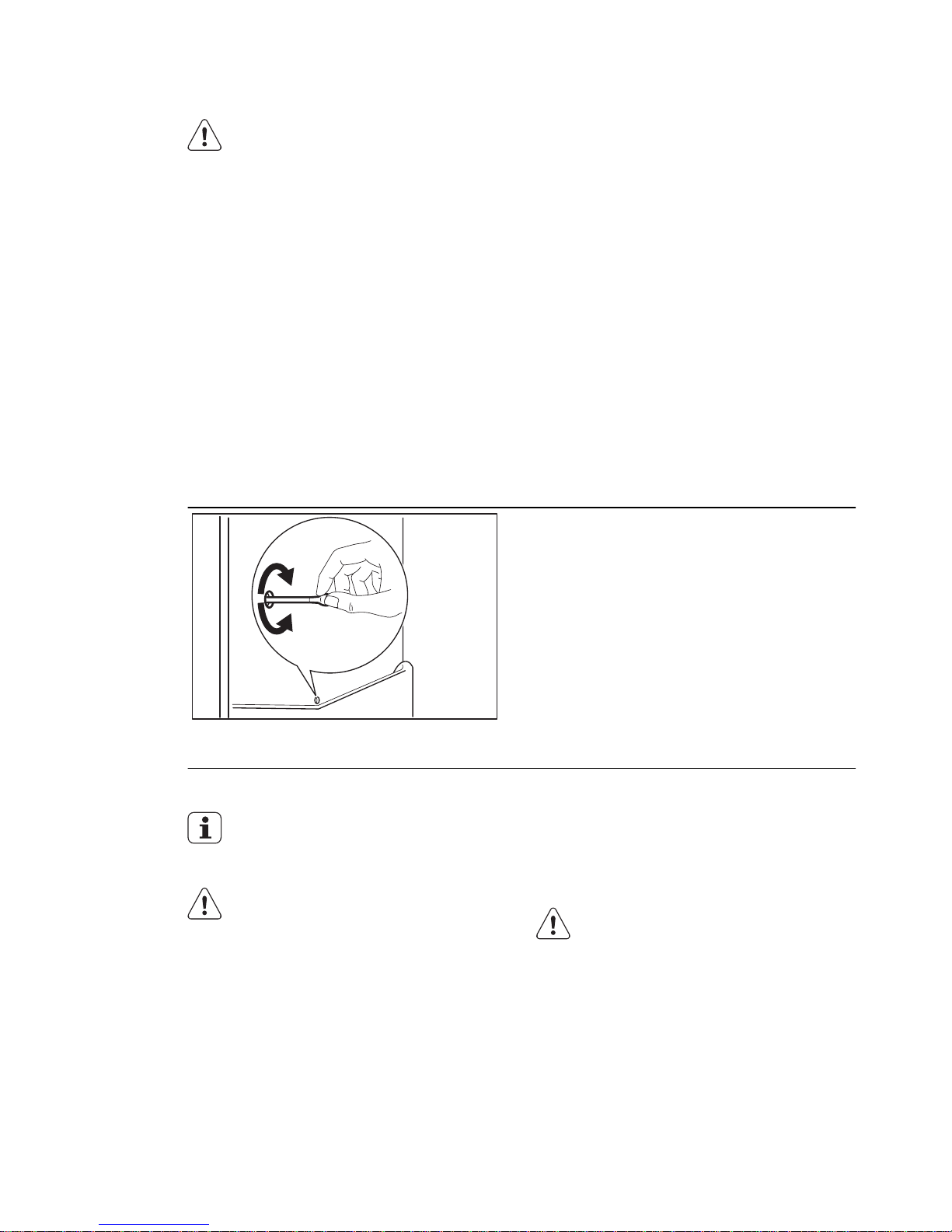

It is important to periodically clean the de-
frost water drain hole in the middle of the
refrigerator compartment channel to pre-
vent the water overflowing and dripping
onto the food inside.
4.4 Defrosting the freezer
A certain amount of frost will al-
ways form around the top com-
partment.
Defrost the freezer when the frost
layer reaches a thickness of about
3-5 mm.
To remove the frost, do these steps:
1. Switch off the appliance.
2. Remove any stored food, wrap it in
several layers of newspaper and put it
in a cool place.
3. Open the door.
4. When defrosting is completed, dry
the interior thoroughly.
5. Switch on the appliance.
6. Set the temperature regulator to ob-
tain the maximum coldness and run
the appliance for two or three hours
using this setting.
7. Reload the previously removed food
into the compartment.
WARNING!
Never use sharp metal tools to
scrape off frost from the evapora-
tor as you could damage it. Do
not use a mechanical device or
any artificial means to speed up
the thawing process other than
those recommended by the man-
ufacturer. A temperature rise of
the frozen food packs, during de-
frosting, may shorten their safe
storage life.
10 www.electrolux.com

5. WHAT TO DO IF…
WARNING!
Before troubleshooting, discon-
nect the mains plug from the
mains socket.
Only a qualified electrician or com-
petent person must do the trou-
bleshooting that is not in this man-
ual.
There are some sounds during
normal use (compressor, refriger-
ant circulation).
Problem Possible cause Solution
The appliance does
not operate. The
lamp does not oper-
ate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con-
nected to the mains sock-
et correctly.
Connect the mains plug to
the mains socket correctly.
The appliance has no
power. There is no voltage
in the mains socket.
Connect a different electri-
cal appliance to the mains
socket.
Contact a qualified electri-
cian.
The lamp does not
work.
The lamp is in stand-by. Close and open the door.
The lamp is defective. Refer to "Replacing the
lamp".
The compressor op-
erates continually.
The temperature is not set
correctly.
Set a higher temperature.
The door is not closed
correctly.
Refer to "Closing the door".
The door has been
opened too frequently.
Do not keep the door open
longer than necessary.
The product temperature
is too high.
Let the product tempera-
ture decrease to room tem-
perature before storage.
The room temperature is
too high.
Decrease the room temper-
ature.
Water flows on the
rear plate of the re-
frigerator.
During the automatic de-
frosting process, frost de-
frosts on the rear plate.
This is correct.
Water flows into the
refrigerator.
The water outlet is clog-
ged.
Clean the water outlet.
Products prevent that wa-
ter flows into the water
collector.
Make sure that products do
not touch the rear plate.
ENGLISH 11

Problem Possible cause Solution
Water flows on the
ground.
The melting water outlet
does not flow in the evap-
orative tray above the
compressor.
Attach the melting water
outlet to the evaporative
tray.
The temperature in
the appliance is too
low/high.
The temperature regulator
is not set correctly.
Set a higher/lower tempera-
ture.
The temperature in
the refrigerator is
too high.
There is no cold air circu-
lation in the appliance.
Make sure that there is cold
air circulation in the appli-
ance.
The temperature in
the freezer is too
high.
Products are too near to
each other.
Store products so that
there is cold air circulation.
There is too much
frost.
Food is not wrapped cor-
rectly.
Wrap the food correctly.
The door is not closed
correctly.
Refer to "Closing the door".
The temperature regulator
is not set correctly.
Set a higher temperature.
5.1 Replacing the lamp
1. Disconnect the mains plug from the
mains socket.
2. Remove the screw from the lamp
cover.
3. Remove the lamp cover (refer to the
illustration).
4. Replace the used lamp with a new
lamp of the same power and specifi-
cally designed for household applian-
ces. (the maximum power is shown
on the lamp cover).
5. Install the lamp cover.
6. Tighten the screw to the lamp cover.
7. Connect the mains plug to the mains
socket.
8. Open the door. Make sure that the
lamp comes on.
5.2 Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
"Installation".
3. If necessary, replace the defective
door gaskets. Contact the Service
Center.
12 www.electrolux.com

6. INSTALLATION
WARNING!
Read the "Safety Information"
carefully for your safety and cor-
rect operation of the appliance
before installing the appliance.
6.1 Positioning
Install this appliance at a location where
the ambient temperature corresponds to
the climate class indicated on the rating
plate of the appliance:
Cli-
mate
class
Ambient temperature
SN +10°C to + 32°C
N+16°C to + 32°C
ST +16°C to + 38°C
T+16°C to + 43°C

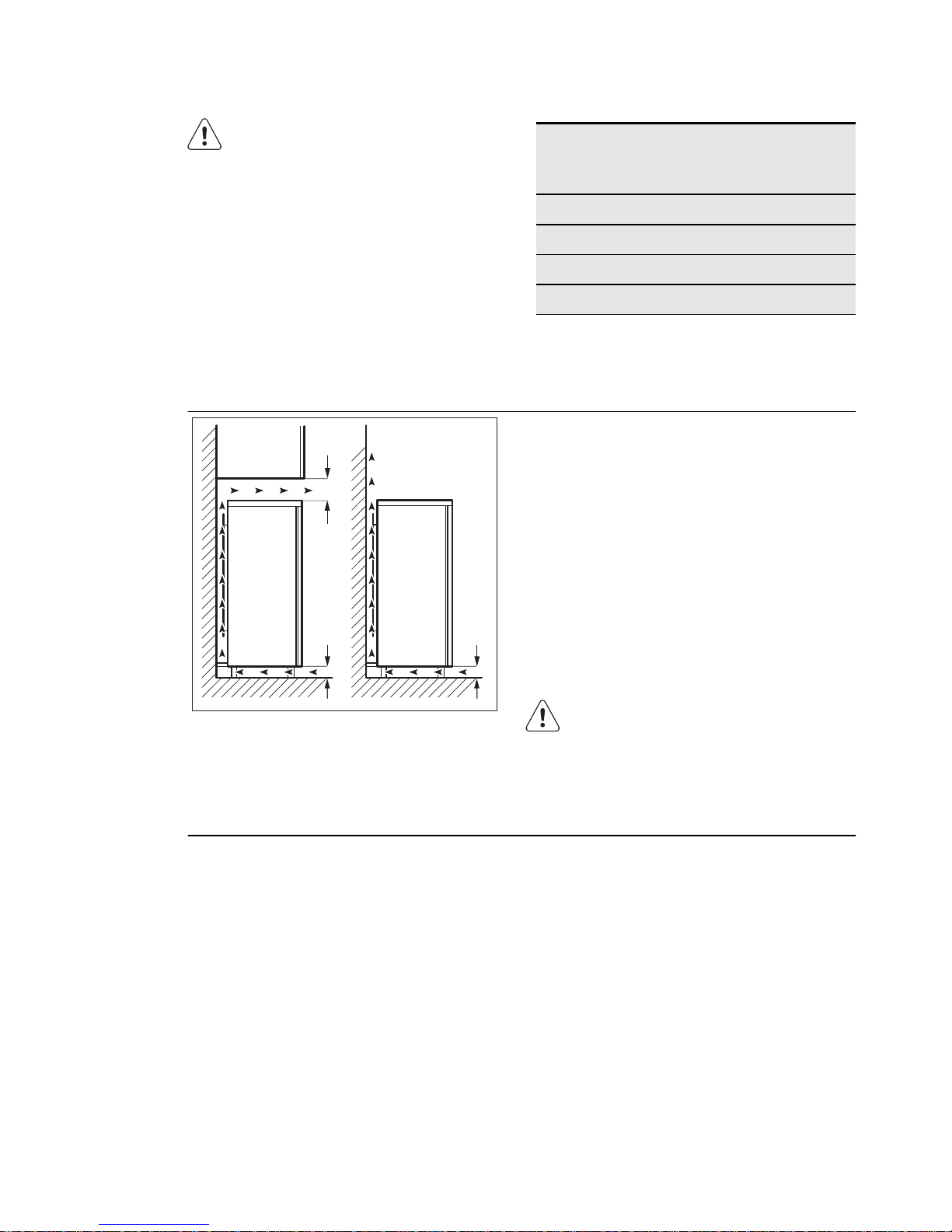

6.2 Location
100 mm
15 mm 15 mm
The appliance should be installed well
away from sources of heat such as radia-
tors, boilers, direct sunlight etc. Ensure
that air can circulate freely around the
back of the cabinet. To ensure best per-
formance, if the appliance is positioned
below an overhanging wall unit, the mini-
mum distance between the top of the
cabinet and the wall unit must be at least
100 mm . Ideally, however, the appliance
should not be positioned below overhang-
ing wall units. Accurate levelling is ensur-
ed by one or more adjustable feet at the
base of the cabinet.
WARNING!
It must be possible to disconnect the ap-
pliance from the mains power supply; the
plug must therefore be easily accessible
after installation.
6.3 Electrical connection
Before plugging in, ensure that the volt-
age and frequency shown on the rating
plate correspond to your domestic power
supply.
The appliance must be earthed. The pow-
er supply cable plug is provided with a
contact for this purpose. If the domestic
power supply socket is not earthed, con-
nect the appliance to a separate earth in
compliance with current regulations, con-
sulting a qualified electrician.
The manufacturer declines all responsibili-
ty if the above safety precautions are not
observed.
This appliance complies with the E.E.C.
Directives.
ENGLISH 13

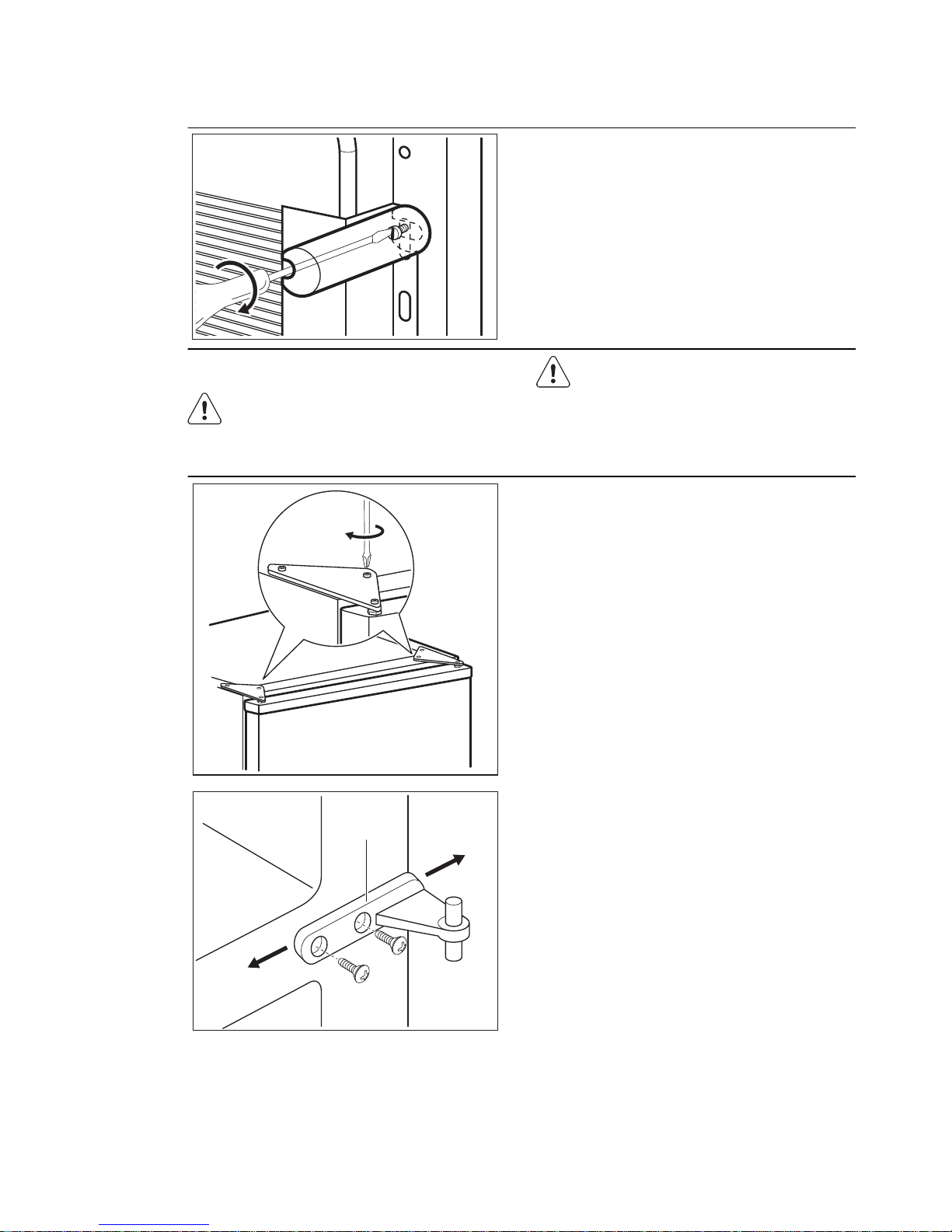

6.4 Rear spacers
Inside the appliance you find two
spacers which must be fitted as
shown in the figure.
Slacken the screws and insert the spacer
under the screw head, then retighten the
screws.
6.5 Door reversibility
WARNING!
Before carrying out any opera-
tions, remove the plug from the
power socket.
To carry out the following opera-
tions, we suggest that this be
made with another person that will
keep a firm hold on the doors of
the appliance during the opera-
tions.
To change the opening direction of the door,
do these steps:
Remove the upper hinge taking care for the
upper door not to fall off and keep it for fu-
ture actions.
Remove the upper door.
Remove the upper support and install it in
the opposite side.
H
Unscrew the middle hinge (H). Remove the
plastic plugs located on the opposite side of
the central hinge and install them in the
holes occupied before by the hinge.
14 www.electrolux.com

Remove the lower door.
Remove the ventilation grille which is fixed
by two screws.
Carefully put the appliance to its rear side,
totally unscrew the adjustable foot and
screw it in the opposite side.
Remove the bottom hinge by unscrewing its
fixing screws.
Using a 12 mm spanner, unscrew the hinge
pin and reassemble it on the opposite side
of the hinge.
Install the lower hinge in the opposite side,
using the screws previously removed.
Carefully put the appliance in its working po-
sition and adjust the level of the appliance
by screwing / unscrewing the adjustable feet
at the bottom of the cabinet using your fin-
gers or a tool.
Slide the hole cover out of the ventilation
grille by pushing it in the direction of the ar-
row and reassemble it on the opposite side.
Install the ventilation grille, fixing the screws.
Install the lower door.
Install the middle hinge (H) in the opposite
side.
Install the upper door.
In your documentation bag you will find the
upper hinge necessary to make the reversi-
bility. Put the hinge in position and screw it.
Remove the covers and the handles and fix
them on the opposite side.
Insert the plastic plugs into the hole left
open.
Do a final check to make sure that:
• All screws are tightened.
• The magnetic seal adheres to the cabi-
net.
• The door opens and closes correctly.
If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to
the cabinet. In that case, wait for the nat-
ural fitting of the gasket.
In case you do not want to carry out the
above mentioned operations, contact the
nearest After Sales Service Force. The Af-
ter Sales Service specialist will carry out
the reversibility of the doors at your cost.
ENGLISH 15

7. NOISES
There are some sounds during normal
running (compressor, refrigerant circula-
tion).
BRRR!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRRR!
OK
CLICK! CLICK!
SSSRRR! SSSRRR!
BRRR! BRRR!
HISSS! HISSS!
16 www.electrolux.com

BLUBB! BLUBB! CRACK!CRACK!
8. TECHNICAL DATA
Dimension of the recess
Height 1800 mm
Width 695 mm
Depth 669 mm
Rising Time 25 h
Voltage 230-240 V
Frequency 50 Hz
The technical information are situated in
the rating plate on the internal left side of
the appliance and in the energy label.
9. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
ENGLISH 17

18 www.electrolux.com

ENGLISH 19

www.electrolux.com/shop
212360001-A-372012
