EN User Manual
Washer Dryer QW 16850 HT

CONTENTS
1. SAFETY INFORMATION.................................................................................................3
2. SAFETY INSTRUCTIONS................................................................................................ 5
3. PRODUCT DESCRIPTION.............................................................................................. 7
4. CONTROL PANEL...........................................................................................................8
5. PROGRAMMES ............................................................................................................ 11
6. CONSUMPTION VALUES.............................................................................................16
7. OPTIONS....................................................................................................................... 16
8. SETTINGS...................................................................................................................... 18
9. DAILY USE - WASHING ONLY.....................................................................................18
10. DAILY USE - DRYING ONLY...................................................................................... 22
11. DAILY USE - WASHING & DRYING...........................................................................23
12. HINTS AND TIPS.........................................................................................................26
13. CARE AND CLEANING.............................................................................................. 27
14. TROUBLESHOOTING.................................................................................................31
15. TECHNICAL DATA..................................................................................................... 35
DEAR CUSTOMER
Thank you for choosing this Husqvarna-Electrolux product. We have created it to
give you impeccable performance for many years, with innovative technologies that
help make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.husqvarna-electrolux.se
Register your product for better service:
www.husqvarna-electrolux.se
Buy Accessories, Consumables and Original spare parts for your appliance:
www.husqvarna-electrolux.se/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.husqvarna-electrolux.se
2

1. SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and damages. Always
keep the instructions with the appliance for future
reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Children of less than 3 years should be kept away
unless continuously supervised.
•Keep all packaging away from children.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•The appliance can be installed as freestanding or
below the kitchen counter with correct space.
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
ENGLISH 3

side, where the appliance door can not be fully
opened.
•Connect the mains plug to the mains socket only at
the end of the installation. Make sure that there is
access to the mains plug after the installation.
•The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
•Ensure you have good ventilation in the installation
room to avoid the back flow of gases into the room
from appliances burning other fuels, including open
fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning
gas or other fuels (if applicable).
•The operating water pressure (minimum and
maximum) must be between 0,5 bar (0,05 MPa) and 8
bar (0,8 MPa).
•Obey the maximum load volume of 9 kg (refer to the
“Programme chart” chapter).
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Wipe away lint that has accumulated around the
appliance.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the wash dryer.
•Do not use the appliance if industrial chemicals have
been used for cleaning.
•Do not dry unwashed items in the wash dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
www.husqvarna-electrolux.se
4

or pillows fitted with foam rubber pads should not be
dried in the wash dryer.
•Fabric softeners, or similar products, should be used
as specified by the fabric softener instructions.
•Remove all objects from pockets such as lighters and
matches.
•Never stop the wash dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
•The final part of a wash dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not
be damaged.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you
move the appliance again you must
block the drum.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C or where it is exposed to the
weather.
• Make sure that the floor where you
install the appliance is flat, stable,
heat resistant and clean.
• Do not install the appliance where the
appliance door can not be fully
opened.
• Always move the appliance vertically.
• The rear surface of the appliance
must be put against the wall.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
• When the appliance is put in its
permanent position, check if it is fully
level with the aid of a spirit level. If it
is not, adjust the feet until it is.
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
ENGLISH 5

• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• Only for UK and Ireland: The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use a 13 amp ASTA
(BS 1362) fuse.
• This appliance complies with the
E.E.C. Directives.
2.3 Water Connection
• Make sure not to cause damage to
the water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a
long time, let the water flow until it is
clean.
• The first time you use the appliance,
make sure that there is no leakage.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• Use this appliance in a household
only.
• Do not change the specification of
this appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the glass of the door
while a programme operates. The
glass can be hot.
• Do not dry the damaged items which
contain padding or fillings.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start a drying cycle.
• Make sure that you remove all metal
objects from the laundry.
• Only dry fabrics which are applicable
to dry in the washer-dryer. Follow the
instructions on the fabric label.
• Plastic items are not heat resistant.
– If you use a detergent ball,
remove it before you set the
drying programme.
– Do not use a detergent ball when
you set a non-stop programme.
WARNING!
Risk of injury or damage to
the appliance.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
appliance.
2.5 Disposal
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
www.husqvarna-electrolux.se
6

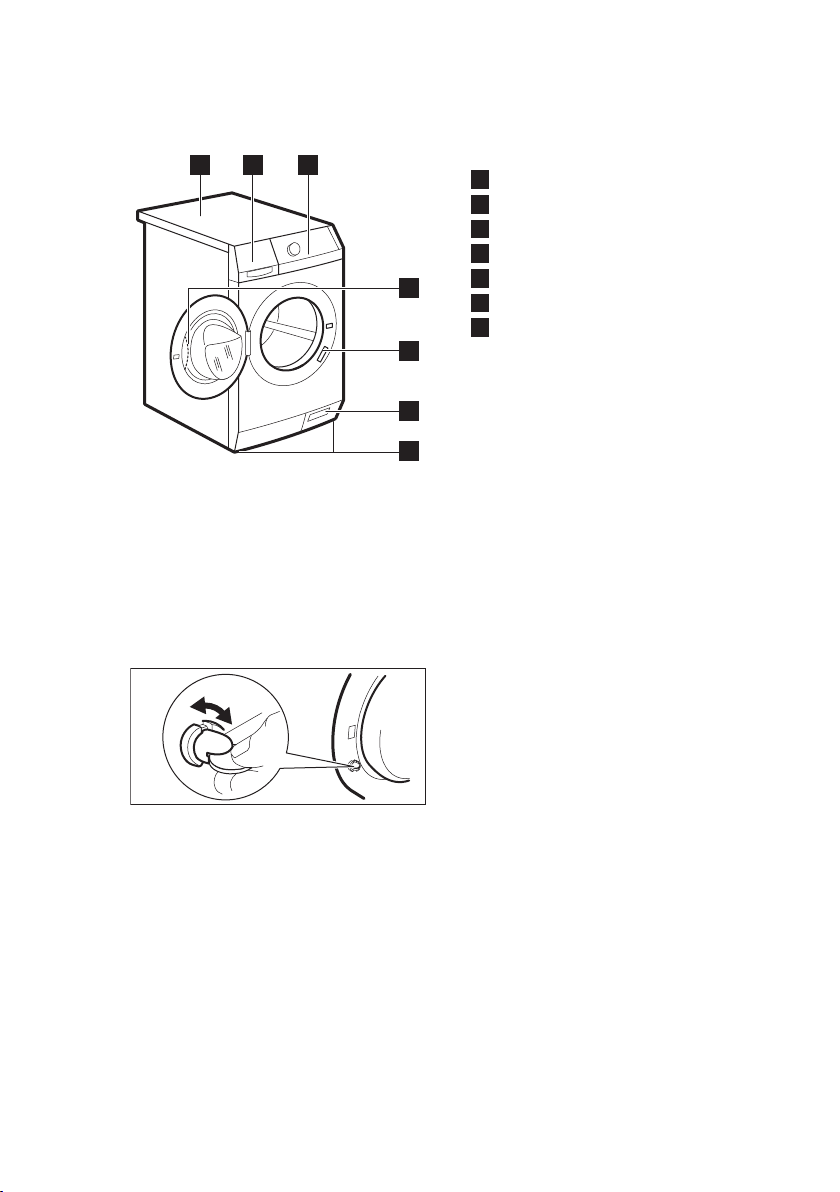

3. PRODUCT DESCRIPTION
3.1 Appliance overview
1
2
3
5
6
7
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for the appliance level
3.2 How to activate the child
safety device
This device prevents children or pets to
be closed in the drum.
Turn the device clockwise, until the
groove is horizontal.
You cannot close the door.
To close the door, turn the device
anticlockwise until the groove is vertical.
3.3 Fixing plate kit
(4055171146)
Available from your authorized dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
ENGLISH 7

4. CONTROL PANEL

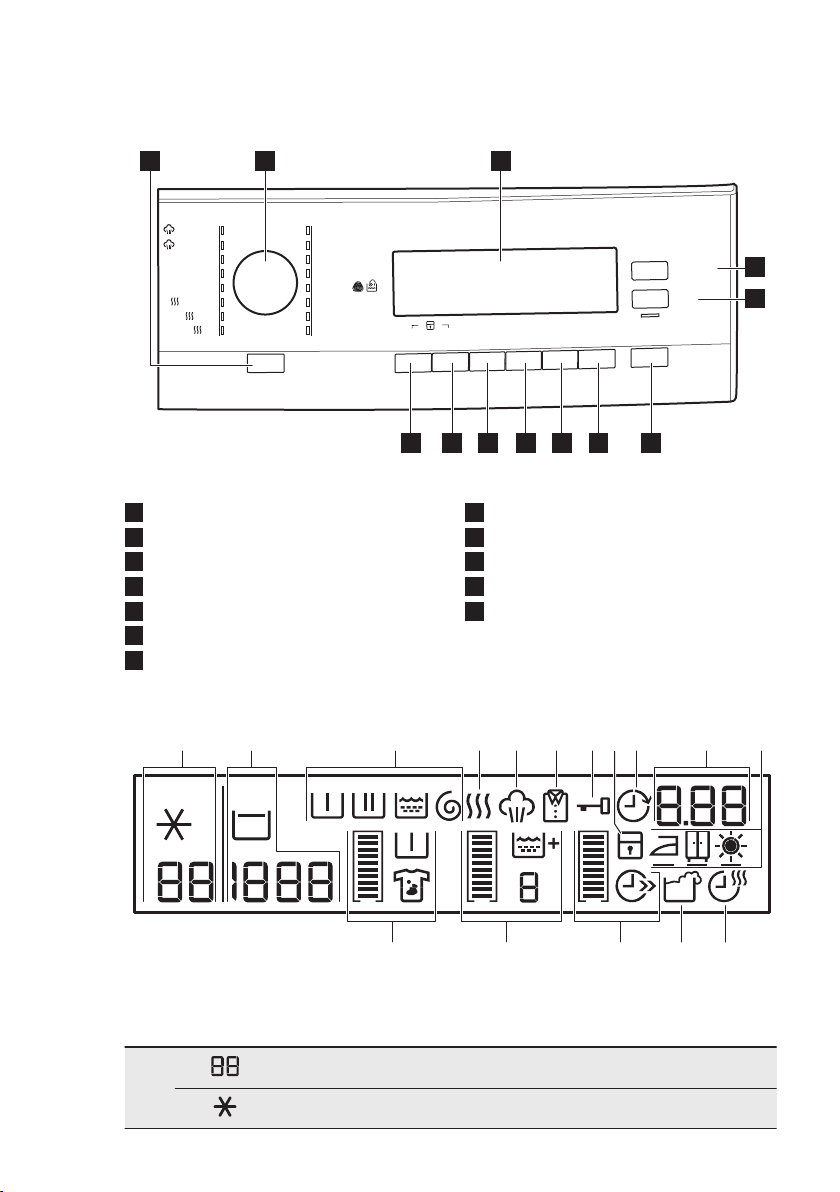

4.1 Control panel description
Av/På
Vit-/Kul r
Syntet
Lättstruket
Fintvätt
Ylle/Siden
20 Min. - 3 kg
Sk ljning
Centr./
T mning
Energispar
Super Eco
Non Stop
60 Min.
Vit-/Kul r
Syntet
Ylle
Temp.
Centr.
Start/Paus
Torktid
Torrhetsgrad
Fläckar/
F rtvätt. Extra
Sk ljning Snabb
F rdr jd
Start
Antiskrynkl.
Uppfräschn.
1 2 3
4
5
6789101112
1AV/PÅ button
2Programme knob
3Display
4Torktid button
5Torrhetsgrad button
6Start/Paus button
7Fördröjd Start button
8Snabb button
9Extra Sköljning button
10 Fläckar/Förtvätt button
11 Centr. button
12 Temp. button

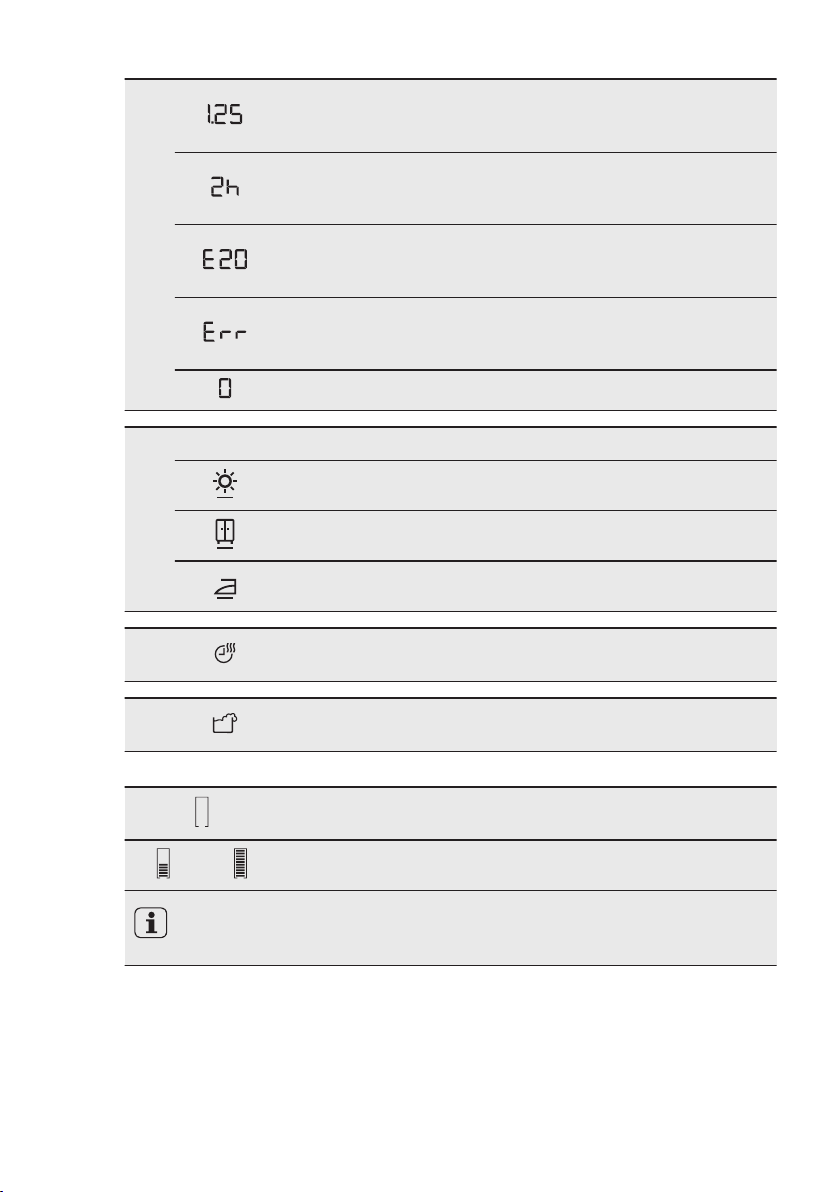

4.2 Display
A HC
NOP
D E F G I
LM
KB J
The display shows:
A
Temperature of the set programme
Cold water
www.husqvarna-electrolux.se8

B
Spin speed of the set programme
No Spin symbol1)
Rinse hold symbol
1) Only available for SPIN/DRAIN programme.
C
The phase symbols
When a programme is set, all the symbols of the phases related to the programme
come on.
When the programme starts, only the symbol of the phase in operation flashes.
When the programme is completed, the symbol of the last phase is on.
Prewash phase
Washing phase
Rinse phase
Spin phase
DThe drying symbol comes on when you set a drying programme.
EThe steam symbol comes on when you set a Steam programme.
FThe anti-crease symbol comes on when you set a drying programme.
G
You cannot open the appliance door when the symbol is on. You can
open the door only when the symbol goes off.
If the programme is completed but the symbol stays on:
• The «Rinse hold» function is on.
• There is water in the drum.
HThe child safety lock symbol comes on when this device is activated.
IThe delay start symbol comes on when you set the delay start func-
tion.
ENGLISH 9

J
Programme time (washing and/or drying phase)
When the programme starts, the programme time decreases with
steps of 1 minute.
Delay start
When you press the delay start button, the display shows the delay
start time
Alarm codes
If the appliance has a malfunction, the display shows alarm codes.
Refer to «Troubleshooting».
The display shows this message for some seconds when:
• You cannot set a function with the washing programme.
• You try to change the washing programme while it operates.
When the programme is completed.
K
Dryness level symbols: they come on when you set an automatic drying.
Extra dry level symbol
Store dry level symbol
Iron dry level symbol
LThe drying time symbol comes on when you set the a drying pro-
gramme.
MThe detergent overdosing symbol comes on at the end of the cycle
when the appliance detects too much detergent.
Graphic bars
The empty indicator bar appears only if the related function is avail-
able for the set programme.
The indicator bar fills accordingly to the set functions.
If you make a wrong selection the message Err indicates that the selec-
tion is not possible.
www.husqvarna-electrolux.se10

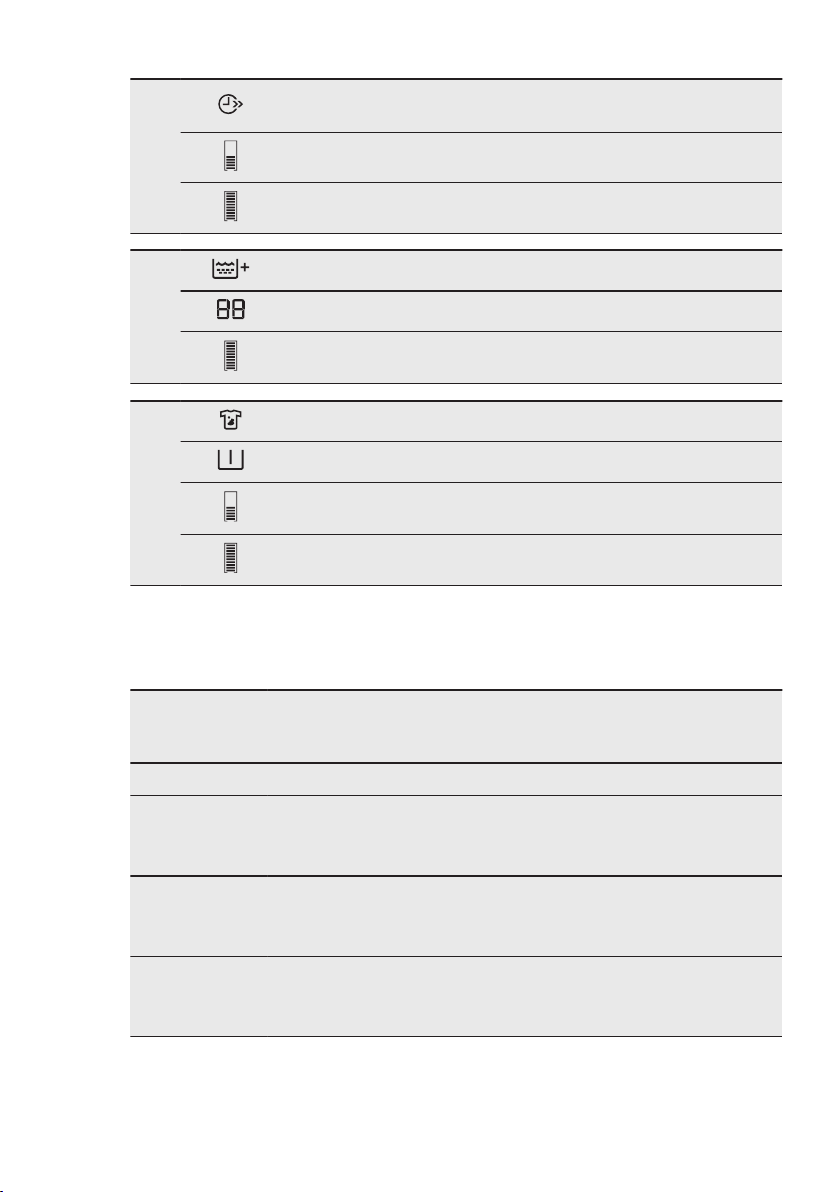

N
The Snabb symbol comes on when you set one of the programme
duration.
Shortened time
Extra Quick
O
The Extra Sköljning symbol comes on when this function is activated.
The value shows the total number of the rinses.
The indicator bar is fully filled when you set the maximum number of
rinses.
P
The Fläckar symbol comes on when you activate the function.
The Förtvätt symbol comes on when this function is activated.
The indicator bar is not fully filled when you set only one of the func-
tions.
The indicator bar is fully filled when you set the two functions.
5. PROGRAMMES
5.1 Programme Chart
Programme
Temperature
range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Washing programmes
Vit-/Kulör
95°C - Cold
9 kg
1600 rpm
White cotton and coloured cotton. Normal soil and
light soil.
Syntet
60°C - Cold
4 kg
1200 rpm
Synthetic items or mixed fabric items. Normal soil.
Lättstruket
60°C - Cold
4 kg
800 rpm
Synthetic items to be gentle washed. Normal and
light soil.1)
ENGLISH 11

Programme
Temperature
range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Fintvätt
40°C - Cold
4 kg
1200 rpm
Delicate fabrics as acrylics, viscose, polyester
items. Normal soil.
Ylle/Siden
40°C - Cold
2 kg
1200 rpm
Machine washable wool, hand washable wool and
delicate fabrics with «hand washing» care symbol.2)
20 min.-3Kg
40°C - 30°C
3 kg
1200 rpm
Cottons and synthetics items with light soil level
or worn only once.
Sköljning
Cold
9 kg
1600 rpm
To rinse and spin the laundry. All fabrics.
Centr./Tömn-
ing3)
9 kg
1600 rpm
To spin the laundry and to drain the water in the
drum. All fabrics.
Drying programmes
Ylle
1 kg Drying programme for woollen.
Syntet
3 kg Drying programme for synthetic items.
Vit-/Kulör
7 kg Drying programme for cotton items.
Non stop 60 Min.
30°C
1 kg
1200 rpm
Complete programme composed of washing phase
+ drying phase for a small load size of mixed fabrics
(cottons and synthetics items).
Washing programmes
Super Eco
Cold
3 kg
1200 rpm Mixed fabric (cotton and synthetic items).4)
Energispar5)
60°C - 40°C
9 kg
1600 rpm
White cotton and colour-fast cotton. Normal soil.
The energy consumption decreases and the time of
the washing programme is extended.
www.husqvarna-electrolux.se12

Programme
Temperature
range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Steam programmes6)
Steam can be used for dried, washed or worn once laundry. These programmes can
reduce creases and odours and make your laundry more soft.
Do not use any detergent. If necessary, remove stains by washing or using localized
stain removal.
Steam programmes do not perform any hygienic cycle.
Do not set a Steam programme with these types of items:
• items where it is not specified on the care label as being suitable for tumble drying.
• all items with plastic, metal, wooden parts or alike.
Uppfräschning
40°C
1.5 kg Steam programme for cotton and synthetic items.
This cycle removes odours from the laundry.7)
Antiskrynkling
40°C
1.5 kg Steam programme for cotton and synthetic items.
This cycle helps to dewrinkle the laundry.
1) To reduce the creases of the laundry, this cycle regulates the water temperature and performs a soft
wash and spin phase. The appliance adds some rinses. This programme is not compatible with drying.
2) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the drum
doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the appliance.
3) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only drain
phase is available.
4) This programme is for daily use and has lowest energy and water consumption maintaining a good
washing performance.
5) The washing programme Energispar at 60ºC with a load of 9 kg and the drying programme Vit-/Kulör
are the reference programmes for the data entered in the energy label, in compliance with EEC 92/75
standards.
The water temperature of the washing phase may differ from the temperature declared
for the selected programme.
6) If you set a Steam programme with dried laundry, at the end of the cycle the laundry could be humid.
It is better to expose the items to the fresh air for about 10 minutes to let the humidity dry. When the
programme is completed, quickly remove the laundry from the drum. After a steam cycle, items may to
be ironed anyway, but with less effort!
7) Steam does not remove animal odours.
ENGLISH 13

Programme options compatibility
Programme
Centr.
Fläck-
ar/
För-
tvätt1)
Extra
Sköljn-
ing 2)
Snab
b3)
För-
dröjd
Start
Vit-/Kulör ■■ ■ ■ ■ ■
Syntet ■■ ■ ■ ■ ■
Lättstruket ■■■4) ■ ■ ■
Fintvätt ■■ ■ ■ ■ ■
Ylle/Siden ■■■
20 min.-3Kg ■■
Sköljning ■■■■
Centr./Tömning ■ ■ ■
Super Eco ■■■■
Energispar ■■ ■ ■ ■ 5) ■
1) If you use liquid detergent, set a programme without Prewash. The Stain option is not available with a
temperature lower then 40°C.
2) If the Permanent Extra Rinse option is activated, the appliance adds some additional rinses. In the
Rinse programme, if you set a low spin speed the appliance performs delicate rinses and a short spin.
3) If you set a shorter duration, we recommend that you decrease the quantity of the load. It is possible
to load fully the appliance, however the washing results are reduced.
4) Only the Prewash option is available.
5) For this programme you can set only the Extra Quick duration.
5.2 Programmes for automatic drying
Dryness Level Type of fabric Load
Extra Dry
For towelling materials
Cottons and Linen
(bathrobes, bath towels, etc)
up to 7 kg
Cupboard Dry1)
For items to put away
Cottons and Linen
(bathrobes, bath towels, etc)
up to 7 kg
Synthetics and mixed fab-
rics
(jumpers, blouses, under-
wear, household linen)
up to 3 kg
www.husqvarna-electrolux.se14

Dryness Level Type of fabric Load
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
up to 7 kg
1) Hints for test institute The test performance, in accordance with EN 50229, must be carried out with
a FIRST drying load of 6 kg (load composition : pillowcase and towels) by setting the AUTOMATIC CUP-
BOARD DRY programme for Cotton. The SECOND drying load of 3 kg (load composition: 3 sheets and
towels) must be tested by setting the AUTOMATIC CUPBOARD DRY programme for Cotton.
5.3 Programmes for timed drying
Dryness Level Type of fabric Load
(kg)
Spin
speed
(rpm)
Suggested
duration
(mins)
Extra Dry
For towelling materials
Cottons and Linen
(bathrobes, bath towels, etc)
7 1600 240 - 250
5 1600 140 - 160
2 1600 85 - 95
Cupboard Dry
For items to put away
Cottons and Linen
(bathrobes, bath towels, etc)
7 1600 230 - 240
5 1600 130 - 150
2 1600 75 - 85
Cupboard Dry
For items to put away
Synthetics and mixed fab-
rics
(jumpers, blouses, under-
wear, household linen)
3 1200 135 - 145
1 1200 40 - 50
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
7 1600 210 - 230
5 1600 100 - 120
2 1600 65 - 75
Wool dry Wool
(wool jumpers)
1 1200 110 - 130
5.4 Woolmark Apparel Care -
Blue
• The wool wash cycle of this machine
has been approved by The Woolmark
Company for the washing of wool
garments labelled as «hand wash»
provided that the garments are
washed according to the instructions
issued by the manufacturer of this
washing machine. Follow the garment
care label for drying and other
laundry instructions. M1144
• The wool drying cycle of this machine
has been approved by The Woolmark
Company for the drying of wool
garments labelled as «hand wash»
ENGLISH 15

provided that the garments are dried
according to the instructions issued
by the manufacturer of this machine.
Follow the garment care label for
other laundry instructions. M1224
In UK, Eire, Hong Kong and India the
Woolmark symbol is a certification
trademark.
6. CONSUMPTION VALUES
The data of this table are approximate. Different causes can change the
data: the quantity and type of laundry, the water and ambient tempera-
ture.
At programme start the display shows the duration programme for the
maximum load capacity.
During the washing phase the programme duration is automatically cal-
culated and can be greatly reduced if the laundry load is lower than the
maximum load capacity (e.g. Cotton 60°C, maximum load capacity 9 kg,
the programme duration exceeds 2 hours; real load 1 kg, the pro-
gramme duration don’t reach 1 hour).
When the appliance is calculating the real programme duration a dot
blinks in the display.
Programmes Load
(kg)
Energy
consump-
tion (kWh)
Water con-
sumption (li-
tre)
Approximate pro-
gramme duration
(minutes)
Cottons 60 °C 9 1.6 69 168
Energispar
Cotton Energy Saving Pro-
gramme 60 °C 1)
9 1.05 70 230
Cottons 40 °C 9 1.0 69 164
Synthetics 40 °C 4 0.6 48 105
Delicates 40 °C 4 0.7 58 86
Wool/Handwash 30 °C 6161
57
0.35
2
1) «Cotton Energy Saving programme » at 60°C with a load of 9 kg is the reference programme for the
data entered in the energy label, in compliance with EEC 92/75 standards.
7. OPTIONS
7.1 AV/PÅ
Press this button to activate or deactivate
the appliance. A tune sounds when the
appliance is activated.
The AUTO Stand-by function
automatically deactivates the appliance
to decrease the energy consumption
when:
•You do not use the appliance for 5
minutes before you pressStart/Paus
button.
All setting are cancelled.
www.husqvarna-electrolux.se16

Press the button AV/PÅ to activate
the appliance again.
Set again the washing programme
and all possible functions.
• After 5 minutes from the end of the
washing programme
Refer to 'At the end of the
programme'
7.2 Programme knob
Turn this knob to set a programme. The
related programme indicator comes on.
7.3 Temp.
Press this button to change the default
temperature. When the display shows
and , the appliance does not heat
the water.
7.4 Centr.
Press this button to:
• Decrease the maximum speed of the
spin phase of the programme.
The display shows only
the spin speeds available
with the set programme.
• Deactivate the spin phase.
• Activate the Rinse Hold function.
Set this function to prevent fabric
creases. The appliance does not drain
the water when the programme is
completed.
7.5 Fläckar/Förtvätt
Press this button to add the stain and/or
a prewash phase to a programme.
Press the button again and again to
activate one or two options. The related
symbol and the indicator bar comes on
in the display.
•Fläckar: Use this option for laundry
with hard stains to remove.
When you set this option, put the
stain remover into compartment .
This function increases the
programme duration.
This option is not
available with a
temperature lower than
40° C.
•Förtvätt: Use this option to add a
prewash phase before the washing
phase.
We recommend that you use this
option when you have laundry with a
high level of soil.
The set of this option
increases the programme
duration.
7.6 Extra Sköljning
Press button Extra Sköljning to add
rinsing phases to a programme.
Use this function for persons allergic to
detergents and in areas where the water
is soft.
7.7 Snabb
With this option you can decrease the
programme duration.
• Press this button one time to set
'Shortened duration' for items with
daily soil.
• Press this button two times to set
'Extra Quick' for items with almost no
soil.
Some programmes accept
only one of the two options.
7.8 Fördröjd Start
With this option you can delay the start
of a programme from 30 minutes to 20
hours.
The display shows the related indicator
and delay time.
7.9 Start/Paus
Press button Start/Paus to start or
interrupt a programme.
7.10 Torktid
Press this button to set one of 3
automatic dryness levels proposed by
the appliance. The display shows the
symbol of the set level:
•Iron dry – laundry to be ironed
ENGLISH 17

•Cupboard dry – laundry to be put
in store
•Extra dry – laundry to be fully
dried
You cannot set all
automatic levels for each
type of fabrics.
7.11 Torrhetsgrad
Press this button to set the time that suits
the fabrics you have to dry. The display
shows the set value.
Each time you press this button the time
value increases by 5 minutes.
You cannot set all time
values for different types of
fabrics.
8. SETTINGS
8.1 Acoustic signals
The acoustic signals operate when:
• You activate the appliance.
• You deactivate the appliance.
• You press the buttons.
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic
signals, press Fläckar/Förtvätt and Extra
Sköljning at the same time for 6 seconds.
If you deactivate the
acoustic signals, they
continue operate when the
appliance has a malfunction.
8.2 Child Lock
With this option you can prevent that the
children play with the control panel.
• To activate/deactivate this option,
press Temp. and Centr. at the same
time until the indicator comes on/
goes off.
You can activate this option:
• After you press Start/Paus : the
options and the programme knob are
locked.
• Before you press Start/Paus : the
appliance cannot start.
8.3 Permanent Extra Rinse
With this option you can permanently
have an extra rinse when you set a new
programme.
• To activate/deactivate this option
press Snabb and Fördröjd Start at the
same time until the indicator Extra
Sköljning comes on/goes off.
9. DAILY USE - WASHING ONLY
9.1 Before first use
1. Put a small quantity of detergent in
the compartment for washing phase.
2. Set and start a programme for cotton
at the highest temperature without
laundry.
This removes all possible dirt from the
drum and the tub.
9.2 Loading the laundry
1. Open the appliance door
2. Put the laundry in the drum, one item
at a time.
3. Shake the items before you put them
in the appliance.
Make sure not to put too much laundry
in the drum.
4. Close the door.
www.husqvarna-electrolux.se18

CAUTION!
Make sure that no laundry stays between
the seal and the door. There is a risk of
water leakage or damage to the laundry.
9.3 Filling the detergent and
additives
Compartment for prewash phase,
soak programme or stain remover.
Compartment for washing phase.
Compartment for liquid additives
(fabric conditioner, starch).
Maximum level for quantity of liquid
additives.
Flap for powder or liquid detergent.
Always obey the instructions
that you find on the
packaging of the detergent
products.
9.4 Check the position of the
flap
1. Pull out the detergent dispenser until
it stops.
2. Press the lever down to remove the
dispenser.
1
2
3. To use powder detergent, turn the
flap up.
A
4. To use liquid detergent, turn the flap
down.
B
ENGLISH 19

With the flap in the
position DOWN:
• Do not use
gelatinous or thick
liquid detergents.
• Do not put more
liquid detergent than
the limit showed in
the flap.
• Do not set the
prewash phase.
• Do not set the delay
start function.
5. Measure out the detergent and the
fabric conditioner.
6. Carefully close the detergent
dispenser.
Make sure that the flap does not cause a
blockage when you close the drawer.
9.5 Activating the appliance
1. Open the water tap.
2. Connect the mains plug to the mains
socket.
3. Press button AV/PÅ to activate the
appliance.
A short tune sounds.
9.6 Setting a programme
1. Turn the programme knob and set
the programme:
• The related programme indicator
comes on.
• The indicator of Start/Paus
flashes.
• The display shows: the default
temperature, the spin speed, the
indicators of the programme
phases and the programme
duration.
2. If necessary, change the
temperature, the spin speed, the
cycle duration, or add available
options. When you activate an
option, the indicator of the set
option comes on.
If you set something
incorrect, the display shows
the message Err.
9.7 Starting a programme
without the delay start
Press button Start/Paus to start the
programme.
The relevant indicator stops to flash and
stays on.
On the display the indicator of the phase
is operation starts to flash.
The programme starts, the door is
locked. The display show the indicator
.
The drain pump can operate
for a short time when the
appliance fills water.
9.8 Behaviour of the appliance
After approximately 15
minutes from the start of the
programme:
• The appliance adjusts
automatically the cycle
time to the laundry you
have put in the drum to
have perfect washing
results in the minimum
necessary time.
• The display shows the
new time value.
9.9 Starting a programme with
the delay start
1. Press button Fördröjd Start again
and again until the display shows the
number of minutes or hours of delay.
The related indicator comes on.
2. Press button Start/Paus.
The appliance starts the countdown of
the delay start.
When the countdown is completed, the
programme starts automatically.
Before you press button
Start/Paus to start the
appliance, you can cancel or
change the set of the delay
start.
www.husqvarna-electrolux.se20
