Electrolux EWW 1495 User manual

WASHER-DRYER
INSTRUCTION BOOKLET
EWW 1495
132 982 920 KO
GB
All manuals and user guides at all-guides.com
all-guides.com

2
Dear customer,
Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.
Transport damages
When unpacking the appliance, check that it is not
damaged. If in doubt, do not use it and contact the
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly
important for your safety or correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use environmentally
friendly paper.
All manuals and user guides at all-guides.com

ENGLISH

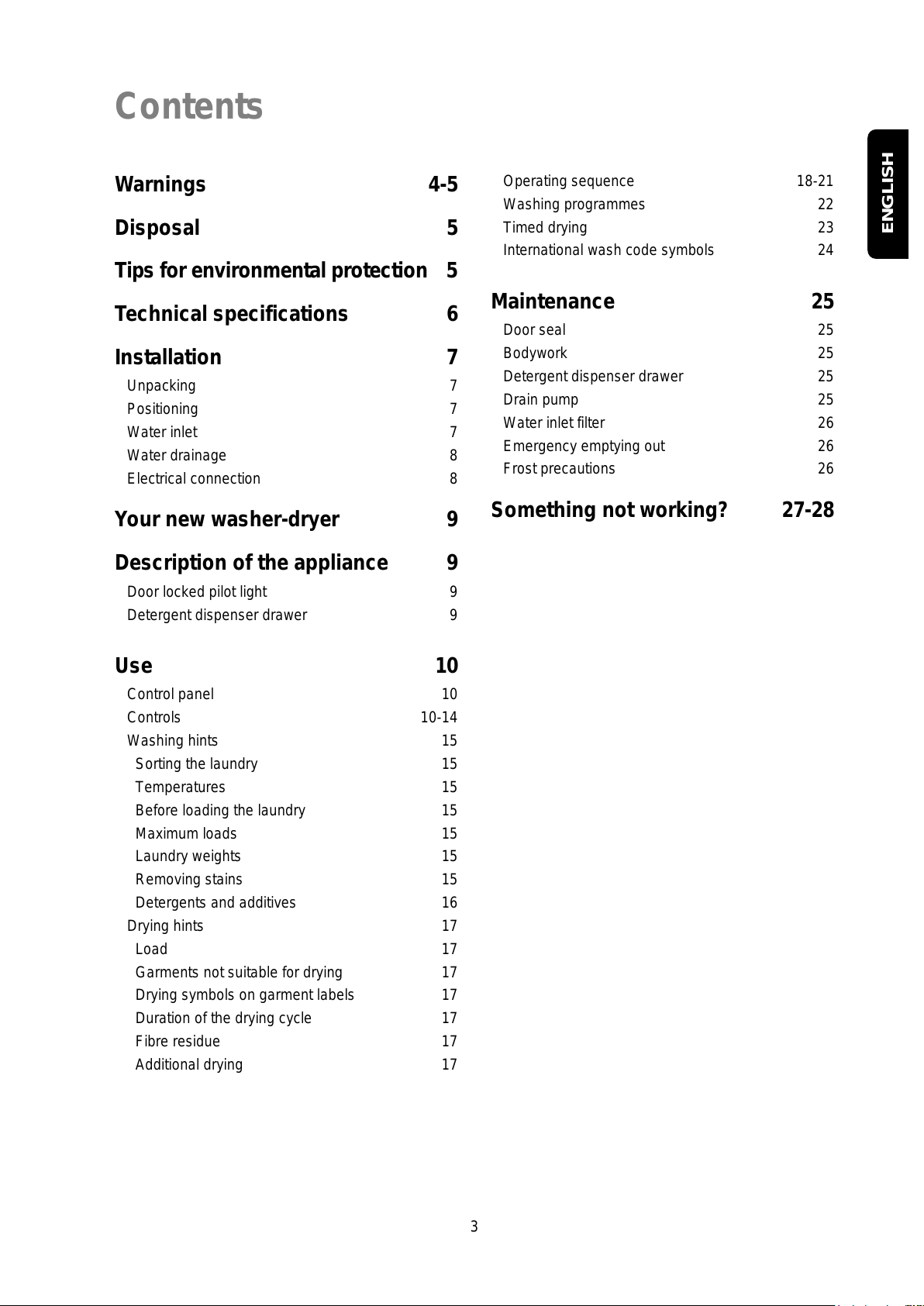

Contents
3

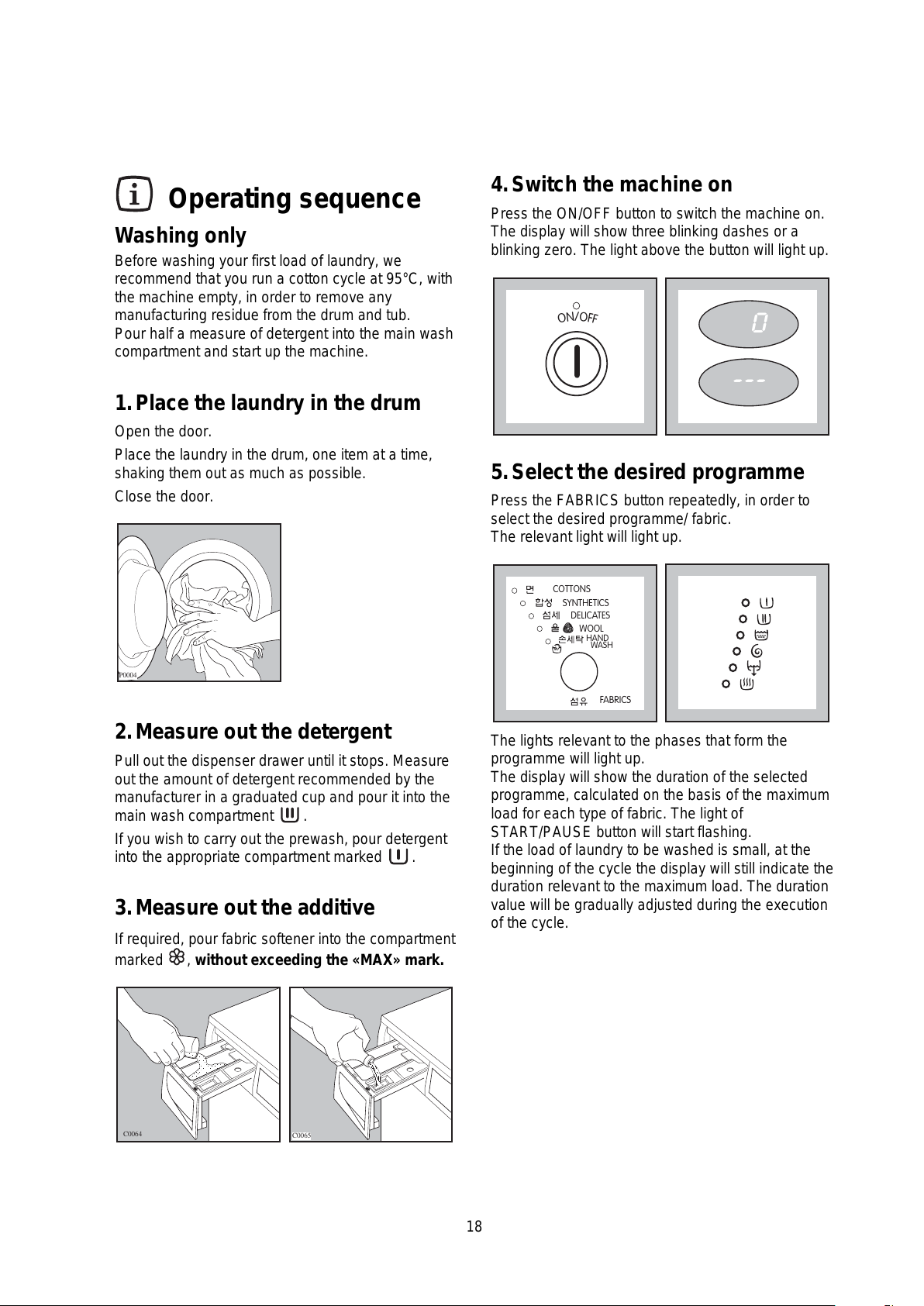

Operating sequence 18-21
Washing programmes 22
Timed drying 23
International wash code symbols 24
Maintenance 25
Door seal 25
Bodywork 25
Detergent dispenser drawer 25
Drain pump 25
Water inlet filter 26
Emergency emptying out 26
Frost precautions 26
Something not working? 27-28
Warnings 4-5
Disposal 5
Tips for environmental protection 5
Technical specifications 6
Installation 7
Unpacking 7
Positioning 7
Water inlet 7
Water drainage 8
Electrical connection 8
Your new washer-dryer 9
Description of the appliance 9
Door locked pilot light 9
Detergent dispenser drawer 9
Use 10
Control panel 10
Controls 10-14
Washing hints 15
Sorting the laundry 15
Temperatures 15
Before loading the laundry 15
Maximum loads 15
Laundry weights 15
Removing stains 15

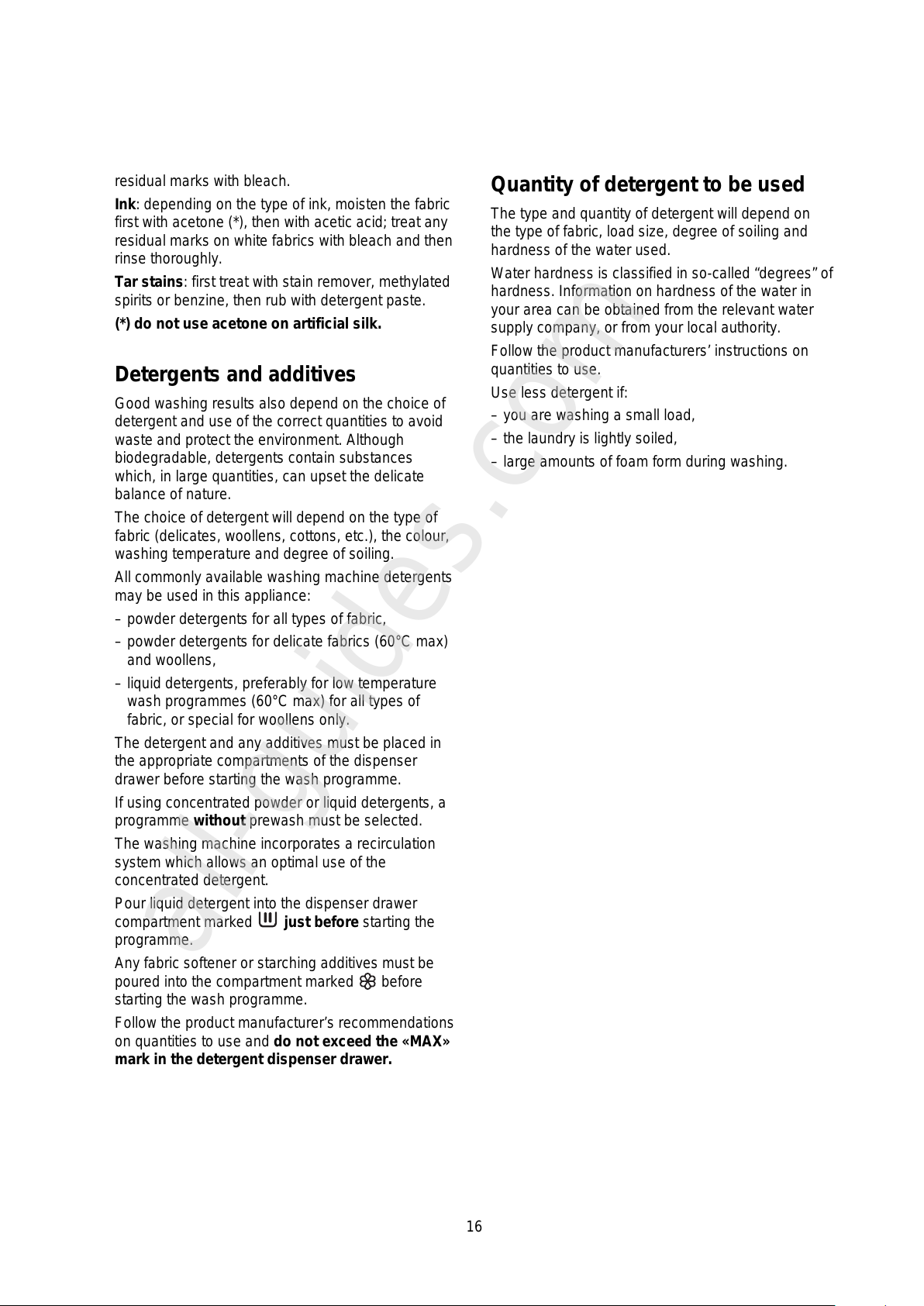

Detergents and additives 16

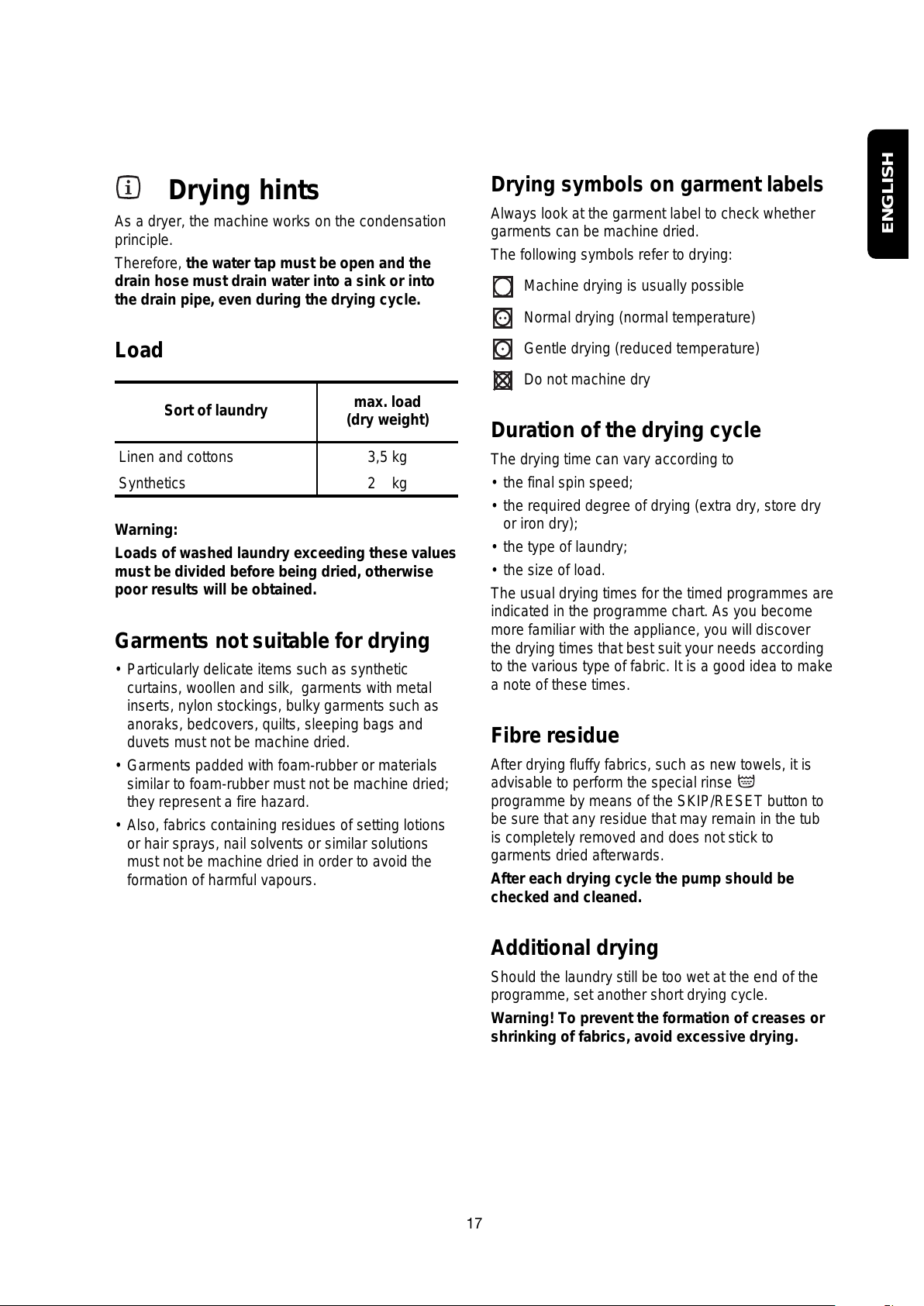

Drying hints 17
Load 17
Garments not suitable for drying 17
Drying symbols on garment labels 17
Duration of the drying cycle 17
Fibre residue 17
Additional drying 17
All manuals and user guides at all-guides.com

4

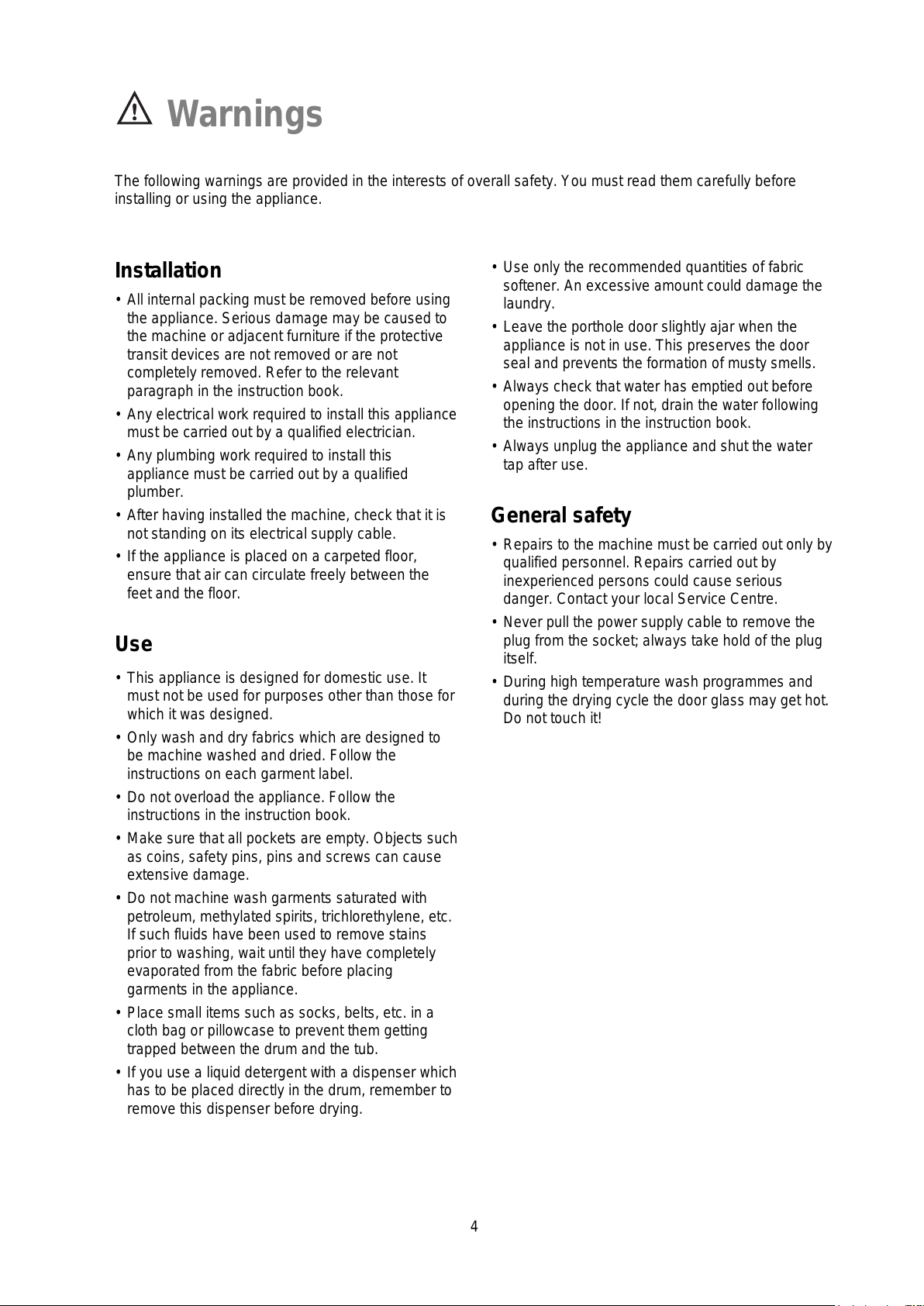

Installation
• All internal packing must be removed before using
the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not
completely removed. Refer to the relevant
paragraph in the instruction book.
• Any electrical work required to install this appliance
must be carried out by a qualified electrician.
• Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.
• After having installed the machine, check that it is
not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between the
feet and the floor.
Use
• This appliance is designed for domestic use. It
must not be used for purposes other than those for
which it was designed.
• Only wash and dry fabrics which are designed to
be machine washed and dried. Follow the
instructions on each garment label.
• Do not overload the appliance. Follow the
instructions in the instruction book.
• Make sure that all pockets are empty. Objects such
as coins, safety pins, pins and screws can cause
extensive damage.
• Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene, etc.
If such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing
garments in the appliance.
• Place small items such as socks, belts, etc. in a
cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.
• If you use a liquid detergent with a dispenser which
has to be placed directly in the drum, remember to
remove this dispenser before drying.
Warnings
• Use only the recommended quantities of fabric
softener. An excessive amount could damage the
laundry.
• Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the door
seal and prevents the formation of musty smells.
• Always check that water has emptied out before
opening the door. If not, drain the water following
the instructions in the instruction book.
• Always unplug the appliance and shut the water
tap after use.
General safety
• Repairs to the machine must be carried out only by
qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• During high temperature wash programmes and
during the drying cycle the door glass may get hot.
Do not touch it!
The following warnings are provided in the interests of overall safety. You must read them carefully before
installing or using the appliance.
All manuals and user guides at all-guides.com

ENGLISH
5

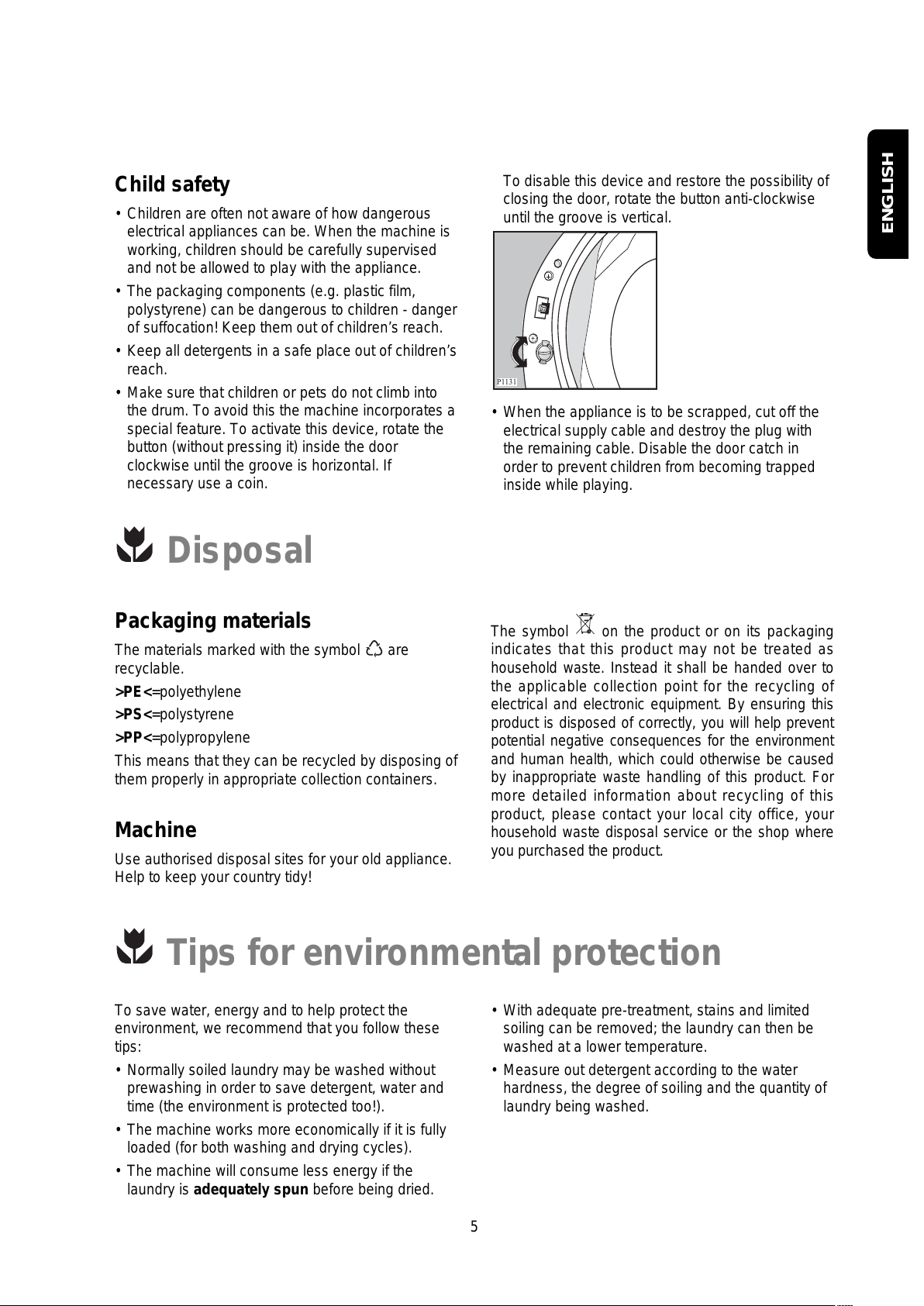

Disposal
Tips for environmental protection
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• The machine works more economically if it is fully
loaded (for both washing and drying cycles).
• The machine will consume less energy if the
laundry is adequately spun before being dried.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s
reach.
• Make sure that children or pets do not climb into
the drum. To avoid this the machine incorporates a
special feature. To activate this device, rotate the
button (without pressing it) inside the door
clockwise until the groove is horizontal. If
necessary use a coin.
To disable this device and restore the possibility of
closing the door, rotate the button anti-clockwise
until the groove is vertical.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
P1131
All manuals and user guides at all-guides.com

6

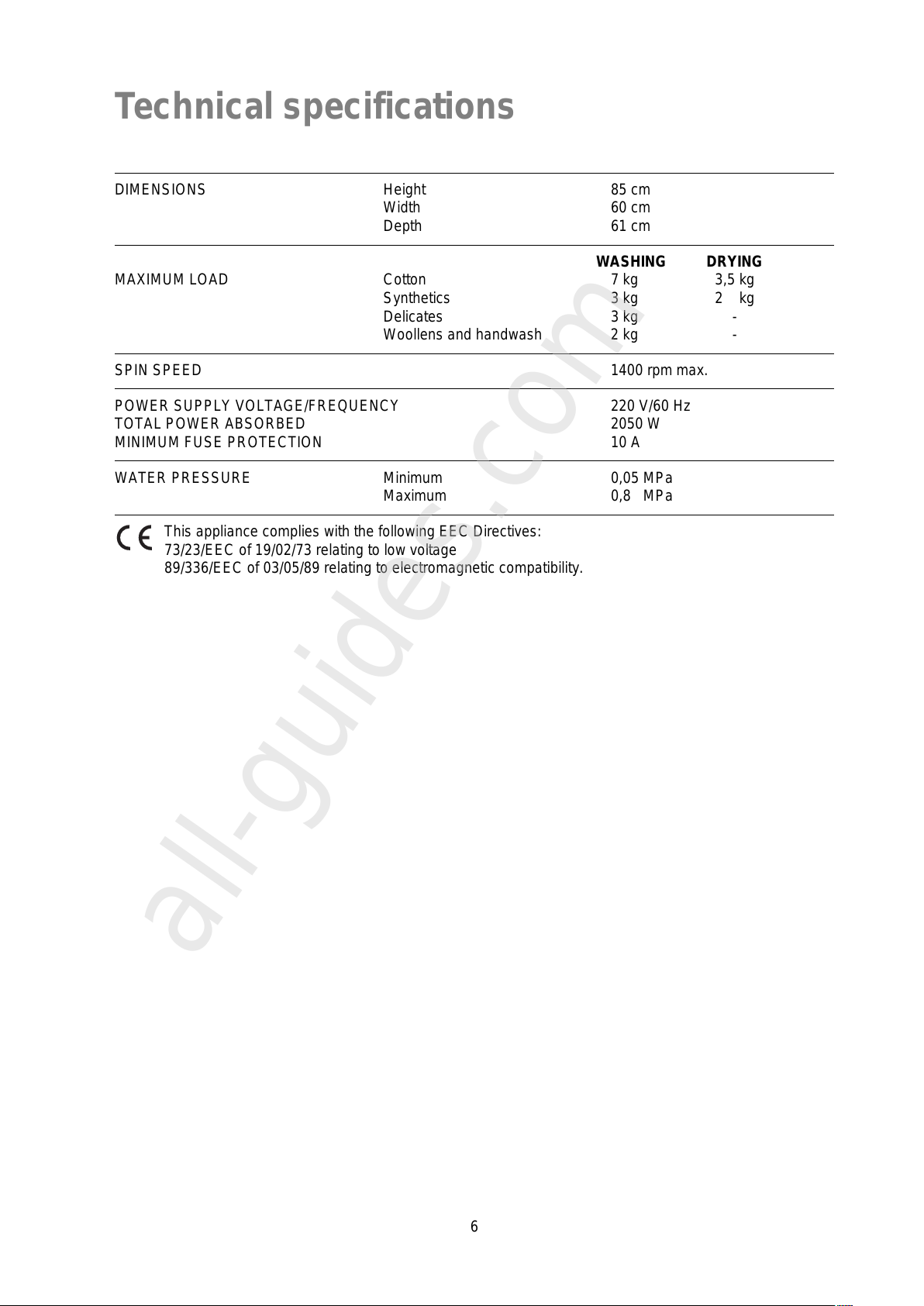

DIMENSIONS Height 85 cm
Width 60 cm
Depth 61 cm
WASHING DRYING
MAXIMUM LOAD Cotton 7 kg 3,5 kg
Synthetics 3 kg 2.0.kg
Delicates 3 kg -
Woollens and handwash 2 kg -
SPIN SPEED 1400 rpm max.
POWER SUPPLY VOLTAGE/FREQUENCY 220 V/60 Hz
TOTAL POWER ABSORBED 2050 W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 0,05 MPa
Maximum 0,8 MPa
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility.
Technical specifications
All manuals and user guides at all-guides.com
all-guides.com

ENGLISH
Installation
7
Unpacking
All transit bolts and packing must be removed
before using the appliance.
You are advised to keep all transit devices so that
they can be refitted if the machine ever has to be
transported again.
1. Using a spanner, unscrew and remove the two
rear bottom screws. Slide out the two plastic pins.
Lay the machine on its back, taking care not to
squash the hoses. This can be avoided by
placing one of the corner packing pieces between
the machine and the floor.
2. Remove the polystyrene block(s) from the bottom
of the machine and release the two plastic bags.
3. Very carefully slide out the left polythene bag,
removing it towards the right and then
downwards.
4. Very carefully slide out the right polythene bag,
removing it towards the left and then upwards.
5. Insert the bottom cover and then push its tongue
in the slit.
P1075
P1127
P1126
P1123
2
3
1
P0001
P1129
6. Set the machine upright and remove the
remaining rear screw. Slide out the relevant pin.
7. Plug all the holes with the plugs which you will
find in the envelope containing the instruction
booklet.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wall or other kitchen
units.
Carefully level by screwing the adjustable feet in or
out. Never place cardboard, wood or similar
materials under the machine to compensate for any
unevenness in the floor.
Water inlet
Connect the water inlet hose to a tap with a 3/4"
thread.
Do not use already employed hoses.
The other end of the inlet hose which connects to the
machine can be turned in any direction. Simply
loosen the fitting, rotate the hose and retighten the
fitting, making sure there are no water leaks.
P0021
P1088
P1051
P0002
P1128
All manuals and user guides at all-guides.com

8

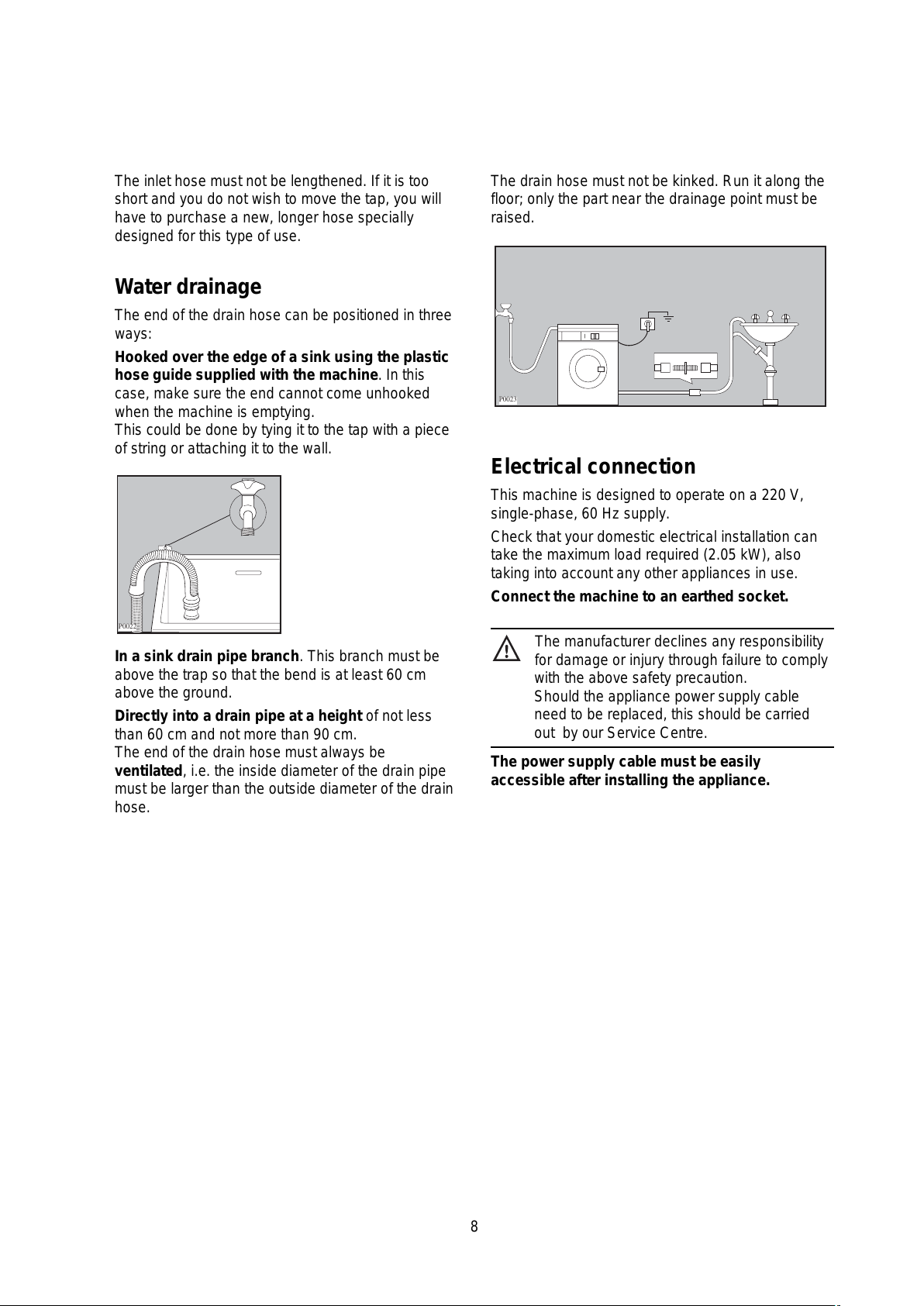

The inlet hose must not be lengthened. If it is too
short and you do not wish to move the tap, you will
have to purchase a new, longer hose specially
designed for this type of use.
Water drainage
The end of the drain hose can be positioned in three
ways:
Hooked over the edge of a sink using the plastic
hose guide supplied with the machine. In this
case, make sure the end cannot come unhooked
when the machine is emptying.
This could be done by tying it to the tap with a piece
of string or attaching it to the wall.
In a sink drain pipe branch. This branch must be
above the trap so that the bend is at least 60 cm
above the ground.
Directly into a drain pipe at a height of not less
than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain pipe
must be larger than the outside diameter of the drain
hose.
P0022
The drain hose must not be kinked. Run it along the
floor; only the part near the drainage point must be
raised.
Electrical connection
This machine is designed to operate on a 220 V,
single-phase, 60 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.05 kW), also
taking into account any other appliances in use.
Connect the machine to an earthed socket.
The manufacturer declines any responsibility
for damage or injury through failure to comply
with the above safety precaution.
Should the appliance power supply cable
need to be replaced, this should be carried
out by our Service Centre.
The power supply cable must be easily
accessible after installing the appliance.
P0023
All manuals and user guides at all-guides.com

ENGLISH
Your new washer-dryer
9
This new machine, which is fitted with the New Jet System, patented Electrolux, meets all modern needs for
effective treatment of laundry with low water, energy and detergent consumption.
Further savings are achieved by washing small loads of laundry, since water and electricity consumption is
proportional to the quantity and type of laundry being washed.
•The possibility of selecting the temperature, spin speed and all options offered by this machine gives you
truly “customised” washing.
• The DELAY START option allows you to delay starting of the wash programme to the desired time of day.
• The RINSE HOLD function (stop with water in drum) can be selected for all fabrics: the laundry is left
immersed in the final rinse water to avoid the formation of creases.
•The programme progress display shows the programme steps selected and the programme phase which
is running.
•The special wool programme with its new delicate wash system treats your woollens with extreme care.
•The drying programmes will give your wash that soft, relaxed feel whatever the weather.
•3-compartment drawer for detergent and fabric softener.
•The balance control device ensures the machine is stable during the spin.
1 Detergent dispenser drawer
2 Control panel
3 Door locked pilot light
4 Door handle
5 Drain pump
6 Adjustable feet
Door locked pilot light
It stays on during the whole programme indicating
that the door is locked.
When the light goes out, the door can be opened
(see page 20).
Detergent dispenser drawer
Prewash
Main wash
Fabric softener, starch
Description of the appliance
6
2
1
5
3
4
60°C
40°C
95°C
30°C
1400
900
700
500
EWW 1495
O
N
/
O
F
F
C0063
All manuals and user guides at all-guides.com

10
Use
1
13
2345678
9
10 11 12
60°C
40°C
95°C
30°C
1400
900
700
500
EWW 149
5
O
N
/
O
F
F
Control panel
1 ON/OFF button
Press this button to switch the machine on. The
display (9) will show three blinking dashes or a
blinking zero.You will find more detailed explanations
on page 11-12 (see DISPLAY).
Press it again to switch the machine off.
2 Mains-on light
This light comes on when the ON/OFF button is
pressed, and goes out when it is pressed again.
3 FABRICS button
Press this button repeatedly to select the programme
on the basis of the type of laundry to be washed. The
light relevant to the selected programme will light up.
The machine will propose a temperature and
automatically select the maximum spin value
provided for the programme you have chosen. You
can change these values by operating buttons 4 and
5.
Hand wash
When you select this programme, you obtain a
particularly delicate washing, suitable for articles of
clothing whose label indicates that they must be
hand-washed .
4 TEMPERATURE button
Press this button repeatedly to increase or decrease
the temperature, if you want your laundry to be
washed at a temperature different from the one
proposed by the machine. The relevant light will light
up.
Maximum temperatures are 95°C for cotton, 60°C for
synthetic fabrics,40°C for delicate fabrics, wool and
fabrics to be hand-washed (HAND WASH
programme).
Position COLD corresponds to a COLD WASH. This
option can be used for very delicate laundry, such as
curtains.
Important!
By depressing TEMPERATURE and SPIN SPEED
buttons simultaneously, the acoustic signal at the
end of the cycle, during the programme setting and
in case of incorrect selection is suppressed.
5 Spin speed button
Press this button repeatedly to change the spin
speed, if you want your laundry to be spun at a
speed different from the one proposed by the
machine. The relevant light will light up. Maximum
speeds are:
• for cotton: 1.400;
• for synthetic fabrics, wool, and fabrics to be hand-
washed: 900 rpm;
• for delicate fabrics: 700 rpm.
RINSE HOLD position: when you choose this
option, the machine will not drain the water of the
last rinse, so as not to wrinkle the laundry.
At the end of the cycle, the light of the
START/PAUSE button goes out, the DOOR
LOCKED light is on and a blinking zero will appear
on the display to indicate that the water must be
drained.
To complete the cycle press the SKIP/RESET button
once, so as to cause all the lights to go off; the
display will show three blinking dashes.
All manuals and user guides at all-guides.com

ENGLISH
Then select a washing programme by means of the
FABRICS button. If you wish to drain and spin press
the SKIP/RESET button in order to erase the
programme and then to select the type of fabrics that
has s been washed. At the end, press the
SKIP/RESET button till only the pilot light
remains on.
You can select the spin speed by means of the
relevant button and then press press the
START/PAUSE button.
Important!
If you accidentally press the SKIP/RESET button
more than once, the display will show three blinking
dashes. To cause the machine to drain the water,
select any washing programme by means of the
FABRICS button, then press SKIP/RESET three
times in order to select the position (only the
light will remain lit). Press the START/PAUSE button
again.
6 OPTIONS button
Press this button to select the following options:
• PREWASH: select this option if you wish your
laundry to be prewashed before the main wash
(not available for wool and hand-wash cycle).
The prewash ends with a short spin at 650 rpm in
programmes for cotton and synthetic fabrics,
whereas in the programme for delicate fabrics the
water is only drained.
•EXTRA RINSE: this option can be used with all
programmes except the wool and hand washed
programme. The machine will add 2 rinses for
cotton and 1 rinse for synthetics and delicates.
This option is recommended for people who are
allergic to detergents and in areas where the water
is very soft.
•EXTRA QUICK: this button allows you to select the
EXTRA QUICK function, for laundry that is only
slightly soiled (not for wool and hand wash
programme).
The washing time will be reduced according to the
type of fabric and the selected temperature.
The PREWASH, EXTRA RINSE and EXTRA QUICK
options cannot be selected together.
7 Electronic Drying button
By means of this button you can choose the required
degree of drying for cottons and synthetics:
Extra dry (cottons).
Store dry (cottons and synthetics).
Iron dry (cottons).
The corresponding pilot light illuminates.
The drying time is automatically adjusted by the
machine: the laundry will be dried to the selected
degree of dryness.
8 D rying Time button
By depressing this button you can select a timed
programme for cotton or synthetics, the relevant light
illuminates. To select “cottons” you have to push the
button for about 2 seconds. To select the drying time
push the button until the time you want appears in
the display according to the fabrics (cotton or
synthetics) you have to dry.
- For COTTON and SYNTHETICS you can select a
drying time from 10 minutes to 130 minutes (2.10).
Every time you press the button the time increases,
by 5 mins.
9 DISPLAY
The following pieces of information are shown on the
display:
• Three blinking dashes, when a programme is
cancelled by means of the SKIP/RESET button.
The three blinking dashes will also appear when you
press the ON/OFF button to switch the machine on,
if the previously selected cycle has been erased.
---
11
All manuals and user guides at all-guides.com
all-guides.com

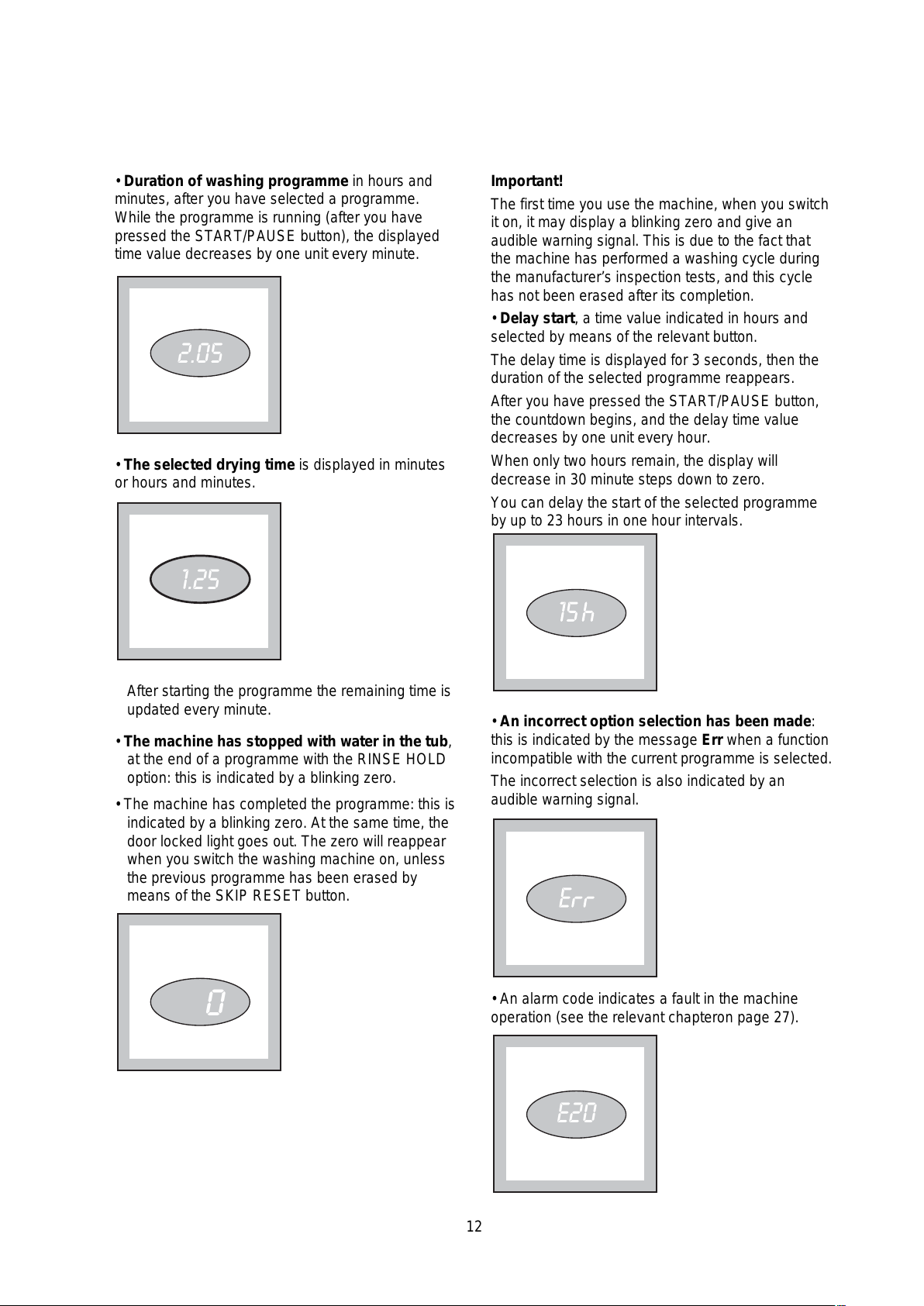

• Duration of washing programme in hours and
minutes, after you have selected a programme.
While the programme is running (after you have
pressed the START/PAUSE button), the displayed
time value decreases by one unit every minute.
• The selected drying time is displayed in minutes
or hours and minutes.
After starting the programme the remaining time is
updated every minute.
• The machine has stopped with water in the tub,
at the end of a programme with the RINSE HOLD
option: this is indicated by a blinking zero.
• The machine has completed the programme: this is
indicated by a blinking zero. At the same time, the
door locked light goes out. The zero will reappear
when you switch the washing machine on, unless
the previous programme has been erased by
means of the SKIP RESET button.
0
1.25
2.05
Important!
The first time you use the machine, when you switch
it on, it may display a blinking zero and give an
audible warning signal. This is due to the fact that
the machine has performed a washing cycle during
the manufacturer’s inspection tests, and this cycle
has not been erased after its completion.
•Delay start, a time value indicated in hours and
selected by means of the relevant button.
The delay time is displayed for 3 seconds, then the
duration of the selected programme reappears.
After you have pressed the START/PAUSE button,
the countdown begins, and the delay time value
decreases by one unit every hour.
When only two hours remain, the display will
decrease in 30 minute steps down to zero.
You can delay the start of the selected programme
by up to 23 hours in one hour intervals.
• An incorrect option selection has been made:
this is indicated by the message Err when a function
incompatible with the current programme is selected.
The incorrect selection is also indicated by an
audible warning signal.
• An alarm code indicates a fault in the machine
operation (see the relevant chapteron page 27).
E20
12
All manuals and user guides at all-guides.com

ENGLISH
10 START/PAUSE button
This button has two functions:
• Start: after you have selected the desired
programme and options, press this button to start
the machine. The light above the button will stop
flashing and remain lit.
If you have selected a delay time by means of
button 12, the countdown will begin and will be
shown on the display.
• Pause: when you press this button again, the
programme in progressis interrupted. The light
above the button will start flashing. To restart the
programme, press the button again.
When you PAUSE the cycle, the DOOR LOCKED
light goes out, and it becomes possible to open the
door, provided
• the machine is not in the heating or drying phase;
• the level of the water is not high;
• the drum is not turning.
Important!
You must set the machine to PAUSE before you
make any change in the programme in progress.
11 SKIP/RESET button
At the end of a programme, you must press this
button once or repeatedly, in order to clear the
contents of the memory (the display will show three
blinking dashes); otherwise, the next time you switch
the machine on, the blinking zero will reappear and
the audible warning signals relevant to the end of the
previous cycle will be given.
You can also press the SKIP/RESET button to
exclude one or several phases of the programme
which is running, as indicated below.
S
T
A
R
T
/
P
A
U
S
E
- set the machine to PAUSE by pressing the
START/PAUSE button (the relevant light will flash);
- press the SKIP/RESET button once or several
times, until the required phase(s) is(are) cancelled
(the light next to the name of the phase(s) will go
out).
Example: In this case, both the
drain and the spin (at the
speed provided for the
selected type of fabric)
will be performed.
This button allows you also to select special
programmes, such as (rinses), (spin) and
(drain).
• If the machine is already switched on because it
has just performed a washing programme, proceed
as follows:
- depress SKIP/RESET once or repeatidly to cancel
the previously performed programme;
- select the type of fabric by means of FABRICS
button;
- select the special programme:
• (RINSES)
Depress SKIP/RESET once, the pilot light
(WASH) goes out.
• (SPIN)
Depress SKIP/RESET twice, the pilot lights
(WASH) and (RINSES) go out.
• (DRAIN)
Depress SKIP/RESET three times, the pilot lights
(WASH), (RINSES) and (SPIN) go out,
and only the pilot light will light on .
Example: In this case the machine
will perform the rinses
followed by the spin.
13
All manuals and user guides at all-guides.com

• If the machine is switched off:
- depress ON/OFF button to switch it on;
- select the type of fabric by means of FABRICS
button ;
- select the special programme as previously
described.
12 DELAY START button
This button makes it possible to delay the starting of
the programme selected from 30 min - 60 min - 90
min, 2 hours and then by 1 hour up to a maximum of
23 hours. The delay you have selected is shown on
the display for about 3 seconds; afterwards, the
duration of the programme reappears.
You must select this option after you have set the
programme and before you press the
START/PAUSE button.
The time value shown on the display will decrease
by one unit every hour.
You can change the delay time at any moment,
before you press the START/PAUSE button.
If you have already pressed the START/PAUSE
button, and you wish to cancel the delay time,
proceed as follows:
• set the washing machine to PAUSE by pressing the
START/PAUSE button;
• press the DELAY button until the display shows the
symbole «0’».
• press the START/PAUSE button again.
Important!
The door will be locked throughout the delay time
(DOOR LOCKED light lit).
If you need to open the door, you must first set the
machine to PAUSE by pressing the START/PAUSE
button. After you have closed the door, press the
START/PAUSE button again.
13 Programme phase indicator
lights
When you select a programme, the lights relevant to
the phases that form the programme light up.
After you have started
the programme, only the
light relevant to the
phase that is currently
being carried out will
remain lit.
WASH
PREWASH
RINSES
SPIN
DRAIN
DRY
14
All manuals and user guides at all-guides.com

ENGLISH
15
Washing hints
Sorting the laundry
Follow the wash code symbols on each garment
label and the manufacturer’s washing instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates, woollens.
Temperatures
95° for normally soiled white cottons and linen
(e.g. tea cloths, towels, tablecloths,
sheets...)
60° for normally soiled, colour fast garments
(e.g. shirts, night dresses, pyjamas....) in
linen, cotton or synthetic fibres and for
lightly soiled white cotton (e.g. underwear).
COLD for delicate items (e.g. net curtains), mixed
30°-40° laundry including synthetic fibres and
woollens.
Before loading the laundry
Never wash whites and coloureds together. Whites
may lose their “whiteness” in the wash.
New coloured items may run in the first wash; they
should therefore be washed separately the first time.
Make sure that no metal objects are left in the
laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners, hooks
and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent or
detergent paste.
Treat curtains with special care. Remove hooks or tie
them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more than
one third full.
Washing a maximum load makes the most efficient
use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
Removing stains
Stubborn stains may not be removed by just water
and detergent. It is therefore advisable to treat them
prior to washing.
Blood: treat fresh stains with cold water. For dried
stains, soak overnight in water with a special
detergent then rub in the soap and water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab the
stain; treat several times.
Dried grease stains: moisten with turpentine, lay
the garment on a soft surface and dab the stain with
the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and the
fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites
and fast coloureds only).
Grass: soap lightly and treat with bleach (whites and
fast coloureds only).
Ball point pen and glue: moisten with acetone (*),
lay the garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat
stains with methylated spirits. Remove any residual
marks from white fabrics with bleach.
Red wine: soak in water and detergent, rinse and
treat with acetic or citric acid, then rinse. Treat any
All manuals and user guides at all-guides.com

ENGLISH
Quantity of detergent to be used
The type and quantity of detergent will depend on
the type of fabric, load size, degree of soiling and
hardness of the water used.
Water hardness is classified in so-called “degrees” of
hardness. Information on hardness of the water in
your area can be obtained from the relevant water
supply company, or from your local authority.
Follow the product manufacturers’ instructions on
quantities to use.
Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.
residual marks with bleach.
Ink: depending on the type of ink, moisten the fabric
first with acetone (*), then with acetic acid; treat any
residual marks on white fabrics with bleach and then
rinse thoroughly.
Tar stains: first treat with stain remover, methylated
spirits or benzine, then rub with detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the choice of
detergent and use of the correct quantities to avoid
waste and protect the environment. Although
biodegradable, detergents contain substances
which, in large quantities, can upset the delicate
balance of nature.
The choice of detergent will depend on the type of
fabric (delicates, woollens, cottons, etc.), the colour,
washing temperature and degree of soiling.
All commonly available washing machine detergents
may be used in this appliance:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (60°C max)
and woollens,
– liquid detergents, preferably for low temperature
wash programmes (60°C max) for all types of
fabric, or special for woollens only.
The detergent and any additives must be placed in
the appropriate compartments of the dispenser
drawer before starting the wash programme.
If using concentrated powder or liquid detergents, a
programme without prewash must be selected.
The washing machine incorporates a recirculation
system which allows an optimal use of the
concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting the
programme.
Any fabric softener or starching additives must be
poured into the compartment marked before
starting the wash programme.
Follow the product manufacturer’s recommendations
on quantities to use and do not exceed the «MAX»
mark in the detergent dispenser drawer.
16
All manuals and user guides at all-guides.com
all-guides.com

ENGLISH
17
Drying hints
As a dryer, the machine works on the condensation
principle.
Therefore, the water tap must be open and the
drain hose must drain water into a sink or into
the drain pipe, even during the drying cycle.
Load
Warning:
Loads of washed laundry exceeding these values
must be divided before being dried, otherwise
poor results will be obtained.
Garments not suitable for drying
• Particularly delicate items such as synthetic
curtains, woollen and silk, garments with metal
inserts, nylon stockings, bulky garments such as
anoraks, bedcovers, quilts, sleeping bags and
duvets must not be machine dried.
• Garments padded with foam-rubber or materials
similar to foam-rubber must not be machine dried;
they represent a fire hazard.
• Also, fabrics containing residues of setting lotions
or hair sprays, nail solvents or similar solutions
must not be machine dried in order to avoid the
formation of harmful vapours.
Drying symbols on garment labels
Always look at the garment label to check whether
garments can be machine dried.
The following symbols refer to drying:
Machine drying is usually possible
Normal drying (normal temperature)
Gentle drying (reduced temperature)
Do not machine dry
Duration of the drying cycle
The drying time can vary according to
• the final spin speed;
• the required degree of drying (extra dry, store dry
or iron dry);
• the type of laundry;
• the size of load.
The usual drying times for the timed programmes are
indicated in the programme chart. As you become
more familiar with the appliance, you will discover
the drying times that best suit your needs according
to the various type of fabric. It is a good idea to make
a note of these times.
Fibre residue
After drying fluffy fabrics, such as new towels, it is
advisable to perform the special rinse
programme by means of the SKIP/RESET button to
be sure that any residue that may remain in the tub
is completely removed and does not stick to
garments dried afterwards.
After each drying cycle the pump should be
checked and cleaned.
Additional drying
Should the laundry still be too wet at the end of the
programme, set another short drying cycle.
Warning! To prevent the formation of creases or
shrinking of fabrics, avoid excessive drying.
max. load
(dry weight)
3,5 kg
2,0.kg
Linen and cottons
Synthetics
Sort of laundry
All manuals and user guides at all-guides.com

18
4.Switch the machine on
Press the ON/OFF button to switch the machine on.
The display will show three blinking dashes or a
blinking zero. The light above the button will light up.
5.Select the desired programme
Press the FABRICS button repeatedly, in order to
select the desired programme/ fabric.
The relevant light will light up.
The lights relevant to the phases that form the
programme will light up.
The display will show the duration of the selected
programme, calculated on the basis of the maximum
load for each type of fabric. The light of
START/PAUSE button will start flashing.
If the load of laundry to be washed is small, at the
beginning of the cycle the display will still indicate the
duration relevant to the maximum load. The duration
value will be gradually adjusted during the execution
of the cycle.
SYNTHETICS
DELICATES
COTTONS
WOOL
HAND
WASH
FABRICS
------
0
O
N
/
O
F
F
Operating sequence
Washing only
Before washing your first load of laundry, we
recommend that you run a cotton cycle at 95°C, with
the machine empty, in order to remove any
manufacturing residue from the drum and tub.
Pour half a measure of detergent into the main wash
compartment and start up the machine.
1.Place the laundry in the drum
Open the door.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible.
Close the door.
2.Measure out the detergent
Pull out the dispenser drawer until it stops. Measure
out the amount of detergent recommended by the
manufacturer in a graduated cup and pour it into the
main wash compartment .
If you wish to carry out the prewash, pour detergent
into the appropriate compartment marked .
3.Measure out the additive
If required, pour fabric softener into the compartment
marked , without exceeding the «MAX» mark.
C0065
C0064
P0004
All manuals and user guides at all-guides.com

ENGLISH
9. Select the DELAY TIME
Before you start the programme, if you wish the
starting to be delayed, press the DELAY button
repeatedly, or keep it pressed, to select the desired
delay.
The selected delay time value (up to 23 hours) will
appear on the display for 3 seconds, then the
duration of the programme will appear again.
10. Start the programme
Press the START/PAUSE button. The relevant light
will stop flashing, the DOOR LOCKED light will light
up, and only the light relevant to the phase that is in
progress will remain lit.
If you have chosen a delayed start, the washing
machine will begin the countdown.
The display will show the duration of the programme
or the selected delay.
S
T
A
R
T
/
P
A
U
S
E
DELAY
START

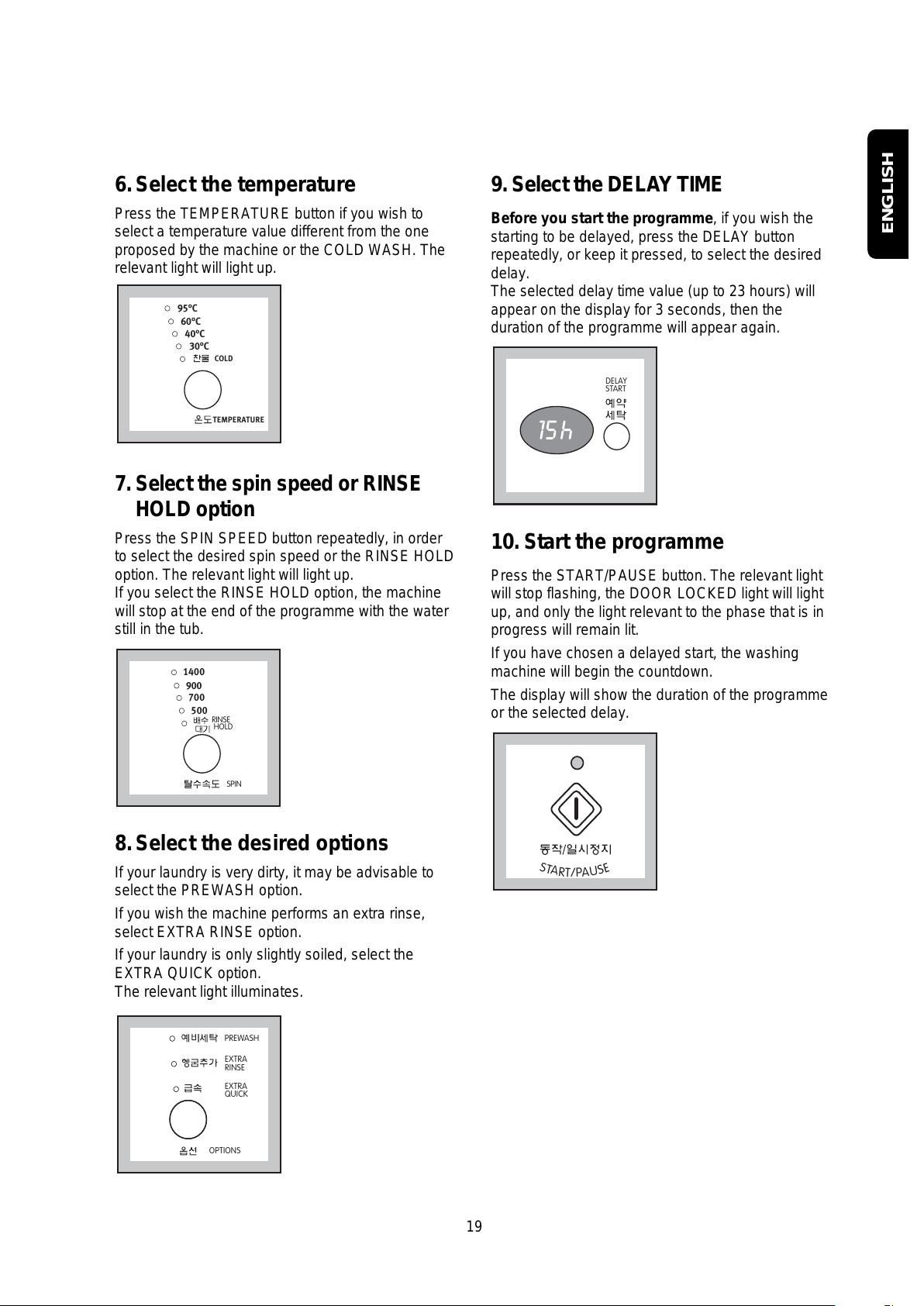

6.Select the temperature
Press the TEMPERATURE button if you wish to
select a temperature value different from the one
proposed by the machine or the COLD WASH. The
relevant light will light up.
7. Select the spin speed or RINSE
HOLD option
Press the SPIN SPEED button repeatedly, in order
to select the desired spin speed or the RINSE HOLD
option. The relevant light will light up.
If you select the RINSE HOLD option, the machine
will stop at the end of the programme with the water
still in the tub.
8.Select the desired options
If your laundry is very dirty, it may be advisable to
select the PREWASH option.
If you wish the machine performs an extra rinse,
select EXTRA RINSE option.
If your laundry is only slightly soiled, select the
EXTRA QUICK option.
The relevant light illuminates.
PREWASH
EXTRA
QUICK
EXTRA
RINSE
OPTIONS
1400
900
700
500
RINSE
HOLD
SPIN
60°C
40°C
95°C
30°C
COLD
TEMPERATURE
19
All manuals and user guides at all-guides.com

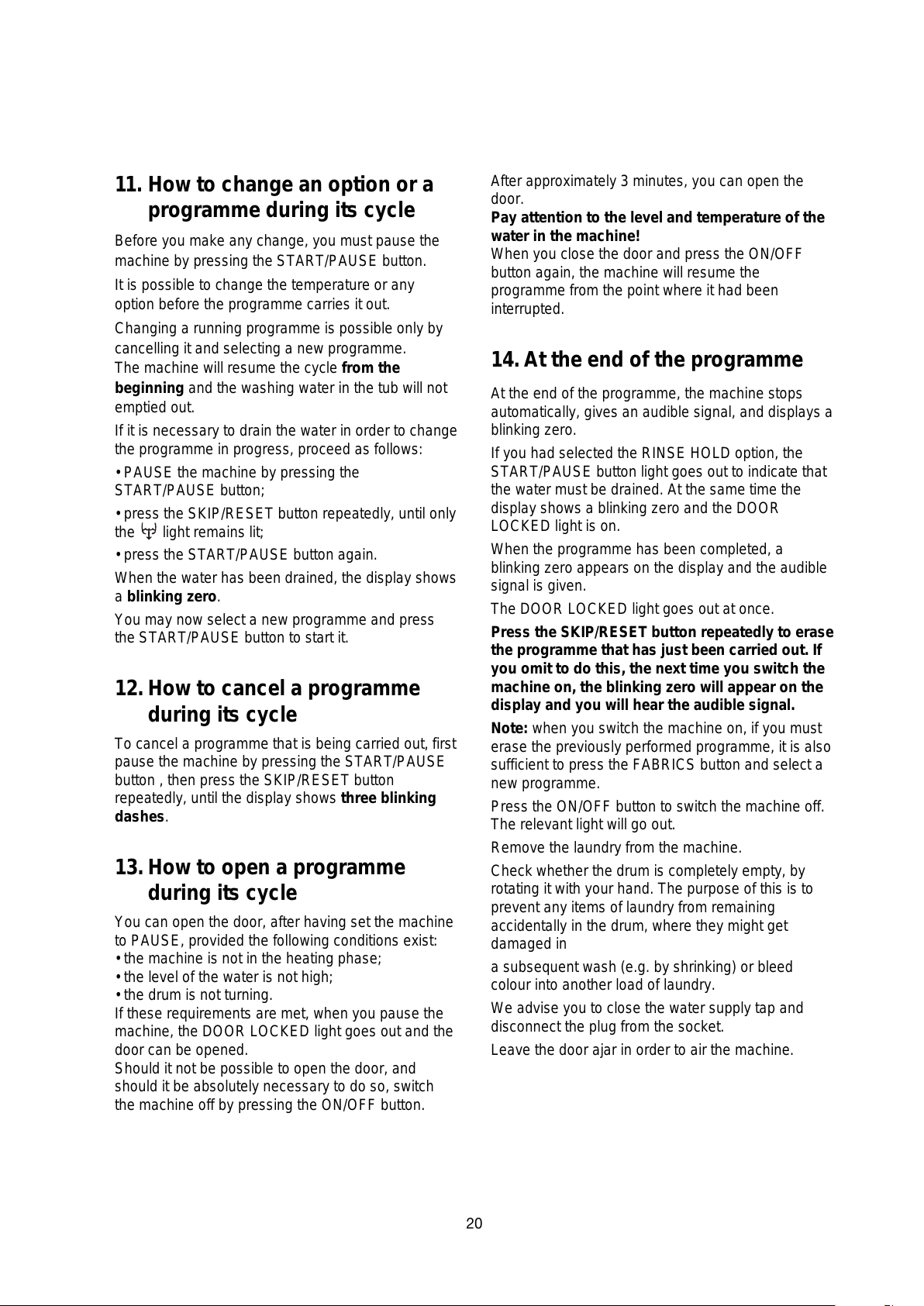

11. How to change an option or a
programme during its cycle
Before you make any change, you must pause the
machine by pressing the START/PAUSE button.
It is possible to change the temperature or any
option before the programme carries it out.
Changing a running programme is possible only by
cancelling it and selecting a new programme.
The machine will resume the cycle from the
beginning and the washing water in the tub will not
emptied out.
If it is necessary to drain the water in order to change
the programme in progress, proceed as follows:
• PAUSE the machine by pressing the
START/PAUSE button;
• press the SKIP/RESET button repeatedly, until only
the light remains lit;
• press the START/PAUSE button again.
When the water has been drained, the display shows
a blinking zero.
You may now select a new programme and press
the START/PAUSE button to start it.
12. How to cancel a programme
during its cycle
To cancel a programme that is being carried out, first
pause the machine by pressing the START/PAUSE
button , then press the SKIP/RESET button
repeatedly, until the display shows three blinking
dashes.
13. How to open a programme
during its cycle
You can open the door, after having set the machine
to PAUSE, provided the following conditions exist:
• the machine is not in the heating phase;
• the level of the water is not high;
• the drum is not turning.
If these requirements are met, when you pause the
machine, the DOOR LOCKED light goes out and the
door can be opened.
Should it not be possible to open the door, and
should it be absolutely necessary to do so, switch
the machine off by pressing the ON/OFF button.
After approximately 3 minutes, you can open the
door.
Pay attention to the level and temperature of the
water in the machine!
When you close the door and press the ON/OFF
button again, the machine will resume the
programme from the point where it had been
interrupted.
14. At the end of the programme
At the end of the programme, the machine stops
automatically, gives an audible signal, and displays a
blinking zero.
If you had selected the RINSE HOLD option, the
START/PAUSE button light goes out to indicate that
the water must be drained. At the same time the
display shows a blinking zero and the DOOR
LOCKED light is on.
When the programme has been completed, a
blinking zero appears on the display and the audible
signal is given.
The DOOR LOCKED light goes out at once.
Press the SKIP/RESET button repeatedly to erase
the programme that has just been carried out. If
you omit to do this, the next time you switch the
machine on, the blinking zero will appear on the
display and you will hear the audible signal.
Note: when you switch the machine on, if you must
erase the previously performed programme, it is also
sufficient to press the FABRICS button and select a
new programme.
Press the ON/OFF button to switch the machine off.
The relevant light will go out.
Remove the laundry from the machine.
Check whether the drum is completely empty, by
rotating it with your hand. The purpose of this is to
prevent any items of laundry from remaining
accidentally in the drum, where they might get
damaged in
a subsequent wash (e.g. by shrinking) or bleed
colour into another load of laundry.
We advise you to close the water supply tap and
disconnect the plug from the socket.
Leave the door ajar in order to air the machine.
20
All manuals and user guides at all-guides.com
