Electrolux EWFLW65HIW - 27" Front-Load Washer User manual

Electrolux
Silver Sands
co
db
Featuring Wave=Touch TM Electronic Controls
Turquoise Sky
EWFLW65H TS
EWRW65H SS
Island White
EWFLW65H IW
Wave-Touch TM Controls
Endless options for perfect results. More
custom cycles than any other washeC including
three "My Favorite" settings.
Largest Capacity Washer 2
Wash the most in one load with our
4.7 cubic foot washer.
Perfect Balance" System
State-of-the-art technology keeps even
oversized loads balanced for smooth, quiet
operation. Perfect for installation upstairs,
ever Rear bedrooms.
AquaLux TM Wash System
Energy-efficient wash system is gentle on the
environment and on clothes. Washers are 83%
more energy efficient_ use 56% less water, 4
and have the fastest wash time.'-'
&
o
_z
oo
L)
DE
5
o
o
i+d
'Based on manufacturer specifications, 2Based on manufacturer specifications,
_Energy efficier_cy based on current DOE Federal Minimum standard for washers based on MEF.
"Water Savings based on DOE ENERGY STAt7 er_ergy savings calculato_
_Fastest time based on smallest load/Fast Wash
cycle selected for various load compositions. e_ectro_uxapp_iancesocom

//

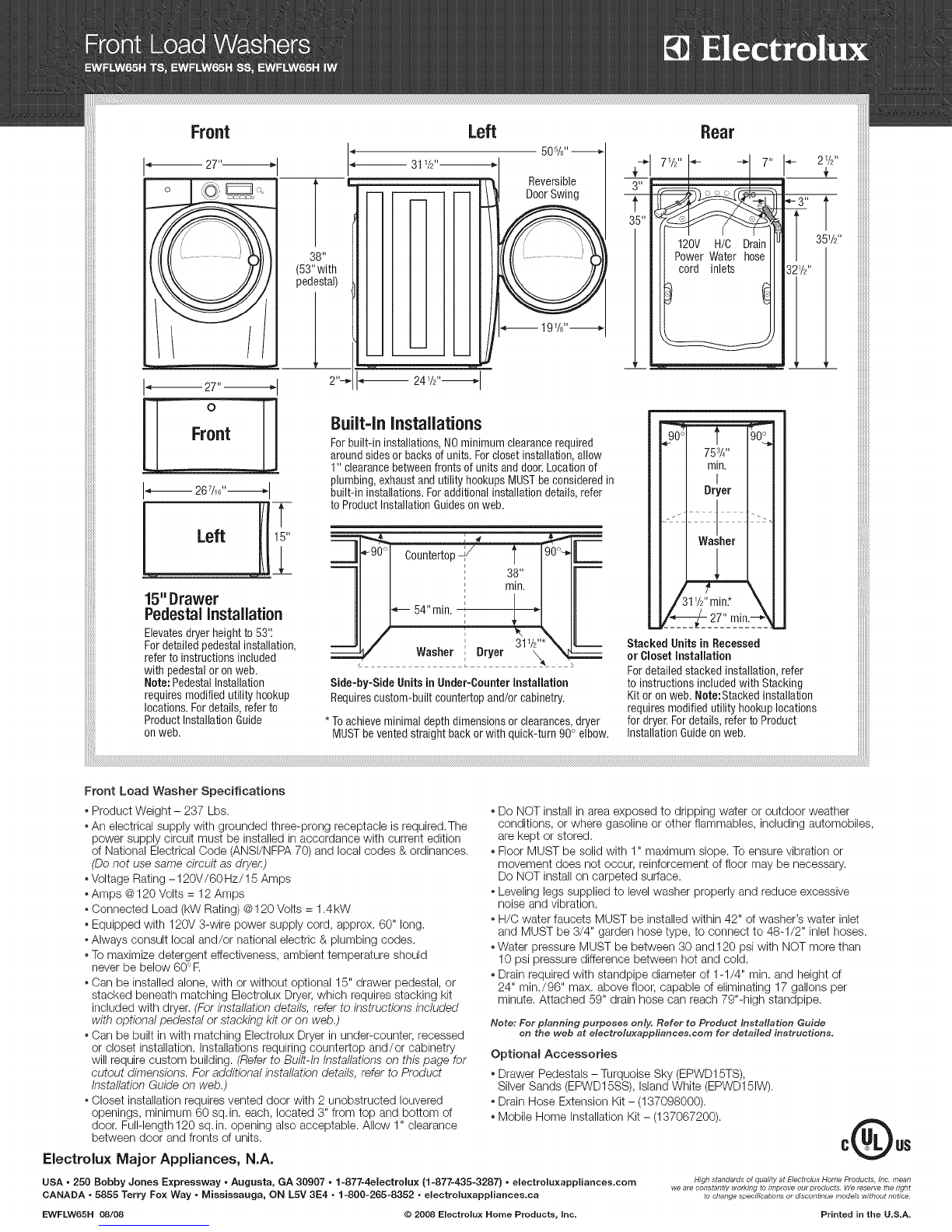

I" 27" _.
Front
._ 287/16"-_ I
15"Drawer
Pedestal Installation
Elevatesdryerheightto 53".
Fordetailedpedestalinstallation,
referto instructionsincluded
with pedestalor onweb.
Note: PedestalInstallation
requiresmodifiedutility hookup
locations•Fordetails,refer to
ProductInstallationGuide
1
38"
(53"with
pedestal)
1
50¾"-_
Reversible
DoorSwng
Built=In Installations
Forbuilt-in installations,NOminimum clearancerequired
aroundsides or backsof units•Forclosetinstallation,allow
1" clearancebetweenfronts of units anddoor•Locationof
plumbing,exhaustandutility hookupsMUSTbeconsideredin
built-in installations•Foradditionalinstallationdetails,refer
to ProductInstallationGuidesonweb.
-90°1 C°untertop ,,'_/ l 190_t _
q ', 38"
', min.
54" mini _ _1
/_ Washer Dryer _1:/_*_,_
Side-by-SideUnits in Under-Counterinstallation
Requirescustom-builtcountertopand/orcabinetry•
*Toachieveminimal depthdimensionsor clearances,dryer
Rear
-I_I 711z11
3 II
II
7 II I_4I
]
120V H/C Drain
Power Water hose
cord inlets
21/2"
2' 753/4 ''
mln.
I
Dryer
.... 4 --
...............,.......... :?:
Washer
Stacked Unitsin Recessed
or Closet installation
Fordetailed stacked installation,refer
to instructions includedwith Stacking
Kitor on web.Note:Stacked installation
requiresmodifiedutility hookuplocations
for dryer•Fordetails,refer to Product
Front Load Washer Specifications
• Product Weight - 237 Lbs.
• An electrical supply with grounded three-prong receptacle is required, The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (ANSI/NFPA 70) and local codes & ordinances.
(Do not use same circuit as dryen)
• Voltage Rating - 120V/60 Hz/15 Amps
• Amps @120 Volts = 12 Amps
• Connected Load (kW Rating) @120 Volts = 1.4kW
• Equipped with 120V 3-wire power supply cord, approx, 60" long,
• Always consult local and/or national electric & plumbing codes,
• To maximize detergent effectiveness, ambient temperature should
never be below 60°R
• Can be installed alone, with or without optional 15" drawer pedestal, or
stacked beneath matching Electrolux Dryer,which requires stacking kit
included with dryer, (Forinstallation details, refer to instructions included
with optional pedestal or stacking kit or on web,)
• Can be built in with matching Electrolux Dryer in under-counter, recessed
or closet installation, Installations requiring countertop and/or cabinetry
will require custom building. (Refer to Built-In Installations on this page for
cutout dimensions, For additional installation details, refer to Product
Installation Guide on web,)
• Closet installation requires vented door with 2 unobstructed Iouvered
openings, minimum 60 sq.in, each, located 3" from top and bottom of
door, Full-length 120 sq. in. opening also acceptable. Allow 1" clearance
between door and fronts of units.
Electrolux Major Appliances, N.A.
Do NOT install in area exposed to dripping water or outdoor weather
conditions, or where gasoline or other flammables, including automobiles,
are kept or stored,
Floor MUST be solid with 1" maximum slope. To ensure vibration or
movement does not occur, reinforcement of floor may be necessary•
Do NOT install on carpeted surface.
Leveling legs supplied to level washer properly and reduce excessive
noise and vibration,
H/C water faucets MUST be installed within 42" of washer's water inlet
and MUST be 3/4" garden hose type, to connect to 48-1/2" inlet hoses.
Water pressure MUST be between 30 and 120 psi with NOT more than
10 psi pressure difference between hot and cold.
Drain required with standpipe diameter of 1-1/4" min, and height of
24" min,/96" max, above floor, capable of eliminating 17 gallons per
minute, Attached 59" drain hose can reach 79"-high standpipe.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxapptiances.com for detailed instructions.
Optional Accessories
Drawer Pedestals - Turquoise Sky (EPWD15TS),
Silver Sands (EPWD15SS), Island White (EPWD151W).
Drain Hose Extension Kit - (137098000).
Mobile Home Installation Kit - (137067200).
USA •250 Bobby Jones Expressway • Augusta, GA 30907 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
High standards of quality at Electro/ux Home Products, Inc. mean
we are constantly working to improve out products. We reserve the right
to change specifications or discontinue models without notice
EWFLW65H 08/08 © 2008 Electrolux Home Products, Inc, Printed in the U.S.A.
