CONTENTS
Safety information 2
Frost precaution 4
Environment concerns 4
Product description 5
Technical data 5
Installation 6
First use 10
Daily use 10
Washing programmes 17
Consumption values 20
Care and cleaning 20
What to do if… 23
Subject to change without notice.
SAFETY INFORMATION
Important! Read carefully and keep for
future reference.
• The safety of your appliance complies
with the industry standards and with legal
requirements on the safety of appliances.
However, as manufacturers, we feel it is
our duty to provide the following safety
notes.
• It is most important that this instruction
book should be retained with the appli-
ance for future reference. Should the ap-
pliance be sold or transferred to another
owner, or should you move house and
leave the appliance, always ensure that
the book is supplied with the appliance in
order that the new owner can get to
know the functioning of the appliance
and the relevant warnings.
• You MUST read them carefully before in-
stalling or using the appliance.
• Before first starting up, check the appli-
ance for any damage incurred during
transport. Never connect up a damaged
appliance . If parts are damaged, contact
your supplier.
• If the appliance is delivered in the winter
months when there are minus tempera-
tures. Store it at room temperature for 24
hours before using for the first time.
• This appliance is made for use in a nor-
mal domestic situation. The manufacturer
is not responsible for freezing damages.
Read "Frost precaution".
GENERAL SAFETY
• It is dangerous to alter the specifications
or attempt to modify this product in any
way.
• During high temperature wash pro-
grammes the door glass may get hot. Do
not touch it!
• Make sure that small children and pets
do not climb into the drum. To avoid this,
please check inside the drum before us-
ing.
• Any objects such as coins, safety pins,
nails, screws, stones or any other hard,
sharp material can cause extensive dam-
age and must not be placed into the ap-
pliance.
• Only use the advised quantities of fabric
softener and detergent. Damage to the
fabric can ensue if you over-fill. Refer to
the manufacturer’s recommendations of
quantities.
• Wash small items such as socks, laces,
washable belts etc in a washing bag or
pillow case as it is possible for such
items to slip down between the tub and
the inner drum.
• Do not use your appliance to wash arti-
cles with whalebones, material without
hems or torn material.
• Always unplug the appliance and turn off
the water supply after use, cleaning and
maintenance.
• Under no circumstances should you at-
tempt to repair the appliance yourself.
Repairs carried out by inexperienced
people may cause injury or serious mal-
functioning. Contact your local Service
2 electrolux

Centre. Always insist on genuine spare
parts.
INSTALLATION
• This appliance is heavy. Care should be
taken when moving it.
• All packing and transit bolts must be re-
moved before use. Serious damage can
occur to the product and to property if
this is not adhered to. See relevant sec-
tion in the user manual.
• This appliance is free standing only. DO
NOT build it in under a counter and DO
NOT remove the worktop for any reason.
• After having installed the appliance,
check that it is not standing on the inlet
and drain hose and the worktop is not
pressing the electrical supply cable
against the wall.
• Install the appliance on a flat hard floor.
• Never place cardboard, wood or similar
materials under the appliance to com-
pensate for any unevenness in the floor.
• If the appliance is situated on a carpeted
floor, please adjust the feet in order to al-
low air to circulate freely under the appli-
ance.
• Check that the appliance does not touch
the wall or other kitchen units.
•This appliance must be connected to
a cold water supply.
• Do not use the hose from your previous
appliance to connect to water supply. Al-
ways use the hose supplied with the ap-
pliance.
• The inlet hose must not be lengthened. If
it is too short and you do not wish to
move the tap, you will have to purchase a
new, longer hose specially designed for
this type of use.
• Always be sure, that there is no water
leakage from hoses and their connec-
tions after the installation.
• If the appliance is installed in a location
subject to frost, please read the “Frost
precaution” chapter. Manufacturer de-
cline any responsibility for freezing dam-
ages.
• Any plumbing work required to install this
appliance should be carried out by a
qualified plumber or competent person.
• Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
USE
• This appliance is designed for domestic
use. It must not be used for purposes
other than those for which it was de-
signed.
• Only wash fabrics which are designed to
be machine washed. Follow the instruc-
tions on each garment label.
• Do not overload the appliance. See the
"Washing Programme Chart".
• Before washing, ensure that all pockets
are empty and buttons and zips are fas-
tened. Avoid washing frayed or torn arti-
cles and treat stains such as paint, ink,
rust, and grass before washing. Under-
wired bras must NOT be machine wash-
ed.
• The detergent dispenser drawer is provi-
ded with an insert for liquid detergent. Do
not use the insert downwards for gelati-
nous detergents, with programmes in-
cluding prewash, with the delay start op-
tion. In all these cases you can use me-
tering balls or sachets provided with the
detergent, Take out the metering aid at
the end of the washing cycle.
• Garments which have been in contact
with volatile petroleum products should
not be machine washed. If volatile clean-
ing fluids are used, care should be taken
to ensure that the fluid is removed from
the garment before placing in the appli-
ance.
• Never pull the power supply cable to re-
move the plug from the socket; always
take hold of the plug itself.
• Never use the appliance if the power
supply cable, the control panel, the work-
ing surface or the base are damaged so
that the inside of the appliance is acces-
sible.
CHILD SAFETY
• This appliance is not intended for use by
persons (including children) with reduced
physical sensory or mental capabilities or
lack of experience and knowledge unless
they have been given supervision or in-
electrolux 3

struction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure
that they do not play with the appliance.
• The packaging components (e.g. plastic
film, polystyrene) can be dangerous to
children - danger of suffocation! Keep
them out of children’s reach.
• Keep all detergents in a safe place out of
children’s reach.
• Make sure that children or pets do not
climb inside the drum. To prevent chil-
dren and pets becoming trapped inside
the drum this appliance incorporates a
special feature. To activate this device,
rotate the button (without pressing it) in-
side the door clockwise until the groove
is horizontal. If necessary use a coin.
To disable this device and restore the
possibility of closing the door, rotate the
button anti-clockwise until the groove is
vertical.
FROST PRECAUTION
If the appliance is installed in a place where
the temperature could drop below 0°C,
proceed as follows to remove any water re-
maining inside the appliance:
1. unplug the appliance;
2. turn off the water tap;
3. unscrew the water inlet hose from the
tap;
4. unfasten the drain hose from the rear
support and unhook it from sink or spi-
got;
5. place a bowl on the floor;
6. let the drain hose run along the floor,
place the external extremities of the
drain and inlet hoses in the bowl placed
on the floor and let water drain out
completely;
7. screw the water inlet hose back on and
reposition drain hose again;
When you intend to start the appliance up
again, make sure that the room tempera-
ture is above 0°C.
ENVIRONMENT CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
PACKAGING MATERIALS
The materials marked with the symbol
are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
4 electrolux

This means that they can be recycled by
disposing of them properly in appropriate
collection containers.
ECOLOGICAL HINTS
To save water, energy and to help protect
the environment, we recommend that you
follow these tips:
• Normally soiled laundry may be washed
without prewashing in order to save de-
tergent, water and time (the environment
is protected too!).
• The machine works more economically if
it is fully loaded.
• With adequate pre-treatment, stains and
limited soiling can be removed; the laun-
dry can then be washed at a lower tem-
perature.
• Measure out detergent according to the
water hardness, the degree of soiling and
the quantity of laundry being washed.

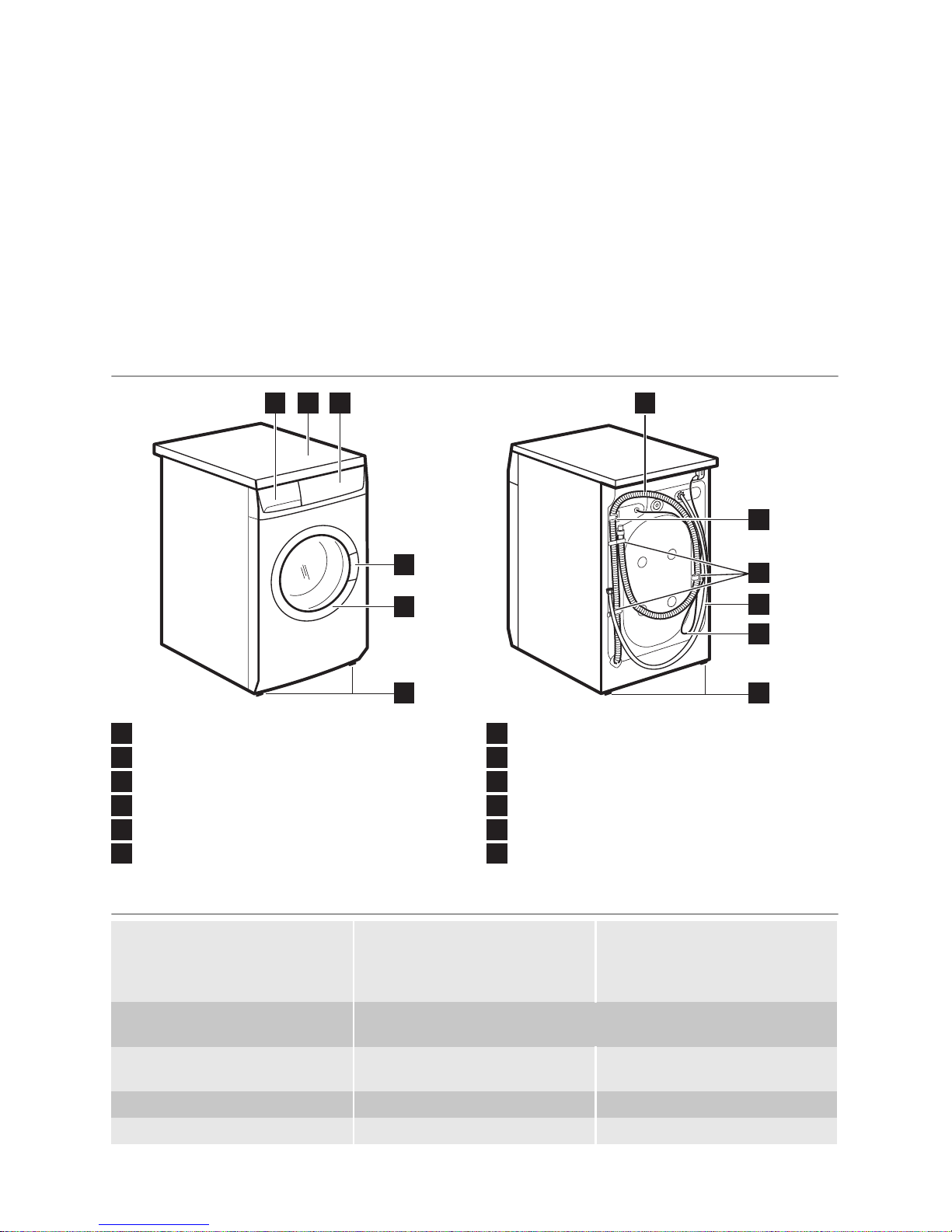

PRODUCT DESCRIPTION
1 2 3
4
5
6
9
7
10
11
12
8
1
Detergent dispenser drawer
2
Worktop
3
Control panel
4
Door opening handle
5
Rating plate (on the inner edge)
6
Front adjustable feet
7
Water drain hose
8
Drain hose support
9
Hose holders
10
Water inlet hose
11
Mains cable
12
Back feet
TECHNICAL DATA
Dimensions Width
Height
Depth
Depth (Overall dimensions)
60 cm
85 cm
50 cm
54 cm
Electrical connection
Voltage - Overall power - Fuse
Information on the electrical connection is given on the rating
plate, on the inner edge of the appliance door.
Water supply pressure Minimum
Maximum
0,05 MPa
0,8 MPa
Maximum Load Cotton 7 kg
Spin Speed Maximum 1400 rpm
electrolux 5

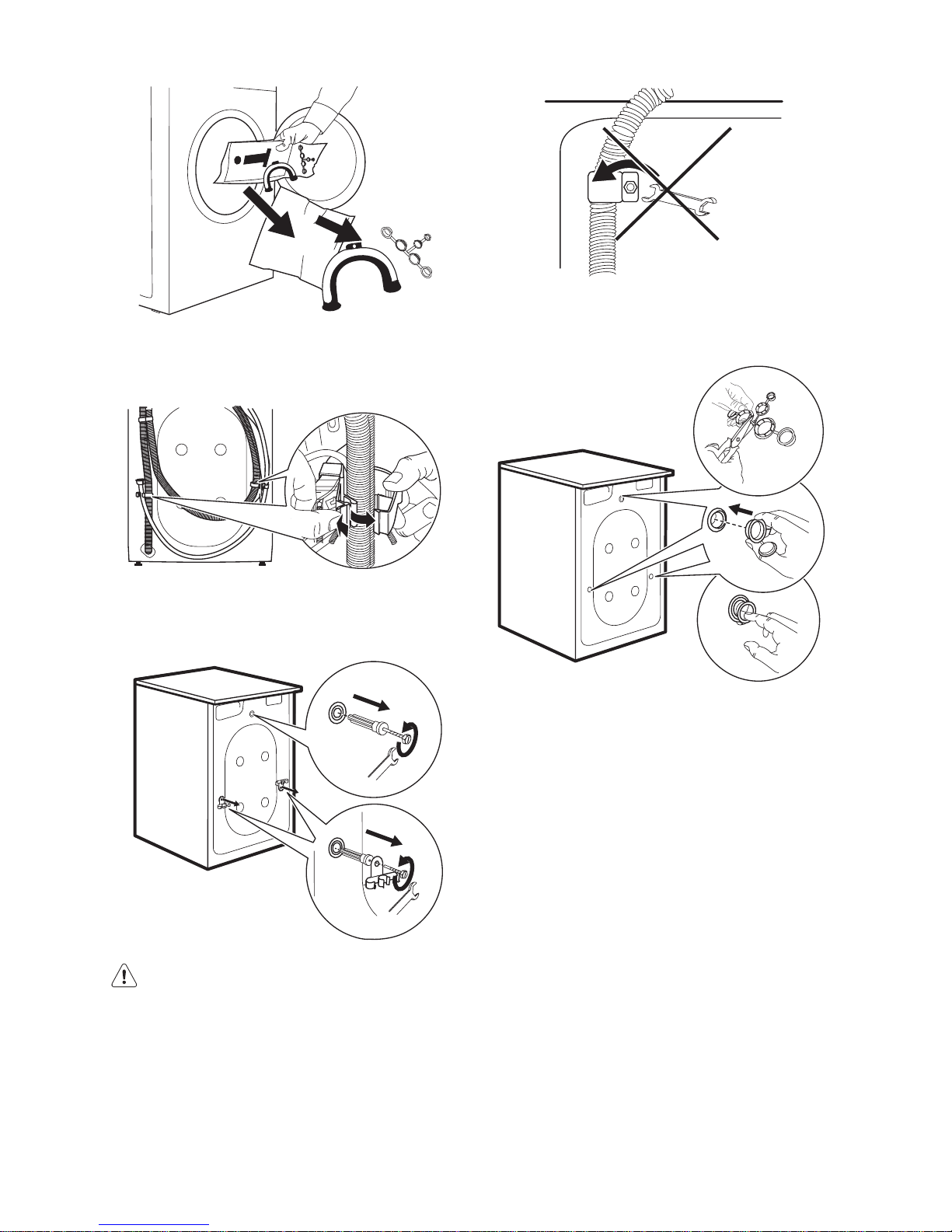

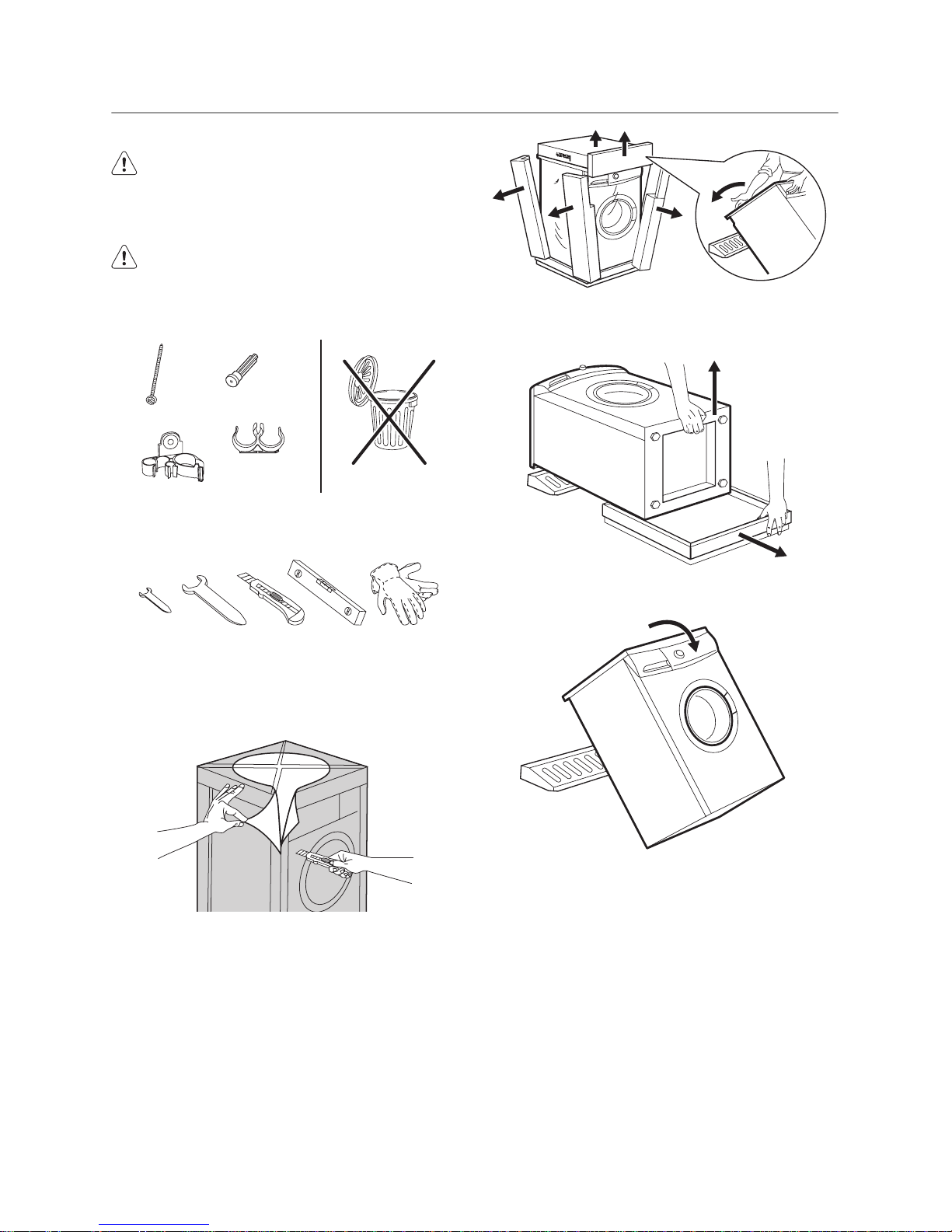

INSTALLATION
UNPACKING
Warning!
• Read carefully the "Safety informa-
tion" chapter before installing the ap-
pliance.
Warning! Remove and keep all
transit devices so that they can be
refitted if the appliance ever has to be
transported again.
x 3
x 3
x 2
x 1
B
A
C
Necessary tools
1)
10 mm 30 mm
• Remove the external film. Use a cutter, if
necessary.
• Remove the cardboard top.
• Remove the polystyrene packaging ma-
terials.
• Spread the front piece on the floor be-
hind the appliance and then lay the appli-
ance carefully rear side down on it. Make
sure that no hoses are crushed in the
process.
• Remove the polystyrene base from the
bottom.
2
1
• Return appliance to the upright position.
• Open the door and remove the plastic
hose guide, the bag containing the in-
struction booklet and the plastic plug
caps from the drum.
1) These tools are not provided with the appliance.
6 electrolux

• Remove the power supply cable and the
draining and inlet hose from the hose
holders on the rear of the appliance.
• Unscrew the three bolts and remove the
hose holders.
• Slide out the relevant plastic spacers.
Warning! Do not remove the drain
hose from the rear support.
Remove this hose only if it is
necessary to drain the water. Refer
to "Frost precaution" and "What to
do if".
• Plug the smaller upper hole and the two
large ones with the corresponding plastic
plug caps.
POSITIONING AND LEVELLING
Level the appliance by raising or lowering
the feet.
The appliance MUST be level and stable on
a flat hard floor. If necessary, check the set-
ting with a spirit level. Any necessary ad-
justment can be made with a spanner.
electrolux 7

x 4
Accurate levelling prevents vibration, noise
and displacement of the appliance during
operation.
Repeat the levelling action, if the appliance
is not level and stable.
WATER INLET
• Connect the hose to a tap with a 3/4”
thread.
• Loosen the ring nut to angle the hose to
the left or right depending on the position
of your water tap. Do not place the in-
let hose downwards.
45°
35°
• After positioning the inlet hose, be sure to
tighten the ring nut again to prevent
leaks.
WATER DRAINAGE
Form a hook at the end of the drain hose
using the plastic hose guide, if necessary.
The end of the drain hose can be posi-
tioned in four ways:
•Hooked over the edge of a sink using
the plastic hose guide.
Tie the plastic hose guide to the tap with
a string to prevent that the drain hose un-
hooks when the appliance is emptying.
•Onto a sink outlet spigot.
8 electrolux

Push the drain hose onto the spigot and
secure with a clip, ensure a loop is
formed in the drain hose to prevent
waste from the sink entering the appli-
ance.
If the outlet spigot has not been used be-
fore, remove any blanking plug that may
be in place.
•Directly into a drain pipe at a height
of not less than 60 cm and not more than
100 cm. The end of the drain hose must
always be ventilated, i.e. the inside di-
ameter of the drain pipe must be larger
than the outside diameter of the drain
hose. The drain hose must not be kinked.
•Directly to a built-in drain pipe in the
room wall.
The drain hose may be extended to a
maximum of 4 metres. An additional
drain hose and joining piece is available
from your Local Centre.
CONNECTIONS OVERVIEW
~max.400 cm
min. 60 cm
max. 100 cm
0.5 bar (0.05 MPa)
8 bar (0.8 MPa)
min.
60 cm
max.
100 cm
electrolux 9

ELECTRICAL CONNECTION
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agree with your do-
mestic power supply.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-way plugs, connectors
and extension cables. There is a risk of
fire.
• Do not replace or modify the mains cable
yourself. Contact the After Sales Service.
• Make sure that the mains plug and cable
is not squashed or damaged by the back
of the appliance.
• Make sure that the mains plug is accessi-
ble after installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• This appliance complies with the E.E.C.
Directives.
FIRST USE
• Ensure that the electrical and water
connections comply with the installa-
tion instructions.
• Ensure that the drum is empty.
• Before the first wash, run a cotton
cycle at the highest temperature
without any laundry in the machine,
to remove any manufacturing residue
from the drum and tub. Pour 1/2 a
measure of detergent into the main
wash compartment and start the
machine.
DAILY USE
SORT OUT THE LAUNDRY
Follow the wash code symbols on each
garment label and the manufacturer’s
washing instructions. Sort the laundry as
follows: whites, coloureds, synthetics, deli-
cates, woollens.
BEFORE LOADING THE LAUNDRY
Important! Make sure that no metal
objects are left in the laundry (e.g. hair clips,
safety pins, pins). Button up pillowcases,
close zip fasteners, hooks and poppers. Tie
any belts or long tapes. Remove any hooks
(e.g curtains).
• Never wash whites and coloureds to-
gether. Whites may lose their «whiteness»
in the wash.
• New coloured items may run in the first
wash; they should therefore be washed
separately the first time.
• Rub particularly soiled areas with a spe-
cial detergent or detergent paste.
• Treat curtains with special care.
• Wash the socks and the gloves inside the
bag or a net.
Remove stubborn stains before wash-
ing:
Blood: treat fresh stains with cold water.
For dried stains, soak overnight in water
with a special detergent then rub in the
soap and water.
Oil based paint: moisten with benzine
stain remover, lay the garment on a soft
cloth and dab the stain; treat several times.
Dried grease stains: moisten with turpen-
tine, lay the garment on a soft surface and
dab the stain with the fingertips and a cot-
ton cloth.
Rust: oxalic acid dissolved in hot water or a
rust removing product used cold. Be careful
with rust stains which are not recent since
the cellulose structure will already have
been damaged and the fabric tends to hole.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only).
Grass: soap lightly and treat with bleach
(whites and fast coloureds only).
10 electrolux

Ball point pen and glue: moisten with
acetone
2)
, lay the garment on a soft cloth
and dab the stain.
Lipstick: moisten with acetone as above,
then treat stains with methylated spirits.
Treat any residual marks with bleach.
Red wine: soak in water and detergent,
rinse and treat with acetic or citric acid,
then rinse. Treat any residual marks with
bleach.
Ink: depending on the type of ink, moisten
the fabric first with acetone
2)
, then with
acetic acid; treat any residual marks on
white fabrics with bleach and then rinse
thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub with
detergent paste.
OPEN THE DOOR BY CAREFULLY
PULLING THE DOOR HANDLE
OUTWARDS
LOAD THE LAUNDRY

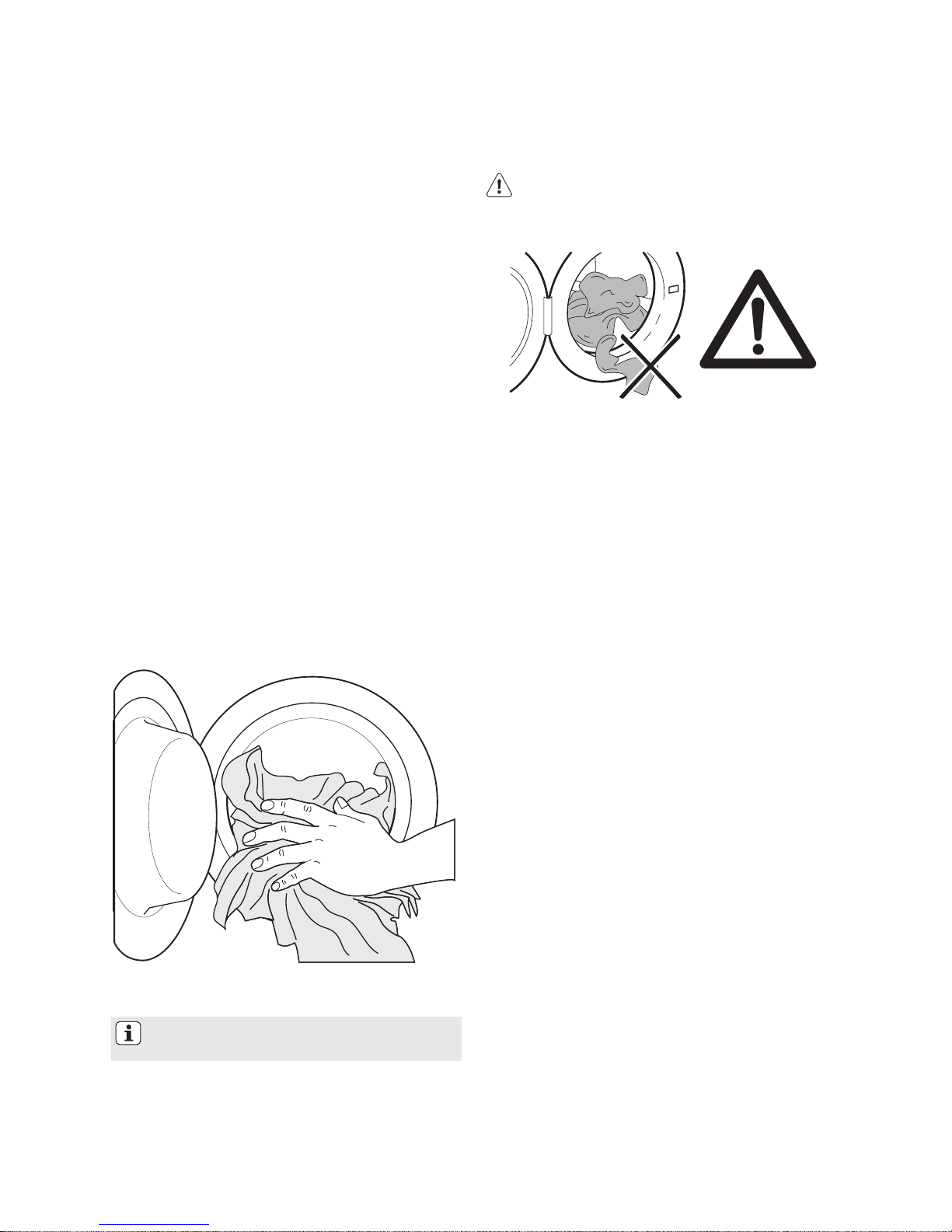

Place the laundry in the drum, one item at a
time, shaking them out as much as possi-
ble.
MAXIMUM LOADS
Recommended loads are indicated in the
«Washing Programmes».
General rules:
•Cotton, linen: drum full but not too
tightly packed;
•Synthetics: drum no more than half full;
•Delicate fabrics and woollens: drum
no more than one third full.
CLOSE THE DOOR GENTLY
Warning! Make sure that any fabrics
were not trapped when closing the
door.
DETERGENTS AND ADDITIVES
Good washing results also depend on the
choice of detergent and use of the correct
quantities to avoid waste and protect the
environment.
Although biodegradable, detergents contain
substances which, in large quantities, can
upset the delicate balance of nature.
The choice of detergent will depend on the
type of fabric (delicates, woollens, cottons,
etc.), the colour, washing temperature and
degree of soiling.
All commonly available washing machine
detergents may be used in this appliance:
• powder detergents for all types of fabric,
• powder detergents for delicate fabrics
(40°C max) and woollens,
• liquid detergents, preferably for low tem-
perature wash programmes (60°C max)
for all types of fabric, or special for wool-
lens only.
QUANTITY OF DETERGENT TO BE
USED
The type and quantity of detergent will de-
pend on the type of fabric, load size, de-
gree of soiling and hardness of the water
used.
For the quantity of detergent, refer always
to what is written on the product packing.
Use less detergent if:
• you are washing a small load,
• the laundry is lightly soiled,
• large amounts of foam form during wash-
ing.
2) do not use acetone on artificial silk.
electrolux 11

DEGREES OF WATER HARDNESS
Water hardness is classified in so-called
“degrees” of hardness. Information on hard-
ness of the water in your area can be ob-
tained from the relevant water supply com-
pany, or from your local authority.
If the water hardness degree is medium or
high we suggest you to add a water soften-
er following always the manufacturer’s in-
structions.
When the degree of hardness is soft, read-
just the quantity of the detergent.
OPEN THE DETERGENT DISPENSER
DRAWER
Compartment for powder or liquid de-
tergent used for main wash. Compart-
ment for liquid additives (fabric softener,
starch).
Warning! If you wish to carry out the
prewash, pour the detergent among
washing items into the drum.
Warning! Depending on the type
detergent you use (powder of liquid),
ensure that the flap, placed in the main
wash compartment, is in the desired
position.
FLAP FOR POWDER OR LIQUID
DETERGENT
UP- Flap position if using POWDER de-
tergent
PUSH
REMOVE
TO CLEAN
DOWN - Flap position if using LIQUID
detergent during main wash
PUSH
REMOVE
TO CLEAN
If the flap is not in the desired position:
• Remove the drawer. Push the drawer
edge outwards where indicated by the
12 electrolux

arrow (PUSH) to facilitate drawer remov-
al.
The flap is down and you wish to use
powder detergent:
• Rotate the flap upwards. Ensure to fit the
flap completely in.
• Carefully put the drawer back.
P
O
W
D
E
R
D
E
T
E
R
G
E
N
T
• Measure out the detergent.
• Pour the powder detergent into the main
wash compartment .
The flap is up and you wish to use liq-
uid detergent:
• Rotate the flap downwards.
• Carefully put the drawer back.
L
I
Q
U
I
D
D
E
T
E
R
G
E
N
T
1
2
0
m
l
6
0
m
l
• Measure out the detergent.
For the quantity of detergent, refer al-
ways to what is written on the product
packing and ensure that the detergent
can be poured in the drawer.
• Pour the liquid detergent in the compart-
ment without exceeding the limit indi-
cated in the flap. The detergent must be
placed in the appropriate compartments
of the dispenser drawer before starting
the wash programme.
Warning! Do not use the flap in
"DOWN" position with:
• Gelatinous detergent or thick deter-
gent.
• Powder detergent.
• With programmes with prewash.
• Do not use liquid detergent if the
washing programme doesn't start
immediately.
In all above listed cases, use the flap in
"UP" position .
MEASURE OUT THE FABRIC
SOFTENER
Pour fabric softener or any additives into
the compartment marked (do not ex-
ceed the «MAX» mark in the drawer). Any
additives must be placed in the appropriate
compartments of the dispenser drawer just
before starting the wash programme.
electrolux 13

CLOSE THE DETERGENT DISPENSER
DRAWER
SET YOUR WASHING PROGRAMME
The control panel permits to select a washing programmes and different options.
When an option button is selected, the corresponding pilot light is on. Otherwise it is off.
For compatibility among washing programmes and options, see the "Washing Pro-
gramme Chart". If an incorrect option is selected, the integrated red pilot light of the
button 6flashes 3 times.
7
123465
1
Programme selector
dial
Turn the programme selector dial to the required
programme. The selector dial can be turned either
clockwise or counter-clockwise. The green pilot light
of the button 6starts flashing: the appliance is now
switched on.
If you turn the programme selector dial to another
programme when the appliance is working, the red
pilot light of the button 6will flash 3 times to indicate
a wrong selection. The appliance will not perform the
new selected programme.
• To switch the appliance off, turn the programme se-
lector dial to the position .
• To cancel or change a running programme, switch
the appliance off by turning the programme selector
dial to the position . Select the new programme by
turning the selector to the desired programme. Start
the new programme by pressing the button 6again.
The water in the tub will be not emptied out.
14 electrolux

2
Temperature button Push the temperature button to select the most
suitable temperature for washing your laundry .
: Cold wash.
3
Spin reduction and
Rinse Hold
By selecting a programme, the appliance proposes auto-
matically the maximum spin speed provided for that pro-
gramme.
Press this button repeatedly to change the spin speed, if
you want your laundry to be spun at a different speed.
The relevant light illuminates.
Rinse Hold
By selecting this function the water of the last rinse is not
emptied out to prevent the fabrics from creasing. Before
opening the door it will be necessary to empty out the
water.
To empty out the water, please read the paragraph
«At the end of the programme».
4
Super Quick By pressing this button the corresponding pilot light illu-
minates.
Short cycle for lightly soiled items or for laundry which
needs only freshening up.
With this option, a reduced load of laundry is recommen-
ded:
• Cottons 3,5 kg
• Synthetics and delicates 2 kg
3
+
4
Extra Rinse This appliance is designed for saving water. However, for
people with very delicate skin (allergic to detergents) it
may be necessary to rinse the laundry using an extra
quantity of water.
Press simultaneously the buttons 3and 4for some sec-
onds: the pilot light 7.2 comes on. This function stays
permanently on. To remove it press the same buttons
again until the pilot light 7.2 goes off.
5
Delay Start The start of the programme can be delayed by 9, 6 or 3
hours by means of this button. The relevant light illumi-
nates.
You must select this option after you have set the pro-
gramme and before you start the programme.
electrolux 15

Select a delayed start:
• select the programme and the required options;
• select the delay start by pressing the button 5;
• press the button 6:
– the appliance starts its hourly countdown.
– The programme will start after the selected delay
has expired.
Cancelling the delayed start after having started
the programme:
• set the appliance to PAUSE by pressing the button 6;
• press the button 5once, the light relevant to the selec-
ted delay goes off;
• press the button 6again to start the programme.
The DELAY START cannot be selected with the drain
programme.
Important! The selected delay can be changed only after selecting the washing pro-
gramme again. The door will be locked throughout the delay time. If you need to open
the door, you must set the appliance to PAUSE (by pressing the button 6) and then wait
a few minutes. After you have closed the door, press the button 6again.
6
Start/Pause Start the programme by pressing the button 6
• To start the selected programme, press the button 6,
the corresponding green pilot light stops flashing. The
pilot light 7.1 illuminates to indicate that the appliance
starts operating and the door is locked. If you have
chosen a delayed start, the appliance will begin the
countdown.
• To interrupt a programme which is running, press the
button 6: the corresponding green pilot light starts
flashing. It is possible to change some options of a
running programme before the programme carries
them out.
• To restart the programme from the point at which it
was interrupted, press the button 6.
• After the programme has started the door is locked. If,
for any reason, you need to open the door, set firstly
the appliance to PAUSE by pressing the button 6. Af-
ter a few minutes it will be possible to open the door.
If the door remains locked, this means that the appli-
ance is already heating or that the water level is too
high. In any case, do not try to force the door!
If you cannot open the door but you need to open it
you have to switch the appliance off by turning the se-
lector dial to . After a few minutes the door can be
opened (pay attention to the water level and tem-
perature!). After closing the door, it is necessary to
select the programme and options again and to press
the button 6.
16 electrolux

7.1
7.2
7.3
Indicator pilot lights • When you start the programme by pressing the button
6, the washing phase pilot light (7.1) illuminates. This
means that the appliance is operating.
• The additional rinses pilot light (7.2) illuminates when
the appliance performs an extra rinse.
• When the programme has finished the end cycle pilot
light (7.3) comes on.
AT THE END OF THE PROGRAMME
The appliance stops automatically. The pilot
light of the button 6and the pilot light cor-
responding to the just finished washing
phase go off. The light 7.3 illuminates.
If a programme or an option that ends with
water left in the tub has been selected and
the door remains locked to indicate that the
water must be emptied out before opening
the door.
Follow the below instructions to empty out
the water:
•Turn the programme selector dial to .
• Select the draining or spinning pro-
gramme.
• Reduce the spin speed if needed, by
pressing the relevant button.
• Press the button 6.
At the end of the programme, the door can
be now opened. Turn the programme se-
lector dial to to switch the appliance off.
Remove the laundry from the drum and
carefully check that the drum is empty. If
you do not intend to carry out another
wash, close the water tap. Leave the door
open to prevent the formation of mildew
and unpleasant smells.
Warning! If there are children or pets
in the house, activate the child safe-
ty device in the inner side of the door
frame (for more details read " Child
safety" in the chapter "Safety Informa-
tion").
Stand by: during programme setting
up and once the programme has finish-
ed, if the programme selector dial and
any button are not touched, after a few
minutes the energy saving system is
enabled. The pilot lights go off. The
green pilot light of the button 6flashes
with a low frequency. By pressing any
button the appliance will come out of
the energy saving status.
DOOR SEAL
At the end of every cycle, check from the
door seal and remove objects that could be
trapped in the fold.
WASHING PROGRAMMES
Programme - Maximum and Minimum Temperature
- Cycle Description - Maximum Spin Speed - Maxi-
mum Fabrics Load - Type of Laundry
Options
Detergent
Compart-
ment
COTTON
90°- (Cold)
Main wash - Rinses - Maximum spin speed: 1400 rpm
Max. load 7 kg - Reduced load 3,5 kg
White, coloured cotton and linen. Normally soiled
items.
SPIN REDUCTION,
RINSE HOLD,
SUPER QUICK
1)
,
EXTRA RINSE,
DELAY START
electrolux 17

Programme - Maximum and Minimum Temperature
- Cycle Description - Maximum Spin Speed - Maxi-
mum Fabrics Load - Type of Laundry
Options
Detergent
Compart-
ment
+ COTTON WITH PREWASH
90° - (Cold)
Prewash - Main wash - Rinses - Maximum spin speed:
1400 rpm
Max. load 7 kg - Reduced load 3,5 kg
White, coloured cotton and linen. Heavy soiled items.
SPIN REDUCTION,
RINSE HOLD,
SUPER QUICK
1)
,
EXTRA RINSE,
DELAY START
COTTON ECONOMY
60° - 40°
Main wash - Rinses - Maximum spin speed: 1400 rpm
Max. load 7 kg
White and coloured cotton. This programme can be
selected for slightly or normally soiled cotton items. The
temperature will decrease and the washing time will be
extended. This allows to obtain a good washing efficien-
cy by saving energy.
SPIN REDUCTION,
RINSE HOLD,
EXTRA RINSE,
DELAY START
SYNTHETIC
60° - (Cold)
Main wash - Rinses - Maximum spin speed: 700 rpm
Max. load 3,5 kg - Reduced load 2 kg
Synthetic or mixed fabrics: underwear, coloured gar-
ments, non-shrink shirts, blouses . Normally soiled items.
SPIN REDUCTION,
RINSE HOLD,
SUPER QUICK
1)
,
EXTRA RINSE,
DELAY START
MIXED FABRICS
Cold
Main wash - Rinses - Maximum spin speed: 700 rpm
Max. load 3,5 kg
Highly energy efficient cold wash programme for lightly
soiled laundry. This programme requires a detergent
which is active in cold water.
SPIN REDUCTION,
RINSE HOLD,
EXTRA RINSE,
DELAY START
DELICATES
40°- (Cold)
Main wash - Rinses - Maximum spin speed: 700 rpm
Max. load kg 3,5 - Reduced load 2 kg
Delicate fabrics: acrylics, viscose, polyester . Normally
soiled items.
RINSE HOLD,
SUPER QUICK
1)
,
EXTRA RINSE,
DELAY START
WOOL/ HANDWASH
40°- (Cold)
Main wash - Rinses - Maximum spin speed: 700 rpm
Max. load 2 kg
Machine washable wool, hand washable woollens
and delicate fabrics with «hand washing» care sym-
bol. Note: A single or bulky item may cause imbalance.
If the appliance doesn’t perform the final spin phase, add
more items, redistribute the load manually and then se-
lect the spinning programme.
SPIN REDUCTION,
RINSE HOLD,
DELAY START
18 electrolux

Programme - Maximum and Minimum Temperature
- Cycle Description - Maximum Spin Speed - Maxi-
mum Fabrics Load - Type of Laundry
Options
Detergent
Compart-
ment
RINSE
Rinse - Short spin speed 700 rpm. If a spin speed higher
than 700 rpm is selected, by pressing the relevant but-
ton, the appliance performs a long spin. (Maximum spin
speed at 1400 )
Max. load 7 kg
To rinse and spin cotton garments which have been
washed by hand. Select the EXTRA RINSE option to in-
tensify the rinsing action. The appliance adds additional
rinses.
SPIN REDUCTION,
RINSE HOLD,
EXTRA RINSE,
DELAY START
DRAIN
Draining of water
For emptying out the water left in the drum.
SPIN
Drain and long spin at maximum spin speed: 1400 rpm
Max. load 7 kg
Separate spin for hand washed garments and after pro-
grammes with the Rinse Hold option selected. You can
choose the spin speed by pressing the relevant button to
adapt it to the fabrics to be spun.
If a spin speed at 700 rpm is selected, by pressing the
relevant button, the appliance performs a short spin.
SPIN REDUCTION,
DELAY START
Special programmes
EASY IRON
60°- (Cold)
Main wash - Rinses - Maximum spin speed: 700 rpm
In order to obtain the best anti-creasing result, reduce
the load of synthetic items. (Recommended load 1 kg)
Synthetic or mixed fabrics. Gentle wash and spin to
avoid any creasing. The appliance performs additional
rinses.
RINSE HOLD,
EXTRA RINSE,
DELAY START
5 SHIRTS
30°
Main wash - Rinses - Maximum spin speed: 700 rpm
Synthetics and mixed fabrics. Suitable for 5 - 6 shirts
lightly soiled.
DELAY START
MINI 30
30°
Main wash - Rinses - Maximum spin speed: 700 rpm
Max. load 3 kg
Synthetics and delicates. Lightly soiled items or which
only needs freshening up.
DELAY START
electrolux 19

Programme - Maximum and Minimum Temperature
- Cycle Description - Maximum Spin Speed - Maxi-
mum Fabrics Load - Type of Laundry
Options
Detergent
Compart-
ment
JEANS
60°- (Cold)
Main wash - Rinses - Maximum spin speed: 700 rpm
Max. load 3 kg
Trousers, shirts or jackets in denim and jersey realized
with hi-tech materials. The Extra Rinse option is activated
automatically.
SPIN REDUCTION,
RINSE HOLD,
DELAY START
1) If you select the SUPER QUICK option by pressing button 4, we recommend that you reduce the maximum load
as indicated. Full loading is possible however with somewhat reduced cleaning results.
CONSUMPTION VALUES
Programme Energy consump-
tion (KWh)
1)
Water consump-
tion (litre)
1)
Programme du-
ration (Mi-
nutes)
1)
White Cottons 95 °C 2.2 79 180
Cottons 60 °C 1.3 73 170
Cottons 40 °C 0.85 73 145
Synthetics 40 °C 0.65 58 95
Delicates 40 °C 0.65 71 77
Wool/ Handwash 30 °C 0.3 48 55
1) The consumption information shown in this chart is indicative. It can vary depending on the quantity and the type
of laundry, on the temperature of the water supply and on the ambient temperature.
Standard programmes for the Energy
Label consumption values
The cotton 60 °C economy and cotton 40
°C economy are the standard cotton pro-
grammes for normally soiled cotton laundry.
They are suitable to clean normally soiled
cotton laundry and they are the most effi-
cient programmes in terms of combined
energy and water consumption for washing
that type of cotton laundry.
They agree with EN60456.
The actual water temperature may dif-
fer from the declared cycle tempera-
ture.
CARE AND CLEANING
Warning! Switch the appliance off and
remove the mains plug from the socket
before any cleaning action.
MAINTENANCE WASH
With the use of low temperature washes it
is possible to get a build up of residues in-
side the drum.
We recommend that a maintenance wash
be performed on a regular basis.
To run a maintenance wash:
• The drum should be empty of laundry.
• Select the hottest cotton wash pro-
gramme.
• Use a normal measure of detergent,
must be a powder with biological proper-
ties.
CLEANING THE DISPENSER DRAWER
The washing powder and additive dispens-
er drawer should be cleaned regularly.
• Remove the drawer.
20 electrolux
