Electrolux EWT1075H2WA User manual

EWT1075H2WA
EN Top Load Washer User Manual

Thank you for choosing afirst class product from Electrolux, which hopefully will provide
you with lots of pleasure in the future. The Electrolux ambition is to offer awide variety
of quality products that make your life more comfortable. You find some examples on
the cover in this manual. Please take afew minutes to study this manual so that you can
take advantage of the benefits of your new machine. We promise that it will provide a
superior User Experience delivering Ease-of-Mind.Good luck!
Welcome to the world of Electrolux
2
The symbols you will see on some paragraphs of this booklet have the following
meaning:
The warning triangle and/or the key words(Warning!, Caution!) emphasize
information that is particularly important for your safety or correct functioning
of the appliance.
The information marked with this symbol provides additional instructions and
practical tips on the use of the appliance.
Tips and information about economical and ecological use of the machine are
marked with this symbol.
Our contribution to the protection of the environment;
we useenvironmentally friendly paper.
CONTENTS
Safety information
Product description
Control panel
Washing program
Use
Care and cleaning
Helpful hints in dealing with washing problem
Troubleshooting
Installation instruction
Environment concerns
Contact detail: Electrolux customer care
3
5
6
7
8
10
12
13
14
15
18
19
...........................................................................
......................................................................
.......................................................................................
............................................................................
.............................................................................................................
............................................................................
..................................................................
...........
...............................................................................
.................................................................
................................................................
........................
Technical information

SAFETY INFORMATION
In the interest of your safety and to
ensure the correct use,before
installing and first using the
appliance,read this user manual
carefully,including its hints and
warnings.
To avoid unnecessary mistakes
and accidents,it is important to
ensure that all people using the
appliance are thoroughly familiar
with its operation and safety
features.
Save these instructions and make
sure that they remain with the
appliance if it is moved or sold,
so that everyone using it through
its life will be properly informed
on appliance use and safety.
General safety
It is dangerous to alter the
specifications or attempt to modify
this product in any way.
Make sure that small pets do not
climb into the drum.To avoid this,
please check into the drum before
using the appliance.
Any objects such as coins,safety
pins,nails,screws,stones or any
other hard,sharp material can cause
extensive damage and must not be
placed into the machine.
Only use manufacturer’s
recommended quantities of fabric
softener and detergent. Damage to
the fabric or appliance can occur if
you exceed the recommended
amount.
This appliance is not intended for use
by persons (including children)with
reduced physical,sensory or mental
capabilities,or lack of experience and
knowledge,unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Wash small items such as socks,
laces,washable belts etc in a washing
bag or pillow case as it is possible for
such items to slip down between the
tub and the agitator.
Do not use your washing machine to
wash articles with whale bones,
material without hems or torn material.
Always unplug the appliance and turn
off the water supply after use,clean
and maintenance.
Under no circumstances should you
attempt to repair the machine
yourself.Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts
3
This appliance is heavy. Care should
be taken when moving it.
When unpacking the appliance,
check that it is not damaged.If in
doubt,do not use it and contact the
Service Centre.

If the appliance is installed on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their
connectionsafter the installation.
Any plumbing work required to install
this appliance should be carried out
by a qualified plumber.
Any electricalwork required to install
this appliance should be carried out by
a qualifiedelectrician.
Use
This applianceis designed for
domestic use.It must not be used for
purposes other than those for which it
was designed.
Only wash fabricswhich are designed
to be machine washed. Follow the
instructions on each garment label.
Do not overload the appliance.See the
relevant sectionin the user manual.
Garmentswhich have beenin contact
with volatile petroleumproducts
should not be machine washed. If
volatile cleaning fluids are used, care
should be taken to ensure that the
fluid is removed from the garment
before placing in the machine.
Never pull thepower supplycable to
remove the plug fromthe socket;
always take hold of the plug itself.
Never use the washing machine if the
power supply cable, the control
panel, the working surface or the
base are damagedso that the inside
of the washing machine is accessible.
Childsafety
This washing machine is not intended
for use by young children or infirm
persons without supervision.
Young children should be supervised
to ensure that they do not play with
the appliance.
The packagingcomponents(e.g. plastic
film, polystyrene) can be dangerous to
children- danger of suffocation!Keep
them out of children'sreach
Keep all detergents in a safe place out
of children'sreach.
Make sure that children or pets do not
climb into the drum.
SAFETY INFORMATION
4
After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat stains
such as paint, ink, rust, and grass
before washing.
WARNING:
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT
touch the wet clothes and metal
parts.

Child Lock
410
1
2
Lint Filter
Control Panel
3Cabinet
4Water Inlet Valve
5Lid
6
7
Agitator
Main cable with plug
8Drain Hose
9Level Adjustment Feet
10 Water Inlet Hose
Auto Water Level
Your washing machine has selectable
“Auto” sensing water level option as
well as allowing you to choose a manual
water level if you wish. We recommend
you to use the Auto water level option to
ensure there is just the right amount of
water for the wash load in the machine.
This function is only available in Mixed
and Denim program.
Power Failure Recovery
This washing machine has last status
memory and whenever power supply
recovers, machine will continue with
the last status before power supply
was cut-off.
PRODUCT DESCRIPTION
5
Front Right
EWT1075H2WA
This machine is provided with child
safety lock option to prevent children
playing with the control panel.

Options
Press this button tocustomise your
wash program with Soak or Extra Rinse.
Start/Pause
Press this button tostart and pause
washing program.
Lock
This function locks the control panel to
prevent disruption. To activate, press
Delay End and Water Level buttons
simultaneously for 2 seconds until the
child lock`s indicator lights up after
launched.Press again for 2 seconds
to deactivate.
Auto Tub Clean
This feature allows for the drum to be
cleaned with Mixed/Denim program.
To activate, press both Delay End and
Option buttons simultaneously for 2
seconds. Press them again for 2 seconds
to deactivate.
Delay time
Power On/Off
Press this button to power on/off your
washing machine. The machine will
automatically power off if there is no s
election made within 5 minutes.
Program Selector
Press this button tochoose the wash
program you want. The “Your Program
Guide” shown on page 7 will help you
in selectingthe right program.
Water Level
Delay End
You can set your washing machine
to finish your wash at a later time you
specify, choosing a delay of between
1to 24 hours.
1
2
3
4
5
6
7
8
9
CONTROL PANEL
6
6
1
54
3
2
79
8
7
Choose the water level by pressing
Water Level button. Use only the
amount ofwater you need for the
wash load.
The time displayed under this icon
indicates the time when the program
will end.

Option
Op on
WASHING PROGRAMS
7
Program Description Option
Cottons
Soak,Extra Rinse,Soak+Extra
Rinse,Lock,Delay End,
Water Level
Mixed
Quick 20
Delicates
Bedding
Denim
Rinse+Spin
Spin
Option Description
Soak
AutoTub Clean This feature allows for the drum to be cleaned with Mixed/Denim program.
Extra Rinse
Soak,Extra Rinse,Soak+Extra
Rinse,Auto Tub Clean,Lock,
Delay End，Water Level
Lock,Delay End,Water Level
Soak,Extra Rinse,Soak+Extra
Rinse,Lock,Delay End,
Water Level
Soak,Extra Rinse,Soak+Extra
Rinse,Lock,Delay End,
Soak,Extra Rinse,Soak+Extra
Rinse,Auto Tub Clean,Lock,
Delay End，Water Level
Lock,Delay End,Water Level
Lock,Delay End
Add soak function to the wash program. This option will extend washing time.
Add one extra rinse to the wash program, suitable if clothes are heavily soiled. This
option will extend washing time.
Suitable for washing cotton clothes that are
lightly soiled.
Suitable for washing shirts,casual pants and
other ordinary clothes.
Suitable for washing daily clothes that are
lightly soiled and small quantity.
Suitable for washing delicate items such as
silk and underwear.
Suitable for washing bulky items like blanket
or bedding.
Suitable for washing denim clothes.
Program only for rinsing and spinning.
Program only for spinning.
Max Load
（kg）
10.0
10.0
10.0
3.0
3.0
10.0
10.0
10.0
10.0

Sort Your WashingInto
Separate WashLoads
Each load of washing should contain
clothing which needs the same washing
conditions. For example, you should not
wash delicate clothes with very dirty
work clothes.
Colour fast and non-colourfast fabrics
should be separated. Knowing the type
of fabrics you have and how dirty they
are will help when you make selections
from the wash program options.
Some fabrics are lint collectors and can
pick up lint, dirt and colour from other
fabrics which are lint producers. Some
examples are listed below:
Lint collectors
Corduroy
Synthetics
Permanent press
fabrics
Lint producers
Towels
Nappies
Chenille/
Candlewick
Make sure that you wash lint
collectors separately from lint
producers.
Check your clothes to avoid
damage
Empty all pockets. Close all hooks and
zippers to avoid snagging clothes.
Wash bras, pantyhose and other
delicates in a mesh laundry bag, which
you can purchase from your
supermarket.
Pre-treatment sprays and
stain removers
Pre-treatment sprays and stain
remover can damage plastic
components on your washing
machine.
If you use pre-treatment sprays or stain
removers, apply them to the clothing
well away from your washing machine.
Load the washing machine
USE
8
Over time you will learn what is the best
set-up of programs, detergent and load
sorting for different load types and soils.
These Washing Instructions are of a
general nature and you should get good
wash results by following them.
However, due to the variables of fabric
types, soil levels, detergent types and
available program settings you may find
some combinations of these which do
not always result in the perfect wash.
If for example you see residuals of
detergent or soils on some items,
please read the section Residues on
washed items paragraph.

USE
9
Bleaching of clothes can help to
remove stains and heavy soiling.
Oxygen type - This is generally a
powder type bleach. Add bleach in the
left-side box of the drawer. Refer to
the instructions on the bleach container.
Attention:
1 Do not overfill the siphon cap for the
liquid bleach.
2 Liquid detergent and bleach should
not be added to the left-side box
simultaneously in order to avoid
chemical reaction.
Chlorine type - This type of bleach
should NOT be mixed with detergent.
Mix the bleach with water as per the
instructions on the container.
Adding Bleach
Bleach should NOT be used on silk, wool,
rayon or drip dry clothes.

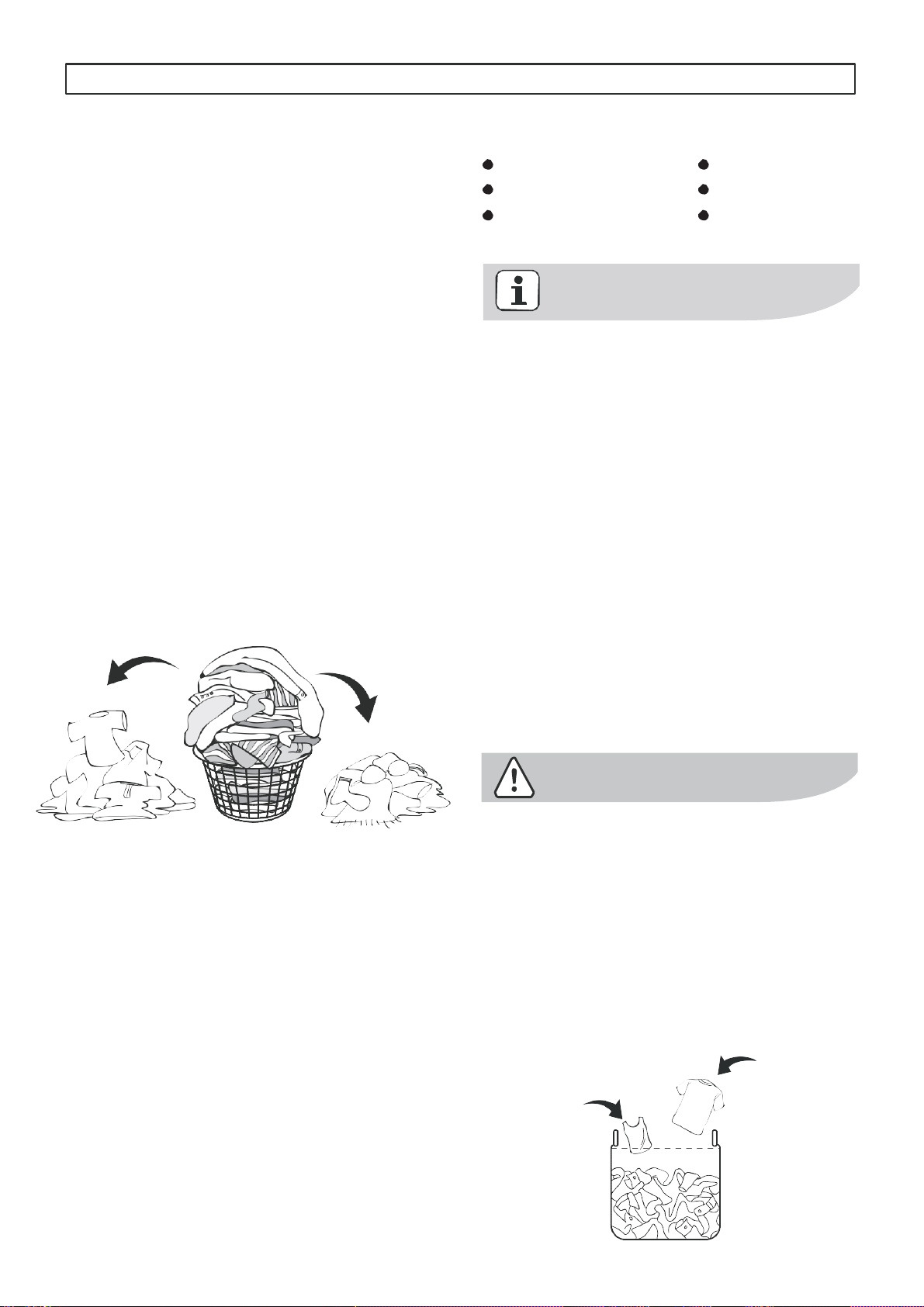

Clothes must be loaded evenly
in the tub.
Clothes must not be wrapped
around in the tub.
The washing machine must not be
overloaded. Clothes must be able to
move around during washing.
Amixed load of large and small items will
wash cleaner than a full load of large
items. For example, sheets should be
small items.
Detergent
Please use detergent designed for top
load or front load washing machines.
It is best to use detergent labelled
low sudsing.
Don't use too much detergent. This
will give you too many suds causing
low spin speeds, poor rinsing and
overloading the motor during spin
stages of the wash program.
Adding the detergent
1.Pull out the dispenser drawer.
2.Put proper detergent into it.
3.Pull back the dispenser drawer.
When using the washing machine for the
first time, check that the dispenser is set
for the type of detergent you will use. To
do this, proceed as follows:
Please add the detergent according to
the product instruction. Please add the
detergent properly if you have changed
the detergent.
accompanied by
Dose the amount as recommended by the
manufacturer and do not mix bleach with
detergent to avoid chemical reaction.
Do not overfill the siphon cap for the liquid
bleach.
When loading the clothes into your
washing machine, there are four things
to remember:

What To Do After You Have
Finished Your Washing.
After washing course is completed，
the water tap must be turned off.
(If required,the water inlet hose
can be removed.
After using the washing
machine,please discharge the
water in the barrel out so as to
keep it dry.
Plug out the power socket for
maintenance.
Hang up power line and drain hose.
Wipe up the droplet and dirt in washing
machine barrel with clean soft cloth.
Leave lid open for a while. This
allows time for moisture inside the
washing machine to evaporate
and for any odours to disperse.
You must DISCONNECT the appliance
from the electricity supply, before you
carry out any cleaning or maintenance
work.
CleaningThe Dispenser
The dispenser needs to be cleaned
regularly, preferably after each wash.
Inspect the dispenser after each wash to
see if there is any residue of detergent.
To do this, proceed as follows:
Pull out the dispenser drawer until it
stops.
Lift the front of the drawer up and pull
to remove it from the runners.
Clean the dispenser drawer with hot
water and a brush, eg. an old
toothbrush.
Dry the drawer.
Before replacing the dispenser back
in its recess, clean the inside of the
recess with an old toothbrush.
Put the dispenser back into its
runners and close the drawer.
Cleaning of LintFilter
Following is the concrete operation
method:
1:Press the button andpullout the filter
screen.
CARE AND CLEANING
10
)

Cleaning Your Washing
Machine
To clean the inside and outside of your
washing machine you should:
Wipe the surface with mild
dishwashing detergent and warm
water.
Wipe dry with a soft cloth.
Avoid the use of chemical
medicines such as detergent and
propellant as they damage the
surface.
Cleaning Stains In The
Drum
Stains and residue in the drum can
be caused by:
Metal objects such as bobby pins,
dress making pins and nails.
Salt.
Body oils and grease from dirty
or sweaty clothes being deposited
around the top of the drum.
Excessive foam during wash if
incorrect or too much detergent is
used.
Check all pockets before loading
clothes into your washing
machine.
Don't leave wet clothing
(especially swimwear) in the bowl
for too long before you wash it.
How to clean the drum:
Wipe with a cleaning product which
is suitable for stainless steel.
Oily deposits can be removed by
wiping surfaces with mild
dishwashing detergent and warm
water.
Never use bleach cleaners or steel
wool to clean the stainless steel
drum.
CARE AND CLEANING
11
3:Push down the filter screen
and insert it into the groove.
2:Open the filter screenand
wash it with water.

Residues On Washed ltems
lf you are experiencing residue on some
clothes, the following tips will help:
Pre-mix the detergent thoroughly in
warm water to improve the dissolving.
Reduce detergent dosage to between
1/2 and 2/3 of the manufacturer's
standard recommendation to avoid
over concentration (lower water usage
requires lower detergent usage).
Some residue may be re-deposited
lint, so be careful to not have lint
producing items in a load which has
darker clothes.
Some detergents have ingredients
which do not fully dissolve and as a
consequence, may leave white
residue or particles evident on the
surface of darker clothes in the
finished wash load.
Similarly, some soils may not
dissolve fully, resulting in residue
evident on lighter coloured clothes.
Stained Clothes
Treat all stains as soon as possible. The
longer you leave a stain，the harder it will
have to be removed.Try soakers and stain
removers first.
lf you use pre-treatment sprays or stain
removers, apply them to the clothes
items in a well ventilated area away
from your washing machine.
Use light strokes and don't rub the
stain remover into the fabric.
lf you use a chlorine bleach, follow the
instructions on the bottle and dilute it
before putting it on clothing.
T
est coloured fabrics on an inside
seam for colour fastness before using
any stain removers or bleaches.
Test synthetic fabric on an inside
seam before using any chemicals or
bleaches.
NOTE: Chemicals referred to for stain
removal are available from your local
supermarket, hardware store or the
chemist.
Pre-treatment sprays and stain
removers can damage plastic
components on your washing
machine.
Do no use dry cleaning fluids or
solvents near your washing machine.
These fluids will damage your
washing machine and may cause an
explosion.
HELPFUL HINTS IN DEALING WITH WASHING PROBLEMS
12

When the washing machine displays the below content with a buzzer,except
silent Ld code,it will automatically power off after 5 minutes.
Identify the problem and if possible, rectify it before contacting local service. Do
not dismantle and repair the machine without authorization.
Note: In “E4” after machine had self performed load adjustment twice and unsuccessfully.
TROUBLESHOOTING
13
Machine does
not work
Lid is opened during machine
running.
Close the lid,press Start/Pause
and recover it.
Ld
Water cannot be
drained
1.Drain hose is placed too high.
2.Drain hose is blocked /bent/
squashed.
1.Lower the drain hose and
press Start/Pause.
2.Check drain hose for blockage
or being bented / squashed
and press Start/Pause to
resume operation.
E5
Program Display Possible causes What to do
No water filling
in tub
1.Water tap is not turned on.
2.Inlet hose is blocked.
1.Turn on the water tap.
2.Clean tap filter/water inlet filter.
E1
Machine goes
out of balance or
vibrates
excessively
during
spinning
1.Uneven floor.
2.Adjustable feet is not adjusted.
3.Clothes is not evenly adjusted.
1.Adjust the machine level with
the adjustable feet.
2.Redistribute clothes evenly.
E4
1.Water inflows too much and
exceeds max water level.
2.The water level is abnormal.
The program adjusts and
recovers automatically.
E2
Machine not
working while
"Child lock" can
be activated
Lid is not closed with “Child Lock”
option selected.
Close the lid;cancel "Child Lock"
option;press Start/Pause and
recover it.
Ld
Abnormal water
level signal

14
Technical Information
PROBLEMS POSSIBLE REASONS AND RELEVANT
SOLUTION
Machine is detecting water level which is normal operation.
Spin cycle is delayed to ensure complete water drain which is
normal operation.
The machine program is designed with initial intermittent
spinning which is normal operation.
The washing load is unevenly distributed and machine is
redistributing the load.
This is normal as some electrial components generate heat
There has been continuous power supply cut-off and machine
goes into power off for protection purpose.
Child Lock option is activated. Unlock Child Lock to resume
normal operation of the control buttons.
Check the water supply pressure. The suitable water supply
pressure is 0.03-0.6MPa.
Machine pauses during washing or rinsing
The machine detects water level lower than required and
automatically top up water.
Water flowing in during washing or rinsing
Machine pause after water is fully drained
Spinning of the drum is intermittent or paused
during the initial spin cycle
Machine adds water into the drum during
spinning cycle
The control panel feels warm
The machines does not continue after power
supply recovers from sudden supply cut-off
Machine does not respond when buttons are
pressed
Some detergent residue in the detergent
drawer
Model
EWT1075H2WA
Product Dimension (WxHxD) mm
Power supply : THAI
Rated Power
Water supply pressure (min-max) Mpa
Maxium load
Spin speed
570x940x590
220V~,50Hz
550W
0.03-0.6MPa
10kg
700 rpm
Certain problems are due to lack of simple maintenance or oversights, which can
be solved easily without calling out an engineer.
Before contacting your local Service Centre,please carry out the checks listed
below.
Once the problem has been eliminated, press the Start/Pause button to restart the
program.
If after all checks, the problem persists, contact your local Service Centre.

INSTALLATION INSTRUCTIONS
15

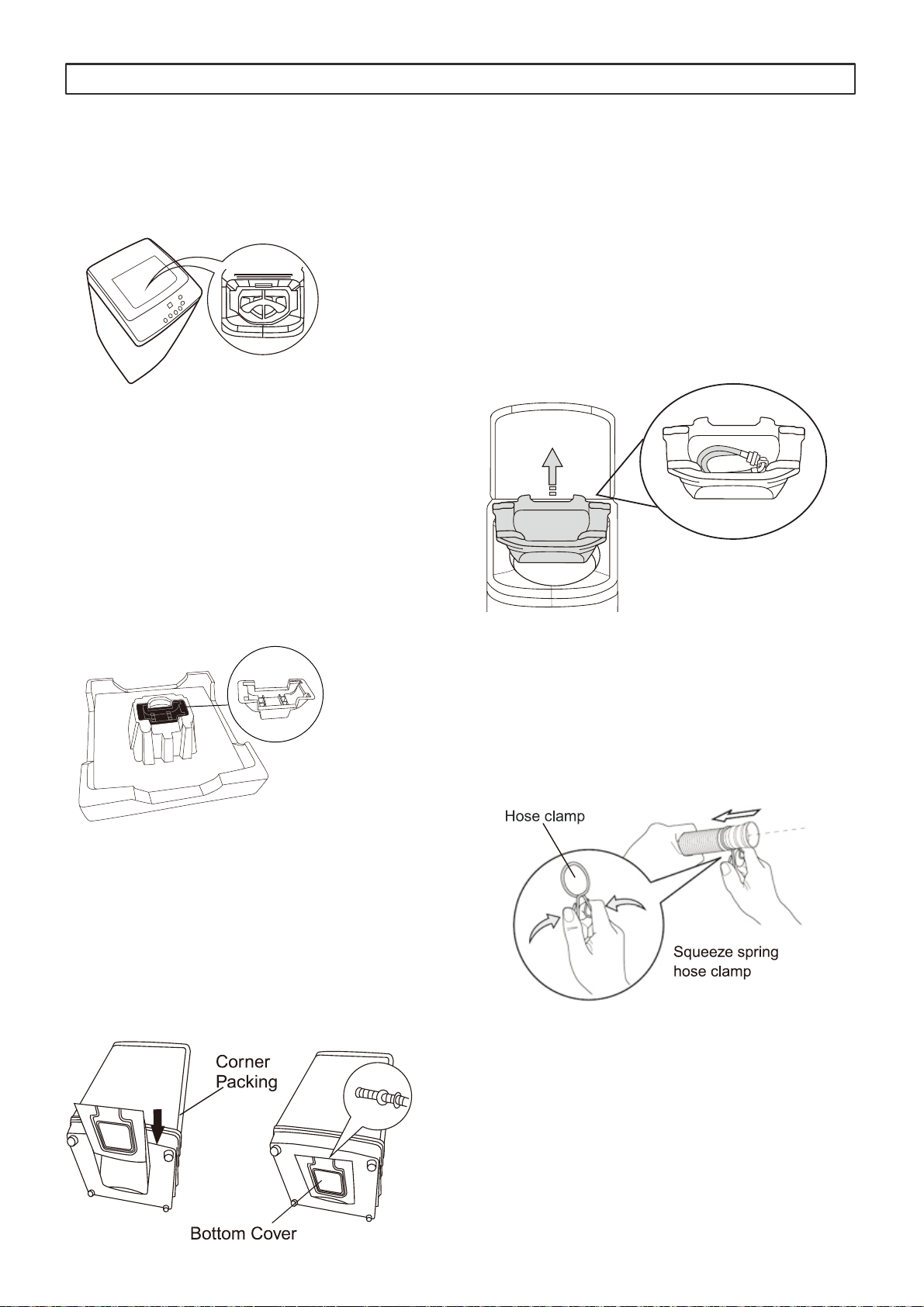

1.Unpacking and bottom cover
1.1 Take the machine out of the
packaging base.
1.2 After lifting the machine out,
all the packaging base must be
removed.
Motor Base
Polystyrene Base
2.Bottom cover insertion

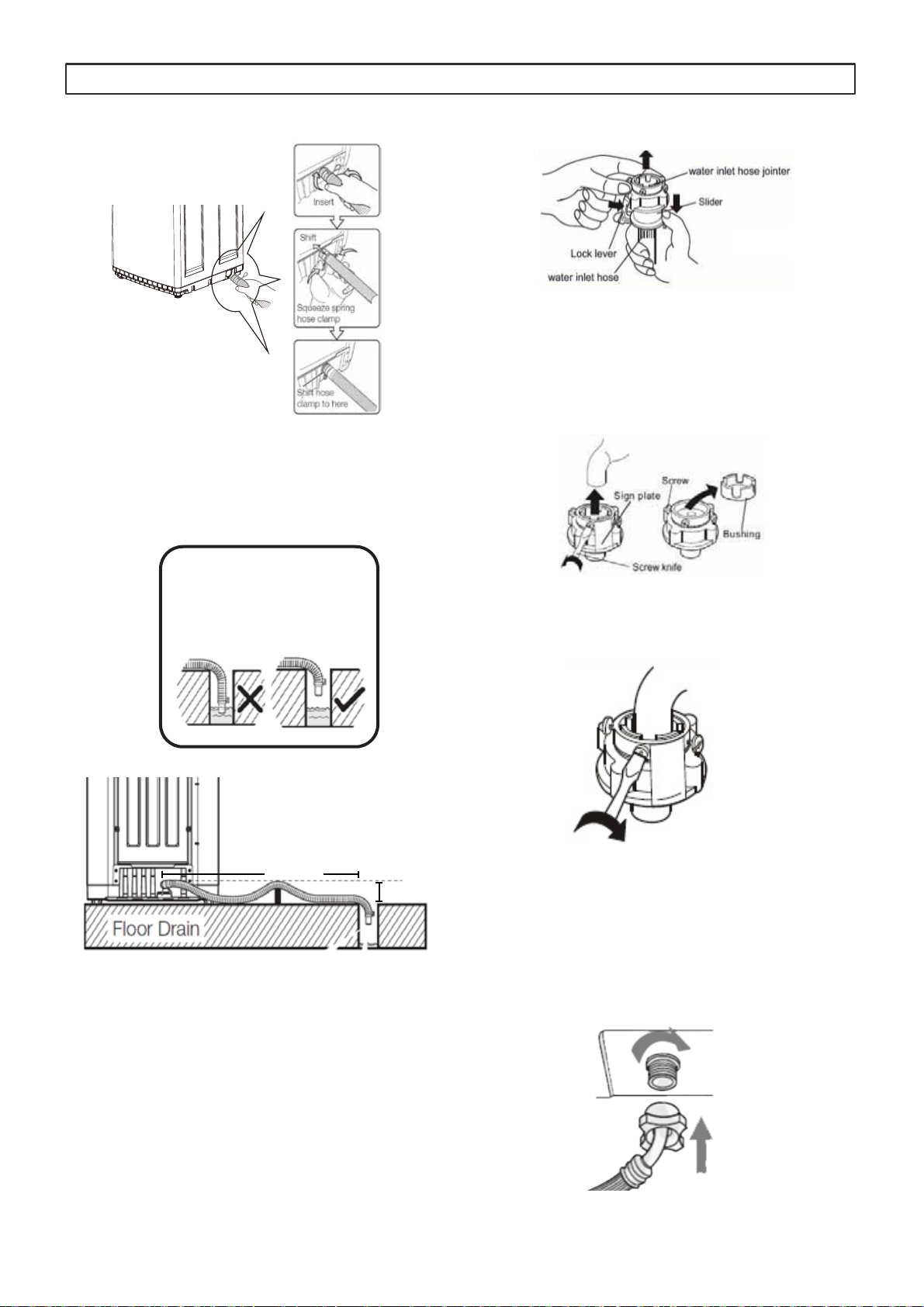

3. Drain hose
3.1 Holding the hose clamp and
squeezing it, then put it into the
drain hose inserting.
3.2 Insert drain hose into the drainage
holes at the bottom of washing
machine until it comes to end.
Squeeze hose clamp again and
shift it to the location as shown
on picture to lock the drain hose.
IMPORTANT :The top polystyrene
must be removed the last process,
protecting the drum from hitting the
cabinet when the machine is tilted.
Lay down the machine on its back
side, and insert the bottom cover
into slot until to the end, then fasten
the screw.
IMPORTANT :Prevention damaged to
the cabinet by placing two of the corner
packing pieces supporting between
back of machine and floor.
IMPORTANT:
Top polystyrene must be removed after
installation bottom cover.
Lift up the machine and remove the top
polystyrene.
Inlet hose and Drain hose
are placed above the top
polystyrene.

INSTALLATION INSTRUCTIONS
16
3.3 Position drain hose by adjusting
the free length of hose to suit
your installation.
IMPORTANT:
Do not put hose tip
into the water. For
prevent syphon effect.
3000 mm.
100 mm.
MAX
MAX
4. Inlet hose
At the water tap faucet
4.1 Press the lower end of the lock
lever and push down the slider.
Take off the water inlet hose
jointer from the water inlet hose
component.
4.2 Loosen the screw till the water
faucet can be accessed. Put the
jointer of the water inlet hose on
the faucet.
4.3 Fasten the four screws evenly.
At the washing machine
4.4 Fix the lock nut on the water inlet
valve by even strength. Do not twist
water inlet hose to avoid breakage.

INSTALLATION INSTRUCTIONS
17
5. Leveling of the machine
Machine should be placed even on
the floor. If the flooring is not even,
adjust the adjustable feet of the
washing machine until the entire
machine is stable.
IMPORTANT: Adjustable feet are
assembled on the left or right side
depending on the different models.
The right
Adjustable
feet model
6. Lid and machine clearance
Machine must have at least 5 cm
space clearance around itself.
7. Control panel protective film
Protective film on the control panel can
be removed by yourself.
EWT1075H2WA
EWT1075H2WA 570 590 940 1405
L

Packaging materials
The materials marked with the symbol
are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by
disposing of them properly in appropriate
collection containers.
Old machine
Use authorised disposal sites for your
old appliance. Help to keep your country
tidy!
The symbol on the product or on
its packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment.
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences on the
environment and human health, which
could otherwise be caused by
inappropriate waste handling of this
product.
For more detailed information about
recycling of this product, please contact
your local city office, your household
waste disposal service or the shop
where you purchased the product.
Ecologicalhints
To save water, energy and to help protect
the environment, we recommend that
you follow these tips:
Normally soiled laundry may be
washed without prewashing in order
to save detergent, water and time
(the environment is protected too!).
The machine works more
economically if it is fully loaded.
With adequate pre-treatment, stains
and limited soiling can be removed;
the laundry can then be washed at a
lower temperature.
Measure out detergent according to
the water hardness, the degree of
soiling and the quantity of laundry
being washed.
ENVIRONMENT CONCERNS
18

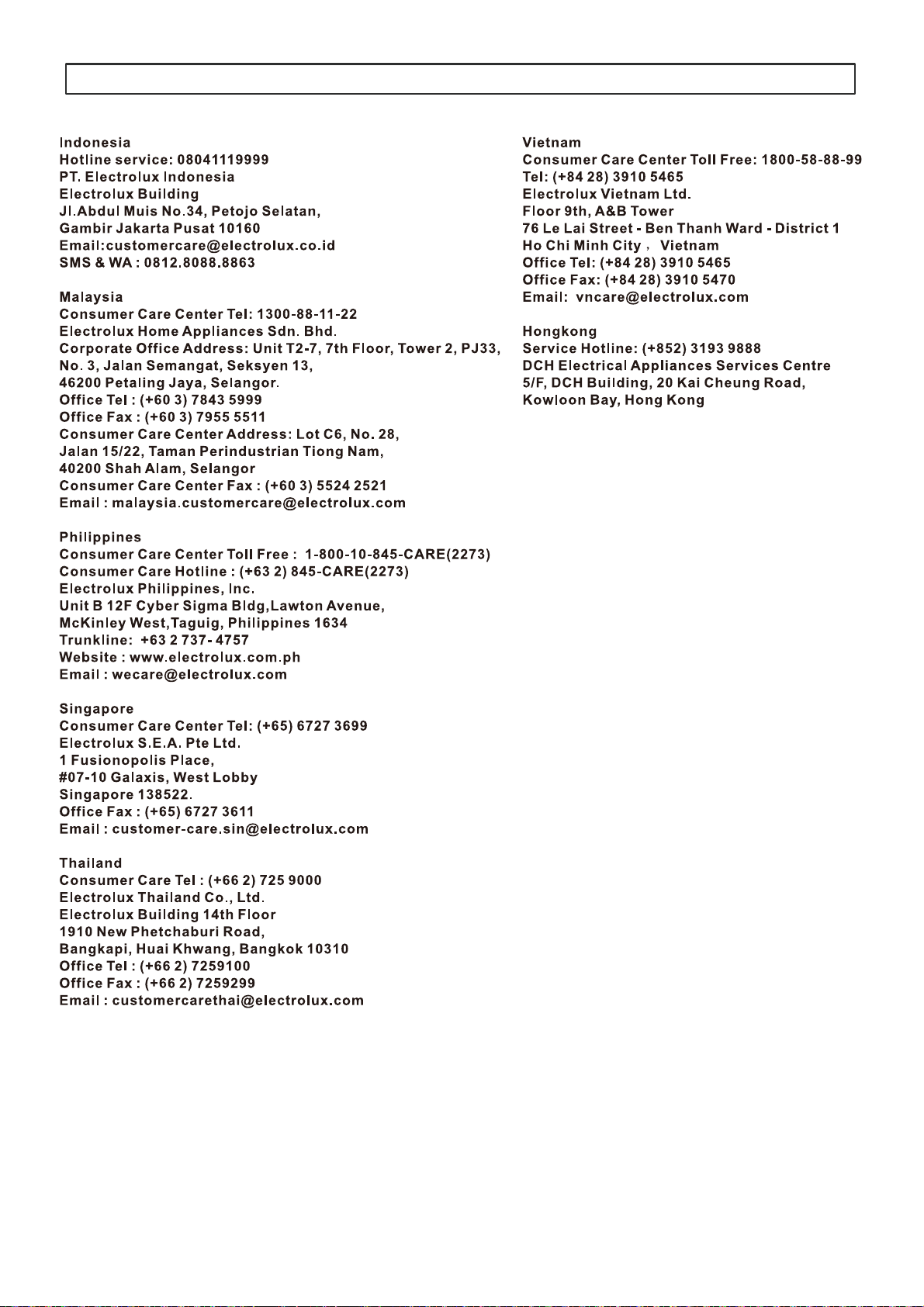

CONTACT DETAILS ELECTROLUX CUSTOMER CARE
19

www.electrolux.com
Q7508P03SMSWB
* We may make changes to this product
or manual in our continuous effort for
improvement without prior notification.
