Electrolux EWT655WN User manual

EWT655WN
EWT705WN
EWT805WN
EWT905WN
EWT105WN
EWT105WD
EWT125WD
EWT165WD
User ManualTop Load Washing Machine

Visit our website to:
Warning / Caution-Safety information.
General information and tips
Environmental information.
Subject to change without notice.
2 www.electrolux.com
WE’RE THINKING OF YOU
CUSTOMER CARE AND SERVICE
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time. Welcome to Electrolux.
We recommend the use of original spare parts.When contacting Service, ensure that
you have the following data available. The information can be found on the rating plate.
Model, PNC, Serial Number.
Get usage advice, brochures, trouble shooter, service information, buy
accessories & spare parts, online product registration : www.electrolux.com

3
CONTENTS
1.1 Conditions Of Use
1.2 Child Safety
1.3 General Safety
1.4 Installation
1.5 Use
1.
SAFETY INFORMATION
........................................................................................................ 4
.................................................................................................................. 4
............................................................................................................. 6
.................................................................................................................... 6
.............................................................................................................................. 7
2.1 Parts
2.2 Accessories
2.
PRODUCT DESCRIPTION
............................................................................................................................. 8
............................................................................................................... 8
3.1 Control Panel Description

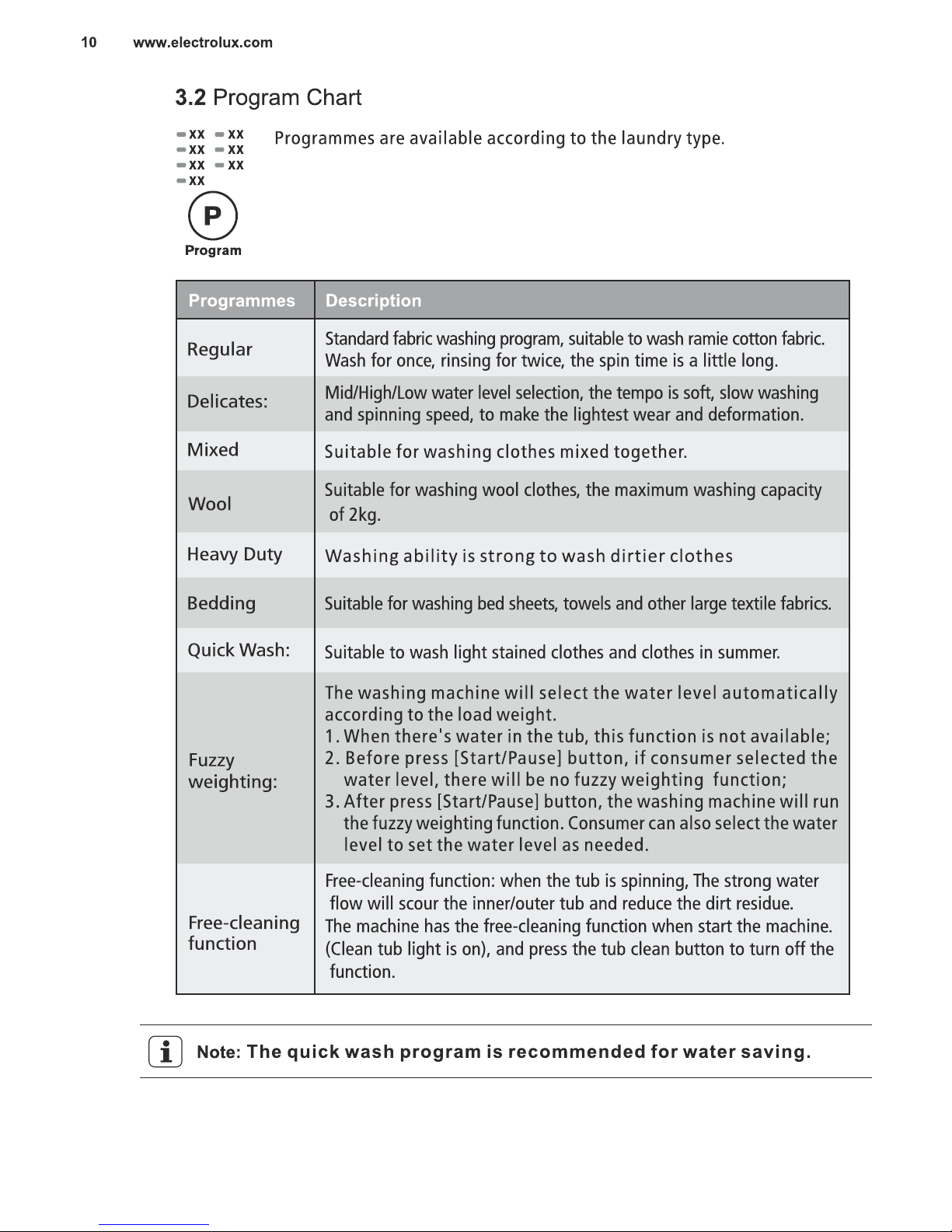

3.2 Program Chart
3.3 Options
3.4 Personalized setting of washing program
3.5 Operations of washing process
3.
CONTROL PANEL
............................................................................................ 9
............................................................................................................. 10
........................................................................................................................ 11
................................................................... 12
................................................................................... 12
5.1 Washing
5.2 After Washing
5.3 Reminder In Washing Clothes
5.4 The Usage Of Detergent And Washing Powder
5.
DAILY USE

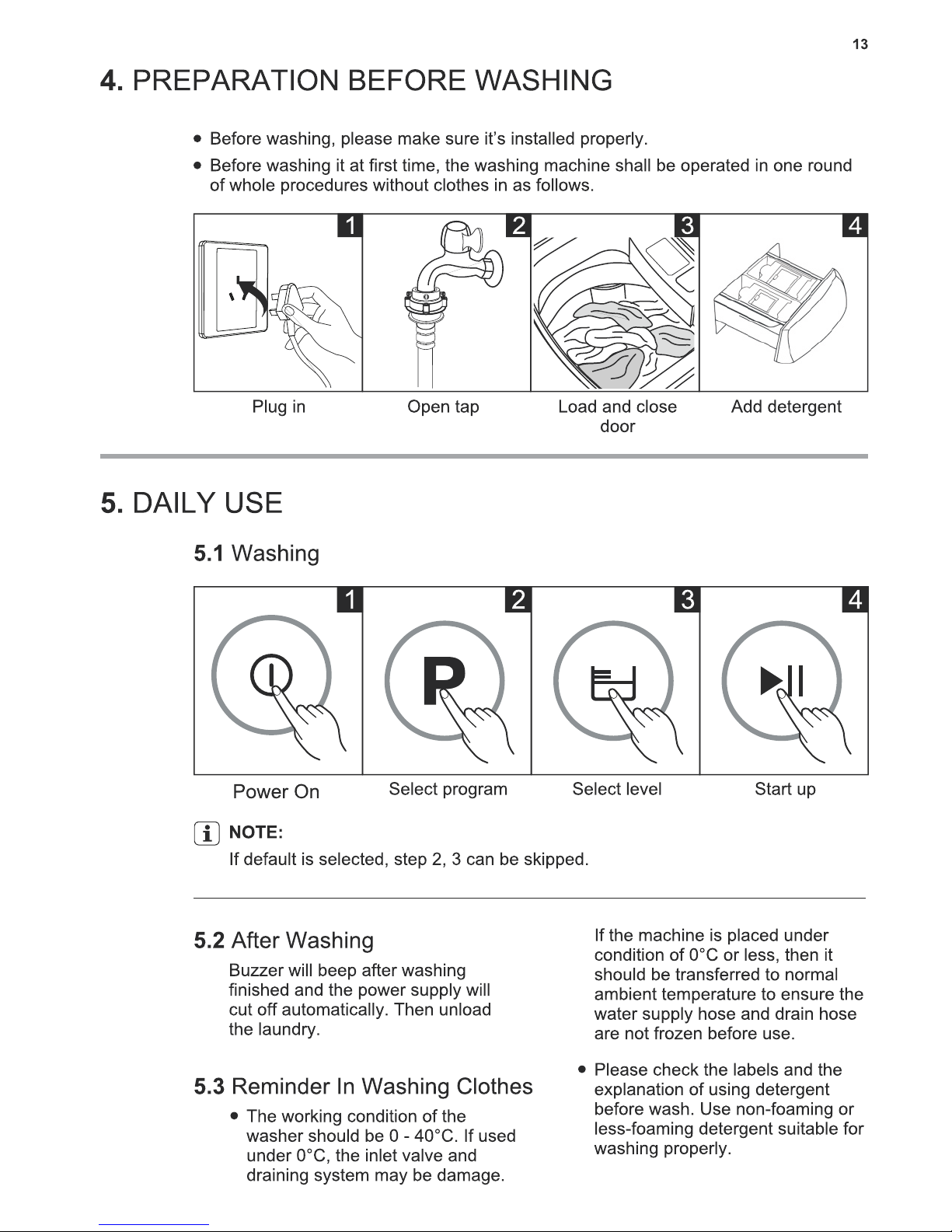

4. PREPARATION BEFORE WASHING
....................................................................................................................... 13
.............................................................................................................. 13
..................................................................................... 13
.......................................................... 14

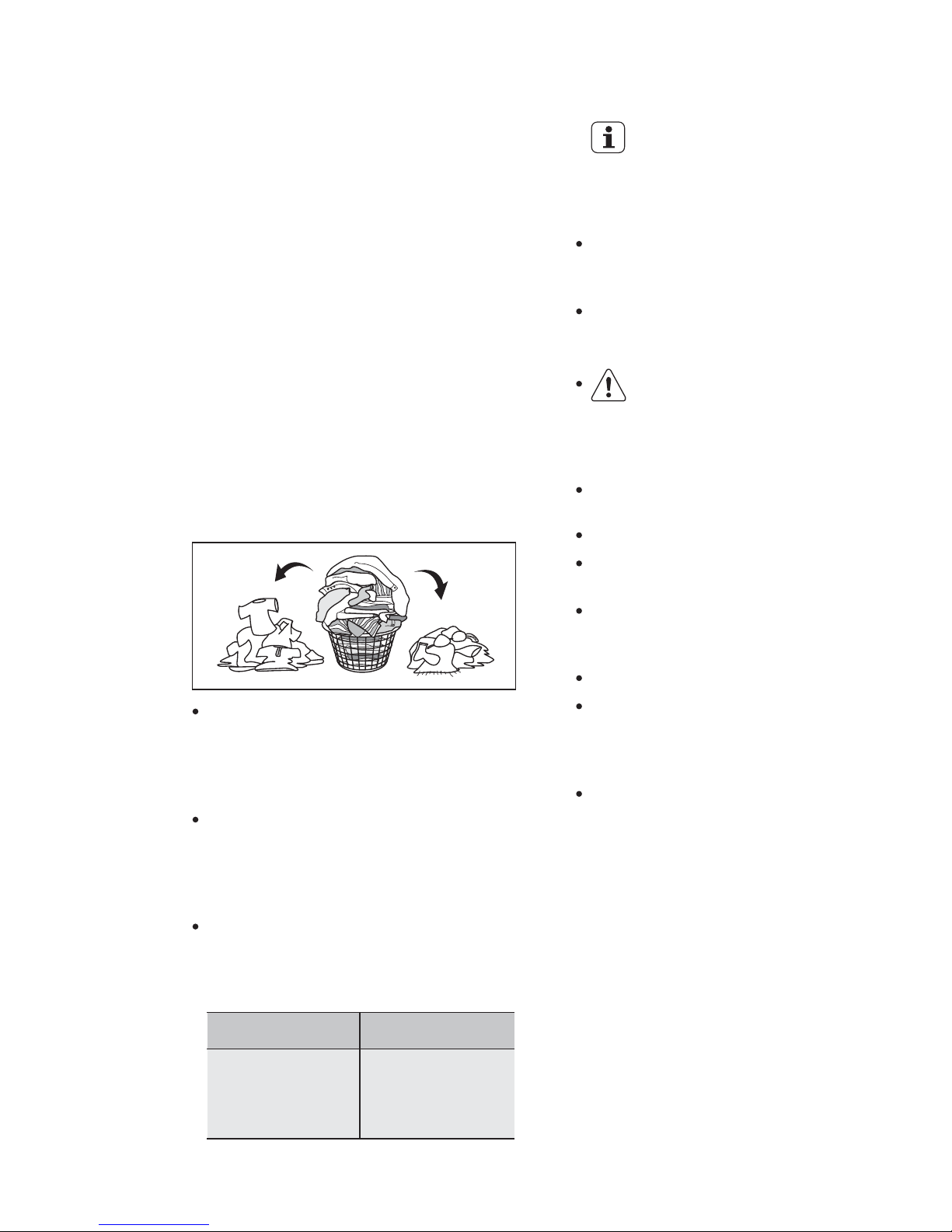

6.1 Sort Your Washing Into Separate Wash Loads
6.2 Pre-treatment Sprays And Stain Removers
6.3 Detergent
6.
WASHING HINTS
........................................................... 15
................................................................. 16
..................................................................................................................... 16
8.1 Cleaning the cabinet
8.2 Cleaning the inlet filter
8.
CARE AND CLEANING
.................................................................................................... 18
.................................................................................................. 18
11.1 Installation area
11.2 Unpacking the washing machine
11.3 Installation of drain hose
11.4 Adjusting the washing machine
11.5 Selection of tap
11.6 Connection of inlet hose, tap and washing machine
11.
INSTALLATION
.......................................................................................................... 20
............................................................................... 21
............................................................................................ 21
.................................................................................. 22
........................................................................................................... 22
................................................. 22
12.1 Packaging Materials
12.2 Old Machine
12.3 Ecological Hints
12.
ENVIRONMENT CONCERNS
.................................................................................................. 24
............................................................................................................... 24
......................................................................................................... 24
.............................................................................. 13
7.

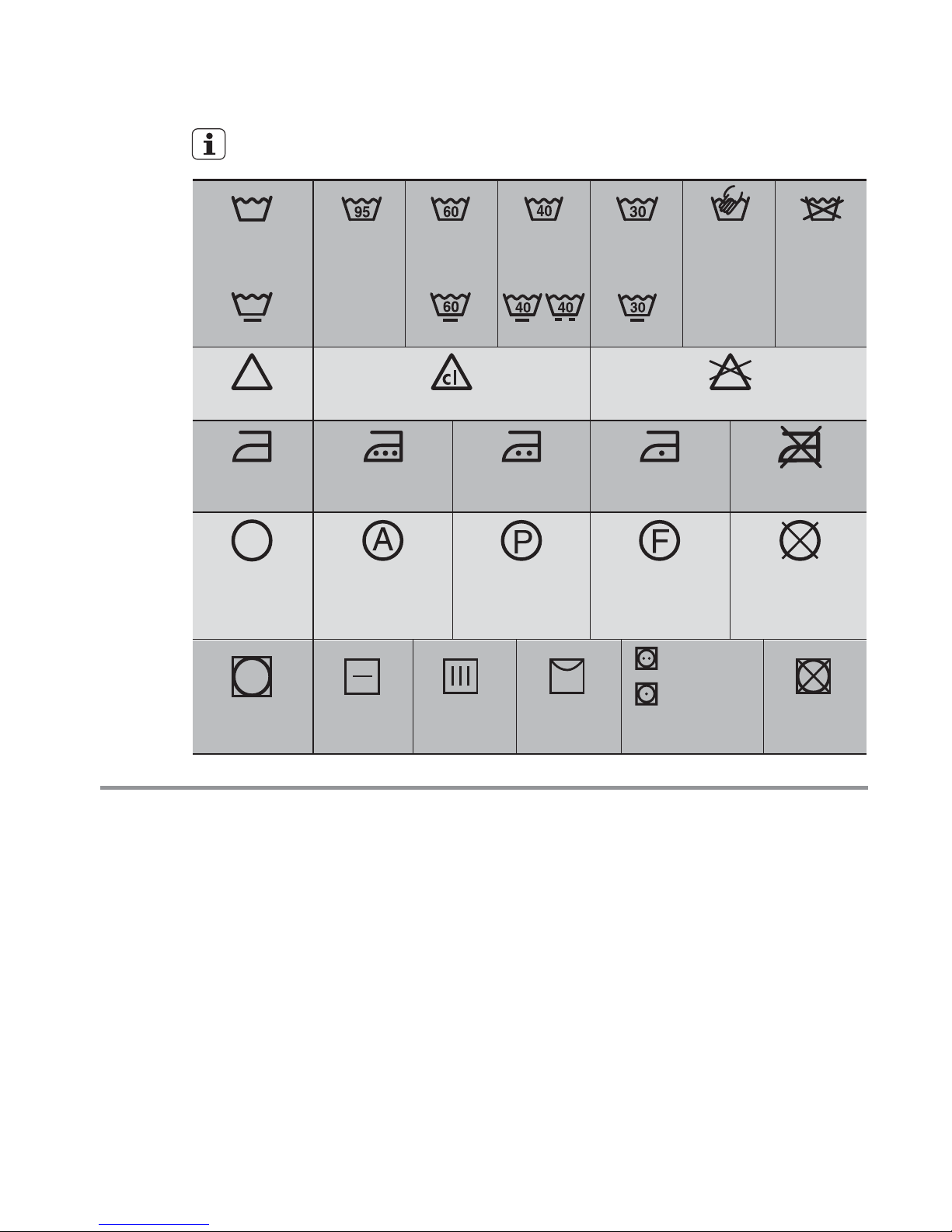

INTERNATIONAL WASH CODE SYMBOLS
..................................................................... 17
9.
TROUBLESHOOTING ......................................................................................................... 19
10.
TECHNICAL DATA
........................................................................................................... 20
13.
CONTACT DETAILS ELECTROLUX CUSTOMER CARE
............................................ 25

During operation,please keep kids and pets far away
from the machine.

5
●EN countries: the appliance can be used by children
aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
●IEC countries: This appliance is not intended for use
by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
Risk to children !

6 www.electrolux.com
1.3 General Safety
It is dangerous to alter the specifications
or attempt to modify this product in any
way.
Make sure that small pets do not climb
into the washbowl. To avoid this, please
check inside the washbowl before using
the appliance.
Any objects such as coins, safety pins,
nails, screws, stones or any other hard,
sharp material can cause extensive
damage and must not be placed into the
machine.
Only use manufacturer’s recommended
quantities of fabric softener and
detergent. Damage to the fabric or
appliance can occur if you exceed the
recommended amount.
Wash small items such as socks, laces,
washable belts etc in a washing bag or
pillow case as it is possible for such
items to slip down between the tub and
the agitator.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Do not use your washing machine to
wash articles with whalebones, material
without hems or torn material.
This appliance is heavy. Care should
be taken when moving it.
When unpacking the appliance, check
that it is not damaged. If in doubt, do not
use it and contact the Service Centre.
Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Contact your local
Service Centre. Always insist on
genuine spare parts.
1.4 Installation
After having installed the appliance,
check that it is not standing on the inlet
and drain hose.
If the appliance is installed on a
carpeted floor, please adjust the feet in
order to allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their
connections after the installation.
Any plumbing work required to install
this appliance should be carried out by
a qualified plumber.
Any electrical work required to install
this appliance should be carried out by
a qualified electrician.
●
Always unplug the appliance and turn
off the water supply after use, clean and
maintenance.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT touch
the wet clothes and metal parts.
Appliance should not be installed in
a humid place.
This appliance is for indoor use only.
The openings must not be obstructed
by a carpet.
This machine is not intended for built-in
usage.
Remove all packages before using the
appliance. Otherwise, serious damage
may result.
The washing machine with single inlet
valve only can be connected to the cold
water supply.
Plug must be accessible after
installation.

7
Never use the washing machine if the
power supply cable, the control panel,
the working surface or the base are
damaged so that the inside of the
washing machine is accessible.
This appliance is designed for
domestic use. It must not be used for
purposes other than those for which it
was designed.
Only wash fabrics which are designed
to be machine washed. Follow the
instructions on each garment label.
Do not overload the appliance. See the
relevant section in the user manual.
Before washing, ensure that all pockets
are empty and buttons and zips are
fastened. Avoid washing frayed or torn
articles and treat stains such as paint,
ink, rust, and grass before washing.
Garments which have been in contact
with volatile petroleum products should
not be machine washed. If volatile
cleaning fluids are used, care should
be taken to ensure that the fluid is
removed from the garment before
placing in the machine.
Never pull the power supply cable to
remove the plug from the socket; always
take hold of the plug itself.
1.5 Use
Risk of damaging appliance !
●
Your product is only for home use and
is not only designed for the textiles
suitable for machine washing.
●
Do not climp up and sit on top cover
of the machine.
●
Do not lean against machine door.
●
Please do not close the machine lid
with excessive forces.
●
Do not wash carpets.
●
Cautions during Handling Machine:
Transport bolts shall be reinstalled
to the machine by a specialized
person.
●
●
●
●
●
●
Before hand thoroughly rinse items of
washing by hand.
●
Hands shall not be inserted into
running spin-dry tub.
●
If the spin-dry tub does not stop within
15 seconds after opening the cover,
please stop using the machine and
have it repaired.
●
Never refill the water by hand during
washing.
●
-
The accumulated water shall be
drained out of the machine.
-
Handle the machine carefully.
Never hold each protruded part on
the machine while lifting. Machine
door can not be used as the handle
during the conveyance.
-
This appliance is heavy. Transport
with care.
-

8 www.electrolux.com

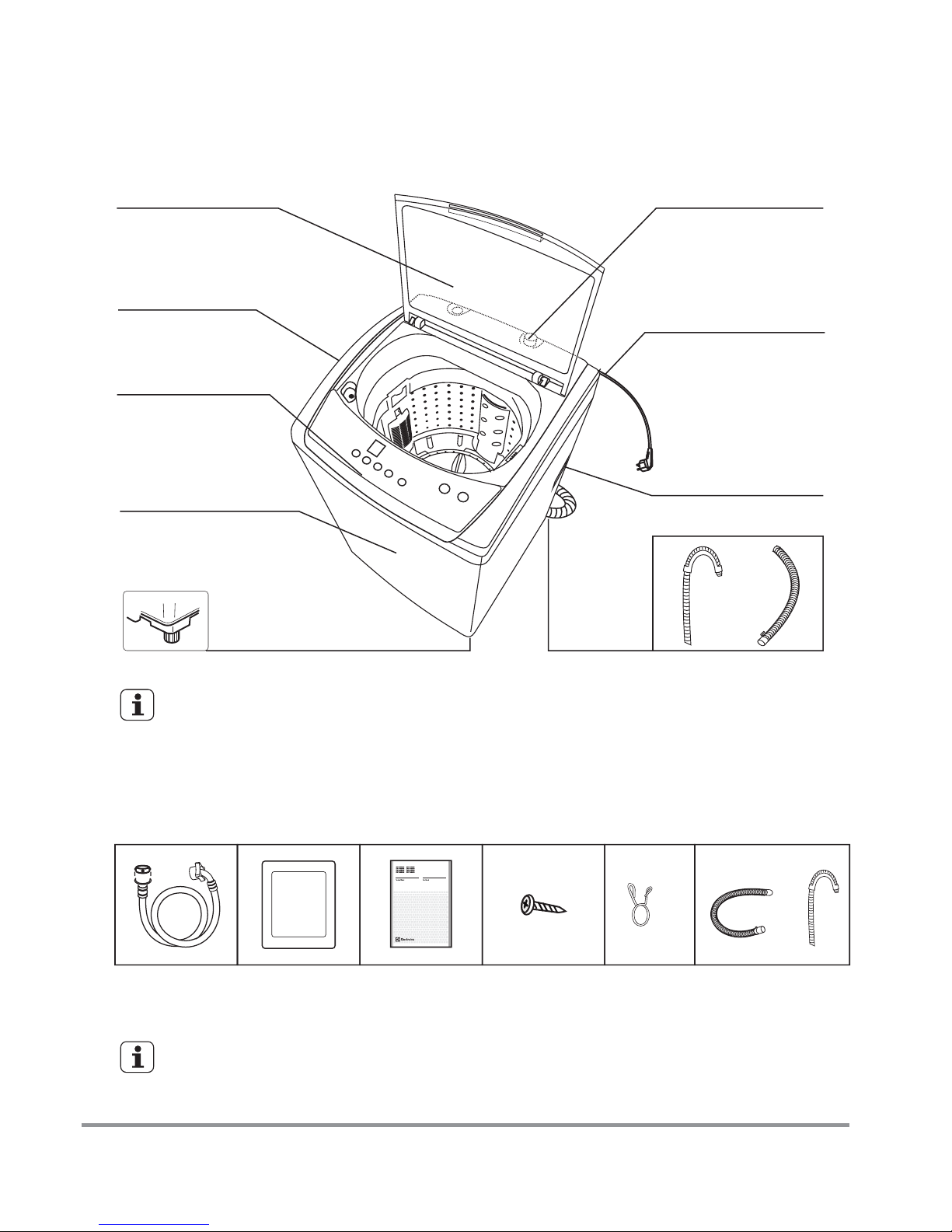

2.1 Parts
PRODUCT DESCRIPTION2.
Top lid
Frame
Control Panel
Cabinet
Adjustable foot knob
inlet hose manual screw spring
clamper
drain loosecabinet
baseboard
Water inlet valve
Power case and plug
Handle
Drain hose
or
or
Note: The product line chart is for reference only, please refer to real product
as standard.
Note: If the drain hose is already installed on the machine, then there is no
spring clamper and drain hose in the accessories.
2.2 Accessories

9
Product is switched On or Off.
Press the button to start or pause
the washing cycle.
Note: The chart is for reference only, please refer to real product as standard.
1
2
CONTROL PANEL3.
On/Off button
This allows you to select an
additional function and will light
when selected.
4Options
The display shows the settings,
estimated time remaining, options,
and status messages for your
washer. The display will remain on
trough the cycle.
5Display
Start/Pause button
Available according to the laundry
type.
3Program buttons
3.1 Control Panel Description
1235 4

Only washers have these functions

To avoid operation of functions
accidentally pressed by children

14 www.electrolux.com
Check the label.
●As for the agglomerated or ropy
detergent or additive, before they
are poured into the detergent box,
it is suggested to use some water
for dilution to prevent the inlet of
detergent box from being blocked
and overflowing while filling water.
●Please choose suitable type of the
detergent for the various washing
temperature to get the best
washing performance with less
water and energy consumption.
5.4 The Usage Of Detergent And
Washing Powder
-Knot the long strips, zip or button. -
Separate clothes with different
texture.
-
-
Put small clothes into the pillow
slip.
-
Take out the items out of the
pockets.
-
Turn easy-piling and long-pile
fabric inside out.
-
WARNING!
When washing a single cloth,
it may alarm due to unbalance.
Therefore it is suggested to add
one or two more clothes to be
washed together so that draining
can be done smoothly.
-Do not wash clothes that are
with kerosene, gasoline, alcohol
and other flammable materials.

15
WASHING HINTS6.
Sort Your Washing Into
Separate Wash Loads
Each load of washing should contain
clothing which needs the same
washing conditions. For example, you
should not wash delicate clothes with
very dirty work clothes.
Colour fast and non-colourfast fabrics
should be separated. Knowing the type
of fabrics you have and how dirty they
are will help when you make selections
from the wash program options.
Some fabrics are lint collectors and can
pick up lint, dirt and colour from other
fabrics which are lint producers. Some
examples are listed below:
Lint collectors Lint producers
- Corduroy
- Synthetics
- Permanent
press fabrics
- Towels
- Nappies
- Chenille/
Candlewick
Make sure that you wash lint
collectors separately from lint
producers.
6.1
NOTE:
IMPORTANT!
However, due to the variables of fabric
types, soil levels, detergent types and
available program settings you may find
some combinations of these which do
not always result in the perfect wash.
If for example you see residuals of
detergent or soils on some items, please
read the section Residues on washed
items paragraph.
Over time you will learn what is the best
set-up of programs, detergent and load
sorting for different load types and soils.
These Washing Instructions are of a
general nature and you should get good
wash results by following them.
Rub particularly soiled areas with a
special detergent or detergent
paste.
Treat curtains with special care.
Never wash whites and coloureds
together. Whites may lose their
“whiteness” in the wash.
New coloured items may run in the
first wash; they should therefore be
washed separately the first time.
Button up pillowcases, close zip
fasteners, hooks and poppers.
Tie any belts or long tapes.
Remove persistent stains before
washing.
Make sure that no metal objects
are left in the laundry (e.g. hair
clips, safety pins, pins).
Wash bras, pantyhose and other
delicates in a mesh laundry bag,
which you can purchase from
supermarket.
Remove hooks or tie them up in a
bag or net.

16 www.electrolux.com
If you use pre-treatment sprays or
stain removers, apply them to the
clothing well away from your
washing machine.
Pre-treatment Sprays And
Stain Removers
Pre-treatment sprays and stain
remover can damage plastic
components on your washing
machine.
6.2
Detergent
6.3
WARNING!
Don’t use the wrong type of
detergent. You must use a low
sudsing detergent designed for
front load washing machines or
high efficiency top loaders, such
as Cold Power for Front Loaders
and High Efficiency Top Loaders
or detergents labelled “Matic”.
Don’t use soap-based products in
your washing machine.
Don’t use too much detergent.
This can result in excessive suds
that can cause low spin speeds,
poor rinsing and overloading the
motor during spin stages of the
wash program.
Don’t use too little detergent
because you will get a poor wash.
If you think you need more,
increase dosages by only small
amounts to avoid excessive suds.
Quantity of detergent to be used
Good washing results also depend
on the choice of detergent and use
of the correct quantities to avoid
waste and protect the environment.
Although biodegradable, detergents
contain substances which, in large
quantities, can upset the delicate
balance of nature.
The choice of detergent will depend
on the type of fabric (delicates,
woolens, cottons, etc.), the colour,
washing temperature and degree of
soiling.
The type and quantity of detergent
will depend on the type of fabric, load
size, degree of soiling and hardness
of the water used.
Information on hardness of the water
in your area can be obtained from the
relevant water supply company, or
from your local authority.
Follow the product manufacturers’
instructions on quantities to use.
Not enough washing powder
causes: the washload to turn grey,
greasy clothes.
Too much washing powder causes:
sudsing, reduced washing effect,
inadequate rinsing.
Use less detergent if: you are
washing a small load, the laundry is
lightly soiled, large amounts of
foam form during washing.
Water hardness is classified in
so-called “degrees” of hardness.

17
INTERNATIONAL WASH CODE SYMBOLS7.
These symbols appear on fabric labels, in order to help you choose the best
way to treat your laundry.
Bleach in cold water DO NOT bleach
Bleaching
Hand wash
Max. wash
temperature
95 °C
Hot iron
max. 200 °C
Dry cleaning in
all solvents
Dry cleaning in
perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning in
petrol, pure alcohol
and R 113
DO NOT
dry clean
Warm iron
max. 150 °C
Lukewarm iron
max. 110 °C
DO NOT iron
Max. wash
temperature
60 °C
Max. wash
temperature
40 °C
Max. wash
temperature
30 °C
DO NOT
wash at all
Ironing
Dry cleaning
Drying Flat Tumble dry DO NOT
tumble dry
High
temperature
Low
temperature
On clothes
hanger
On the line
Energetic
wash
Delicate wash

18 www.electrolux.com
CARE AND CLEANING8.
WARNING! You must DISCONNECT the
appliance from the electricity supply,
before you can carry out any cleaning or
maintenance work.
Proper maintenance on the washing
machine can extend its working life. The
surface can be cleaned with diluted
non-abrasive neutral detergents when
necessary. If there is any water overflow,
use the wet cloth to wipe it off
immediately. No sharp items are allowed.
Caution! Do
not use
alcohol,
solvents or
chemical
products.
8.1 Cleaning the cabinet
Washing the filter in washing machine:
Screw off the inlet pipe from the
backside of the machine.
1.
Pull out the filter with long nose pliers
and reinstall it back after being
washed.
2.
Use the brush to clean the filter.3.
Lint filter clean
There is a built-in lint filter in your
washer. It can help to collect lint
during washing cycle.
1.
It is suggested to clean the lint filter
every 10 cycles.
2.
Take it out and clean the filter with
water. Then place it back into the
washer.
magic filter
normal filter
3.
Reconnect the inlet pipe.4.
8.2 Cleaning the inlet filter
Note: formic acid and its diluted
solvents or equivalent are
forbidden, such as alcohol,
solvents or chemical products,
etc.
Note: inlet filter must be cleaned
if there is less water.

For EWT655WN,Standard Water Pressure is 0.1Mpa-0.6Mpa.
