Electronics Line EL-4801DZ User manual

Wireless 2-Way Dual-Zone
Magnetic & Universal / Shutter
Model: EL-4801DZ
Electronics Line 3000 Ltd. Limited Warranty
EL and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the date
of production. Because Seller does not install or connect the product and because the product may be used in conjunction with products not manufactured by the Seller,
Seller cannot guarantee the performance of the security system which uses this product. Sellers' obligation and liability under this warranty is expressly limited to
repairing and replacing, at Sellers option, within a reasonable time after the date of delivery, any product not meeting the specifications. Seller makes no other
warranty, expressed or implied, and makes no warranty of merchantability or of fitness for any particular purpose. In no case shall seller be liable for any consequential
or incidental damages for breach of this or any other warranty, expressed or implied, or upon any other basis of liability whatsoever. Sellers obligation under this
warranty shall not include any transportation charges or costs of installation or any liability for direct, indirect, or not be compromised or circumvented; that the
product will prevent any persona; injury or property loss by intruder, robbery, fire or otherwise; or that the product will in all cases provide adequate warning or
protection. Buyer understands that a properly installed and maintained alarm may only reduce the risk of intruder, robbery or fire without warning, but is not
insurance or a guarantee that such will not occur or that there will be no personal injury or property loss as a result. Consequently seller shall have no liability for any
personal injury, property damage or loss based on a claim that the product fails to give warning. However, if seller is held liable, whether directly or indirectly, for any
loss or damage arising from under this limited warranty or otherwise, regardless of cause or origin, sellers maximum liability shall not exceed the purchase price of the
product, which shall be complete and exclusive remedy against seller.
No employee or representative of Seller is authorized to change this warranty in any way or grant any other warranty.
CAUTION: This product should be tested at least once a week.
WARNING: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to local regulations.
RED Compliance Statement
Hereby, Electronics Line 3000 Ltd..declares that this equipment is in
compliance with the essential requirements and other relevant provisions
of Directive 2014/53/EU. For the CE Declaration of Conformity please refer to
our website: www.riscogroup.com.
.
Introduction
Designed for Electronic Line's range of wireless receivers, the Wireless 2-Way
Dual-Zone Magnetic & Universal/Shutter can be utilized as magnetic & universal
(default), magnetic & shutter, magnetic only, universal only, or shutter only. When
dual zones are utilized, they are registered to 2 separate zones (the first 2 consecutive
zones available).
The magnetic detects door and window intrusion, and the additional
input can be used for a universal transmitter (normally open), or with a pulse sensor
device, such as a roller shutter. The additional zone input is wired to the transmitter’s
zone input terminal block (see illustrations above). Zone configuration is performed
via the Programming menu or remotely via EL's Remote Programming software.
Mounting the Magnetic Detector
NOTE: For mounting another sensor device, see its installation instructions.

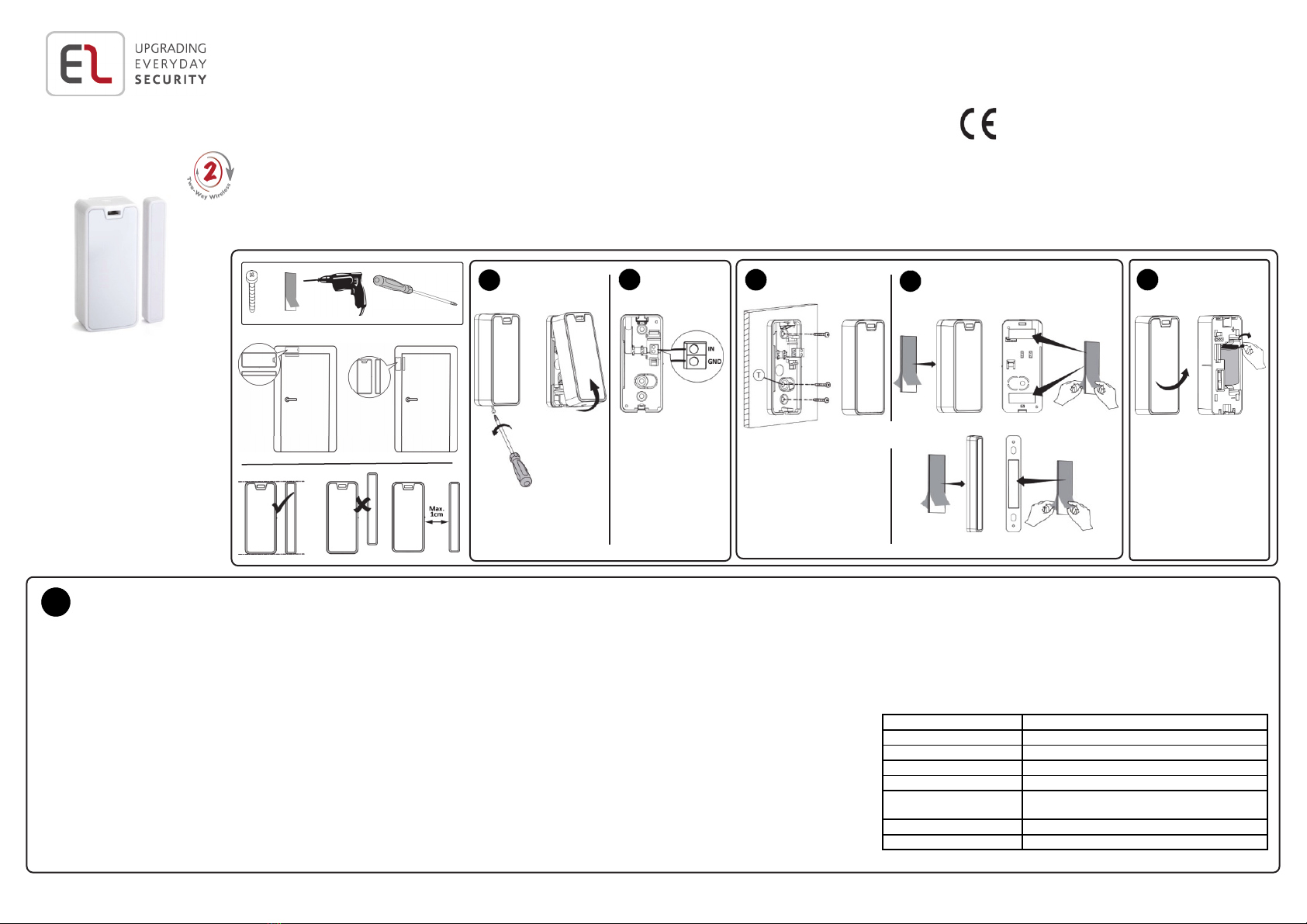

1. Open the magnetic transmitter housing (see figure 1A).
2. [Optional]: Thread the additional zone input wires through the rear wiring
hole, and connect to the terminal block (see figure 1B). Maximum wiring
lengths are 10m for universal and 5m for shutter.
3. Mount the back cover and the magnet (see figures 2A and 2B).
NOTE: To utilize the back tamper, the back tamper screw must be installed.
Registering the Transmitter
By default the Magnetic Contact + Universal is registered with the first 2 available
zones – the 1st for the magnetic, and the 2nd for the universal.
1. At the control panel, press and hold the √button for about 3 seconds until QUICK
REGISTER displays.
2. Remove the battery protector strip (see figure 3); ZONE #X SAVE? displays (whereas
X is the first
available zone).
3. If the zone doesn’t display, short-press the tamper and then release it.
4. Press √to save the registration (panel beeps once), or press Xto cancel.
Defining Additional Options
You can define a single sensor/transmitter – Magnetic, Universal, or Shutter, or define
an additional zone input – Magnetic + Universal (default) or Magnetic + Shutter.
1. From the installer Programming menu go to: Devices > Zones > Zone #X > scroll to
SensorX Par.> Sensor Type > press √.
2. Scroll to select the sensor type(s) to utilize:
Magnetic + Universal |Roller Shutter | Mag. + Roller Shtr | Magnetic | Universal
3. Press √; if you had selected Magnetic + Universal or Magnetic + Roller Shutter, then
2. SECOND ZONE # XX displays.
4. For the additional zone input, scroll to enter an available 2-digit zone number
(32 zones maximum) for the universal or shutter, and then press √.
Deleting a Transmitter’s Registration
1. At the control panel, press and hold the X button for about 3 seconds until
DELETE! displays.
2. Press the transmitter’s tamper switch; ZONE #X OK? displays.
3. Press √to delete the transmitter, or press Xto cancel the deletion.
Technical Specification
Power 3V Lithium Battery, CR123A
Expected Battery Life 3 Years
Current Consumption 30mA (transmission), 10μA (standby)
Operating Temperature -10 – 55°C (14 – 131°F)
Storage Temperature -20 – 60°C (-4 – 140°F)
Dimensions 80 x 35 x 22 mm (transmitter)
80 x 7 x 5 mm (magnet)
Frequency 868 MHz, 433 MHz
Shutter pulse 1—16 (if defined)
10/2017 5IN2480 B
©Electronics Line 3000 Ltd. 2017. All rights reserved.
No part of this document may be reproduced in any form without
prior written permission from the publisher.
T= Tamper
x3
Contacting Electronics Line
Electronics Line is committed to
customer service and product support.
You can contact us through our website
(www.electronics-line.com) or at:
International Headquarters:
Electronics Line
14 Hachoma St.,
75655, Rishon Le Zion, Israel
Tel: [phone]
Fax: [phone]
- OR -
1A 1B 2A 2B
3
EN

Output Power 10mW
Standard compliance EN50131-2-6 Grade 2 Environmental Class II
EN50131-6 Type C
Low Battery Threshold 2.6V
NOTES:
