Electrovaya PowerPad 130 Operator's manual

CONTENTS
SAFETY INFORMATION
Important Tips
Charging
Storage & Handling
Disposal

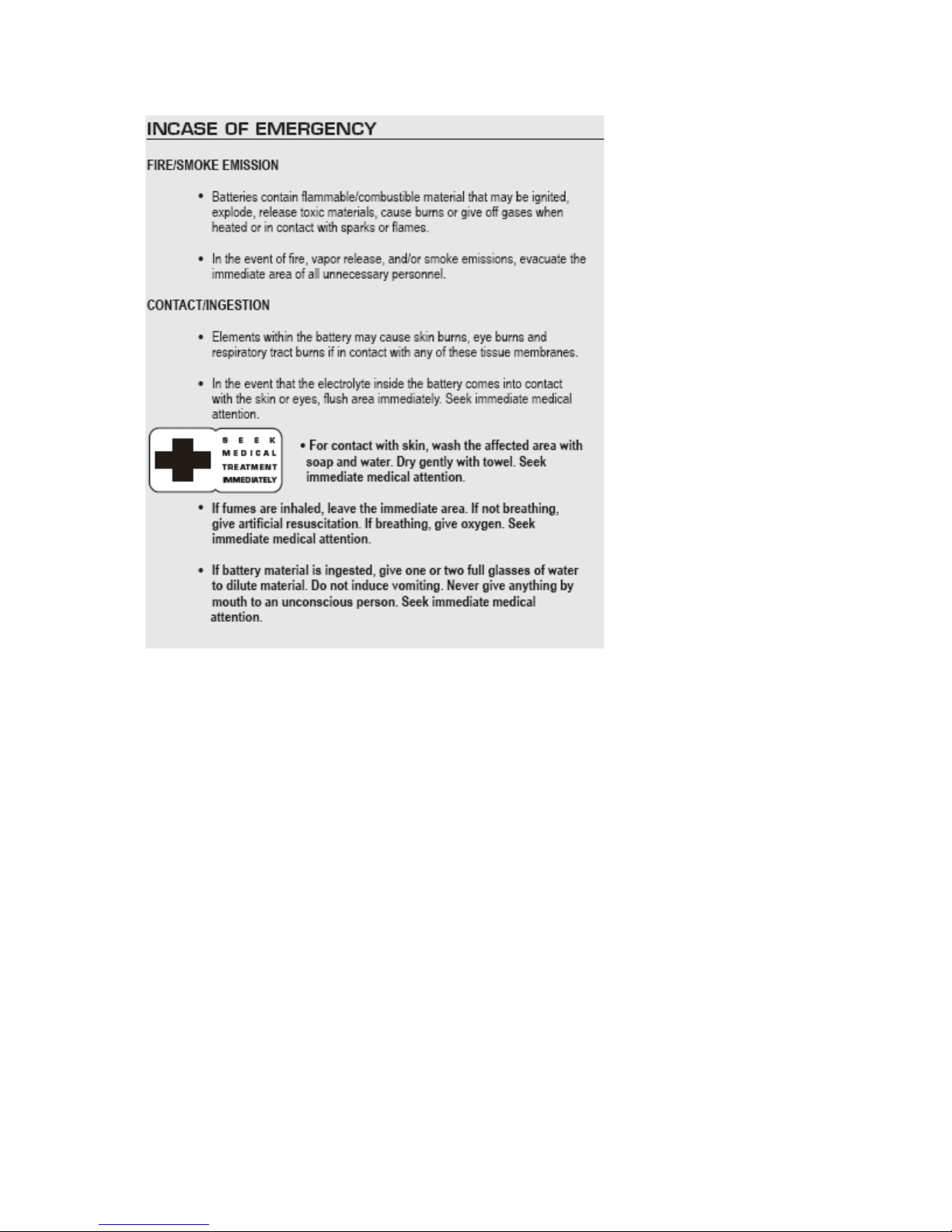

IN CASE OFEMERGENCY
Fire/Smoke Emissions
Contact/Ingestion
GETTINGSTARTED
SPECIFICATIONS
RECOMMENDED USE OF THE POWERPAD

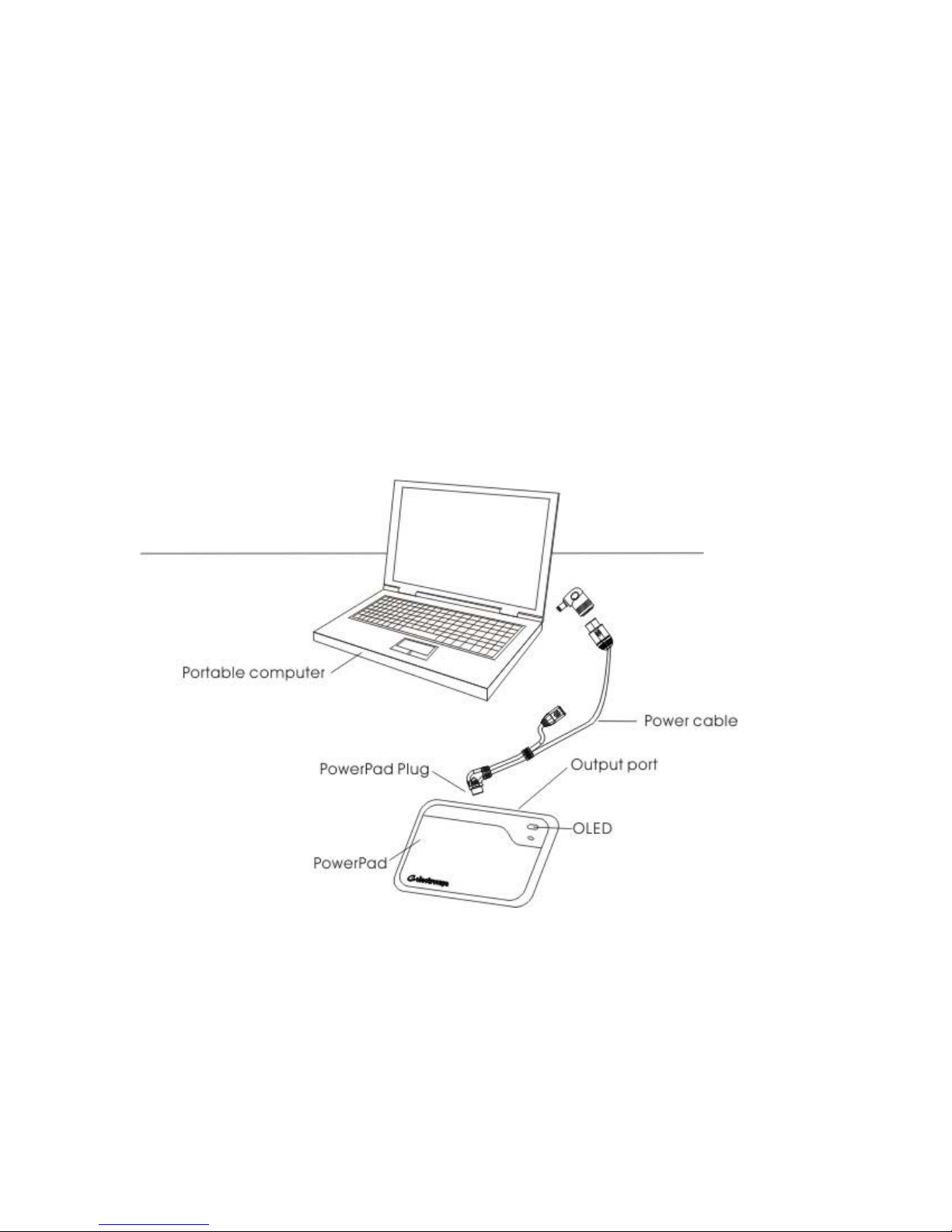

CONNECTING TO THE PORTABLE COMPUTER
UNDERSTANDING THE FUEL GAUGE
OPTIMIZING BATTERY LIFE
INDICATORTIPS
CHARGING THE POWERPAD
RECOMMENDED CHARGING PROCEDURE
LIMITED WARRANTY CARD
To charge the power pad pl. use notebook ac adaptor. Power pad required
minimum 15 v / 2 amp ac adaptor. If your ac adaptor power ratings are
below this, it is advised to buy ac adaptor from Electrovaya. Please contact
Electrovaya support team for further info.

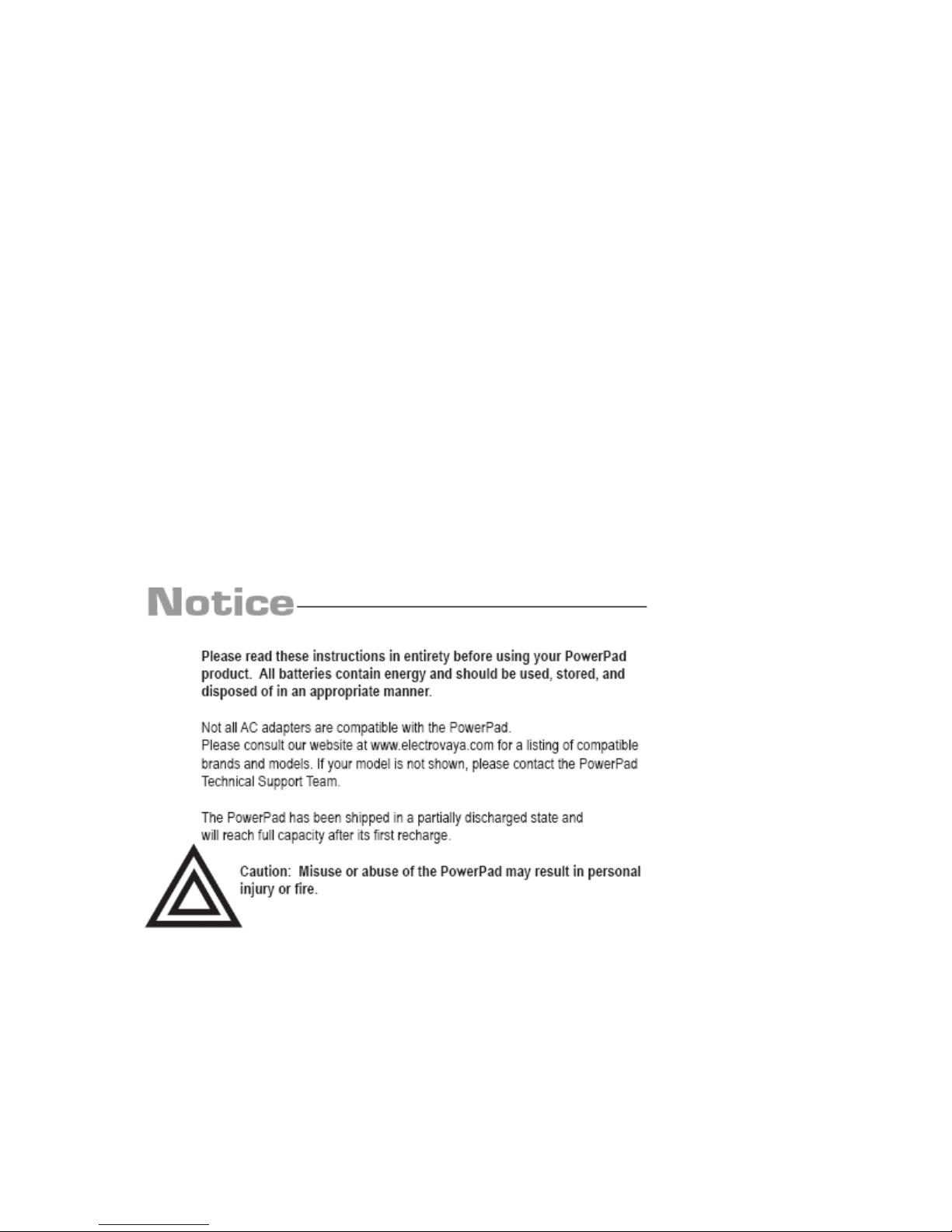

SAFETY INFORMATION
Please read these instructions carefully and save them for future reference.
This battery is designed to provide a safe and transportable form of energy when
handled under conditions of normal and intended use. It should always be used in a
manner consistent with Electrovaya's recommendations and guidelines.
Important Tips:
 Do not disassemble the battery.
 Never puncture, drop, crush, throw, hit, open, or modify the battery or casing.
 Do not submerge this product in water.
 Do not expose the battery to heat above 60°C (140°F) or incinerate.
 Do not insert any foreign object into the charging port.
 Keep the battery away from children.
 Always dispose of used batteries in accordance with local regulations.
 If this battery is misused or abused, it can result in personal injury from heat, smoke,
fire or explosion.
CHARGING
 Use AC adaptors supplied by the manufacturer of your portable computer. Power pad
required minimum 15v /2a AC adaptor. If power rating of laptop ac adaptor are below
this, please consult Electrovaya technical support department.
 Do not charge your PowerPad with an AC adapter that has an output voltage greater
than 24 Volts, as this may cause damage to the PowerPad.
 Do not use AC adapters with reversible polarities.
 Do not charge the PowerPad for more than 12 consecutive hours to reduce the risk of
overcharging.
 Do not charge the PowerPad on airplanes, which voltage can’t support Powerpad
charging.
STORAGE & HANDLING
 Always store the battery in a cool and dry place between 0°C (32 F) and 20°C (70°F),
and away from flammable materials.
 The battery should not be heated or exposed to temperatures exceeding 60°C (140°F);
exposure may lead to heat, smoke, fire or explosion. If the battery smokes, swells, or
emits a strange smell, discontinue use.
 Do not submerge or expose battery to water or any other liquid.
 It is recommended that the battery be kept out of the reach of children.
DISPOSAL
 Do not place in fire.
 Do not incinerate.
 This battery should be disposed of in accordance with local regulations.

GETTING STARTED
1. Read this Safety and Instruction Manual in its entirety prior to using your PowerPad.
2. Ensure your PowerPad package contains both the PowerPad and the PowerPad connection
cable.
3. Using an approved AC adapter, charge the PowerPad until fully charged. Charging time will
vary by model. See "Charging the PowerPad."
4. Connect the PowerPad connection cable to both the PowerPad and your portable computer.
See "Connecting to the Portable Computer."
5. Optimize your portable computer's Power Management Settings. See "Optimizing Battery
Life."
6. You are now ready to use your PowerPad product. See "Recommended Use of the
PowerPad" and "Safety Information."
7. Periodically monitor remaining battery capacity by depressing the fuel gauge button. See
"Understanding the Fuel Gauge."
8. When the charge level shown on the fuel gauge is less than 10%, recharge the PowerPad.
You may recharge more frequently if desired. See "Understanding the Fuel Gauge."
SPECIFICATIONS
PowerPad®95 PowerPad®130 PowerPad®170 PowerPad®330
Maximum
Capacity
95 Wh 130 Wh 170 Wh 330 Wh
Run-time Up to 3 times more Up to 4 times more Up to 5 times more Up to 9 times more
Charge-time 80% charge in less than 3
hours with approved AC
adapters
80% charge in less than 3
hours with approved AC
adapters
80% charge in less than 4
hours with approved AC
adapters
80% charge in less than 6
hours with approved AC
adapters
Dimensions 270mm*210mm*17mm
270mm*210mm*17mm 270mm*210mm*17mm 270mm*210mm*17mm
Weight 850g 960g 960g 3293g
Casing Rugged casing Rugged casing Rugged metal casing Rugged metal casing
Operating
Temperature
0℃(32℉) to 0℃(32℉) 0℃(32℉) to 0℃(32℉) 0℃(32℉) to 0℃(32℉) 0℃(32℉) to 0℃(32℉)
Items included: PowerPad, cables. * Charge times may be longer than specified during the first few charge cycles.

RECOMMENDED USE OF THE POWERPAD
The PowerPad is designed to work with portable computers and is not intended for any other use.
The PowerPad must be attached to the portable computer using only the PowerPad connection
cable provided.
It is recommended that the PowerPad be used in conjunction with the portable computer's internal
battery. This will ensure a backup of power and a seamless transfer of power supply from the
PowerPad to the internal battery, in the event of a full discharge or accidental disconnection. In
this situation, it may be possible to charge your computer's battery through the recharge port of the
connection cable while the PowerPad is in use. The runtime of the PowerPad will be reduced. It is
recommended that the internal battery be charged separately from the PowerPad to achieve
optimal performance.
The optimal operating temperature is between 20°C (70°F) and 40°C 110°F). It is recommended
that the PowerPad not be exposed to direct unlight, or to temperatures less than 0°C (32°F). When
exposed to emperatures below 0°C (32°F) and above 60°C (140°F), the PowerPad will not
operate; however, when the PowerPad returns to a temperature between 0°C (32°F) and 60°C
(140°F) the PowerPad will again be operable.
Instead of OLED ---- Use LCM ---- Liquid Crystal Module

UNDERSTANDING THE FUEL GAUGE
The PowerPad uses a comprehensive fuel-gauge system to indicate its charging/discharging state.
the fuel gauge is displayed on the ( LCM) and the fuel gauge button is found on the top face of
the PowerPad.
The fuel gauge displays the following information:
0%: The PowerPad has been fully discharged and should be recharged.
1-20%: The PowerPad is 1% to 20% charged.
21-40%: The PowerPad is 21% to 40% charged.
41-60%: The PowerPad is 41% to 60% charged.
61-80%: The PowerPad is 61% to 80% charged.
81-100%: The PowerPad is 81% to 100% charged.
Item Condition
1.Charging -Charging mode
-AC adapter doesn’t match ST output voltage
2.Discharging -Discharging mode
-Bypassing mode
3.SOH Battery’s stage of health
4.Error V -Input AC adapter voltage ≠ST (*1) voltage
-AC adapter voltage <14V
5. Discharging USB No cable, no ST , only 5V USB enabled
6. Confirm? Confirm new ST voltage.
7.Error U Cell unbalance

8.Error Tc Cell over temp. > 60℃
9.Error Tb Boost over temp. > 100℃
10.Electrovaya
-Pack start up
-Low battery capacity (< 10% )
-Pack locked
11.OFF Shown after button press 3 seconds
12.Error USB Over current on USB port
13.Error IC Charge current over 5A/10 sec
14. Error Oc -Discharge current over 12A
-Power output >100W for 10 sec
15.Error Ov Cell over 17V
16.Locked Pack locked
17. Please charge battery capacity
18. No Smart Tip No smart tip plug
(*1) ST : smart tip
OPTIMIZING BATTERY LIFE
1. Charge the PowerPad immediately.
2. When not in use for a month or more, charge the PowerPad prior to storing. Monitor the
PowerPad during storage, and if needed, recharge to maintain capacity.
3. After a period of time, the PowerPad will lose its ability to perform at maximum capacity and
will need to be replaced. This is normal for all batteries.
TROUBLE SHOOTING
Under abnormal operating conditions, such as extreme temperature conditions, the PowerPad will
not charge or discharge.
Problem Solution
If charge level is equal or less than 10% User need to plug an AC adaptor to wake
up the Powerpad
Error USB Confirm devise USB output voltage
(5V/1A), then, Need to restart the power
pad
“Discharging USB “ Plug cable
Only show “Charging “ without voltage
showing
Check ST output and AC adapter voltage.
Make use match each other

“Error Tb/Tc “ message on LCM These are error conditions. Need to unplug
and wait till pack cool down.
“Error V“ message on LCM This is error condition. Check AC adapter
and ST output voltage.
“Error U/IC/Oc/Ov/ “ message on LCM These are error conditions. Pack will be
locked.
Locked Return to Eletrovaya for checking. Do not
open pack case by yourselve.
Confirm? Select matching your PC’s ST tip, then,
press button for 1 sec.
NO SMART TIP Plug correct ST
Noted :
 The user cannot switch off the PowerPad in “Charging” mode.
 While LCM doesn’t show “ DISCHARGING” or “CHARGING” under these
two conditions.
- PowerPad is full charging.
- AC adapter current is lower than Powerpad charging limited current
0.32A. Now powerpad is only in Bypass Mode not charging.

CHARGING THE POWERPAD
DO NOT charge or recharge the PowerPad in airplanes.
In order to optimize your charge time , it is recommended that the PowerPad not be charged while
connected to the portable computer. If charged while connected to the portable computer, charge
time will take significantly longer than when disconnected from the portable computer.
Do not charge your PowerPad with an AC adapter with an output voltage greater than 24 Volts, as
this may damage the PowerPad.

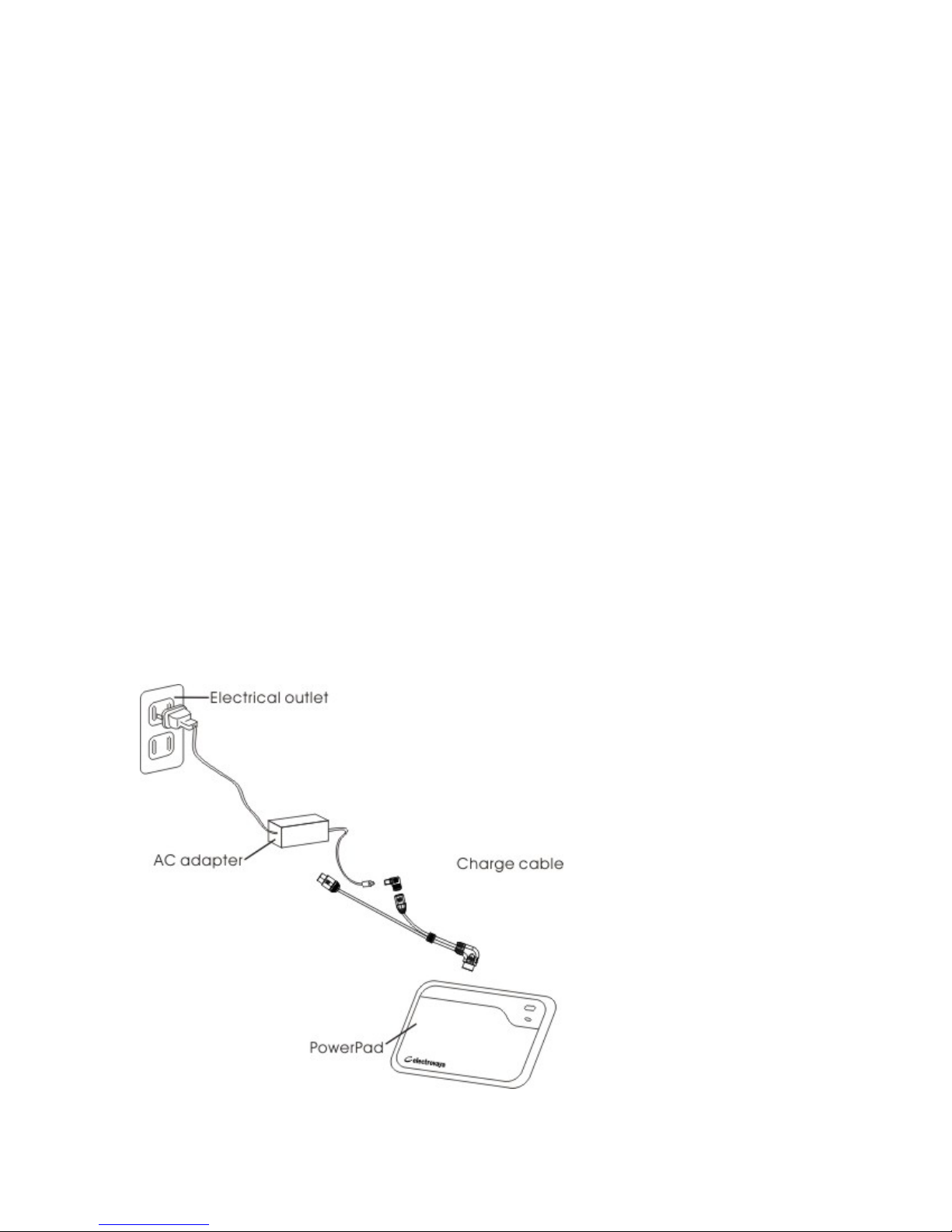

RECOMMENDED CHARGING PROCEDURE
1. Disconnect the PowerPad connection cable from the computer for the fastest charge.
2. Insert the AC adapter into the recharge port of the connection cable. Use only AC adaptors
supplied by the manufacturer of your portable computer. Please consult our website at
www.electrovaya.com for a complete list of compatible brands and models of portable
computers.
3. Connect the AC adapter into an electrical wall-outlet.
PP95/PP130/170/330 - Recharge
