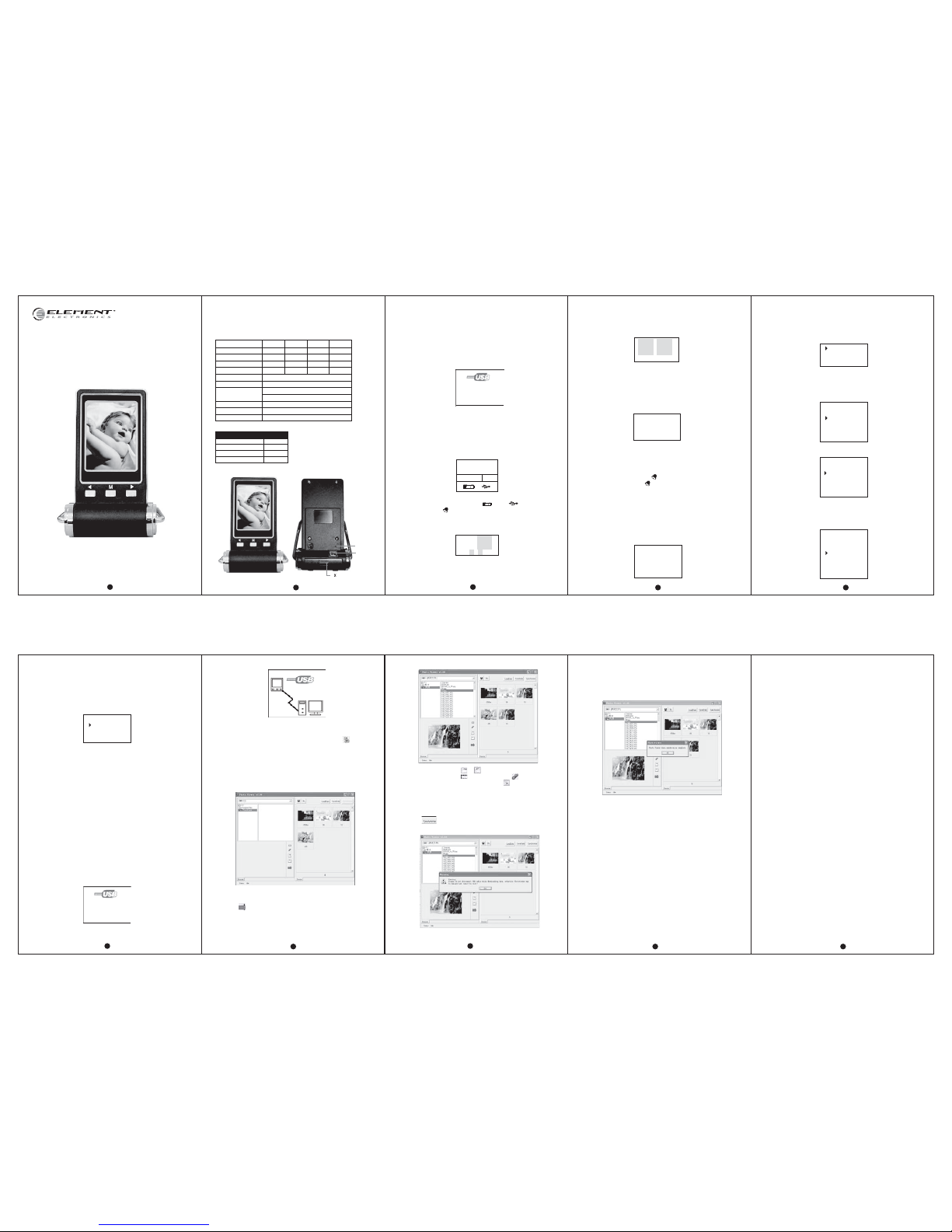

Element ELE-2052-UNV-B1 User manual

3
M: Mode / Enter (5 modes: time / alarm clock / photo viewing / setup /
power off)
◄: Up / Previous
►: Down / Next
USING THE DEVICE UNIT
Turn ON the Device
●Load 2 AAA batteries, the device will auto turn on and enter time mode.
● Connect the device with PC by USB cable, it will turn on and display
Select “ USB Power ” and press “ M ” to enter time mode.
● Press “M” and hold for 2 seconds to turn on the device if it is off and with
power.
● IMPORTANT: There are 5 modes in the device, time mode / alarm clock
mode / photo viewing mode / setup mode / power off mode. To change the
mode, Press “ M ” once time continuously.
Time Mode
● Time mode will display time (AM/PM), date, and week.
● If using USB power, it will display “ ” and “ ”.
● While alarming, “ ” will flash for 1 minute at top-right corner.
Date and time setting
● Press and hold “ M ” for 2 seconds to set year/month/date.
2007
01 /01
● Last 2 numbers of year is flashing, press “◄”/ “►” to select year.
● Press “ M ” once time to confirm the year.
● Now month number is flashing, press “◄”/ “►” to select month.
12:00AM
2007/01 /01 MON
USB Power
USB Update
4
● Press and hold “ M ” for 2 seconds to set alarm clock.
● Now hour number is flashing. press “◄”/ “►” to select hour.
● Press “ M ” once time to confirm the hour.
● Now minute number is flashing, press “◄”/ “►” to select minute.
● Press “ M ” once time to confirm the minute.
● Press “►” to set alarm and “ ” will appear at top-right corner. Press
“◄” to cancel alarm and “ ” will disappear. Now alarm clock setting
is finished.
● Note: The alarming will be effected even if the device is power off or
auto sleep, while alarming, it will auto turn on. and anto turn off after
alarm (Make sure the device is powered for this step)
● Note: The alarming will be effected at any one of five modes and will
not change current mode.
Photo Viewing Mode
● If there is no photo in the device, “ No photo ” will display.
12:00AM
01 /01
● Press “ M ” once time to confirm the month.
● Now date number is flashing, press “◄”/ “►” to select date.
● Press “ M ” once time to confirm the date.
● Now hour number is flashing, press “◄”/ “►” to select hour.
● Press “M”once time to confirm the hour.
● Now minute number is flashing, press “◄”/ “►” to select minute.
● Press “ M ” once time to confirm the minute.
● Now it is displaying the correct year/month/date/time/week, it will
auto set week day.
Alarm Clock Mode
ALARM
12:00AM
No photo
Please Connect
To PC
Update Picture
5
● Auto slideshow is default setting.
● Number “ A/B ” will appear at bottom-right corner, A means current
photo number and B means total photo number.
● Press “◄”/ “►” to change to previous / next photo.
● Press and hold “ M ” for 2 seconds while showing photo, it will display
“ Delete One ” means deleting current photo, “ Delete All ” means
deleting all photos.
● Press “◄”/ “►” to select and press “ M ” once time to confirm.
Setup Mode
Exit
Delete One?
Delete All?
SETUP
Exit
Photo Frame
Auto Sleep
Photo Frame
Auto Scroll
Manual Scroll
AutoSleep
Off
30 Seconds
1 Minute
3Minutes
5Minutes
● Select “ Photo Frame ”, press “ M ” and it will display
Press “◄”/ “►” to select auto scroll / manual scroll which means auto
/ manual slideshow.
Press “ M ” to confirm and it will auto return to photo viewing mode.
● Auto sleep means auto off. Select “ Auto Sleep ” , press “M” and it
will display
6
Press “◄”/ “►” to select OFF/ 30 seconds/ 1 minute/ 3 minutes/ 5
minutes.
Press “ M ” to confirm and it will auto return to photo viewing mode.
Press and hold “M” for 2 seconds to wake up after it is auto OFF.
Power Off Mode
● This mode is only applied for using AAA battery. USB power is not
available.
● Select “ Power Off ” and press “ M ” to turn off the device.
● Press and hold “ M ” for 2 seconds to turn on the device.
Reset the Device Unit
● Press “ Reset ” with a needle at backside of unit, it will return to
default factory setting.
USING THE PC SOFTWARE
Initial Installation
● Insert the CD to the CD drive. Installation software will start
automatically.
● If your CD does not have autorun, go to the CD directory and double
click Setup.exe to start installation.
● The setup program will guide you through the installation procedure.
● Shortcut icon will be created on Desktop.
● Important Note: Don’t connect the device with PC while installing
software!
Connect Device with PC
● Connect the device with PC by USB cable, it will display
Power off?
Exit
Power off
● Select “ USB Update ” and press “ M ” , it will display
7
● Note: If you select and enter “ USB Power ” , please unplug USB
cable and re-plug in.
● Now your PC will auto detect the device and display “ ” at notice
area on Windows task bar.
● Now the device is connected with PC successfully and ready to
download photos.
Using Software
● Double click the shortcut icon on desktop to run the software driver.
It will display
● If no photo is stored in the unit, the “ Device ” panel will be blank.
● Select and choose the photos in your appropriate computer folder,
Click “ ” to add the photos to the “Device” panel, as below:
8
● Select one photo, click “ ”/“ ” to rotate right/left 90 degrees.
● Select one photo, click “ ” to crop and click “ ” to cancel crop.
● Select one photo in “ Device ” panel, click “ ” to delete.
● Click “ SaveDate ” button to save all photos in “ Device ” panel to a
file in your PC.
● Click “ LoadData ” button to load all photos saved already.
● Select one photo in “ Device ” panel, click “ Save ” button to save the
photo in your PC.
● Click “ ” to download photos in “ Device ” panel to the photo
viewer. It will display
9
● Click “ Yes ” , the status bar will scroll and the photo viewer will
display “ Downloading … ” .
● Once downloaded, “ Photo Viewer Data Synchronise Complete ”
will appear and the photo viewer will display “ OK ”.
● Click “OK” to finish downloading, unplug the USB cable and turn on
the unit, you can enjoy your favourite photos now!
WARNING:
1. DON’T DIRECTLY READ/WRITE TO THE PHOTO VIEWER USING
OTHER PROGRAMS. ONLY USE THE PC PROGRAM SUPPLIED
WITH YOUR UNIT TO DOWNLOAD PICTURE TO THE PHOTO
VIEWER.
2. DO NOT FORMAT THE PHOTO VIEWER OTHERWISE THE UNIT
WILL BE DAMAGED.
3. DO NOT UNPLUG THE CABLE WHILE DOWNLOADING PHOTOS,
IT WILL DAMAGE THE UNIT.
REPLACING OLD BATTERY FOR THE UNIT
● The clock operates by one built-in CR2032 battery. It need open
housing to replace.
● When inserting AAA battery, ensure + / - pole is correctly aligned.
● Exhausted battery is to be removed from the unit.
● Installation of the battery should be done by an adult.
● The battery can not be short-circuited.
10
● Only batteries of the same or equivalent type are to be used. Do
not mix alkaline, standard (zinc carbon), or re-chargeable (nickel
cadmium) batteries.
● Replace whole set of batteries at one time, do not mix old and new
batteries.
Keep batteries out of reach of children. If swallowed, consult with
physician immediately.
1
2.4-inch MINI DIGITAL PHOTO FRAME
INSTRUCTION MANUAL
Please read the instruction manual before
using the viewer.
Item No.: ELE-2052-UNV-B1 2
Thank you for purchasing this model. It is designed to allow quick and
easy viewing of digital photographs, while enjoying a travel alarm clock.
Please read this Instruction Manual thoroughly.
PACKAGE LIST
PRODUCT DIAGRAM
USB
RESET
2 AAA Batt ery
Working Temperature
Power Supply
1.5"1.8" 2.0" 2.4"
LCD Display
Support Format
TFT/ CSTNCSTN
128x128128x160176x220240x320
TFT TFT
BMP/JPG/PNG/GIF/TIF/TGA
Memory Capacity
Picture Resolution
1MB 2MB2MB 2MB
Storage capacity(About) 70 Photos 110 Photos 40 Photos 30 Photos
Transmission interface USB1.1
Additional Feature Alarm clock
WIN 2000/XP
0°C-40°C
AAA×2 or USB cable power
Built-in CR2032 for clock
Operation System
SPECIFICATIONS
Panel Size
Item #
Photo Viewer 1
CD Driver 1
Instruction Manual 1
USB Cable 1
Material: 80gsm wood free paper
Printing color: black, Double-sided printing
Shown size: 385x126mm, Folded size: 77x126mm
►
USB Power
USB Update
►
