Legacy Fire Pit User manual

OWNER’S MANUAL
WARNING: FOR OUTDOOR USE ONLY
CODE AND SUPPLY REQUIREMENTS: This Outdoor Fire Pit must be installed in accordance with local codes and
ordinances, or in the absence of local codes, with the latest National Fuel Gas Code. ANSI Z223.1
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of
life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
 Do not try to light any appliance.
 Do not touch any electrical switch; do
not use any phone in your building.
 Immediately call your gas supplier from a
neighbor’s phone. Follow the gas
supplier’s instructions.
 If you cannot reach your gas supplier,
call the fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
WARNING:
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property
damage. Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
This appliance is designed as an “attended
appliance”. Adults must be present when the unit is
operating.
DO NOT leave this unit burning when unattended. If
this product is left burning unattended it may cause
damage or serious injury.
INSTALLER & CONSUMER
These instructions MUST be retained with this
appliance.

TABLE OF CONTENTS
Cover – Important Safety Information
Table of Contents— 2
Important Safety Information
Minimum Clearances to Combustibles— 2
Pre-Installation & Preparation Guidelines— 3
Installation Information
Assembly— 4
Gas Connections— 5
Operating Instructions—
Lighting Instructions— 6
Operating Information— 7
IMPORTANT SAFETY INFORMATION
READ THESE INSTRUCTIONS FULLY BEFORE INSTALLING THIS OUTDOOR FIREPIT. If not installed and used
correctly per these instructions, this product can cause serious injury.
CAUTION: INSTALLATION, MODIFICATION AND REPAIR MUST BE DONE BY
A QUALIFIED, INSTALLER.
Be sure you understand all safety precautions and warnings contained in this manual.
CHECK STATE AND LOCAL CODES TO DETERMINE IF THE OUTDOOR FIREPIT IS PERMITTED IN YOUR
LOCALITY BEFORE INSTALLATION.
FOR OUTDOOR USE ONLY. THIS UNIT MUST BE INSTALLED AT LEAST 60” FROM CENTER OF BURNER TO
ANY COMBUSTIBLE WALLS OR MATERIAL. IT MUST NOT BE INSTALLED UNDER ANY TYPE OF CEILING
OR OVERHANG.
When shutting the unit down—be sure to TURN THE KEY VALVE FULLY OFF.
WARNING: CARBON MONOXIDE POISONING MAY LEAD TO DEATH. DO NOT MODIFY THIS OUTDOOR
FIREPIT OR ITS CONTROLS, EXCEPT AS PROVIDED FOR IN THIS MANUAL.

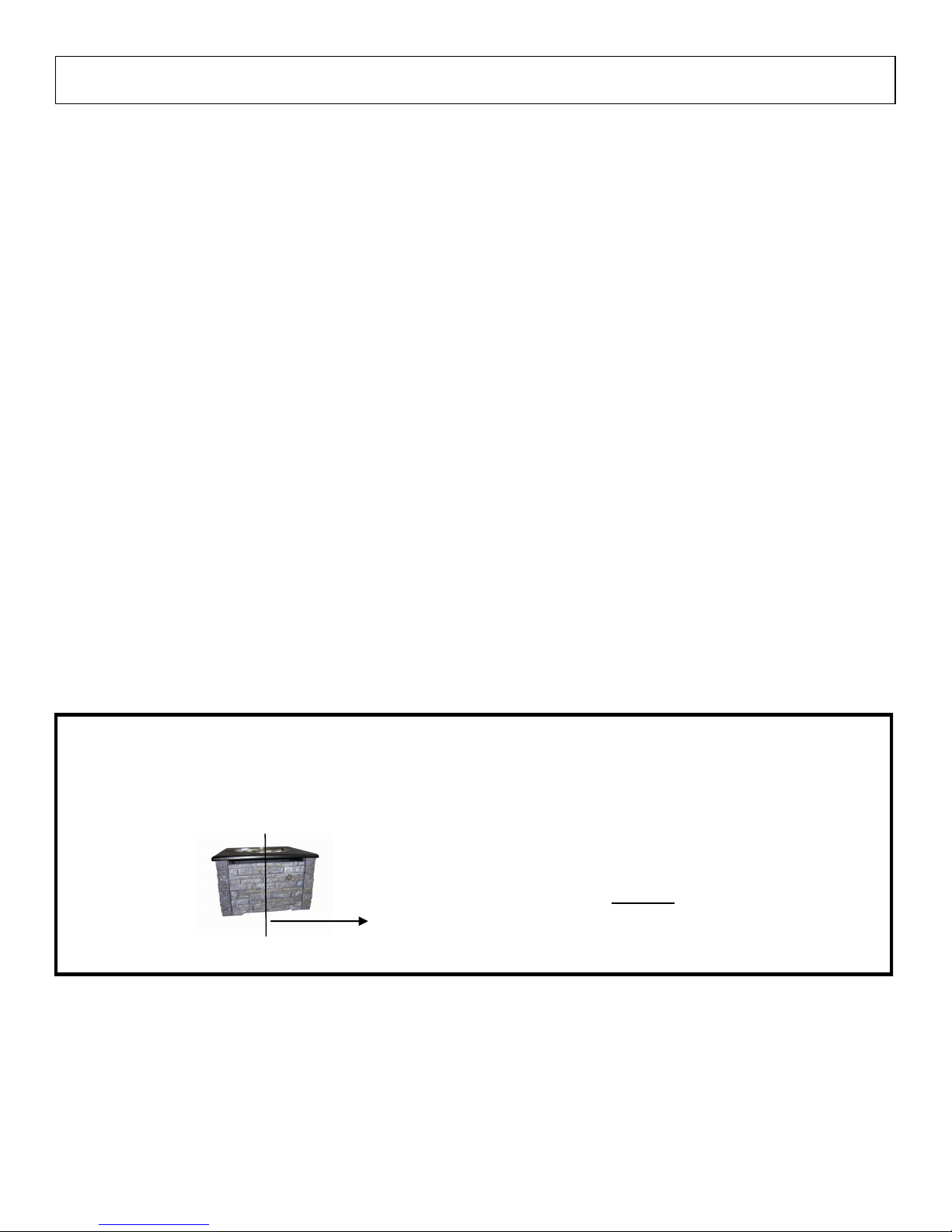

MINIMUM CLEARANCE TO COMBUSTIBLES
Clearances to Combustible Construction:
Sidewalls: 60” from center of unit (Figure 1)
Ceiling: Nothing should be above the
outdoor firepit
60”

IMPORTANT SAFETY INFORMATION
-INSTALLATION AND PREPARATION SAFETY GUIDELINES
Before installing this outdoor firepit, check “Minimum Clearance to Combustibles” on page 2. MINIMUM
CLEARANCES must be maintained when you install this outdoor firepit. THERE MUST BE AT LEAST 60”
from the center of the burner to any combustible sidewall. The unit MUST NOT BE installed under any type of
ceiling or overhang.
The outdoor firepit is for outdoor use only. DO NOT install or use this appliance inside a building, garage, or any
other enclosed area including recreational vehicles and/or boats. This unit must be installed in such a
manner that proper air ventilation is maintained without obstruction at all times, and during all weather
conditions.
CHECK GAS TYPE (natural gas or propane): The gas supply you intend to use may not be the same as that stated
on your outdoor firepit rating plate. THIS FIREPIT IS CONSTRUCTED FOR USE WITH PROPANE GAS. If the
gas supply is different, or if you wish to change to natural gas, you MUST have the firepit converted
(method described on page 8) to the gas type you intend to use, by a qualified, professional installer. If
you are unsure, contact your dealer for assistance.
DO NOT USE IF GAS PRESSURE IS LOWER THAN THE MINIMUM REQUIREMENT OR EXCEEDS THE
MAXIMUM.
FOR NATURAL GAS: The minimum inlet gas supply pressure for purposes of input adjustment is 5 inches water
column and maximum inlet gas supply pressure is 10 inches water column. FOR PROPANE: The minimum
inlet gas supply pressure for purposes of input adjustment is 8 inches water column and the maximum inlet gas
supply pressure is 13 inches water column. DO NOT INSTALL THIS UNIT IF MINIMUM PRESSURE IS NOT
AVAILABLE OR IF MAXIMUM PRESSURE IS EXCEEDED.
Gas piping system must be sized to provide minimum inlet pressure at the maximum flow rate (BTU/hr). Undue
pressure loss will occur if the pipe is too small or the run is too long
For installations at elevations above 2,000 ft., contact your local dealer or gas supplier before installing as input
ratings should be reduced approximately 4% for each 1,000 ft. above sea level. Refer to the National Fuel Gas
Code. Contact the factory for the required orifice.
The outdoor firepit and its main gas valve must be disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of ½ psig. This is accomplished by closing the gas
supply line valve, as required by NFPA 54, section 5-54.
The outdoor firepit must be isolated from the gas supply piping system by closing its equipment shut-off valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than ½ psig.
INSTALLER NOTE: This unit should be installed so that it can be removed at a later date for service.
GAS SUPPLY PLUMBING REQUIREMENTS Apply only joint compounds that are resistant to all gasses on all
male pipe fittings.
SAFETY NOTE: An external on/off valve in the gas line is required for safety
when your Outdoor Firepit is not in use. It also provides for convenient
maintenance and repair.

ASSEMBLY and INSTALLATION INFORMATION
I M P O R T A N T
BEFORE PROCEEDING, CAREFULLY READ ALL OF THE IMPORTANT SAFETY
INFORMATION CONTAINED IN THIS OWNER’S MANUAL.
Contents of Fire Pit Box – Check to be sure that you have all parts listed below:
Stainless Steel Burner
Orice and lock nut
Connector Hose – 24”
Complete valve assembly ready to connect to gas hoses
Gas Regulator with Hose – 24”
Lava Rock – 1 Bag
Note: Your Fire Pit may be parally or completely pre-assembled. In either case please maintain these set up instrucons for
future reference.

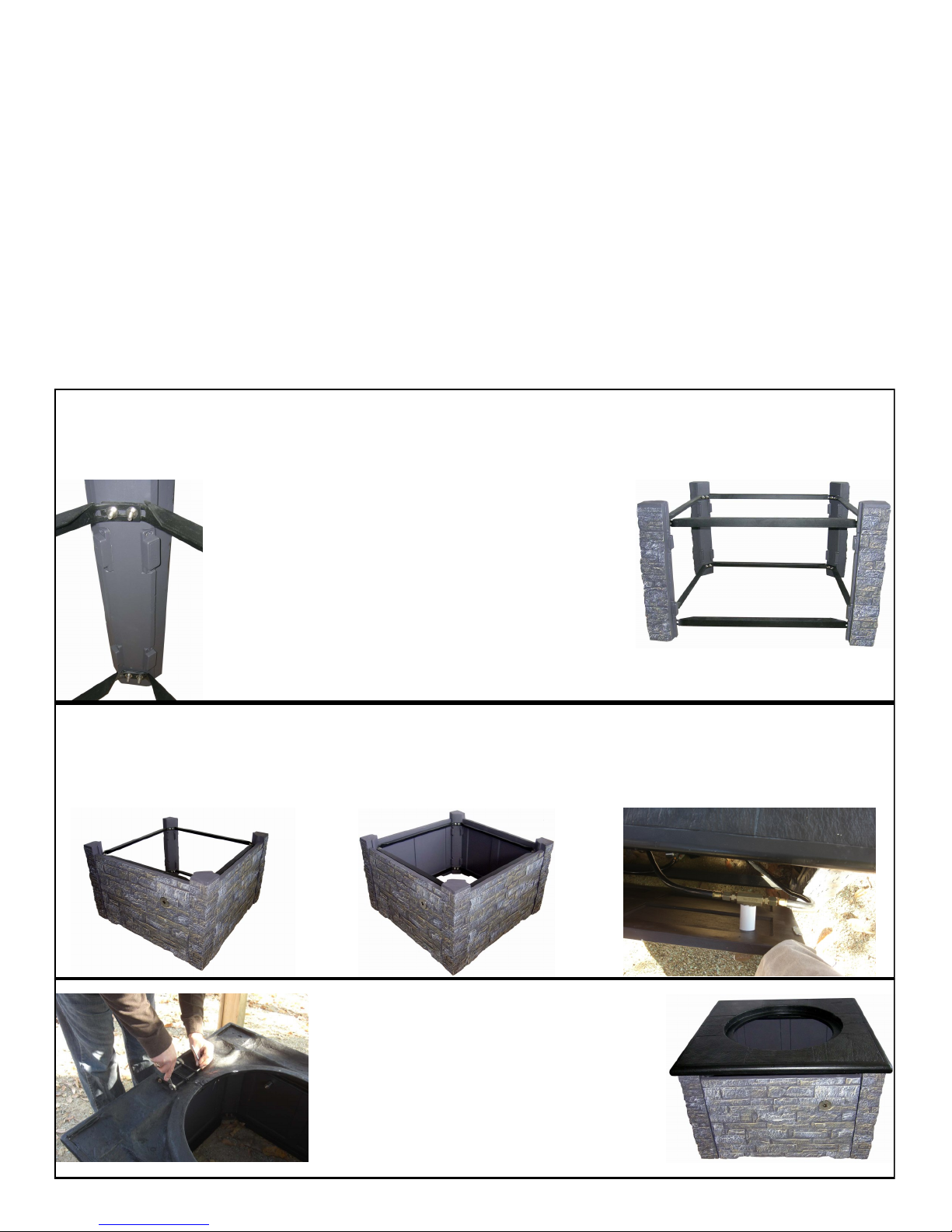

Lay out all parts and idenfy the corner posts [4],
connecng rails [8], nuts and washers [16 each]. Using
the supplied tools assemble the 8 rails and 4 corner
posts leaving the assembly loose at this me. The
connecng tabs will overlap at the corner posts. Each of
the connecng rail tabs will t over two studs.
The side panels are held in place magnecally. Aach the four side panels at this me to the magnets on the corner posts. One of
the side panels has a gas valve mounng hole and a clip at the top. Install the black retaining clip from the parts bag over the
connecng rail and the side panel. This is to prevent the side with the gas valve from moving. Place the chrome ange through the
hole from the outside. Place the plasc sleeve over the valve and thread the valve on to the mounng ange.
The top panels comes in two pieces. Using
the long bolts, nuts, & washers assemble
the two halves and bolt them together
ghtly. The washers t on the bolt head
side of the assembly. When completed
place the top on the base.

With the top assembled, insert the gas burner
pan and ll with the media that comes with your
unit [lava rock] or an oponal media you
purchased. Follow all gas connecon instrucons
on the following page. Media must be installed
for the burner to funcon properly. Lack of
media will result in very low burner ame and
possible damage to the burner.
Attach the 36” hose with regulator to the Valve assembly located in the
inside of you Fire Pit. Attach the 24” connector hose to the outlet
side [look for the flow direction arrow] of the Valve assembly.
Attach the 24” connector hose now connected to the valve
assembly to the end of the brass orifice and place stainless burner
into the top of the Fire Pit. Note: Be sure that all fittings are
secure and will not result in any leaks.
Open the bag of Lava Rock and spread evenly over the complete
stainless steel burner surface.
Connect the Regulator to a propane gas tank.
Open your propane gas tank valve. Note: Be sure that the valve in your Fire Pit is in the Off position prior to
opening your propane gas. Then, using the key supplied turn the gas on slowly and ignite using a butane lighter
or long fireplace match, after ignition adjust the flame to the desired height
Important:
Do not operate indoors or in any enclosed location
This product is for outdoor use only
This product is for propane use only.
If you wish to use Natural Gas contact your dealer for the conversion.
If you smell gas, immediately shut the fire pit off and test your connections.
If you continue to smell gas call you dealer.

LIGHTING INSTRUCTIONS
STOP – READ SAFETY INFORMATION ABOVE.
Turn the manual gas control on [counterclockwise] slightly to get gas flowing through the lines and then turn clockwise
to the “OFF” position or when you have a firm stop.
Wait 5 minutes for gas to clear out.
Use a butane lighter, long fireplace match or place a burning match to the surface of the lava granules that cover the
burner. Do not hold the match by hand.
After the match is burning and in position, turn the gas control key counterclockwise slightly, and slowly continue turning
the key counter-clockwise until ignition, then turn the key to obtain the desire flame height. Do not leave the gas
on for more than 30 seconds with out ignition.
Shutting Off the Firepit
Turn off; rotate the manual gas control key clockwise to the “OFF” position or when you have reached a firm stop
CAUTION: DO NOT turn the main gas valve key to the “ON” position FOR 45 SECONDS after shutting the unit off.
BEFORE LIGHTING, smell all around the Outdoor Firepit area for gas. Be sure to smell next to the floor because
some gas is heavier than air and will settle on the floor. IF YOU SMELL GAS FOLLOW THE INSTRUCTIONS ON
PAGE 1.
Use only your hand to turn the gas key control. Never use tools to turn the key. If the key will not turn by hand, DO
NOT try to repair it. Call a qualified, professional service technician. Force or attempted repair may result in fire or
explosion.
DO NOT use this appliance if any part has been under water. Immediately call a qualified, professional service
technician to inspect the Outdoor Firepit and to replace any part of the control system and any gas control that has
been under water.
OPERATING INSTRUCTIONS
*We recommend that before you install your log set or glass you familiarize yourself with the control valve layout. This will help you
to be confident operating the log set when fully installed (see figures below for typical control positions).
FOR YOUR SAFETY, READ BEFORE LIGHTING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

OPERATING INSTRUCTIONS (continued)
OPERATING INFORMATION
Young children MUST be supervised when in the vicinity of this appliance.
DO NOT sit or place any part of the body or combustible materials on the Firepit surround. Children and adults should
be alerted to the hazard of high surface temperatures and should stay away to avoid burns or clothing ignition.
Every time you use your Firepit make sure that the area around the Firepit is clear of flammable items such as gasoline,
yard debris, wood, etc.
WARNING: HOT WHILE IN OPERATION AND FOLLOWING OPERATION. Children must be carefully supervised
when in the vicinity of this appliance. Serious injury may occur. DO NOT throw trash, paper, or other flammable
materials onto your Firepit. DO NOT leave in operation when unattended. WARNING: DO NOT operate this
Firepit in the rain.
SOLID FUEL MUST NOT BE BURNED in your fire pit. This appliance is for use with gas only.
DO NOT continue using if you smell unusual odors or have headaches, nausea or are dizzy.
DO NOT store any combustible materials, gasoline, and any other flammable vapors/liquids around the area of your
Campfire. Provide adequate clearance for servicing and operation.
DO NOT place clothing or any flammable material on or near your Firepit. Matches, paper, garbage, or any other
material must not be thrown on top of the logs, burner, or into the flame.
DO NOT use your Firepit if any part of it has been under water. Immediately call a qualified service technician to inspect
the set and to replace any part of the control system and any gas control which has been under water.
Installation and repair should be done by a qualified service person. The appliance should be inspected before use and
at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is
imperative that control compartment, burners and circulating air passageways of the appliance be kept clean.
Cleaning of appliance – Remove logs and lava granules or ARCTIC FLAME GLASS, clean burner with soap and water
and dry thoroughly. (To clean logs dust with feather duster or vacuum, never use water to clean logs.)
