Eleveight Foil Series User manual

FOIL RANGE / USER MANUAL
A Quickstart guide for your new Eleveight gear
Further info about warranty please visit:
eleveightkites.com/user-manual

CONTENT
05 / FOIL STRUCTURE
07 /PACKAGE CONTENTS
08 / FOIL ASSEMBLING
09 / FOIL AND BOARD ASSEMBLING
10 / FITTING YOUR PADS AND STRAPS
11 / PRODUCT DISCLAIMER
12 / MAINTENANCE
13 / PROTECTIVE GEAR
14 / CAUTIONS AND SAFETY Weather hazards
15 / E/8 TRUSTED QUALITY
16 / PLUS 8 EXTENDED WARRANTY
3 / 4 /

5 / 6 /

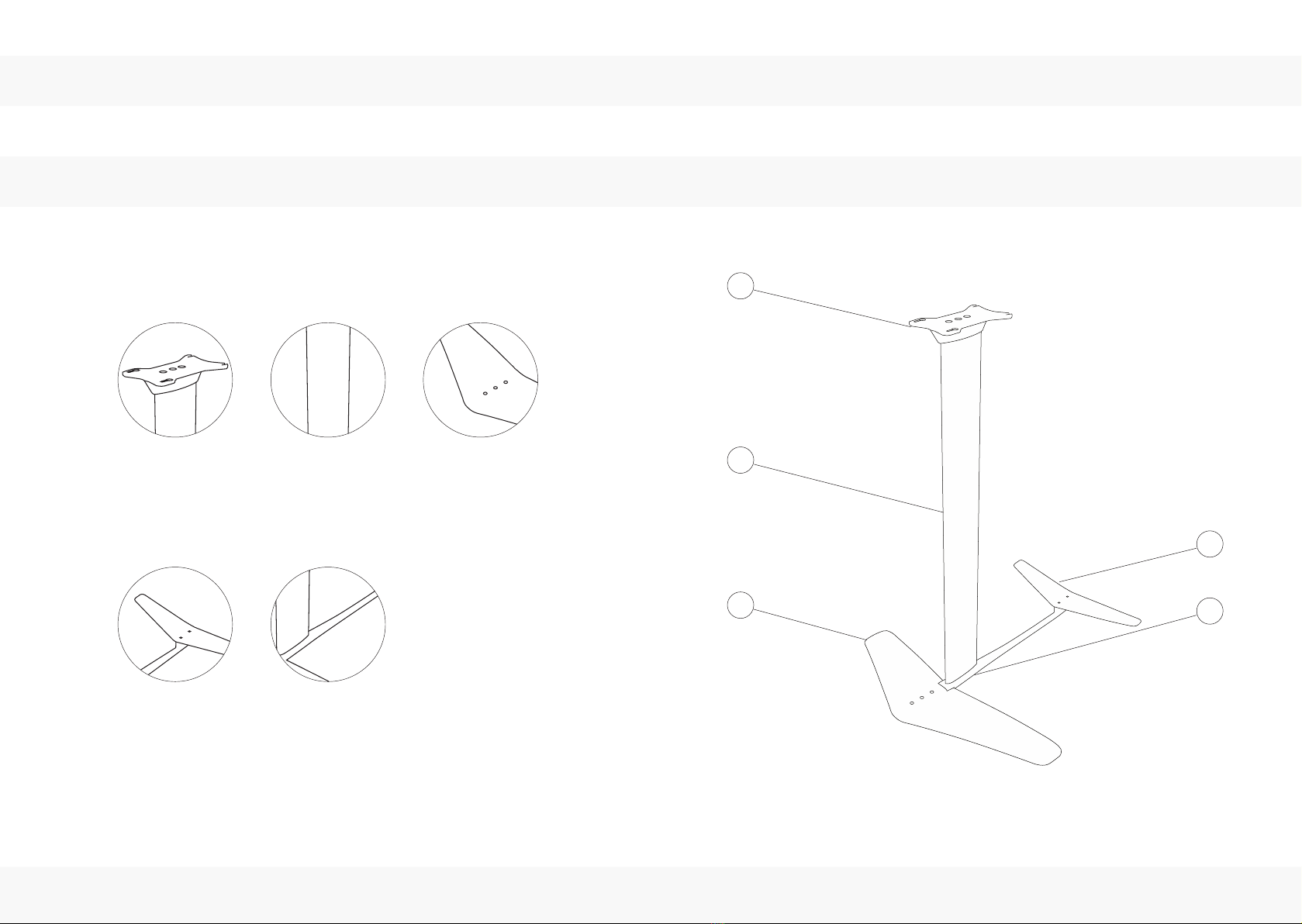

BOARD STRUCTURE
Key parts
1.
Plate
4.
Stabilizer
2.
Mast
5.
Fuselage
3.
Front Wing
1
5
4
2
3

FOIL ASSEMBLING
1. Attach Quick Connect plate to the Mast
2. Attach Front wing to Fuselage
3. Attach Stabilizer to Fuselage
4. Attach Fuselage to Mast
5. Tighten all screws rst ngertight and then
rmly (Do not use an electrical screwdriver)
PACKAGE CONTENTS
1 X PLATE
1 X PROTECTION PLATE
4 X QUICK CONNECT TORX SCREWS
4 X TOP DECK NUTS
1 X MAST
5 X MAST TORX SCREWS
1 X FRONT WING
3 X FRONT WING TORX SCREWS
1 X STABILIZER
2 X STABILIZER TORX SCREWS
1 X DOUBLE SPACER
1 X FUSELAGE
1 X TORX MULTI PURPOSE TOOL
7 / 8 /
PLATE
MAST
FRONT WING
STABILIZER SPACER
FUSELAGE

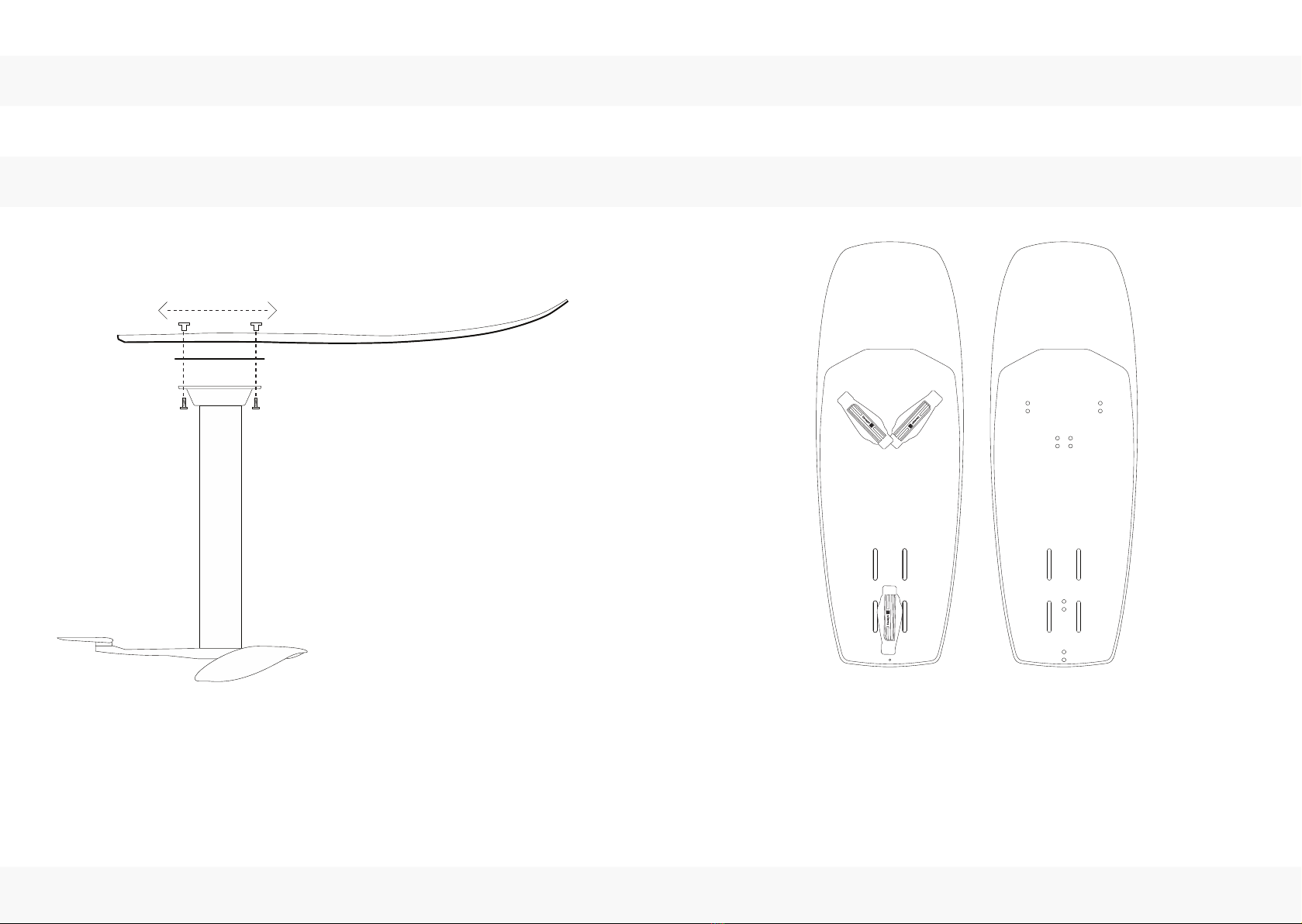

FOIL AND BOARD ASSEMBLING
9 /
1. Choose the position you want to place your foil
2. Place the protection plastic plate on the board and insert the four mounting screws
3. Tighten the screws by ONLY one turn
4. Place your Quick Connect plate over the four attachment screws
5. Slide backwards into the locked position
6. Tighten all four screws rst ngertight and then rmly (Do not use an electrical screwdriver)
FITTING YOUR STRAPS
10 /
1. Pads - Large bulge for the big-toe faces inwards towards the other footpad
2. Find your right foot strap position according to your height and weight
3. Assemble the food straps with the foot strap screws
4. Insert the screws in the inserts
5. Tighten the screws firmly (Do not use an electrical screwdriver)

12 /11 /
PRODUCT DISCLAIMER
Warning !
LEGAL NOTES AND WARNING:
Kiteboarding is an extreme sport. Participants must be aware of the potential risks and danger
from cuts, scrapes, bruises, broken bones, loss of limbs, loss of vision, paralysis, and other
serious, permanent and disabling injuries and death to the rider and 3rd parties. When using
this product, you are responsible for your own safety and the safety of others around you. Never
attempt to use this product as a ying device. Never touch ying lines when the kite is in use.
Never use this product in winds over 35 knots wind speed. Never perform any kind of jump over
waters shallower than three meter water depth.
RELEASE OF LIABILITY AND ASSUMPTION OF RISK.
DO NOT USE THIS PRODUCT UNLESS YOU AGREE WITH THE FOLLOWING
TERMS AND CONDITIONS:
Before using this product, the purchaser/user has carefully reviewed, understood and agrees
to comply with the terms of this User Manual. Use of this product and any of its components
involves certain inherent risks, dangers and hazards, which can result in serious personal injury
or death. The purchaser/user of this product understands that the seller is not responsible
for any damage to property or injury caused by negligent operation of this product by the
purchaser/user, and the purchaser/user releases the seller from all such liability. In the event of
your death or incapacity, this Agreement shall be eective and binding upon your heirs, next of
kin, executors, administrators, assigns and representatives.
The purchaser/user of this product expressly assumes the risk of any and all bodily injury, death
and/or liability which may result from the purchaser’s or user’s participation in kiteboarding.
The purchaser/user agrees to hold Eleveight™, harmless from any and all liability, and waive
and release any and all claims or potential claims against Eleveight™, and any of its respective
agents, aliates, subsidiaries, employees, instructors, ocers, directors, shareholders,
suppliers and manufacturers in the event of any such bodily injury or death which may result
from the purchase and/or use of Eleveight™ products.
© 2019 ELEVEIGHT™
MAINTENANCE
1. Wash and Rinse all parts after use in salt water
2. Disassemble your foil each two weeks and rinse all parts with fresh water especially
screws and screw holes
3. In unused periods disassemble the foil completely and store in the delivered foil bag
4. Use a fastener lubricant when assembling to prevent from corrosion and seizing
5. Check all bolts are tight before every session
6. Always tighten the screws rmly and avoid excess force (Do not use an electrical
screwdriver)

13 / 14 /
PROTECTIVE GEAR
W
KITEBOARDING IS AN EXTREME SPORT AND IT’S ALWAYS BEST TO BE
PREPARED WITH THE CORRECT PROTECTIVE GEAR IN THE CHANCE THAT
YOU FIND YOURSELF IN ANY RISKY OR UNCOMFORTABLE SITUATION.
1. Never use your kite without wearing a coastguard approved PFD.
2. Always wear a helmet to protect your head from any collisions with the kiteboard or
any other objects.
3. Wear an appropriate neoprene wetsuit for water and air temperatures.
4. Wear polarized eye protection.
5. Wear protective neoprene footwear.
6. Have an easily accessible hook knife located on your harness.
7. Use sunscreen.
CAUTIONS AND SAFETY
Weather hazards
Do not underestimate the power of the wind. Do not underestimate the power of the water.
Avoid oshore and side oshore wind conditions. Be aware of changing and unpredictable
weather conditions. Be sure wind speed and water conditions are within your ability level. Avoid
gusty, turbulent wind conditions. Do not use this product in a thunder or lightning storm. Be
educated on tides and rip currents. Do not use an oversized kite. Consult your wind range chart
for recommended kite size. Listen to others at the beach. If they recommend not going out or
getting of the water please follow! Not all hazards and risks can be completed. The guidelines
and basic rules for kiteboarding apply with those of common sense and are valid for all sports.
BEAUFORT SCALES (WIND SPEED)
BEAU-
FORT
WIND
KNOTS
NAME SEA CONDITIONS LAND CONDITIONS
0 Less than 1 Calm Sea surface smooth and mirror-like Calm. Smoke rises vertically.
1 1-3 Light air Scaly ripples, no foam crests Smoke drift indicates wind direction,
still wind vanes
2 4-6 Light breeze Small wavelets, crests glassy, no breaking Wind felt on exposed skin. Leaves rustle.
Wind vanes begin to move.
3 7-10 Gentle breeze Large wavelets, crests begin to break, scattered
whitecaps
Leaves and small twigs constantly moving,
light ags extended.
4 11-16 Moderate breeze Small waves 1-4 ft. becoming longer, numerous
whitecaps
Dust and loose paper raised. Small branches
begin to move.
5 17-21 Fresh breeze Moderate waves 4-8 ft taking longer form,
many whitecaps, some spray
Small trees in leaf begin to sway
6 22-27 Strong breeze Larger waves 8-13 ft, whitecaps common, more spray Larger tree branches moving,
whistling in wires
7 28-33 High wind, moder-
ate gale, near gale
Sea heaps up, waves 13-19 ft, white foam streaks o
breakers
Whole trees in motion. Eort needed to walk
against the wind.
8 34-40 Gale, fresh gale Moderately high (18-25 ft) waves of greater length, edges
of crests begin to break into spindrift, foam blown in
streaks
Some twigs broken from trees. Cars veer on
road. Progress on foot is seriously impeded.
9 41-47 Strong, severe
gale
High waves (23-32 ft), sea begins to roll, dense streaks
of foam, spray may reduce visibility
Whole trees moving, resistance felt
walking against wind
10 48-55 Storm, whole gale Very high waves (29-41 ft) with overhanging crests, sea
white with densely blown foam, heavy rolling, lowered
visibility
Twigs breaking o trees, generally impedes
progress
11 56-63 Violent storm Exceptionally high (37-52 ft) waves, foam patches cover
sea,visibility more reduced
Slight structural damage occurs, slate blows
o roofs
12 64+ Hurricane force Air lled with foam, waves over 45 ft, sea completely
white with driving spray, visibility greatly reduced
Seldom experienced on land, trees broken or
uprooted, “considerable structural damage”

16 /15 /
E/8 TRUSTED QUALITY
Eleveight gear is built with innovative and quality workmanship.
Details are strategically designed for long lasting durability, while keeping the gear
light and agile.
eleveightkites.com/e8-trusted-quality
PLUS 8 EXTENDED WARRANTY
Eleveight stands behind all of its products!
We oer an extended free warranty for all new Eleveight products. Simply register your
new product on our website within 30 days of purchasing and receive an extended
warranty of 8 months beyond the legal warranty period of your country!
eleveightkites.com/product-registration-form
