Eliet KS240 User manual

KS240
MANUAL

2
Nederlands
This booklet provides information about the actual use and maintenance of the
machine. Read it carefully and keep it safely for future reference.
Please also keep your purchasing invoice or receipt together with this booklet.
Register your product online on www.eliet.eu
© ELIET
Copyright 2009 ELIET. All rights reserved. All textual material, drawings, illustrations, diagrams, graphs, etc., included in this
ELIET booklet are protected by copyright and also by other intellectual property rights. None of this information may be copied
for commercial purposes or distribution and/or changed or reposted for other purposes. The copyright on the content included in
this ELIET manual remains the exclusive property of its respective owners.

3
Nederlands
1. Introduction
1.1 Read this operating manual carefully
ELIET machines are designed for safe and reliable use if they are operated in accordance with
the instructions provided. Carefully read these operating instructions before using the machine.
Failure to do so may result in personal injury or damage to the equipment.
1.2 Identification data – ELIET KS240
Note the identification data relating to your machine in the text boxes:
Stock no.: MA
Serial number:
Year of manufacture: 20
2. Warranty
2.1 Warranty card
To be eligible to obtain warranty you must send the completed warranty card within one month
from the date of purchase to the address stated below:
ELIET EUROPE NV, Diesveldstraat 2, B – 8553 Otegem (Belgium)
Ph. [phone] - Fax [phone]
REGISTER YOUR PRODUCT ONLINE ON WWW.ELIET.EU
Read the warranty conditions on the attached warranty card.
For your information:
The warranty does not cover any technical problems or defects that occur as a
result of poor maintenance. Chapter 11 provides an overview of the maintenance
intervals and recommendations regarding maintenance that requires interven-
tion by an authorised dealer.

4
Nederlands
3. Welcome
Welcome to the family of ELIET users.
We thank you for the trust that you have placed in ELIET and we are convinced that you have
purchased the very best machine. The operating life of your ELIET machine depends on how you
care for your machine. Strict adherence to the instructions and suggestions in these manuals will
guarantee optimum performance of your ELIET machine for a very long time.
Read this manual carefully before operating the machine. This will prevent you from operating
the device incorrectly. For your own safety, please observe the safety instructions specified in
the relevant chapter. Even if you are thoroughly familiar with operating such equipment, it is still
advisable to read these pages carefully.
All ELIET equipment and machines are continually being updated and improved and therefore
the specification of your machine may differ slightly in terms of shape, technology and acces-
sories. The descriptions and technical data in this manual are accurate at the time of printing.
Certain illustrations and descriptions may not be applicable to your specific machine, but instead
relate to a different version of the machine. We trust therefore that you will understand that the
texts and illustrations in this manual cannot give rise to any claims. lf you still have questions
after reading this manual, please contact your ELIET dealer. Find an official ELIET dealer near
you on www.eliet.eu.
ELIET AT YOUR SERVICE
During office hours ELIET’s help desk will make every effort to answer all of your questions:
European customers GMT +1: from 8:00 a.m. to 6:00 p.m.
Ph [phone]
Fax [phone]
[e-mail]

5
Nederlands
4. Table of Contents
1. Introduction................................................................................................................................ 3
1.1 Read this operating manual carefully.................................................................................................. 3
1.2 Identification data – ELIET KS240....................................................................................................... 3
2. Warranty .................................................................................................................................... 3
2.1 Warranty card ........................................................................................................................................... 3
3. Welcome ..................................................................................................................................... 4
4. Table of Contents ...................................................................................................................... 5
5. Operator safety warnings......................................................................................................... 7
5.1 For your information............................................................................................................................... 7
5.2 Caution...................................................................................................................................................... 7
5.3 Warning..................................................................................................................................................... 7
6. Main parts.................................................................................................................................. 8
6.1. General overview....................................................................................................................................8
6.2 Engines .....................................................................................................................................................9
7. Safety instructions ..................................................................................................................10
7.1 Safety messages..................................................................................................................................... 10
7.2 Safety features ........................................................................................................................................11
7.3 Safety instructions.................................................................................................................................12
7.3.1 General safety regulations............................................................................................................12
7.3.2 Careful and proper use.................................................................................................................12
7.3.3 Operator’s responsibilities...........................................................................................................13
7.3.4 Personal Protective Equipment (PPE) ......................................................................................13
7.3.5 Danger zone....................................................................................................................................14
7.3.6 Periodic maintenance...................................................................................................................14
7.3.7 In harmony with nature ................................................................................................................15
8. Dealer’s duties .........................................................................................................................15
8.1 Assembly ..................................................................................................................................................15
8.2 Other duties............................................................................................................................................17
9. Operating instructions ............................................................................................................18
9.1 Preliminary checks .................................................................................................................................18
9.2 Adding fuel..............................................................................................................................................18
9.3 Preparing the work site........................................................................................................................19
9.4 Starting the petrol engine................................................................................................................. 20

6
Nederlands
9.5 Operating the machine ......................................................................................................................... 21
9.5.1 Prior to starting the work ............................................................................................................21
9.5.2 Setting blade depth ......................................................................................................................21
9.5.3 Setting the angle of the blade...................................................................................................22
9.5.4 During work ...................................................................................................................................23
9.6 Cleaning the machine..........................................................................................................................24
9.6.1 The importance of cleaning ........................................................................................................24
9.6.2 What does cleaning entail?........................................................................................................25
9.7 Options ....................................................................................................................................................26
9.7.1 Double front wheels.......................................................................................................................26
9.7.2 Eight-tooth disc .............................................................................................................................27
10. Transporting the machine ....................................................................................................27
11. Maintenance ............................................................................................................................28
11.1 General.....................................................................................................................................................28
1.2 A routine check before each operation............................................................................................29
11.2.1 Visual check of the state of the machine ................................................................................29
11.2.2 Checking the engine’s oil level..................................................................................................29
11.2.3 Cleaning the air filter ..................................................................................................................29
11.2.4 Adjusting depth regulator......................................................................................................... 30
11.2.5 Checking and tightening the blade bolts............................................................................... 30
11.2.6 Checking the blade.......................................................................................................................31
11.3 Checking after 50 hours of use ........................................................................................................32
11.3.1 Removing the wheel guard .........................................................................................................32
11.3.2 Changing the oil ...........................................................................................................................32
11.3.3 Checking the sparking plug. ......................................................................................................33
11.3.4 Changing the air filter.................................................................................................................34
11.3.5 Lubricating ....................................................................................................................................34
11.3.6 Belt tension adjustment .............................................................................................................35
12. Storing the machine.............................................................................................................. 37
13. Equipment specifications .....................................................................................................38

7
Nederlands
5. Operator safety warnings
ELIET cannot anticipate every situation in which a risk or danger can occur. The warning symbols
in this operating manual and the labels on the machine are therefore not comprehensive. Al-
though minimal, a residual risk will always be present. If while operating the machine you apply a
working method, operation or technique that is not explicitly recommended by ELIET, make sure
that it does not represent a danger for bystanders.

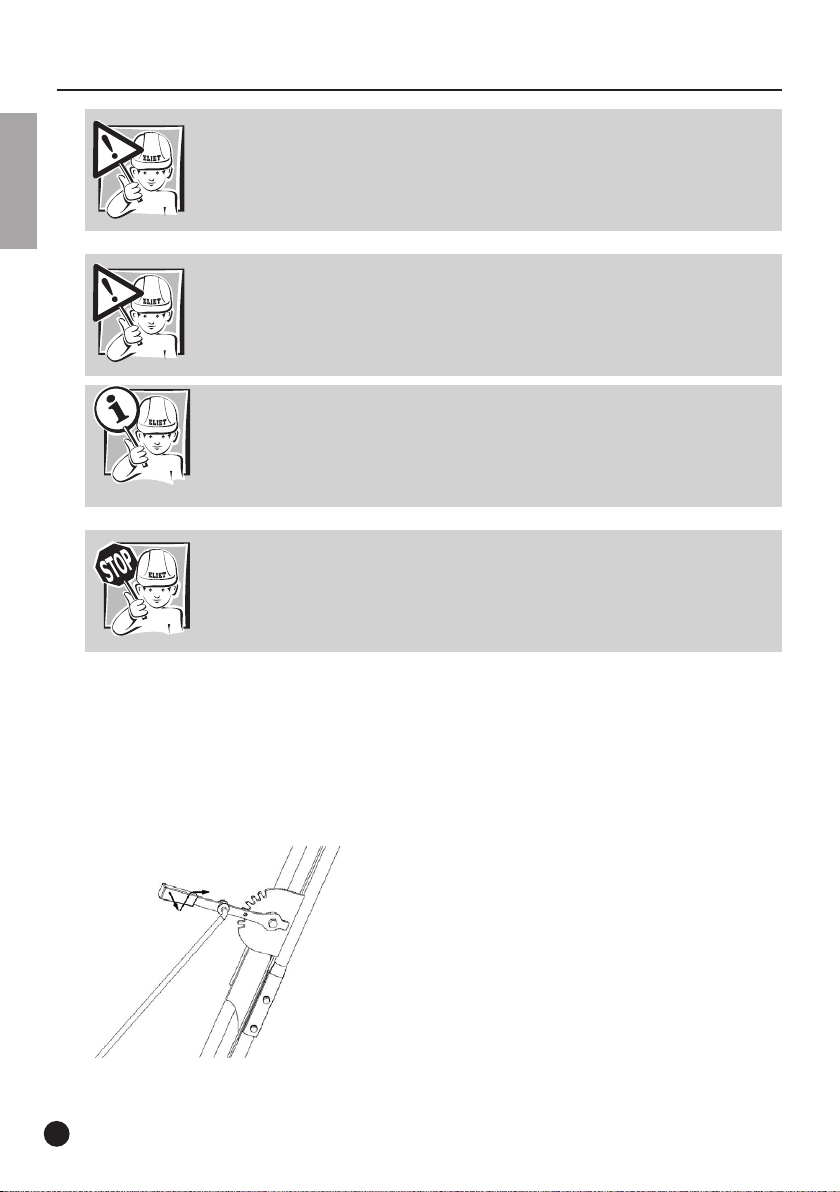

A number of symbols (“For your information”, “Caution”, “Warning”) are used in this operating
manual to provide additional information and to highlight dangers.
5.1 For your information
For your information:
This symbol is used to draw your attention to specific information and/or ac-
tions, or to indicate where you can find additional information relating to the
subject.
5.2 Caution
Caution:
This symbol suggests safe practices. The purpose is to prevent incorrect opera-
tion that could result in personal injury or damage to the machine.
5.3 Warning
Warning:
This symbol warns you about extreme danger that you must take notice of in
those specific circumstances. So for the sake of your own safety, remain alert at
all times.
These safety messages can only warn and not remove the danger. Both the use of common sense
and proper observation of the guidelines in this manual are essential to prevent accidents.

8
Nederlands
6. Main parts
To fully understand the content of this operating manual you need to be fully conversant with the
terminology used for the descriptions. This chapter refers to a broad range of machine parts and
identifies their names. We recommend that you take the time to study the machine prior to its
use for a better understanding of the descriptions provided in this operating manual.
6.1. General overview
1) Safety bar
2) Belt tensioner/Depth regulator
3) Angle setting
4) Precision adjustment height regulation
5) Blade
1
2
3
45
3
4

For your information:
All references to front, rear/back, left and right in this manual are from the view-
point of the operator standing on the side of the handlebar.
For your information:
Your ELIET dealer remains at your service for any maintenance or advice, ensur-
ing your ELIET machine is always in perfect condition. You can contact him for
original ELIET parts and lubricants at any time. These service parts are manu-
factured according to the same strict rules and craftsmanship as the original
equipment. (Find the closest dealer on www.eliet.eu).
Caution:
For your own safety, only genuine parts should be mounted on ELIET machines.
For a list of original spare parts and their ordering codes please visit
www.eliet.eu
9
Nederlands
6.2 Engines
1. Choke
2. Speed control
3. ON/OFF switch
4. Oil filler cap/dipstick
5. Oil drain plug
6. Fuel tap
7. Exhaust
8. Air filter
Honda GC 160 Honda GC 135
2-3
1
4
5

10
Nederlands
7. Safety instructions

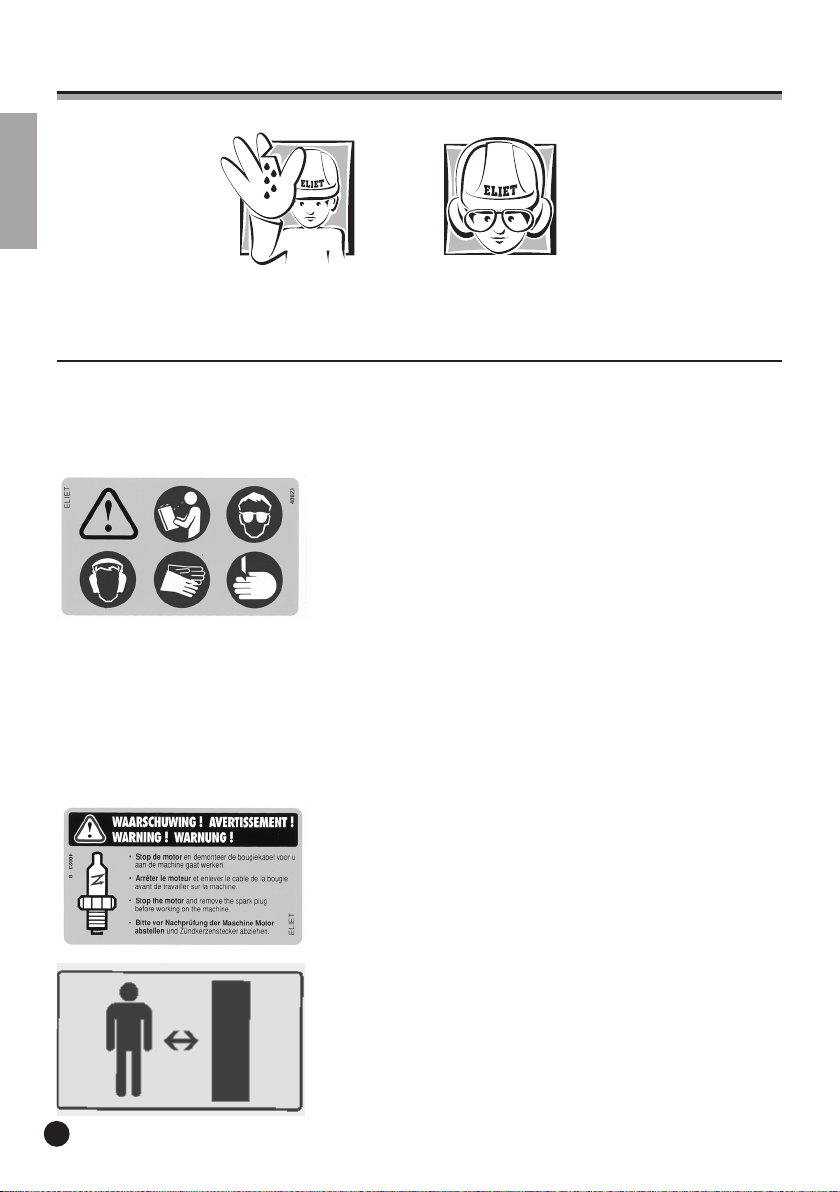

7.1 Safety messages
The safety messages are clearly indicated on the machine with stickers or relief pictograms. Take
good notice of the symbols and warning messages displayed.
This sticker groups a number of key safety messages and infor-
mation about the machine and the manufacturer:
Some safety instructions are symbolised by icons:
1. Before operating the machine the manual should be read and
understood.
2. Suitable safety clothing (gloves, safety goggles, ear defend-
ers) should be worn when operating the machine.
3. There is a real risk of severe injuries including permanent
damage to the hands. Never place your hands near the blade
while it is still operating.
5. There is a real risk of severe injuries with permanent damage
to the eyes or face as a result of flying debris.
This sticker notifies the operator that the engine must be
turned off and the spark plug cap removed before starting
maintenance on the machine.
This sticker reminds the user that bystanders should observe a
minimum distance from the machine.

11
Nederlands
Caution:
Safety stickers or parts that include safety information that are damaged due
to use or cleaning, become illegible or have been removed must be immediately
replaced. Stickers and parts can be obtained from any authorised ELIET dealer.
7.2 Safety features

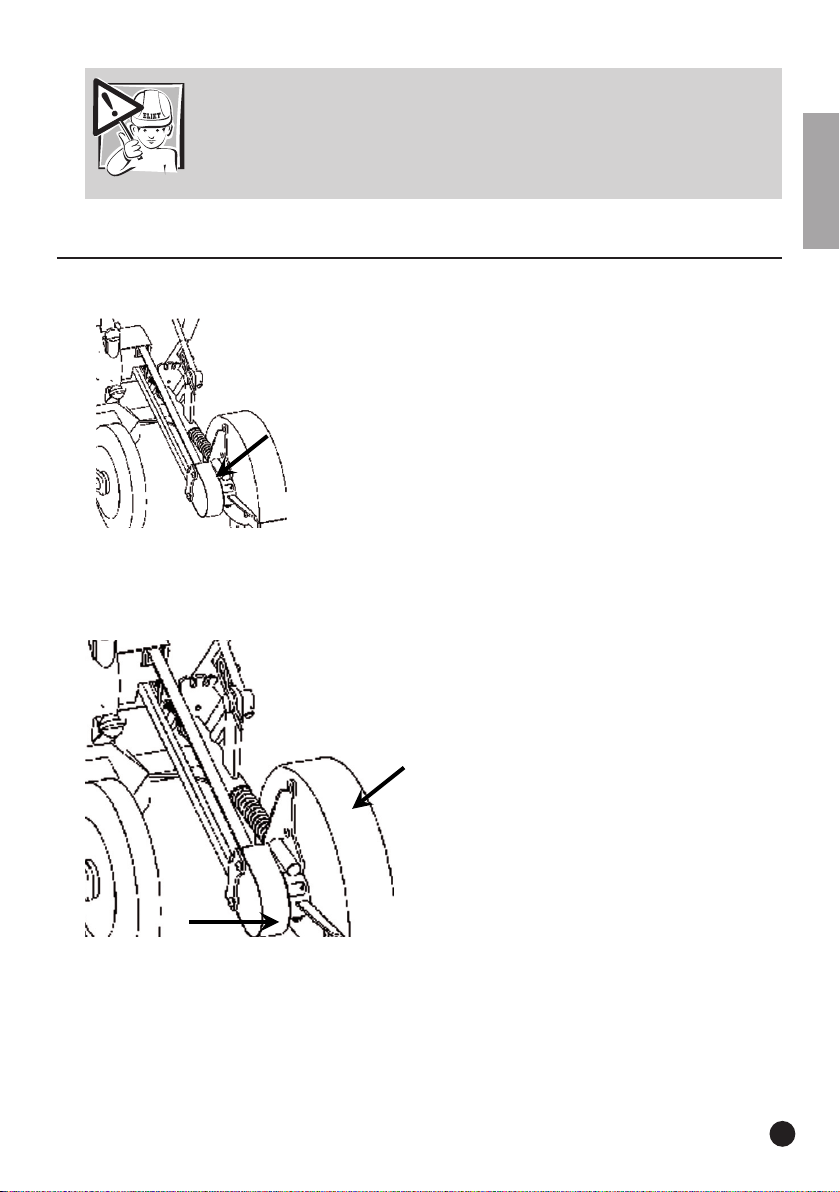

Belt shield:
Blade guard and mud-flap:

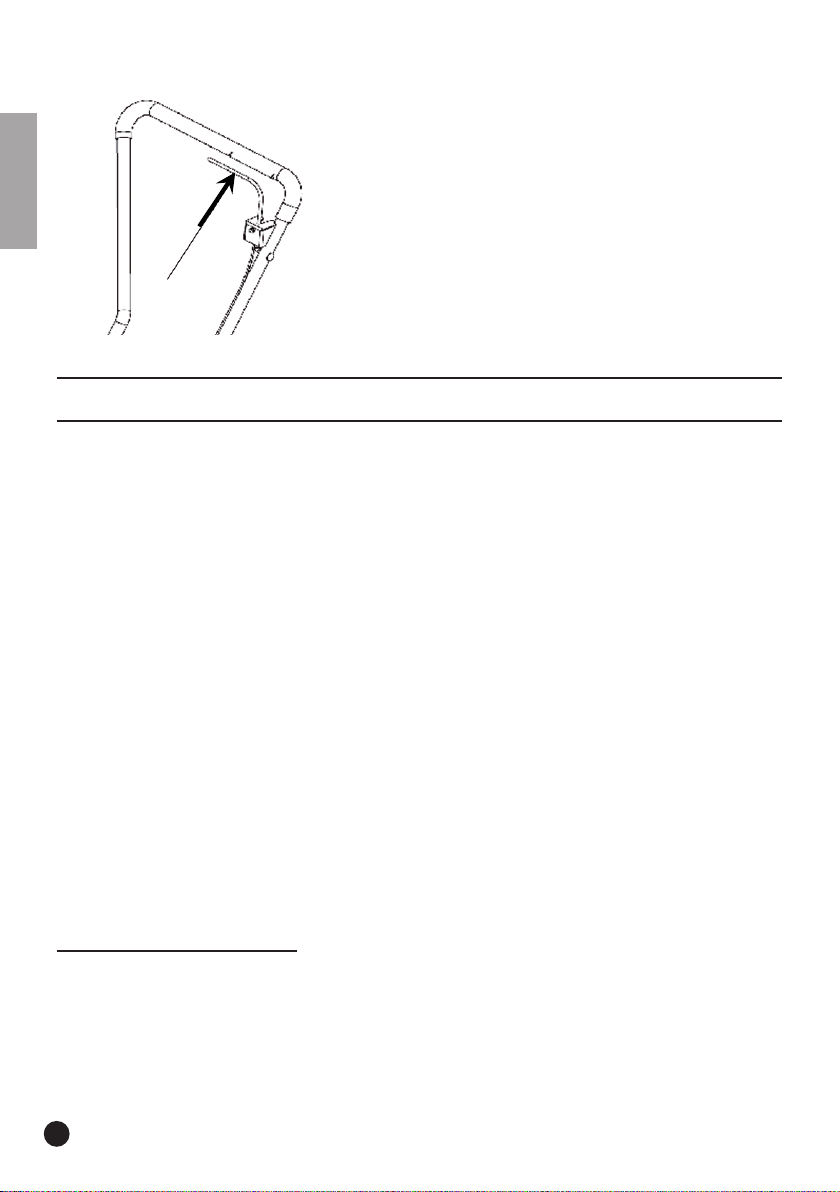

Safety bar:
If this bar is pulled towards the user, the blades will be engaged.
Releasing the operation lever disengages the blade drive from the engine, causing the blade axle
to come to a stop.
The lever therefore provides maximum safety and avoids the engine coming to an unexpected
stop.
The engine can only run if the safety bar is pressed against the steering bar. While working,
therefore, this must always be manually pressed against the steering bar. You are not permitted

12
Nederlands
to fix this safeguard in position in any other way (e.g. rope, adhesive tape,…)
7.3 Safety instructions
7.3.1 General safety instructions
• Theownerofthemachinewillkeepthismanualduringitscompleteservicelife.Areference
guide for the user, it also ensures that the machine is used and maintained correctly at all
times. Always refer to this instruction manual if you have any doubts about an operation that
you are about to perform.
• Iftheinstructionsstatedinthismanualarenotcleartoyou,donothesitatetocontactyour
Eliet dealer for further explanation. In addition, the ELIET help desk is at your service during
office hours to answer any questions you may have: (EU [phone]).
• Besuretoreadthechapterwhichisintendedforthedealer(seechapter8)andverifywhether
the machine was delivered in accordance with the instructions.
• Afteryoupurchasethemachine,allowthedealeroraprofessionaltogiveyousomeinstruc-
tions regarding correct use.
• CarefullyobserveallsafetyinstructionswhenusingthisELIETmachine!Carefullyreadallthe
instructions relating to the operation of the machine. All these instructions are important for
your own personal safety.
• AlwaysobservetheapplicableregulationsoftheLabourInspectoratetoavoidaccidents.
• Readandobserveallsafetymessagesindicatedonthemachineintheformofstickersor
icons.
• Undernoconditionswhatsoevermaytheoriginaldesignofthemachinebemodiedwithout
written consent of ELIET EUROPE NV (Belgium).
7.3.2 Careful and proper use
• Thismachineisintendedtobeusedtoremoveovergrowngrassfromlawnedgesandshould
only be used for this purpose.
• Thinkaboutwhatyouaredoingwheneveryouoperatethemachine.Donotbetemptedtolet
routine dull your attention. Never act impulsively or on reflex.
• Itisunsafeforpersonswithheartproblemsand/orbalancedisturbancestooperatethema-
chine.

13
Nederlands
• Despitetheextensivesafetyfeatures,donotseekoutdangeroussituations.
• Neverworkwithamachinethathasnotbeenfullyassembled.Checkthenishofthemachine
to ensure compliance with the instructions provided in this manual.
• Neverworkonfrozenground.
• Removeforeignmaterialsfromthepathyouaretotake(ropes,stones,metal,plastic,tex-
tiles…)
• Theonlysafepositionfortheoperatorwhileoperatingthemachineisbehindthehandlebar.
• Neverworkwhenlightintensityisbelow500Lux.
• Neverattempttochangeamachinesettingandneverperformmaintenancewhenthemotoris
running.
• Themachinemaycauseanexplosionifyouworknearammableproducts,fumes,etc..
7.3.3 Operator’s responsibilities
• Allpersonsusingthemachineareassumedtobefullyconversantwiththesafetyinstructions.
The operator is fully liable for the use of the machine in regard to himself and to third
parties.
• Theoperatorofthismachineisassumedmatureenoughandwithenoughcommonsenseto
make decisions by himself.
• Themachinemaynotbeoperatedbyunderagepersons.However,thisdoesnotapplyto
youths over the age of 16 who are learning to operate the machine under the supervision of an
experienced operator.
• Adisabledpersonmayonlyoperatethemachinewhenunderthesupervisionofanexperi-
enced operator.
• Children(under16yearsofage)andanimalsshouldbekeptatasafedistance(2m)fromthe
machine.
• ELIETadvisesagainstlendingthemachinetoothers,butifthisshouldoccur,itshouldonlybe
lent to persons who are familiar it. Always make sure that the user is aware of the potential
hazards and ensure that he/she reads the manual before using the machine.
• Thismachinemustonlybeoperatedbypersonswhohaveagoodphysicalcondition.Takea
rest if you become tired while operating the machine. Persons consuming alcohol or drugs
must not operate this machine.
• The user must draw up a list that registers the number of hours worked. This will ensure that
the repetitive maintenance schedule can be followed correctly in relation to the machine.
7.3.4 Personal Protective Equipment (PPE)
• You must wear suitable clothing to operate this machine. That is, clothing covering the whole
body, heavy protective gloves and closed non-slip footwear.
• Fortheprotectionofthemostsensitivesenses,Elietrecommendswearingeardefendersand
safety goggles.
• You must pay more attention and be more careful when wearing ear protection because noises
that announce a danger (such as shouting, signal sounds) will only be heard to a limited degree.
• ELIETdoesnotrecommendusingaWalkmanoraportableMP3playerduringoperationofthe
machine.

14
Nederlands
7.3.5 Danger zone
• Neverallowbystanderswithinthedangerzonestretchingupto2maroundthemachinedur-
ing work.
• Contactwithmovingpartsmaycauseinjuryordamage.Ensure,therefore,thathands,feetor
loose clothing are well away from moving parts.
• Youmustonlyoperatethemachinewhenitisinitsnormalworkingcondition.
• Donottakeanyrisksandimmediatelystopthemachineassoonasanyoneentersthedanger
zone.
• Childrenandanimalsmustbekeptwellawayfromthemachine.
• Shutofftheenginewhenleavingthemachineunattended.
• Oncethemotorisrunning,focusallyourattentiononoperatingthemachine.
7.3.6 Periodic maintenance
• Periodicmaintenanceisessential.Youmustthereforestrictlyfollowthemaintenanceschedule
in this operating manual (see Appendix B1 ‘Maintenance Schedule’)
• Drawupamaintenanceregisterinwhichyoukeeptheperformedmaintenanceupdatedin
detail.
• Regularlycleaningthemachineisessential.Inparticular,keeptheairsupplyforventilationof
the motor free from obstructions. This will prevent overheating and consequential damage to
the machine.
• Whenpartsmustbereplacedasaresultofwearorfailure,youmustalwaysrequestoriginal
ELIET replacement parts from your ELIET dealer. This is of key importance for your own safety.
(Find an authorised ELIET dealer near you on www.eliet.eu).
• Foralistoforiginalsparepartsandtheirorderingcodespleasevisitwww.eliet.eu.
• Alwaysmakesuretheengineisswitchedoffandthebatteryhasbeendisconnectedbefore
performing repairs or maintenance.
• Alwayswearsuitableclothingforperformingmaintenance.
DANGERZONE
OPERATORS’ ZONE

15
Nederlands
7.3.7 In harmony with nature
Use the machine in a manner that respects environmental regulations:
 Avoid unnecessary machine running while not at work.
 Avoid spillage of fuel while refuelling.
 Service the engine regularly in order to achieve optimum combustion.
8. Dealer’s duties
Warning:
As an ELIET dealer you must familiarize your customers with the operation of the machine and
also point out the possible dangers while using it. You are expected to carefully go over the main-
tenance points of the machine together with the new owner. Repeat these instructions until the
new owner has fully understood everything.
• ELIETmachinesarepackagedinaccordancewithcommonrulesforpropertransportation.
Deliveries are always ex factory. Consequently, ELIET cannot be held liable for any damage
that occurs during transport.
• Ifthepackagingisdamageduponreceiptofthegoods,checkthestateofthemachineto
ensure it is not damaged. Report any irregularities on the delivery order before signing for
receipt.
• Incaseofdamagetothemachineacomplainttotheshippingcompanymustbesubmittedim-
mediately after delivery.
8.1 Assembly
When the machine has been removed from its packaging, it is still not completely assembled. The
dealer must finish the assembly. Below we provide a few guidelines:
You will find the machine in the box with the handlebar underneath it.
The lower part of the push bar must be folded out and fixed with two bolts.
(M8 x 20).

16
Nederlands
The upper half of the handlebar is then placed on the lower half. The operation lever remains on
the side of the blade. Both blades are fixed to one another with two bolts (M6x45) and the nuts and
locking rings (M6) supplied.
The rod that comes in the box connects the operation lever on the steering rack with the lever arm
on which the blades are mounted.
The rod is secured to the lever on top via a star lock fastener. Underneath the rod, there is a
screw thread to which the connection piece must be screwed. This is used for precision adjust-
ments to depth.

17
Nederlands

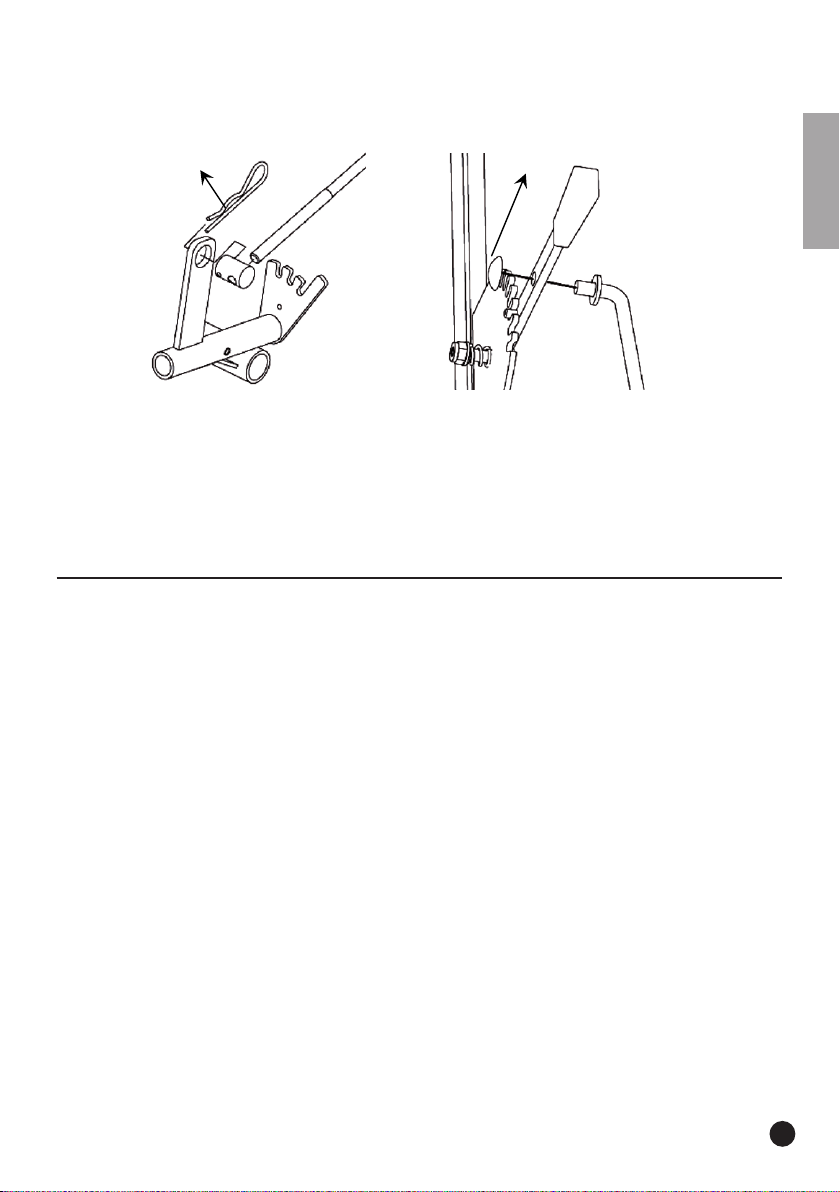

The axle pin on the connection piece is screwed into the hole in the lever arm and secured with a
beta pin.
Finally, you need to test if everything works as it should.
8.1 Other duties
The dealer will set the belt tension according to the details in the maintenance section of the
instruction booklet (§ 11.3.6 Belt tension adjustment)
Machines do not contain any oil or fuel when they are packed for transport. The dealer must
check the oil level and refill if necessary according to the instructions in this manual (or those
pertaining to the engine manual).
Every Eliet dealer warrants a long life span of Eliet machines. He will lubricate the hinges before
delivering the machine to the client.
The revolutions per minute will be set at 3,200 rpm.
Finally, make sure that the warranty card is filled in completely and signed. The purpose is to
avoid warranty disputes. Please read the warranty conditions for more details.
Please register your product online immediately after purchase to ensure that your warranty
entitlement is activated. (www.eliet.eu).
beta-speld
starlockdop
bottom top

18
Nederlands
9. Operating instructions
9.1 Preliminary checks
Caution:
Try making a habit of checking the following points before getting to work with
the machine:
Checklist
1. Check the oil level in the machine (see § 11.2.2 Checking the engine’s oil level)
2.Check that the fuel tank is full. If not, fill it (see § 9.2 Adding fuel).
3. Check the air filter for excessive dirt (if necessary see § 11.2.3 Cleaning the air filter)
4. Make sure the bolts on the blade are secure.
5. Check that the blade is in a good condition. If it needs to be sharpened, this must be done first.
If you detect cracks or flaws in the blade, immediately install a new blade.
6. Check that the machine is running at the rpm given (an rpm counter can be obtained from
your ELIET dealer).
7. Check that all safety provisions on the machine are still operating properly.
(See § 7.2 Safety features).
8.Check that the engine cuts out when the safety lever on the steering rack is released.
Once these items have been checked and approved, you can prepare the area of operation (see
§ 9.3 Preparing the work site) and move the machine to the work site.
9.2 Adding fuel
When the machine is running low on fuel it must be refuelled. The use of fresh petrol is recom-
mended at all times.

19
Nederlands
Use unleaded petrol with an octane index of at least 85, but preferably 98 or 99. Use of any
other fuel is prohibited. (Please check the engine manual)
Warning:
Under certain conditions, petrol is extremely flammable and highly explosive.
Fire breakouts and petrol explosions can inflict severe burns and cause damage
to personal property.
•Neverrefuelwhiletheengineisrunning.Alwaysallowtheenginetocooldownforseveral
minutes before refuelling.
•Usefreshfuelonly.
•Giventhelimitedshelflifeofpetrol,ELIETrecommendspurchasingsmallamounts.
•Storethefuelinanapprovedtank.Keepitoutofreachofchildren.
•Storethepetrolinawell-ventilatedarea,awayfromre,sparksorheatsources.
•Neverrefuelatthelocationwherethemachinewillbeoperated.Keepadistanceofatleast10
m from the selected work area in view of fire hazard.
•Cleantheareaaroundthefuelcap(1)andremoveit.Don’tllthetankcompletely.Filluptoap-
proximately 20 millimetres from the brim. So never fill it up to the brim.
•Alwaysuseafunneloraspoutforrefuelling.SpecialfunnelsareavailablefromyourELIET
dealer.
•Putthecapbackonthefueltankasquicklyaspossible.
•Alsoensurethatclothingdoesnotcomeincontactwiththepetrol.Ifthishappens,itmustbe
changed immediately.
•Itisstrictlyprohibitedtorellthetankaroundpeoplewhoaresmokingornearopenre.
•Iffuelisswallowedorcomesincontactwiththeeyes,consultadoctorimmediately.
9.3 Preparing the work site
• Cleanuptheareawherethemachinewillbeoperatedpriortostartingthework.
• Foreignobjectsaretoberemovedfromtheworkarea.
• Theterm‘foreignobjects’isunderstoodtomean:anythingthatisnotorganicorwhichbreach-
es the maximum diameter given (e.g. metal, stone, plastic. rope, textiles…) Some of these items
can cause serious damage to the machine or could be ejected as projectiles towards the user.
• Removecablesfromyourworkingareasothattheyarenotcut.

20
Nederlands
9.4 Starting the petrol engine
Caution:
Please read the safety instructions under § 7.3.
Caution:
Never start the engine if the cooling fins are dirty. The engine would heat up too
quickly, which would pose a fire risk.
For your information:
For more information, please check the engine manual.
Warning:
Never start the engine in a closed environment. The exhaust fumes contain
toxins that may cause poisoning or suffocation.
Always check the engine for adequate oil and fuel levels before starting it. If necessary read the
following paragraphs:
§ 11.2.2 Checking the engine’s oil level
§ 9.2 Adding fuel.
- check that all safeguards are installed correctly.
- set the blade to the highest setting (freewheeling)
