LNK-106M Series
HDMI Optical Transceiver
User Manual

E-link China Technology Co., Ltd.
Http://www.e-linkchina.com 2 [email protected]
FE TURES
•
Supports HDMI Video up to 4Kx2Kx3 Resolution
•
HDMI 1.4a with HDCP Support
•
DDC CEC HPD Signal Support
•
No Settings or Adjustments Necessary, Automatically Recognizes HDCP, EDID & CEC
•
Supports up to 3 m Transmission Distance with OM3 multimode fiber
•
Standard HDMI Connector
•
Integrated USB Connector for Power
•
Double Power Supply (HDMI 5V&USB)
•
Hot-Pluggable
•
EMI/RFI Resistant
•
85 nm VCSEL and PIN Photodetector
•
Uses Small, Reliable LC Optical Connector
•
Operating Case Temperature: ~74°C
DESCRIPTION
The E-link LNK-106M HDMI optical transmitter and receiver are designed to send 1 channel of 1.4a compliant
HDMI Video with embedded audio over two optical fibers.
HDCP is automatically supported for the transmission of content-protected video.
Link can operate over single fiber in DVI mode when the HDCP compliance is not required.
The 4K HDMI optical transceiver supports transmission of an uncompressed lossless HDMI 1.4a signal over
multimode optical fiber at 85 nm, for distances up to 3 meters, at a resolution of 4Kx2K.
Transmitter converts an HDMI signal to a single 1 Gb/s serial data stream for transmission over two optical
fibers. Receiver converts the serial data back to an HDMI signal.
This product is ideal for large-screen displays, conferencing systems and home entertainment.
This fiber link meets all of the standards of interference immunity, to ensure the stability of the signal.
The transceivers are RoHS compliant and lead-free. These small modules utilize one multimode fiber with a
standard locking LC optical connector.
Operating on 5V DC power over a standard micro-USB connector, these modules are ready for easy
installation and operation.
Package Includes
■ LNK-1 6M-T TX (Transmitter, To Video Source)
■ LNK-1 6M-R RX (Receiver, To TV)
■ Micro-USB cable (5 cm) (2 pcs.)
■ User’s Manual
Please verify all items are included in the box. If anything is missing, please contact the vendor.

E-link China Technology Co., Ltd.
Http://www.e-linkchina.com 3 [email protected]
LNK-106M Size & Dimension

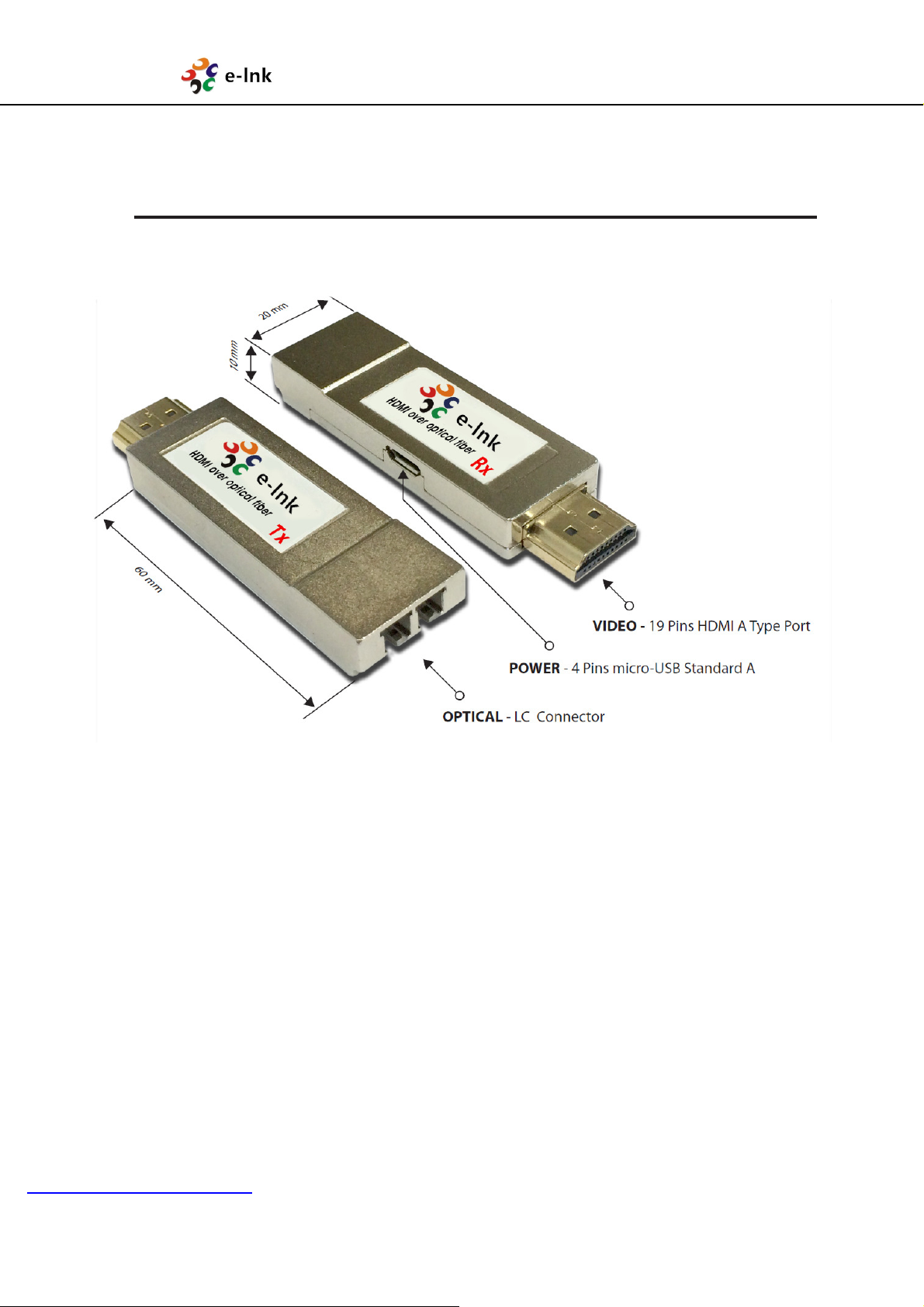

Figure 1 LNK-1 6M Optical HDMI transmitter and receiver

E-link China Technology Co., Ltd.
Http://www.e-linkchina.com 4 [email protected]
CONNECTING ND OPER TING LNK-106M
LNK-106M System Connections
Figure 2. Connection of LNK-1 6M HDMI Optical Transceiver
1. Connect HDMI port of LNK-1 6M-T (Transmitter) on the rear of the video source device.
2. Connect the Fiber Optic Cable to LC Optical Port of LNK-1 6M-T (Transmitter).
3. Connect power to the 5V DC port of LNK-1 6M-T (Transmitter) using provided USB cable.
4. Connect HDMI port of LN K- 1 6 M- R (Receiver) on the rear of the HDTV (HD monitor).
5. Connect the Fiber Optic Cable to LC Optical Port of LNK-1 6-M-R (Receiver).
6. Connect power to the 5V DC port of LNK-1 6M-T (Transmitter) using provided USB cable.

E-link China Technology Co., Ltd.
Http://www.e-linkchina.com 5 [email protected]
TROUBLE SHOOTING
Q1: Where do the LNK-106M TX and RX go?
1: LNK-1 6M-T is the transmitter, and it is connected to video source devices
(PC, DVD, Broadcast Camera etc.).
LNK-1 6M-R is the receiver, and it is connected to HD display
(TV, monitor, projector, etc).
Q2: What is the maximum distance between source device and HD monitor?
2: LNK-1 6M can support :
• Multimode fiber – in excess of 3 meters (1 feet) at 4Kx2K video resolution
Q3: Can I use the HD monitor’s USB power for LNK-106M-R RX?
3: Yes, if the HD monitor’s USB power output can provide +5V and .5A current.
Note that LNK-1 6M-R RX may not work during HD monitor’s power-saving mode.
Q4: I can't see the video image?
4: 1) Check the HDMI connections to display and to source are securely connected.
2) Check both source and display supports HDCP. If one side does not support HDCP, then there will be no
picture.
Q5: Does LNK-106M supports HDCP (High-bandwidth Digital Content Protection)?
5: Yes, LNK-1 6M supports HDCP.

E-link China Technology Co., Ltd.
Http://www.e-linkchina.com 6 [email protected]
LIMITED W RR NTY
E-link warrants this product to be in good working order for a period of one year from the date of purchase. If
this product is not in good working order as warranted above, or should this product fail to be in good working
order at any time during the warranty period, E-link shall provide repair or replacement.
This warranty does not cover incidental or consequential damages incurred by consumer misuse, or modification of
said product. For limited warranty service during the warranty period, please contact the retailer/distributor or call
([phone] to obtain an RMA number and instructions for returning the product.
The information contained herein is provided to the user as a convenience. While every effort has been made
to ensure accuracy, E-link is not responsible for damages that might occur because of errors or omissions,
including any loss of profit or other commercial damage. The specifications described herein were current at
the time of publication, but are subject to change at any time without prior notice.
