Elipta E4111 User manual

Quality garden lighting
for creative lightscaping
P-ELIPTA2010
Compact spike spotlights 2-3
Tree spot system 4
Hanging lights 5
Pole Spots 6
Microflood 7
Microspots 8-9
Wall spotlights & downlights 10-13
Underwater lighting 14-17
Recessed lights 18-22
Lighting for larger trees 22-23
Navigator l.e.d. recessed lights 24-27
Steplights 27-32
Bollard lights 33-35
Spreadlights 36-37
Stringlight 38
Lamps 39-41
Lenses and filters 42
Installation accessories 43
Transformers & power supplies 44-45
Help and ideas 46-47

AA
BB
CC
AA
DD

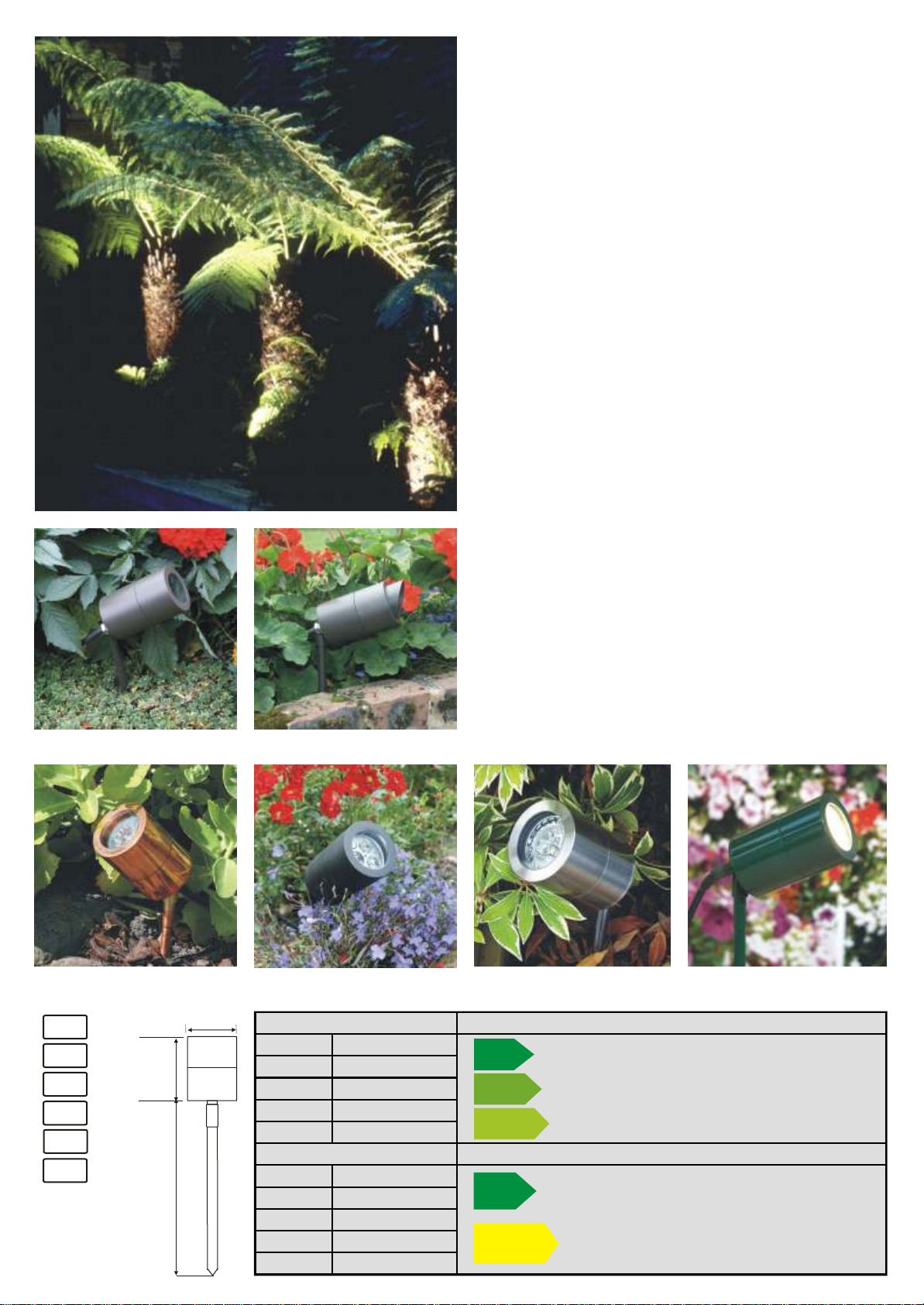

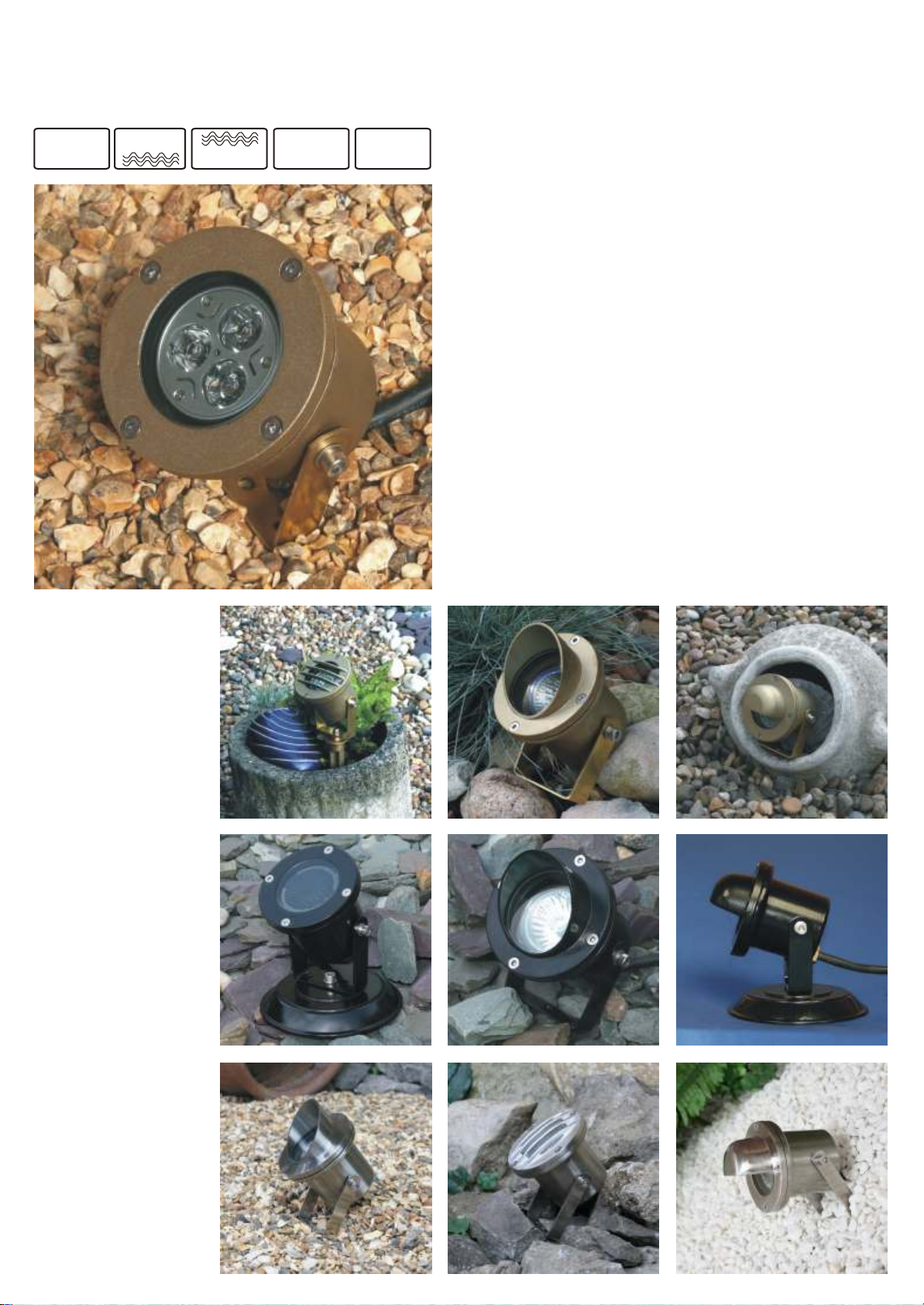

Compact adjustable spike spotlights
are available in 316 stainless steel, natural copper and
aluminium powder-coated in a choice of three colours - black,
dark green and rustic brown. They are designed for 20w, 35w
or50whalogenlampsin240vGU10modelsformainsvoltage
installations or 12v MR16 versions for use with remote
transformer. Low energy options include 3w or 6w led
modules and 240v GU10 7w, 9w, 11w or 14w compact
fluorescent spotlamps, including a dimmable 11w lamp.
Powersaver 12v halogen lamps offer an energy saving of
over 30% compared to standard halogen lamps - a 35w
Powersaver gives almost the same light output as a 50 watt
standardhalogenlamp. (Orderlampsseparately).
There is space inside the spotlight body to fit an E4010 58mm
honeycomb glare louvre or a clip-on MR16 spread lens,
frostedlens orcolour filteronto thefront ofthe lamp.The front
bezelcanbeunscrewedwithoutuseoftoolstomakeiteasyto
changethelampwithouttools,ortofittheoptionalRotashield
0
glare shield which can be rotated 360 to provide glare
protection from any angle. The flush lens keeps the glass
cleaner longer and is easier to clean periodically. The
adjustable knuckle joint is mounted on a 20cm slim rod spike
which may be replaced by an optional 50cm or 1m extended
spike for use amongst taller planting or by the E4009 Ground
Anchor, a finned polycarbonate ground spike to hold the
spotlight firmly in loose soil or withstand disturbance. The
spotlight body is made from solid metal tube and is mounted
on an adjustable knuckle joint providing full flexibility of
positioning. 12v spotlights are fitted with a 1.5m 2 core cable;
240v spotlights are fitted with a 2m 3 core cable. The glanded
cableentryfacilitatesrewiringintheeventofcabledamage.
240v
IP66
50w
12v
LED
CFL 200
63
12v - 100
240v - 110
12v L.E.D. LAMPS
HALOGEN Powersavers
12v HALOGEN LAMPS
240v HALOGEN LAMPS
240v L.E.D. LAMPS
COMPACT FLUORESCENT
Natural Copper
12v spike spotlights
require T9962 cable
joint kit to connect to
2
2.5mm low voltage
groundburialcable
Compact
adjustable spike spotlights
316 stainlesssteel Dark Green Black
0
50w 60 halogen lamps make a feature of tree ferns
2
Rustic Brown with optional Rotashield
Lamp choice & energy ratings
E4111 Stainless steel
E4121 Copper
E4131 Black
E4141 Green
E4171 Rustic Brown
E4112 Stainless steel
E4122 Copper
E4132 Black
E4142 Green
E4172 Rustic Brown
12v MR16
240v GU10

Accessories
E4009 Ground
Anchor is a finned
polycarbonate
ground spike which
may be fitted to a
Compact spike
spotlight to position it
firmly in loose soil or
withstand
disturbance from
pets or garden
maintenance

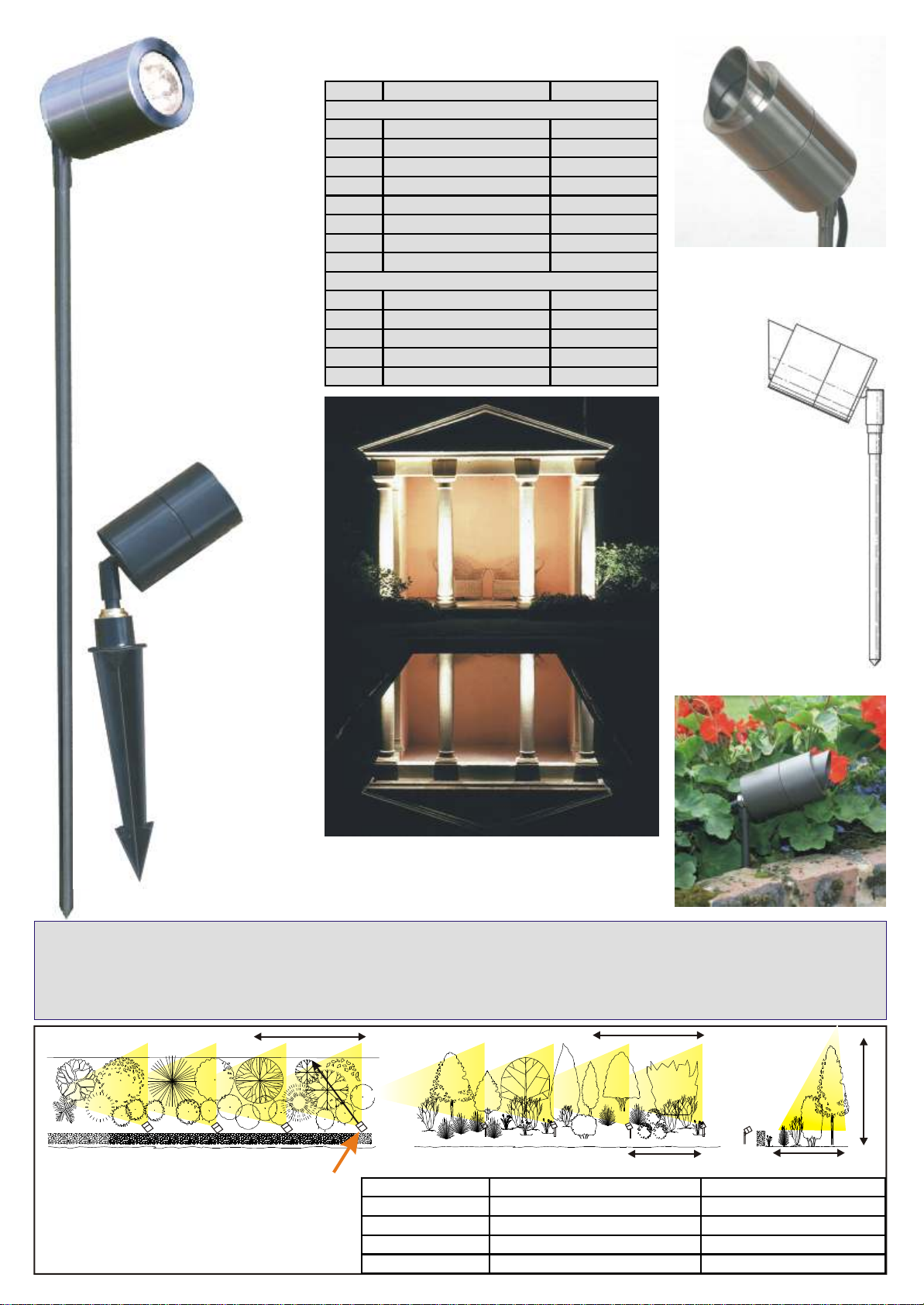

<The standard rod spike fitted to
the Compact spike-mount
spotlights may be unscrewed and
replaced with alternative length
spike mounts without having to
rewirethelight.Theoptional50cm
or 1m extended spike is intended
for use amongst taller planting or
to cater for seasonal fluctuations
inplantingheight.
Optionalspikemounts
Tips for lighting shrub borders
!Whenplantingisyoung,use35wlampstoavoida“welllitfence”untiltheplantshavegrownbigenoughtoneed50wlamps
!Use50wlampsformatureshrubstocompensatefordense,darkgreenfoliage
0
!Usewidebeamlamps(50-60 )forcoverageanduseonespotlightaboutevery3malongabordertoavoidpatchylighting
!Light borders diagonally to create shadow and depth between plants.
!Wire 12v spotlights individually from a transformer & allow 1 metre of slack cable to allow you to move lights around.
RotaShield
- optional glare shield
rotates to provide glare
protection from any
angle. The Rotashield
front is the same size as
the standard front bezel it
replaces.
E4112 240v Stainless steel
Compact spike spotlight fitted with
matchingRotashield
0
Above: 20w 38 lamps uplight each column:
extended spike mounts locate the spotlights
discretelyamongstfoliageatthebaseofthecolumns
andglareshieldshidethelightsourcefromview.
Hide spotlights amongst low planting at front of
border or behind box hedge etc. A
0
Example of shrub border lighting - Use 60 beam
0
angle lamps in spike spotlights aimed at 45 from
the line of the border, typically spaced 3m apart to
avoid patchy lighting. The number of spotlights
determines coverage: the wattage of lamps fitted
determinesbrightnesswithintheareaofcoverage.
Spotlight
angled
0
@ 30 to
horizontal
B
3m
Take care to avoid light trespass into neighbouring
gardens - angle spotlights below hedge/fence line
B
C
A B C
Depth of border Maximum horizontal spread Maximum vertical spread
2m 3.4m 3.4m
3m 5.2m 5.2m
4m 6.9m 6.9m
3
E4010 58mm glare louvre Black
E4005 50cm extended spike Stainless steel
E4005B 50cm extended spike Black
E4005C 50cm extended spike Copper
E4005G 50cm extended spike Green
E4005R 50cm extended spike Rustic Brown
E4015B 100cm extended spike Black
E4015R 100cm extended spike Rustic Brown
E4009 Ground anchor Polycarbonate
E4021 RotaShield glare shield Stainless steel
E4022 RotaShield glare shield Copper
E4023 RotaShield glare shield Black
E4024 RotaShield glare shield Green
E4027 RotaShield glare shield Rustic Brown
Optional spike mounts
Rotashield glare shields

12v tree spotlights
require T9962
cable joint kit to
connect to low
voltagecable

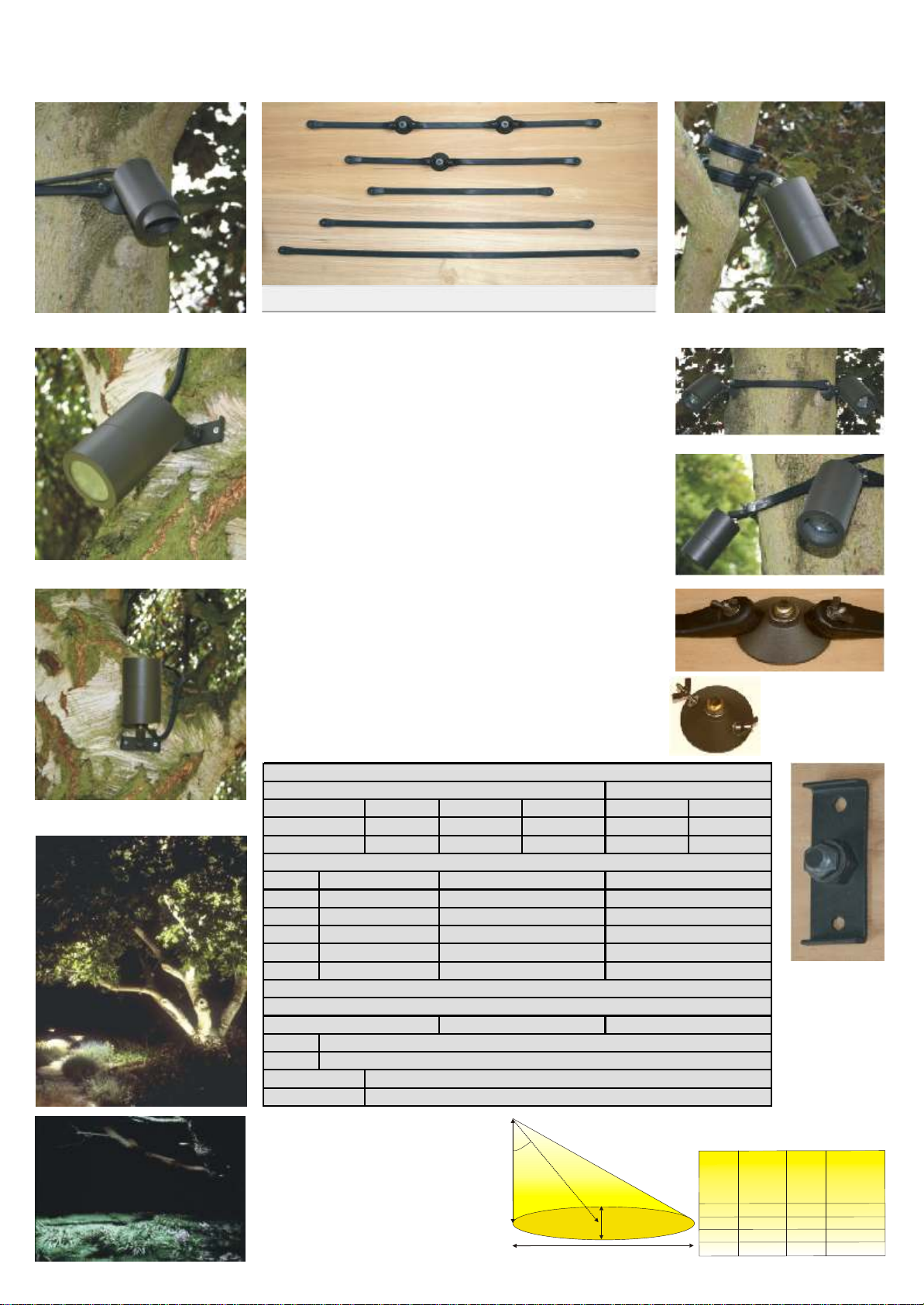

Tree-mounting spotlights
A
Height
above
ground
2.25m
3m
4m
5m
C
Lateral
spread
(Max)
2.3m
3.1m
4.1m
5.1m
B
Outward
spread
(Max)
2.6m
3.5m
4.7m
6m
Suggested
lamp
wattage
20w
20w
20-35w
20-35w
A
B
C
0
30 Beam angle
0
60 12v lamp
Moonlighting example
TheEliptastrap-ontree mountspotlightsystem consistsof
five strap sizes and E4013 strap-on tree mount which
convertsCompact 12vand240v spotlightsandMicrospot
0
miniature spotlights to tree-mount spotlights. MR16 60
halogen lamps in Compact 12v spotlights offer the widest
beam angle option for moonlighting and canopy uplighting
applications: led modules may be used as a low energy
option. Optional MR16ASL spread lens widens the beam
for greater coverage. 240v Compact spotlights with
compact fluorescent lamps combine long lamp life with
warm white light output, wide diffuse beam and low energy
consumption. Tree straps loop over threaded studs on the
E4013 strap-on mount and will stretch to fit around
branches or trunks to provide secure mounting and
flexibilityforgrowth.Washersandwing-nutsareprovidedto
secure the strap in place on the mount studs. E4010
honeycomb glare louvre may be fitted behind the lens to
reduce the visibility of the light source and reduce glare;
Rotashield glare shields may be fitted for added glare
protection. MR16AMDFmoonlighting(paleblue)filtermay
be clipped onto an MR16 lamp inside to provide a cool
lightingeffect.E4012screw-onmountcatersforinstallation
on large trunks or trellis structures and can be strapped
ontosmallbrancheswithtwostandardtreestraps.
Uplighting a canopy: a locking
nut holds the spotlight in place
E4171 on E4012R screw-on mount
E4171 with E4027 Rotashield
on E4013R strap-on mount E4171 on E4012R mount straps
onto small branches
<Moonlighting effectis createdby
lighting downward from low power
lights in a tree to shadow the lower
branches & foliage onto the ground
below. This subtle, dappled lighting
overatreeseat,terrace,lawn,path,
or drive is one of the most natural
lightingeffectsinanightgarden
Twin spotlight mounting
The Elipta tree mount spotlight system
E4013R rustic
brown strap-on
tree mount
E4012B black
screw-on
bracket
4
Finish 12v MR11 12v MR16 240v GU10 Screw-on Strap-on
Black E4135 E4131 E4132 E4012B E4013B
Rustic Brown E4175 E4171 E4172 E4012R E4013R
Strap
E4030
E4031
E4032
E4033
E4034
RotaShield glare shield:
E4010 58mm honeycomb glare louvre for Compact spotlights
E4011 35mm honeycomb glare louvre for Microspot spotlights
MR16ASL Clip-on 50mm spread lens for MR16 lamp
MR16AMDF Clip-on 50mm moonlighting lens for MR16 lamp
E4027 Rustic Brown
90cm
135cm
165cm
Allow 5cm for strap-on mount when selecting strap size
33-52cm
E4023 Black
15"/37 cm
21"/52 cm
31"/77 cm
41"/102 cm
Accessories
12-21cm
Strap selection
Strap length Maximum stretch
Spotlights
Fits diameter
17-28cm
25-42cm
Elipta tree-mounting spotlight system
10"/25 cm 45cm
67cm 8-14cm
Tree mounts

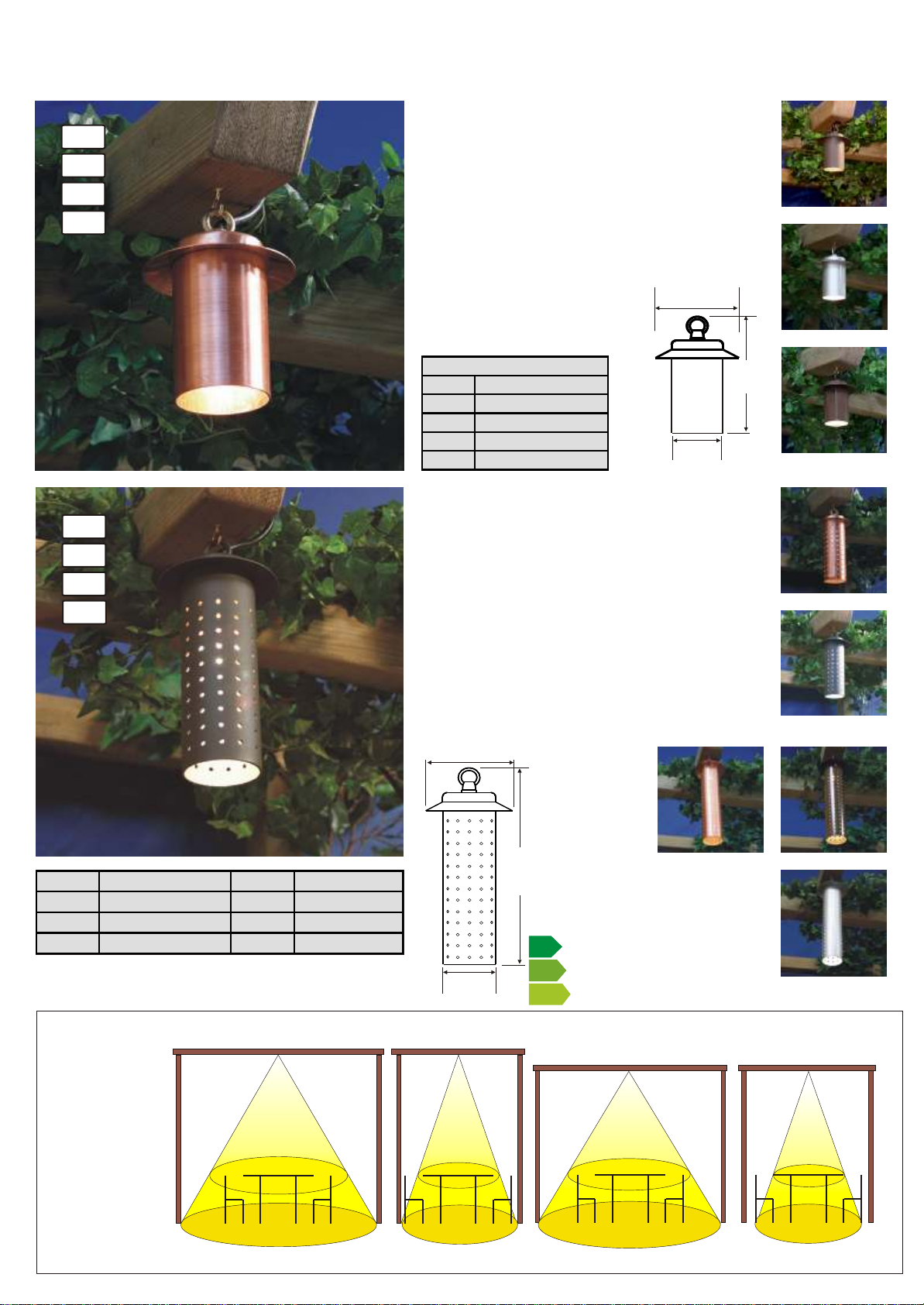

Decorative hanging lights with longer barrels reduce beam diameter to 60cm @ 2.25m mounting height
Pergola height: 2.5m 2.5m 2.25m 2.25m
Lighting
example
Beam diameter 202cm 120cm 175cm 100cm
@ table top
75cm high
Beam diameter
@Ground level 290cm 172cm 260cm 155cm
0 0 0 0
Lamp beam: 60 38 60 38
12v Hanging Downlights
5
Pergolight is a small 12v MR16 20-35w
downlight for illuminating a seating area or feature
belowatree,arbourorpergola.Ithasanopenbase
and accepts a clip-on MR16 accessory, such as a
spreadlensoverahangingbasket,afrostedlensor
glare louvre over a seating area or a moonlighting
filterforhangingfromtrees. Pergolightisavailable
in natural copper (which weathers naturally),
lacquered copper (which resists tarnishing) or
silver, brown and rustic brown powder-coated
95
58
125
Pergolight
E8521 Natural copper
E8571 Brown
E8571 Rustic Brown
E8581 Silver grey
E8591 Lacquered copper
IP44
35w
12v
LED
Decorative downlights are
available in two lengths with a perforated barrel
which combines a downlighting beam with
pinpoints of light through the side to add fun and
sparkle to a garden lighting scheme. Sparkle and
Twinklemodelsmay beused asdownlighters over
a table, along a pergola walkway or hanging from
tree branches. They have a 1m cable, an open
base and can accommodate a clip-on MR16
accessory such as a frosted lens, glare louvre or
o
colour filter. A 20w 38 halogen lamp or
MR16LED3WW l.e.d. module is recommended
(orderseparately).
95
58
200 Twinkle
300 Sparkle
12v Hanging downlights have a 1m cable & require a T9962
cable joint kit to connect to the end of a low voltage cable
or a T9963 cable splice kit to connect into a cable run
Rustic brown
Brown
o
aluminium. Use a 20w 60 MR16
halogenlamporMR16LED3WW
l.e.d. lamp for subtle lighting.
(Orderseparately) Silver grey
Sparkle 30cm long Twinkle 20cm long
E8671 Brown E7921 Natural copper
E8681 Silver grey E7971 Rustic Brown
E8691 Lacquered copper E7981 Silver grey
Brown Sparkle
Copper Twinkle
Silver Grey
Sparkle
Silver Grey
Twinkle
Lacquered
Copper
Sparkle
IP23
35w
12v
LED
AA
BB
CC
12v L.E.D. LAMPS
HALOGEN POWERSAVERS
12v HALOGEN LAMPS
Energy Rating

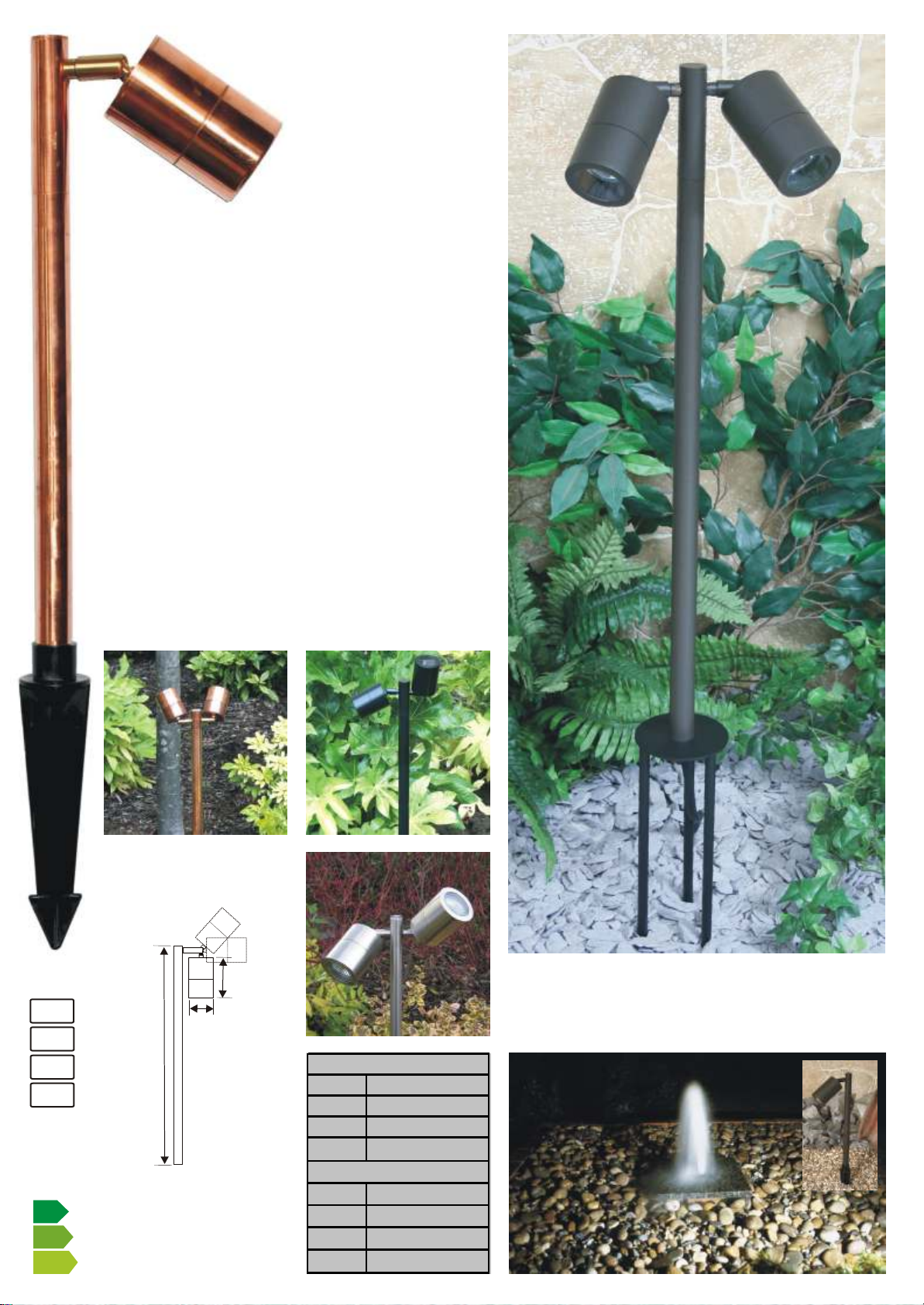

40cm,70cmor100cmhighpolespotlights
for 12v MR16 standard halogen or
Powersaver lamps or l.e.d. lamps
Pole Spotsoffer a choice of single or twin12v spotlight on
a 40cm tubular stem - ideal for uplighting trees and taller
shrubs from amongst planting, spotlighting features at
groundlevel orwashinglightacross alawn,path orgravel
area. 30cm extension stems are available to increase the
total height to 70cm or 1m, for which the E6002 High-
stability Ground Spike is recommended. Pole Spot Solo
andPole Spot Duo are
12vpolespotlightsrequire aT9962cablejointkit
toconnectto2.5mmlowvoltagecable.
Pole Spots are supplied without mount to permit
selection of alternative spike, surface-mount and
extension stem combinations: see next page for
options. Orderlamp,cablejointkitandmountseparately
weatherproof toIP66, fittedwith a
1.5m rubber cable and accept a 50w MR16 standard or
Powersaver halogen reflector lamp or led lamp. There is
space inside the spotlight to fit a E4010 honeycomb glare
louvre or a clip-on MR16 spread lens, frosted lens or
colourfilterontothelamp..Rotashieldglareshields,which
rotate to provide glare protection from any angle, are
optional.
Pole
Spots
Above: rustic brown pole spotlight with 30cm
extension pole and high stability Tri-spike
options. Below: a small water feature is crosslit
byapolespotlighttuckedintoadjacent foliage
400
100
63
AA
BB
CC
12v L.E.D. LAMPS
HALOGEN Powersavers
12v HALOGEN LAMPS
Energy Rating
< E6321 Pole Spot Solo in
natural copper with E6001
polycarbonatespikemount
IP66
12v
50w
LED
Pole Spot Solo
E6311 Stainless steel
E6321 Copper
E6331 Black
E6371 Rustic Brown
Pole Spot Duo
E6411 Stainless steel
E6421 Copper
E6431 Black
E6471 Rustic Brown
6

For two 20-50w halogen capsule lamps

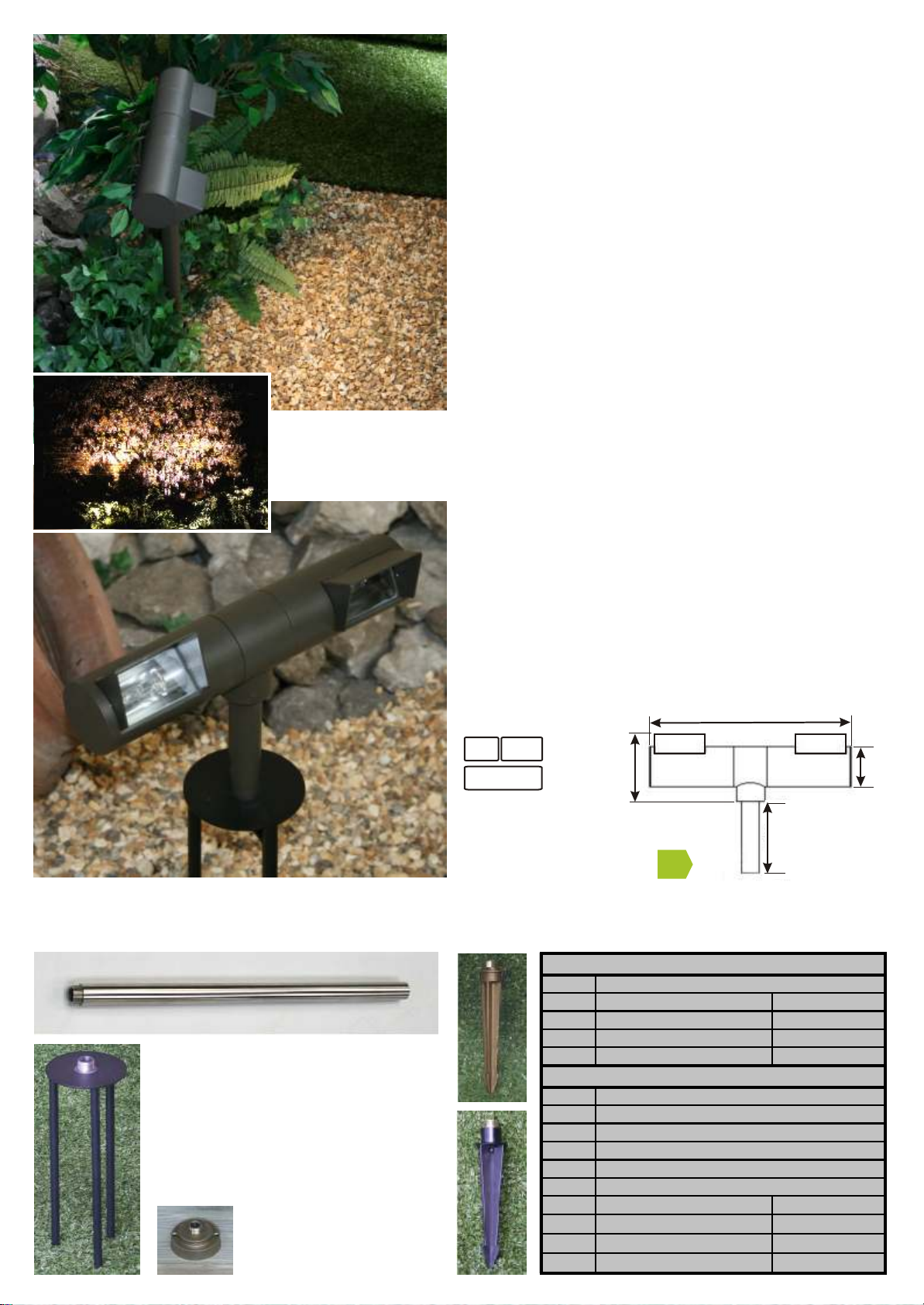

E6271 Microflood Duo isa 12vfloodlightwith 2 independently
adjustable heads, providing overlapping beams ideal for
uplighting hedge screens and taller shrubs or washing light
acrossa lawn,path orgravel area.Each floodlight head can be
adjusted or removed from the body for lamp replacement by
twisting to release it from the twin retaining “O" rings.
Microflood is weatherproof to Ip66, fitted with a 1.5m rubber
cable and accepts two 20w, 35w or 50w halogen capsule
lamps. The rustic brown powder-coated aluminium finish is
inconspicuous amongst planting and in woody settings.
Microflood
Use T9962 cable joint kit for connection to 2.5mm² low voltage
cable or T9963 cable splice kit for connection to T9910 4mm²
cable from a garden lighting transformer. Wire Microflood to
the transformer with 2.5mm² ground burial 2 core low voltage
cable (available in 50m (T9912) or 25m (T9913) packs) when
using with two 20w lamps or short cable runs when using 35w
lamps: use T9910 4mm² cable for longer runs or for use with
twin50wlamps.
is supplied without mount to allow a choice of
alternative spike- or surface-mounts. E6002 Tri-spike 30cm
high stability spike mount is recommended for use with 30cm
extension poles which convert Microflood to 50cm or 80cm
heightamongsttallerplantingorforcrosslightingdownwards.
Orderlamps,cablejoint/splicekit,extensionpoles&mountseparately
Microflood
12v twin halogen floodlight with
optional extension poles for
wall-washing and crosslighting
Microflood Duo with high-stability E6002 Tri-Spike
Microflood & Pole Spot mounting accessories
Above:30cmextensionpole
E6003 brassspike-mount >
E6001polycarbonatespike-mount >
< E6002 Tri-spike 30cm high stability
spike mount for loose soils and tall lights.
Blackpowder-coatedstainlesssteel
56
285
100
105
12v IP66
2 x 50w
CC
Energy Rating
E4010 58mm honeycomb glare louvre
E4021 Rotashield glare shield Stainless steel
E4022 Rotashield glare shield Copper
E4023 Rotashield glare shield Black
E4027 Rotashield glare shield Rustic Brown
E6001 Black polycarbonate mounting spike
E6002 Tri-spike high stability ground spike
E6003
E6004 Chromed brass spike-mount
E6005
E6006 Chromed brass surface-mount
E6011 30cm pole extension Stainless steel
E6021 30cm pole extension Natural copper
E6031 30cm pole extension Black
E6071 30cm pole extension Rustic brown
Brass spike-mount
Spotlight Accessories
Brass surface-mount
Mounting Accessories
< E6005 brass surface
mount - 30mm high x 72mm
diameter
< Wall-washing with a
twin halogen floodlight
using two 35w lamps
makes a feature of
this wisteria-clad wall
7

12v spike spotlights
require T9962 cable
joint kit to connect to
lowvoltagecable
40
72
180

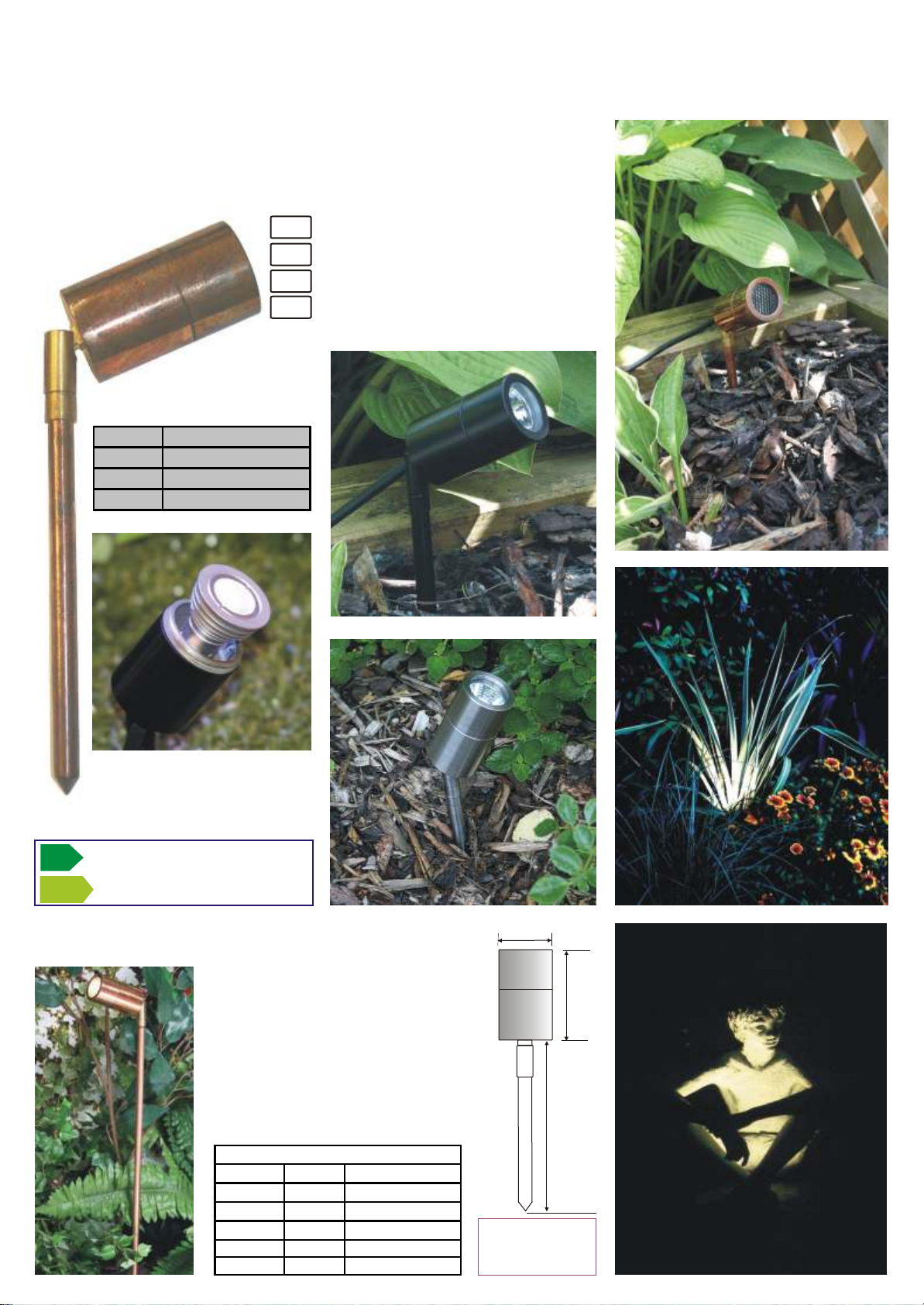

is a miniature12v adjustable spike
spotlight for use in containers and urns using a 20w lamp. L
is
MR11-20-36 owenergy
options include 1w white or warm white led lamps equivalent to a 20w halogen lamp
andMR11LED3W3wwhiteledlampforbrighteraccentlighting.Microspot Spike
CopperMicrospotweathers
naturallywithinjustafewweeks
MicrospotSpike
Copper Microspot Spike
with optional glare louvre
Microspot Spike is perfect for discrete
lighting of small subjects such as
phormiumsincontainersorborders
Microspot miniature spotlights
The standard rod spike fitted to the
adjustableknucklejointofMicrospot
spike mount spotlights may be
unscrewed and replaced with
alternative length spike mounts
withouthavingto rewire thelight.The
optional50cm or1m extended spike
is intended for use for use amongst
taller planting or to cater for seasonal
fluctuationsinplantingheight.
Optional spike mounts
AA
CCL.E.D. MODULE
20w HALOGEN LAMP
Lamp choice and energy ratings
A miniature spotlight located behind
thecrossedanklesofthissculptureofa
seated boy positions a 20w halogen
lamptoprovideastrikinglightingeffect
MR11LED3W high power, low
energy option - 3w white MR11
ledmodulewith35degreebeam
IP66
20W
12v
LED
fitted with a 18cm slim rod spike which
can be replaced by the optional 50cm or
100cm extended stems - ideal for
crosslighting when tucked into foliage or
for uplighting through herbaceous
planting. E4011 35mm glare louvre is
optional.
E4115 Stainless steel
E4125 Copper
E4135 Black
E4175 Rustic brown
Extended mounting spikes
E4005 50cm Stainless steel
E4005B 50cm Black
E4005C 50cm Copper
E4005R 50cm Rustic Brown
E4015B 100cm Black
E4015R 100cm Rustic Brown
8

12vminiaturespotlightsanddownlightsforpergolas,arbours&gazebos
30
27
65
111
40
69
126
Microspot Down provides discrete illumination from walls, beams and canopies or for
grazingdowngatepillars,pergolapiersandtexturedsurfaces. MicrospotDownisthemost
compactsolutionfordiscretedownlightingontosmallfeaturesorareasfromaminiaturelight
fitting:itacceptsa20whalogenlampor1wl.e.d.lamp.
Microspot Wallis a miniature 12v luminaire
providing adjustable spotlighting for small features,
diningareasand climbingplantsaswell asgrazingdown
pillarsandpergolapierstoemphasisestructure.
69
30
27
65
91
40
70
122
30
27
65
IP66
20W
12v
LED
9
Microspotsare12v modelswhich accept MR1120w halogenlamps or1w l.e.d. lamps.The
front bezel unscrews for easy lamp changing or to fit a E4011 35mm honeycomb glare
louvre. The flush lens keeps the glass cleaner longer and is easier to clean periodically.
Thebasemountincorporatesrearcableentryintoaterminationspaceandcanberotated
onthebackplatetoachieveexactpositioning.
AA
CCL.E.D. LAMP
HALOGEN LAMP
Lamp choice and energy ratings
Microspot Up/down combines downlighting with a decorative uplighting effect for
applications such as up and downlighting pergola columns to provide ambience around a
terrace or deck. It’s small size and ease of 12v wiring makes it a discrete choice for
illumination of garden structures. Light fittings may become hot in use: adopt appropriate
precautions.1wl.e.d.lampsarerecommendedwhereMicrospotluminairesarewithinreach
Microspot up/downlight
E4415 Stainless steel
E4425 Copper
E4435 Black
Microspot walldownlight
E4315 Stainless steel
E4325 Copper
E4335 Black
Microspot wallspotlight
E4215 Stainless steel
E4225 Copper
E4235 Black
Below: A 20w lamp in a Microspot Wall spotlight mounted on an
adjacentpergolafocusesattentiononthissmallurnwaterfeature

Compact wall spotlights are adjustable for downlighting
terraces, grazing walls and accent lighting features.
Available in 240v models for GU10 20w-50w halogen
lamps or as MR16 versions for use with 12v 20-50w
halogen lamps and a remote transformer, low energy
optionsinclude3wand6wl.e.d.lamps;240vmodelshave
alongerbodyfor7w-14wcompactfluorescentspotlamps,
including a dimmable 11 watt lamp, for diffuse lighting
withawarmwhitelight.
Compact wall spotlights have a flush lens and are
available in 316 stainless steel, natural copper and
powder-coated aluminium colours - white, black, rustic
brown andmattsilver.ThereisspaceinsidetofitaE4010
glare louvre or clip a MR16 spread lens, frosted lens or
colour filter to a halogen lamp. The front is unscrewed for
easy lamp changing without tools or to fit the optional
Rotashield glare shield. The base fits a BESA box, has a
grommeted rear cable entry & terminations and can be
rotatedintoposition.Orderlampsseparately.
Textured brass - a fine sandblasted finish
Compact wall-mount spotlights
Optional Rotashield glare
shield rotates to provide
glare protection
from any angle
65
150
75
100
240v - 102
12v - 83
12v - 160 max
240v - 180 max
Downlighting from a wall is a
good way of lighting a lily pond
Downlighting with a 20w lamp makes
a simple focal point of planted pots
240v
12v
IP66
50w
LED
CFL
White
Black
316 stainless steel
Rustic brown
AA
BB
CC
AA
DD
12v L.E.D. LAMPS
HALOGEN Powersavers
12v HALOGEN LAMPS
240v HALOGEN LAMPS
240v L.E.D. LAMPS
COMPACT FLUORESCENT
Natural copper
with optional Rotashield
Lamp choice & energy ratings
E4212 Stainless steel
E4222 Copper
E4232 Black
E4252 White
E4272 Rustic Brown
E4282 Matt Silver
E4211 Stainless steel
E4221 Copper
E4231 Black
E4271 Rustic Brown
240v GU10
12v MR16
Rotashield glare shield
E4021 Stainless steel
E4022 Copper
E4023 Black
E4027 Rustic Brown
E4028 Matt Silver
E4010 Glare louvre
Accessories
10
Matt silver wall spotlight with matching
MR16AZHL silver clip-on honeycomb glare louvre

Compact twin wall-mount spotlights are adjustable to downlight terraces, graze down
wallsandaccentlightfeatures.Theyare240vmodelsfor twinGU10halogen reflectorlamps -
GU10
Orderlampsseparately.
idealfordownlighting abovefrenchwindowswithtwin20w lampstoprovidethresholdlighting
ordownlighting terraceareasfrom housewallswith 2x35w lampsfrom3 metresand2 x50w
lamps from 5 metres above ground. Compact halogen wall spotlights may be dimmed with a
standarddimmerswitch.T
honeycomb
glarelouvre and clip-oncolourfilter,frosted orspreadlensmaybefittedwithhalogenlamps.
Compacttwinwallspotlightisavailablein316stainlesssteel,naturalcopperandblack,rustic
brownormattsilverpowder-coatedaluminium.
heyacceptenergysaving compactfluorescentspotlampsup
to 14w, including a “dimmerable” 11 watt lamp, for broad, diffuse lighting of terraces with a
warmwhite light.6w ledlampsare alow energyoption for accentlighting. E4010
Lighting tips
Wall-mounted halogen spotlights
aimed at an angle from a wall
projectanelipticalpooloflightonto
the ground, light intensity
decreasing further from the wall.
Keep the beam axis under 30
degrees from vertical to reduce
glare. A rule of thumb when
downlighting is to relate lamp
wattage to mounting height to
avoid being too bright. Wide flood
lamps are usual for downlighting
areas; narrower beams are used
for accent lighting of features.
Examples below are typical
downlightingrecommendationsfor
a terrace from a house wall or
pergolabeam.
Internal glare louvres are
recommended when downlighting
onto seating areas, unless frosted
lenses are being used to soften
and diffuse the lighting at lower
mounting heights. Aligning the
lower edge of the lamp beam with
the wall will produce a “grazing”
effect to emphasise texture. For
energy saving options, led lamps
may be used to cast of pool of low
level light onto a table from a
pergola,whilecompactfluorescent
lamps may be fitted to 240v
spotlights for wide, diffuse
downlighting of a terrace from the
wallofahouse.
Compact twin wall spotlights
240v IP66
2 x 50w
CFL
A
Height
above
ground
2.25m
3m
4m
5m
C
Lateral
spread
(Max)
2.3m
3.1m
4.1m
5.1m
B
Outward
spread
(Max)
2.6m
3.5m
4.7m
6m
240v
Suggested
lamp
wattage
20w
35w
35-50w
50w
0
Beam angle 50
240v lamp
A
BC
0
25
A
Height
above
ground
2.25m
3m
4m
5m
C
Lateral
spread
(Max)
3m
4m
5.3m
6.6m
B
Outward
spread
(Max)
3.9m
5.2m
6.9m
8.6m
12v
Suggested
lamp
wattage
20w
20-35w
35-50w
50w
0
Beam angle 60
12v lamp
B
C
A
135 mm max 0
(125mm @ 45 )
63
350 mm max.
210 mm max.
73
78
67
Matt silver
< MR16AZHL matching silver
clip-on honeycomb glare
louvre for halogen lamps
11
E4912 Stainless steel
E4922 Copper
E4932 Black
E4972 Rustic Brown
E4982 Matt Silver

AA
BB
CC
AA
DD
12v L.E.D. LAMPS
HALOGEN Powersavers
12v HALOGEN LAMPS
240v HALOGEN LAMPS
240v L.E.D. LAMPS
COMPACT FLUORESCENT
Lamp choice & energy ratings
E4312 Stainless steel
E4322 Copper
E4332 Black
E4372 Rustic Brown
E4382 Matt Silver
E4311 Stainless steel
E4321 Copper
E4331 Black
E4371 Rustic Brown
E4381 Matt Silver
240v GU10
12v MR16
Compact wall downlights
For downlighting from garden structures, stick to low wattage lamps the
lower the mounting height and the more subtle the ambience required.
A 20w halogen lamp is more than adequate for most projects requiring
0
downlighting from a pergola, a 60 beam giving the widest coverage
0
over a table, while a 38 beam often provides the best effect when
downlighting pergola columns surrounding a dining area or flanking a
pergola walkway in a symmetric or geometric layout. Stainless steel
provides a metallic look for the modern garden setting. Copper will
weather to a mottled brown finish which blends well with timber, stone
andbricksurrounds,andmayacquireaverdigrispatinainthelongterm.
Textured brass is a fine sandblasted finish which weathers to an ochre
colour to tone well with buff brick or stone, while black or matt silver are
sometimes chosen as a less expensive option. A clip-on honeycomb
louvreorfrostedlensmaybefittedtohalogenlampsinside.
Lighting example - Pergola height - 2.5m
0 0
Beam angle 60 38
Beam diameter
@ table top 202cm 120cm
75cm high
Beam diameter
@Ground level 290cm 172cm
Lighting tip - pergola lighting
Low energy options - a 3w l.e.d. lamp
is nearly as bright as a 20w halogen
0
lamp in a 24 beam for subtle
downlighting from pergola columns or
beamsontoasmalltableorfeature- you
may need more fittings to achieve wide
coverage. For wider beams on a regular
nightly basis, opt for a 240v downlight
withaGU10compactfluorescentlamp
Compact wall downlights provide discrete
illumination from walls, pergola beams,
gazebos and canopies or for grazing down
gatepillars,brick piersandtexturedsurfaces.
12vversionsaccept MR16lampsupto50w or
low energy l.e.d. lamps. 240v versions accept
a GU10 led lamp or a halogen lamp up to 35
watts, combining the convenience of 240v
installation on house walls with a compact
basemadepossibleby theabsenceofabulky
integral transformer. 240v models have a
longer body to accept compact fluorescent
spotlamps for diffuse downlighting combining
warmwhitelight,lowenergyconsumptionand
long lamp life. There is space inside the
spotlight body to fit an E4010 58mm
honeycomb glare louvre or a clip-on MR16
spread lens, frosted lens or colour filter onto
the front of a halogen lamp. The front bezel
can be unscrewed to make it easy to change
the lamp without tools or to fit the optional
0
Rotashield which can be rotated 360 to
provide glare protection from any angle. The
flush lens keeps the glass cleaner longer and
iseasiertocleanperiodically.Thebasemount
fits a standard BESA box, incorporates rear
cable entry into a termination space and can
be rotated on the back plate to achieve exact
positioning.(Orderlampsseparately)
63
12v
95
240v
112
90mm
75
12v
83
240v
102
240v
12v
IP66
50w
LED
CFL
Natural copper
Rustic brown Black
Matt silver
Rotashield glare shield
E4021 Stainless steel
E4022 Copper
E4023 Black
E4027 Rustic Brown
E4028 Matt Silver
E4010 Glare louvre
Accessories
12

Black
Compactup&downlightcombinesdownlightingwithadecorative uplightingeffect. 12voltversionsacceptMR16halogenorled
lamps for up and downlighting from pergola columns to provide ambience around a terrace or deck area. 240v versions use
mains voltage GU10 halogen, l.e.d. or compact fluorescent lamps, combining the convenience of 240v installation on house
walls with a compact base made possible by the absence of a bulky integral transformer. 240v compact fluorescent spotlamps
combine a broad, diffuse beam with warm white light, low energy consumption and long lamp life. NB: For prolonged lamp &
fixturelifemaximumtotalhalogenwattageinup&downlightsshouldnotexceed70watts.Orderlampsseparately.
Compact up&downlights
63
90
75
178
240v
12v
IP66
70w
LED
CFL
AA
BB
CC
AA
DD
12v L.E.D. LAMPS
HALOGEN Powersavers
12v HALOGEN LAMPS
240v HALOGEN LAMPS
240v L.E.D. LAMPS
COMPACT FLUORESCENT
Lamp choice & energy ratings
E4412 Stainless steel
E4422 Copper
E4432 Black
E4482 Matt Silver
E4411 Stainless steel
E4421 Copper
E4431 Black
E4481 Matt Silver
240v GU10
12v MR16
13

Underwater lighting
Neptune Brass’s fine
sandblasted finish and
brass stirrup bracket
weather to an ochre
colour to blend with
stone, gravel and other
landscapematerials
E2561withplainfront
E2562 withgrill
E2563 withglareshield
E2564 witheyelidhood
Neptuneunderwaterlights
are versatile, safe 12v accent lights or recessed uplights for wet
locations using a 12v MR16 20-50w halogen reflector lamp or low
energy l.e.d. lamp: Neptune fitted with new Powersaver 50w
energy-efficient halogen lamps is equivalent to an ordinary 75w
halogen spotlight. Neptune features stainless steel screw fixings
androbust constructionin cast brassor 316gradestainless steel,
providing more certain location in water than lighter aluminium or
2
plasticunderwaterlights. Athicker1.5mm 6metre cable reduces
cable voltage drop to improve lamp efficiency and facilitates ease
of connection to a remote transformer without use of underwater
joints.Awiderangeofmountingaccessories isavailable including
recessed,spike,surfaceandpostmounts.
There are 4 Neptune models in a choice of sandblasted brass,
black powder-coat and brushed stainless steel finish - with plain
front for general use, grid providing glare protection in shallow
water, glare shield concealing the light source in uplighting
applications, while eyelid hood performs the same function in
horizontal lighting in rills etc. Neptune is rated for 50w halogen
lamps underwater, maximum 35w above water and maximum
20w in recessed applications in walkover areas, where an MR16
led module is a recommended option for a cool lens. Low energy,
long life options range from 1w l.e.d. lamp (equivalent to 10w
halogen)to6wl.e.d.lampsequivalentto50whalogenlamps.
Neptune Black is
powder-coated brass for
discrete location
combined with longevity
and the weight for firm
location in black-lined
waterfeatures.
E2531withplainfront
E2532 withgrill
E2533 withglareshield
E2534 witheyelidhood Neptune Black with glare
louvre & base mount
Neptune Brass with grill
& spike mount
12v LED IP68
35w 50w
Neptune Brass
with glare shield Neptune Brass with eyelid hood
Neptune Black
with glare shield
Neptune Brass with plain front
Neptune Black with
eyelid hood & base mount
Neptune Stainless in
316gradestainlesssteel
combines style and
durability in water
features with decorative
linings or stainless steel
construction.
E2511withplainfront
E2512 withgrill
E2513 withglareshield
E2514 witheyelidhood Neptune Stainless
with grill
Neptune Stainless
with glare shield Neptune Stainless with eyelid hood
14

NeptuneAccessories Base Mount is a solid
base plate for
mounting in
the bottom of a water
feature or on a
marginal shelf, or as a
portable spotlight in
conservatories or
paved areas where
arrangements of
planted pots may
change. Dimensions:
13cmdiameterx2cm>
Neptune
30
25
25
235
265
190
500
Position lights 15-20cm
under the water surface
for best effect
A stem extension kit and
base extension kit may
be combined together
for installation on a base
indeeperwater
Abaseextensionkitmay
be added to a mounting
base to install an
underwater light where
there is no marginal
shelf or other location
foramount alone.
The optional spike mount can be
used to discretely locate Neptune in
a planting basket or pot. A stem
extension kit may be added for
installation on a spike in a planting
basketorpotindeeperwater.
90
56
75
65
35
15
Powersaver Standard
-20w 360MR16LED3W 3w white
20w 36035w 360MR16LED6WW 6w warm white
35w 36050w 360MR16LED6W 6w white
-35w 360 ** MR16LED3B 3w blue
** with blue filter
Halogen / l.e.d. lamp comparison
l.e.d. lamp equivalent
Neptune Lamp Energy Ratings
AA
BB
CC
12v L.E.D. LAMPS
HALOGEN Powersavers
12v HALOGEN LAMPS
E2510B Neptune mounting base - 316
E2510C Neptune base extension kit - 316
E2510L Neptune stem extension kit - 316
E2510M Neptune spike mount - 316
E2510N Neptune recessed niche & cylinder - 316 - Square
E2510R Neptune recessed niche & cylinder - 316 - Round
E2530B Neptune mounting base - Black
E2530C Neptune base extension kit - Black
E2530L Neptune stem extension kit - Black
E2530M Neptune spike mount - Black
E2560B Neptune mounting base - Brass
E2560C Neptune base extension kit - Brass
E2560L Neptune stem extension kit - Brass
E2560M Neptune spike mount - Brass
E2560N Neptune recessed niche & sleeve - Brass - Square
E2560R Neptune recessed niche & cylinder - Brass - Round
See separate page for details of Neptune recess accessories
316 Stainless Steel
Black
Brass

Neptune brass and 316 stainless steel 12v underwater lights
can be installed as IP68 35w recessed lights using matching
Neptune round or square recess niche and stainless steel
sleeve. The body of the Neptune is screwed into the recess
niche with the 2 screws supplied before fitting the gasket, lens
and front plate. The niche and sleeve may be installed prior to
paving or wall construction, with the provision of conduit to
allowthe 6mcable tobe connectedto thetransformer position
later. Neptune Recessed lights are ideal for fixed uplighting
applications such as feature planting, small trees, columns,
gate pillars and facades, as well as a choice of square
recessed steplights. Maximum lamp power above water: 35w.
SeeseparatepagefordetailsofNeptuneunderwaterlights
Neptune Recessed
<E2500Fflush frosted lensmaybe fitted inplace of thestandard
clear lens to provide diffused lighting in underwater or recessed
applications. Optional clip-on MR16 spread lens, honeycomb
glare filter and colour filters may be fitted internally to create
alternativelightingeffects(seeFiltersandlensespage)
Neptune Lamp Energy Ratings
AA
BB
CC
12v L.E.D. LAMPS
HALOGEN Powersavers
12v HALOGEN LAMPS
12v LED IP68
35w
109
103
120
90
55
98
16
Powersaver Standard
-20w 360MR16LED3W 3w white
20w 36035w 360MR16LED6WW 6w warm white
35w 36050w 360MR16LED6W 6w white
-35w 360 ** MR16LED3B 3w blue
** with blue filter
Halogen / l.e.d. lamp comparison
l.e.d. lamp equivalent
E2511 Neptune underwater light - 316
E2512 Neptune underwater light with grill - 316
E2513 Neptune underwater light with glare shield- 316
E2514 Neptune underwater light with eyelid - 316
E2561 Neptune underwater light - Brass
E2562 Neptune underwater light with grill - Brass
E2563 Neptune underwater light with glare shield - Brass
E2564 Neptune underwater light with eyelid - Brass
E2510N Neptune recessed niche & cylinder - 316 - Square
E2510R Neptune recessed niche & cylinder - 316 - Round
E2560N Neptune recessed niche & sleeve - Brass - Square
E2560R Neptune recessed niche & cylinder - Brass - Round
MR16AHL Clip-on Honeycomb louvre - black
MR16AZHLClip-on Honeycomb louvre - Silver grey
E2500F Neptune flush frosted lens
Brass
Neptune lights for recessed applications
316 Stainless Steel
Neptune recessed accessories

Energy Rating:
Power consumption: 0.3w
Blue l.e.d. Lights in a recycled
glass wall provide visual effect
aswellaspathlighting

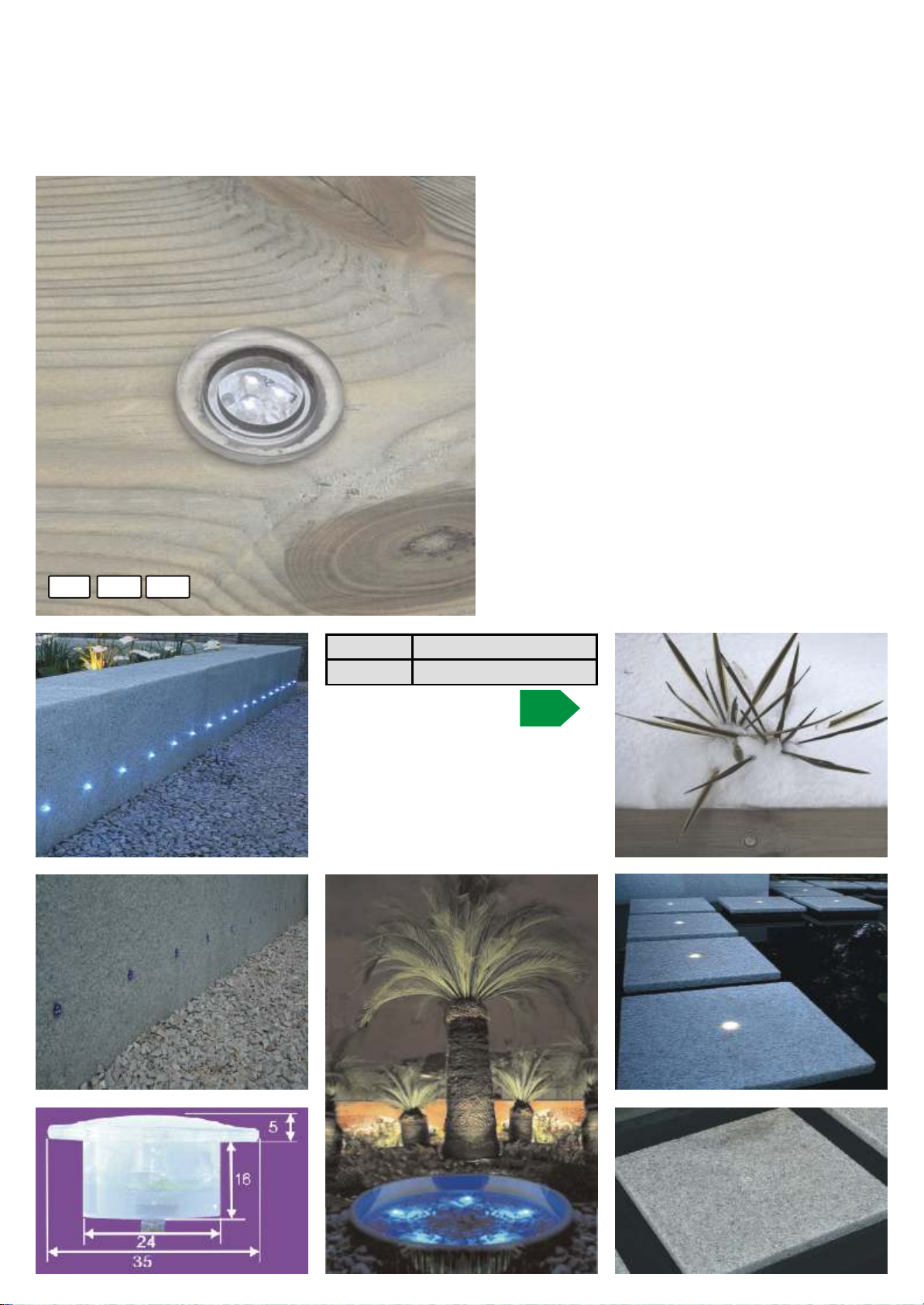

The clear polycarbonate mounting cup of
Navigator Aqua miniature l.e.d. button
light can be set into many materials with
clear silicon fixative for a very discrete
appearance,sometimesmakingitdifficult
tospotthemuntilswitchedon >>>>>>>>
12v submersible flush l.e.d. button lights - for rills,
pebble pools, stepping stones, steps, decks & walls
Navigator Aqua are miniature 12v recessed lights with a
choiceofwhiteor bluel.e.d.swhichconsumeatinyamount
of power and stay cool to the touch. The three 0.1w led's
produce a wide, low power 60 degree beam through the
clear polycarbonate lens, which looks like a clear plastic
button and is very inconspicious where more visible metal
housings are not desirable. Navigator Aqua are resin
sealed to IP68 and fitted with a 6m cable for use in
underwater and damp locations. They are used as
highlighters in pebble pools and rills, to waymark stepping
stones across water features, and as inconspicuous effect
lighting in walls, alongside paths or in step risers. They are
waterproof to IP68 for underwater use: the triple led cluster
is resin-encapsulated within the clear polycarbonate case.
They can be recessed with adhesive in decking, sleeper
walls and other materials using a 25mm wood or other drill.
Navigator Aqua consumes 0.3 watts: for l.e.d. loads of less
than 25 watts use a 12v dc power supply to ensure voltage
stability. If using ac transformers of 20-60va, ensure they
are loaded to at least 75%. Ensure Navigator Aqua lights
can be connected directly to a transformer using the 6m
cablefittedor incustomlayoutsusing T9962cablejointkits
and 1.5mm cable: for splicing into a run of cable use T9963
cablesplicekit.(Donotuseelectronictransformers).
12v IP68
LED
E3001B 3×0.1W blue led's
E3001W 3×0.1W white led's
Navigator Aqua is
hardly visible in this
stepping stone until
switched on >>
AA
Navigator Aqua
17

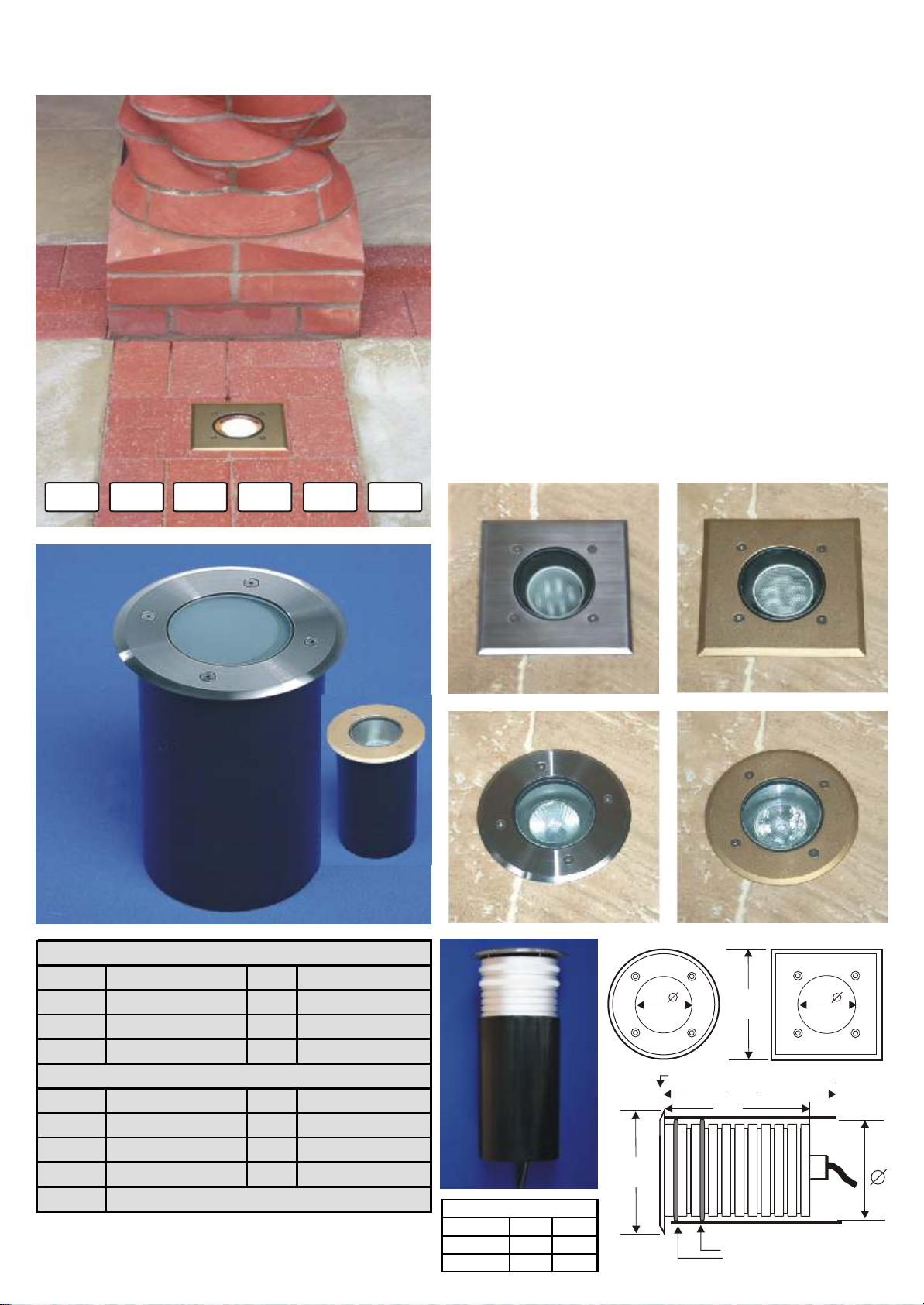

Modula is a flexible range of 12v and 240v recessed lights,
availablewith roundor squaretop platesin brushed316L stainless
steel or fine sandblasted brass. Modula’s lampholder bracket is
o
adjustable up to 15 from vertical for directional lighting with 12V
MR16 or 240V GU10 halogen lamps up to 50 watts. MR16 clip-on
lensesandfilters maybefittedto halogenlampstocreatealternate
lighting effects, including glare control, spread beam or coloured
lighting. GU10 and MR16 6w white and warm white l.e.d. lamps
may be fitted for low-energy accent lighting with a low lens
temperature. Long life, low energy GU10 compact fluorescent
lamps up to 14 watts fit 240v models, combining style and
ambience around the terrace with diffuse illumination for wall
washing or uplighting broad subjects or weeping trees. E8700
frosted lens is optional for diffused lighting effects. Top plates are
4mm thick with chamfered edges and available to special order in
black powder-coat finish. The housing is machined aluminium with
bottom cable entry pre-wired with a 2m HO7-RNF rubber cable.
Machined grooves in the body aid cooling for long lamp life and
housetwocustom“O”ringswhichlocatetherecessedlightfirmlyin
its polycarbonate mounting sleeve, allowing for pre-wiring of
locations subject to provision of suitable cable conduit. Modula
alsofitsin100mmpipe.
12v recessed uplights require T9962 cable joint kit for connection to
extended low voltage cable from a transformer. 240v lights should be
connected to mains supply cable using a resin sealed underground
joint.Energyratingsarethesameasfor50wCompactspotlights
MODULA recessed uplights
Modula adjustable uplight - Round top
E8711 Stainless steel 12v MR16 20-50w
E8712 Stainless steel 240v GU10 20-50w
E8761 Textured brass 12v MR16 20-50w
E8762 Textured brass 240v GU10 20-50w
Modula adjustable uplight - Square top
E8811 Stainless steel 12v MR16 20-50w
E8812 Stainless steel 240v GU10 20-50w
E8861 Textured brass 12v MR16 20-50w
E8862 Textured brass 240v GU10 20-50w
E8700 Modula frosted lens
Modula with optional frosted lens to diffuse light
and conceal the lamp shape
Diameter Outer Inner
Top 109 104
Bottom 106 101
Tapered Recess Sleeve
12v 50w240v LED IP67
CFL
98
Flange 4mm
177
2 “O” rings locate light
in tapered recess sleeve
128
6565
125
125
18

Waymarkers are smart modern drive-over
lightsforinstallationinpaving,aroundpaths
or drives, in decking, and as recessed wall
lights providing ambience around the
terrace. Waymarkers are available in 12v
& 240v versions in 316 stainless steel,
natural copper and a fine sandblasted
brass finish. Lamp choices range from 12v
MR16 20-35w halogen lamp to a low
energy 1w or 3w l.e.d. lamp, while the 240v
GU10 model is intended primarily for use
with a long life, low energy 7w compact
fluorescent lamp (equivalent to 35 watts of
tungsten lighting), or a GU10 20-35w
halogen lamp. The conical mirror under the
domedtopmaximiseslightspread.
Waymarker180 has 2 apertures providing
lighting to one side only: Waymarker360
has 4 apertures to provide an all-round
corona of light up to 1m in diameter. Each
light is supplied with a plastic sleeve tube
for installation in a wall: an “O” ring locates
the light firmly just by pushing it into the
tube. Waymarker also fits snugly into a
63mm diameter hole cut in timber. Each
light is fitted with a 2m rubber cable. Aclip-
onMR16spread lensorcolourfiltermay be
fitted to a halogen lamp. Order lamps
separately
Waymarker360 provides all round
illumination through 4 “windows” Waymarker180 provides illumination to one side through 2
“windows”
Natural copper Waymarker weathers to a
mottled brown finish to blend with red
brick and dark stained timber
Natural brass Waymarker has a fine
sandblasted finish which weathers to an
ochrecolourtoblendwithstone&decking
Waymarkers
12v recessed lights require T9962 cable
joint kit for connection to extended low
voltage cable from a transformer. 240v
lights should be connected to mains supply
cableusingaresinsealedundergroundjoint
20
88
Inner 63.5
Outer 67.5
63
120
Recess
Sleeve
Retaining “O” ring
12v - 90
240v - 110
Stylish recessed lights with
no visible fixing screws
AA
BB
CC
AA
DD
12v L.E.D. LAMPS
HALOGEN Powersavers
12v HALOGEN LAMPS
240v HALOGEN LAMPS
240v L.E.D. LAMPS
COMPACT FLUORESCENT
Conicalmirrormaximiseslightspread
IP66
240v 35w LED
12v
19
Lamp choice & energy ratings
240v GU10 180 360
Stainless steel E8312 E8412
Copper E8322 E8422
Textured brass E8362 E8462
12v MR16 180 360
Stainless steel E8311 E8411
Copper E8321 E8421
Textured brass E8361 E8461
Waymarker

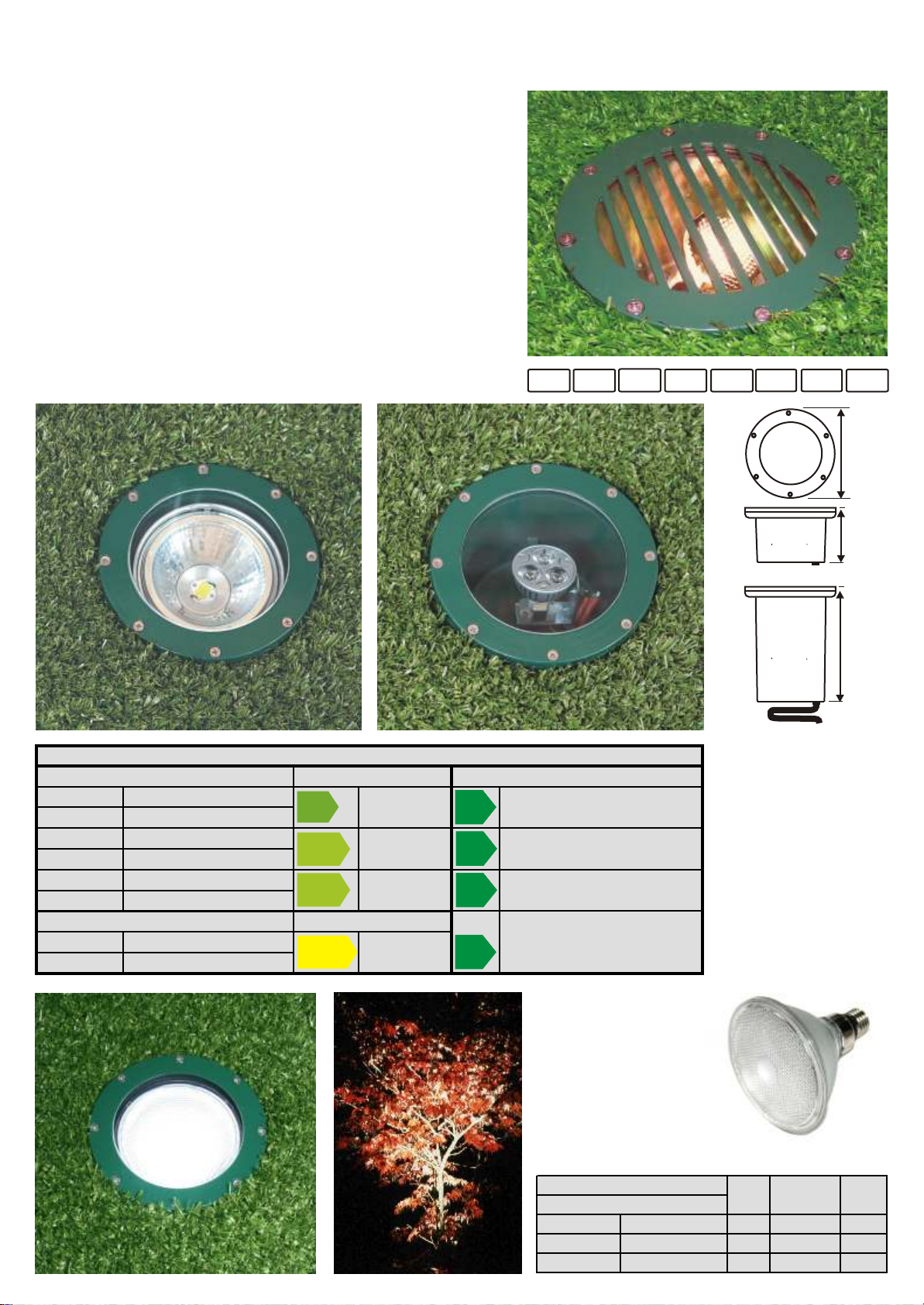

Lawnlighters is a range of recessed adjustable uplights in dark green
powder-coated cast aluminium made especially for lawns. Flush lens
models with plain rim shed water and leaf litter for reduced
maintenance.Versions withgrillareavailable foruseinwalkover areas
toprotect againstahot lensunlessalow energylightsource, suchasa
compact fluorescent or led option, is used. 12v models feature
adjustable lampholder brackets allowing focusing of the lamp at up to
0
20 from vertical and include shallow options for 50w MR16 halogen
lamps or 6w l.e.d. lamp and a version for 75w AR111 metal reflector
halogen lamps or high output 7w l.e.d. lamps. A deeper model caters
for higher power 12v 75-100w MR16 halogen lamps. The PAR 240v
modelaccepts theenergy saving PAR38LEDWhighoutput l.e.d. PAR
lamp, which combines high output white lighting with cool temperature
and long life for uplighting small trees in lawns. A PAR38 20w compact
fluorescent reflector lamp combining a wide, diffuse beam and low
energy lighting as well as PAR 30 halogen and PAR38 tungsten lamps
upto80wattsmayalsobefitted.
12v 50w recessed uplights
require T9962 cable joint kit to
2
connect to 2.5mm low voltage
ground burial cable. Use
T9963 cable splice kit to
connect 75w & 100w 12v
2
uplights to 4mm cable.
Connect 240v models with
T9969 underground joint kit.
For alkaline soil conditions use
Groundlighter brass recessed
uplights or paint Lawnlighters
with bitumastic coating and
installinwashed sand toprotect
againstalkalinecorrosion.
CFL
240v
75w
12v
IP67
50w LED
100w
E8941AR with 7w led module E8941 with MR16 3 x 2w led module
E8941G with halogen lamp, glare louvre & grill
Lawnlighter recessed uplights
230
mm
175
130
12v MR16
50w &
AR111
12v
MR16
100w &
240v
models
E8941 Lawnlighter50
E8941-G Lawnlighter50 with grill
E8941AR Lawnlighter AR
E8941AR-G Lawnlighter AR with grill
E8941X Lawnlighter100
E8941X-G Lawnlighter 100 with grill
E8942 Lawnlighter240
E8942-G Lawnlighter240 with grill
PAR38W white led lamp or
PAR38CFL20W warm white
compact fluorescent lamp
240v halogen lamp240v Lawnlighters
Product selection: Lamp choice & energy ratings
12v halogen lamp Low energy option
Powersaver
12v 50w
12v AR111
75w
12v MR16
75-100w
240v E27
PAR30 75w
12v MR16 6w led lamp
(white or warm white)
12v AR111 7w led lamp
(white or warm white)
12v MR16 6w led lamp
(white or warm white)
12v Lawnlighters
BB
CC
DD
AAAAAA
AAAAAA
AAAAAA
AAAAAA
CC
Cooler-running low
energy light lamps such
as PAR38LEDW white
l.e.d. lamp are
recommended for 240v
Lawnlighters with flush
lens& plainrim: use grill
version in conjunction
with hotter, less efficient
halogenlamps.
Watts
Halogen PAR30 75w 7m 36 0
l.e.d. PAR38LEDW 5w 6m 35 0
Fluorescent PAR38CFL20W 20w 5m 600
Beam
angle
Height of
coverage
Lamp type
240v lamp choice
PAR38LEDW white l.e.d. lamp
Acer Palmatum Bloodgood lit
with PAR38LEDW l.e.d. lamp
20
