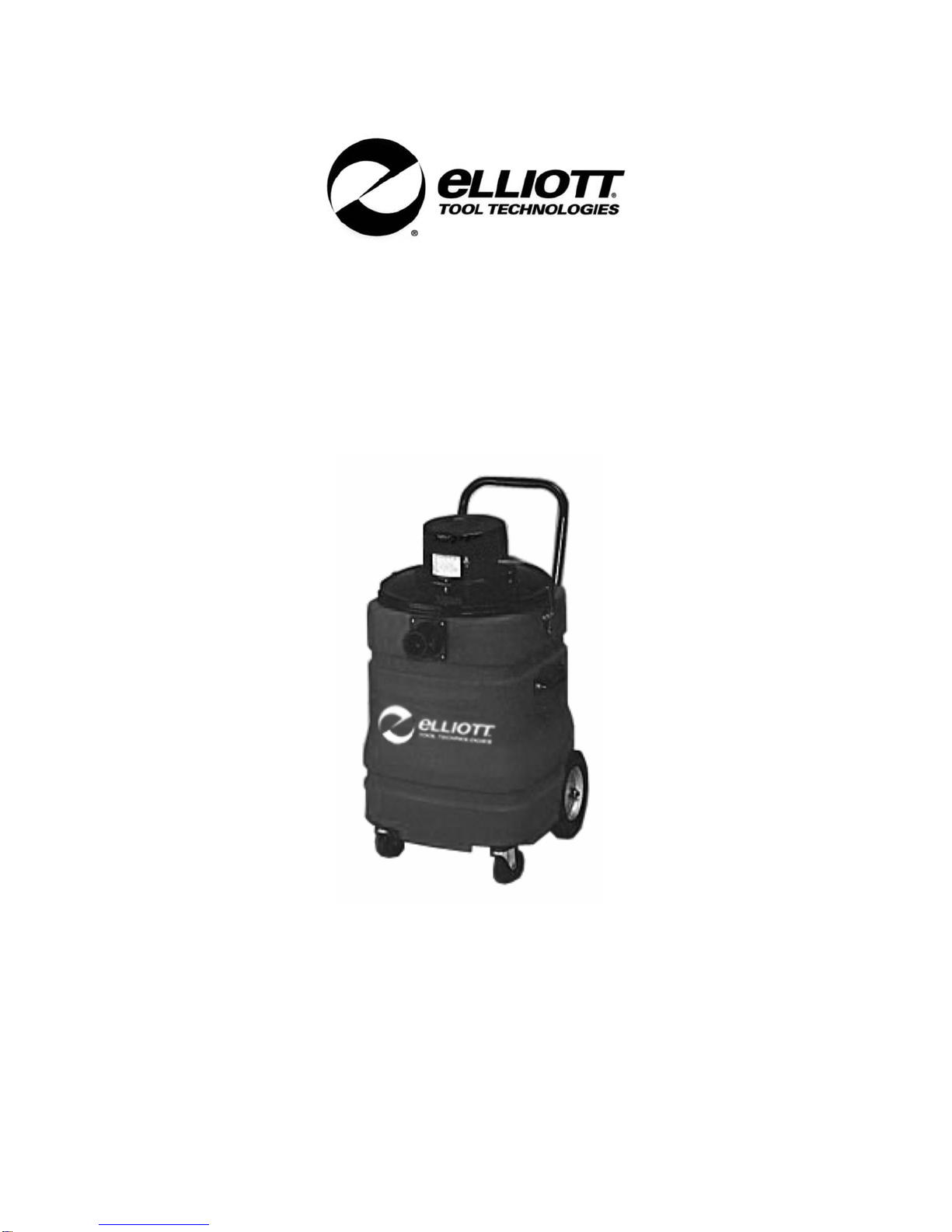

Elliott 08520-220 Installation and operation manual
MODEL 08520-220
220V, 50/60Hz, 2HP
20-GALLON WET/DRY VACUUM
Operating Maintenance Instructions
Elliott Tool Technologies Ltd • 1760 Tuttle Avenue • Dayton, Ohio 45403 U.S.A.
Phone: +1 800 332 0447 • +1 937 253 6133 • Fax: +1 937 253 9189
Elliott Tool Technologies UK Ltd • Broadstone Hill • Old Chalford • Chipping Norton • OXON • OX7 5QL • England
Phone: +44 (0) 1608 672815 • Fax: +44 (0) 1608 672810
TM-94
January 10, 2007
TM-94 MODEL 08520-220, 220V, 20-GALLON WET/DRY VACUUM Page 1 of 10
TABLE OF CONTENTS
Introduction.......................................2
Operating Instructions ................3 & 4
Parts List............................5 though 7
Filter Set-Up Procedure....................8
Tool Kit And Replacement Parts ......9
TM-94 MODEL 08520-220, 220V, 20-GALLON WET/DRY VACUUM Page 2 of 10
INTRODUCTION
Thank you for purchasing this Elliott product. More than 100 years of experience have been employed
in the design and manufacture of this machine, representing the highest standard of quality, value and
durability. Elliott tools have proven themselves in thousands of hours of trouble free field operation.
If this is your first Elliott purchase, welcome to our company; our products are our ambassadors. If this
is a repeat purchase, you can rest assured that the same value you have received in the past will
continue with all of your purchases, now and in the future.
The Elliott 08520-220 220V Wet/Dry Vacuum has been designed for cleaning tubes in the following
types of equipment:
Heat Exchangers
Condensers
Chillers
Boilers
Evaporators
Air Conditioners
If you have any questions regarding this product, manual or operating instructions, please call Elliott at
+1 800 332 0447 toll free (USA only) or +1 937 253 6133, or fax us at +1 937 253 9189 for immediate
service.
TM-94 MODEL 08520-220, 220V, 20-GALLON WET/DRY VACUUM Page 3 of 10
OPERATING INSTRUCTIONS
Inspection
Thoroughly inspect your machine for any shipping damage. Your machine has already been
thoroughly tested at Elliott Tool Technologies prior to shipping.
Maintenance
Lubrication of this motor is not required as it is equipped with sealed bearings.
Always keep the air cooling intake screen free, not allowing any restriction of airflow. Airflow
restriction will overheat and damage the motor.
To prolong the life of the H.E.P.A. filter, empty, clean, and replace bags and filters regularly
as described in the following sections.
Safety Instructions
Read all safety instructions before using!
1. Electrical shock could occur if used outdoors or on wet surfaces.
2. Always store machine indoors in a dry area. If machine is dropped in water or left in
rain, it should be serviced by an authorized service technician prior to plugging the unit
in.
3. Prior to plugging in machine, always inspect cord for cuts and exposed wires. If these
problems are found, return the machine to an authorized service technician.
4. Never use the cord as a handle, or pull the machine by using the cord.
5. Never unplug this machine or any other electrical appliance by pulling on the cord.
6. Do not wrap the cord around the dome. Wrapping the cord around the dome will
restrict the motor from exhausting properly and will result in overheating and
damaging the motor.
7. Keep hair, fingers, and other objects away from all moving parts and openings on this
machine.
8. This vacuum cleaner should never be used in explosion-hazardous areas or to pick up
combustible or flammable liquids such as gasoline, etc.
9. Never leave the machine unattended when plugged in or running.
10. Always have the switch in the OFF position before unplugging the unit.
11. Do not operate this machine with any of the openings blocked; always keep these
areas free of lint and dust or any other particles that could reduce the airflow.
TM-94 MODEL 08520-220, 220V, 20-GALLON WET/DRY VACUUM Page 4 of 10
12. Never operate or plug in this machine or any other electrical appliance with wet hands
or when standing in water.
13. This machine should never be operated without the proper filters installed in the
manner described in the following pages of this manual.
14. This machine should never be serviced by anyone other than an authorized
technician.
15. Use only original replacement parts and attachments.
Operation
1. Plug in power cord.
2. On/off switch is located on the motor dome.
3. Make sure the vacuum lid is securely in place on the vacuum tank.
4. Place metal hose cuff end of hose into the vacuum intake and secure it with the intake
knob.
5. Turn on the unit.
6. Place desired vacuum tools into the plastic hose cuff.
7. When picking up dry materials, the foam filter bag and white Dacron bag should be used.
8. When picking up wet materials, use only the foam filter bag.
TM-94 MODEL 08520-220, 220V, 20-GALLON WET/DRY VACUUM Page 5 of 10

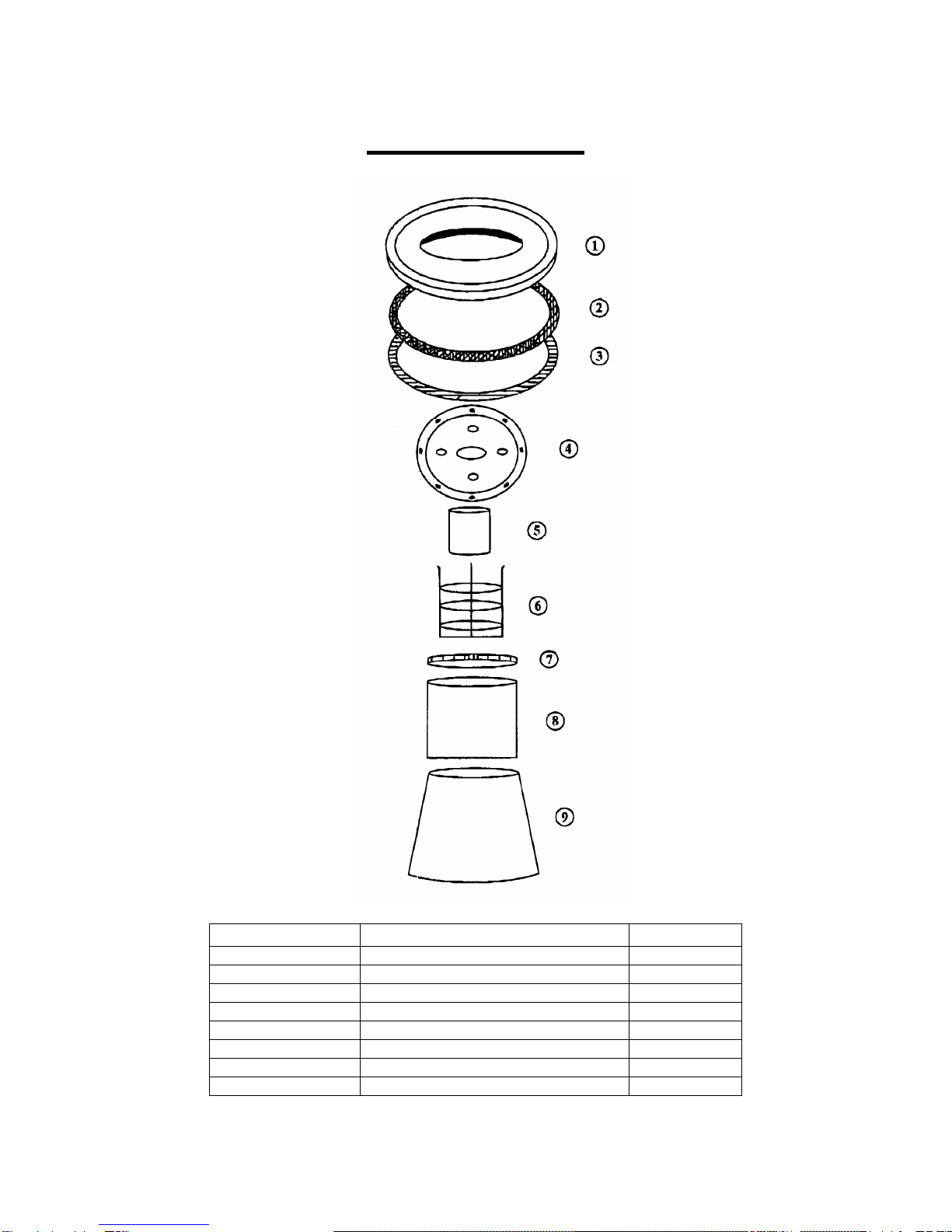

PARTS LIST
Reference Description Qty. Req.
1 Motor Dome 1
2 Power Cord 1
3 Toggle Switch 1
4 Dome Felt 1
5 Foam Ring 1
6 Motor Hold Down 1
7 Upper Motor Gasket 1
8 Motor 1
9 Lower Motor Gasket 2
10 Stain Relief 1
11 Large Spacer 4
TM-94 MODEL 08520-220, 220V, 20-GALLON WET/DRY VACUUM Page 6 of 10
PARTS LIST
Reference Description Qty. Req.
1 Lid W/Mtg. Plate & Gasket 1
2 Lid Gasket 1
3 Float Mounting Plate 1
4 Float 1
5 Float Cage 1
6 Bag Clamp 1
7 Foam Filter Bag 1
8 Dacron Filter Bag 1
TM-94 MODEL 08520-220, 220V, 20-GALLON WET/DRY VACUUM Page 7 of 10
PARTS LIST
Reference Description Qty. Req.
1 Motor And Lid Assembly 1
2 20 Gallon Poly Tank 1
3 Cart 1
4 Front Caster 2
5 Rear Wheel 2
6 Tank Handle 1
7 Handle Clamp 2
8 Side Handle 2
9 Down Tube Elbow 1
10 Intake Gasket 1
11 Intake 1
12 Intake Knob 1
13 Lid Latch (Not Shown) 2
TM-94 MODEL 08520-220, 220V, 20-GALLON WET/DRY VACUUM Page 8 of 10

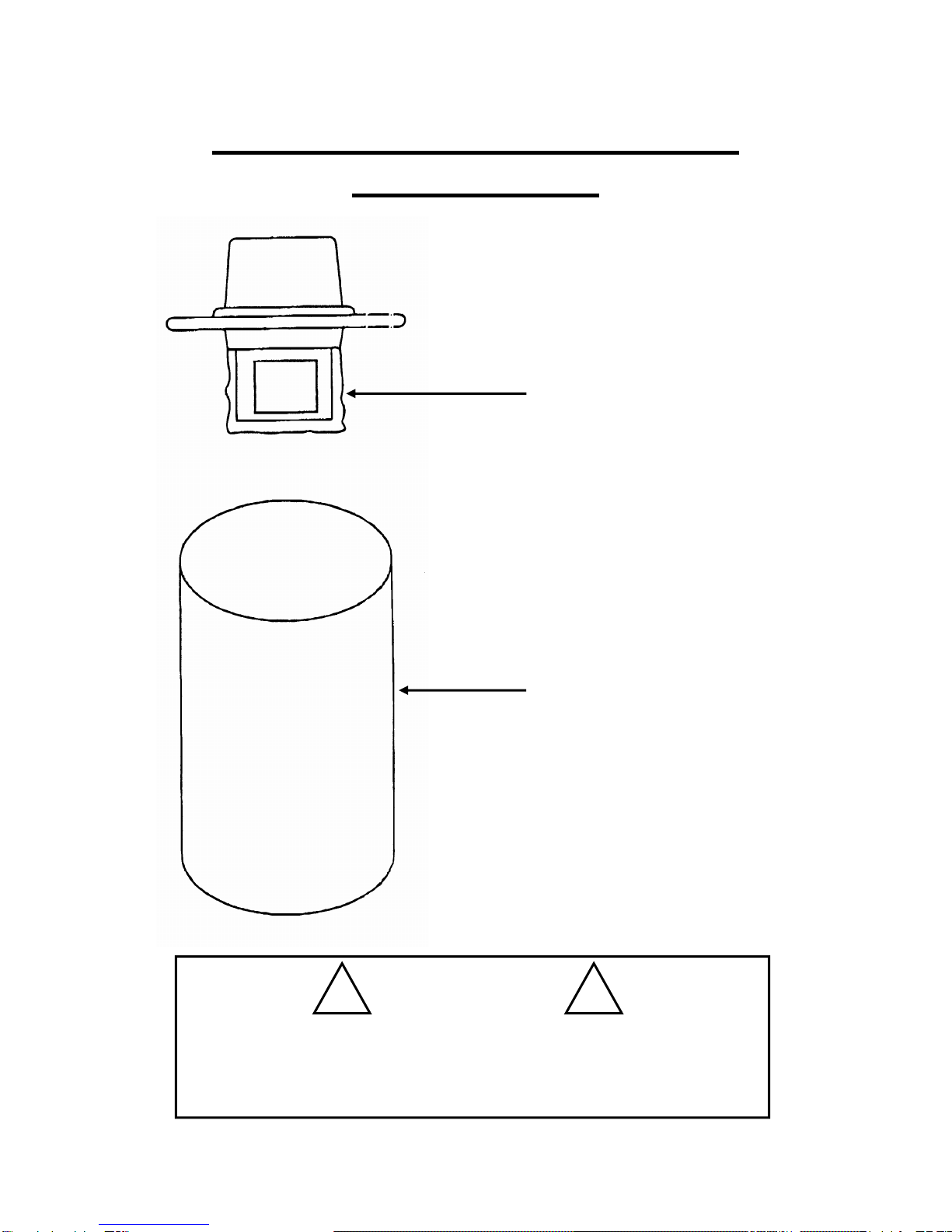

FILTER SET-UP PROCEDURE
WET PICK-UP
WARNING
Always Use The Black Foam Filter Bag.
Wet Pick-Up Without The Black Foam Filter Bag Properly In Place
Will Cause Motor Damage.
! !
Black Foam Filter Bag
(The only filter used for wet pick-up)
Tank Assembly
TM-94 MODEL 08520-220, 220V, 20-GALLON WET/DRY VACUUM Page 9 of 10
TOOL KIT AND REPLACEMENT PARTS
FOR WET/DRY VACUUM
Part Number Description
08521 Wet/Dry Tool Kit Includes:
(1) 1-1/2” x 10 Ft. Hose Assembly
(1) 1-1/2” Gulper Tool
(1) 3” Round Dust Brush
(1) 11” Crevice Tool
(1) 1-1/2” Squeegee Tool
(1) Two-Piece Double-Bend Aluminum Wand
08509 Cloth Filter Bag (washable)
08510 Paper Filter Bag (3 per pkg.)
08512 Hose Adapter
08522 1-1/2” x 10 Ft. Hose Assembly
08523 Gulper Tool
08524 3” Round Dust Brush
08525 11” Crevice Tool
08526 Squeegee Tool
