Elmo X line User manual
ELMO 16 Channel Color Multiplexer
4 and 9 Channel also Available
Line
FEATURES
! Connect up to 16 cameras with looping port
! Full duplex multiplexer with multi screen display mode
! Can be record/ live display/ playback at the same time
! 16 channel alarm input/ alarm display/ 1 x alarm output
! Video loss & motion detected in each channel
! Motion detection
! Event history
! Brightness, sharpness adjustable
! Date & Time display
! Digital zoom 2 x 2 display
! On screen manual display and independent camera tilting
! Keyboard
ELMO 16 Channel Color Multiplexer
4 & 9 Channel also Available
ELMO Mfg. Corp. ELMO Canada Mfg. Corp.
1478 Old Country Road 44 West Drive, Brampton,
Plainview, New York, 11803 Ontario, L6T 3T6, Canada
Tel. 516.501.1400 Tel. 905-453-7880
Fax. 516.501.0429 Fax. 905-453-2391
www.elmousa.com www.elmocanada.com
System NTSC/PAL .
Resolution 720 x 480 NTSC 768 x 512 PAL Pixels
Video Refresh Rate 60 fields/sec. (NTSC), 50 fields/sec. (PAL) .
Video Input 16 Video with loop through outputs, 1V p-p/75 ohm
Monitor Output BNC & Y/C video outputs (1Vp-p/75 ohm) .
Recording Output BNC & Y/C Video output, 1Vp-p/75 ohm
VCR playback Yes .
Playback Zoom Yes
Video Freeze Yes .
Video loss detection Yes
Record Selectable time-lapse recording mode or VCR trigger .
Alarm Input 16 Alarm inputs
Alarm Input 1 Normally Open, 1 Normally Closed relay output .
Buzzer Yes
Title 8 characters title generator for each camera input .
Timer Built-in real time clock
Setup On screen setup .
Switching Programmable auto sequential switch and adjustable
Dewelling time (1-99 sec.)
Power Source Power Adaptor DC 12V/2A .
Power consumption 24W max.
Dimension 430 x 343 x 44 mm .
Weight 3.4kg
DIMENSIONS

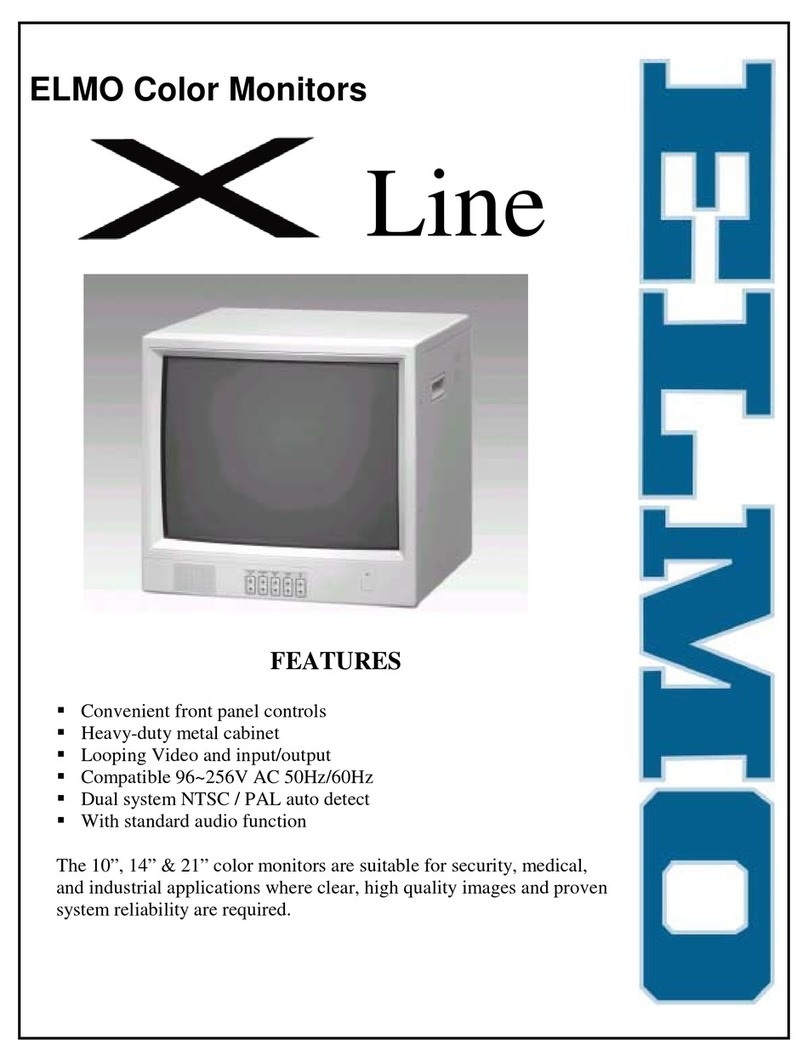

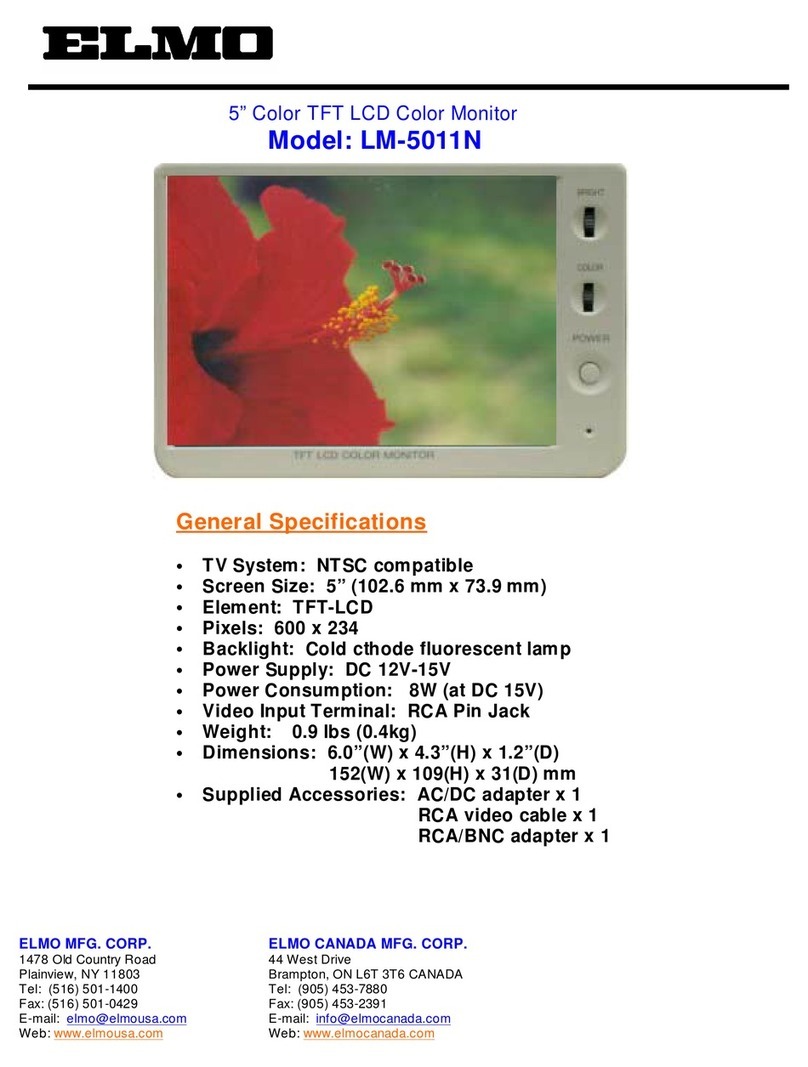

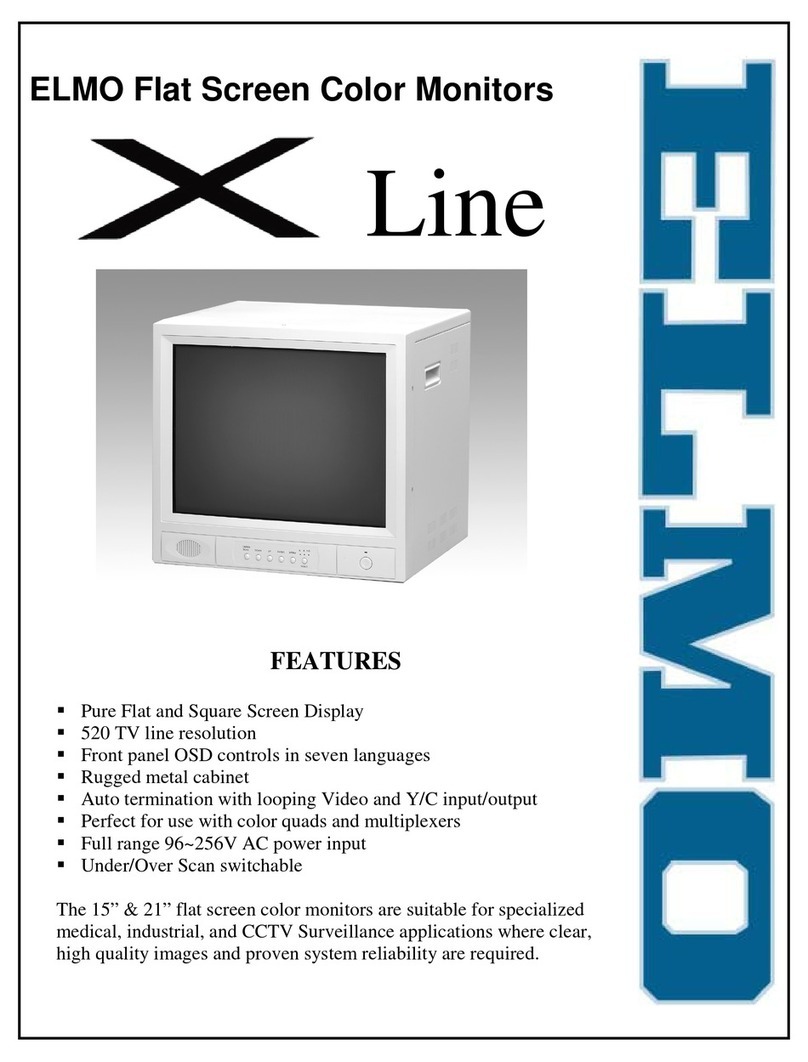

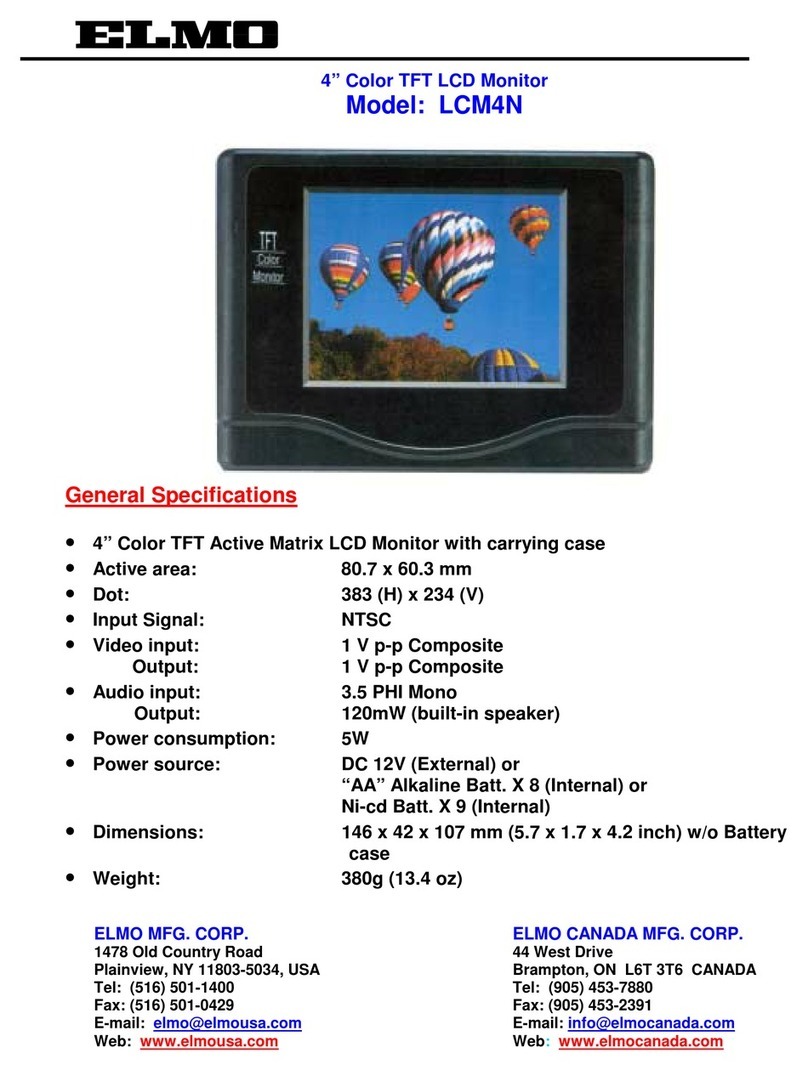

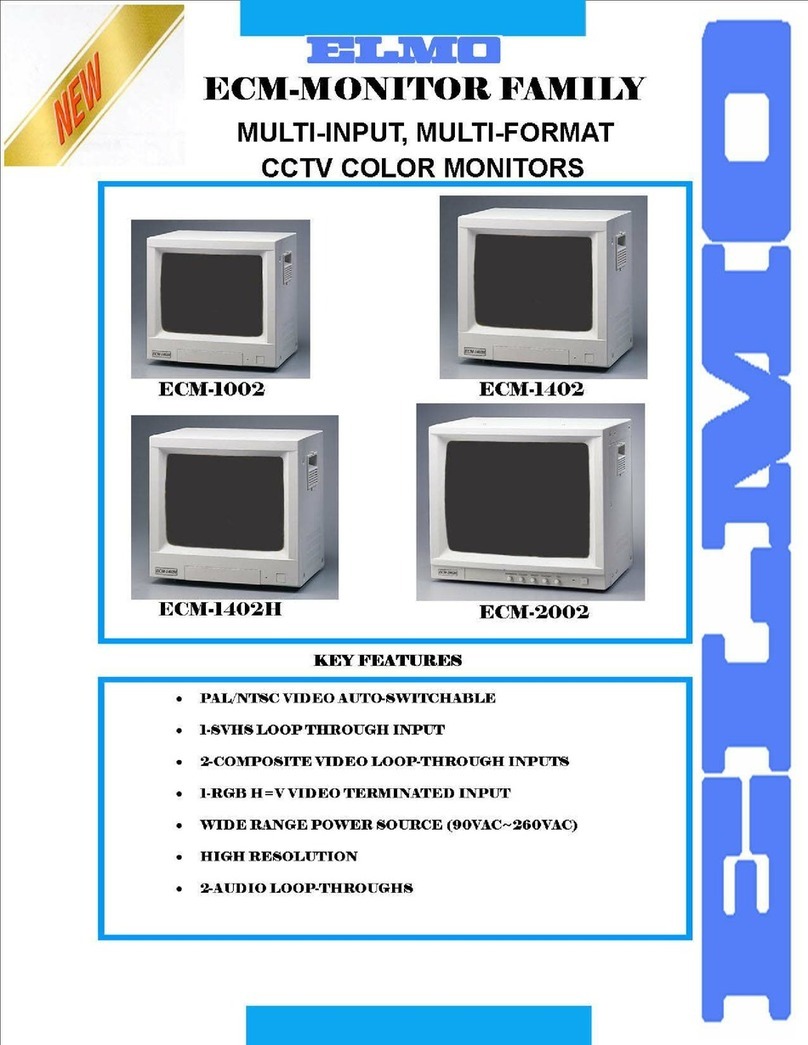

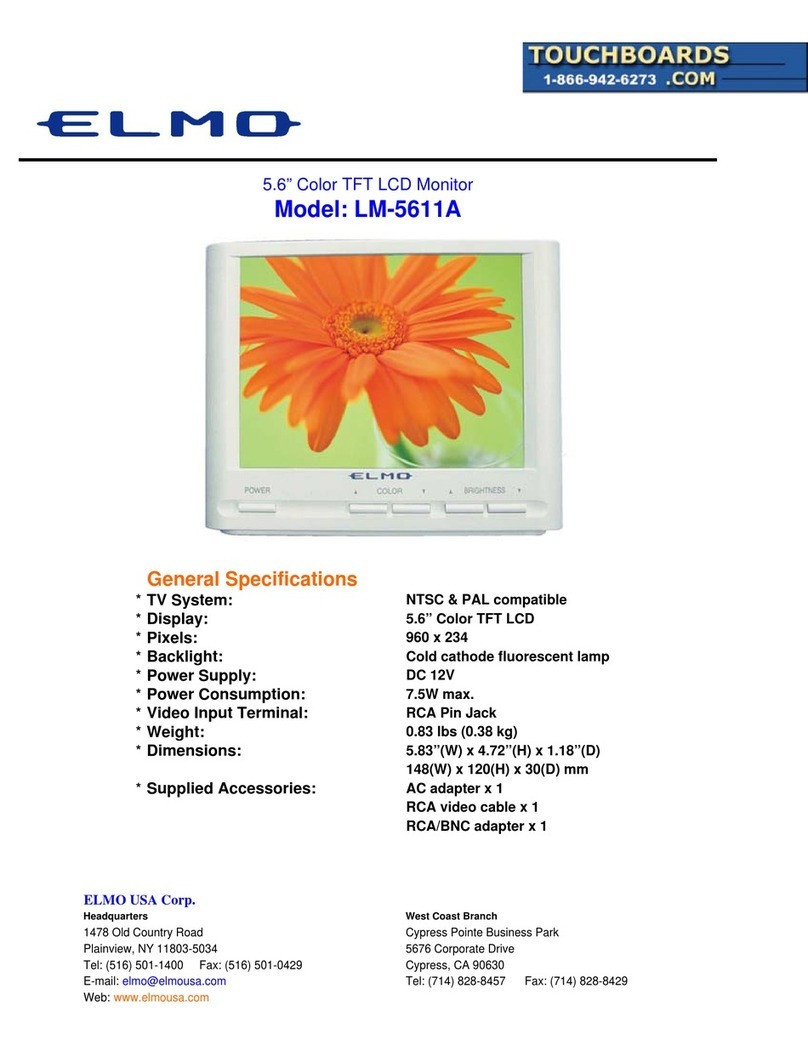

Other Elmo Monitor manuals
