Elo Touch Solutions 2D Barcode Scanner User manual

USER MANUAL
Elo Touch Solutions
2D Barcode Scanner Peripheral

User Manual –2D Barcode Scanner
UM600149 Rev B, page 2 of 22
Copyright © 2017 Elo Touch Solutions, Inc. All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or
by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc.
Disclaimer
The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) makes no representations or warranties
with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to
Revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such revisions or changes.
Trademark Acknowledgments
AccuTouch, CarrollTouch, Elo, Elo (logo), Elo Touch, Elo Touch Solutions, Elo TouchSystems, IntelliTouch, iTouch, SecureTouch,
TouchToolsand VuPoint are trademarks of Elo and its Affiliates. Windows is a trademark of Microsoft Corporation.

User Manual –2D Barcode Scanner
UM600149 Rev B, page 3 of 22
Table of Contents
Section 1: Introduction ............................................................................................................................................................................................................................... 4
Section 2: Installation................................................................................................................................................................................................................................. 5
Section 3: Configuration............................................................................................................................................................................................................................. 8
Section 4: Technical Support................................................................................................................................................................................................................... 15
Section 5: Safety...................................................................................................................................................................................................................................... 16
Section 6: Regulatory Information............................................................................................................................................................................................................ 17
Section 7: Warranty Information............................................................................................................................................................................................................... 21

User Manual –2D Barcode Scanner
UM600149 Rev B, page 4 of 22
Section 1: Introduction
Product Description

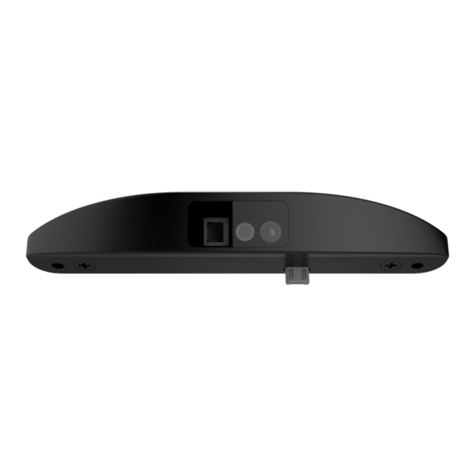

The Elo 2D Barcode reader kit is an optional attachment for Elo monitors, Android All-in-one computers, and
Windows All-in-one computers. The device is USB based and capable of reading most common types of barcodes.
The reader is configurable to work with most applications.
Precautions
Follow all warnings, precautions and maintenance as recommended in this user manual to maximize the life of your
unit and prevent risks to user safety. See Section 6 for more information on safety.
This manual contains information that is important for the proper setup of the scanner. Before setting up and
powering on your new scanner, read through this manual, especially the Installation, configuration, and Operation
chapters.

User Manual –2D Barcode Scanner
UM600149 Rev B, page 5 of 22
Section 2: Installation
Unpacking the 2D Barcode Scanner
Verify that the box contains:
• 2D Barcode scanner attachment
• Quick Install Guide
• 2 mounting screws
• 2 screw covers

User Manual –2D Barcode Scanner
UM600149 Rev B, page 6 of 22
Attaching the Barcode Reader

User Manual –2D Barcode Scanner
UM600149 Rev B, page 7 of 22
Installing the Touch Technology Software Drivers
For use with Windows Systems:
Visit the N3680 product page on the Honeywell Scanning and Mobility website to download and install
- EZConfig for Scanning (Version 4.5.20) and
- Honeywell Scanning and Mobility USB Serial Driver
For use with Android systems:
The Elo Barcode Scanner is ready to use in its default mode. The scanner default mode is:
- USB virtual com port interface
- Presentation mode (always on)
- Beep on scan
- Set up to read most common codes.

User Manual –2D Barcode Scanner
UM600149 Rev B, page 8 of 22
Section 3: Configuration
Out-of-box Settings
Out of the box the default settings of the barcode reader will be:
- USB VCP (Virtual COM Port)
- Presentation Mode
oIllumination always on
oRed aimer will turn off between reads
- Most common barcodes enabled
- Beep on successful scan
If you are okay with the default settings you may begin using the 2D scanner. If you prefer different settings, this section will cover additional configurations that can be
tailored to your application. Only the most common settings will be covered in this manual. For additional settings, please download the N3680 User Guide from the
Honeywell website

User Manual –2D Barcode Scanner
UM600149 Rev B, page 9 of 22
Reader Interface
VCP Mode (Virtual COM Port)
This is the default setting for the scanner out of the box. It is required to change to this interface when using the Honeywell EZConfig software for Windows.
USB Keyboard Mode
USB HID Mode

User Manual –2D Barcode Scanner
UM600149 Rev B, page 10 of 22
Illumination Settings
This is the default setting for the scanner. The white illumination light on at all times.
Scanning this barcode will disable the while illumination light when the scanner is not in use.
Trigger Mode Settings
Out of the box the default of the scanner will be presentation mode (always on). The reader will be scanning for barcodes at all times.
Manual Trigger mode:
Scanning the above barcode will enable manual trigger mode. When in this mode, the scanner will need to be activated manually (by software or hardware button)
between each scan.
Presentation Mode (default setting)

User Manual –2D Barcode Scanner
UM600149 Rev B, page 11 of 22
Audio Settings
Out of the box the scanner will be configured to beep on each successful scan of a barcode. This beep can be enabled or disabled based on your preference.
Beep Disable
Scanning the above barcode will disable the beeper when a barcode is successfully scanned.
Beep Enable
Scanning the above barcode will enable the beeper when a barcode is successfully scanned.

User Manual –2D Barcode Scanner
UM600149 Rev B, page 12 of 22
Keyboard Country Settings
Out of the box the scanner will be configured as US English keyboard
US Keyboard (by default)
Belguim Keyboard
French Canadian
Czech
France
Italy

User Manual –2D Barcode Scanner
UM600149 Rev B, page 13 of 22
Japan
United Kingdom
Additional Configurations
Mobile Phone Optimization
Out of the box the scanner will be optimized to read printed barcodes. If the primary application for your scanner will be reading barcodes from mobile devices, the
reader can be configured for this purpose.
Reread Delay
If your application requires sometimes rereading of the same barcode, your scanner can be adjusted to allow this. The reader is configured to have a delay between
each read of the same barcode to prevent multiple scans of the same item. Use a shorter delay when repetitive barcode scanning is required.
500ms (short delay)

User Manual –2D Barcode Scanner
UM600149 Rev B, page 14 of 22
750ms (medium delay)
1 second (Long delay)
2 seconds (extra-long delay)

User Manual –2D Barcode Scanner
UM600149 Rev B, page 15 of 22
Section 4: Technical Support
Technical Assistance
See this user manual’s last page for worldwide technical support phone numbers.
Technical Specifications
visit www.elotouch.com/products
for technical specifications for this device
Online Self-Help
visit www.elotouch.com/go/websupport
for online self-help
Technical Support
visit www.elotouch.com/go/contactsupport
for technical support

User Manual –2D Barcode Scanner
UM600149 Rev B, page 16 of 22
Section 5: Safety
Waste Electrical & Electronic Equipment Directive (WEEE)
This product should not be disposed of with household waste. It should be deposited at a facility that
enables recovery and recycling.
Elo has put in place recycling arrangements in certain parts of the world. For information on how you can
access these arrangements, please visit www.elotouch.com/e-waste-recycling-program/.

User Manual –2D Barcode Scanner
UM600149 Rev B, page 17 of 22
Section 6: Regulatory Information
Electrical Safety Information
Compliance is required with respect to the voltage, frequency, and current requirements indicated on the
manufacturer’s label. Connection to a different power source than those specified herein will likely result in
improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
There are no operator serviceable parts inside this equipment. There are hazardous voltages generated by this
equipment which constitute a safety hazard. Service should be provided only by a qualified service technician.
Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting
the equipment to mains power.
Emissions and Immunity Information
Notice to Users in the United States: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
Notice to Users in Canada: This equipment complies with the Class A limits for radio noise emissions from digital
apparatus as established by the Radio Interference Regulations of Industrial Canada.
Notice to Users in the European Union: Use only the provided power cords and interconnecting cabling provided
with the equipment. Substitution of provided cords and cabling may compromise electrical safety or CE Mark
Certification for emissions or immunity as required by the following standards:
This Information Technology Equipment (ITE) is required to have a CE Mark on the Manufacturer’s label which
means that the equipment has been tested to the following Directives and Standards: This equipment has been
tested to the requirements for the CE Mark as required by EMC Directive 2014/30/ EU as indicated in European
Standard EN 55032 Class A and the Low Voltage Directive 2014/35/EU as indicated in European Standard EN
60950-1.
General Information to all Users: This equipment generates, uses and can radiate radio frequency energy. If not

User Manual –2D Barcode Scanner
UM600149 Rev B, page 18 of 22
installed and used according to this manual the equipment may cause interference with radio and television
communications. There is, however, no guarantee that interference will not occur in any particular installation due
to site-specific factors.
1. In order to meet emission and immunity requirements, the user must observe the following:
a. Use only the provided I/O cables to connect this digital device with any computer.
b. Toensure compliance, use only the provided manufacturer’s approved line cord.
c. The user is cautioned that changes or modifications to the equipment not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
2. If this equipment appears to cause interference with radio or television reception, or any other device:
a. Verify as an emission source by turning the equipment off and on. If you determine that this equipment is causing theinterference,
try to correct the interference by using one or more of the followingmeasures:
i. Move the digital device away from the affectedreceiver.
ii. Reposition (turn) the digital device with respect to the affectedreceiver.
iii. Reorient the affected receiver’s antenna.
iv. Plug the digital device into a different AC outlet so the digital device and the receiver are on different branch circuits.
v. Disconnect and remove any I/O cables that the digital device does not use.
(Unterminated I/O cables are a potential source of high RF emission levels.)
vi. Plug the digital device into only a grounded outlet receptacle. Do not use AC adapter plugs. (Removing or cutting the line cord ground may increase RF
emission levels and may also present a lethal shock hazard to the user.)
If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician.
Agency Certifications
The following certifications and marks have been issued or declared for this peripheral:
• CE

User Manual –2D Barcode Scanner
UM600149 Rev B, page 19 of 22
Explanation of Markings
In accordance with the SJ/T11364 requirement, electrical and electronic products are marked with the following
pollution control logo.
The Environment-Friendly Use Period for this product is 10 years. The product will not leak or mutate under normal
operating conditions listed below, so that the use of this electronic information product will not result in any severe
environmental pollution, any bodily injury, or damage to any assets.
Operating Temperature: See chart below
Storage Temperature: See chart below
It is encouraged and recommended that product packaging be recycled and reused according to local laws.

User Manual –2D Barcode Scanner
UM600149 Rev B, page 20 of 22
Power Specifications
Electrical Ratings
Input
5VDC
Operating Conditions
Temperature
0°C - 40°C
Humidity
20% to 80% (non-condensing)
Storage Conditions
Temperature
-20°C - 50°C
Humidity
10% to 95% (non-condensing)
