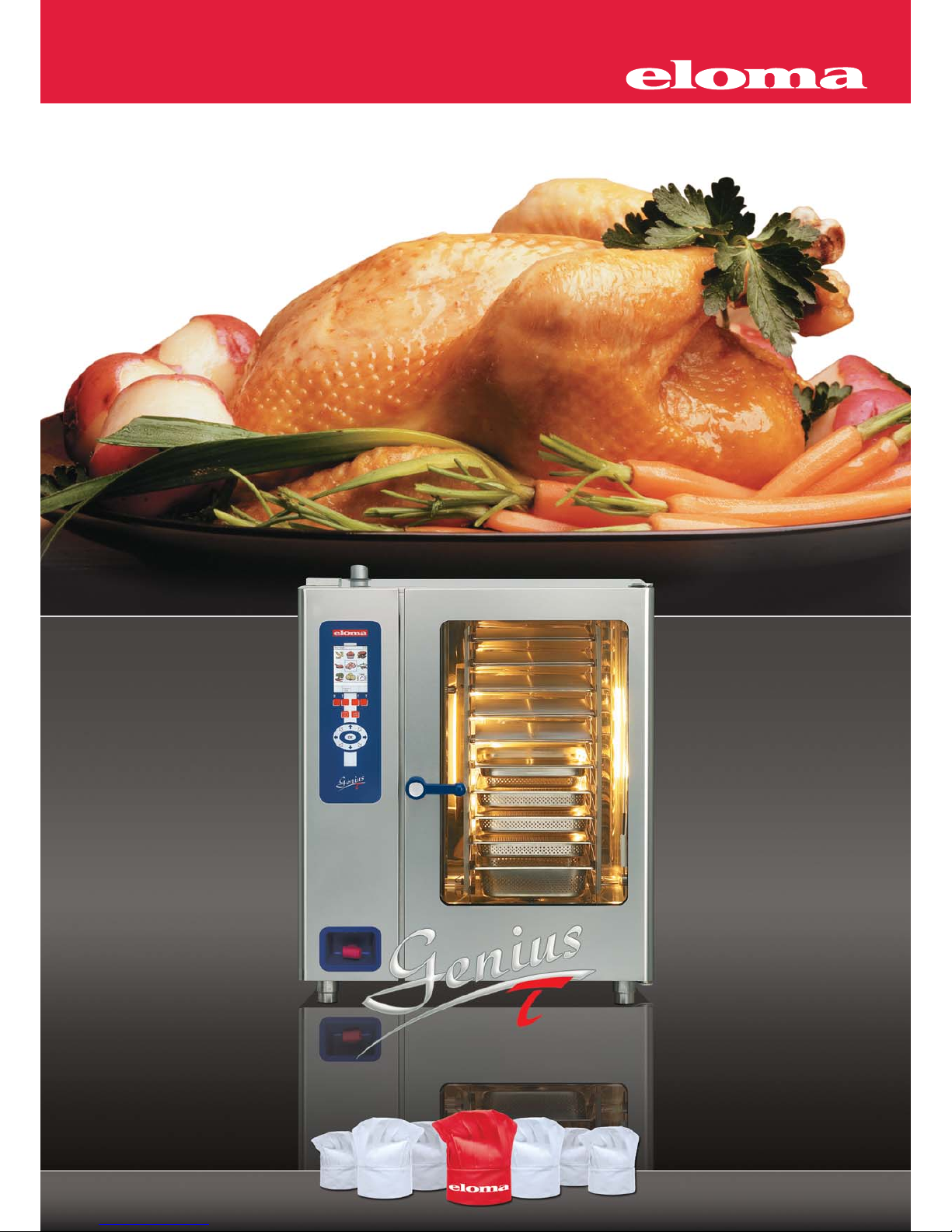

Eloma Genius Touch GET1011 User manual

EN

Eloma Genius – for especially
discerning people in kitchens the
world over!
Ever since it developed its first combi steamer over 30
years ago, and even with the latest generation of Genius
Touch, Eloma has always focussed on balancing the
traditional and modern. We still abide by this philosophy
today to ensure that you continue to enjoy cooking.
”You have to be able to understand
your customers’ business to be
able to provide optimal solutions!”
We understand tradition as being ”100 percent Made
in Germany”. German engineering precision and
craftsmanship guarantee the highest levels of quality!
But we go even further to ensure your satisfaction.
For example, by continuing to provide you with an
additional tray, larger chamber space and the tried
and trusted fan wheel auto-reverse technology. Our
guarantee for superbly even cooking and the best
possible product quality!
Eloma offers this quality the world over! With more than
200 partners on 5 continents we can offer you fast, direct
and widespread support – whereever you cook with us.
Eloma – always offering the best possible quality
2

3
Eco-logical facts about Eloma
SInventor of the live steam system:
Live steam is generated in the chamber itself, with
perfect steam saturation – ideal for sensitive delicate
products, such as broccoli, dumplings, vegetables or fish.
Your benefits:
•immediate use, no need to pre-heat
•significantly reduced energy costs –
up to 46%
•significantly reduced maintenance costs,
compared to boiler version, no de-scaling
required
Sautoclean:
Our unique, fully automatic self-cleaning system:
Your benefits:
•minimal costs thanks to the precise
dosage of liquid cleaner
•start any time, no need to manually
cool down or open the door
•perfect cleaning result thanks to
rotating nozzle
•health protection – no contact with
the cleaning agent
•no need to decant or fiddle around
with cartridges or tabs
Best possible hygiene and
operating safety!
SMulti-eco system:
Our multi-eco system helps you to save other resources.
Your benefits:
•high-performance heat exchanger with
condensation saving as much as 42%
water and 16% energy
We are currently the only manufacturer of combination
steamers whose multi-eco system has won the
Dr.-Georg-Triebe Innovation Prize in the ecology and
energy efficiency categories!

SChefs:
Our Genius brings the pleasure back into cooking and
allows you to impress customers with your very personal
and unique style of preparing food.
Your benefits:
•stores 300 personal recipes
•individual list of favourites
•new pictograms for clear and
immediate help
•”combi cooking” – save time and energy
It goes without saying that you can alter all of the
settings at any time – just as you like. You’re in charge!
Eloma offers individual system solutions
SCook & Chill:
From cooking for the masses to classic gastronomy –
our Genius is perfect for your individual Cook & Chill
solution.
Regardless of whether you are cooking à la carte,
a buffet or banquet – you are guaranteed success
and the best possible quality with Genius !
4

5
SButchers:
Traditional craftsmanship combined with new approaches
is a recipe for success. Open a hot food counter and
supply hot food to go such as roasts, sausages and pies.
Quality that your customers can only get from you!
Your benefits:
•bake or roast at low temperatures and
without any supervision – using off-peak
power
•up to 75% less weight loss
•crispy on the outside, wonderfully juicy
and tender on the inside
•everything ready to serve – before your
first customers arrive
•ideal ΔT cooking solution for specialities
such as boiled beef topside
SHot Spot:
... grill without oil or unpleasant smells – the Genius +
Hot Spot makes you the perfect grill chef!
Genius + Hot Spot provides the complete solution
from day one!

SBakers/Bake-off Counters:
Baking in a combi steamer – child’s play with our
Genius thanks to its manual humidification, interval
fan wheel and reduced fan speed!
Your benefits:
•use of our established auto-reverse fan
technology for superbly even results –
guaranteed!
•baking with humidification
•use as a ”proofer”
•autoclean removes all burnt-on residue
Benefit from maximum flexibility – whether its cooking
breads, pastries, pies or cakes.
Our Genius – the ultimate in flexibility for a butcher,
baker or retailer!
6
... even deep frozen pizza tastes like it came out of a
stone oven!

Eloma sets the highest standards!
7
SEloma Steam Protection System
(SPS):
Steam is automatically extracted from the chamber
following completion of the cooking process. This pro-
tects you against burns, guarantees a better working
ambient and saves energy.
SActive Temp:
Pre-heating or cooling – fully automatic with door
closed and utilisation of residual heat. Guarantees
consistent results – day in, day out!
SMulti-point core temperature sensor:
Our standard for consistently reliable temperature
measurement, and your guarantee for the ultimate in
product safety.
SHACCP:
Download and store all cooking processes and work
data on your computer, as a printout, or on the display
panel – a unique feature offered only by Eloma!

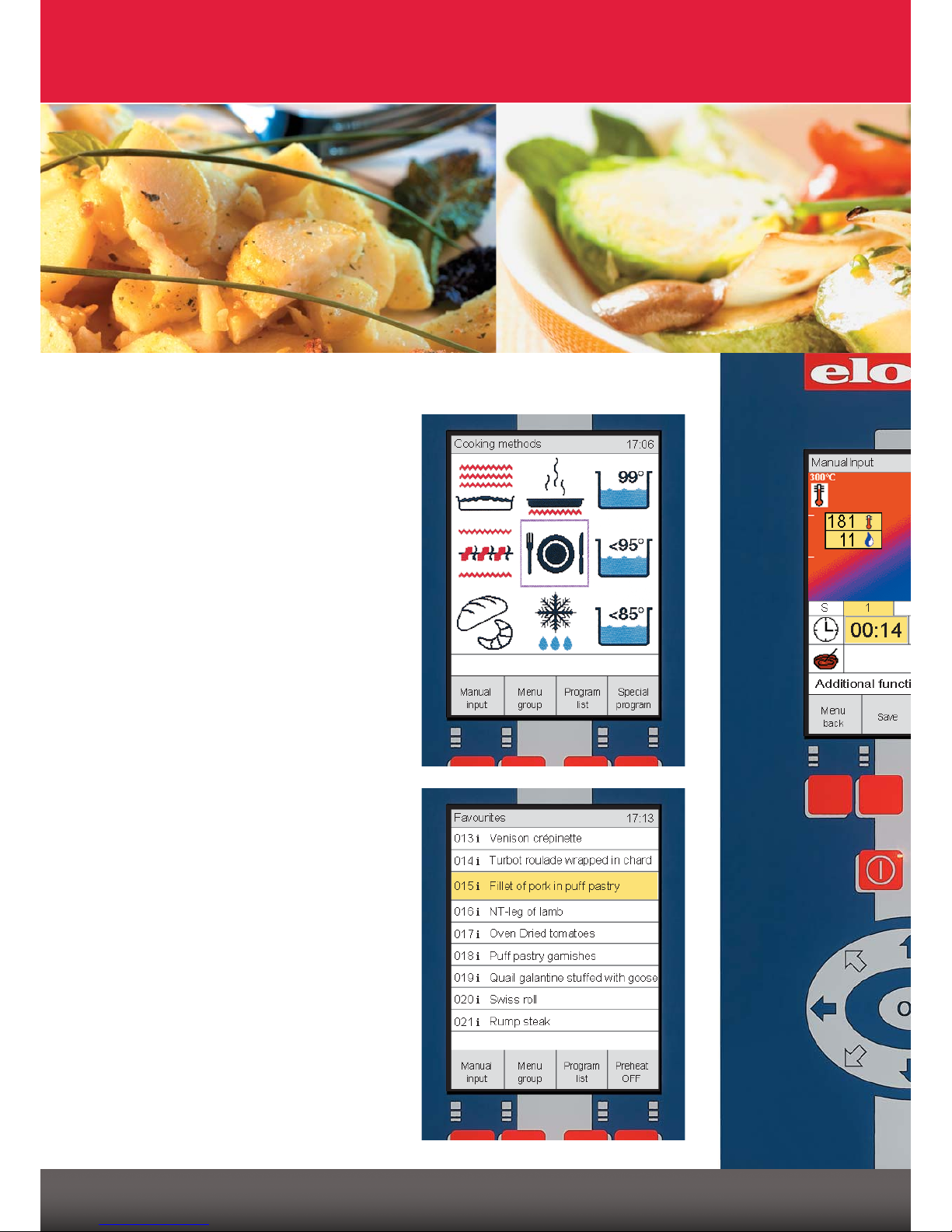

SCooking methods:
•9 cooking methods
•clear symbols
•international
… at your fingertips!
SList of favourites:
•your own creativity at first glance
•quick and reliable
•day to day
… at your fingertips!
8

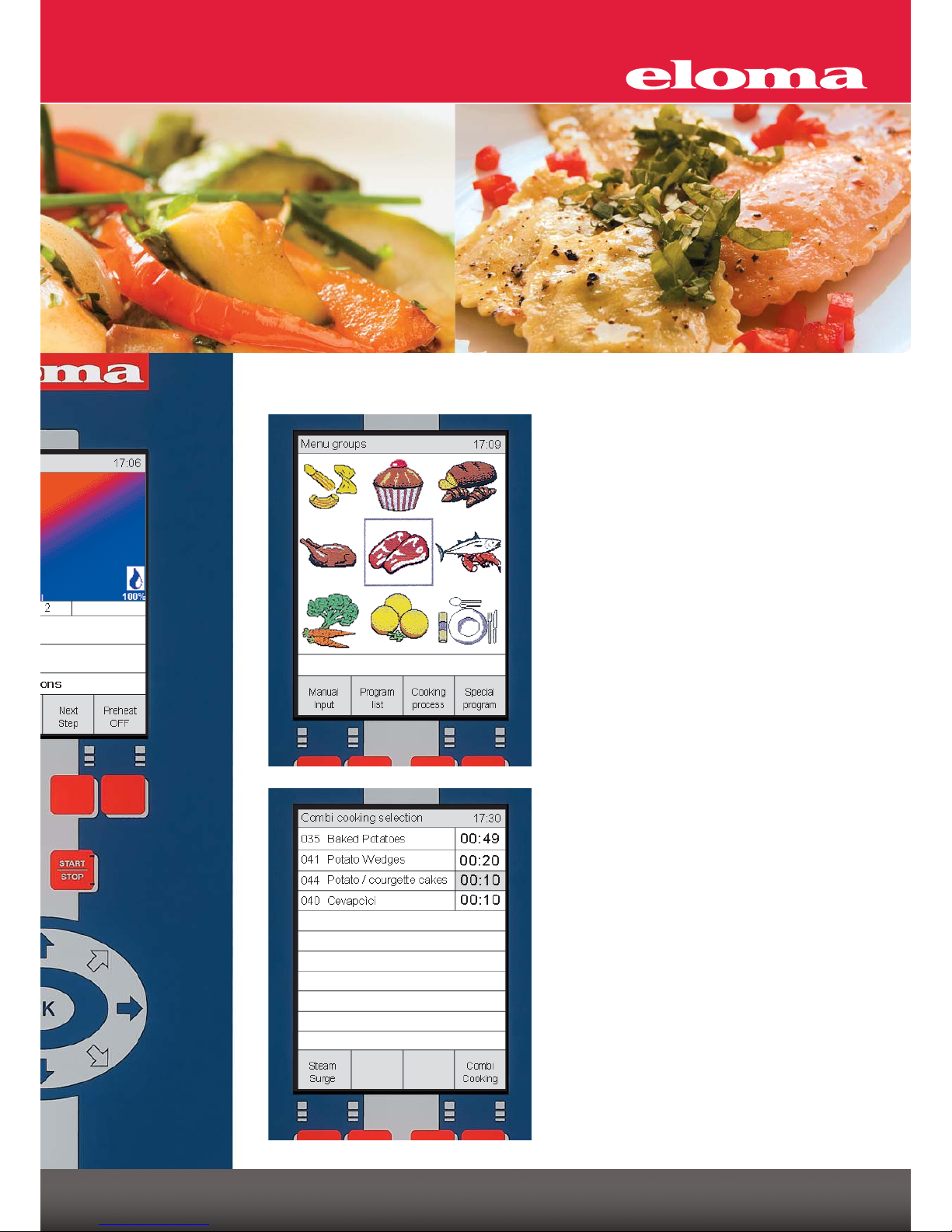

SMenu groups:
•9 menu groups
•three-dimensional – multi-coloured
•incredibly easy to use
… at your fingertips!
9
SCombi cooking:
•1 cooking process – different foods –
different times
•perfect results, consistent quality
•stress-free combi cooking
… at your fingertips!

10
Genius 10-11 Genius 20-11Genius 6-11
We only had one goal in mind when we developed the
Genius . To build a superb combi steamer for people
who are looking for the best and appreciate this!
Genius – gives you the best of
everything!
SClimatic®:
•precise climate control
•active humidification and de-humidification
•crispy on the outside – tender on the inside
•unique ventilation system allows huge
water savings during discharge
SGenius Scout:
•embedded in a glass panel
•ergonomic one-hand operation
•the smooth glass surface is hygienic,
easy to clean and maintenance-friendly
•display on a unique TFT screen
The new Eloma Genius :
Rediscover the joy of cooking!

11
S9 modes of operation:
•steaming
•vario steaming
•forced steaming
•combi steaming
•convection (hot air)
•LT cooking
•ΔT cooking
•regeneration/banquet
•baking
SGas:
•low pollution burner – kiwa
•high-performance triple pipe heat
exchanger
•optimal efficiency
Genius 12-21 Genius 20-21

SMulti-eco hood KH:
The condensation hood offering more than 80%
efficiency.
Your benefits:
•no water – minimum energy – maximum
efficiency
Optimal solution eliminating the need for large
investment in ventilation systems – available in two
sizes: KH 2 for models 6-11 and 10-11, KH 3 for model
20-11, KH 4 for models 12-21 and 20-21.
SLeft-hinged doors:
Ergonomics at their best! Door hinge and operating
elements can be optionally placed to the right or the left.
An option unique to Eloma!
SCombi mix:
Compact cooking station, a combination of two Eloma
combi steamers: 2 x 6-11 or 6-11 + 10-11.
Flexibility, even in cramped spaces! User-friendly and
practical, all modes of operation and temperature ranges
can be handled simultaneously. Optimal utilisation of
existing capacities and performance guaranteed, on
less than 1m2floorspace!
12
Individualised system solution offering maximum flexibility!
Combi mix
Genius 6-11/6-11 and 6-11/10-11
Multi-eco hood KH 2 on
Genius 6-11 (left-hinged door)

13
Raising your appliances to perfection!
Practical and perfectly matching accessories turn
individual appliances into a system solution!
SVario rack with 6+1 or 10+1 trays, outer grid
GN 1/1 – inner grid 400 x 600 mm
SHygienic support stand
for GN grids and trays,
enclosed on 3 sides
SWU 14 warming cabinet with active humidification
with 14 trays, GN 1/1
SBanquet system with thermal insulation hood
6-11: 18 plates, 10-11: 32 plates; 20-11: 62 plates; 12-21: 77 plates; 20-21: 120 plates

14
ProConnect: Making data management child’s play!
SProConnect –
an intelligent innovation for combi steamers:
Intuitive operation
The self-explanatory user interface combines the well-
known combi steamer operation with useful Windows
functions.
Organisation of cooking programmes
ProConnect allows you to write your cooking
programmes easily and quickly on a PC and store them
in clearly organised files – meeting your individual
preferences.
HACCP documentation
Simple and comprehensive documentation of all cooking
processes and work data on your PC – accessible at any
time.
Data transfers made easy
At the click of button: Just send your centrally stored
cooking programmes from your PC to your Eloma combi
steamer and vice versa – ideal when you are working with
several appliances.

15
Technical specifications (for all electrical and gas appliances)
Casing made of nickel chromium steel CrNi 18 10. * Weight gas units
Model sizes
Capacity
Trays
Number
Spacing mm
Dimensions
Width mm
Depth mm
Height mm
Weight kg
Connections
Water inlet
Water outlet Ø mm (DN)
Electric models
Voltage
Electrical Loading: kW
Protection: A
Electric models with reduced heat output
Voltage
Electrical Rating or Loading*: kW
Protection: A
Gas appliances
Voltage
Electrical Rating or Loading: kW
Protection: A
Gas Rating: kW
6-11
6 x 1/1 GN
6 + 1
67
925
805
840
130/140*
2 x G 3/4 A
50
400 V 3N AC
11
3 x 16
230 V N AC
1
1 x 16
12
10-11
10 x 1/1 GN
10 + 1
67
925
805
1120
167/177*
2 x G 3/4 A
50
400 V 3N AC
17
3 x 25
230 V N AC
1
1 x 16
20
20-11
20 x 1/1 GN
20 + 1
67
1030
880
1930
295/320*
2 x G 3/4 A
50
400 V 3N AC
45
3 x 80
400 V 3N AC
34
3 x 50
230 V N AC
1,8
1 x 16
40
12-21
12 x 2/1 GN
24 x 1/1 GN
12 + 1
67
1310
1086
1490
350/365*
2 x G 3/4 A
50
400 V 3N AC
34
3 x 50
400 V 3N AC
26
3 x 50
230 V N AC
1,3
1 x 16
35
20-21
20 x 2/1 GN
40 x 1/1 GN
20 + 1
67
1310
1086
1925
495/530*
2 x G 3/4 A
50
400 V 3N AC
68
3 x 100
400 V 3N AC
52
3 x 80
230 V N AC
2,2
1 x 16
70
Genius – Genius Gas
Features (summary)
Original Eloma live steam system
Pre-heating and rapid cooling (Active
Temp) with utilisation of residual heat
Manual humidification
Temperature range 30-300°C
Integrated fat filter
Integrated steam discharge
Fan wheel – Auto-reverse and large
cooking chamber (up to 26% larger than
competitors) for superbly even results
Active humidification and de-humidifica-
tion with unique ventilation system
Climatic®: Temperature and humidity mea-
surement/control
Multi-point core temperature probe
Multi-language user interface
Genius Scout one-hand operation
TFT screen/Climatic®screen
Glass panel
1 additional tray
autoclean
We reserve the right to changes

Eloma ·Innovative cooking and baking technology ·Otto-Hahn-Straße 10 ·82216 Maisach / Germany
Phone: [phone] ·Fax: [phone] ·[email protected] ·www.eloma.com
•Experienced chefs, butchers and bakers are
available to support you
•Global network of service partners
•Spare parts stock for global express
despatch
•Service vehicles stocked with spare parts
for quick service response
quick – reliable – personal!
The Eloma team is here to
help you, around the clock!
02/ 2008.2,5 Printed in Germany – www.artconcept-werbeagentur.de
