Eloma Multimax MB1011 User manual

2
Ever since it developed its first combi steamer over
30 years ago, and even with the latest generation of
Multimax, Eloma has always focussed on balancing the
traditional and modern. We still abide by this philosophy
today to ensure that you continue to enjoy cooking.
”You have to be able to understand
your customers’ business to be
able to provide optimal solutions!”
We understand tradition as being ”100 percent Made
in Germany”. German engineering precision and
craftsmanship guarantee the highest levels of quality!
But we go even further to ensure your satisfaction.
For example, by continuing to provide you with an
additional tray, larger chamber space and the tried
and trusted fan wheel auto-reverse technology. Our
guarantee for superbly even cooking and the best
possible product quality!
Eloma offers this quality the world over! As a member of
the international AGA Foodservice Group, the market
leader in providing leading edge catering equipment to
the foodservice industry, we can offer direct, quick and
comprehensive support – no matter where you cook with
our products!
Eloma – always offering the best possible quality
Eloma Multimax – for especially
discerning people in kitchens the
world over!

3
Eco-logical facts about Eloma
❙Inventor of the live steam system:
Live steam is generated in the chamber itself, with
perfect steam saturation – ideal for sensitive delicate
products, such as broccoli, dumplings, vegetables or fish.
Your benefits:
•immediate use, no need to pre-heat
•significantly reduced energy costs –
up to 46%
•significantly reduced maintenance costs,
compared to boiler version, no de-scaling
required
❙autoclean:
Our unique, fully automatic self-cleaning system:
Your benefits:
•minimal costs thanks to the precise
dosage of liquid cleaner
•start any time, no need to manually
cool down or open the door
•perfect cleaning result thanks to
rotating nozzle
•health protection – no contact with
the cleaning agent
•no need to decant or fiddle around
with cartridges or tabs
Best possible hygiene and
operating safety!

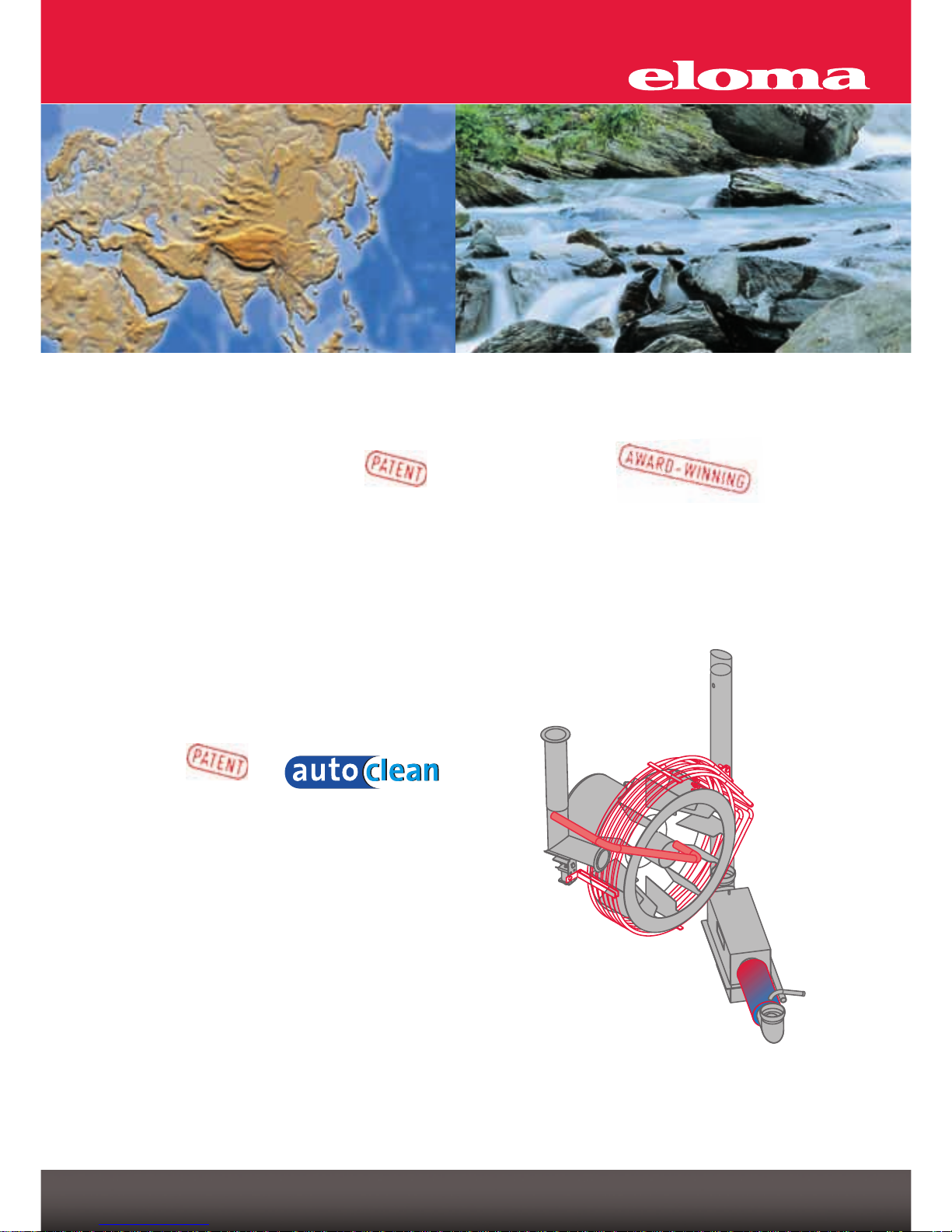

❙Multi-eco system:
Our multi-eco system helps you to save other resources.
Your benefits:
•high-performance heat exchanger with
condensation saving as much as 42%
water and 16% energy
We are currently the only manufacturer of combination
steamers whose multi-eco system has won the
Dr.-Georg-Triebe Innovation Prize in the ecology and
energy efficiency categories!

4

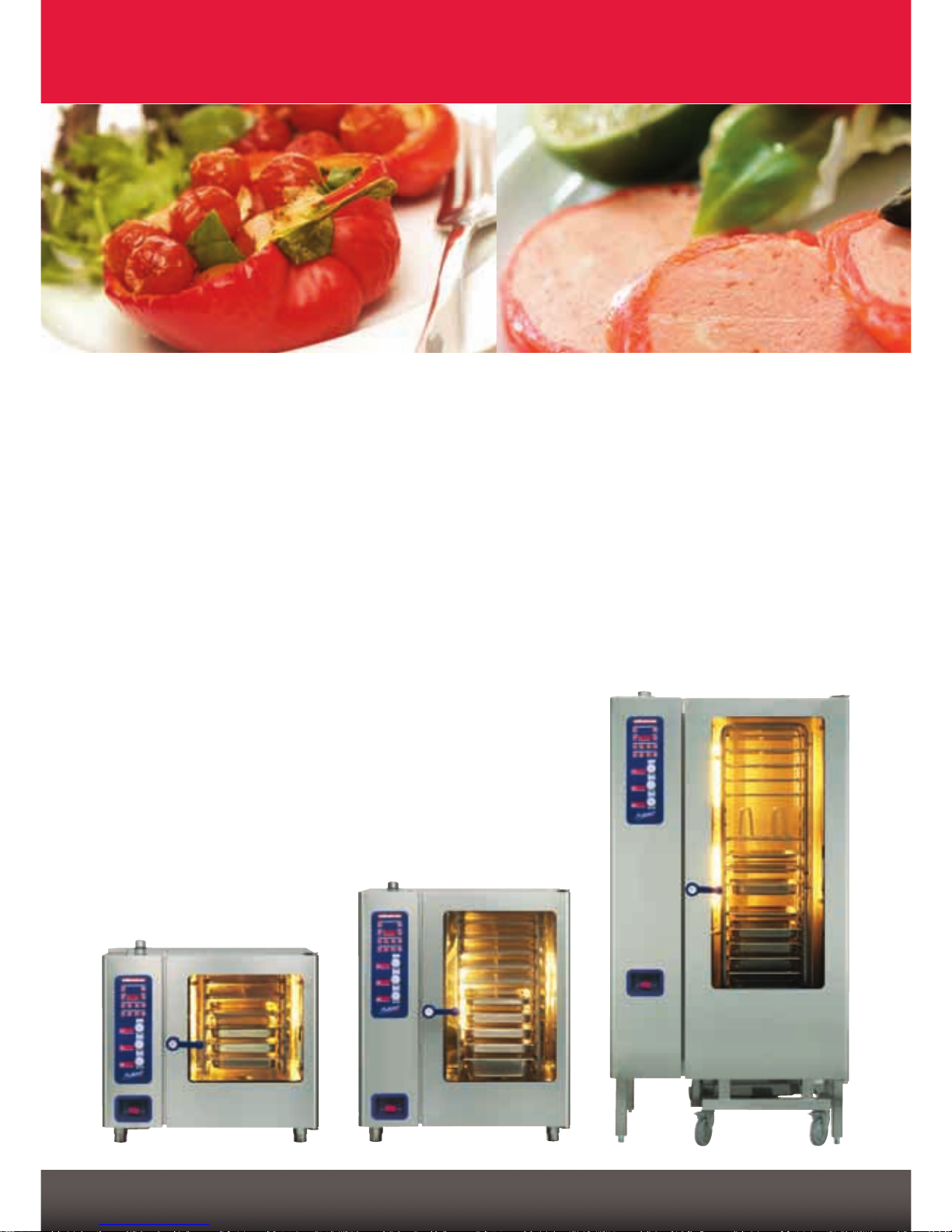

The new Eloma Multimax B:
The professional all-rounder!
Multimax B 10-11 Multimax B 20-11Multimax B 6-11
❙Functions:
•Clima-Aktiv®
active humidification and de-humidification
of the cooking chamber
•autoclean
fully automatic cleaning system
•programme memory
99 storable programmes
•core temperature control
with multi-point core temperature sensor
•Active Temp
pre-heating or cooling
•multi-function key
•auto-reversible fan wheel
with reduced or interval speed for
gentle cooking
•manual humidification
•E/2 Energy saving function
An appliance that leaves nothing to be desired!
Classic operating controls combined with high-quality
finish and superb cooking performance we believe the
Multimax to be ”Best in class“!

5
Multimax B 12-21
❙8 modes of operation:
•convection (hot air)
•combi steaming
•steaming
•forced steaming
•vario steaming
•LT cooking
•∆T cooking
•regeneration / banquet
❙Gas:
•high-performance pre-burner system
•low pollution burner – kiwa
•high-performance triple pipe heat exchanger
•optimal efficiency
Multimax B 20-21

6
❙Functions:
•convection (hot air)
•combi steaming
•steaming
•forced steaming
•vario steaming
•regeneration at 3 climate control levels
Dry – for quick-frying and breaded food
Medium – for vegetables, roasts and casseroles
Moist – for rice, pasta and fish
•multi-point core temperature sensor
•reduced fan speed
•manual humidification
•cleaning programme
The Multimax A guides you easily and reliably
through the cleaning cycle.
The well established Eloma Multimax A:
A simply wider choice!
Modern food preparation demands both high cost
efficiency and high levels of flexibility.
Even the Eloma basic model Multimax A and its
advanced fittings offer you a wide range of possible
applications – as individual as your choice of dishes.
Multimax A 10-11 Multimax A 20-11Multimax A 6-11

7

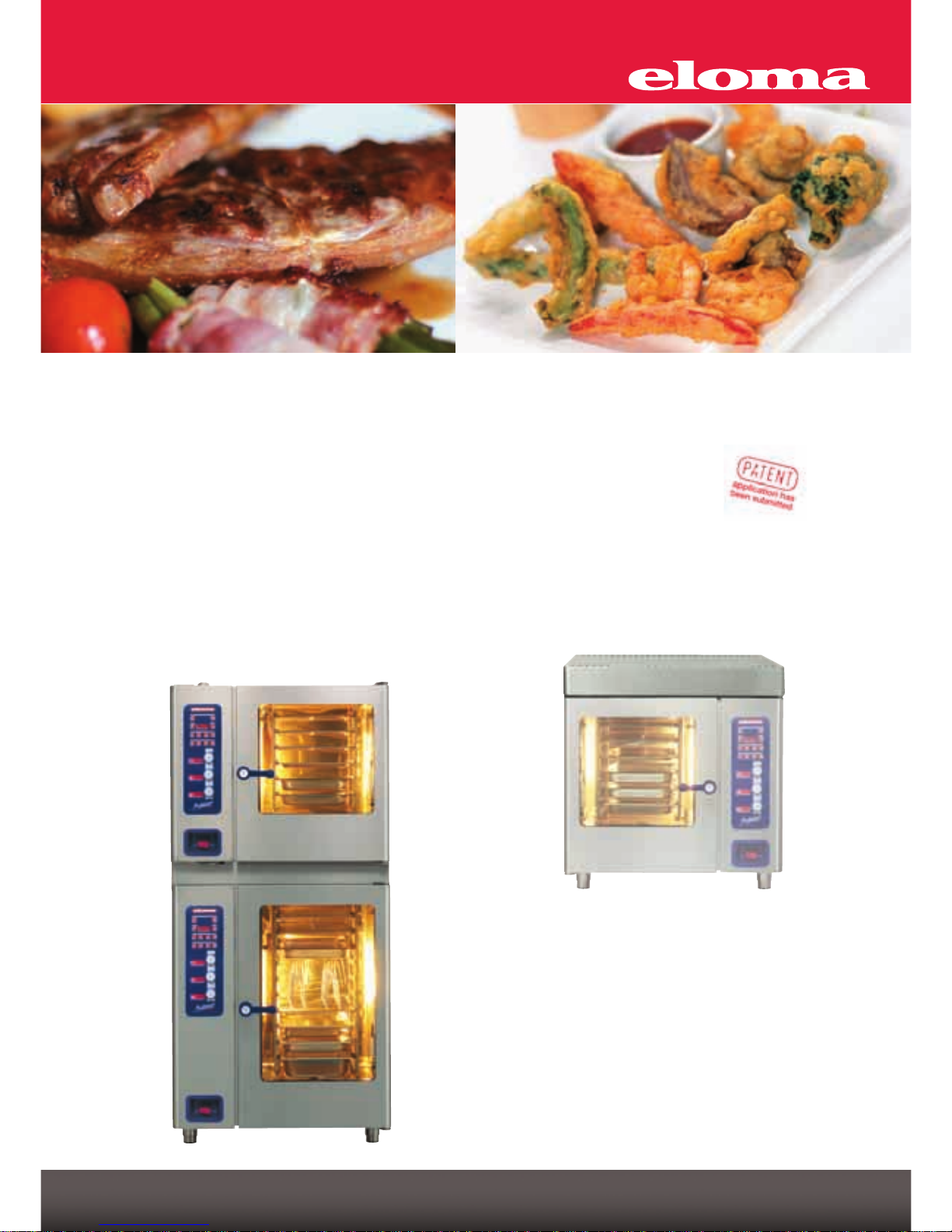

Combi mix
Multimax 6-11/6-11 and 6-11/10-11
Multi-eco hood KH 2 on
Multimax B 6-11 (left-hinged door)
❙Combi mix:
Compact cooking station, a combination of two Eloma
combi steamers: 2 x 6-11 or 6-11 + 10-11.
Flexibility, even in cramped spaces! User-friendly and
practical, all modes of operation and temperature ranges
can be handled simultaneously. Optimal utilisation of
existing capacities and performance guaranteed, on
less than 1 m2!
An individualised system solution offering maximum flexibility!
❙Multi-eco hood KH 2/KH 3:
The condensation hood offering more than 80%
efficiency.
Your benefits:
•no water – minimum energy – maximum
efficiency
Optimal solution eliminating the need for large invest-
ments in ventilation systems – available in two sizes:
KH 2 for models 6-11 and 10-11, KH 3 for model 20-11.
❙Left-hinged doors:
Ergonomics at their best! Door hinge and operating ele-
ments can be optionally placed to the right or the left. An
option unique to Eloma!

8
Raising your appliances to perfection!
Practical and perfectly matching accessories turn
individual appliances into a system solution!
❙Vario rack with 6+1 or 10+1 trays, outer grid
GN 1/1 – inner grid 400 x 600 mm
❙WU 14 warming cabinet with active humidification
with 14 trays, GN 1/1
❙Banquet system with thermal insulation hood
for up to 120 plates
❙Hygienic support stand
for GN grids and trays,
enclosed on 3 sides

9
Eloma sets standards!
❙Multi-point core temperature sensor:
Our standard for consistently reliable temperature
measurement, and your guarantee for the ultimate in
product safety.
❙Hot Spot:
... grilling without oil or unpleasant smells – the Multimax
+ Hot Spot makes you the perfect grill chef!
Multimax + Hot Spot offers you the perfect solution
from day one!
❙Active Temp (MB only):
Pre-heating or cooling – fully automatic with door
closed and utilisation of residual heat. Guarantees
consistent results – day in, day out!
❙HACCP (MB only):
Download and store all cooking processes and work
data on your computer or as a printout.

10
ProConnect: Making data management child’s play!
❙ProConnect –
an intelligent innovation for the Multimax B:
Intuitive operation
The self-explanatory user interface combines the well-
known combi steamer operation with useful Windows
functions.
Organising cooking programmes
ProConnect allows you to write your cooking programmes
easily and quickly on a PC and to manage them in
clearly organised files – in line with your individual
preferences.
HACCP documentation
Simple and comprehensive documentation of all cooking
processes and work data on your PC – accessible at
anytime.
Data transfer made easy
At the click of a button: just send your centrally stored
cooking programmes from your PC to your Eloma combi
steamer and vice versa – ideal when you are working with
several appliances.

11
* Multimax A is not available in sizes 12-21 and 20-21
** Weight gas units
Technical specifications (for all electrical and gas appliances)
Features (summary)
Casing made of nickel chromium steel CrNi 18 10.
Model sizes
Capacity
Trays
Number
Spacing (mm)
Dimensions
Width (mm)
Depth (mm)
Height (mm)
Weight (kg)
Connections
Water inlet
Water outlet Ø mm (DN)
Electric models
Voltage
Electrical Loading: kW
Protection: A
Electric models with reduced heat output
Voltage
Electrical Rating or Loading*: kW
Protection: A
Gas appliances
Voltage
Electrical Rating or Loading: kW
Protection: A
Gas Rating: kW
6-11
6 x 1/1 GN
6 + 1
67
925
805
840
130/ 140**
2 x G 3/4 A
50
400 V 3N AC
11
3 x 16
230 V N AC
1
1 x 16
12
10-11
10 x 1/1 GN
10 + 1
67
925
805
1120
167/ 177**
2 x G 3/4 A
50
400 V 3N AC
17
3 x 25
230 V N AC
1
1 x 16
20
20-11
20 x 1/1 GN
20 + 1
67
1030
880
1930
295/ 320**
2 x G 3/4 A
50
400 V 3N AC
45
3 x 80
400 V 3N AC
34
3 x 50
230 V N AC
1,8
1 x 16
40
12-21*
12 x 2/1 GN
24 x 1/1 GN
12 + 1
67
1310
1086
1490
350/ 365**
2 x G 3/4 A
50
400 V 3N AC
34
3 x 50
400 V 3N AC
26
3 x 50
230 V N AC
1,3
1 x 16
35
20-21*
20 x 2/1 GN
40 x 1/1 GN
20 + 1
67
1310
1086
1925
495/ 530**
2 x G 3/4 A
50
400 V 3N AC
68
3 x 100
400 V 3N AC
52
3 x 80
230 V N AC
2,2
1 x 16
70
Multimax B – Multimax B Gas – Multimax A
Original Eloma live steam system
Pre-heating and rapid cooling (Active
Temp) with utilisation of residual heat*
Manual humidification
Temperature range 30-300°C
Integrated fat filter
Integrated steam discharge
Fan wheel - Auto-reverse and large
cooking chamber (as much as 26% larger
than our competitors) for superbly even
results
Active humidification and de-humidifica-
tion with unique ventilation system*
Clima-Aktiv®
E/2 Energy saving function*
Multi-point core temperature sensor
1 additional tray
Hand shower
autoclean (option)*
Hot Spot (option)
* Multimax B only
We reserve the right to changes

Eloma ·Innovative cooking and baking technology ·Otto-Hahn-Straße 10 ·82216 Maisach / Germany
Phone: [phone] ·Fax: [phone] ·[email protected] ·www.eloma.com
•Experienced chefs, butchers and bakers are
available to support you
•Global network of service partners
•Spare parts stock for global express
despatch
•Service vehicles stocked with spare parts
for quick service response
quick – reliable – personal!
The Eloma team is here to
help you, around the clock!
