elv ETH eco User manual

Electronic thermostat
ETH eco
Operation and display General function
This electronic thermostat for radiators can be used to
control room temperature on the basis of time. The actu-
ator moves a valve, thereby allowing the amount of heat
flowing to the heating appliance to be controlled. The
controller is compatible with all standard heating appli-
ance valves.
Installation can be achieved in 3 easy steps.
Step 1: Inserting (replacing) the batteries
Remove the battery com-•
partment cover.
Insert 2 new Mignon bat-•
teries (LR6/AA) into the
battery compartment, en-
suring they are the right
way round.
Reattach the battery com-•
partment cover and click
into place.
New alkaline batteries have a life of approximately three
years. A battery symbol ( ) will indicate when the bat-
teries need to be replaced. After removing the old batter-
ies, please wait appro-ximately 1 minute before inserting
the new ones. This device does not support operation with
rechargeable batteries.
Never recharge standard batteries.
Doing so will present a risk of explosion.
Do not throw the batteries into a fire.
Do not short-circuit batteries.
Used batteries should not be disposed
of with regular domestic waste. Instead,
they should be taken to your local battery
disposal point.
Step 2: Setting the date and time of day
The firmware version number will be displayed briefly once
you have inserted/replaced the batteries and then you will be
automatically prompted to set the date and time of day.
Use the setting wheel (B) to set•
the year (A).
Confirm with OK (C).•
Use the setting wheel (B) to set•
the month (A).
Confirm with OK (C).•
Use the setting wheel (B) to set•
the day (A).
Confirm with OK (C).•
Use the setting wheel (B) to set•
the hour (A).
Confirm with OK (C).•
Use the setting wheel (B) to set•
the minute (A).
Confirm with OK (C).•
The motor will start moving back the control pin while the
entries are still being made.
If “INS” is displayed with a rotating “•
∏ ” symbol, this
indicates that the motor is still moving back. Once the
device is ready for the actuator to be installed on the
valve, just “INS” will appear on the display.
The weekly program and other settings can be cus-•
tomisedprior toinstallation. To do this, press the menu
button when “INS” is shown on the display. For further
details, please see “4. Configuration menu”.
O n c e p r o g r a m m i n g i s c o m p l e t e , “ I N S ” w i l l r e a p p e a r o n t h e•
display and installation (Step 3) can commence.
Step 3: Installing the electronic thermostat
The actuator can be installed on all standard heating
valves. There is no need to drain away water or fiddle
around with the heating system before doing this. First,
you need to remove the old thermostat dial:
Turn the thermostat dial anti-•
clockwise as far as it will go (A).
Release the thermal ring of the•
thermostat (B).
Remove the thermostat from•
the valve (C).
An adapter will need to be used
in the case of certain valves.
Adapters for Danfoss valves (RA, RAV, RAVL) are inclu-
ded in the scope of delivery. For details, please refer to the
adapter overview (see 18).
The adapter must be placed•
on the valve and turned until
it is securely seated.
In the case of the RAV adapter,•
the extension supplied must be
attached to the valve tappet.
The RA and RAV adapters•
must, in addition, be secured
by means of the bolt and nut
supplied.
The electronic thermostat can only be installed if “INS” is
showing on the display. Following installation, the actuator
will perform an adjustment run so that it can adapt to the
valve. During this process, “ADA” will be displayed.
Place the actuator on the valve.•
Tighten the union nut.•
“INS” will appear on the display, press the OK button.•
The actuator will perform an adjustment run (“ADA” will•
appear on the display, operation not possible).
After that, the actuator will be ready for operation (Auto•
mode).
If the adjustment run was initiated prior to installa-
tion, or if an error message will be displayed (F1, F2,
F3); press OK to move the motor back to the “INS”
position.
1. Setting the weekly program
The weekly program allows you to set up to 3 separate
heating periods (7 switching times) for each day of the
week. Programming is performed in relation to the se-
lected days, for which temperatures must be stored for a
period from 00:00 to 23:59.
Press an d hold d own t he me nu button for m ore than 3 se c onds .
“PRO” will appear on the display.•
Confirm with OK.•
“DAY” will appear on the display. The setting wheel can•
be used to select an individual day of the week, all wor-
king days, the weekend or the entire week (example
shows working days selected).
Confirm with OK.•
The first setting time will appear on•
the display (0:00). This cannot be
changed. In addition, the display
shows bars for every other swit-
ching interval.
Confirm with OK.•
Set the temperature that is to be•
maintained from 0:00 onwards (ex-
ample shows 17.0°C).
Confirm with OK.•
The next switching time appears on•
the display (example shows 6:00).
Usethesetting wheel tosetthetime.
Confirm with OK.•
Then, select a temperature for the•
selected switching time.
Keep repeating thisprocess until youhave finished storing•
temperatures for the period from 0:00 to 23:59.
After all 7 switching times have been selected, 23:59 will•
appear on the display as end time.
Confirm with OK.•
In Auto mode, the temperature can be modified at any time
via the setting wheel. The modified temperature will then
be retained until the next program changeover.
2. Weekly program: Examples
The electronic thermostat allows you to store up to 3
heating periods (7 switching times) with individual temper-
ature settings for each day of the week. The factory set-
ting consists of two heating phases (from 6:00 until 9:00
and from 17:00 until 23:00 respectively) for every single
day of the week:
From 00:00 to 06:00 17.0°C
From 06:00 to 09:00 21.0°C
From 09:00 to 17:00 17.0°C
From 17:00 to 23:00 21.0°C
From 23:00 to 23:59 17.0°C
To represent the switching periods, the display shows
bars for every other switching interval. In this exam-
ple, no bars are shown for the interval from 0:00 to
6:00. Bars are only shown on the display for the in-
tervals from 6:00 to 9:00 and from 17:00 to 23:00.
If a room also needs to be heated at around noon, the cor-
responding program might look like this:
Monday to Sunday
From 00:00 to 06:00 16.0°C
From 06:00 to 09:00 22.0°C
From 09:00 to 12:00 17.0°C
From 12:00 to 14:00 20.0°C
From 14:00 to 17:30 17.0°C
From 17:30 to 23:30 21.0°C
From 23:30 to 23:59 16.0°C
If you have a home office and only want it to be heated
during the day on working days, you can program the fol-
lowing times:
Monday to Friday
From 00:00 to 08:30 17.0°C
From 08:30 to 17:00 21.0°C
From 17:00 to 23:59 17.0°C
Saturday and Sunday
From 00:00 to 23:59 15.0°C
3. Operating modes
To switch be twe en th e 3 oper ating m odes d escr ibe d below,
press the menu button briefly (these operating modes can
only be selected following installation/Step 3):
Holiday function• ( ) : Set a temperature that is to be
maintained until a fixed point in time.
Manu:• Manual operation – The temperature is set manu-
ally using the setting wheel.
Auto:• W e e k l y p r o g r a m – T h e t e m p e r a t u r e i s c o n t r o l l e d a u t o -
matically in accordance with the stored weekly program.
Please read this manual carefully in order to help you put
the device into operation. Keep the manual handy so you
can refer to it at a later date!
A Thermal ring
B Holiday function ( ), set-back/comfort temperature
( ), manual operation (Manu), automatic operation
(Auto)
C “Window open” symbol ( ), day of the week, “bat-
tery empty” symbol ( )
D Menu button: Press and hold down the button for more
than 3 seconds to open the configuration menu
E Setting wheel: For making adjustments (e.g. temperature)
F Switching periods set within weekly program
G Current temperature setting , time and date indicator,
menu items, functions
H but to n: For swi tc hing bet wee n set-back and co m-
fort temperatures
I OK button: For confirming/saving
5
2
6
3
7
4
8
ELV Elektronik AG · P.O.Box 1000 · D-26787 Leer

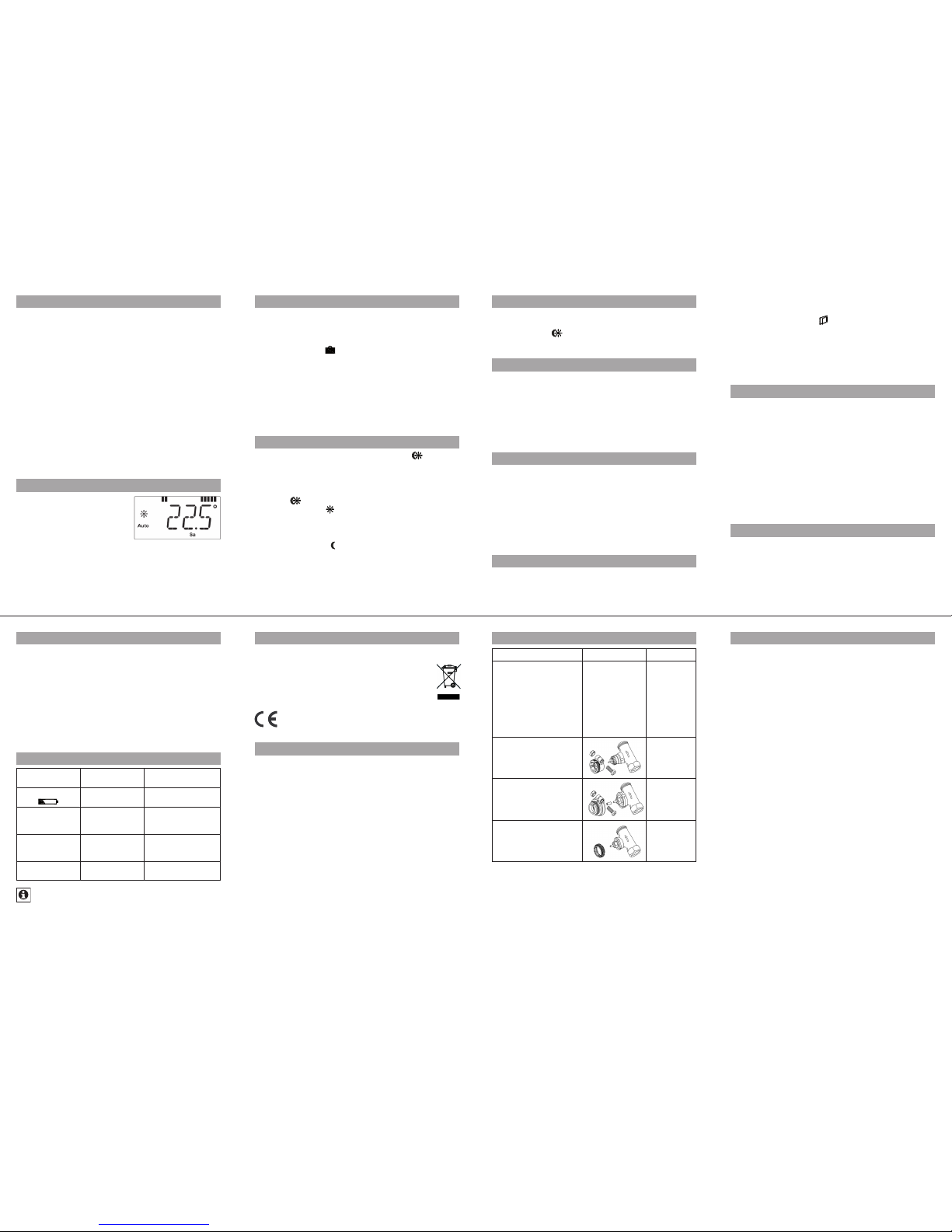

4. Configuration menu
The configuration menu can be used to modify settings.
To access this menu, press and hold down the menu
button (for more than 3 seconds).
PRO: For setting the weekly program (see Section “1•
Setting the weekly program”)
DAT: For modifying the time of day and date•
POS: For querying the actuator’s current position•
DST: Automatic switchover at the start or end of daylight•
saving time can be deactivated.
AER: For setting the “window open” temperature and•
time so that the temperature is automatically reduced
in the event of ventilation
TOF: For setting the offset temperature•
RES: For restoring the factory settings•
Use the setting wheel to select menu items and the OK but-
ton to confirm your choice. Press the menu button again to
return to the previous level. After 65 seconds without any-
thing happening, the menu will close automatically.
5. Display content during normal operation
Dur i ng norma l o p e rati o n,
the following are displayed:
switching periods, operating
mode, temperature setting
and day of the week.
The bars indicating the week-
ly program’s switching periods are shown for every other
time interval. For an example, please refer to “2. Weekly
program: Examples”.
6. Setting the holiday function
If you want a fixed temperature to be maintained for a set
period of time while you are on holiday or during a party,
you can make use of the Holiday function.
Press and release the menu button repeatedly until the•
suitcase symbol ( ) appears on the display.
Use the setting wheel to set the end of the time period•
during which the temperature is to be maintained.
Press the OK button to confirm.•
Then use the setting wheel to set the date.•
Press the OK button to confirm.•
Use the setting wheel to set the temperature; press OK to•
confirm. The display will flash to confirm your settings.
The set temperature will remain in force until the specified
time. After that, the actuator will adopt Auto mode.
7. Comfort and set-back temperatures
The comfort/set-back temperature button ( ) provides
an easy and convenient way of switching between these
two temperatures. The factory settings are 21.0°C and
17.0°C respectively. To adapt them, proceed as follows:
Press and hold down the comfort/set-back temperature•
button ( ) for more than 3 seconds.
The sun symbol (• ) will appear on the display along
with the current comfort temperature.
Use the setting wheel to modify the temperature; press•
OK to confirm.
The moon symbol (• ) will appear together with the set-
back temperature.
Use the setting wheel to modify the temperature; press•
OK to confirm.
The temperature can even be modified in Auto mode at any
time by using this button. The new setting will be retained
until the program’s next switching time.
8. Child-proof lock/Operating inhibit
Operation can be inhibited.
To activate/deactivate the operating inhibit, briefly press•
the Menu and buttons at the same time.
Once the function is active, “LOC” will appear on the display.•
To deactivate the function, press both buttons again.•
9. Setting the heating break
If the heating is being switched off for the summer, you can
save battery power. This involves opening the valve up fully.
Limescale protection measures remain in place.
To activate the heating break, turn the setting wheel•
clockwise during manual operation (Manu) until “ON”
appears on the display.
To terminate the heating break, quit manual operation•
(Manu) or turn the setting wheel anticlockwise.
10. Setting frost protection mode
If you do not want the room to be heated, the valve can
be closed. It will only be opened again if there is a risk of
freezing due to frost. Limescale protection measures re-
main in place.
To activate frost protection mode, turn the setting wheel•
anticlockwiseduringmanualoperation (Manu) until “OFF”
appears on the display.
To terminate frost protection mode, quit manual opera-•
tion (Manu) or turn the setting wheel clockwise.
11. “Window open” function
In the event of a significant drop in temperature, the actu-
ator can automatically detect whether the room is being
ventilated. To save on heating costs, the temperature is
then a utoma tic ally red uce d for a s pecific time p eriod (f ac-
tory setting: 15 minutes). While this function is active, the
“window open” symbol ( ) appears on the display.
Press and hold down the menu button for more than•
3 seconds.
Use the setting wheel to select the “AER” menu item.•
Confirm with OK.•
Use the setting wheel to set the temperature and time.•
To deactivate the function, select a time of “0”.
12. Setting the offset temperature
The temperature is measured at the heating appliance
itself, with the result that other parts of the room may be
warmer or colder than this. To allow for this, you can set
a temperature offset of ±3.5°C. If, for example, a tempe-
rature of 18°C is measured somewhere within the room
instead of the 20°C set, it means that an offset of -2.0°C
needs to be configured.
Press and hold down the menu button for more than•
3 seconds.
Use the setting wheel to select the “TOF” menu item.•
Confirm with OK.•
Use the setting wheel to modify the temperature.•
Press the OK button to confirm.•
13. Restoring the factory settings
You can reset the actuator to its initial state manually. This
will clear all the settings that have been made manually.
Press and hold down the menu button for more than•
3 seconds.
Use the setting wheel to select the “RES” menu item.•
Confirm with OK.•
“CFM” will appear on the display; press OK to confirm.•
14. Intended use
The electronic thermostat has been designed for the
purpose of controlling a standard heating appliance val-
ve. The device may only be operated indoors and must
be protected from the effects of damp and dust, as well
as solar radiation and sources of radiant heat.
Using the device for a purpose or in a manner other than
that described in this operating manual constitutes a
breach of the “intended use” and shall invalidate the war-
ranty and any liability claims. The same shall apply in the
event of any conversion or modification work. The devices
are intended exclusively for domestic use.
15. Troubleshooting and maintenance
Error code on
display Problem Remedy
Battery symbol
()
Battery power
too low Replace batteries
F1 Valve actuator
sluggish
Check installation,
inspect heating
valve
F2 Adjusting range
too large
Check
actuator
fastening
F3 Adjusting range
too small
Check heating
valve
At 12:00 every Saturday, the actuator performs a
weekly descaling function to prevent valve calcifica-
tion. “CAL” will appear on the display.
16. Instructions for disposal
Do not dispose of the device with regular domestic
waste.
Electronic equipment must be disposed of at local
collection points for waste electronic equipment in
compliance with local directives governing waste
electrical and electronic equipment.
The CE sign is a free trade sign addressed ex-
clusively to the authorities and does not warrant
any properties.
17. Safety instructions
The devices concerned are not intended for children and
must not be used as toys. Do not leave packaging materi-
al lying around, as children might be tempted to play with
it, which is extremely dangerous. Do not open the device:
it does not contain any components that need to be ser-
viced by the user. In the event of an error, please return
the device to our service department.
Issue 1 English 02/2010
Documentation © 2010 ELV Elektronik AG
All rights reserved.
90669, V1.2, www.elv.com
19. Technical properties
Supply voltage: 3 V
Max. current consumption: 100 mA
Batteries: 2x Mignon batteries (LR6/AA)
Battery life: Approx. 3 years
Display: LC display
Housing dimensions: 63 x 66 x 92 mm (W x H x D)
Connection: M30 x 1.5
We reserve the right to make any technical changes
that constitute an improvement to the device.
9
13
10
14
11
15
12
16
18. Adapter overview
Manufacturer Figure Adapter
Heimeier, MNG, Jun-
kers, Landis&Gyr
“Duodyr”, Honeywell-
Braukmann, Oventrop,
Schlösser, Simplex,
Valf Sanayii, Mertik
Maxitrol, Watts,
Wingenroth (Wiroflex),
R.B.M., Tiemme, Jaga
No adapter
required
Danfoss RA Included in scope of
supply
Danfoss RAV Included in scope of
supply
Danfoss RAVL Included in scope of
supply
Other adapters available as accessories.
