Eurotronic Comet Zigbee User manual

www.eurotronic.org
EN
ENERGY-SAVING RADIATOR THERMOSTAT
WITH ZIGBEE
Comet Zigbee®
GERMANY
MADE IN

1 Delivery scope 3
2 Warnings 4
3 Introduction of Comet Zigbee 5
4 Control and display elements 5
4.1 Buttons 5
4.2 LED-lights 6
5 Installation 7
5.1 Insert batteries 7
5.2 Set up into a Zigbee network 8
5.3 Mounting at radiator 9
5.4 Adapters 9 -10
5.5 Adaption 10 -11
5.6 Delete a device out of a Zigbee network 11
5.7 Dismounting Comet Zigbee 12
5.8 Factory reset 12
6 Operating the device 13
6.1 Setting the target temperature 13
6.2 Child protection / Key lock 13
6.3 Changing the operating mode 13
6.4 Window open detection 13
7 Operating Zigbee 14
7.1 Basic 14
7.2 Power Configuration 15
7.3 Thermostat 16
7.3.1 SW Build ID attribute 16
7.3.2 PI Heating demand attribute 16
7.3.3 Errors 16
7.3.4 Current temperature setpoint 16
7.4 Attribute reporting 16
8 Errors and messages help 17
9 Cleaning and storage 18
10 Technical specification 18
11 Support and contact 18
12 Warrenty 19
13 Legal information 19
CONTENT

– 3 –
1x Comet Zigbee Energy saving radiator
1x Quick Start Guide
3x Adapter for Danfoss Ventile (Danfoss RA / RAV / RAVL)
1x Screw for adapter
2x LR6/Mignon/AA batteries
NOTE: The illustrations below are for illustrative purposes only and may differ from the actual product.
2x batteries AA LR6
Screw for
adapter
Comet Zigbee
Energy saving radiator
* When using the RAV adapter, you need
the RAV pin to extend the valve tappet.
RAV
RA
RAVL
RAV pin*
NOTE: Check the scope of delivery for completeness and intactness.
1. DELIVERY SCOPE

– 4 –
WARNING!
This signal word designates a hazard with a medium level of risk which, if not avoided, can result in death or serious
injury.
A NOTICE! This signal word warns of possible damage to property.
Safety notice
- Comet Zigbee is intended for indoor use.
- Operate Comet Zigbee only as described in the user manual.
- Comet Zigbee should only be stored in a dry and dust-free place out of direct sunlight
be put into use.
- Do not continue to operate the device if it shows obvious damage.
- Comet Zigbee may not be rebuilt, modified or opened.
WARNING! EXPLOSION HAZARD!
Improper handling of batteries can cause an explosion.
- Do not heat batteries and do not throw batteries into open fire.
- Do not place batteries in direct sunlight.
- Protect batteries from excessive heat.
- Do not short-circuit the batteries.
- Never try to charge non-rechargeable batteries.
- Never disassemble batteries.
- Do not mix new and used batteries.
- Observe the correct polarity (+/-) when inserting the batteries.
- Before inserting the batteries, clean the batteries and the contacts in the thermostat.
WARNING! RISK OF BURNS!
Leaking battery acid can cause burns.
- Avoid contact of battery acid with skin, eyes and mucous membranes.
- In the event of contact with battery acid, immediately rinse the affected areas with plenty of clear water and
see a doctor.
WARNING! RISK OF INJURY!
If children play with the thermostat or the packaging, they can swallow small parts and choke.
- Do not let children play with the thermostat or the packaging.
- Keep batteries away from children. Consult a doctor immediately if batteries
were swallowed.
2. WARNINGS

– 5 –
4.1 BUTTONS
4. CONTROL- AND DISPLAY ELEMENTS
Button Action Meaning
short push Decrease target temperature for 0,5°C
press and hold Decrease target temperature for 0,5°C, then decrease by 0.5°C every 0.5
seconds as long as the button is pressed or the end value is reached.
short push Increase target temperature for 0,5°C
press and hold
Increase the target temperature immediately by 0.5°C, then increase by
0.5°C every 0.5 seconds as long as the button is pressed or the end value is
reached.
Button in bat-
tery compart-
ment
press and hold for 5 seconds Comet Zigbee reacts to remove commands from the gateway. (Exclusion)
Button in bat-
tery compart-
ment
press and hold for 10 seconds The device gets a factory reset.
press and hold both for 3 seconds Activate or deactivate key lock/child lock.
when displayed “Ad“ press and
hold both for 3 seconds Adaptation get started
Minus Plus
Thank you for choosing a product from Eurotronic Technology GmbH. This device can conveniently adjust the tempera-
ture in your rooms according to your wishes and help you effectively reduce your heating costs.
Development and manufacturing are 100% “Made in Germany”, which ensures the highest quality and technology. This
instruction manual will help you to start using your device easily and quickly.

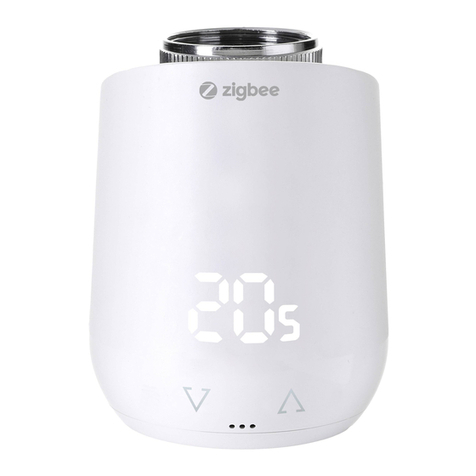

THIS IS COMET ZIGBEE
Comet Zigbee is an energy-saving radiator controller that is compatible with the Zigbee wireless standard and offers
modern and simple operation. It automatically controls your room temperature according to your specifications and is
configurable, directly on the controller or conveniently via smartphone through your Zigbee network.
&
3. INTRODUCTION OF COMET ZIGBEE
&

– 6 –
4.2 LED-LIGHTS
Radio symbol:
Pairing mode (Inclusion) active.
Exclusion mode active.
Adaptation must be started.
Animation: Lights up while adaptation is running.
Animation: Lights up when the key lock is activated/deacti-
vated.
Lights up when the battery level is less than 15%.
Removal operation (Exclusion) failed.
No valve movement possible .
No valve detected.
Closing point not detected.
Add operation (Inclusion) failed.
Informs about radio connection and adding operations.
Is switched on when radio connection is established.
Turns off when radio connection is lost.

– 7 –
The Comet Zigbee does not belong to any Zigbee network ex works. The Comet Zigbee must be added to an existing
network in order to communicate with other Zigbee devices. This process is called inclusion. The Comet Zigbee can also
leave a network. This operation is called removal (exclusion). Both operations must be initiated by a primary Zigbee con-
troller. To do this, the controller must be put into Add or Remove mode. Please refer to the user manual of your Zigbee
controller how to start the modes. Only when the primary controller is in add/remove mode, Zigbee devices can join
or leave the network. If the device already belongs to a network, the device must first be removed from the network.
Otherwise, the join attempt will fail.
Behavior in the Zigbee network
The Comet Zigbee can be added to any Zigbee network and operate with other Zigbee certified devices and/or applica-
tions from other manufacturers. All non-battery powered network nodes (nodes), regardless of manufacturer, act as
repeaters within the network and improve the reliability of the wireless network.
Network security
Comet Zigbee can communicate encrypted with other Zigbee devices, if they also support encrypted communication. If
this is not the case, Comet Zigbee communicates unencrypted.
NOTE: To use the full functionality of the Comet Zigbee, a security enabled Zigbee controller is required.
5. INSTALLATION
Remove the battery cover by pulling it upwards by the notch (Fig.1).
Now insert the batteries. Pay attention to the correct polarity! Do not use rechargeable batteries!
Reattach the battery cover to the Comet Zigbee (Fig.2) by pressing it on until it clicks.
In case of a later battery change, the configuration of your Comet Zigbee will be preserved.
5.1 INSERT BATTTERIES
F
i
g
.
2
F
i
g
.
1

– 8 –
5.2 SET UP INTO A ZIGBEE NETWORK
Add successful
Animation for reaching the
mounting position runs.
Inclusion is executed.
Counter counts down from 99.
after 5 seconds
Inclusion successful.
Received Node ID is
displayed.
Put your primary Zigbee controller into include mode.
If Comet Zigbee was successfully added, the LED display will show the received node ID.
radio symbol
turns on
Assembly necessary.
See next page
For Node-ID > 99: First
hundreds digit flashing
then 10s and 1s digit
permanently on.
Example:
Node-ID = 235
2 flashes, then 35 is dis-
played permanently
is permanently displayed
Inclusion Error
Inclusion is executed.
or clears error message
Inclusion failed
Press or key to confirm

– 9 –
5.3 MOUNTING AT A RADIATOR
After adding (inclusion), the LED display shows an animation and the thermostat moves to the mounting position. Sub-
sequently, the LED display shows “Ad”.
Follow the mounting steps below:
1. Unscrew old thermostatic head completely, loosen fastening and pull it off the valve (fig.3).
2. If necessary, select a suitable adapter and mount it on the valve (Fig.4).
3. Screw the thermostat onto the valve or adapter by turning the union nut clockwise (Fig.5).
When you have mounted the Comet Zigbee on the valve, continue with 5.4 Adaptation.
F
i
g
.
3
F
i
g
.
5
F
i
g
.
4
5.4. ADAPTERS
NOTE:
Remove the connecting pieces of the plastic adapters completely (Fig.6) before using one of the enclosed adapters! For
Danfoss RA/RAV use the enclosed screw and nut.
No adapter is required for the following valves:
Heimeier; Junkers Landys+Gyr; MNG; Honeywell; Braukmann, as these have a thread dimension of M30 x 1.5 mm.
The adapters for Danfoss RAV (pin must be plugged on valve tappet), Danfoss RA and Danfoss RAVL are enclosed.
You will need an adapter for the following valves:
Herz M28 x 1,5 mm; Comap M28 x 1,5 mm; Vaillant 30,5 mm; Oventrop M30 x 1,0 mm; Meges M38 x 1,5 mm; Ondal
M38 x 1,5 mm; Giacomini 22,6 mm; Rossweiner M33 x 2,0 mm; Markaryd M28 x 1,0 mm; Ista M32 x 1,0 mm; Vama
M28 x 1,0 mm; Pettinaroli M28 x 1,5 mm; T+A M28 x 1,5 mm; Gampper 1/2/6; Danfoss RA/RAV/RAVL.
Fig. 6

– 10 –
Target temperature of 21°is displayed.
Press and hold and key together for 3
seconds, to start adaptation.
Adaptation is executed.
Animation is displayed.
Adaptation successful
5.5 ADAPTATION
Adaptation
NOTE:
If a new adaptation is required later, remove the
batteries from the device and reinsert the batteries.
Ad” then appears on the LED display. Now start the
adaptation by simultaneously holding down both keys
and for 3 seconds.
RAV RA RAVLRAV Pin
You can purchase further metal adapters for a fee from our partners. An overview of the metal adapters and corre-
sponding ordering options can be found under the following link:
https://eurotronic.org/produkte/zubehoer/metalladapter/
If you are not sure which valve you have, see: https://eurotronic.org/service/faq In chapter “Adapterliste“.

– 11 –
Exclusion is executed.
Countdown starts from 99 to 0
Adaptation error
Exclusion
Mounting position is prepared.
Animation is displayed.
5.6 DELETE A DEVICE OUT OF A ZIGBEE NETZWORK
Please put your Zigbee controller into the exclusion mode. Then press and hold the button in the battery compartment
for 5 seconds until “LE” appears in the display.
Press key in battery com-
partment for 5 seconds.
Exclusion successful Exclusion failed
Mech.
error
buy here
Adapter
or key clears error message.
Adaptation failed.
Repeat the process.
Press and hold and key
together for 3 seconds.

– 12 –
Remove the Comet Zigbee from the network before disassembling the device. To do this, please put your Zigbee
controller in the removal mode (Exclusion). Then press and hold the button in the battery compartment for 5 seconds
(Fig.7). The LED display shows Node ID 0 if the removal was successful and the valve tappet moves into mounting po-
sition. Wait until the display shows “PA”. Now unscrew the union nut counterclockwise and remove it from the Comet
Zigbee valve (Fig.8).
Press and hold the button in the battery compartment of your Comet Zigbee for at least 10 seconds. From the 5th
second on, a counter will run on the thermostat’s display. Keep the button pressed until the 10 appears on your Comet
Zigbee. Then “Ad” will be shown again on the display and the controller will be in pairing mode.
NOTE: Use the factory reset only if your primary Zigbee controller is no longer available or is inoperable for other rea-
sons.
Device
XY
removed.
5.7 DISMOUNTING COMET ZIGBEE
5.8 FACTORY RESET
Counter counts up from 5 to 10. After reaching 10, the display
shows “PA” again.
The pairing mode is active again.
F
i
g
.
8
F
i
g
.
7

– 13 –
6 OPERATING THE DEVICE
The LED display shows the set setpoint temperature or the set valve opening degree when the Comet Zigbee is operat-
ed in the actuator mode.
6.1 SETTING THE TARGET TEMPERATURE
The set temperature is changed via the and button.
The local change of the setpoint temperature puts the Comet Zigbee in heating mode.
The setpoint temperature of the setback mode can only be adjusted by radio.
The input range of the set temperature is 8°- 28°C.
If the temperature is increased or decreased beyond this, the Comet Zigbee will switch to boost or off mode.
6.2 CHILD PROTECTION / KEY LOCK
The child protection/key lock can be switched on and also switched off again by simultaneously holding down the
and button for 3 seconds, when the display is off.
If the Comet Zigbee is set to the highest protection level by radio, local operation is no longer possible. The child safety
lock can then also no longer be removed locally.
6.3 CHANGING THE OPTERATING MODE
OFF-Mode
Press the key as long as “--” is displayed on your thermostat.
Heating-Mode
If the device is not in the heating-mode, change the temperature by using keys, between 8 to 28 degrees.
Boost-Mode
If your device is not in the Boost-mode, keep the key pressed, until the device displays “ON”
6.4 WINDOW OPEN DETECTION
If the temperature drops abruptly, the window open mode is activated. The Comet Zigbee will switch to off mode for 10
minutes. The window-open mode is automatically exited after 10 minutes and the previously active mode is restored.
In Manufacturer Specific Mode, the window-open detection is not executed.
The sensitivity of the window open detection can be configured.

– 14 –
7 OPERATING ZIGBEE
Cluster Attribute Attribute
ID Default Value Data Type
Read/
Write
(R/W)
Manufactorer
Specific ( Y/N)
Reporta-
ble (Y/N)
Basic
ZCL Version 0x0000 0x02 0x20 (int8u) R N N
Application Version 0x0001 App Version 0x20 (int8u) R N N
Stack Version 0x0002 0x04 0x20 (int8u) R N N
Hardware Version 0x0003 0x22 0x20 (int8u) R N N
Manufactorer Name 0x0004 0x1010 0x42 (0-32
byte String)
R N N
Model Identifier 0x0005 COZBXXX
(XXXX=Applicati-
on Version)
0x42 (0-32
byte String)
R N N
Date Code 0x0006 YYYYMMDD 0x42 (0-16
byte String)
R N N
Power Source 0x0007 0x03 (battery) 0x30 (8-bit
enum)
R N N
Product Code 0x000A 1002 = Eurotro-
nic Comet Zigbee
0x42 (0-8
byte String)
R N N
SW Build ID 0x4000 00000000 0x42 (0-16
byte String)
R N N
Cluster Endpoint Cluster id Server Client
Basic 1 0x0000 •
Power configuration 1 0x0001 •
Thermostat 1 0x0201 • •
OTA 1 0x0019 •
Cluster Attribute Attribute
ID Default Value Data Type
Read/
Write
(R/W)
Manu-
factorer
Specific
( Y/N)
Reporta-
ble (Y/N)
Power Cofigu-
ration
Battery Charge Re-
maining
0x0021 0x00 0x20 (int8u) R N N
Battery Size 0x0031 0x03 (AA) 0x20 (int8u) R N N
Battery Quantity 0x0033 0x02 0x20 (int8u) R N N
7.1 BASIC
7.2 POWER CONFIGURATION

– 15 –
Cluster Attribute Attribute
ID Default Value Data Type
Read/
Write
(R/W)
Manufactorer
Specific ( Y/N)
Repor-
table
(Y/N)
Ther-
mostat
Local Temperature 0x0000 0x29 (int16s) R N Y
Pi Heating Demand
(valve position %)
0x0008 0x00 0x20 (int8u) R N N
Local Temperature
Calibration
0x0010 0x00 0x28 (int8s) RW N N
Occupied Heating Set
point
0x0012 0x7D0
(21°C)
0x29 (int16s) RW N N
Unoccupied heating 0x0014 0x7D0
(21°C)
0x29 (int16s) RW N N
Min Heat Setpoint
Limit
0x0015 0x01F4
(7,5°C)
0x29 (int16s) R N N
Max Heat Setpoint
Limit
0x0016 0x0BB8
(28,5°C)
0x29 (int16s) R N N
System Mode 0x001C 0x04 (Heat) 0x30 (8-bit
enum)
RW N N
TRV Mode 0x4000 0x02 (MANU
Mode)
0x30 (0-8 bit
enum)
RW Y N
Set Valve Position 0x4001 0x00 0x20 (int8u) RW Y N
Errors 0x4002 0x00 0x20 (int8u) R Y Y
Current Temperature
Set Point
0x4003 0x7D0
(21°C)
0x29 (int16s) RW Y Y
Host Flags 0x4008 0x000001 0x24 (int24u) RW Y N
7.3 THERMOSTAT

– 16 –
7.3.3 ERRORS
7.3.1 SW BUILD ID ATTRIBUTE
This attribute defines the firmware version of the device. With every release of new firmware the value of this attribute
will be updated.
7.3.2 PI HEATING DEMAND ATTRIBUTE
The attribute can only be read. An unsigned integer is supplied when reading, this representing the current valve posi-
tion.
0 = Valve closed
Device Type Pre-Configured
Reporting Interval Cluster Attribute Attribute ID
TRV Report on change Thermostat Errors 0x4002
TRV Report on change Thermostat Current Temperature
Set point
0x4003
TRV Report on change Thermostat Host Flags 0x4008
Bit 7 6 5 4 3 2 1 0
Error reserved reserved Valve not
moving
(E3)
Valve Movement
too slow (E2)
Valve Adaptatio failed
(E1)
reserved reserved reserved
7.3.4 CURRENT TEMPERATURE SETPOINT
Any value written to Thermostat / Occupied / Unoccupied Heating Setpoint attribute (0x0012 or 0x0014) will auto-
matically be copied to the Current Temperature Set point attribute (0x4003) to allow operating the TRV without the
need to be aware of the customer specific attributes.
7.4 ATTRIBUTE REPORTING

– 17 –
8 ERRORS AND MESSAGES HELP
Problem Reason Solution
Batteries almost empty Replace the batteries
Radiator does not
not heat up.
Boiler water temperature O.K?
Valve does not open, is it calcified after
the summer/heating break?
Adjust the temperature of the boiler water. Remove
the Comet Zigbee. Move the valve pin back and forth
manually/using tool.
Radiator does not
cool down.
Valve does not close completely. It may
be that the closing point of your valve
seal has shifted.
Remove the Comet Zigbee.
Move the valve pin back and forth manually - adapta-
tion may not be possible because your valve may be
calcified or the seal no longer fulfills its function.
Pressure piece falls
out
Due to an endless thread, the pressure
piece that is situated at the bottom
can fall out if the device has not been
mounted on the valve.
Remove the batteries from the device.
Insert the pressure piece.
Insert the batteries.
Er 1 - 3 and ER The errors message can be cleared by pressing the or key.
Joining failed. Zigbee controller not in pairing mode or out of range.
No valve detected Correctly mount the device on the radiator?
Use the correct adapter
Closing point not detected Device correctly mounted on the radiator?
Valve positioning not posible Valve pin freely movable?

– 18 –
INFORMATION: NOTE RISK OF DAMAGE!
An incorrect handling of the thermostat can cause damage.
- Do not submerge the thermostat in water or other fluids.
- Do not use abrasive cleaning agents, brushes with metal or nylon bristles or sharp or metallic cleaning implements
such as knife, a hardspatula etc.
- Clean the thermostat with a soft and dry cloth. Do not apply any pressure to the display
9. CLEANING AND STORAGE
10. TECHNICAL SPECIFICATION
Device name Comet Zigbee
EAN 4260012712438
Article number 700227
Powery supply 2 x 1,5V LR6/Mignon/AA
Radio frequence 2,4 GHz
Transmitting power +8dBm
Method of operation Type 1
Dimension (mm) (B x H x T): 62x68x83
Weight 230g (incl. batteries)
Degree of protection IP20
Degree of pollution 2
Connection M30 x 1,5mm
Subject to technical changes at any time. Compatibility data without guarantee.
11. SUPPORT AND CONTACT
Eurotronic Technology GmbH
Südweg 1
36396 Steinau - Ulmbach
Germany
For technical support please contact us by email or phone.
Telefon: [phone]
Email: [e-mail]
Internet: www.eurotronic.org

– 19 –
The warranty period is 24 months and starts on the day of purchase. Please keep the receipt as proof of purchase.
During the warranty period, defective energy-saving controllers can be sent to the service address below with sufficient
postage. You will then receive a new or repaired device back free of charge. Repair or replacement of the device does
not start a new warranty period. Please note that we only guarantee the functions of the device, not the functionality
between the interaction of the thermostat and the valve base.
The application-related technical data are guaranteed only together with the valves Heimeier, Junkers Landys+Gyr,
MNG, Honeywell Braukmann thread dimension (M30x1,5), Oventrop (M30x1,5) Danfoss RA, RAV and RAVL. The device
combinations can be taken from our website (https://eurotronic.org/service/faq). When operating the thermostat with
third-party valves/adapters that are not listed, the functionality must be ensured by the user. Eurotronic does not pro-
vide any warranty service in these cases. After the warranty period has expired, you also have the option of sending the
defective device, with sufficient postage, to the address provided for the purpose of repair. Repairs carried out after the
expiry of the warranty period are subject to a charge. Your statutory rights are not restricted by this warranty.
13. LEGAL INFORMATION
Dispose of thermostat:
(Applicable in the European Union and other European countries with systems for separate collection of recy-
clable materials). Old devices must not be disposed of with household waste! If the thermostat can no longer
be used, every consumer is required by law to dispose of old devices separately from household waste, e.g. at a
collection point in his community/borough. This ensures that old appliances are recycled properly and that neg-
ative effects on the environment are avoided. This is why electrical appliances are marked with the symbol shown here.
Batteries and rechargeable batteries must not be disposed of with household waste!
As a consumer, you are required by law to take all batteries and rechargeable batteries, whether they contain
harmful substances* or not, to a collection point in your municipality/borough or to a retailer so that they can be
disposed of in an environmentally friendly manner.
Dispose of packaging:
Dispose of the packaging according to type. Put cardboard and carton in the waste paper collection, foils in the
recyclables collection.
Konformitätserklärung:
Eurotronic Technology GmbH hereby declares that the Comet Zigbee radiator thermostat is in compliance with
Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet
address: https://eurotronic.org/produkte/zigbee-heizkoerperthermostat.
*marked with: Cd = Cadmium, Hg = Mercury, Pb = Lead
12. WARRENTY
Stand-23 04 06
