FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide
D301855X012
November 2020
Remote Automation Solutions
FB2100/FB2200 Flow Computer
Coin Cell Battery
Field Replacement Guide
For Part Numbers (Kits):
395620-03-1: Coin Cell Battery

FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide
D301855X012
November 2020
Device Safety Considerations
Reading these Instructions
Before operating the device, read these instructions carefully and understand their safety implications. In some situations,
improperly using this device may result in damage or injury. Keep this manual in a convenient location for future reference.
Note that these instructions may not cover all details or variations in equipment or cover every possible situation regarding
installation, operation, or maintenance. Should problems arise that are not covered sufficiently in the text, immediately
contact Customer Support for further information.
Protecting Operating Processes
A failure of this device – for whatever reason -- may leave an operating process without appropriate protection and could result
in possible damage to property or injury to persons. To protect against this, you should review the need for additional backup
equipment or provide alternate means of protection (such as alarm devices, output limiting, fail-safe valves, relief valves,
emergency shutoffs, emergency switches, etc.). Contact Remote Automation Solutions for additional information.
Returning Equipment
If you need to return any equipment to Remote Automation Solutions, it is your responsibility to ensure that the equipment
has been cleaned to safe levels, as defined and/or determined by applicable federal, state and/or local law regulations or
codes. You also agree to indemnify Remote Automation Solutions and hold Remote Automation Solutions harmless from any
liability or damage which Remote Automation Solutions may incur or suffer due to your failure to ensure device cleanliness.
Grounding Equipment
Ground metal enclosures and exposed metal parts of electrical instruments in accordance with OSHA rules and regulations as
specified in Design Safety Standards for Electrical Systems, 29 CFR, Part 1910, Subpart S, dated: April 16, 1981 (OSHA rulings are
in agreement with the National Electrical Code). You must also ground mechanical or pneumatic instruments that include
electrically operated devices such as lights, switches, relays, alarms, or chart drives.
Important: Complying with the codes and regulations of authorities having jurisdiction is essential to ensuring personnel
safety. The guidelines and recommendations in this manual are intended to meet or exceed applicable codes and regulations.
If differences occur between this manual and the codes and regulations of authorities having jurisdiction, those codes and
regulations must take precedence.
Protecting from Electrostatic Discharge (ESD)
This device contains sensitive electronic components which be damaged by exposure to an ESD voltage. Depending on the
magnitude and duration of the ESD, it can result in erratic operation or complete failure of the equipment. Ensure that you
correctly care for and handle ESD-sensitive components.
System Training
A well-trained workforce is critical to the success of your operation. Knowing how to correctly install, configure, program,
calibrate, and trouble-shoot your Emerson equipment provides your engineers and technicians with the skills and confidence
to optimize your investment. Remote Automation Solutions offers a variety of ways for your personnel to acquire essential
system expertise. Our full-time professional instructors can conduct classroom training at several of our corporate offices, at
your site, or even at your regional Emerson office. You can also receive the same quality training via our live, interactive
Emerson Virtual Classroom and save on travel costs. For our complete schedule and further information, contact the Remote
Automation Solutions Training Department at 800-338-8158 or email us at [e-mail].
Ethernet Connectivity
This automation device is intended to be used in an Ethernet network which does not have public access. The inclusion of this
device in a publicly accessible Ethernet-based network is not recommended.

FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide
D301855X012
November 2020
1
Removing/Replacing Batteries
The coin cell SRAM backup battery preserves data in SRAM memory in the event of a power loss
and provides backup power to the real-time clock.
Refer to the table below for the correct field replacement kit part number.
Item
Field Replacement Kit
Part Number
Coin cell lithium battery for SRAM backup 395620-03-1
UL Kit File Number: E192567
Ambient Temperature Range
May be used up to a maximum ambient temperature of 80°C and a minimum ambient temperature
of –40°C; refer to the data plate attached to the device.
Required Tools
#2 Phillips-head screwdriver
Hexagonal torque wrenches with 3mm and #1 Phillips-head bits. Ranges must include 4 to 6
in-lbs (0.5 to 0.7 N-m).
Electrical Ratings
Input Voltage: 10.5 Vdc to 30 Vdc external supply (Max power at 10 watts)
Restriction
Hazardous area approvals require that any part replaced in the field be the exact same part (like for
like). Upgrading or substituting different parts violates hazardous area certification.
Important
Use only accessories (batteries) supplied with the flow computer or sold by Emerson as spare parts
for this flow computer. Substituting a part you obtain elsewhere (such as a battery) voids your
approval certification.
DANGER
EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous.
Performing this operation in a hazardous area could result in an explosion.
DANGER
EXPLOSION HAZARD: Never open the enclosure in hazardous location. Opening the enclosure in
a hazardous location could result in an explosion.
WARNING
EXPLOSION HAZARD – Substitution of any components may impair suitability for Class 1,
Division 2.

FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide
D301855X012
November 2020
2
WARNING
EXPLOSION HAZARD - Do not disconnect equipment unless power has been removed or the area
is known to be non-hazardous.
WARNING
EXPLOSION HAZARD – Do not replace batteries unless power has been switched off or the area is
known to be non-hazardous. Change batteries
only
in an area known to be non-hazardous.
Note
Use these cell batteries only in devices where the servicing of the cell circuit and replacement of the
lithium cells is done by a trained technician.
Important
If this equipment is used in a manner not specified by the manufacturer, the protection provided by
equipment may be impaired.
Removing/Replacing the SRAM Backup Battery
UL Listed Coin Cell Battery Field Installed Accessory Kit for Use in Class I, Division 2, Groups A, B, C,
and D
Flow Computer Coin Cell Battery Field Installed Accessory Kit Part No. 395620-03-1 for Use
with UL Listed Class I, Division 2, Groups A, B, C, & D Model Series FB2100 and FB2200
A lithium coin cell battery provides backup power for the SRAM and the real-time clock. The SRAM
backup battery can last for up to 10,000 hours of cumulative operation, and only runs if the main
power system fails. You do not need to power down the unit to replace the SRAM backup battery.
Important
Replacement SRAM backup batteries must be either the Rayovac®Model BR2335 or the
Panasonic®Model BR2330.
WARNING
EXPLOSION HAZARD - Batteries must only be changed in an area known to be non-hazardous. See
notices at the front of this document.
1. Open the enclosure.
2. Loosen the two captive fastening screws on the cover of the black CPU enclosure (which has
the HMI module attached to it) and place the cover aside.

FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide
D301855X012
November 2020
3

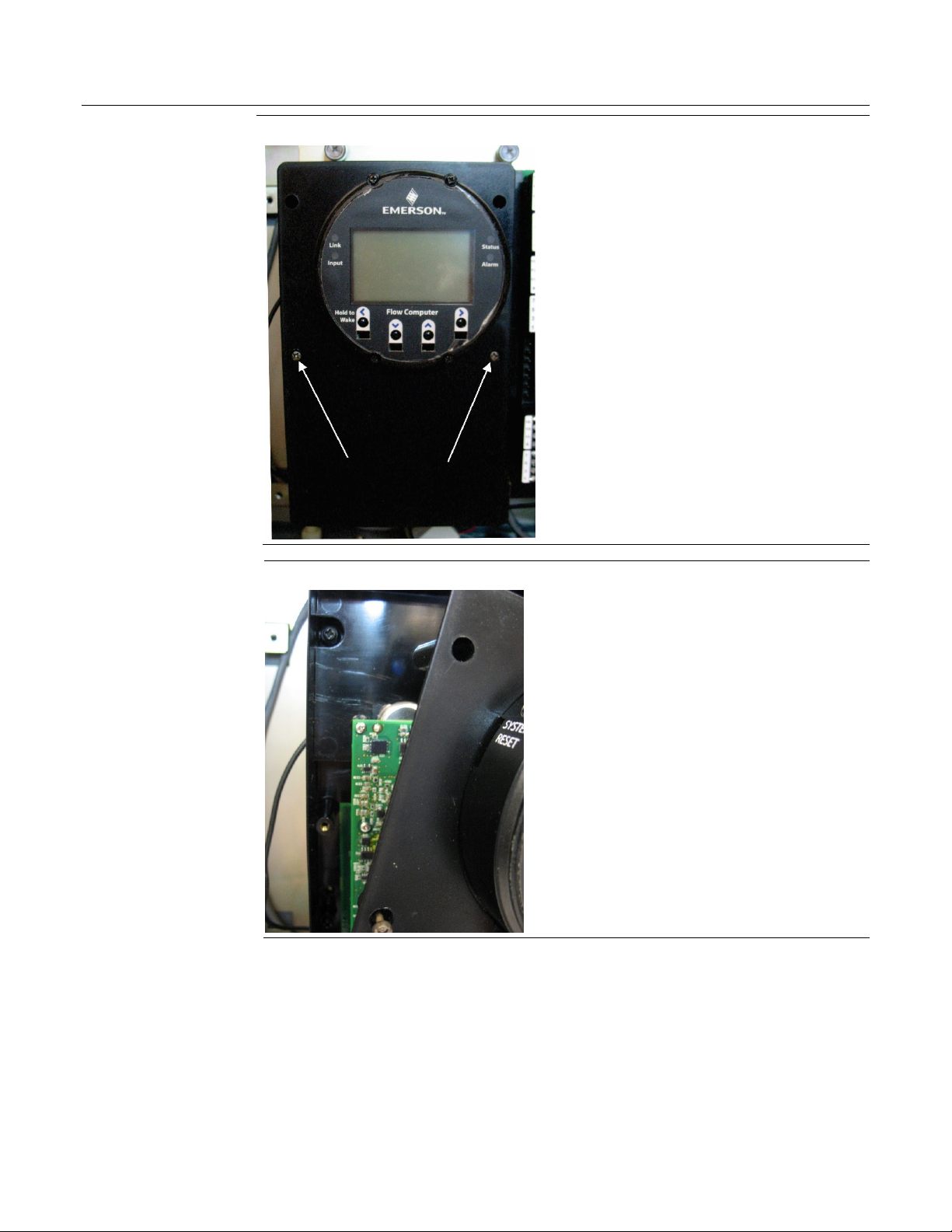

Loosen the Captive Fastening Screws
Removing the CPU Enclosure Cover
3. Grasp the coin cell battery and, with your fingernail in the groove of the top of the battery,
slide it out of its slot.

FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide
D301855X012
November 2020
4
Coin Cell Battery Removal/Replacement
4. Insert the new coin cell battery in the slot. The negative side (shiny with no writing on it)
must be facing outwards (towards where the CPU enclosure cover would be).
5. Reattach the cover of the CPU enclosure. Tighten the captive fastening screws with a torque
value of 4 to 6 in-lbs (0.5 to 0.7 N-m).
6. Close the flow computer enclosure.
