SERVICE MANUAL
DVD RECORDER
EWR10D4
This service manual is for the EWR10D4 R1.5 Version
model, which are different from previous EWR10D4
model.
For EWR10D4 R1.5 Version
model, FUNAI model number
(E6620UD) is printed on bar code
label of bottom. Refer to the bar
code label illustration at right.
EWR10D4
E6620UD
FUNAI model number
bar code label

IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk of
personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first use
all precautions thoroughly so that neither his safety nor the safe operation
of the equipment will be jeopardized by the service method selected.
TABLE OF CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
LASER BEAM SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
IMPORTANT SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
STANDARD NOTES FOR SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1
OPERATING CONTROLS AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

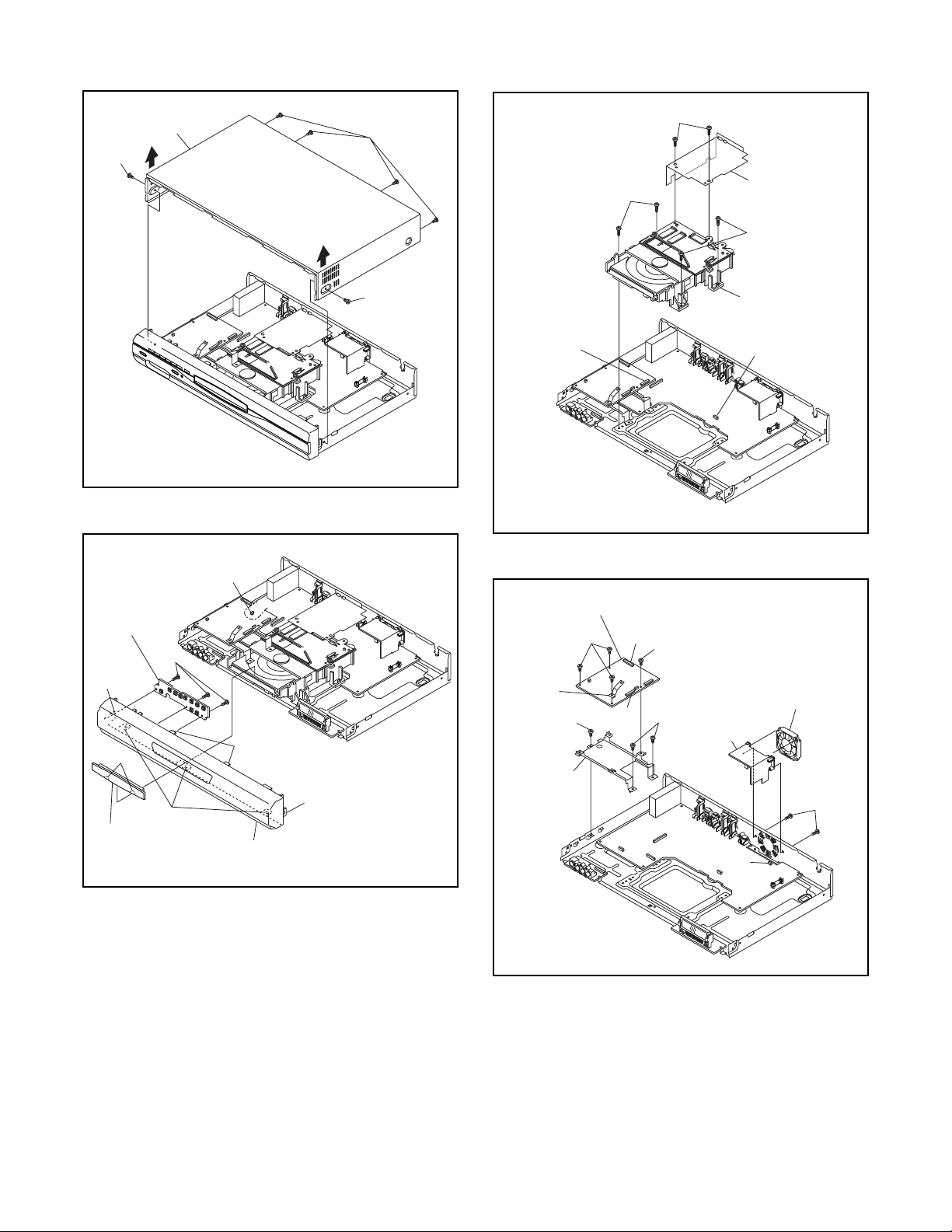

CABINET DISASSEMBLY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1
HOW TO INITIALIZE THE DVD RECORDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-4
BLOCK DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
FUNCTION INDICATOR SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-6
SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1
WAVEFORMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1
FIRMWARE RENEWAL MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1
SYSTEM CONTROL TIMING CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1
IC PIN FUNCTION DESCRIPTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1
LEAD IDENTIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1
EXPLODED VIEWS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1
MECHANICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1
ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17-1
Manufactured under license from Dolby Laboratories. "Dolby"
and the double-D symbol are trademarks of Dolby Laboratories.

1-1-1 E6500SP
SPECIFICATIONS
NOTES:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply : AC120 V 60 Hz
3. Load imp. : 100 k ohm
4. Room ambient : 5 °C ~ 40 °C
ITEM CONDITIONS UNIT NOMINAL LIMIT
1. VIDEO
1-1. Video Output 75 ohm load Vp-p 1.0
1-2. S-Video Output
Y (Luminance) 75 ohm load Vp-p 1.0
C (Chrominance) 75 ohm load Vp-p 0.286
1-3. Component Output
Y (Luminance) 75 ohm load Vp-p 1.0
Cb (Chrominance) 75 ohm load Vp-p 0.7
Cr (Chrominance) 75 ohm load Vp-p 0.7
2. AUDIO
2-1. Output Level Vrms 2.0
2-2. Frequency Response
DVD-VIDEO LPCM fs = 96 kHz kHz 0.004 - 44
fs = 48 kHz kHz 0.004 - 22
Audio CD fs = 44.1 kHz kHz 0.004 - 20
2-3. Signal/Noise Ratio
DVD-VIDEO LPCM dB 120
CD dB 120
REC & Playback Input: 2 Vrms, Rec Speed: XP dB 93
2-4. Dynamic Range
DVD-VIDEO LPCM dB 100
CD dB 98
REC & Playback Input: 2 Vrms, Rec Speed: XP dB 92
2-5. THD+N 1 kHz, 0 dB
DVD-VIDEO LPCM % 0.004
CD % 0.004
REC & Playback Input: 2 Vrms, Rec Speed: XP % 0.006

1-2-1 R1.5_LASER
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Drive Mecha Assembly
Laser Beam Radiation
Laser Pickup
Turntable
Location: Inside Top of DVD mechanism.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.

1-3-1 DVD_SFN1
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not evi-
dent from visual inspection, nor can the protection they
give necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are iden-
tified by a #on schematics and in parts lists. Use of a
substitute replacement that does not have the same
safety characteristics as the recommended replace-
ment part might create shock, fire, and/or other haz-
ards. The Product’s Safety is under review
continuously and new instructions are issued when-
ever appropriate. Prior to shipment from the factory,
our products are carefully inspected to confirm with
the recognized product safety and electrical codes of
the countries in which they are to be sold. However, in
order to maintain such compliance, it is equally impor-
tant to implement the following precautions when a set
is being serviced.
Precautions during Servicing
A. Parts identified by the #symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block-
ing capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder-
ing.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fus-
ible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to prevent
shock hazards.
Replacement procedure
1)Remove the old connector by cutting the wires at a
point close to the connector.
Important: Do not re-use a connector. (Discard it.)
2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete clo-
sure of the tool.
L. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.

1-3-2 DVD_SFN1
Chassis or Secondary Conductor
dd'
Primary Circuit Terminals
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BEarth Ground
Power Cord Plug Prongs
Z
1.5k 0.15 F
Safety Check after Servicing
Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts,
and wires have been returned to their original posi-
tions. Afterwards, do the following tests and confirm
the specified values to verify compliance with safety
standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol-
dered terminals, and between terminals and surround-
ing metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF termi-
nals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.
AC Line Voltage Clearance Distance (d), (d’)
120 V ≥3.2mm (0.126 inches)
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V 0.15µF CAP. & 1.5kΩ RES.
Connected in parallel i≤0.5mA Peak Exposed accessible parts
Fig. 1
Fig. 2

1-4-1 E6STA
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is indi-
cated as shown.
2. For other ICs, pin 1 and every fifth pin are indicated
as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:.
(1) Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
(2) Remove the flat pack-IC with tweezers while apply-
ing the hot air.
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Caution:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage to
the chip parts may occur. Put masking tape around
the flat pack-IC to protect other parts from damage.
(Fig. S-1-2)
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1

1-4-2 E6STA
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.
With Soldering Iron:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2) Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Fig. S-1-2
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape Fig. S-1-3
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-4
Fine Tip
Soldering Iron
Sharp
Pin

1-4-3 E6STA
With Iron Wire:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2) Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3) While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA contact
pads as shown in Fig. S-1-5.
(4) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.
2. Installation
(1) Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA so
you can install a replacement flat pack-IC more
easily.
(2) The “I” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
(3) Solder all pins of the flat pack-IC. Be sure that none
of the pins have solder bridges.
Fig. S-1-5
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-6
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-7
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-8
Presolder
CBA
Flat Pack-IC

1-4-4 E6STA

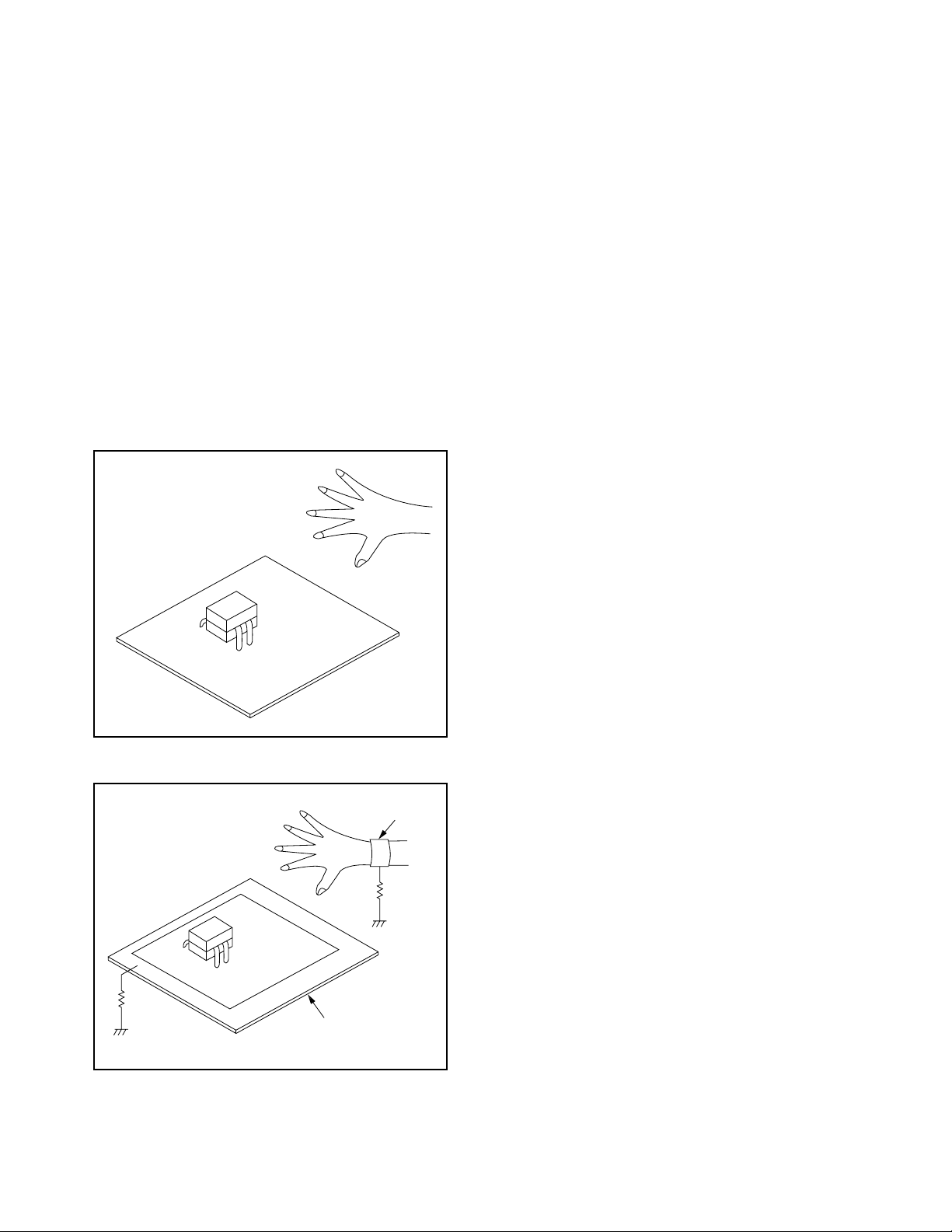

Instructions for Handling
Semi-conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electro-
static charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1MΩ) that is prop-
erly grounded to remove any static electricity that may
be charged on the body.
2. Ground for Workbench
(1) Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body ground-
ing band, be careful to avoid contacting semi-con-
ductors with your clothing.
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA

1-5-1 E6620IB
OPERATING CONTROLS AND FUNCTIONS

1-5-2 E6620IB

1-6-1 E6620DC
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector, W=Washer
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5): Refer to “Reference Notes.”
Reference Notes
CAUTION 1: Be sure to remove the Top Cover with lift-
ing up by the right and left portion in the front as
shown in Fig. D1.
CAUTION 2: Locking Tabs (L-1), (L-2) and (L-3) are
fragile. Be careful not to break them.
2-1. Connect the wall plug to an AC outlet and press
the [OPEN/CLOSE] button to open the tray.
2-2. Remove the Tray Panel by releasing two locking
tabs (L-1).
2-3. Press the [OPEN/CLOSE] button again to close
the tray.
2-4. Press the [POWER] button to turn the power off.
2-5. Unplug an AC cord.
2-6. Release four Locking Tabs (L-2). Then, release
three Locking Tabs (L-3).
2-7. Disconnect Connector (CN4203), and remove
the Front Assembly.
ID/
LOC.
No.
PART
REMOVAL
Fig.
No.
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
Note
[1] Top Cover D1 6(S-1) 1
[2] Front
Assembly D2
*2(L-1), Tray Panel,
*4(L-2), *3(L-3),
*CN4203
2
2-1
2-2
2-3
2-4
2-5
2-6
2-7
[3] SW CBA D2 3(S-2) -
[4]
DVD
Mecha &
FE
Assembly
D3 2(S-3), 4(S-4), *CN1,
*CN2202, Fan Sheet -
[5]
DVD BE
Main CBA
Unit
D4 4(S-5), *CN6, *CN7,
BE Earth Spring -
[6] Holder D D4 3(S-6) -
[7] DC Fan
Motor D4 2(S-7), *CN2203, Fan Holder -
[8] AV CBA D5 5(S-7), 7(S-8), (W-1) -
[1] Top Cover
[2] Front Assembly
[4] DVD Mecha & FE Assembly
[5] DVD BE Main CBA Unit
[6] Holder D
[7] DC Fan Motor
[3] SW CBA
[8] AV CBA
[9] FL CBA
[10] Jack CBA
[9] FL CBA D5 (S-9), desolder -
[10] Jack CBA D5 (S-10), desolder -
↓
(1) ↓ (2) ↓ (3) ↓ (4) ↓ (5)
ID/
LOC.
No.
PART
REMOVAL
Fig.
No.
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
Note

1-6-2 E6620DC
[1] Top Cover
(S-1)
(S-1)
(S-1)
Fig. D1
[2] Front Assembly
[3] SW CBA
(S-2)
CN4203
(L-2)
(L-2)
(L-3)
Fig. D2
(L-2)
(L-1)
Tray Panel
[4] DVD Mecha
& FE Assembly
(S-4)
(S-3)
(S-4)
Fan Sheet
CN2202
CN1
Fig. D3
[6] Holder D
[5] DVD BE Main CBA Unit
[7] DC Fan Motor
(S-7)
CN2203
(S-6)
(S-5) (S-5)
CN7
BE Earth
Spring
Fan Holder
CN6
(S-6)
Fig. D4

1-6-3 E6620DC
[9] FL CBA
[10] Jack CBA
[8] AV CBA
(S-9)
(S-8)
(S-7)
(S-10)
(S-7)
(S-7)
(W-1)
Fig. D5
Desolder
Lead with
red stripe
Desolder
Lead with
red stripe
A
View for A
Push the lever to the
direction of the arrow
Lever
Shaft
(e.g. screwdriver)
HOW TO EJECT MANUALLY
1. Remove the Top Cover.
2. Insert the shaft (e.g. screwdriver), and push the lever to
the direction of the arrow as shown below.

1-6-4 E6620DC
HOW TO INITIALIZE THE DVD RECORDER
To put the program back at the factory-default, initialize
the DVD recorder as the following procedure.
1. Turn the DVD recorder on.
2. Confirm that no disc is loaded or that the disc tray
is open. To put the DVD recorder into the Version
display mode, press [CM SKIP], [1], [2], and [3] but-
tons on the remote control in the order.
Fig. A appears on the screen.
Fig. A: Version Display Mode Screen
3. Press [ENTER] button, then the DVD recorder
starts initializing. When the initializing is completed,
the DVD recorder exits the Version display mode
and turns off the power automatically.
* To move into the Normal mode from the Version
display mode, press [RETURN] button on the
remote control instead of [ENTER] button.
* When [POWER] button is pressed before [ENTER]
button is pressed, the DVD recorder exits the Ver-
sion display mode, then the power turns off.
Model Name : *******
Firmware Version
BE : R1F189000E
FE : NRS0051 MST031210
DEFAULT SETTING : ENTER
EXIT : RETURN
*1: "*******" differ depending on the models.
*2: Firmware Version differ depending on the models,
and indication is one example.

1-7-1
BLOCK DIAGRAMS
System Control Block Diagram
E6620BLS
IC3
(MAIN MICRO CONTROLLER) IC4201
(SUB MICRO CONTROLLER)
REMOTE
SENSOR
RE2301
1G
7G
~
23 17
~
a
h
i
~
7
14
~
GRID
RESET EV+5V
FIP
SEGMENT
FL2301
IC2301
IC4202
AV CBA
FL CBA
DVD BE MAIN CBA
(FIP DRIVER)
KEY SWITCH KEY SWITCH
CN4203 CN3001
KEY-1 2
2
FL-SDA 5
5
FL-SCL 6
6
FL-STB 7
7
REMOTE 8
8
KEY-2 3
3
SYS-RESET 6
6
SUB-RXD 5
5
SUB-TXD 3
3
SUB-SCLK 1
1
RDY 4
4
SW CBA
16
28
1 2
10
9 8
4
1 2
64 61 25 47 45 46 54 53
40 52 51 50 41
F24
D22
G22
H22
F25
23 22 42 39 21 19 16 57
4 5
20
1 6
3
4
IC7 (INVERTER)
27MHz X'TAL
X3
N23 R23
27MHz CLK 27MHz CLK
SYS-RESET
SUB-RXD
SUB-TXD
SUB-SCLK
RDY
CN7
SYS-RESET
SUB-RXD
SUB-TXD
SUB-SCLK RDY
CN4401
POW-SW
REG-COUT
PWSW
FID
V-MUTE
A-MUTE
AUDIO-SW1 AUDIO-SW2
SUB-SDA
SUB-SCL
X OUT
X IN
XC OUT
XC IN
RESET
P-DOWN
VCC
FL-SDA
FL-SCL FL-STB
REMOTE
KEY-1 KEY-2
POW-SW
REG-CONT
PWSW
FID
V-MUTE
SUB-SDA
SUB-SCL
SUB-SDA
SUB-SCL
A-MUTE
AUDIO-SW1 AUDIO-SW2
TO POWER SUPPLY BLOCK DIAGRAM TO VIDEO BLOCK DIAGRAM TO AUDIO BLOCK DIAGRAM
8MHz RESONATOR
X4201
32.768KHz X'TAL
X4202
Q4261
Q4262
C4261
CN2301CN2204
(BACKUP CAPACITOR)
DIN
CLK STB
Q16
Q17

1-7-2
Digital Signal Process Block Diagram
E6620BLD
IC3 (MAIN MICRO CONTRLLER)IC5301
IC5401
FRONT-END DIGITAL SIGNAL PROCESS
IC5202
IC5203, IC5204
RF/ ERROR AMP
IC5501
ACTUATOR DRIVER
MOTOR DRIVER
IC5703
FRONT-END MICRO CONTROLLER
SDRAM
IC5503
IC6 (FLASH MEMORY)
DVD BE MAIN CBA UNIT
DVD FE MAIN CBA UNIT
TO VIDEO BLOCK DIAGRAM TO AUDIO BLOCK DIAGRAM
SPDIF
BCK
DATA
LRCK
MD
MC
SCK
ML
MD
MC
SCK
ML
BCK
DATA
LRCK
SYSCLK
SYSCLK
AB23 AE12
AC13
AD12
AE13
AD21
E25
Y4
AD2
AD25
AC25
AB22
H24
J22 J23
AC23
AB20 AB21
AD24
AB19
VIDEO-Y
VIDEO-C
VIDEO-Cb
VIDEO-Cr
Y
C
Cb
Cr
VID(0-7)
S-CLK
IC9-RESET
S-CLK
IC9-RESET
SCL
SDA
SCL
SDA
IC5704
FLASH MEMORY
D/A D/A D/A D/A
AUDIO I/F
VIDEO ENCODER
BACK-END DIGITAL SIGNAL PROCESS
VIDEO I/F
CN1CN5301
AUDIO I/F
FLASH MEMORY
FE ENCODER
TRAY OPEN TRAY
CLOSE
IC1,IC2 (DDR SDRAM)
DDR SDRAM
AC19,AE22, AE23,AC20, AC21,AB18,
AD22,AF24
CN5501 CN5101 CN5603B
DVD MECHA DVD MECHA & FE ASSEMBLY
TILT TRACKING FOCUS
PICK -UP
CN5502B CN5603 CN5602B
LOADING MOTOR
M
SLED MOTOR
M
SPINDLE MOTOR
M
REC VIDEO SIGNAL PB VIDEO SIGNAL REC AUDIO SIGNAL PB AUDIO SIGNAL
LOADER CBA
ENCODER CBA
SW

1-7-3
Video Block Diagram
E6620BLV
AV CBADVD BE MAIN CBA
CN601
712VIDEO-Y
12 14VIDEO-C 10 10VIDEO-Cb
88VIDEO-Cr
16 16VIDEO-Y 18 18VIDEO-C
22FID
44
Y-IN2
22
C-IN2
66
VIDEO-IN2
VIDEO-Y VIDEO-C VIDEO-Cb VIDEO-Cr
JK4101 S-VIDEO OUT
CN4401
3 4
2
1
IC4401 (VIDEO DRIVER)
(VIDEO INPUT SELECT)
(VIDEO DECODER)
FORMATTER
13
4dB AMP 2dB
AMP
LPF DRIVER Y
C4411
C
14
8dB AMP
-6dB DRIVER
IC4163
IC9
4dB AMP 2dB
AMP
LPF DRIVER
11
4dB AMP 2dB
AMP
LPF DRIVER
6
10
4dB AMP 2dB
AMP
LPF
MUTE
DRIVER
8
5
COMPOSITE VIDEO OUT
VIDEO-Cb OUT VIDEO-Y OUT VIDEO-Cr OUT
JK4102 JK4103
3 1
JK4101 S-VIDEO IN1
3 4
2
1
Y
Y1
VIDEO1 VIDEO2 TU-VIDEO
COMPOSITE Y2
C1 C2
C
VIDEO IN1
JK4102
TU4001
15
S-CLK V-SYNC
VID(0-7)
IC9-RESET RESET
SERIAL I/F
SCL SDA
TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
JK4601 S-VIDEO IN2
3 4
2
1
YC
VIDEO IN2
JK4602
13
19 15
7 9
11
1
20 3
17
Q19
BUFFER LPF
MUX
Q20
Q18
X1
BUFFER LPF
1 2 5 6
249
8
21 22
11-18
AGCA/D
Y DATA PROCESS C DATA PROCESS
FID
BUFFER
Q4505
Q4502
BUFFER
V-MUTE TO SYSTEM CONTROL
BLOCK DIAGRAM
CN4101 CN4601
22 23
SUB-SCL TO SYSTEM CONTROL
BLOCK DIAGRAM
SUB-SDA
JACK CBA
TU-VIDEO
14.31818MHz X'TAL
PLL
SERIAL I/F
REC VIDEO SIGNAL PB VIDEO SIGNAL
BUFFER LPF BUFFER LPF
WF1 WF2
WF3
WF4
WF5

1-7-4
Audio Block Diagram
E6620BLA
IC13 (AUDIO D/A CONVERTER)
DIGITAL AUDIO OUT
A-MUTE
JK4301
JK4104
BUFFER
Q4301
Q4425 Q4424 AUDIO-L
OUT1 AUDIO-L OUT2
AV CBA JACK CBA
DVD BE MAIN CBA
JK4105
AUDIO-R OUT1
AUDIO-R OUT2
JK4602
AUDIO-L IN2
AUDIO-R IN2
JK4104
AUDIO-L IN1
JK4105
AUDIO-R IN1
SIF OUT
L-CH R-CH
88
AUDIO(L)-IN2
10 10
AUDIO(R)-IN2
18 18SPDIF 25 25
AUDIO-OUT(L)
27 27
AUDIO-OUT(R)
19 19
DVD-AUDIO-MUTE
23 23
DVD-AUDIO-IN(L)
21 21
DVD-AUDIO-IN(R)
(MTS/SAP AUDIO SIGNAL PROCESS)
IC4041
(OP AMP)
IC4165
TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
TU4001
MTS/SAP AUDIO SIGNAL PROCESS
OP AMP
AUDIO D/A CONVERTER
OP AMP
14
21
30 29
1 7
2 6
(OP AMP)
IC4166 (AUDIO INPUT SELECT)
IC4164
OP AMP OP AMP
1 7
3
13
2 6
24 27
4 2 5
11 15 14
MUTE-ONDRIVE
Q4426
MUTE-ON
9 10
1 2 3
7 8
11
13 14 16
IC12 (AUDIO A/D CONVERTER)
AUDIO A/D CONVERTER
13 14 15
1 5
16
SPDIF CN6 CN4502
CN7 CN4401
BCK
DATA LRCK
MD
MC SCK
15
ML
L-CH R-CH
MUTE
BCK DATA LRCK
SYSCLK
R-CH L-CH
IN1 TU IN2
(L-CH)
IN1 TU IN2
(R-CH)
SW CTL
AUDIO-SW2 AUDIO-SW1
TO SYSTEM CONTROL BLOCK DIAGRAM
(OP AMP)
IC4421
OP AMP OP AMP
2 6
1 7
TO SYSTEM CONTROL BLOCK DIAGRAM
SUB-SCL SUB-SDA TO SYSTEM CONTROL
BLOCK DIAGRAM
CN4104 CN4601
REC AUDIO SIGNAL PB AUDIO SIGNAL
Q4162
Q4161
WF6 WF7
