Emery Thompson CB-350 Configuration guide

Emery Thompson
INSTALLATION – OPERATION
CLEANING – MAINTENANCE

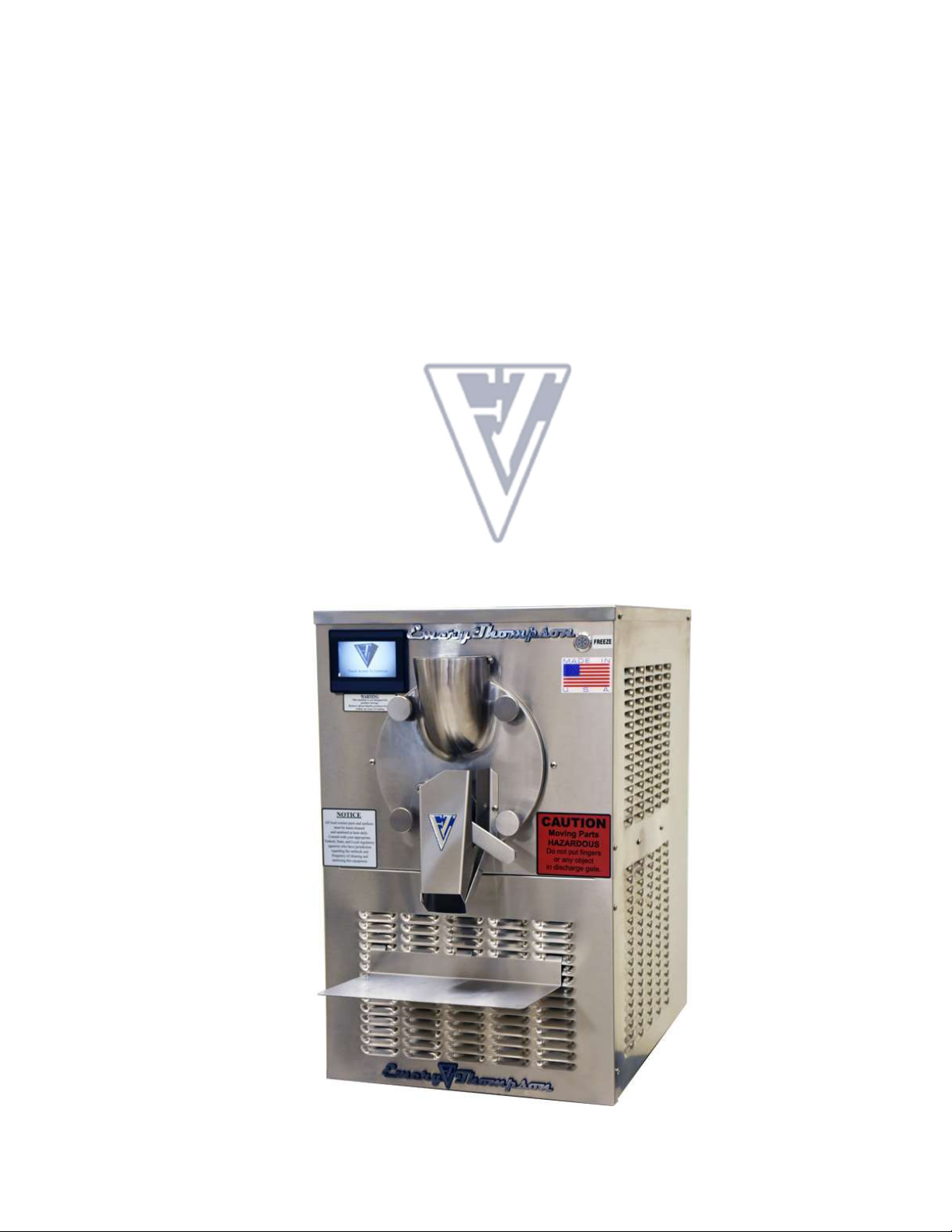

CB-350
BATCH FREEZER

- 1 -
v. 3.20

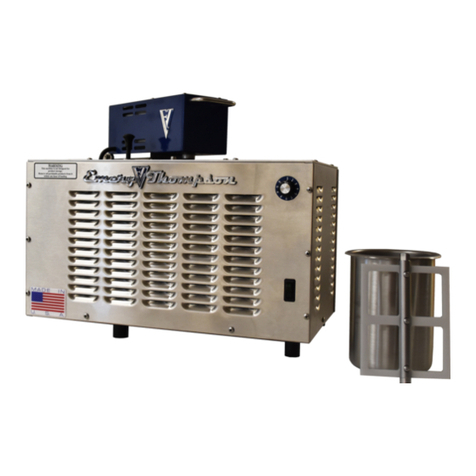

Emery Thompson CB-350 Countertop Batch Freezer
STATE LAW REQUIRES THAT THE
ELECTRICAL POWER TO
THIS MACHINE BE INSTALLED
ONLY
BY A LICENSED ELECTRICIAN
FAILURE TO HAVE A LICENSED ELECTRICAN
INSTALL THIS MACHINE WILL
VOID YOUR WARRANTY
<<< CAUTION >>>
CB-350 COUNTERTOP BATCH FREEZER
<<< WARNING >>>
YOUR COMPRESSOR WILL IMMEDIATELY START WHEN THE
ELECTRIC IS CONNECTED AND TURNED ON
1. SECURE ALL PANELS TO THE MACHINE BEFORE TURNING
ON THE ELECTRIC.
2. THE OCCASIONAL CYCLING OF THE COMPRESSOR ON
AND OFF IS NORMAL AND IS DESIGNED TO EXTEND THE
LIFE OF THE CONDENSING UNIT.

- 2 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
TABLE OF CONTENTS
Section 1 WARRANTY Page 3
Section 2 SAFETY Page 6
Section 3 UNPACKING Page 7
Section 4 INSTALLATION Page 8
Section 5 CLEANING & SANITIZING Page 10
Section 6 OPERATION Page 12
Section 7 OPERATING THE TOUCH SCREEN Page 13
Section 8 CARE & MAINTENANCE Page 23
Section 9 DESCRIPTION OF FUNCTION Page 25
Section 10 ELECTRICAL DIAGRAM Page 26
Section 11 TROUBLESHOOTING Page 27
Section 12 PARTS DIAGRAMS Page 28
Section 13 RECIPES Page 30

- 3 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
Section 1 – WARRANTY
Emery Thompson Machine and Supply Company, Inc.
12 Month Limited Warranty on New Freezers
Notice: The machine warranty starts when you receive your
machine.
Except as limited and conditioned hereafter, The Emery Thompson Machine
and Supply Company, Inc. (hereinafter referred to as the “Company”)
warrants to the original purchaser and user only, the said machine and all
parts thereof to be free from defects in material and workmanship for a period
of twelve (12) months from the date of shipment from the Company’s factory
if it is proved to our satisfaction to be inoperative due to defects in material or
factory workmanship. Caution: This warranty is valid only if required service
is provided by an authorized agent of Emery Thompson Machine and Supply
Company or person or persons directly authorized by Emery Thompson to
perform the necessary repairs. Emery Thompson can be reached at 718-588-
7300-factory, 352-796-0720-fax or [email protected]M
electronic mail.
Definitions. The term “original purchaser” as used herein, shall be deemed
to mean that person, firm, or association, or corporation for whom the
equipment referred to herein is originally sold to. The term “Company and or
Factory” shall mean the plant of the company located at 15350 Flight Path
Drive, Brooksville, FL 34604 U.S.A.
Labor and Transportation Charges. Emery Thompson Machine and Supply
Company assumes no liability under the warranty for any transportation
charges or labor expenses incident to its work under this warranty, such
transportation expenses and labor costs to be assumed and paid by the
Purchaser.
Use and Care of Machine. Purchaser shall only use the machine in
accordance with the operator’s manual provided by the Company and no
liability under this Warranty or otherwise shall attach by reason of a defect
caused by negligence, abnormal use, misuse or abuse of said machine, or for
any accident that may occur to said machine or any part thereof after said

- 4 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
machine has left the factory of the Company, nor for any defect that may arise
by placing any part in said machine which has not been manufactured or
approved by the Company. Misuse of the machine includes owner’s failure to:
(1) clean, lubricate and assemble per the Operator’s Manual; (2) replace
damaged or worn “wear items”, including but not limited to o-rings, gaskets,
front bearing, rear bearing, scraper blades, drive shaft, water valve. (3) handle
parts properly, resulting in breakage; or (4) use unauthorized service
agencies.
Purchaser shall not remove, alter or deface the serial number on said
machine and there shall be no liability of Emery Thompson Machine and
Supply Company if any of same shall occur.
Repair or Replacement of Defective Parts. The Company’s obligation
under this warranty is limited to the repair of defective parts at the Brooksville,
Florida plant or replacement from the Company’s own inventory. In the event
the Company ships a replacement part prior to the return of the defective part,
payment will be required for said part and credit issued or reimbursement
made only if the defective part is returned within thirty (30) days from
replacement date.
WARNING: The use of alternate refrigerants will void your warranty. Use
only the refrigerant specified on this unit’s data plate (located on rear
panel of machine).
Emery Thompson Machine and Supply Company, Inc. reserves the right
to make design changes, or to make additions to, or improvements on its
products without imposing any obligation on itself to make such changes on
its products previously manufactured.
THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER
WARRANTIES AND REMEDIES UNDER THE LAW, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. THE ORIGINAL OWNER’S SOLE REMEDY
WITH RESPECT TO ANY EMERY THOMPSON FREEZER SHALL BE
REPAIR OR REPLACEMENT OF DEFECTIVE COMPONENTS UNDER THE
TERMS OF THIS WARRANTY.

- 5 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
WHAT IS NOT COVERED BY THIS WARRANTY Emery Thompson
Machine’s sole obligation under this warranty is limited to either repair or
replacement of parts, subject to the additional limitations below. This warranty
neither assumes nor authorizes any person to assume obligations other than
those expressly covered by this warranty. NO CONSEQUENTIAL
DAMAGES. EMERY THOMPSON IS NOT RESPONSIBLE FOR ECONOMIC
LOSS; PROFIT LOSS; OR SPECIAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, INCLUDING WITHOUT LIMITATION, LOSSES, OR DAMAGES
ARISING FROM FOOD OR PRODUCT SPOILAGE REGARDLESS OF
WHETHER OR NOT THEY RESULT FROM REFRIGERATION FAILURE.
WARRANTY IS NOT TRANSFERABLE; this warranty is not assignable and
applies only in favor of the original purchaser/user to whom delivered. ANY
SUCH ASSIGNMENT OR TRANSFER SHALL VOID THE WARRANTIES
HEREIN AND SHALL VOID ALL WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTY OF MERCHANTABILITY OR LABOR
COVERAGE FOR COMPONENT FAILURE OR OTHER THE WARRANTY
AS PROVIDED IN OUR INSTRUCTION MANUAL WITH THE UNIT AND AT
www.emerythompson.com. EMERY THOMPSON will not be held responsible
for the following external factors: ALTERATION, NEGLECT, ABUSE,
MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION,
FIRE, FLOOD, ACTS OF GOD, OR IMPROPER ELECTRICAL
CONNECTIONS. EMERY THOMPSON IS NOT RESPONSIBLE FOR THE
REPAIR OR REPLACEMENT OF FAILED OR DAMAGED COMPONENTS
RESULTING FROM ELECTRICAL POWER FAILURE, THE USE OF
EXTENSION CORDS, LOW VOLTAGE, OR VOLTAGE DROPS TO THE
UNIT. THERE ARE NO IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
NO DISTRIBUTOR, DEALER OR OTHER PERSON IS AUTHORIZED TO
MAKE ANY COMMITMENT OR ASSUME ANY LIABILITY ON BEHALF OF
EMERY THOMPSON MACHINE AND SUPPLY COMPANY, INC. BEYOND
THIS WARRANTY. THERE ARE NO WARRANTIES, WHICH EXTEND
BEYOND THE DESCRIPTION ON THE FACE HEREOF.

- 6 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
Section 2 – SAFETY
First, be sure to read and understand this machine manual, and
familiarize yourself and other operators with the machine features, its
operation, cleaning, and maintenance.
Your machine is equipped with several important safeguards that should
never be removed or altered. DO NOT remove the following items:
 Inlet spout combination lid and gate – restricts fingers from
coming in contact with moving blades/dasher.
 Door discharge guard – restricts fingers and utensils from
coming in contact with moving blades/dasher. Also, in
combination with the discharge chute, funnels product into
smaller containers neatly.
The sides, front, and rear section of the machine have ventilation
openings in them. All but the rear panel are louvered to deflect food and
splashing liquids away from the inside. Never spray water directly
at/into these openings.
If your machine is set up with a plug on the end of its cord, make
absolutely sure your hands are dry when plugging it in, or unplugging it.
When operating the machine, avoid distractions such as conversations,
television, small children, etc.
The door and the dasher are heavy parts and are slippery when wet.
Use extreme care handling them. Keep the floor and work area neat
and dry to avoid slippage. Do not use the top of the machine as a
storage spot.
In addition to the above:
 DO NOT operate your machine unless it was wired, grounded,
and properly fused by a licensed electrician.
 DO NOT put fingers, hands or any utensils in either the inlet
spout or door outlet.

- 7 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
 DO NOT operate the machine unless it is properly assembled
and all guards are in place.
 DO NOT force any of the (washable) parts together or into/on the
machine. All parts should fit together easily.
 DO NOT operate the machine with the freezing cylinder empty.
 DO NOT turn on the machine’s refrigeration switch with only
water in the freezing cylinder.
 DO NOT let your product over-freeze during production. This is
the most common mistake a new operator makes.

- 8 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
Section 3 – UNPACKING
Carefully inspect the pallet and shipping carton for any signs of damage
during shipment; if damage is suspected, have the freight company note
it on the bill of lading, and if possible, take photographs.
The shipping carton is stapled to two wooden runners inside*. Using a
razor knife, carefully cut through the carton all the way around its
perimeter JUST ABOVE the staple line. The carton is approx. ½” thick.
Once free, the carton should be lifted straight up and off of your
machine. You will find a small box of parts that will be explained in
subsequent sections; set them, as well as all paperwork, aside in a safe
place.
The machine is bolted to the pallet it was shipped on from the underside.
There are four hex bolts (9/16” head) that go through the upper planks
of the pallet, and into the machine frame. Remove all four bolts, and
also unscrew one wooden side runner from the pallet. The machine will
now be free from the pallet. Save all components; they can be used at
a later date to safely move the machine.
* If your machine was exported outside of North America, it will have an
all wood box over it fastened to the runners with removable screws.

- 9 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
Section 4 – INSTALLATION
Your new machine weighs 275 pounds and has momentum when
running; therefore, it must be operated on a surface/stand/counter
capable of supporting it. It will take a minimum of two people to safely
lift it.
In the smaller carton that was included with the machine, there are 4
screw-in feet; these should be installed into the threaded holes on the
underside of the machine’s frame, where it was previously bolted to the
shipping pallet. These allow for minor uneven surfaces.
NOTE: If you also purchased the heavy-duty machine stand, you will
not be using these feet; follow instruction in the kit that comes with the
stand.
The stainless-steel shelf clips onto the louvers on the front lower panel;
it is adjustable for various height containers/trays.
NOTE: The protective plastic film on most outer surfaces of the machine
protects the finish during shipping. This film MUST be removed prior to
operation of the machine to allow proper airflow and heat dissipation.
The machine MUST be able to pull in cool, clean room air from its rear
intake. It requires a minimum of 10 inches of clear, unobstructed space
on all 4 sides. Failure to allow the adequate spacing and/or not
removing the protective plastic film may result in poor performance,
overheating, and shutdown.
ELECTRICAL CONNECTION: The model CB350 machine comes with
a 72 inch long flexible power cord that has an L14 - 20 locking male plug
installed on it. It MUST ONLY be connected to a matching receptacle
which has been wired to a dedicated and fused 20-amp circuit. Your
machine has a wiring tag on its cord, as well as electrical specifications
on its serial number tag on the rear of the machine. Your electrician can
also call us for technical information if necessary, during business
hours.

- 10 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
Section 5 – CLEANING & SANITIZING
NOTE: Your local or state health inspector will always have
jurisdiction over the methods and cleaners he/she prefers for the
proper cleaning and sanitizing of this type of equipment. Our
instructions are based on industry standard methods but should
be discussed with your inspector.
The first step toward insuring a clean and sanitary machine is to
understand the various parts that will or could come in contact with the
food product. Please see figures 8-1A (Page 30) and 8-1B (Page 31)
to familiarize yourself with these parts.
All of these parts are dishwasher safe and relatively small, so the easiest
way to clean them is to carefully arrange them in a dishwasher,
positioning them so that open holes, pockets, and internal areas face
down and stand the best chance of being hit with hot soapy water. Any
of these parts can also be cleaned with liquid dish detergent and hot
water, so long as they are thoroughly rinsed. The inside of the cylinder
will have to be manually wiped out with warm soapy water and
thoroughly rinsed.
The following list of components should be cleaned at the end of the
day/shift, or if food product has sat in the machine for one hour or more:
- all parts on diagram 8 – 1A
- all parts on diagram 8 – 1B, except “ASSY006”, part 1 and 3
(these parts are inaccessible, and do not come in contact with
food). Part #2 of this assembly protrudes into the freezer and
should be cleaned/wiped when cylinder is cleaned.
Prior to each use your machine must be sanitized. The purpose of
sanitization is to kill any bacteria that may have grown on any food-
contact part or surface.
To properly sanitize your machine, it must first be reassembled after
cleaning. Before putting the dasher/blades assembly back into the
machine, note the end of the dasher shaft has two o-rings in it. These
two o-rings, and the circumference of the shaft just forward and
rearward of the o-rings should have a generous coating of food-grade

- 11 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
grease wiped on them (See diagram 8-1B/Dasher shaft, and Part 6 O-
Rings, Page 31). Once installed, any grease pushed off the shaft can
be wiped off with a paper towel. NOTE: Before installing dasher/blade
assembly into cylinder, ensure that the rounded end of each scraping
blade is toward the rear. (See Diagram 8-1B, Page 31.)
When the machine is fully assembled, with the door in place, and the
four knobs hand tightened (do NOT use any tools), it is ready to be
sanitized.
We recommend using a commercially available sanitizer/cleaner made
by Purdy Products Company called “Stera Sheen Green Label”,
although other brands exist as well. Carefully follow the manufacturer’s
instructions on mixing and use of their product.

- 12 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
Section 6 – OPERATION
Your new batch freezer is very easy to operate, with only two controls
on it. The machine was shipped fully assembled, and its’ parts and
features should be learned and understood.
On the upper right of the face of the machine, there is a pushbutton
switch. This energizes the refrigeration condensing unit. Push in the
button for “on” and push in on the button for “off”. In the “on” position,
the button will illuminate blue. Ensure that the button is in the “off”
position.
When electrical power is first applied to the machine, the compressor
will immediately start, regardless of the position of the refrigeration
button. The compressor will also start occasionally and run briefly, even
if the machine sits idle if there is power connected to it. This is a normal
function, and actually helps prolong the life of the compressor.

- 13 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
Section 7 – OPERATING THE TOUCHSCREEN
The CB-350 touchscreen is a powerful device filled with intuitive
operating screens and helpful videos. This section will explain how to
navigate the screens for safe and proper operation of the machine.
7.1 The SCREEN SAVER
After applying power to the machine, the SCREEN SAVER screen
displays the rotating ET symbol. To begin operating the machine or to
watch a help video, touch the screen. The screen saver will appear after
1 minute of the screen not being touched, unless the RUN screen is
active.

- 14 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer

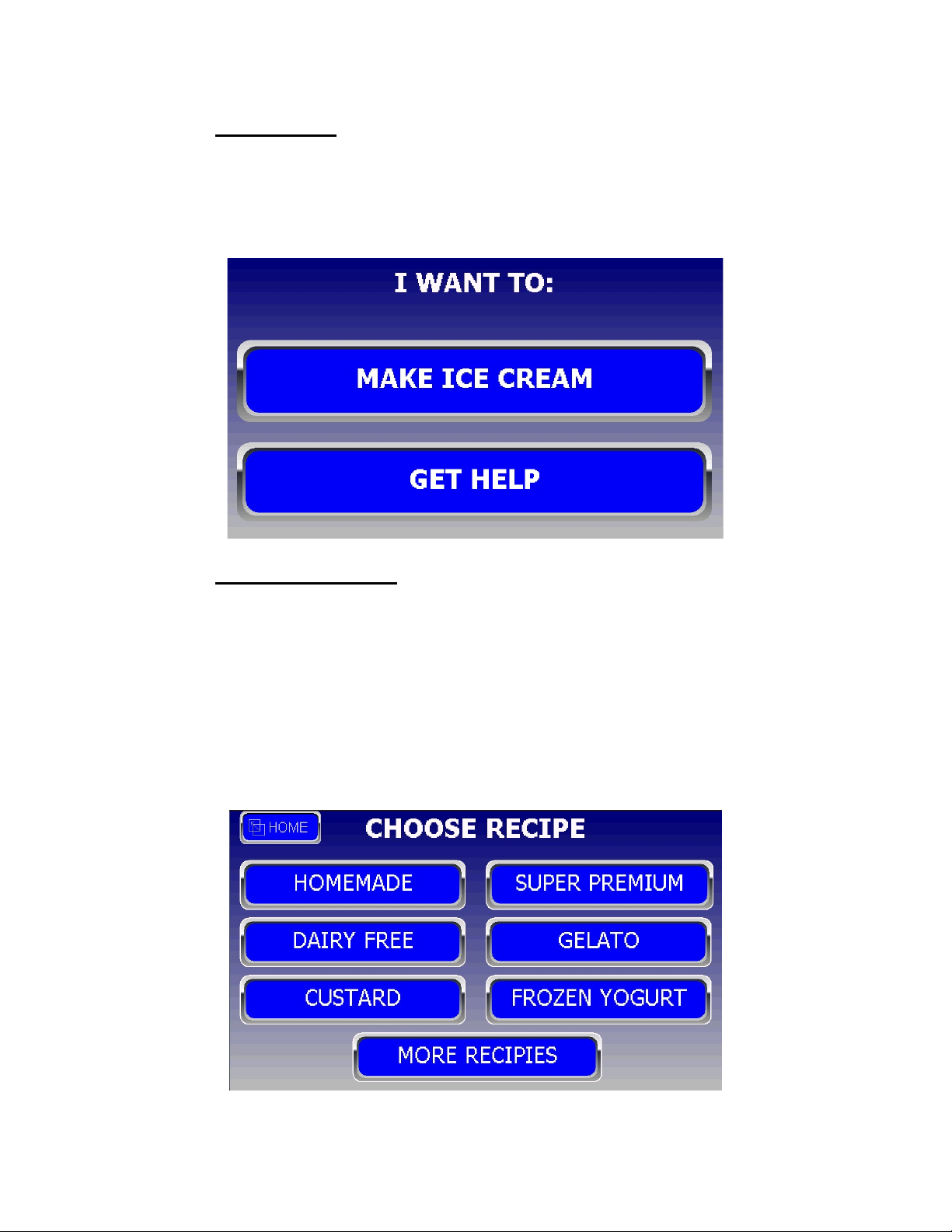

7.2 The I WANT TO: Screen (Also called the HOME screen)
After touching the screen, the I WANT TO:/HOME screen is displayed.
You can choose to MAKE ICE CREAM or GET HELP. Press the MAKE
ICE CREAM button.
7.3 The CHOOSE RECIPE Screens
If you selected MAKE ICE CREAM from the I WANT TO:/HOME screen,
the next screen you will see is the CHOOSE RECIPE screen. This
screen allows the operator to choose the desired amount of overrun by
the product name. (See the Overrun/Product/Speed chart on page 11,
section 5.4.) This is the first screen of two CHOOSE RECIPE screens.
Press the MORE RECIPIES button to go to the second screen or press
the HOME button to go back to the I WANT TO:/HOME screen.

- 15 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
When you are on the second CHOOSE RECIPE screen, you can press
the PREVIOUS RECIPIES button to return to the first CHOOSE
RECIPE screen or you can press the HOME button to go back to the I
WANT TO:/HOME screen. Press the button that corresponds to the
product you want to make on either screen and you will be taken to the
START screen for that product.
7.4 The OVERRUN/PRODUCT/SPEED Chart
OVERRUN/PRODUCT/SPEED
Desired Overrun
(%)
Product Name Dasher Speed
(RPM)
100
Homemade
234
65
Super Premium
165
65
Frozen Yogurt
160
50
Gelato
140
40
Cream Ice
200
40
Sherbet
200
35
Custard
135
30
Dairy Free
160
15
–
17
Italian Ice
234
15
–
17
Sorbet/Sorbetto
234
15
Frozen Lemonade
234

- 16 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
7.5 The START Screen
On the START screen you will find the name of the product you have
selected at the top, and the speed that the dasher will turn in the middle
of the two circles, when the START button is pressed. You will also find
the MANUAL SPEED UP and DOWN buttons. These buttons can be
used to adjust the dasher speed up and down as desired. The speed
will change in 5 RPM increments each time the button is pressed. You
will also see the status of the blades where it says BLADES STOPPED.
The HOME button will take you back to the I WANT TO:/HOME screen
and the BACK button will take you back to the CHOOSE RECIPE
screen.
UP
DOWN

- 17 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer
7.6 The RUN Screen
When the START button is pressed, the RUN screen is displayed, and
the dasher and scraper blades begin to spin. You will see that the
START button changes to a STOP button, the blades animation begins
spinning, and the BLADES STOPPED message changes to BLADES
SPINNING. The MANUAL SPEED UP and DOWN buttons can be
pressed to change the speed of the dasher if desired. Once the FREEZE
switch is pressed, the BACK button in the upper right-hand corner of the
screen changes to a timer and begins to count up. This timer can be
used to monitor the time that a batch has been running. The timer stops
and resets to 0:00 when the FREEZE switch is turned off. When the
STOP button is pressed, the dasher stops and the screen changes back
to the START screen.
UP
DOWN

- 18 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer

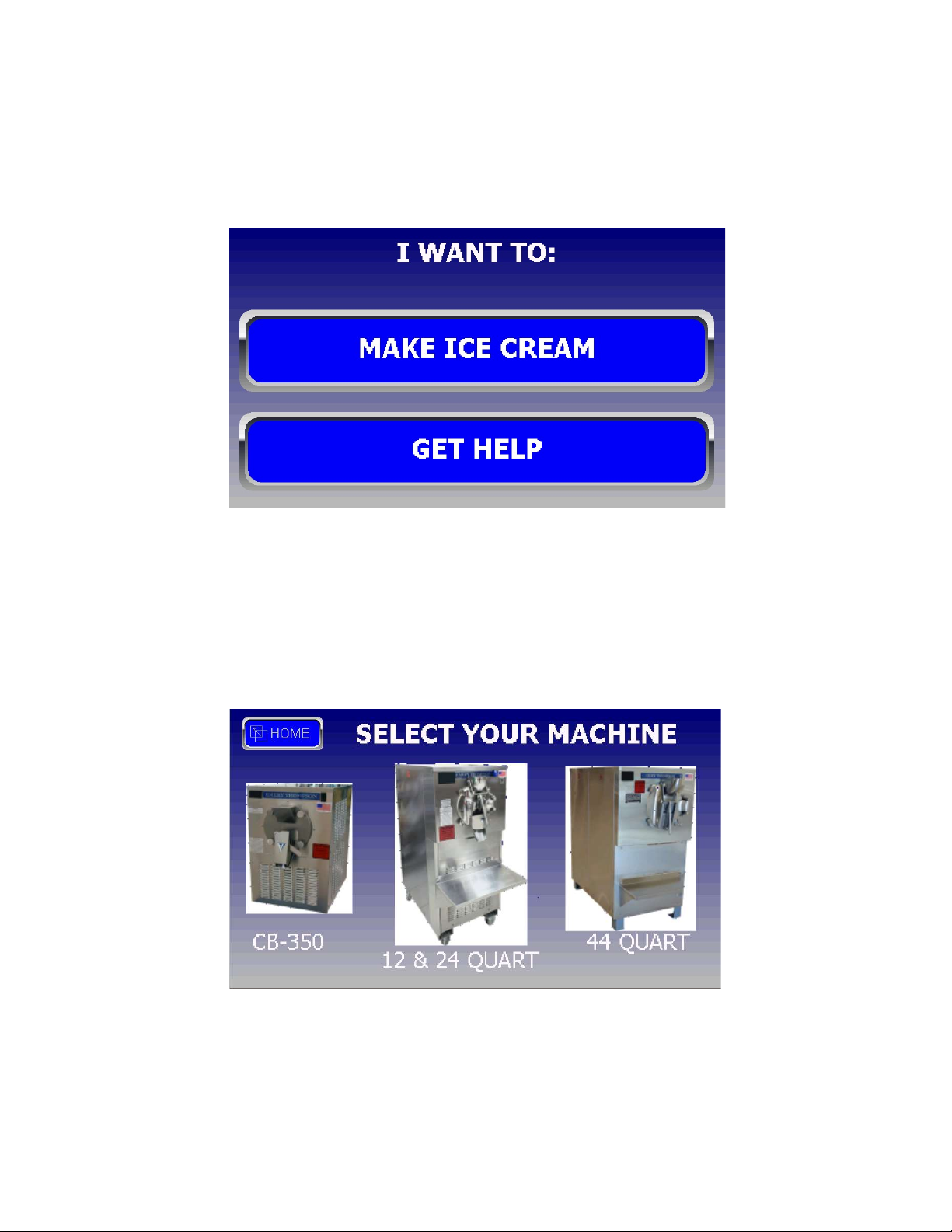

7.7 The GET HELP Screens
From the I WANT TO:/HOME screen, press the GET HELP button,
which will take you to the SELECT YOUR MACHINE screen.
Page 4
7.8 The SELECT YOUR MACHINE Screen
Touch the picture of the machine that matches the machine you want to
get help with, and you will be taken to the HELP VIDEOS menu for your
machine. If you want to go back to the I WANT TO:/HOME screen, press
the HOME button.

- 19 -
v. 3.20
Emery Thompson CB-350 Countertop Batch Freezer

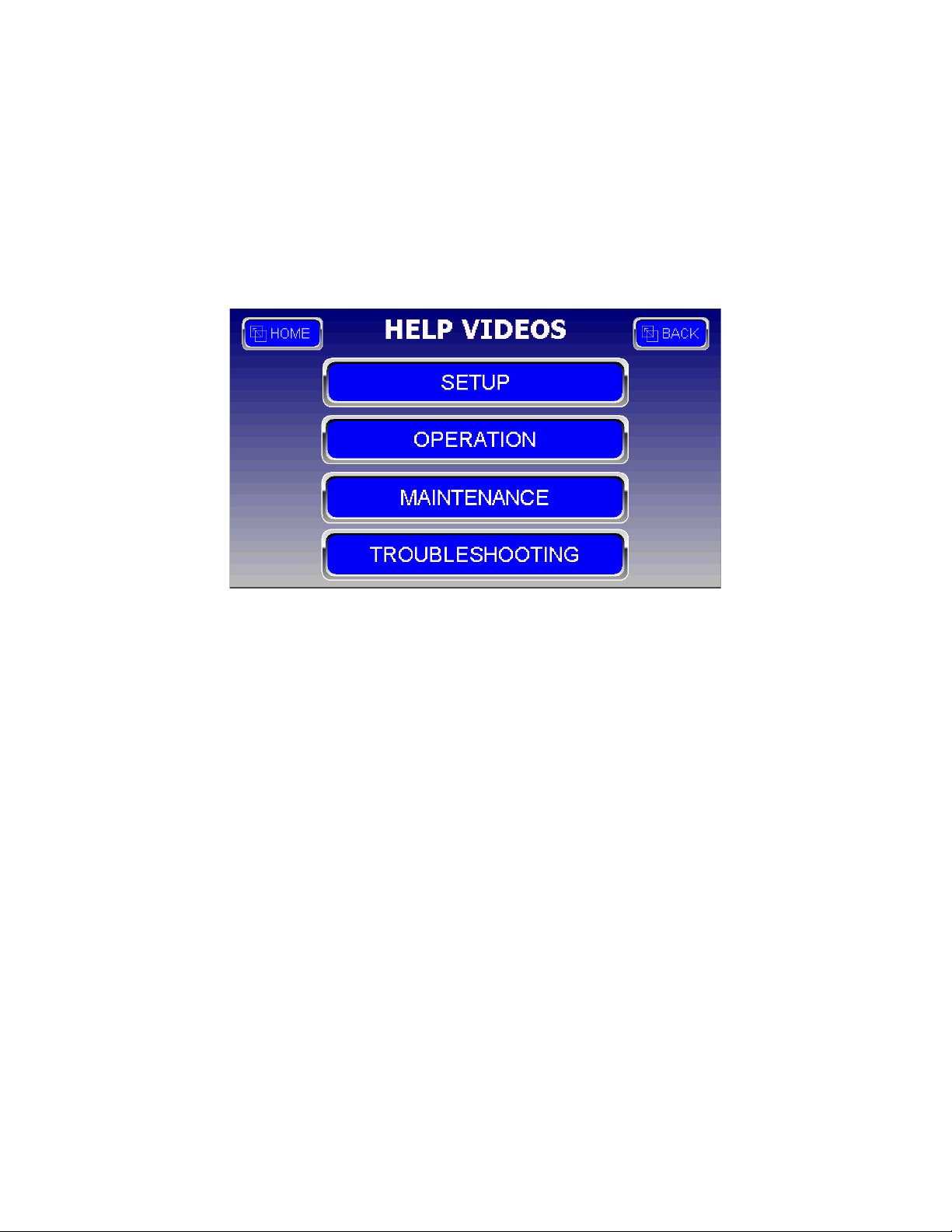

7.9 The HELP VIDEOS Screen
From the HELP VIDEOS menu, you can select the category of help you
need. You can choose SETUP, OPERATION, MAINTENANCE and
TROUBLESHOOTING topics. Also, you can press the HOME button to
be taken back to the I WANT TO:/HOME screen or the BACK button to
go back to the SELECT YOUR MACHINE screen.
The rest is self-explanatory and very easy to navigate. Simply choose a
topic, press the button for the video of your choice, and watch the video.
