Emotiva Airmotiv RS13 User manual

Airmotiv RS13
Reference Subwoofer

Important Safety Precautions and Explanation of Symbols
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important installation, operation, and service instructions in this manual.
The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltages within the enclosure that may be of sucient magnitude to
constitute a risk of electrical shock to the user.
Please read this manual thoroughly before attempting to install, congure, or operate the Emotiva Airmotiv
RS13 Reference Subwoofer. After successful installation and conguration of the RS13, be sure to retain this
manual in a safe place for future reference.
Safety is a key component to a long lasting and trouble free installation. Please read and follow all
instructions and heed all warnings on the RS13 and in this manual. The vast majority of the subsequent
safety precautions are common sense. If you are not comfortable with the installation of audio/video
entertainment equipment, you should seek the services of a qualied installation professional or call us for
help.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THE RS13 NEAR WATER
OR IN WET LOCATIONS, DO NOT EXPOSE IT TO RAIN OR MOISTURE, DO NOT EXPOSE IT TO DRIPPING
OR SPLASHING FROM OTHER SOURCES, AND ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS SUCH
AS VASES ARE PLACED ON IT. DOING SO MAY RESULT IN DAMAGE TO THE UNIT AND THE RISK OF
ELECTRIC SHOCK, WHICH MAY RESULT IN BODILY INJURY OR DEATH.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE AMPLIFIER PLATE OR
DRIVER FROM THE RS13. THERE ARE NO USERSERVICEABLE PARTS INSIDE THE UNIT. REFER ALL
SERVICE TO QUALIFIED SERVICE PERSONNEL.
Do not install the RS13 near or above any heat sources such as radiators, heating vents, or other apparatus
that produce heat. Do not block any ventilation openings or heat sinks. Avoid installing the unit directly
above other heat-producing equipment unless sucient ventilation or forced-air cooling is provided.
Do not install the RS13 in locations without proper ventilation. The RS13 should not be operated on a bed,
sofa, rug, or similar surface that may block vents. The unit should not be installed in an enclosed location
such as a bookcase, cabinet, or closed equipment rack unless sucient forced-air ventilation is provided,
and clearance should be maintained between the rear-mounted heat sinks and objects like drapes that may
reduce ventilation.
Always install your RS13 according to the manufacturer’s instructions and only use attachments or
accessories specied by the manufacturer.
Do not install the RS13 on any stand, shelf, or other piece of furniture that is unable to support its weight. If
a cart is used to move the unit, use caution to avoid injury from tip-over.
Connect the RS13 only to power sources of the correct voltage (as shown in this manual and on the RS13).
Protect power supply cables from being pinched, walked on, or otherwise damaged. Be especially careful
where the power cable enters the power outlet and the unit.
Only connect the RS13 to an electrical outlet or extension cord of appropriate type and rating.
DO NOT defeat the safety purpose of a grounding or polarized plug by removing ground pins or using
unsafe adapters. A polarized plug has two blades - one wider than the other. A grounding plug has a
third ground prong in addition to the two main conductors. The wide blade or third groundling prong is
provided for your safety. If the provided plug does not t your outlet, consult an electrician to replace your
obsolete outlet. If you replace the power cord, only use one of similar type and equal or greater current
rating.
!
!

The power cable for the RS13 should be unplugged from the outlet during severe electrical storms, or when
unused for a long period of time.
Only replace the fuse(s) in the RS13 with fuse(s) of proper value and voltage rating.
The RS13 should only be cleaned as directed in the manual. Avoid spraying liquids directly onto the unit or
drivers.
You should seek service for your RS13 by qualied service personnel if any of the following occur:
1. The power-supply cord or the plug has been damaged.
2. Objects or liquid have fallen or spilled into the unit.
3. The unit has been exposed to rain.
4. The unit exhibits a marked change in performance.
5. The unit has been dropped, or its enclosure or drivers are damaged.
NOTE: TO COMPLETELY DISCONNECT THE RS13 FROM THE AC POWER MAINS, DISCONNECT THE AC
POWER CORD FROM THE AC RECEPTACLE.
NOTE: THE POWER CORD ON THE RS13 MUST REMAIN READILY ACCESSIBLE AT ALL TIMES.
!
CAUTION
CAUTION: TO REDUCE THE RISK
OF ELECTRICAL SHOCK, DO
NOT REMOVE COVER. NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
!

FCC Interference Statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit dierent from that of the receiver.
Consult the manufacturer or an experienced radio/TV technician for help.
For questions regarding service, please contact:
Emotiva Audio Corporation
Attn: Repair Department
139 Southeast Parkway Court
Franklin, TN 37064
1-877-366-8324
www.emotiva.com

Page 1
AIRMOTIV RS13 RefeRence SubwOOfeR
Contents
Important Safety Precautions and Explanation of Symbols
FCC Interference Statement
Introduction ......................................................................................................................3
About This Manual..........................................................................................................4
Features ..............................................................................................................................5
Unpacking..........................................................................................................................6
Quick Start .........................................................................................................................7

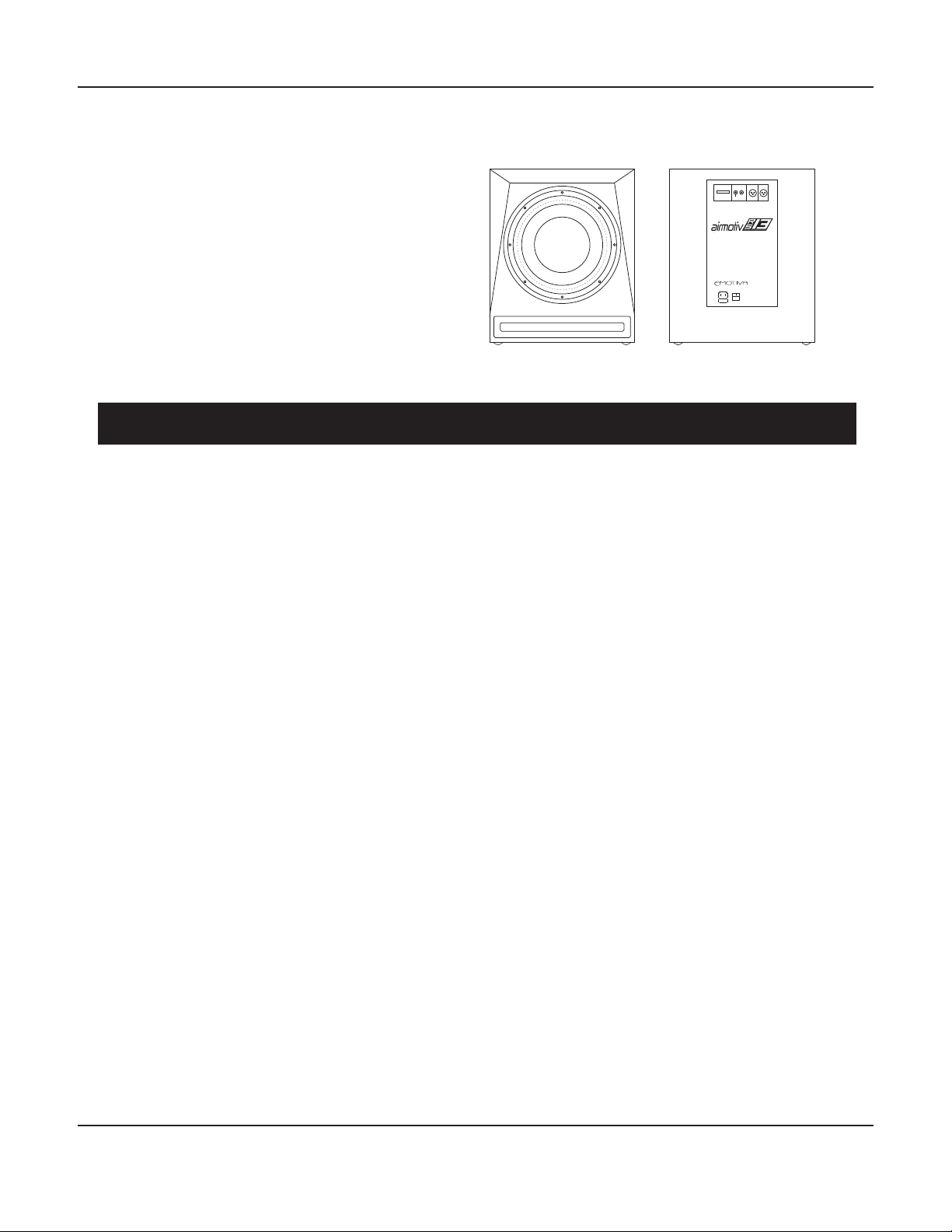

Airmotiv RS13 Reference Subwoofer .......................................................................8
Airmotiv RS13 Rear Panel Connections & Controls.......................................... 10

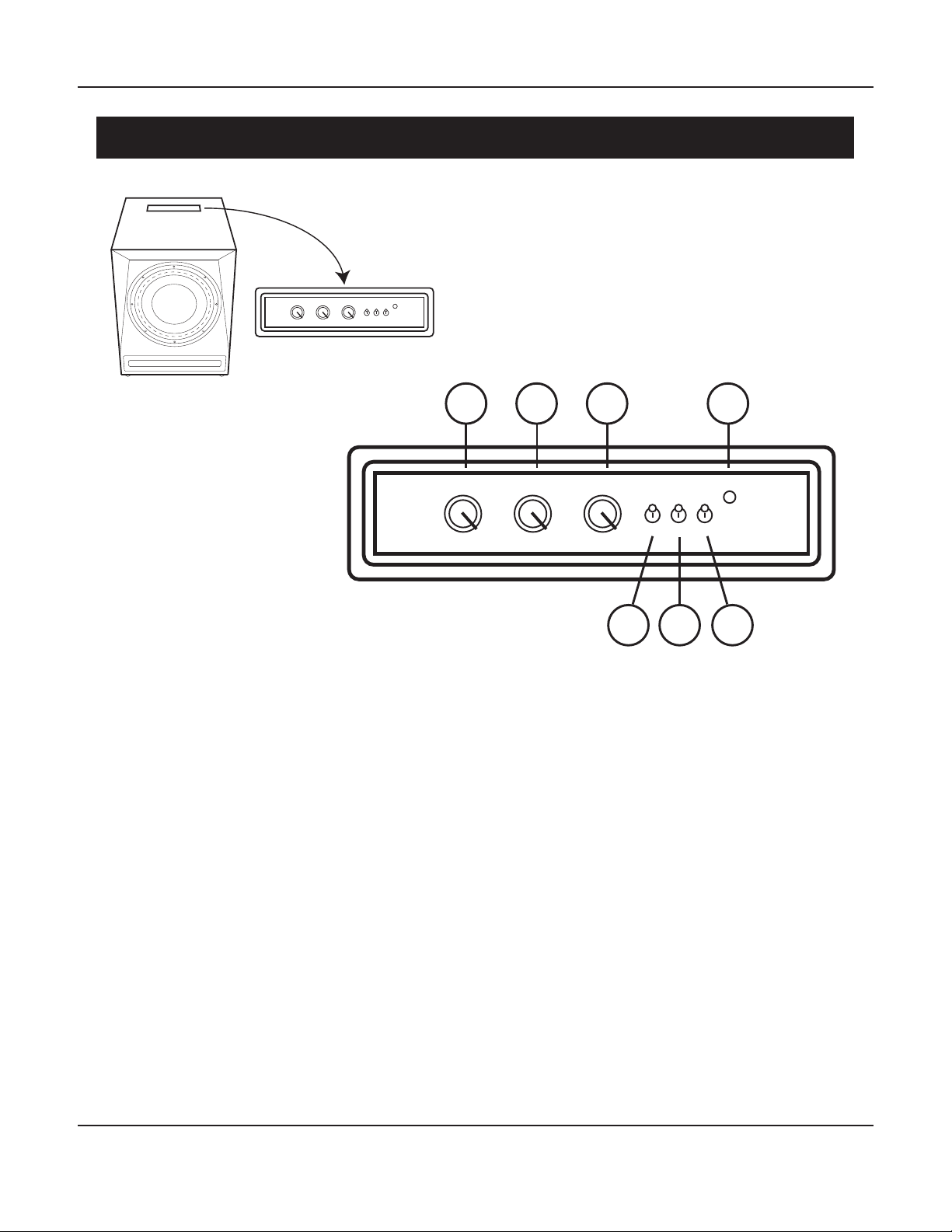

Airmotiv RS13 Control Panel (top) ......................................................................... 12
Subwoofer Placement and Conguration........................................................... 14
Care and Maintenance ............................................................................................... 15
Emotiva Audio Corporation Five-Year Limited Warranty ............................... 16
Notes................................................................................................................................. 19
Airmotiv™ RS13
RefeRence SubwoofeR
®
FUSE
POWER
SERVICE LINE INPUTS BAL IN LOOP OUT
LFE MONO
L R

Page 2
AIRMOTIV RS13 RefeRence SubwOOfeR

Page 3
AIRMOTIV RS13 RefeRence SubwOOfeR
Introduction
Thank you for purchasing the new Emotiva Airmotiv™ RS13 Reference Subwoofer.
All Emotiva Airmotiv™ Subwoofers are designed to reproduce the lowest frequencies in the audio
spectrum accurately and with exceptionally low distortion - even at the high listening levels found in
modern movies. All of our Airmotiv Subwoofers deliver the dynamics and raw power you need to make
a modern movie sound track rattle the walls... with the precision and superb musicality you need to
get the most from well recorded music. With our Airmotiv Subwoofers, you don’t have to compromise;
you really can have it all.
The Airmotiv RS13 Reference Subwoofer was designed from the ground up to deliver the lowest
octaves in the audio spectrum with the ultimate in precision, accuracy, and authority. The Airmotiv
RS13 is at within +/- 3 dB all the way down to an astonishing 16 Hz, so you will be able to actually feel
the sound eects in your favorite movie, or the lowest tones in a well recorded pipe organ recital.
The ultra high performance forward ring 13” driver, with its high prole double roll NBR surround,
massive 165 ounce Strontium Ferrite magnet structure, and 60mm all aluminum voice coil, has plenty
of excursion to deliver truly prodigious amounts of bass, even at the lowest frequencies. The cone
and other components in the moving system of the RS13 driver are optimized for both strength and
low mass, enabling the RS13 to deliver excellent linearity, superb transient response, and very low
distortion.
The front bae on the massive, critically braced HDF cabinet is a full 50mm thick, and the cabinet is
nished on all sides with either furniture grade black lacquer or a high-gloss piano black nish. The slot
loaded front ring port is precisely contoured to avoid any trace of port chung or other unwanted
noise. Controls are located conveniently on the top panel, under a recessed magnetically attached
smoked plastic cover, and the driver is protected by an attractive sculpted fabric grill, rmly attached
by powerful magnets for easy removal.
The electronic components in the Airmotiv RS13 are no less impressive. The sophisticated electronic
crossover in the RS13 is implemented in a powerful 48 bit DSP audio processor, and everything is
powered by an audiophile quality Class D amplier, capable of delivering 1000 watts continuous and
up to 2000 watts peak. Controls are provided to adjust the level, crossover frequency, and phase on the
RS13, and may be fully bypassed when you use the RS13 with a system that already has its own bass
management. The Airmotiv RS13 also oers the choice of two dierent bass proles. The Deep prole
oers the attest overall performance. The Flat prole imposes a very slight rollo at the very lowest
subsonic frequencies, in return for slightly more maximum output at higher frequencies. The RS13 also
includes a handy Loop output for connecting another sub - if you really think you need one.
If you’ve been looking for the ultimate sub then you’ve come to the right place.
The Airmotiv RS13 Reference Subwoofer - power unleashed.
Happy listening!
The Emotiva Team

Page 4
AIRMOTIV RS13 RefeRence SubwOOfeR
About This Manual
This manual will provide you with all the information you need to achieve great performance,
accurate sound, and many years of reliable service from your Airmotiv RS13 Reference Subwoofer.
We suggest that you read through the entire manual; we kept things as short and direct as
possible. Even if you’re an expert user, you will probably nd some interesting information and
useful suggestions.
If you’re really in a hurry to get started, please read the Quick Start section (on page 7); you may
then read the remainder of the manual at your leisure.
You may wish to record serial numbers or other purchase information on the Notes page at the
back of this manual.

Page 5
AIRMOTIV RS13 RefeRence SubwOOfeR
Features
The Emotiva Airmotiv™ RS13 Reference Subwoofer was designed from the ground up to deliver
the absolute ultimate in performance and sound quality.
Here are a few of the important features of the Airmotiv RS13 Reference Subwoofer:
• High performance - The Airmotiv RS13 delivers the lowest musical octaves with both
precision and stunning authority. The RS13 is at +/- 3 dB from 16 Hz to 240 Hz and can
deliver a full 106 dB SPL of clean bass at 20 Hz at two meters.
• Forward ring high performance driver - The Airmotiv RS13 features an ultra high
performance 13” forward ring driver, with a non-magnetic cast aluminum frame, 60mm all
aluminum voice coil, and double-stacked 165 oz Strontium Ferrite magnet structure. This
driver, with its large long ber treated paper cone, high prole double roll NBR surround,
twin aluminum shorting rings, and undercut carbon steel pole piece, is capable of maximum
excursions of up to 75mm. Special care was paid to minimizing the mass of the moving
system, enabling the RS13 to oer excellent linearity, superb transient response, and
extremely low distortion.
• Powerful Class-D amplier - The ecient audiophile quality Class-D amplier in the
Airmotiv RS13 is rated to deliver 1000 watts RMS continuous and 2000 watts peak... so the
RS13 will never run out of power when you need it.
• Convenient top-mounted control panel - All of the operating controls and status indicators
on the Airmotiv RS13 are located on the top panel... under a removable, magnetically
attached, smoked plastic cover.
• Flexible DSP-based crossover and EQ controls - The controls and adjustments on the
RS13 are implemented by a powerful dual-core 48 bit DSP audio processor for optimum
precision and exibility. Controls include continually variable adjustments for Phase, Level,
and Crossover Frequency. Separate switches allow you to bypass the internal crossover, select
between two dierent Bass response proles, and choose between always-on and auto-on
operation.
• Transparent limiter circuitry - The Airmotiv RS13 features a truly transparent limiter, which
is totally inaudible in normal operation, but makes it virtually impossible to accidentally
overload the RS13, or get it to sound anything less than awesome.
• Plenty of input and output options - The Airmotiv RS13 oers both a balanced monaural
audio input and loop output and a pair of stereo unbalanced inputs. Inputs and outputs are
located conveniently out of the way on the rear panel.
• Heavy-duty furniture grade cabinet - The Airmotiv RS13 is housed in a massive, critically
braced, furniture quality HDF cabinet. The cabinet features a full 50mm thick front bae,
25mm side walls, and a low noise front ring port. The choice of either furniture-grade at
black lacquer or a high gloss piano black nish, and an attractive sculpted fabric grill, held
rmly in place by powerful magnets, complete the picture.
• Detachable IEC power cable and user-accessible AC fuse - The rear panel of the Airmotiv
RS13 includes the main AC Power switch, a receptacle for the heavy duty IEC power cable, and
the access panel for the user-replaceable main AC power fuse. A high quality heavy duty IEC
power cable is included with the RS13.
• Full ve year warranty - A full ve year warranty ensures that you’ll enjoy your Airmotiv RS13
Reference Subwoofer for many years to come.
You can nd more information about the Airmotiv RS13 Reference Subwoofer on our website at
www.emotiva.com.

Page 6
AIRMOTIV RS13 RefeRence SubwOOfeR
Unpacking
Your Airmotiv RS13 Reference Subwoofer was carefully packed and should reach you in perfect
condition. If you notice any shipping damage or other issues when you unpack it, please contact
Emotiva immediately.
Gently remove your Reference Subwoofer from the packing carton and remove all wrappings and
shipping material.
It is important to save the box and all packing materials in case your RS13 ever needs to be moved
or shipped back to the factory for service.
Please keep your sales receipt in a safe place. It is the easiest way to verify your purchase date for
warranty purposes, and may also be required if you ever have to le an insurance claim.
We truly value customer feedback and would like to hear from you.

Page 7
AIRMOTIV RS13 RefeRence SubwOOfeR
Quick Start
To get the most from your Airmotiv RS13 Reference Subwoofer, we urge you to read the entire
manual. If you just can’t wait to hear how great your RS13 sounds, this section will cover the basics
you need to get started.
• Find a secure location for your Reference Sub.
• Your Airmotiv RS13 Reference Subwoofer will automatically detect your local line voltage and
congure itself accordingly.
• Connect your RS13 Reference Sub to the LFE or subwoofer output on your AVR or pre/pro.
• Congure your AVR or pre/pro to work with a subwoofer.
• Find some music you really like to listen to.
• Hold onto your seat!
• Enjoy!
While you’re enjoying your Airmotiv RS13 Reference Subwoofer, it would be a great time to read
the rest of the manual to learn more about them.

Page 8
AIRMOTIV RS13 RefeRence SubwOOfeR
Airmotiv RS13 Reference Subwoofer
The Airmotiv RS13 Reference Subwoofer delivers the ultimate
in technical performance, precision, musicality, and just plain
awesome bass output. Unlike lesser subs, the RS13 can actually
deliver huge amounts of clean deep low bass, all the way
down to 16 Hz, giving both music and movies the all important
foundation they need to sound their best, with no compromise
in sound quality.
Output Specications
Frequency response:
• 16 Hz - 240 Hz +/- 3 dB (Deep).
• 21 Hz - 240 Hz +/- 3 dB (Flat).
Maximum output level:
• 101 dB SPL at 16 Hz at 2 meters.
• 106 dB SPL at 20 Hz at 2 meters.
• 113 dB SPL at 40 Hz at 2 meters.
Driver Complement
Long excursion ultra high performance 13” forward ring
powered driver featuring:
• Long ber treated paper cone with oversized inverted
dust cap.
• High prole double roll NBR surround.
• Non-magnetic cast aluminum frame.
• 60mm all aluminum voice coil.
• Double-stacked 165 oz Strontium Ferrite magnet structure
with twin aluminum shorting rings and undercut carbon
steel pole piece.
• Maximum linear excursion: 38mm.
• Maximum peak excursion: 75mm.
Amplication
Audiophile quality, ecient, cool running, Class D amplier.
• 1000 watts RMS continuous.
• 2000 watts peak.
X-OVER PHASE LEVEL X-OVER EQ POWER STATUS
IN DEEP AUTO
OUT FLAT ON
90 Hz -90’
60 Hz 110 Hz
40 Hz 160 Hz 0’ -180’ -20 dB +15 dB
®
FUSE
POWER
SERVICE LINE INPUTS BAL IN LOOP OUT
LFE MONO
L R

Page 9
AIRMOTIV RS13 RefeRence SubwOOfeR
Inputs and Outputs:
To reduce unwanted noise, when the RS13 is powered on, it will detect which audio input is being
used, and temporarily disable the other input.
The Airmotiv RS13 Reference Subwoofer has:
• Stereo Left and Right unbalanced RCA inputs.
(The Left Unbalanced input is also the Unbalanced LFE input.)
• Balanced Mono LFE input.
• Balanced Loop Output (pass through).
Electronics
All of the operating controls and status indicators on the Airmotiv RS13 are located on the top
panel under a removable, magnetically attached, smoked plastic cover.
• Powerful dual-core 48 bit DSP audio processor for optimum precision and exibility.
• Variable Phase control: 0 to -180 degrees.
• Variable Level control: -20 dB to +15 dB.
• Variable Crossover Frequency control: 40 Hz to 160 Hz.
• An extremely eective, totally transparent limiter which makes it virtually impossible to
overload the RS13 or make it sound bad.
• User selectable Bass proles:
Deep prole allows for response at from 16 Hz to 240 Hz +/- 3 dB.
Flat prole introduces a gradual rollo below 30 Hz (-3 dB at 21 Hz).
• User selectable Crossover Bypass.
• User selectable power mode:
Always On
Auto-On
Cabinet
• Heavy-duty furniture grade acoustically inert HDF cabinet.
• Full 50mm thick front bae, 25mm side walls, and extensive internal bracing.
• Front ring low noise countoured slot loaded port.
• Finshed on all sides in furniture grade at black lacquer or a high gloss piano black nish.
• Attractive countoured fabric grill, rmly attached by powerful magnets for easy removal.
Environmental and Mechanical
• AC Power: 120/230 VAC at 50/60 Hz (automatically detected).
• DImensions: 17 inches wide x 22 inches deep x 20 inches high.
(add one inch to height for feet; add one inch to depth for grill and one inch for connectors)
• Weight: 86 Pounds.
• Permanently attached non-slip rubber feet.

Page 10
AIRMOTIV RS13 RefeRence SubwOOfeR
®
FUSE
POWER
SERVICE LINE INPUTS BAL IN LOOP OUT
LFE MONO
L R
1 32 4
6
5
7
Airmotiv RS13 Rear Panel Connections & Controls
All audio inputs and AC power connections for the Airmotiv RS13 are located on the rear panel.
1. Service Port
The service port is used by the factory to congure the DSP rmware in the RS13.
2. Line Level Inputs
Use the Left and Right Line Level Inputs to connect the RS13 to a line level audio source that
has stereo subwoofer outputs. Use just the Left (L) Line Level Input if your source has a single
unbalanced subwoofer output or LFE output.
3. Balanced Line Level Input
Use the Balanced Line Level Input to connect the RS13 to a source with a balanced line level
output.
Note: The Airmotiv RS13 has a sophisticated built-in DSP-based crossover system, which oers
exible conguration options for connecting to a source that provides a stereo or monaural
full range output, or can be bypassed for use with sources that have internal bass management
and oer a subwoofer or LFE output.
Note: In order to minimize input noise, the RS13 detects whether you are using the balanced
or unbalanced inputs when you power it on, and disables the inputs not currently in use. If you
wish to change active inputs you must power cycle the RS13 so that it recognizes the change.

Page 11
AIRMOTIV RS13 RefeRence SubwOOfeR
4. Loop Output
The input signal received by the RS13 is passed directly to the balanced Loop Output for
connection to additional subwoofers.
5. IEC Power Receptacle
The IEC Power Receptacle accepts any standard IEC power cable. A high quality commercial power
cable is provided with your Reference Subwoofer.
6. Fuse Holder
The AC line fuse for the Airmotiv RS13 is located directly beneath the IEC Power Receptable on the
rear panel. (See Page 15 for details about how to change the AC line fuse.)
7. AC Power Switch
Use this switch to turn the main AC Power to your Airmotiv RS13 Reference Subwoofer On and O.
Note: The Airmotiv RS13 will only operate if the AC POWER Switch is turned ON. If the AC
POWER Switch is OFF, your RS13 will NOT operate, and the Power Auto / On Switch will have no
eect.

Page 12
AIRMOTIV RS13 RefeRence SubwOOfeR
Airmotiv RS13 Control Panel (top)
X-OVER PHASE LEVEL X-OVER EQ POWER STATUS
IN DEEP AUTO
OUT FLAT ON
90 Hz -90’
60 Hz 110 Hz
40 Hz 160 Hz 0’ -180’ -20 dB +15 dB
1 32
65 7
4
X-OVER PHASE LEVEL X-OVER EQ POWER STATUS
IN DEEP AUTO
OUT FLAT ON
90 Hz -90’
60 Hz 110 Hz
40 Hz 160 Hz 0’ -180’ -20dB +15 dB
The conguration controls on the Airmotiv RS13 Reference Subwoofer are located under a tinted
plastic cover located near the rear of the top panel. The cover is attached magnetically - simply lift
to remove it and access the controls.
1. X-Over (Crossover Frequency)
This control sets the low-pass crossover frequency for the internal crossover on the RS13. This is
used to congure the smoothest possible blend between the RS13 and your main speakers.
2. Phase
This control allows you to adjust the phase of the acoustic output on the RS13 relative to your
main speakers. This is used to adjust your RS13 so it is “in phase” with your main speakers.
Note: The X-Over and Phase controls only aect the output of the RS13 when the X-Over Switch
is set to In. They have no eect when the X-Over Switch is set to Out, and they have no eect on
the Loop output.
3. Level
This control allows you to adjust the output level on your RS13.

Page 13
AIRMOTIV RS13 RefeRence SubwOOfeR
4. Status LED
The Status LED on the Airmotiv RS13 provides information about the status of the RS13.
• An UNLIT Status LED indicates that the main AC Power switch is O or there is no AC power.
• A RED Status LED indicates that the RS13 is in Standby mode.
• A FLASHING BLUE Status LED indicates that the RS13 is On but has not detected an input
signal.
• A BLUE Status LED indicates that the RS13 is On and playing or ready to play.
Note: When the RS13 is powering On, the status LED will blink several times before turning
solid RED to indicate that the RS13 is in Standby. This is part of the normal startup process.
Note: When the RS13 powers O, you will notice that the Status LED and panel lighting ash
for a period, go o entirely, ash briey a few seconds later, then ash briey again after a few
more seconds. This is part of the normal shutdown process. The RS13 is only fully O after the
second brief ash.
5. X-Over Switch
This switch enables you to bypass the internal crossover in the RS13. This switch should be set
to Out when the RS13 is connected to the Subwoofer or LFE output on a system that has bass
management, and should be set to In, to enable you to use the internal crossover on the RS13,
when the RS13 is connected to a full range output.
6. EQ Switch
This switch allows you to select between the Deep and Flat response curves on the RS13.
The Deep response curve is the attest, with a response at within +/-3dB to 16 Hz.
The Flat setting introduces a slight rollo at very low frequencies.
The rollo starts at about 30 Hz and results in a response that is -3 dB at 21 Hz.
Limiting the lowest frequencies results in a slightly higher maximum output.
7. Power Auto/On Switch
This switch selects between allowing the RS13 to remain powered on at all times and enabling
the RS13 to automatically turn on when it detects an audio signal.

Page 14
AIRMOTIV RS13 RefeRence SubwOOfeR
Subwoofer Placement and Conguration
The best location for your subwoofer will depend on a lot of things - including the acoustics of
your room, the characteristics of your main speakers, and practical considerations like where
you have room for it. Whole books have been written about the subject - and even experts often
disagree. The RS13 Reference Subwoofer has a single port on the front, and no extensive vents or
heat sinks on its rear panel, so it may be placed in a corner or close to a wall.
Some frequently chosen locations include: in the front between your main front speakers,
in a front or rear corner, or in the center of a side wall or rear wall. Each has advantages and
disadvantages, and each may or may not work well in your particular system.
One way of choosing a good location is sometimes humorously referred to as the “subwoofer
crawl”. To use this method, you connect your subwoofer temporarily to your audio system, place
the sub in your normal listening position, where you would normally sit, and play music through
it with plenty of bass. You then crawl around on the oor, stopping and listening at each location
where you’re considering putting your sub. Once you nd the spot where the bass sounds the
best and cleanest, you switch places with the subwoofer, placing it in the location where the bass
sounded the best. This often turns out to be a good location for your sub.
Note: Your Reference Subwoofer contains a powerful yet ecient Class D amplier. While the
back plate of the RS13 will get slightly warm in normal use, no special ventilation or clearance
is required.
The Airmotiv RS13 may be used with a wide variety of dierent systems and how you congure it
will depend on the type of system you have. A properly congured subwoofer should add depth
and a solid foundation to your listening experience, but should not be audible as a separate
sound source, and you should not be able to detect its physical location in the room by listening
to it. The visceral low bass delivered by a subwoofer should simply ll the listening area. Please
feel free to call us at Emotiva Technical Support if you have any questions about how to connect
or congure your Airmotiv RS13 Reference Subwoofer.
Note: The way your main speakers and subwoofer blend together will sound slightly dierent
at dierent locations in the room. These adjustments should be made by listening at your
normal listening location. If your equipment is located across the room, walk back to your
favorite chair and listen to the results from there each time you make an adjustment.
Note: After you’ve congured everything on your pre/pro, or used your automatic room
correction to do so, you should AVOID changing location of the RS13, and the Crossover and
Phase Control settings, as this will change the way it sounds. However, you may use the Volume
Control to increase or reduce the overall amount of bass to suit your tastes.

Page 15
AIRMOTIV RS13 RefeRence SubwOOfeR
Care and Maintenance
Periodic Maintenance
Your Airmotiv RS13 Reference Subwoofer requires no periodic maintenance or calibration.
Cleaning the Cabinet and Bae
• The cabinet of your Reference Subwoofer should normally be cleaned with a rag dampened
with plain water. DO NOT spray water directly onto or into the speaker and DO NOT use
abrasive or chemical cleaners. Gently dry the surface with a clean soft rag after cleaning.
• If necessary, use a mild detergent, wipe the surface with a rag dampened with plain water
afterwards to rinse it, and then gently dry the surface with a clean soft rag.
• If something nasty does get on the sides or top of your Reference Subwoofer, use a rag
dampened with a weak solution of dish detergent or other mild cleaning liquid, followed by a
rag dampened with plain water, and then dry with a clean rag.
Cleaning the Grill Cloth
• If necessary, the grill cloth may be carefully vacuumed to remove dust or hair.
• Animal hair may be removed by using a“tape” type lint remover or soft brush. Avoid using
brushes with sti bristles that may pull or damage the grill cloth.
Note: DO NOT use any sort of liquid or wet cloth on the woofer cone, grill, or control panel.
Replacing The Main AC Line Fuse
The main AC power fuse on the Airmotiv RS13 Reference Subwoofer is accessed from the rear
panel. In the unlikely even that you need to replace the fuse, here’s how:
• Turn o your RS13.
• Disconnect the IEC power cable from its receptacle on the rear panel.
• The fuse is located in a small drawer which is part of the IEC power cable receptacle.
(Refer to the picture on Page 9.)
• Once the cable is removed, reach across the cable receptacle opening with a small knife or
screwdriver, and pry gently outwards on the small plate with the fuse symbol on it. The fuse
holder will slide out like a drawer, allowing you to access and replace the fuse.
• Replace the fuse with a new one of the same size and rating.
• Carefully replace the fuse holder, making sure to orient it in the correct direction, and snap it
rmly back into place.
• Replace the IEC power cable.
Note: If the fuse in your Reference Subwoofer blows repeatedly without apparent reason, then
you might have an electrical fault in your sub, and you should call Emotiva Technical Support
for assistance.

Page 16
AIRMOTIV RS13 RefeRence SubwOOfeR
Emotiva Audio Corporation Five-Year Limited Warranty
What does this warranty cover?
Emotiva Audio Corporation (Emotiva) warrants its products against defects in materials and
workmanship. This warranty, and all rights provided hereunder, is granted to the original owner,
and may be transferred by the current owner to a new owner if the unit is gifted or sold. In
the event the original owner transfers ownership of the Product prior to the expiration of the
applicable term described below, this Warranty shall terminate at the end of the original term.
This Warranty only applies to Products purchased directly from Emotiva or any of its Authorized
Dealers or International Distributors.
Emotiva warrants any replacement product or part furnished hereunder against defects in
materials and workmanship for the longer of the following: (i) the amount of time remaining
under the original warranty, or (ii) 120 days from your receipt of the repaired or replaced product.
The duration described in this paragraph is hereinafter referred to as the “Term”.
TO THE FULLEST EXTENT PERMITTED BY LAW, ALL IMPLIED WARRANTIES RELATED TO THE
ORIGINAL PRODUCT AND ANY REPLACEMENT PRODUCT OR PARTS (INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE EXPRESSLY
LIMITED TO THE TERM OF THIS LIMITED WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU.
The original owner must make a claim within the Term of the Warranty. A claim shall not be valid
(and Emotiva has no obligation related to the claim) if it is not made within the Term and if it is not
made in strict compliance with the requirements of the“How do you get service?” section.
How long does this coverage last?
The warranty on the Emotiva Airmotiv RS13 Reference Subwoofer commences on the date of
retail purchase by the original retail purchaser and runs for a period of ve years thereafter. This
warranty may be transferred by the current owner to a new owner at any time during the original
term. Emotiva warrants any replacement product or part furnished hereunder against defects
in materials and workmanship for the longer of the following: (i) the amount of time remaining
under the original warranty, or (ii) 120 days from your receipt of the repaired or replaced product.
The duration described in this paragraph is hereinafter referred to as the “Term”.
What will Emotiva do?
Emotiva will, at its option, either: (i) repair the product, or (ii) replace the product with a new
consumer product which is identical or reasonably equivalent (in Warrantor’s sole discretion) to
the product. In the event Warrantor, in its sole discretion, is unable to replace or repair the Product
or it is not commercially practicable to do so, then: (i) if the claim was submitted during the rst
365 days of the Term, Warrantor shall refund to you the purchase price that you paid for the
Product; and (ii) if the claim was submitted after the rst 365 days of the Term, Emotiva shall issue
you a credit equal to the purchase price that you paid for the product. The credit may only be
used for the purchase of merchandise from Emotiva, and cannot be used for freight charges.
