EMPERO EMP.1000 User manual

1
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8

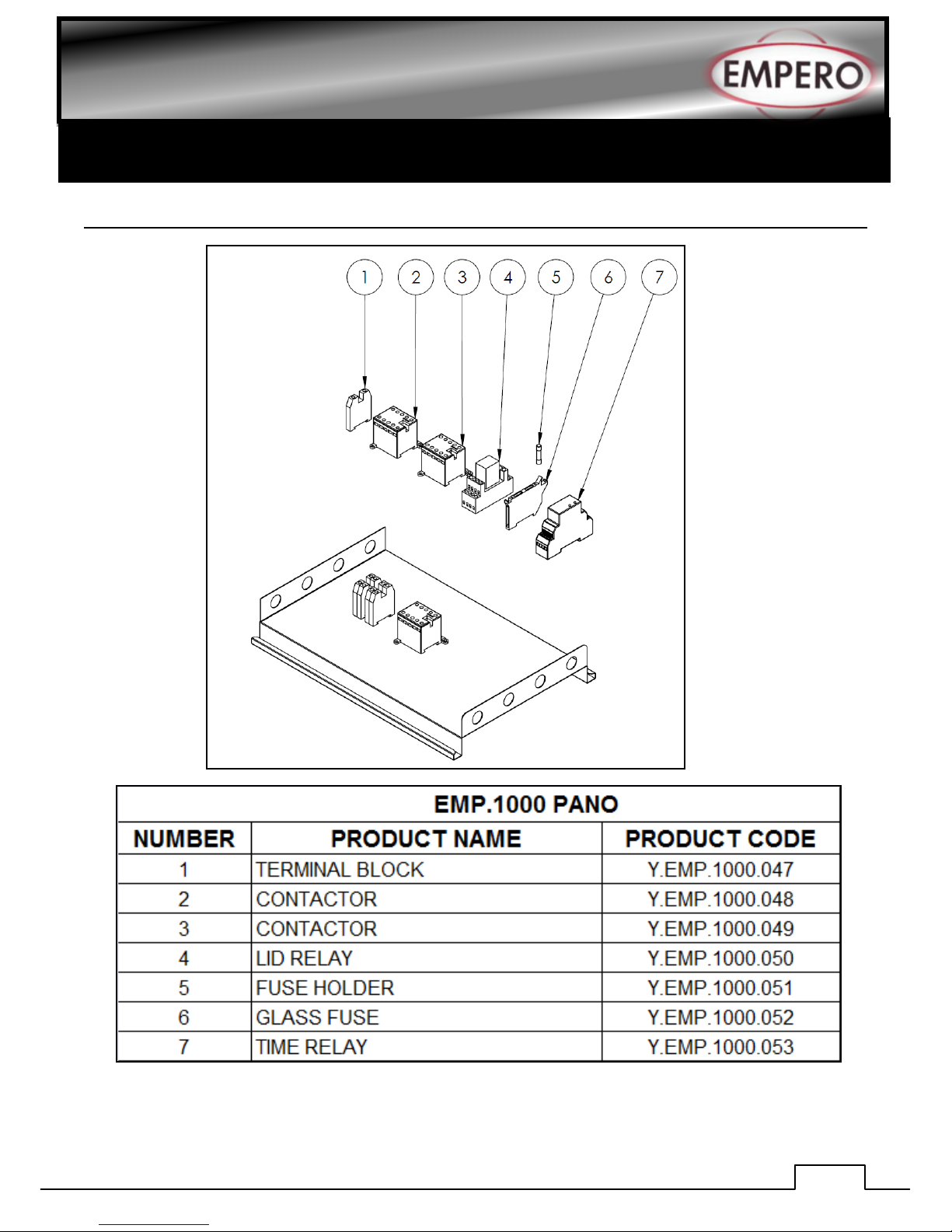

G SPARE PART LIST- EXPLODING DRAWING Page 9
H ELECTRIC CIRCUIT SCHEMA Page 12
HOOD TYPE DISHWASHER

2
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.
HOOD TYPE DISHWASHER
Kasap Tip Dik Buzdolapları

3
A1 PRODUCT DESCRIPTION
*The Professional Hood Type Dishwasher ,that provides high efficiency has been designed to
be used in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.1000
680x680x1420
120
720x750x1560
A2 TECHNICAL INFORMATION
Product Code
EMP.1000
Capacity (Plate/ hour)
1000
Water Consumption
(Lt/piece.)
2,5
Total Power (KW)
9,5
Motor Power (KW)
0,55
Operating Voltage (V)
380
Water Pressure ( bar )
4
Tank Heating Power (KW)
2,8
Rinsing Tank Power (KW)
6
Cable (mm²)
5x4
Fuse (A)
32
Program Number (ºC)
60 - 90 - 120 - 180
HOOD TYPE DISHWASHER
Kasap Tip Dik Buzdolapları

4
A3 TRANSPORTATION
*This appliance can not be moved by hand from area to area.It must be moved on pallet with
forklift truck.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
HOOD TYPE DISHWASHER
Kasap Tip Dik Buzdolapları
!

5
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty.
*Do not wash the decorated dishes.Prevent silver wares to contact with the other
metals.
*The appliance must be operated under the chimney hood.Otherwise while the
appliance is operating or the water vapor that comes from other appliances that
works in the area may cause moist and the moist may damage appliance’s electrical
and mechanical parts.The relative humidity mustn’t be more than %65 where the
appliance operates.

!
!
!
!
!
!

HOOD TYPE DISHWASHER
Kasap Tip Dik Buzdolapları
!
!
