EMPERO EMP.6LG010 User manual

1
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 3
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G INJECTOR CHANGE AND GAS SETTING Page 9
H GAS CONNECTION IMAGES Page 10
I SPARE PART LIST- EXPLODING DRAWING Page 12

2
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional Gas Lavastone Grills,that provides high efficiency has been designed to be
used in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.6LG010
400x650x290
46
480x700x580
EMP.6LG020
600x650x290
95
620x710x580
EMP.6LG030
900x650x290
120
930x730x580
A2 TECHNICAL INFORMATION
Product Code
Model
Power
(KW)
Gas
Consumption
(NG)
Gas
Consumption
(LPG)
EMP.6LG010
Lavastone Grills
4,7
0,60 m³/h
0,45 kg/h
EMP.6LG020
Lavastone Grills
9,5
1,21 m³/h
0,90 kg/h
EMP.6LG030
Lavastone Grills
17,1
1,80 m³/h
1,35 kg/h
A3 TRANSPORTATION
*This appliance can not be moved by hand from area to area.It must be moved on pallet with
forklift truck.

4
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Gas Fitment must be done by authorized person.
*The area where the appliance is must have enough ventilation and vent-hole.
*The appliance must be connected correctly according to local and national gas standards of
your country.
*The appliance gas entrances are indicated with ‘’G’’ label on the body.
*Connection to gas fitment must be done with suitable diameter metal flex pipe and spheric
valve.The spheric valve must be immobilized to a place that is far away from heat and
accessible during the danger.After gas entrance connection done,gas leakages must be
checked.
*According to the datas on appliance information plate,gas and pressure must be adjusted.If
the gas type that is adjusted is not the suitable with gas type that is at installation place,apply
the instructions that is about adjustment of different gas type. (Event :G)
*If the location where gas ranges placed is covered with nonflammable heat insulation
material,the distance between them must be 5 cm.Otherwise it should be at least 20 cm.The
appliance shouldn’t be operated under chimney hood.

5
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*If there is gas leakage where the appliance is, .do not fire absolutely and do not use
electric.
*Definitely do not allow to check the sealing with flame.
!
!
!
!
!
!

!
!

6
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
D OPERATION
*Control Panel;
A: OFF Position
B : Lighter Position
C : Full Flame
D : Half Flame
E : Lighter
F : Spyhole
*Operating;
•According to type of use,make gas entrance connection from behınd the grill. Because
the machine is operated with LPG and NG.
•Turn on the main gas valve.
•In order to evacuate the air from gas fitment press the button at pilot position before firing
during first operation.
•Press grill gas button and provide the pilot to be in flame position and fire the pilot.
•After the pilot is fired,press the button for a couple seconds to heat safety thermocouple’s
end.
•For desired temperature switch to full or half flame position.
•Operate the grill when it is empty so that protective oil can be removed.Then place the
materials that are wanted to be cooked on the grill.
•Provide the oil on the grill to be flowed to oil drawer.
•After the operation is completed,switch the gas valve to (0) position.

7
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
➢CLEANING AND MAINTENANCE AFTER EVERY USE
•Turn off the gas connection before cleaning.
•Clean the outer surface of the appliance with moist cloth.
•Do not use abrasive cleaning chemicals as these can leave harmful residues.
•Do not wash the appliance with pressure water.
•Do not clena the appliance with a materials that may damage chrome material.
•Clean the grill with suitable spatula after every use.
➢PERIODIC CLEANING AND MAINTENANCE
•Maintenance should be done by qualified person.
•These parts ; Gas storage,thermocouples,taps,burner,lighter and spark plug cable
are not maintained so they need to be changed when they have error.
•Check the gas connection hoses in periodic time.If there is slit,hole..etc,change the
hoses.
•Ventilate the area where the device is in periodic times.

8
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the gas connection is done or
not.
2. If there is no gas entrance to safety and
firing part,the appliance is not operated.
3. Check if the injector holes are opened or
not.
4. If the hoses that have gas entrance lose
gas due to slit,hole.etc.,the appliance is
not operated.
THE APPLIANCE DOESN’T COOK WELL
1. Check if it is operated at suitable gas
setting or not.
THE APPLIANCE STOPPED
1. Gas flow is stopped automatically when
the flame is off due to having gas tap
that has safety valve.In this situation the
appliance is not operated.
2. When there is gas leakage,if there is
solenoid gas stopper alarm,gas flow is
stopped and the appliance is not
operated.Ventilate the area through the
agency of vent-hole.
•If cooking at gas lavastone grills is not done at suitable quality
•If any function of security doesn’t work
➢Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
G INJECTOR CHANGE AND GAS SETTING
GAS LAVASTONE GRILL BURNER - INJECTOR CHANGE CHART
Gas Group
Gas
6LG
Safety and Firing
Part
Injector mm
Injector mm
2
G20
1,6
0,41
G25
1,6
0,41
3
G30
30
1
0,22
50
0,85
0,20
G31
37
1
0,22
30
0,95
0,20
Change of Burner Injector;
1. Rip off the injector at the entrance of burner with suitable equipment
2. Change "A" injector by paying attention to the datas at chart with suitable injector.
( Image 1)
3. Set the burner air entrance "F" setting by loosening "B" bolt and moving venturi pipe
forward-back. (Image 2)
4. Change "C" injector by paying attention to the datas at chart with suitable injector.For
this it is enough to take off "D" fitting and pull the gas pipe to down. (Image 3)
Setting of Half Flame;
1. Remove the tap button and set by turning tap half flame screw "K" with suitable
screwdriver.(Image 4) Turn it to left for transformation from LPG to NG,turn it right for
transformation from NG to LPG.
2. After this process,operate the appliance and set it not to be deflated during transition
from full flame to half flame.

10
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
H GAS CONNECTION IMAGES
Image 2
Image 1

11
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
H GAS CONNECTION IMAGES

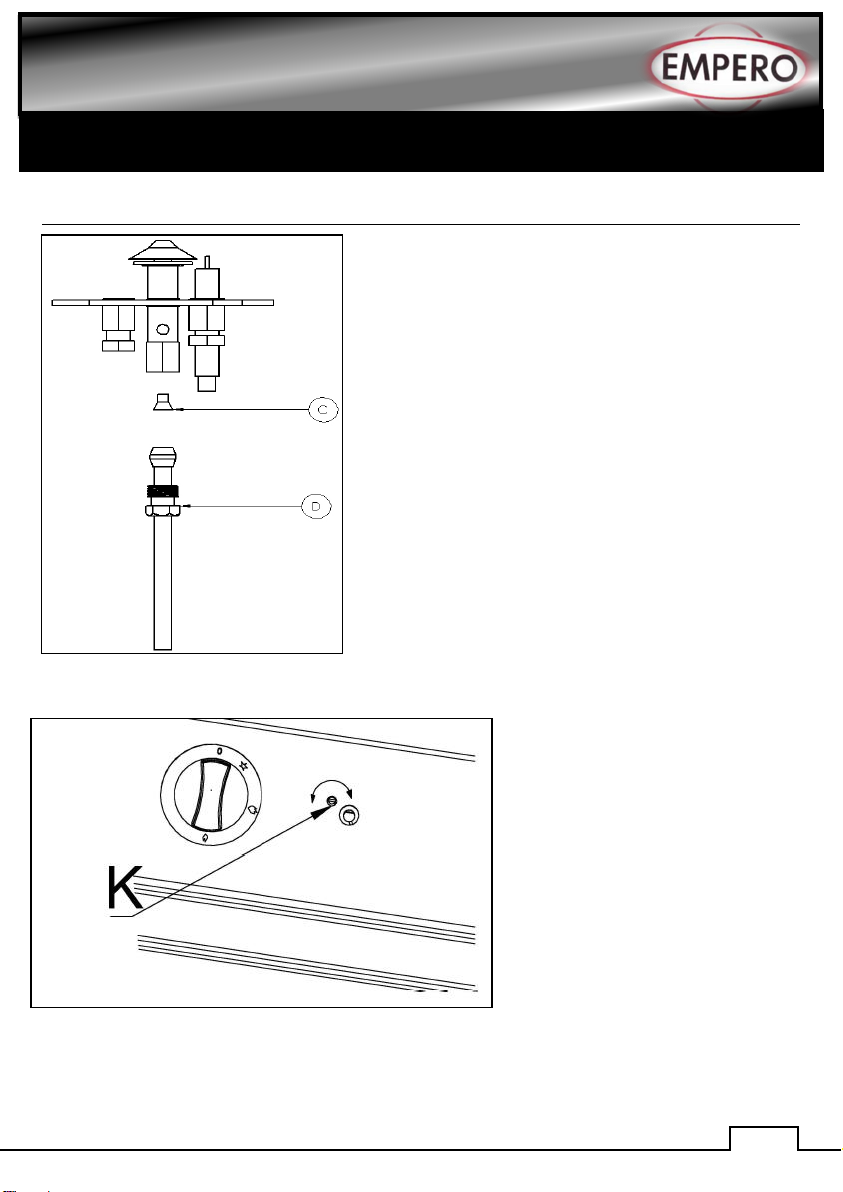

Image 3
Image 4

12
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları

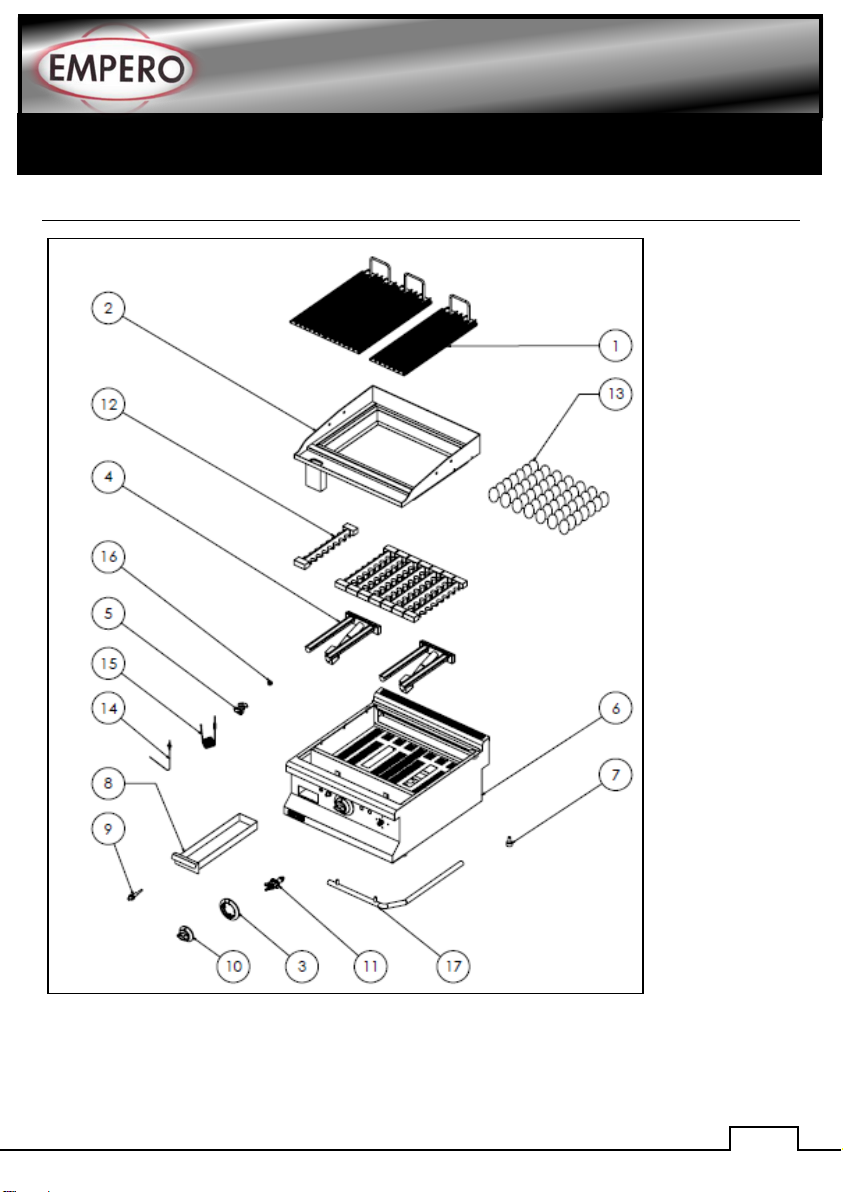

I SPARE PART LIST-EXPLODING DRAWING
EMP.6LG010

13
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.6LG010
NO
PRODUCT NAME
P.CODE
1
TOP GRILL
Y.EMP.6LG010.001
2
TOP GRILL SHEETMETAL
Y.EMP.6LG010.002
3
BUTTON BUFFER
Y.EMP.6LG010.003
4
BURNER
Y.EMP.6LG010.004
5
PILOT
Y.EMP.6LG010.005
6
BASE FRAME
Y.EMP.6LG010.006
7
FEET
Y.EMP.6LG010.007
8
DRAWER
Y.EMP.6LG010.008
9
LIGHTER
Y.EMP.6LG010.009
10
BUTTON
Y.EMP.6LG010.010
11
GAS VALVE
Y.EMP.6LG010.011
12
BOTTOM GRILL CAST
Y.EMP.6LG010.012
13
STONE 1 KG
Y.EMP.6LG010.013
14
SPARKING PLUG+CABLE
Y.EMP.6LG010.014
15
THERMO PART
Y.EMP.6LG010.015
16
INJECTOR GROUP
Y.EMP.6LG010.016
17
GAS TANK
Y.EMP.6LG010.017

14
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
EMP.6LG020

15
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.6LG020
NO
PRODUCT NAME
P.CODE
1
TOP GRILL
Y.EMP.6LG020.001
2
TOP GRILL SHEETMETAL
Y.EMP.6LG020.002
3
BUTTON BUFFER
Y.EMP.6LG020.003
4
BURNER
Y.EMP.6LG020.004
5
PILOT
Y.EMP.6LG020.005
6
BASE FRAME
Y.EMP.6LG020.006
7
FEET
Y.EMP.6LG020.007
8
DRAWER
Y.EMP.6LG020.008
9
LIGHTER
Y.EMP.6LG020.009
10
BUTTON
Y.EMP.6LG020.010
11
GAS VALVE
Y.EMP.6LG020.011
12
BOTTOM GRILL CAST
Y.EMP.6LG020.012
13
STONE 1 KG
Y.EMP.6LG020.013
14
SPARKING PLUG+CABLE
Y.EMP.6LG020.014
15
THERMO PART
Y.EMP.6LG020.015
16
INJECTOR GROUP
Y.EMP.6LG020.016
17
GAS TANK
Y.EMP.6LG020.017

16
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
EMP.6LG030

17
GAS LAVASTONE GRILLS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.6LG030
NO
PRODUCT NAME
P.CODE
1
TOP GRILL
Y.EMP.6LG030.001
2
TOP GRILL SHEETMETAL
Y.EMP.6LG030.002
3
BUTTON BUFFER
Y.EMP.6LG030.003
4
BURNER
Y.EMP.6LG030.004
5
PILOT
Y.EMP.6LG030.005
6
BASE FRAME
Y.EMP.6LG030.006
7
FEET
Y.EMP.6LG030.007
8
DRAWER
Y.EMP.6LG030.008
9
LIGHTER
Y.EMP.6LG030.009
10
BUTTON
Y.EMP.6LG030.010
11
GAS VALVE
Y.EMP.6LG030.011
12
BOTTOM GRILL CAST
Y.EMP.6LG030.012
13
STONE 1 KG
Y.EMP.6LG030.013
14
SPARKING PLUG+CABLE
Y.EMP.6LG030.014
15
THERMO PART
Y.EMP.6LG030.015
16
INJECTOR GROUP
Y.EMP.6LG030.016
17
GAS TANK
Y.EMP.6LG030.017
