Tesco DIY Charcoal BBQ Grill User manual

Produced in China for TESCO Stores Ltd.
© Tesco 2012
DIY Charcoal BBQ Grill
Assembly instructions
www.tesco.com
Ref No.: XZ6637
Catalogue No.: 207-0396
Product size assembled:
H67.5 x W40 X D11cm
Please retain this manual
for future reference
Front.pdf 1/11/11 09:42:45

2
DIY Charcoal BBQ Assembly Instructions
Produced in China for TESCO Stores Ltd.
© Tesco 2012
www.tesco.com
P2.pdf 31/10/11 17:28:18
Warnings
REMEMBER - DO NOT USE INDOORS! FOR OUTDOOR USE ONLY.
Great Care has been taken during production to remove sharp
edges but you should handle all components with care to avoid
possible injury.
• Keep a fire extinguisher handy.
• Hot fat may drip out at the bottom of the fire bowl so keep your
feet clear.
• If fire flares up due to dripping fat, douse flames lightly with
fine water spray.
• DO NOT touch metal parts of the BBQ until it has completely
cooled to avoid burns. BBQ handles will be hot and unsafe to
touch during use, unless you are wearing protective gear
(pot holders, gloves, BBQ mittens, hot pad etc).
• Never handle charcoal after lighting.
• Ensure the coals have completely burnt before removing the
ash.
• Not to be installed in or on recreational vehicles and/or boats.
• Store away ONLY when barbecue is completely extinguished
and cool.
provided.
• CAUTION! Do not use spirit or petrol for lighting or relighting!
Use only firelighters complying with EN1860-3.
• CAUTION! Keep well away from heat sensitive materials and
objects.
• After use, extinguish and allow cooling.
• Only store away when thoroughly cool and extinguished.
• CAUTION! To avoid damage to property, ALWAYS place this
appliance on a surface which is suitably heat resistant as this
appliance will get extremely hot during operation.
• CAUTION! To avoid injury be aware that the resting surface
directly underneath this appliance will get very hot during
operation and will remain very hot for sometime after
afterwards - keep feet, other limbs and all
property/item well away from this area.
• Attention! This barbecue will become very hot do not move
it during operation.
• Warning: Keep children and pets away.
✓Do’s
Stand your barbecue on a safe, level surface, well away from
flammable items such as wooden fences or over-hanging tree
branches.
Keep children and pets away.
hot barbecue unattended.
Be careful of sharp edges during assembly.
Ensure this product is fully assembled as illustrated before use.
solvent based cleaners or detergents as they can bleach or
damage the product.
Tools not included.
Before you start
• In construction of this BBQ use all and only the components
K
•
When you are ready to start, make sure you have the right tools,
plenty of space and a clean, dry area for assembly.
An adult should always be in charge of the BBQ. NEVER leave a
heck the pack and make sure you have all parts listed.
During assembly children should be kept away from the product due
to possible risk of injury.
✘Dont’s
ATTENTION! Once lit DO NOT move your BBQ or leave it
unattended.
Always make sure the barbecue is fully extinguished and
completely cool before applying any covers (not included) OR
storing away – remember coals can remain hot for sometime and
could re-ignite under certain conditions UNLESS fully damped
down and/or extinguished.
CAUTION! NEVER STORE a barbecue indoors unless ALL coals and
ash have been thoroughly removed and thrown away outdoors
and all barbecue surfaces have been cleaned and are cool, as
otherwise this could lead to fire and/or emissions of poisonous
gases which could cause death.
CAUTION! Do not use spirit or petrol for lighting or re-lighting!
o
t
Use only firelighters complying EN1860-3!
DO NOT use power to construction this product.
DO NOT
DO NOT
sit or stand on the product.
DO NOT
use the product if parts are missing,damaged or worn.
DO NOT
tighten screws untill fully assembled.
over tighten screws or blots.
To clean wipe with a sponge and soapy water. Do not use
Keep small parts out of reach of children.
•
•
lmportant!Please retain this manualfor future reference.
of carton box or on a clean floor to prevent it from scratching.
Unwrap all packaging materials and place components on top

3
DIY Charcoal BBQ Assembly Instructions
Produced in China for TESCO Stores Ltd.
© Tesco 2012
www.tesco.com
P3.pdf 31/10/11 17:28:18
ur promise
O
We are happy to refund or replace any Tesco product which falls
below the high standard you expect. ust ask any member of staff.
This does not affect your statutory rights.
In the case of any query regarding the use or assembly of your BBQ,
including any missing parts, lease contact the BBQ Helpline on
lease have the Ref. number available to assist with your query.
This is located on the front page of the instruction manual.
Number of people required to assemble
One person to assemble the DIY Brick BBQ
Time to assemble
3 hours
Tools required not included
not
supplied
0870 066 6938


DIY Charcoal BBQ assembly instructions
Produced in China for TESCO Stores Ltd.
© Tesco 2012
www.tesco.com
P4.pdf 1/11/11 07:56:30
Further help
Instructions for use
Barbecue should be heated up and the fuel kept red hot for at least
Method 1 - Charcoal & Lighting Fluid/Gel Follow Charcoal & Lighting
Fluid/Gel product instructions and warnings
(not included)
• Set up your barbecue in a safe place with sufficient space and
make sure the barbecue is installed on a secure level base.
Place enough charcoal in the bowl to a depth of 3-5 cm.
• CAUTION: Carefully apply lighting fluid/gel in small amounts over
the charcoal. Over application can be dangerous.
• DO NOT spill any lighting fluid/gel onto your hands or clothes.
• Wait for 30 seconds to allow the liquid to soak into the charcoal
before lighting.
• DO NOT light the charcoal if you have spilt fluid or gel onto your
clothes. Light the charcoal using a long taper or safety lighter.
• DO NOT
(not included)
• Place three or four Lighting Blocks in the centre of the barbecue
fire bowl and light with a match.
• Place pieces of charcoal around each burning block. Add more
charcoal as required, in a pyramid formation.
• When burning is established, spread the fuel out evenly. The fire
should be ready for cooking when even white ash or an even red
glow is visible.
• DO NOT cook before the fuel has a coating of ash.
• Ensure that the cooking grill is fully located into the grill supports.
Care Instructions
Follow these instructions to maintain the appearance and life of
this BBQ.
• It is not advisable to completely fill the fire bowl as the barbecue
may become far too hot to cook successfully.
• Line the fire bowl with aluminum cooking foil, shiny side up, to
make it easier to clean your barbecue after use.
Leave ventilation holes clear by piercing the foil where necessary.
This process will lengthen the life of your barbecue and reflect the
heat more efficiently on to the food.
• To clean your grill, soak the cooking grill and tools in hot soapy
water when the barbecue is completely cool as soon as possible
after use.
• When you have finished cooking, never pour cold water directly on
the coals to extinguish them as this may damage your grill. Use old
cinders, sand or a fine water spray.
• Store in a cool dry place. Ensure it is clean and dry thoroughly cool
and thoroughly cleaned of all ash and unused fuel/coals before
storage. (See Warnings)
CAUTION! To help avoid injury or damage to property, it is vitally
important that you clean and maintain your barbecue after every use.
Please note that you should inspect your barbecue before every use -
the barbecue should be clean and in good working order.
Please note that this appliance will not last forever and will begin to
degrade with use over time. It is very important that you replace your
barbecue as and when it begins to show signs of fatigue, corrosion or
damage. Please note: Continuing to use an appliance which is
damaged could cause injury or damage to property.
• Protect from severe weather conditions.
We recommend you use a BBQ cover to protect this item when not
in use. BBQ must be cooled before cover is added.
Covers must be removed periodically to minimize moisture build up
squirt liquid onto burning charcoal.
Method 2 - Lighting Blocks Follow lighting block product instructions
and warnings
30 min prior to the first cooking on the barbecue.
.
.
and damage to the BBQ, as most covers are not breathable.
• Some components are held at BBQ service centre please
0870 066 6938
contact if you are missing parts.
Email:[email protected]

Ref

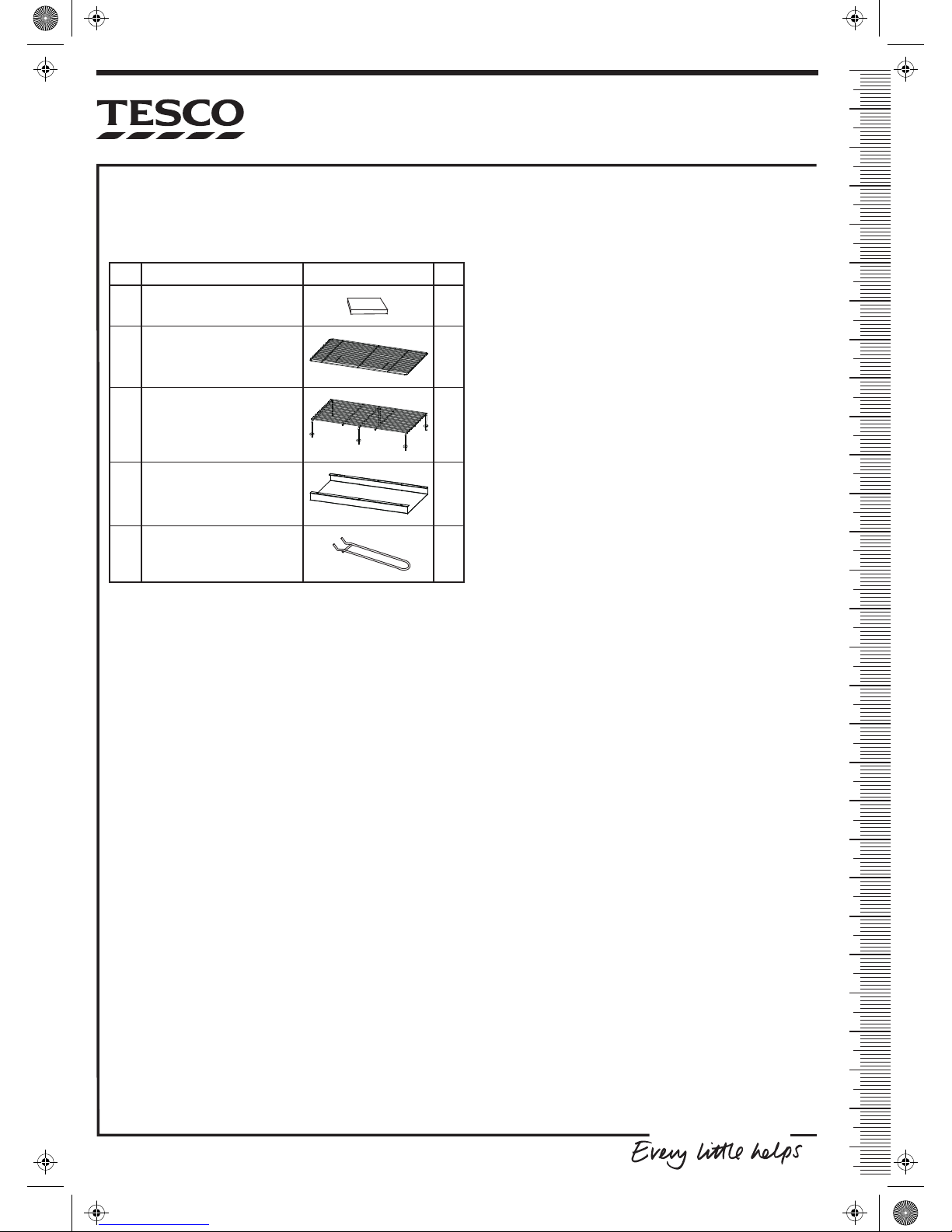

Components supplied (not actual size)
QtyVisualDescription
1
2
3
4
5
12
1
1
1
2
Furnace tray
Handle
Support bracket
Charcoal grill
Food grill
5
Produced in China for TESCO Stores Ltd.
© Tesco 2012
DIY Charcoal BBQ Grill
Assembly instructions
www.tesco.com
Fixtures and Fittings
10
0mm
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
P5.pdf 30/10/11 10:34:26

Produced in China for TESCO Stores Ltd.
© Tesco 2012
DIY Charcoal BBQ Grill
Assembly instructions
Getting to know your product
www.tesco.com
6
2
3
4
5
5
1
1
1
1
P6.pdf 25/10/11 09:12:02

Produced in China for TESCO Stores Ltd.
© Tesco 2012
DIY Charcoal BBQ Grill
Assembly instructions
www.tesco.com
not
supplied
2
1
not
supplied
not
supplied not supplied
2
3
4
5
6
7
1
1
2
7
1
1
4
P7.pdf 25/10/11 09:14:09

Produced in China for TESCO Stores Ltd.
© Tesco 2012
DIY Charcoal BBQ Grill
Assembly instructions
www.tesco.com
not
supplied not supplied
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
3
3
4
not
supplied not supplied
8
8
P8.pdf 25/10/11 09:19:17

Produced in China for TESCO Stores Ltd.
© Tesco 2012
DIY Charcoal BBQ Grill
Assembly instructions
www.tesco.com
5
9
2
1
4
3
6
5
8
7
10
9
12
11
5
5
2
