EMPERO EMP.7IE010 User manual

1
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G SPARE PART LIST- EXPLODING DRAWING Page 9
H ELECTRIC CIRCUIT SCHEMA Page 15

2
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional Electric Grills ,that provides high efficiency has been designed to be used
in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.7IE010
400x730x285
45
480x800x570
EMP.7IE020
800x730x285
70
830x800x570
EMP.7IE022
800x730x285
70
830x800x570
EMP.9IE010
400X900X285
65
480x970x1000
EMP.9IE020
800X900X285
106
840x960x1020
EMP.9IE022
800X900X285
108
860x960x1020
A2 TECHNICAL INFORMATION
Product
Code
Model
Electric Inlet
Cable
(mm²)
Power
(KW)
EMP.7IE010
Electric Grill-Smooth
400 V. AC 3N
PE
5x2,5
3,6
EMP.7IE020
Electric Grill-Smooth
400 V. AC 3N
PE
5x2,5
7,2
EMP.7IE022
Electric Grill-Smooth
+Ribbed
400 V. AC 3N
PE
5x2,5
7,2
EMP.9IE010
Electric Grill-Smooth
400 V.AC 3N PE
5X4
6
EMP.9IE020
Electric Grill-Smooth
400 V.AC 3N PE
5X4
12
EMP.9IE022
Electric Grill-Smooth
+Ribbed
400 V.AC 3N PE
5X4
12

4
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
*This appliance can not be moved by hand from area to area.It must be moved on pallet with
forklift truck.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
*If the location where Electric Grills placed is covered with nonflammable heat insulation
material,the distance between them must be 5 cm.Otherwise it should be at least 20 cm.The
appliance shouldn’t be operated under chimney hood.
!

5
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty.
*Do not put watery materials on the grill.Otherwise oil splashes may cause serious
burn.

!
!
!
!
!

!
!

6
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
D OPERATION
*Control Panel;
A: Heat setting button
B: Indicator lamp
C: Oil drawer
*Operating;
•Plug in the grill.
•In order to operate the grill,switch (l) position.
•Operate the grill when it is empty fort he first use.Then it will be ready for use.
•In order to set the appliance’s temperature,switch the thermostat to desired temperature.
•When the thermostat switch is turned,the heaters start to operate.and indicator lamp on
switch signals as it operates.During the operation of heaters the thermostat steps in and
signal lamp becomes off if the grill is of.
•Put the materials that will be cooked on the grill,while it is being heated.
•While the cooking is going on at grill be sure that the used oil is accumulated at oil
drawer.
•After the operation is completed switch to (0) position.

7
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
➢CLEANING AND MAINTENANCE AFTER EVERY USE
•Always turn off the appliance and disconnect from the power supply before cleaning.
•Clean the outer surface of the appliance with a wet cloth and chrome shiner.
•Do not use abrasive cleaning chemicals as these can leave harmful residues.
•Do not clean the appliance by spraying water directly,otherwise electric motor may
get damaged.
•Clean the grill with suitable scraper after every use.
➢PERIODIC CLEANING AND MAINTENANCE
•Maintenance should be done by qualified person.
•Get the periodic maintenance of the appliance once in every 15 days.
•Clean the oil drawer in periodic times.For this fill the oil drawer with water and heat
it.This process will help to clean frozen and sticked oil.
•Maintenance of the appliance’s contactor should be done by compressed air
according to frequency of use.

8
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
3. Check the fuse if it is on or not.
THE APPLIANCE DOESN’T COOK WELL
1. Check if the appliance is operated at
suitable temperature or not.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
•If cooking at electric grills is not done at suitable quality
•If any function of security doesn’t work
➢Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.7IE010
NO
PRODUCT NAME
P.CODE
1
TOP PLATINE
Y.EMP.7IE010.001
2
RESISTANCE
Y.EMP.7IE010.002
3
FEET
Y.EMP.7IE010.003
4
DRAWER
Y.EMP.7IE010.004
5
CONTACTOR 3TF41
Y.EMP.7IE010.005
6
BUTTON BUFFER
Y.EMP.7IE010.006
7
THERMOSTAT 50-300
Y.EMP.7IE010.007
8
LIMITÖR 360º
Y.EMP.7IE010.008
9
WARNING LAMP
Y.EMP.7IE010.009
10
BUTTON
Y.EMP.7IE010.010
11
BASE FRAME
Y.EMP.7IE010.011

10
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.9IE010
NO
PRODUCT NAME
P.CODE
1
TOP PLATINE
Y.EMP.9IE010.001
2
RESISTANCE
Y.EMP.9IE010.002
3
FEET
Y.EMP.9IE010.003
4
DRAWER
Y.EMP.9IE010.004
5
CONTACTOR 3TF41
Y.EMP.9IE010.005
6
BUTTON BUFFER
Y.EMP.9IE010.006
7
THERMOSTAT 50-300
Y.EMP.9IE010.007
8
LIMITÖR 360º
Y.EMP.9IE010.008
9
WARNING LAMP
Y.EMP.9IE010.009
10
BUTTON
Y.EMP.9IE010.010
11
BASE FRAME
Y.EMP.9IE010.011

11
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları

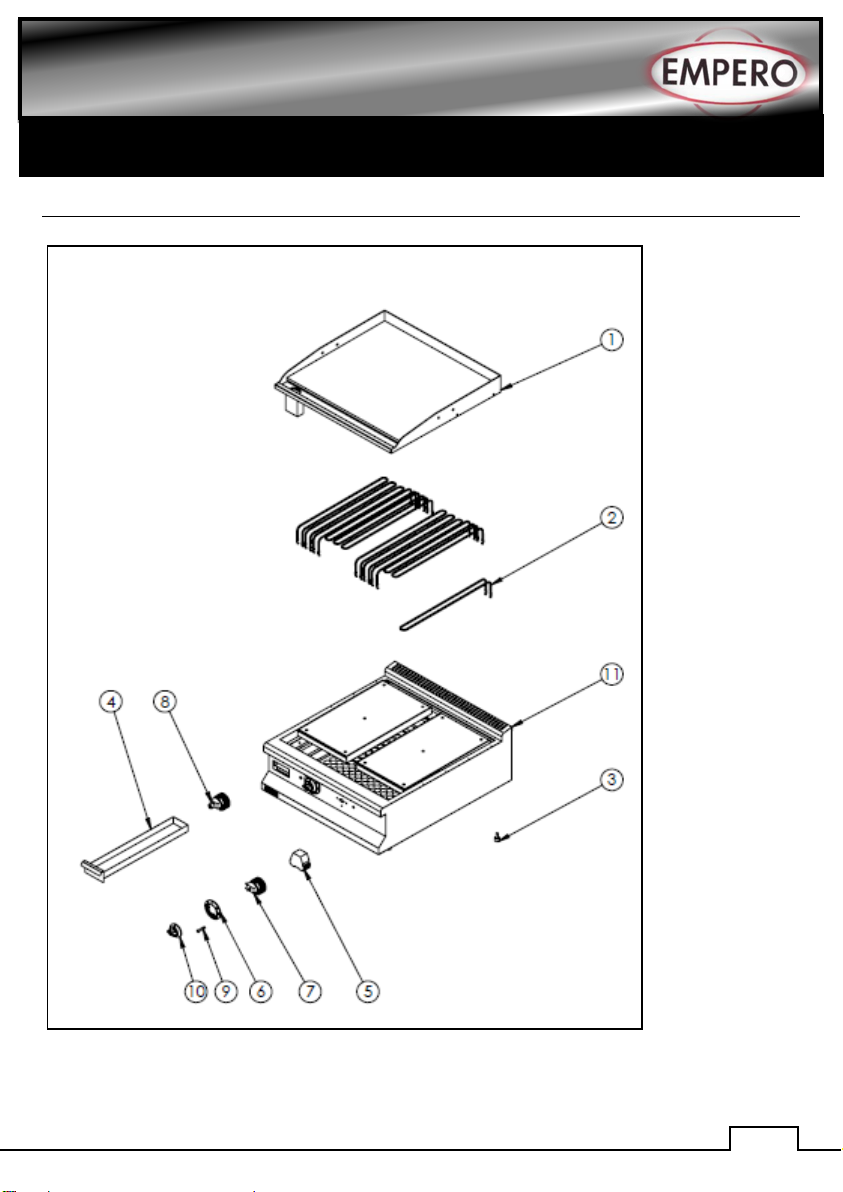

G SPARE PART LIST-EXPLODING DRAWING
EMP.7IE020 –EMP.7IE022

12
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.7IE020
NO
PRODUCT NAME
P.CODE
1
TOP PLATINE
Y.EMP.7IE020.001
2
RESISTANCE
Y.EMP.7IE020.002
3
FEET
Y.EMP.7IE020.003
4
DRAWER
Y.EMP.7IE020.004
5
CONTACTOR 3TF41
Y.EMP.7IE020.005
6
BUTTON BUFFER
Y.EMP.7IE020.006
7
THERMOSTAT 50-300
Y.EMP.7IE020.007
8
LIMITÖR 360º
Y.EMP.7IE020.008
9
WARNING LAMP
Y.EMP.7IE020.009
10
BUTTON
Y.EMP.7IE020.010
11
BASE FRAME
Y.EMP.7IE020.011
PRODUCT CODE: EMP.7IE022
NO
PRODUCT NAME
P.CODE
1
TOP PLATINE
Y.EMP.7IE022.001
2
RESISTANCE
Y.EMP.7IE022.002
3
FEET
Y.EMP.7IE022.003
4
DRAWER
Y.EMP.7IE022.004
5
CONTACTOR 3TF41
Y.EMP.7IE022.005
6
BUTTON BUFFER
Y.EMP.7IE022.006
7
THERMOSTAT 50-300
Y.EMP.7IE022.007
8
LIMITÖR 360º
Y.EMP.7IE022.008
9
WARNING LAMP
Y.EMP.7IE022.009
10
BUTTON
Y.EMP.7IE022.010
11
BASE FRAME
Y.EMP.7IE022.011

13
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
EMP.9IE020 –EMP.9IE022

14
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.9IE020
NO
PRODUCT NAME
P.CODE
1
TOP PLATINE
Y.EMP.9IE020.001
2
RESISTANCE
Y.EMP.9IE020.002
3
FEET
Y.EMP.9IE020.003
4
DRAWER
Y.EMP.9IE020.004
5
CONTACTOR 3TF41
Y.EMP.9IE020.005
6
BUTTON BUFFER
Y.EMP.9IE020.006
7
THERMOSTAT 50-300
Y.EMP.9IE020.007
8
LIMITÖR 360º
Y.EMP.9IE020.008
9
WARNING LAMP
Y.EMP.9IE020.009
10
BUTTON
Y.EMP.9IE020.010
11
BASE FRAME
Y.EMP.9IE020.011
PRODUCT CODE: EMP.9IE022
NO
PRODUCT NAME
P.CODE
1
TOP PLATINE
Y.EMP.9IE022.001
2
RESISTANCE
Y.EMP.9IE022.002
3
FEET
Y.EMP.9IE022.003
4
DRAWER
Y.EMP.9IE022.004
5
CONTACTOR 3TF41
Y.EMP.9IE022.005
6
BUTTON BUFFER
Y.EMP.9IE022.006
7
THERMOSTAT 50-300
Y.EMP.9IE022.007
8
LIMITÖR 360º
Y.EMP.9IE022.008
9
WARNING LAMP
Y.EMP.9IE022.009
10
BUTTON
Y.EMP.9IE022.010
11
BASE FRAME
Y.EMP.9IE022.011

15
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
EMP.7IE010
T1
LT
C1
L1
R1
Thermostat (50-
300ºC)
Limit thermostat
360º
Contactor
Thermostat
signal lamp
Resistance

16
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
EMP.7IE020 - EMP.7IE022
T1.T2
LT1-LT2
C1.C2
L1.L2
R1.R2.
Thermostat (50-
180ºC)
Limit thermostat
360º
Contactor
Thermostat signal
lamp
Resistance

17
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
EMP.9IE010
T1
LT
C1
L1
R1
Thermostat (50-
300ºC)
Limit thermostat
360º
Contactor
Thermostat
signal lamp
Resistance

18
ELECTRIC GRILLS
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
EMP.9IE020 - EMP.9IE022
T1.T2
LT1-LT2
C1.C2
L1.L2
R1.R2
Thermostat (50-
180ºC)
Limit thermostat
360º
Contactor
Thermostat
signal lamp
Resistance
