OUTDOOR LINEAR GAS
FIREPLACE MODELS
OL48TP10(N,P)-1
OL48TP18(N,P)-1
OL60TP10(N,P)-1
OL60TP18(N,P)-1
GAS-FIRED
!
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open ame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or re department.
WARNING
For Outdoor Use Only.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause injury
or property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
WARNING
Do not store or use gasoline or other
ammable vapors and liquids in the vicinity
of this or any other appliance.
An Propane-cylinder not connected for use
shall not be stored in the vicinity of this or
any other appliance.
Installation and service must be performed
by a qualied installer, service agency or
the gas supplier.
WARNING
If the information in these instructions are
not followed exactly, a re or explosion may
result causing property damage, personal
injury or loss of life.
WARNING
If not installed, operated and maintained
in accordance with the manufacturer's
instructions, this product could expose you
to substances in fuel or from fuel combustion
which can cause death or serious illness.
INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL

37795-3-0119Page 2
BEFORE YOU START
1. Read the safety information on pages 4 and 5.
2. What to consider before installing. See pages 9 and 10.
3. Water drainage is required. See page 12. Optional drain tray
available.
4. Where are you going to install the unit? See pages 9 to 12.
5. Enclosure construction. See pages 9 to 17.
6. Installtherepit.(ModelswithLEDlightsinstalled)
See pages 13 to 20.
7. Connect the electricity. See page 13.
8. Connect the gas. See pages 14 to 16.
9. Install the crushed glass. See page 20.
10. Lighttherepitandtroubleshoot.Seepages21and22.
11. Showthehomeownerhowtooperatetherepit.Seepages
21 to 23.
12. Showthehomeownerhowtodothebasicmaintenance.
See page 25.
Tools Needed:
(1)-1/8-inchAllenWrench
(2)-Adjustablewrencheswithrangeof1-inchforgasconnection
(2)-Adjustablepipewrenches
(1)-PhillipsScrewdriver
(1)-5/16"HexNutDriver
CARTON CONTENTS
Index
No. Description Quantity Supplied
OL(48,60)TP10 OL(48,60)TP18
1Instruction
Envelope 1 1
2 Receptacle -1
3 Cover Plate -1
4Conduit
Connector1/2-in. -1
5AABattery 1 1
6Prop Tool 2 2
SeePartsListsonpage29fororderingreplacementparts.Do
notorderbatteries,bolts,screws,washersornuts.Theyare
standardhardwareitemsandcanbepurchasedatanylocal
hardwarestore.
2
3
1
45
6

37795-3-0119 Page 3
TABLE OF CONTENTS
Before You Start.......................................................................................................................... 2
Table Of Contents....................................................................................................................... 3
Important Safety Information..................................................................................................... 4
Safety Information For Users Of Propane Gas ........................................................................ 5
Product Specications............................................................................................................... 6
Accessories................................................................................................................................. 6
Firepit Dimensions ..................................................................................................................... 7
Introduction................................................................................................................................. 8
Combustible Materials ............................................................................................................. 11
Clearances................................................................................................................................. 11
Planning Installation............................................................................................................ 9 - 12
Firepit Installation:
-ElectricalSupply .................................................................................................................. 13
-GasSupply .......................................................................................................................... 14
-PropaneGasCylinderInformation................................................................................ 15-16
-FirepitEnclosureRequirements.................................................................................... 17-18
-Finishing........................................................................................................................ 19-20
Lighting Instructions................................................................................................................ 21
Main Burner Flame Characteristics ........................................................................................ 22
Operation Instructions / LED Lights ....................................................................................... 23
Wiring......................................................................................................................................... 24
Maintenance.............................................................................................................................. 25
Troubleshooting........................................................................................................................ 26
Master Parts Distributor List ................................................................................................... 27
How To Order Repair Parts...................................................................................................... 27
OL48TP Parts List..................................................................................................................... 28
OL60TP Parts List..................................................................................................................... 28
OL48TP Parts View ................................................................................................................... 29
OL60TP Parts View ................................................................................................................... 29
Firepit Service History.............................................................................................................. 30
Warranty Terms......................................................................................................................... 31
SECTION PAGE

37795-3-0119Page 4
IMPORTANT SAFETY INFORMATION
SAMPLE WARNINGS AND DEFINITIONS:
DANGER:Indicatesahazardoussituationwhich,ifnot
avoided,willresultindeathorseriousinjury.
WARNING:Indicatesahazardoussituationwhich,ifnot
avoided,couldresultindeathorseriousinjury.
CAUTION:Indicatesahazardoussituationwhich,ifnot
avoided,couldresultinminorormoderateinjury.
NOTICE:Addressespracticesnotrelatedtopersonalinjury.
DANGER
• Children and adults should be alerted to the hazard of
high surface temperature and should stay away to avoid
burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same area with the repit.
• Clothing or other ammable materials should not be
hung near the repit, or placed on or near the repit.
• Keep the repit area clear and free from combustible
material, gasoline and other ammable vapors and
liquids.
• Never lean over the repit when lighting, or during
operation.
WARNING
• Do not place debris, logs, or other articles in repit
during operation.
• Any modication to controls can be dangerous. Improper
installation can cause serious injury or death from re,
burns, explosion or carbon monoxide poisoning.
• Make a periodic visual check of burners. Clean and
replace damaged parts.
• Never use the repit for cooking.
• Installer: Please leave these instructions with the owner
for future reference
• This unit complies with ANSI Z21.97/CSA 2.41 for Outdoor
Gas Fireplaces.
• Installation and repair should be done by a QUALIFIED
SERVICE PERSON. This repit should be inspected before
use and at least annually by a professional service person.
More frequent cleaning may be required due to insects,
pollen build up, dust, etc. It is imperative that the control
compartments, burners, and circulating air passageways
of the repit be kept clean.
• During manufacturing, fabricating and shipping, various
components of this repit are treated with certain oils,
lms or bonding agents. These agents are not harmful,
but may produce annoying smoke and smells as they are
burned off during initial operation of the repit. This is a
normal temporary occurrence.
• Follow all local codes regarding installation, combustion
and ventilation air or in the absence of local codes follow
the National Fuel Gas Code ANSI Z223.1 (US installation),
or CAN/CGA-B149, installation Code (Canada installation).
• Inspect the burner at least once a year.
• Keep burner and control compartment clean.
• DO NOT use this repit if any part has been under water.
Immediately call a qualied service technician to inspect
the repit and to replace any part of the control system
and any gas control which has been under water.
• Any guard or other protective device removed for servicing
the appliance must be replaced prior to operating the
appliance.
This manual includes warnings intended to help protect you during the installation and use of this product. Each warning begins
with the alert symbol and an alert word in bold letters—followed by the specics of the warnings. Please review the sample
warnings below.
ABOUT (WARNING) INFORMATION BELOW

37795-3-0119 Page 5
SAFETY INFORMATION FOR USERS OF PROPANE GAS
Propane is a ammable gas which can cause res and explo-
sions. In its natural state, propane is odorless and colorless.
You may not know all the following safety precautions which
can protect both you and your family from an accident. Read
them carefully now, then review them point by point with the
members of your household. Someday when there may not
be a minute to lose, everyone’s safety will depend on knowing
exactly what to do. If, after reading the following information,
you feel you still need more information, please contact your
gas supplier.
PROPANE GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas
because of the odorant put in the Propane Gas.
That's your signal to go into immediate action!
• Donotoperateelectricswitches,lightmatches,useyourphone.
Donotdoanythingthatcouldignitethegas.
• Geteveryoneoutofthebuilding,vehicle,trailer,orarea.Do
thatIMMEDIATELY.
• Closeallgastankorcylindersupplyvalves.
• PropaneGasisheavierthanairandmaysettleinlowareas
such as basements. When you have reason to suspect a gas
leak,keepoutofbasementsandotherlowareas.Stayoutuntil
reghtersdeclarethemtobesafe.
• Useyourneighbor’sphoneandcallatrainedPropaneGas
servicepersonandtheredepartment.Eventhoughyoumay
notcontinuetosmellgas,donotturnonthegasagain.Donot
re-enterthebuilding,vehicle,trailer,orarea.
• Finally, lettheservicemanandreghterscheckforescaped
gas.Havethemairouttheareabeforeyoureturn.Properly
trainedPropaneGas servicepeopleshouldrepairtheleak,
thencheckandrelightthegasreplaceforyou.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell
the odor of the chemical put into the gas. You must nd out if
you can smell the odorant in propane.Smokingcandecrease
yourabilitytosmell.Beingaroundanodorforatimecanaffectyour
sensitivity or ability to detect that odor. Sometimes other odors in
theareamaskthegasodor.Peoplemaynotsmellthegasodoror
theirmindsareonsomethingelse.Thinkingaboutsmellingagas
odorcanmakeiteasiertosmell.
The odorant in Propane Gas is colorless, and it can fade under
some circumstances. Forexample, if thereisan underground
leak,themovementofthegasthroughsoilcanltertheodorant.
OdorantsinPropaneGasalsoaresubjecttooxidation.Thisfading
canoccurifthereisrustinsidethestoragetankorinirongaspipes.
The odorant in escaped gas can adsorb or absorb onto or into
walls,masonryandothermaterialsandfabricsinaroom.Thatwill
takesomeoftheodorantoutofthegas,reducingitsodorintensity.
PropaneGasmaystratifyinaclosedarea,andtheodorintensity
could vary at different levels. Since it is heavier than air, there may
bemoreodoratlowerlevels.Alwaysbesensitivetotheslightestgas
odor.Ifyoudetectanyodor,treatitasaseriousleak.Immediately
go into action as instructed earlier.
SOME POINTS TO REMEMBER
• LearntorecognizetheodorofPropaneGas.YourlocalPropane
GasDealercangiveyoua“ScratchandSniff”pamphlet.Use
ittondoutwhatthepropaneodorsmellslike.Ifyoususpect
thatyourPropaneGashasaweakorabnormalodor,callyour
PropaneGasDealer.
• Ifyouarenotqualied,donotlightpilotlights,performservice,
ormakeadjustmentstoreplacesonthePropaneGassystem.
Ifyouarequalied,consciouslythinkabouttheodorofPropane
Gaspriortoandwhilelightingpilotlightsorperformingservice
ormakingadjustments.
• Odorfade,duetooxidationbyrustoradsorptiononwallsof
newcylindersandtanks,ispossible.Therefore,peopleshould
beparticularlyalertandcarefulwhennewtanksorcylinders
areplacedinservice.Odorfadecanoccurinnewtanks,or
reinstalledoldtanks,iftheyarelledandallowedtosettoo
longbeforerelling.Cylindersandtankswhichhavebeenout
ofserviceforatimemaydevelopinternalrustwhichwillcause
odorfade.Ifsuchconditionsaresuspectedtoexist,aperiodic
sniff test of the gas is advisable. If you have any question
about the gas odor, call your Propane Gas Dealer. Aperi-
odic sniff test of the Propane Gas is a good safety measure
under any condition.
• If,atanytime,youdonotsmellthePropaneGasodorantand
youthinkyoushould,assumeyouhavealeak.Thentakethe
same immediate action recommended above for the occasion
whenyoudodetecttheodorizedPropaneGas.
• Ifyouexperienceacomplete“gasout,”(thecontainerisunder
novaporpressure),turnthetankvalveoffimmediately.Ifthe
containervalveislefton,thecontainermaydrawinsomeair
throughopeningssuchaspilotlightorices.Ifthisoccurs,some
newinternalrustingcouldoccur.Ifthevalveisleftopen,then
treatthecontainerasanewtank.Alwaysbesureyourcon-
tainer is under vapor pressure by turning it off at the container
beforeitgoescompletelyemptyorhavingitrelledbeforeitis
completely empty.

37795-3-0119Page 6
PRODUCT SPECIFICATIONS
DECORATIVE CRUSHED GLASS
Required Decorative Crushed Glass Media Kits (5 Sq. Ft. Minimum, 7 Sq. Ft. Maximum) Required for
OL48 Burner and LED Lighting, and (6 Sq. Ft. Minimum, 8 Sq. Ft. Maximum) for OL60 Burner and LED Lighting
Model Description
DG1CLF* ClearFrost
DECORATIVE CRUSHED GLASS (FOR ACCENT ONLY)
Model Description Model Description
DG1BKP* BlackPolished DG1BCR Copper
DG1BUC* Blue DG1BZR Bronze
*ClearFrostDecorativeCrushedGlassisrecommended,ifrepitisequippedwithLEDlighting.DecorativeGlassDropletscannotbe
substitutedforcrushedglass.Onebagofcrushedglasscovers1sq.ft.Glasscolorsmaybemixed.ThemaximumamountofCrushed
DecorativeGlassallowedis8bagsonOL60,and7bagsonOL48.TransparentandTranslucentcrushedglasswillallowLEDsto
maximizebrightnessofLEDlighting.
DECORATIVE GLASS DROPS & DROPLETS (MAY BE USED IN ADDITION TO CRUSHED GLASS AS AN ENHANCEMENT)
Model Description Model Description
DG1NXS 1-in.DecorativeGlassDrops-OnyxSolid DG1AB 1/2-in.DecorativeGlassDroplets-AquaBlue
DG1RYC 1-in.DecorativeGlassDrops-RubyClear DG1GC 1/2-in.DecorativeGlassDroplets-GlacierIce
DG1TZC 1-in.DecorativeGlassDrops-TopazClear DG1SL 1/2-in.DecorativeGlassDroplets-SangriaLuster
NOTE:
DecorativeGlassDropletsmaybeaddedontopofthecrushedglassasanenhancement.DecorativeGlassDropletsmustnotbe
placedintheburnerame.SeeCrushedGlassInstallation,Page22.DonotaddmorethanonebagofDecorativeglassdroplets.
ACCESSORIES
Model Description
OL48TP OL60TP
DT48LSS DT48LSS StainlessSteelDrainTray-(Fits48and60-inchrepits)
WC48LSS WC60LSS Stainless Steel Weather Cover
WG484LT WG604LT DeectorGlassKit(Forwindyapplications)
37992 37993 NaturaltoPropaneConversionKit
37991 37994 PropanetoNaturalConversionKit
BBA BBA Tilt-OutPropaneTankDoorKit
BRB BRB VentRegisterKit(Includes2vents)
ACCESSORIES
Model
Number
BTUH
Max. Rate
BTUH
Min. Rate
Gas
Type
Valve
Type
Orice
Size
Air Shutter
Setting
OL48TP10N 55,000 39,500 Natural MANUAL 24 1/16in.Open
OL48TP10P 55,000 35,500 Propane MANUAL 43 3/8in.Open
OL48TP18N 55,000 39,500 Natural MANUAL 24 1/16in.Open
OL48TP18P 55,000 35,500 Propane MANUAL 43 3/8in.Open
OL60TP10N 65,000 46,500 Natural MANUAL 12 1/16in.Open
OL60TP10P 65,000 38,000 Propane MANUAL 41 FullyOpen
OL60TP18N 65,000 46,500 Natural MANUAL 12 1/16in.Open
OL60TP18P 65,000 38,000 Propane MANUAL 41 FullyOpen
Natural Gas Propane Gas
ManifoldPressureSetting 4-1/2"w.c. 11"w.c.
GasInletPressureMax 7"w.c. 11"w.c.

37795-3-0119 Page 7
FIREPIT DIMENSIONS
Index
Letter Dimension Description OL48TP OL60TP
Dimensions In Inches
A TheMaximumHeightofTheFirepit 73/8 73/8
B TheMaximumWidthofTheFirepit 53 65
CTheMaximumDepthofTheFirepit 237/8 237/8
D TheMaximumDepthofTheCrushedGlassBed 1311/16 1311/16
ETheMaximumWidthofTheCrushedGlassBed 467/8 587/8
F EndGasLineOpeningsFromCenterlineofFirepit 6 6
G EndGasLineOpeningsFromBottomofFirepit 29/16 29/16
H EndElectricalOpeningHeightFromBottomofFirepit 25/16 25/16
IBottomElectricalOpeningsFromEndofFirepit 11/16 11/16
JBottomGasLineOpeningsFromEndofFirepit 115/16 115/16
K BottomElectricalOpeningsFromCenterlineofFirepit 31/4 31/4
L BottomGasLineOpeningsFromCenterlineofFirepit 5 5
M BottomCabinetDepth 227/16 227/16
N BottomCabinetWidth 513/4 633/4
OBottomDrainHoleLocationsFromCenterline 5 5
PBottomDrainHoleLocationsFromCenterline 21 21
C
B
D
E
A
N
K
L
I
J
C
L
TOP VIEW
SIDE VIEW
BOTTOM VIEW
G
F
H
M
C
L
END VIEW
C
L
P
DRAIN
HOLES (6)
O
Figure 1
Figure 2
Figure 3
Figure 4

37795-3-0119Page 8
INTRODUCTION
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization equipment
or accessories and repair and servicing of equipment shall be
performedonlybyaqualiedagency.Theterm"qualiedagency"
meansanyindividual,rm,corporationorcompanywhicheitherin
person or through a representative is engaged in and is responsible for
(a)theinstallationorreplacementofgaspipingor(b)theconnection,
installation,repairorservicingofequipment,whoisexperiencedin
suchwork,familiarwithallprecautionsrequiredandhascomplied
withalltherequirementsoftheauthorityhavingjurisdiction.
Local Codes
• Whentherepitisconnectedtoaxedpipingsystem,thein-
stallationmustconformwithlocalcodes,orintheabsenceof
localcodeswiththeNational Fuel Gas Code, ANSI Z223.1/
NFPA 54, or International Fuel Gas Code.
• Wheninstalled,therepitmustbeelectricallygrounded
inaccordancewithlocalcodes,orintheabsenceoflocal
codeswiththeNational Electrical Code, ANSI/NFPA 70, if
applicable.
Commonwealth of Massachusetts: The installation must be
madebyalicensedplumberorgastterintheCommonwealth
ofMassachusetts.
Theinstallationmustconformwithlocalcodesor,intheabsence
oflocalcodes,withtheNationalFuelGasCode,ANSIZ223.1.*
*Available from theAmerican National Standards Institute, Inc. 1430
Broadway, New York, N.Y. 10018.
High Altitudes
Foraltitudes/elevationsabove2,000feet(610m),ratingsshouldbe
reducedattherateof4percentforeach1,000feet(305m)above
sea level. Contact the manufacturer or your gas company before
changingspud/oricesize.
Conversion Kits
Conversionkitsareavailable.Seepage6.Installationofaconversion
kitshouldbedonepriortoapplyingmediamaterialstotheburner
and screen areas.
Instructions to Installer
1. Installermustleaveinstructionmanualwithownerafter
installation.
2. Installermusthaveownerlloutandmailregistrationcard
suppliedwiththisrepitorregisteronlineat
www.empirecomfort.com.
3. Installershouldshowownerhowtostartandoperateoutdoor
repit.
AlwaysconsultyourlocalBuildingDepartmentregardingregulations,
codesorordinanceswhichapplytotheinstallationofanoutdoor
gasreplace.
WARNING
To avoid injury or damage to the repit or surrounding area,
do not burn wood or other solid fuels in this repit.
WARNING
Any change to this repit or its controls can be dangerous.
Improper installation or use of the repit can cause serious
injury or death from re, burns, explosion or carbon monoxide
poisoning.
ThisseriesisdesigncertiedinaccordancewithANSI Z21.97/CSA
2.41 for Outdoor Gas Fireplaces and should be installed according
to these instructions.
Any alteration of the original design, installing it other than as
shown in these instructions or using a type of gas not shown
on the rating plate, is the responsibility of the person and
company making the change.
Manual Valve Safety System
Whentheburnerignites,athermocouplesensesasignal(electrical
current)thatenergizesamagnetinthegasvalve.After30to60
seconds,thecontrolknobcanbereleased.Ifthethermocouple
doesnotsensetheame,thegaswillshutoff.
Important
AllcorrespondenceshouldrefertocompleteModelNumber,Serial
Numberandtypeofgas.
Moisture Resistance
Whenpurchasingarepitwerecommendyoualsobuyaweather
covertoprotecttheunitfromexcessivemoisture.Neverinstalla
burnerwheremoisturecannotdrainoffeasily.
NOTICE:Thisrepitisdesigncertiedasanoutdoorgasreplace,
thereforesomereferencesmaystate"replace"asrequiredbythe
ANSI Z 21.97/CSA 2.41standardforoutdoorgasreplaces.

37795-3-0119 Page 9
What to Consider Before Installing
1. Verifyrepitgastypeandgassupplytypearethesame.
2. Lookforalocationwherecombustibleswillnotinterfere.
3. 120VGFIpoweroutletwillbeneededforLEDlights
4. Choose a location for gas shutoff valve. Installation requires that
anaccessableexternalgasshutoffbeinstalled.(Notprovided)
5. Verify ventilation meets at least minimum requirements
6. Drainageunderrepit.
7. Drainpanandweathercoveraccessories.(optional)
8. Glasswindkitaccessories(optional)
Whenplanningtheinstallationfortherepit,determinewherethe
unitistobeinstalledandwhetheroptionalaccessoriesaredesired.
Gassupplypipingshouldalsobeplannedatthistime.
Therepitcanbemountedonanyofthesesurfaces:
1. Araisedframeofcombustiblematerial.
2. Brick,block,orstonebaseinstallation
Contactmustbemadeonallfourperimeterangeswithadepth
ofleast7-1/2inchestoretaintherepit.Internalopening
dimensionsareshowninFigure 5. Enclosures should include
provisionforwaterdrainage.
B
C
A
Figure 5
OL48TP OL60TP
Internal Enclosure Dimensions (inches)
HeightA *7-1/2Min. *7-1/2Min.
WidthB 51-3/4Min.
52-1/2Max. 63-3/4Min. 64-1/2Max.
DepthC 22-5/8Min. 23-1/2Max. 22-5/8Min. 23-1/2Max.
*Ifinstallingadraintrayaccessary,addatleast6"inchesmoreto
theheightoftheenclosuretoallowenoughspaceforthedrainpan,
connector, and tubing clearance.
Atthispoint,youshouldhavedecidedwhatcomponentstoinclude
inyourinstallation,andwheretherepitistobelocated.Ifthishas
notbeendone,stopandconsultyourdealerforassistancewith
this planning.
WARNING
This repit is intended for installation on an outdoor patio
or yard. This repit shall be used only outdoors in a well
ventilated space and shall NOT be used in a building, garage,
or other enclosed area. This repit cannot be installed with
an opening to the inside of a residence.
NOTICE: This repit is NOT equipped with an Oxygen Depletion
Sensor (ODS) pilot.
Installationoftherepitmaybeinan"open"area,howeveritis
recommendedthatthisrepitbeinstalledinanareashelteredfrom
directwinds.
Directwindwillcauseanerraticameandpossibleburneroutage.
Thiserraticamecouldalsoleadtoexcessiveblacksoot.These
are nuisance issues rather than safety issues.
Typical installation may include covered patio, open porch, gazebo
oranoutsidewallofahouse.
• Minimumporcharea–96squarefeet
• Minimumceilingheight–48inches
LEDLightswillrequirea120VGFIpoweroutletonthevalveend
oftherepit.TheGFIplugwillbelocatedoutsideoftherepit.A
junctionboxisprovidedinsidetherepittoprovidealocationto
plugintheLEDs.
Outdoor Firepit Location Requirements
Do not install repit until all necessary provisions are made for
combustion and ventilation air. Consult the written instructions
providedwiththerepitforinformationconcerningcombustionand
ventilationair.Intheabsenceofinstructions,refertotheNational
FuelGasCode,ANSIZ223.1/NFPA54,AirforCombustionand
Ventilation, or applicable local codes.
Installation in partial enclosures must conform with one of the
followingconditions:
• Withwallsonbackandoneside,butwithnooverheadcover.
See Figures 6.
12”
MIN
STUDWALL
12”
TOP VIEW
Figure 6
• Withinapartialenclosurewhichincludesanoverheadcover
andnomorethantwosidewalls.Thesesidewallsmaybe
parallel,asinabreezeway.See Figures 7 and 8.
STUDWALL
TOP VIEW
3 1/4”
MIN
3 1/4”
MIN
Figure 7
FIREPIT
Figure 8
PLANNING INSTALLATION

37795-3-0119Page 10
PLANNING INSTALLATION (CONT'D)
Installationispermissablewithinapartialenclosurethatincludes
anoverheadcoverandthreesidewalls,aslongas30percentor
moreofthehorizontalperiphery(perimeterofwallsandopenside)
of the enclosure is permanently open. See Figures 9,10 and 11.
12”
MIN
STUDWALL
12”
TOP VIEW
Figure 9
FIREPIT
Figure 10
Ifinstallinginascreenedinporch,theopenspacemustbeadjusted
(increased)from30percent(adjustedopenspace=30%/%open
areaofthescreenmesh)."Example,ifyouusedascreenwitha
66%openarea,theminimumopenspaceofyourbuildingmust
be46%oftheperiphery.Ifyouhaveacoveredscreened-inporch
thathastwosidewallsthatare16',onewallthatwasagainstthe
housethat's20'andoneopensidethat's20',youwouldhavea
perimeterof72'.Youwouldneedtohave33'oftheperimeteropen
(72'x46%=33')."
(Contact your screenmanufacturer or screen dealerto determine
your screens open area).
48” MIN
SIDE VIEW
12”
FIREPIT
Figure 11
CAUTION
Vinyl Soft, Vinyl Ceiling, Vinyl Overhang Disclaimer Clearances
are to heat resistant material (i.e. wood, metal). This does
not include vinyl. Empire Comfort Systems Inc. will not be
held responsible for heat damage caused from terminating
under vinyl overhangs, vinyl ceilings or vinyl ventilated/
unventilated softs.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal injury
or loss of life. Installation and service must be performed
by a qualied installer, service agency or the gas supplier.
GAS LINE CONNECTION
Therepitisdesignedtoaccepta3/8-in.gaslineonOL48TPunits,
anda1/2-in.gaslineonOL60TPunits.Havethelineinstalledby
aqualiedservicepersoninaccordancewithallbuildingcodes.
Consult local building codes to properly size the gas supply line
leading to the gas hook-up at the unit.The Commnowealth of
Massachusettsrequiresthataexiblereplaceconnectorcannot
exceedthreefeetinlength.See Figure 12.
Aex-lineconnectiontothevalvesisprovided.The gas shut-off
valve (not supplied) must be located outside of the unit in an
accessible area.
Checkgastypeontheratinglabellocatedontheundersideofthe
control door. If the gas listed on the rating label does not match
yourgassupply,DONOTINSTALL.Contactyourdealerforproper
modelorconversionkit.
AlwaysuseanexternalregulatorforallPropanereplacestoreduce
thesupplytankpressuretoamaximumof11in.w.c.
WARNING
Connection directly to an unregulated L.P. tank can cause
an explosion.
WARNING
Risk of re, explosion or asphyxiation. Ensure no ignition,
ame or spark are near during installation. This includes
cigarettes or cell phones.
Leaktestallconnectionswithasoapandwatersolution.Bubble
formationwillindicatealeakwhileunderpressure.Usecautionto
avoid burns.

37795-3-0119 Page 11

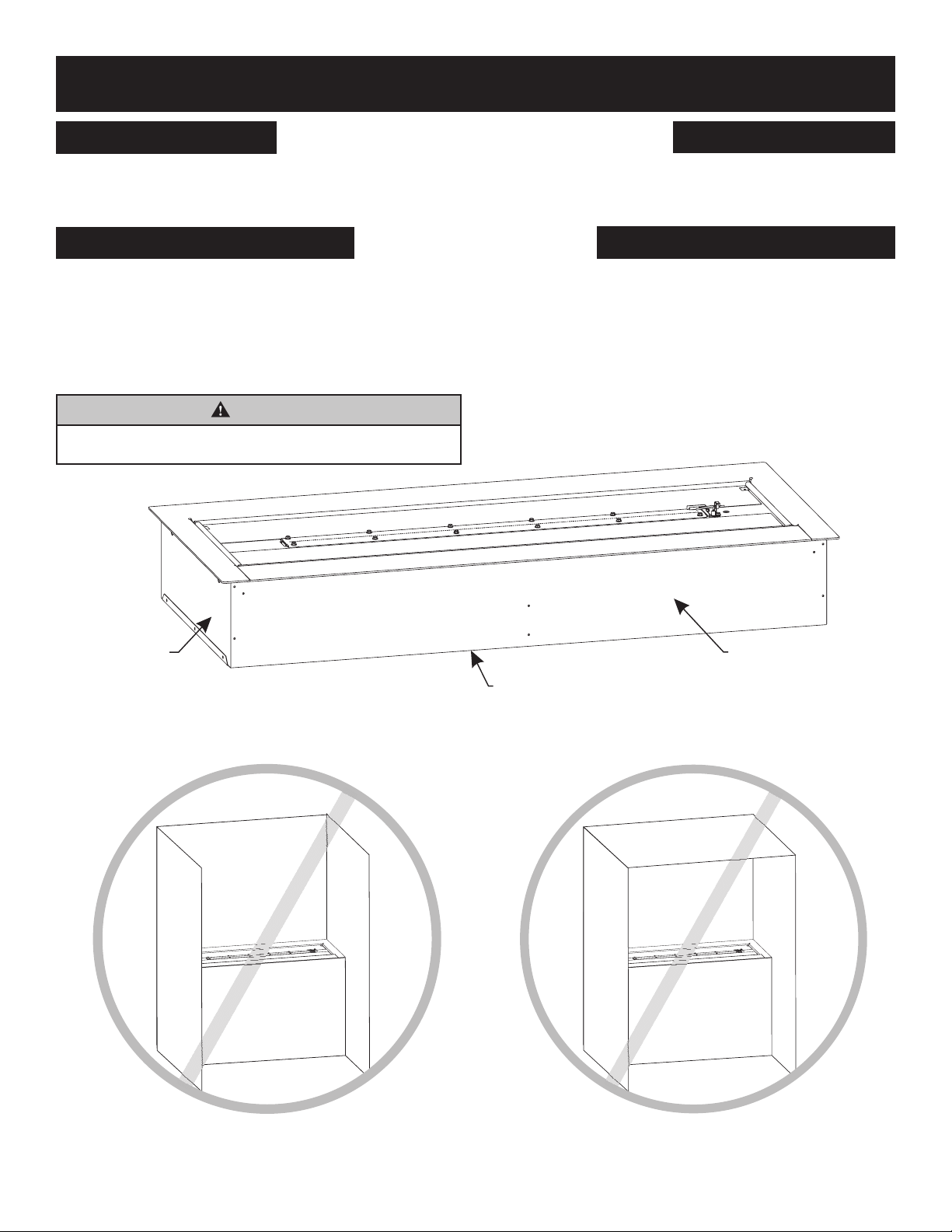

Side Wall Clearances
Theclearancefromtheedgeoftheglassbedintherepittoany
combustiblewallshouldnotbelessthan3-1/4inches.
NOTICE:Forinstallationswitharearwallandsidewall,referto
Figures 6 and 9.
NOTICE:Seepages9and10foradditionalwallandceiling
clearances to combustibles.
Minimum Ceiling Clearances
Ceiling Clearances: The ceiling height should not be less than
48inchesfromthetopsurfaceoftherepit.
Rear Wall Clearances
Theclearancefromtheedgeoftheglassbedintherepittoany
combustiblerearwallshouldnotbelessthan12inches.
CAUTION
Vinyl siding must not be installed within 24 inches of the
edge of the glass bed in the repit.
PLANNING INSTALLATION (CONT'D)
Nogreetingcards,stockingsorornamentationofanytypeshould
beplacedovertherepit.Thisisanopenameappliance.Theow
ofheatandamescanignitecombustibles.
No vinylsidingmaterialscanbeinstalledwithin24inchesofthe
crushedglassareaontherepit.
REAR
SIDE
SIDE
3-wall alcove not allowed.
Figure 13
REAR
SIDE
SIDE
CEILING
3-wall alcove with ceiling not allowed.
Figure 14
CLEARANCES
COMBUSTIBLEMATERIALS
0” TO FRONT
AND REAR SIDES
0” TO BOTTOM
0” TO
LEFT AND
RIGHT SIDES
COMBUSTIBLE CLEARANCE REQUIREMENTS
Figure 12
COMBUSTIBLECLEARANCEREQUIREMENTS

37795-3-0119Page 12
MODEL GAS FLEX LINE CONNECTION
OL48TP Use3/8inchmaleareconnection
OL60TP Use1/2inchmaleareconnection
Figure 15
WATER DRAINAGE REQUIREMENT
Provisionsmustbemadetodrainwaterawayfromtheunit.An
optionaldrainpancanbepurchasedfromyourEmpireDealerto
tundertherepit.Ifinstallingtheoptionaldrainpan,itmustbe
installedpriortoinstallingtherepit.Formoreinformation,refer
totheinstallationinstructionssuppliedwiththedrainpan.Ifthis
drainisnotused,otherwaterdrainageisrequiredtoowaway
fromtheinstalledrepitcustombaseconstruction.See Figure 3
for drain hole locations.
ELECTRICAL CONSIDERATIONS (LED Lighted Units Only)
Afactoryinstalledjunctionboxislocatedonthelowerrightside
oftherepit.Thejunctionboxandwiringmayberelocatedto
theoppositesideoftherepitifdesired.Wiringtothejunction
boxmustbemetalcladorenclosedinaconduitandmustbe
approvedforoutdooruse.ConnectthewiringtoanexternalGFI
protectedoutletinstalledneartherepit.Refertoelectricalsupply
section for additional information on pages 13 and 24.
PLANNING INSTALLATION (CONT'D)

37795-3-0119 Page 13
FIREPIT INSTALLATION
GFI
OUTLET
Figure 16
GROUND
CONDUIT
RECEPTACLE
120 VOLT
POWER SUPPLY
OUTLET
COVER
GASKET
TRANSFORMER
POWER
CORD
Figure 17

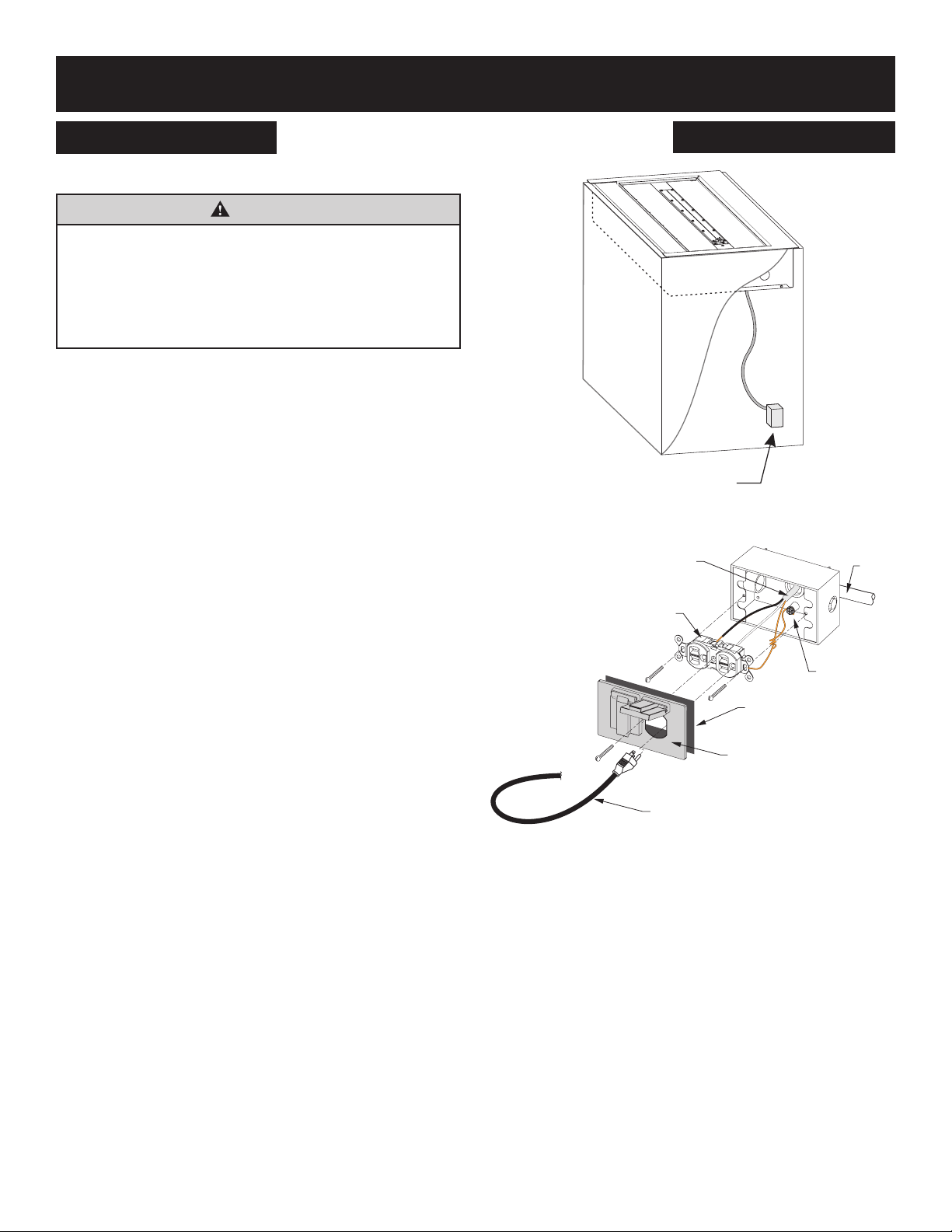

ELECTRICALSUPPLY
FOR FIREPITS WITH LED LIGHTS ONLY
CAUTION
All wiring should be done by a qualied electrician and
shall be in compliance with all local, city and state building
codes. Before making the electrical connection, make sure
that the main power supply is disconnected. The repit,
when installed, must be electrically grounded in accordance
with local codes, or in the absence of local codes, with the
National Electrical Code ANSI/NFPA 70 (Latest Edition).
Wiringtothejunctionboxmustbemetalcladorenclosedina
conduitandmustbeapprovedforoutdooruse.Aconnectorfor
thejunctionboxtoaccommodate1/2-in.conduitissuppliedinthe
instructionenvelope.Therepitreceptaclemustbeconnected
toanexternalGFIprotectedoutletinstalledneartherepit.See
Figure 16.
RoutethewiringfromtheexternalGFIoutletthroughtheconduit
tothejunctionbox.Leaveapproximately6-in.ofwireinthe
junctionboxforconnection.
Retrieve the receptacle and cover from the instruction envelope.
Attachtheblackwiretothegoldscrewandwhitewiretothe
silverscrewofthereceptacle.Thegroundwireshouldbe
attachedtothegreengroundscrewonthejunctionboxandthe
receptacle. See Figure 17.
Placereceptacleinpositionandattachcoverplate.Makesurethe
coverplatedoorsopenupward.Besuretotestthereceptacleto
ensuretheGFIcircuitfunctionsproperly.Plugtransformerpower
cord into receptacle, and close the unused receptacle door. See
Figure 17.

37795-3-0119Page 14
FIREPIT INSTALLATION (CONT'D)
• Solidfuelsshallnotbeburnedinthisrepit.
• Themaximumgasinletsupplypressureis11in.forPropane
and7in.forNatural.
• Forrepitswithaxedfuelpipingsystemandequippedwith
a gas pressure regulator, the required manifold pressure in
incheswatercolumn:11in.forPropaneand
4.5in.Natural.
• Forrepitswithaxedfuelpipingsystemandequippedwith
arepitgaspressureregulator,therepitanditsindividual
shutoff valve must be disconnected from the gas supply pip-
ing system during any pressure testing of that system at test
pressuresinexcessof1/2psi(3.5kPa).
Therepitmustbeisolatedfromthegassupplypiping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressuresequaltoorlessthan1/2psi(3.5kPa).
Checkalllocalcodesforrequirements,especiallyforthesizeand
type of gas supply line required.
RECOMMENDED MINIMUM GAS PIPE DIAMETER
Pipe
Length
Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Natural Propane Natural Propane
0-10feet
0-3meters
1/2in.
12.7mm
3/8in.
9.5mm
1/2in.
12.7mm
3/8in.
9.5mm
10-40feet
4-12meters
1/2in.
12.7mm
1/2in.
12.7mm
5/8in.
15.9mm
1/2in.
12.7mm
40-100feet
13-30meters
1/2in.
12.7mm
1/2in.
12.7mm
3/4in.
19mm
1/2in.
12.7mm
100-150feet
31-46meters
3/4in.
19mm
1/2in.
12.7mm
7/8in.
22.2mm
3/4in.
19mm
NOTICE:Checktoconrmwhetheryourlocalcodesallowplastic
or copper tubing for outdoor use.
NOTICE:Becausesomemunicipalitieshaveadditionallocalcodes,
consult your local authority and installation code.
Installing a Manual Gas Shut-Off Valve
Eachrepitmusthaveanaccessiblemanual gas shut-offvalve
locatedinthevicinityoftheunit.Wherenoneexists,orwhereitssize
or location is not adequate, contact your local authorized installer
for installation or relocation.
Compoundsusedonthreadedjointsofgaspipingshallberesistant
totheactionofliqueedpetroleumgases.Thegaslinesmustbe
checkedforleaksbytheinstaller.Thisshouldbedonewithasoap
solutionwatchingforbubblesonallexposedconnections,andif
unexposed,apressuretestshouldbemade.Toavoiddamageto
thegaspiping,removealltestingsolutionwhentestingiscomplete.
WARNING
Never use an exposed ame to check for leaks. The repit
must be disconnected from piping at inlet of control valve
and pipe capped or plugged for pressure test. Never pressure
test with repit connected; control valve will sustain damage!
Agasvalveandgroundjointunionshouldbeinstalledinthegas
line upstream of the gas control to aid in servicing. It is required by
theNationalFuelGasCodethatadriplinebeinstallednearthe
gas inlet. This should consist of a vertical length of pipe connected
intothegaslinebyateetingwithacaponthebottominwhich
condensation and foreign particles may collect.
Theuseofthefollowinggasconnectorsisrecommended:
— ANSIZ21.24ApplianceConnectorsofCorrugatedMetalTubing
andFittings
— ANSI Z21.45 Assembled Flexible Appliance Connectors of
OtherThanAll-MetalConstruction
The above connectors may be used if acceptable by the authority
havingjurisdictionTheCommonwealthofMassachusettsrequires
thataexibleapplianceconnectorcannotexceedthreefeetinlength.
LP GAS
SUPPLY
SHUT-OFF
VALVE
FLEX TUBING
MALE NPT to
MALE FLARE
VALVE
MALE NPT to
MALE FLARE
LP GAS
SUPPLY
FEMALE NPT to
FEMALE NPT
LP GAS SUPPLY
NATURAL
GAS SUPPLY
SHUT
-OFF
VA
LVE
FLEX TUBING
MALE NPT to
MALE FLARE
REGULATOR
NIPPLE
NATURAL
GAS SUPPLY
MALE NPT to
MALE FLARE VALVE
FEMALE NPT to
FEMALE NPT
NAT GAS SUPPLY
Figure 18
NOTICE: Gasshut-offvalveshown.Othervalvesapprovedto
usewithgasallowed.
Flextubingtovalveispre-installedatthefactory.Flareconnector
islooselyinstalledforshippingpurposesonly.Anaccessible
manualgasshut-offvalvemustbeinstalledexternaltotherepit.
GASSUPPLY
PROPANEGASSUPPLY
NATURALGASSUPPLY

37795-3-0119 Page 15
WARNING
If these instructions are not precisely followed, a re may
occur causing death or serious injury.
Propane Cylinder Specications
Thisrepitreplacecanbeusedwithanon-disposableself-con-
tainedPropaneGassupplysystem:
• Propanecylindersmaybeacceptableforusewiththe
replaceprovidedtheyarecompatiblewiththerepit
retention means.
• PropaneGassupplycylindermustbeconstructedand
markedinaccordancewiththeU.S. Department of
Transportation (D.O.T.) Specications for Propane Gas
Cylinders, or the Standard for Cylinders, Spheres and
Tubes for Transportation of Dangerous Goods and Com-
mission, CAN/CSA-B339 as applicable.
• PropaneGassupplycylindersbetween4and40
poundsmusthaveanoverllpreventiondevice.
• PropaneGassupplycylindermusthaveaconnection
devicecompatiblewiththeconnectionoftherepit.
• IftherepitisequippedwithaCGANo.600Cylinder
ConnectionDevice,thecylindermustbedisconnected
whentherepitisnotinuse.
• Iftherepitistobepermanentlyconnectedtoagaspip-
ingsystemfromaremotesupplytank,installationmust
beinaccordancewithlocalcodesor,intheabsence
oflocalcodes,withtheNational Fuel Gas Codes ANSI
Z223.1/NFPA 54.
• Adentedorrustycylindermaybehazardousandshould
becheckedbyyourpropanesupplier.Neveruseacylin-
derwithadamagedvalve.
• TheOL48TP(10,18)Prepitmaybeconnectedtoa20
lb.(9.1kg)sizepropanecylinderonly.(Notsupplied)
• TheOL60TP(10,18)Prepitmaybeusedwitha20lb.
(9.1kg)or30lb.(13.6kg)sizepropanecylinderonly
(notsupplied).
• Thepropanecylindermustbeprovidedwithashut-
off valve terminating in a propane cylinder valve type
QCC1,andasafetyreliefdevicehavingdirectcommu-
nicationwiththevaporspaceofthecylinder.
• The cylinder supply system must be arranged for vapor
withdrawalandthecylindershallincludeacollarto
protect the cylinder valve.
• ThePropaneGascylindermustbeprovidedwitha
listedoverllprotectiondevice(OPD).Neverllthe
cylinder beyond 80 percent full.
• DonotstoreasparePropaneGascylinderunderor
nearthisrepit.
• Useonlyapressureregulatorandhoseassemblythat
suppliesapressureof11in.watercolumntotherepit
andhasaQCC1typetting.
• Cylinderstobeusedwiththisunitmustbesuppliedwith
aQCC1cylindervalve.AQCC1cylinderhasapositive
seatingconnection,whichwillnotallowgasowuntil
a positive seal has been achieved. It is also equipped
withanexcessowdevice.Inordertoattainfullowto
therepit,thevalvemustbeintheoffpositionwhenthe
cylinder valve is turned on.
WARNING
A re will result if the gas supply hose makes contact with
the underside of the replace.
Propane Gas
Attachacylinderretainingbracket(notsupplied)tothebaseof
thecylinder.Thensecuretothesurfacetowhichitsits.Cylinder
should be on a level surface.
Cylinder Retaining Bracket
1. Fastenthebrackettothebottomofthepropanebottleusing
boltandnut(notsupplied).
2. Tightenthelagscrewintothemountingsurfaceleavingap-
proximately1/4in.ofthreadabovethesurface.
3. Slidepropanebottleintopositionsothatthebracketslides
undertheheadofthelagscrew.
4. Tightenthelagscrewontothebracket.
5. Forfasteningtoaconcretesurfaceaconcreteanchorwillbe
required.(Notsupplied)
Cylinder Connection:Ensurethegasregulatorhoseiskink
free. Remove the cap or plug from the cylinder fuel valve. Insert
theblackQCC1regulatornippleontotheQCC1fuelvalve.Hand
tightenclockwise.Donotusetools.Leaktestalljointspriorto
usingtherepit.Aleaktestmustbeperformedannuallyand
eachtimeacylinderishookeduporifapartofthegassystem
isreplaced.Ifthisrepitistobeconnecteddirectlytoahouse
propanegassupplyline,followtheinstructionsforthenatural
gashook-up.
Safety Considerations
• Makesurecylindervalveisinitsfulloffposition.(Turnclock-
wisetostop).
• Checkcylindervalvefeaturestoensureithasproperex-
ternalmatingthreads.(CylinderValveMarked:USEWITH
TYPE1)
• Inspecthosefordamage.Neverattempttousedamagedor
pluggedequipment.SeeyourlocalPropaneGasDealerfor
repairs.
• When connecting regulator assembly to the cylinder valve,
handtightenblackQCC1nutclockwisetoapositivestop.
DONOTuseawrenchtotighten.Useofawrenchmaydam-
agethequickclosingcouplingnutandresultinahazardous
condition.
• Locatethehoseoutofpathwayswherepeoplemaytripover
itorinareaswherethehosemaybesubjecttoaccidental
damage.
• Opencylindervalvefully(counter-clockwise).Turntheshut
offvalveattheunitslowlytotheonpositionanduseasoapy
watersolutiontocheckallconnectionsforleaksasindicated
inthediagramsbeforeattemptingtolighttherepit.Ifaleak
isfound,turntankvalveoffanddonotusetherepituntil
repairs can be made.
FIREPIT INSTALLATION (CONT'D)
PROPANEGASCYLINDERINFORMATION

37795-3-0119Page 16

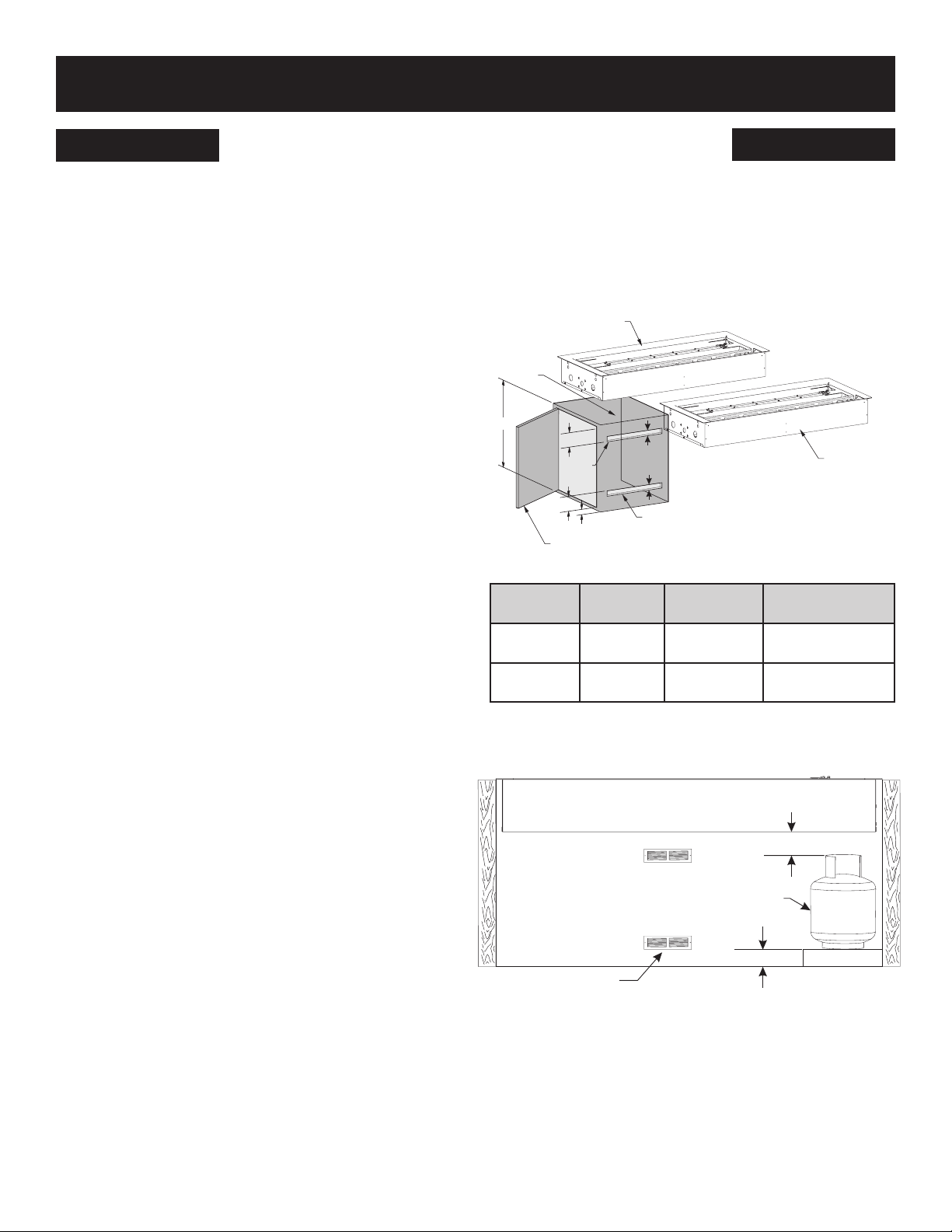

FIREPIT INSTALLATION (CONT'D)
PROPANEGASCYLINDERINFORMATION
Enclosures For Propane Gas Supply Systems
EnclosuresforPropaneGassupplycylindersshallbeventilated
byopeningsatthelevelofthecylindervalveandatoorlevel.
Theeffectivenessoftheopening(s)forpurposesofventilation
shallbedeterminedwiththePropaneGassupplycylinder(s)in
place.Thisshallbeaccomplishedbyoneofthefollowing.
a. One side of the enclosure shall be completely open; or
b. Foranenclosurehavingfoursides,atopandabottom:
1. Atleasttwoventilationopeningsatcylindervalvelevel
shallbeprovidedinthesidewall,equallysized,spaced
at180degrees(3.14rad),andunobstructed.Each
opening shall have a total free area of not less than
1/2sqinperpound(2.3sq.cm/kg)ofstoredfuelcapac-
ityandnotlessthanatotalfreeareaof10sqin(64.5
sq.cm).
2. Ventilationopening(s)shallbeprovidedatoorlevel
andshallhaveatotalfreeareaofnotlessthan1/2sqin
perpound(3.2sq.cm/kg)ofstoredfuelcapacityandnot
lessthanatotalfreeareaof10sqin(64.5sq.cm).If
ventilationopeningsatoorlevelareinasideall,there
shallbeatleasttwoopenings.Thebottomoftheopen-
ingsshallbeatoorlevelandtheupperedgenomore
than5in.(127mm)abovetheoor.Theopeningsshall
beequallysized,spacedat180degrees(3.14rad)and
unobstructed.
3. Every opening shall have minimum dimensions so as to
permittheentranceofa1/8in.(3.2mm)diameterrod.
4. Thereshallbeaminimumclearanceof2in.(51mm)
betweenthelowersurfaceoftheoorofthePropane
Gassupplycylinderenclosureandtheground.
• Cylinder valves shall be readily accessible for hand opera-
tion.Adoorontheenclosuretogainaccesstothecylinder
valvesisacceptable,provideditisnon-lockingandcanbe
openedwithouttheuseoftools.
• Thedesignofthereplaceshallbesuchthat(1)the
PropaneGassupplycylinder(s)canbeconnected,discon-
nected and the connections inspected and tested outside the
cylinderenclosure;and(2)thoseconnectionswhichcould
bedisturbedwheninstallingthecylinder(s)intheenclosure
canbeleaktestedinsidetheenclosure;
• Ventilationopeningsinsidewallsshallnotcommunicate
directlywithotherenclosuresoftherepit.
TheenclosureforthePropaneGascylindershallisolatethe
cylinder from the burner compartment to provide:
a. Shielding from heat radiation;
b. Aamebarrier;and
c. Protection from foreign material.
Be certain to mount the Propane Gas cylinder on a at
surface and restrain it using a cylinder retaining bracket to
prevent it from tipping.
NON-LOCKING
DOOR
OPENING B
OPENING A
C
5” MAX
TO
P AND SIDE PA RTITION
TO ISOLATE TANK FROM
FIREPIT
FIREPIT POSITIONED
ABOVE TANK ENCLOSURE
FIREPIT POSITIONED
BESIDE T
ANK ENCLOSURE
5” MAX
2” MIN
1” MAX
1” MAX
Figure 19
Cylinder
Size
Opening
Area A
Opening
Area B
Recommended
Dimension C
20lb
(9.1kg)
20 sq.in.
(130cm2)
10 sq.in.
(65cm2)
34 in.
(863mm)
30lb
(13.6kg)
30 sq.in.
(195cm2)
15 sq.in.
(100cm2)
34 in.
(863mm)
NOTICE: Thereshallbeaminimumclearanceof2in.(51mm)
betweenthelowersurfaceoftheoorofthePropaneGassupply
cylinder enclosure and the ground.
FIREPIT
2” MIN
ENCLOSURE
2” MINIMUM
REQUIRED ABOVE
GROUND LEVEL
SEE VENT
REQUIREMENTS
LP TANK
Figure 20

37795-3-0119 Page 17
FIREPIT INSTALLATION (CONT'D)
UNPACKING THE FIREPIT
CAUTION
When unpacking the repit use gloves to protect from
sharp edges.
Thecontentsincludetherepitunit,instructionpacket,hardware
package,andtwoburnerpropsupportswhicharelocatedunder
therepitforshippingpurposesonly.
ENCLOSURE CONTRUCTION
Therepitrequiresacustombuiltenclosureforsupport.
Combustibleornon-combustiblematerialscanbeused.Minimum
internal enclosure dimensions are provided. See Figure 21.
Figures 22 and 23 give basic ideas for enclosure construction.
NOTICE:Measurerepitdimensionsandverifyframingorother
support methods before enclosure construction begins.
B
C
A
OL48TP OL60TP
Internal Enclosure Dimensions (inches)
HeightA *7-1/2Min. *7-1/2Min.
WidthB 51-3/4Min.
52-1/2Max. 63-3/4Min. 64-1/2Max.
DepthC 22-5/8Min. 23-1/2Max. 22-5/8Min. 23-1/2Max.
*NOTICE: Additionalheightwillberequired,ifthedrainpan
accessory is installed.
Figure 21 - Internal Enclosure Dimensions
Beforecompletingtheenclosureandinstallingrepit,provideapath
forwaterdrainageoutoftherepit.
Determineiftheoptionalaccessorydrainpanwillbeused.Ifthe
drainpanwillbeinstalled,followtheinstructionsprovidedwith
thedrainpankittoinstallitatthispoint.
INSTALLATION
1. Choose installation location.
2. Construct enclosure. See Figures 21, 22, and 23 for typical
construction options.
3. ProvideelectricalserviceifLED'sareincluded.
4. ProvideforgassupplyconnectionsorPropanetankstorage.
5. IfinstallationincludesPropanetankstorageundertherepit,
usetheoptionalBRBVentKitorrefertothePropanetank
storage requirements on pages 15 and 16. See Figure 19.
BBA LP
TANK DOOR KIT
(OPTION)
BRB VENT KIT
REQUIRED OR
REFER TO LP
TANK ST
ORAGE
REQUIREMENT
ENCLOSURE VENTING REQUIREMENTS
FOR LP TANK STORAGE UNDER FIREPIT
Figure 22
6. Thephotographbelowshowsatypicalrepitinstallationfor
reference only. See Figure 23.
Figure 23
FIREPITENCLOSUREREQUIREMENTS

37795-3-0119Page 18

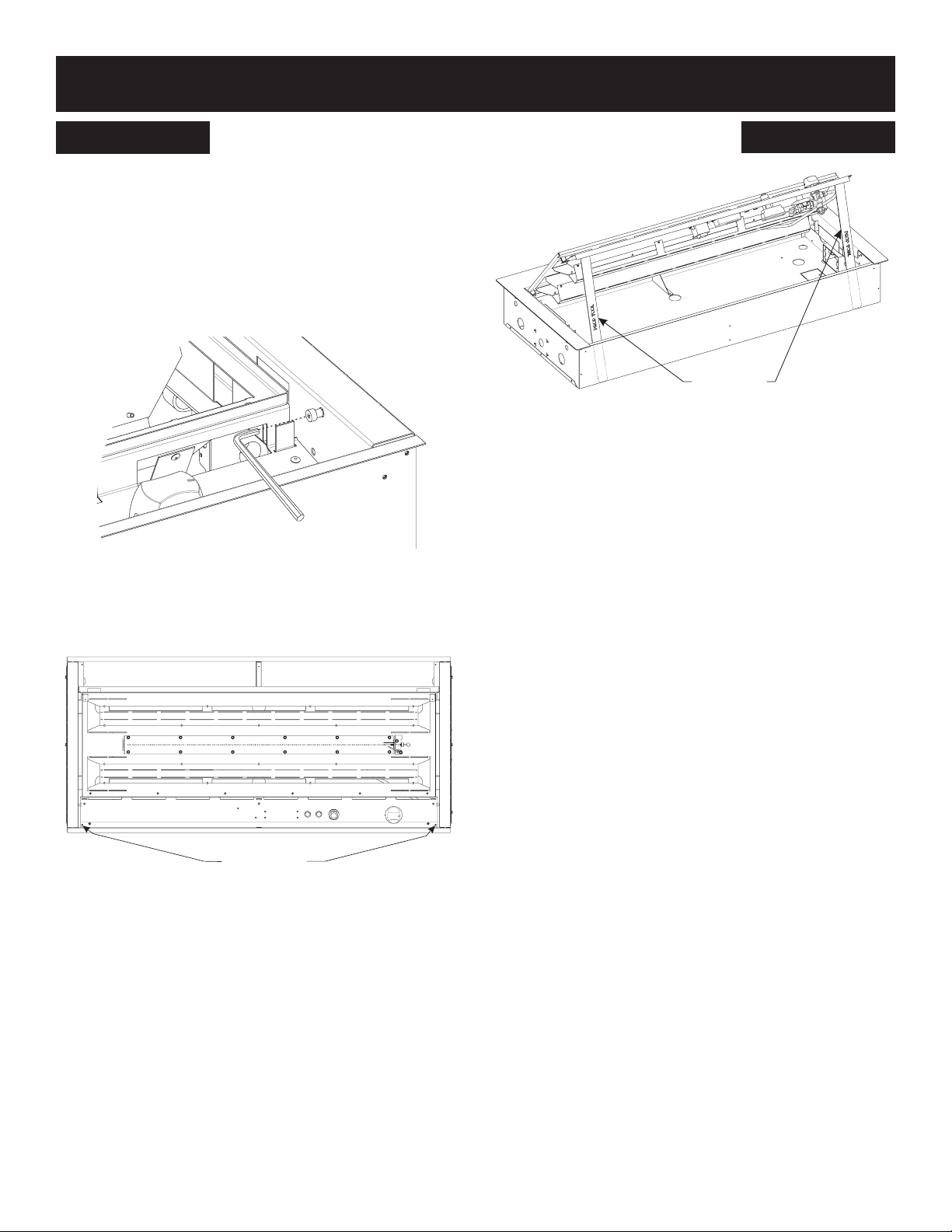

7. To connect the gas line and install the electrical connection,
theburnerassemblymustbetiltedupwardintherepit.
a Remove the control door by opening the door and lifting
thedoorupwardtodisengagetheslotsontheendsof
the door from the pivot bolts.
b. Removethe(4)llerstrips(IndexNo.'s31and32
illustratedonpage29),bysimplyliftingthemupfrom
the burner tray.
c. Removethetwocontroldoorpivotboltsusinga1/8-inch
hexallenwrench.See Figure 24.
Figure 24
d. Usinggloves,removethetwoexpandedmetalburner
cover screens from the burner tray, then set aside.
e. Removetwoscrewsfromfrontcornersofthecontrol
panelwitha5/16-inchhexheaddriver.See Figure 25.
REMOVE (2) HEX
HEAD SCREWS
Figure 25
f. Liftfrontofburnerassemblyandtiltupwardsandtoward
thebackoftherepit.Retrievethetwoproptoolsand
place one each side against the front corners of the
cabinet bottom and under the front corners of the control
panel. See Figure 26.
NOTICE: Usecarewhenraisingtheburnertrayassembly
toavoidscratchingthestainlessinterioroftherepit.
NOTICE: Proptoolsarelocatedundertherepitfor
shipping purposes only.
PROP TOOLS
Figure 26
8. Installgasandelectricalsuppliestorepit.Seepage14for
gas supply requirements. See page 13 for electrical sup-
plyrequirements.FormodelswithLEDlights,besureto
plugthetransformerpowercordplugintothejunctionbox
receptacle. See Figure 17.Foreaseofinstallation,thegas
and electrical supply are located on the valve side of the
repit.Bothmayberelocatedtoentertheoppositesideof
therepit.
9. Removeplasticprotectivelmfromtherepitoutertop,
controldoor,andllertrimpieces.
FIREPIT INSTALLATION (CONT'D)
FIREPITENCLOSUREREQUIREMENTS

37795-3-0119 Page 19

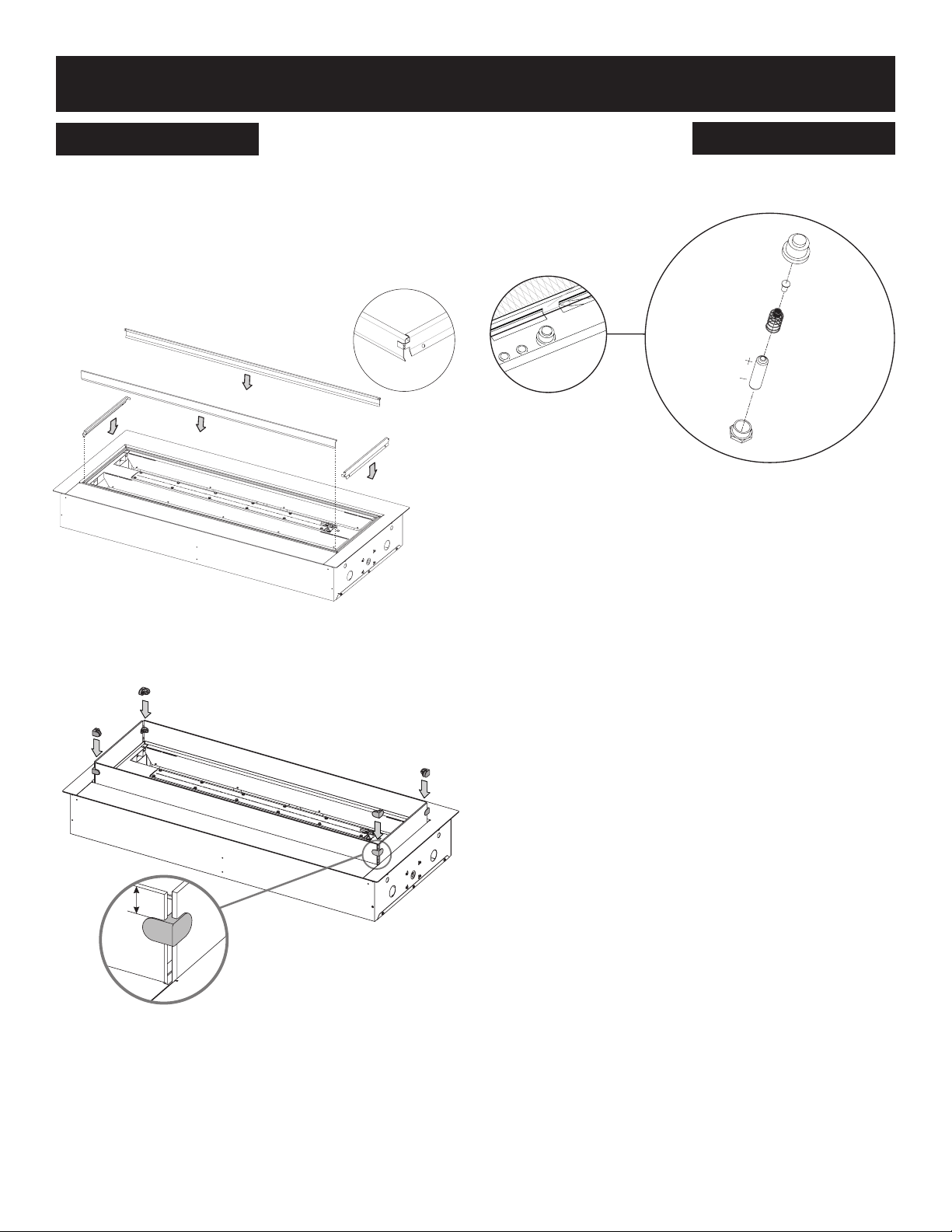

FIREPIT INSTALLATION (CONT'D)
FINISHING
1. Aftergasandelectricalhookupiscompleted,lowerandsecure
theburnerassembly(leavetwoproptoolsinbottomofrepit
forfutureuse)withthetwoscrewsremovedinFigure 25.
2. Installthe(4)llerstrips.Placethetwoshortsidellerstrips
inrst,theninstallthelongfrontandrearllerstrips.Thelong
llerstripswillinterlockattheendswiththesidellerstrips.
See Figure 27a.
INSTALL END
FILLER STRIPS
BEFORE THE LONG
FILLER STRIPS
END
FILLER
STRIP
LONG
FILLER
STRIP
Figure 27a
3. Ifinstallingtheoptionalglasswindpanelkit,donotinstall
thellerstripsinstep2.RefertoFigure 27bforglasswind
panelkitinstallation.
1 1/2”
min
Figure 27b
4. Reinstall the pivot bolts removed in Figure 24 and reinstall the
control door.
5. UnscrewtheignitorbuttonandinstalltheAAbatteryprovidedin
theinstructionenvelopepriortoclosingthecontroldoor.(Note
BatteryPolarity)See Figure 28.
Figure 28
6. Usinggloves,replacethetwoexpandedmetalscreens
removed in Step 7.
7. Afterallgasconnectionsandelectricalhook-ups(ifapplicable)
havebeenmade,checkforproperlightingoftheburner,and
LEDlightoperation(ifapplicable).Refertothelightingand
operation instructions on pages 21 to 23.

37795-3-0119Page 20
FIREPIT INSTALLATION (CONT'D)
FINISHING
Crushed Glass Installation
Ensure the burner cover screens are still properly installed,
fullycoveringtheLEDopenings.Placedecorativecrushed
glassevenlyovertheburnerandscreens(enoughmediato
coverapproximately7sq.ft.onOL48TP,or8sq.ft.onOL60TP
models).(Seepage6formediarequirements).Ensurecoverage
isevenandnotthickerinplaces.
NOTICE: Excessiveamountsofcrushed
glass placed over the burner, electrode,
or thermopile may cause various issues
including delayed lighting or sooting.
Somepiecesofbrokenglassmaybelargerthanothers.Itis
netousethesepieces,butnotovertheburneroramearea.
See Figure 29. Decorativeglassdropletsmaybeaddedasan
enhancement, but can not be used near or over the burner. See
Figure 30.Neitherglassnordropletsmaybeplacedoverthe
electrode.(Seepage6formediaaccessoriesandrequirements).
COVER ENTIRE BURNER AND SCREENED
AREAS WITH CRUSHED GLASS
SPREAD CRUSHED GLASS AWAY
FROM
DO NOT COVER
THERMOCOUPLE AND
ELECTRODE
Figure 29
IF DESIRED GLASS DROPLETS
MAYBE ADDED IN AREA SHOWN - DO NOT USE DROPLETS
ON BURNER
Figure 30
